QNAP TS-364-4G 3-bay NAS Review

1. Introduction2. QNAP TS-364 /Packaging & Bundle3. QNAP TS-364 / Design4. QNAP QTS5. Usability6. Testing Methodology7. ATTO Disk Benchmark8. Intel NASPT9. Backup / Restore10. Encryption Performance11. PCMark10 Data Drive Benchmark12. Real Life File Testing13. SSD Cache Performance14. Power15. Closing Thoughts16. View All Pages

The PCMark 10 Data Drive Benchmark has been designed to test drives that are used for storing files rather than applications. You can also use this test with NAS drives, USB sticks, memory cards, and other external storage devices.

The Data Drive Benchmark uses 3 traces, running 3 passes with each trace.

• Trace 1. Copying 339 JPEG files, 2.37 GB in total, in to the target drive (write test).
• Trace 2. Making a copy of the JPEG files (read-write test).
• Trace 3. Copying the JPEG files to another drive (read test)

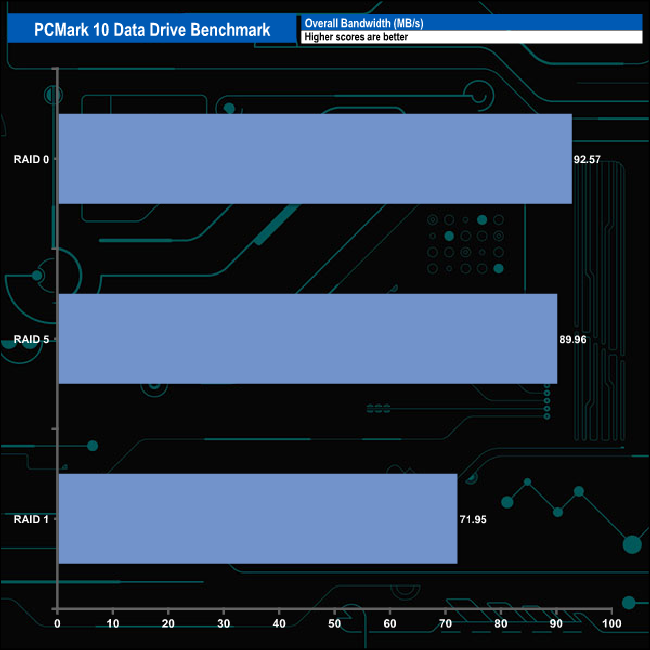

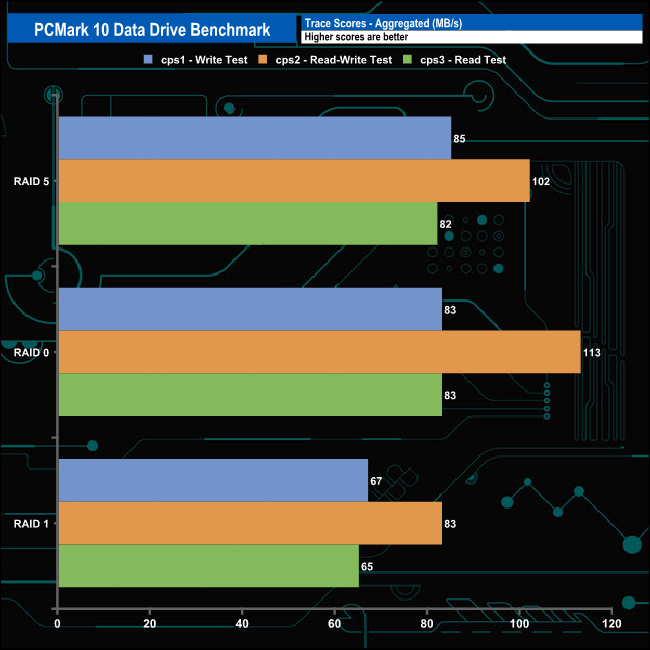

Here we show the total bandwidth performance for each of the individual traces.

QNAP's TS-364 handles PCMark's 10 Data Drive Benchmark very well. In terms of overall bandwidth, there's not much to choose between RAIDs 0 and 5. The same also applies to the individual cps1, 2 and 3 test traces.
