Intel’s NASPT (NAS Performance Toolkit ) is a benchmark tool designed to enable direct measurement of home network attached storage (NAS) performance. NASPT uses a set of real-world workload traces (high-definition video playback and recording, video rendering/content creation and office productivity) gathered from typical digital home applications to emulate the behaviour of an actual application.

We’ve used some of the video and office apps results to highlight a NAS device’s performance.

HD Video Playback
This trace represents the playback of a 1.3GB HD video file at 720p using Windows Media Player. The files are accessed sequentially with 256kB user-level reads.

4x HD Playback
This trace is built from four copies of the Video Playback test with around 11% sequential accesses.

HD Video Record
Trace writes an 720p MPEG-2 video file to the NAS. The single 1.6GB file is written sequentially using 256kB accesses.

HD Playback and Record
Tests the NAS with simultaneous reads and writes of a 1GB HD Video file in the 720p format.

Content Creation
This trace simulates the creation of a video file using both video and photo editing software using a mix of file types and sizes. 90% of the operations are writes to the NAS with around 40% of these being sequential.

Office Productivity
A trace of typical workday operations. 2.8GB of data made up of 600 files of varying lengths is divided equally between read and writes. 80% of the accesses are sequential.

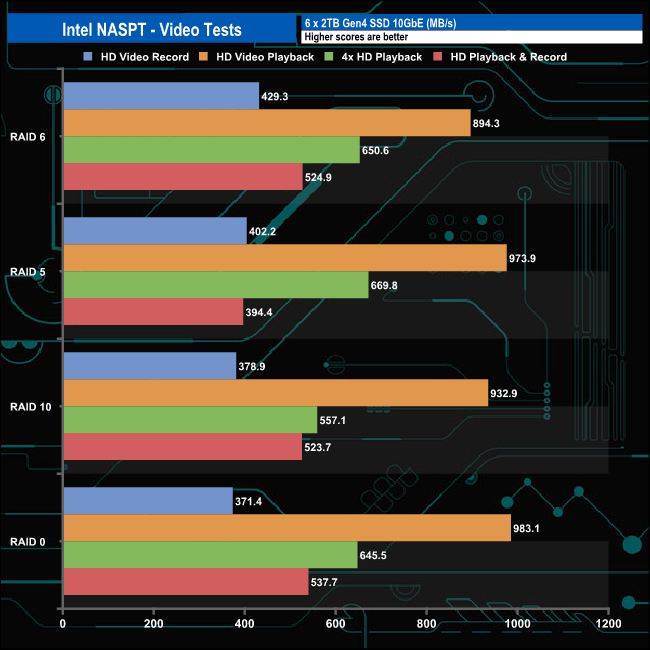

In the video tests of Intel’s NASPT benchmark, the Flashstor 6 Gen 2 showed strong performance, getting close to 1GB/s for a couple of tests. The fastest performance, 983MB/s, came from the HD Video Playback test trace while the drives were in a RAID 0 array.

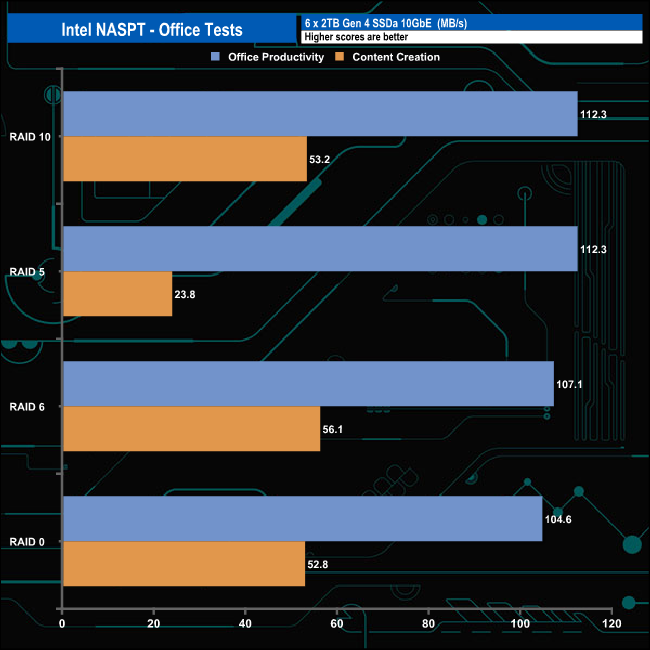

In the office tests, the NAS showed pretty strong performance across the tested arrays for both tests, apart from the Content Creation test with the drives in a RAID 5 array which for some reason caused the Flashstor 6 some problems looking at the score.
