NZXT: Clean White ASMR Build with the H9 Flow RGB+

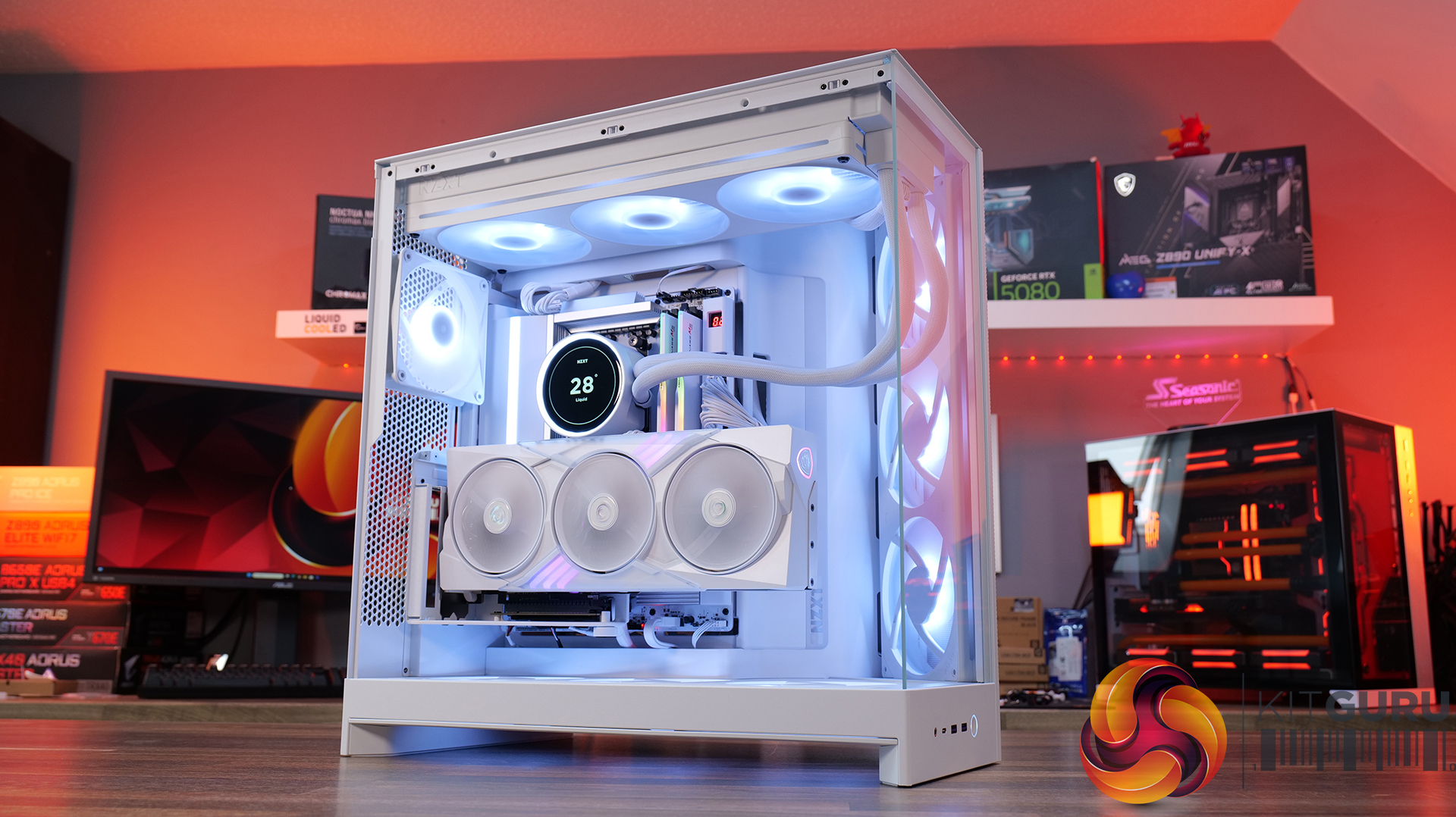

It's time for another one of our ASMR video builds, and this time around it's sponsored by NZXT and features the H9 Flow RGB + case, new Kraken Elite 420 RGB AIO CPU cooler, an N9 Z870E motherboard and the C1200 Gold ATX 3.1 power supply. We’ve also packed in an AMD Ryzen 9 9950X3D CPU and an MSI RTX 5080 Gaming X Trio White graphics card to make a super clean, super powerful and super white ASMR build. So sit back, relax and enjoy because this one turns out looking great!

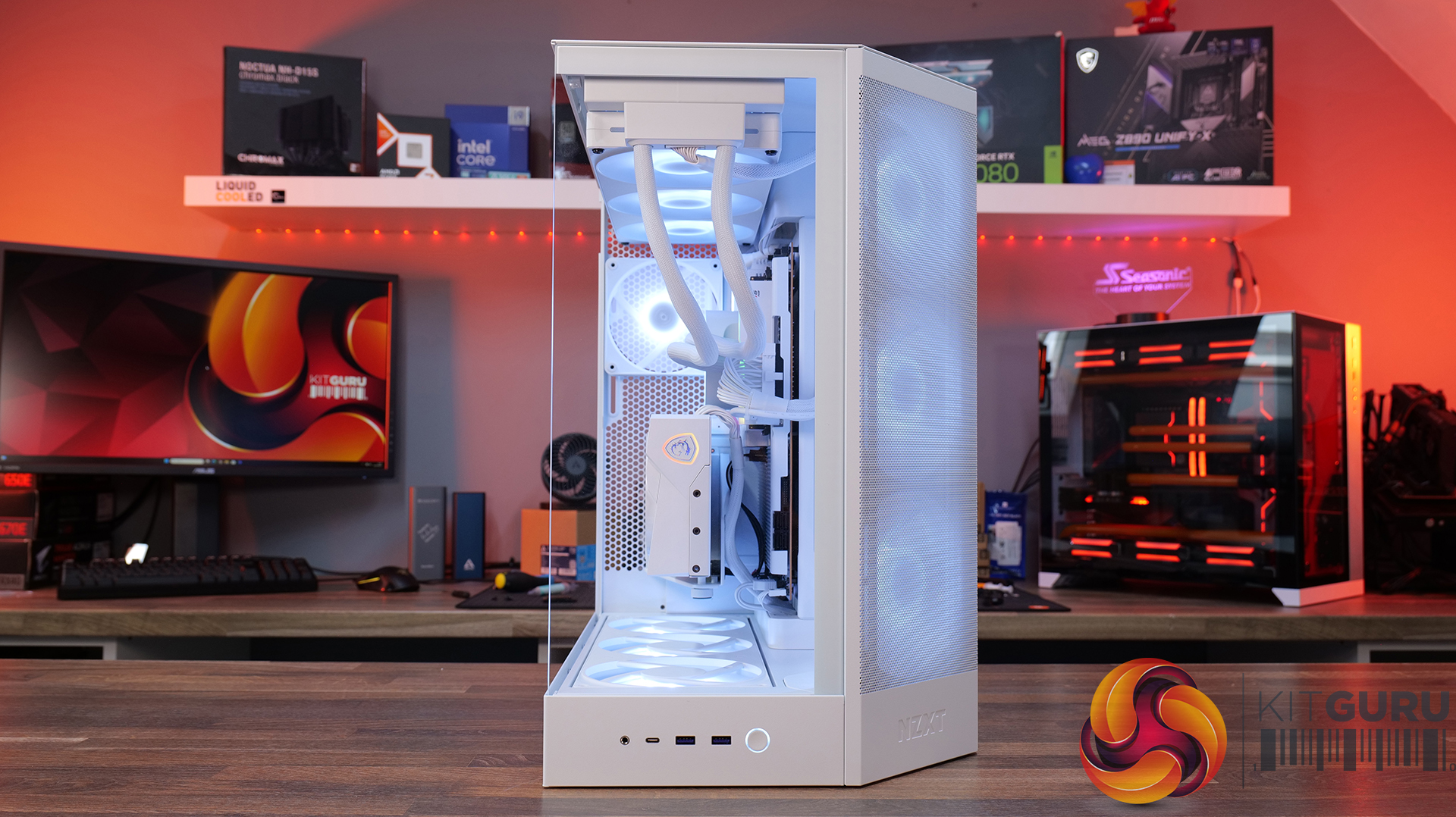

Case: NZXT H9 Flow RGB + available now from Scan priced at £249.98 HERE.

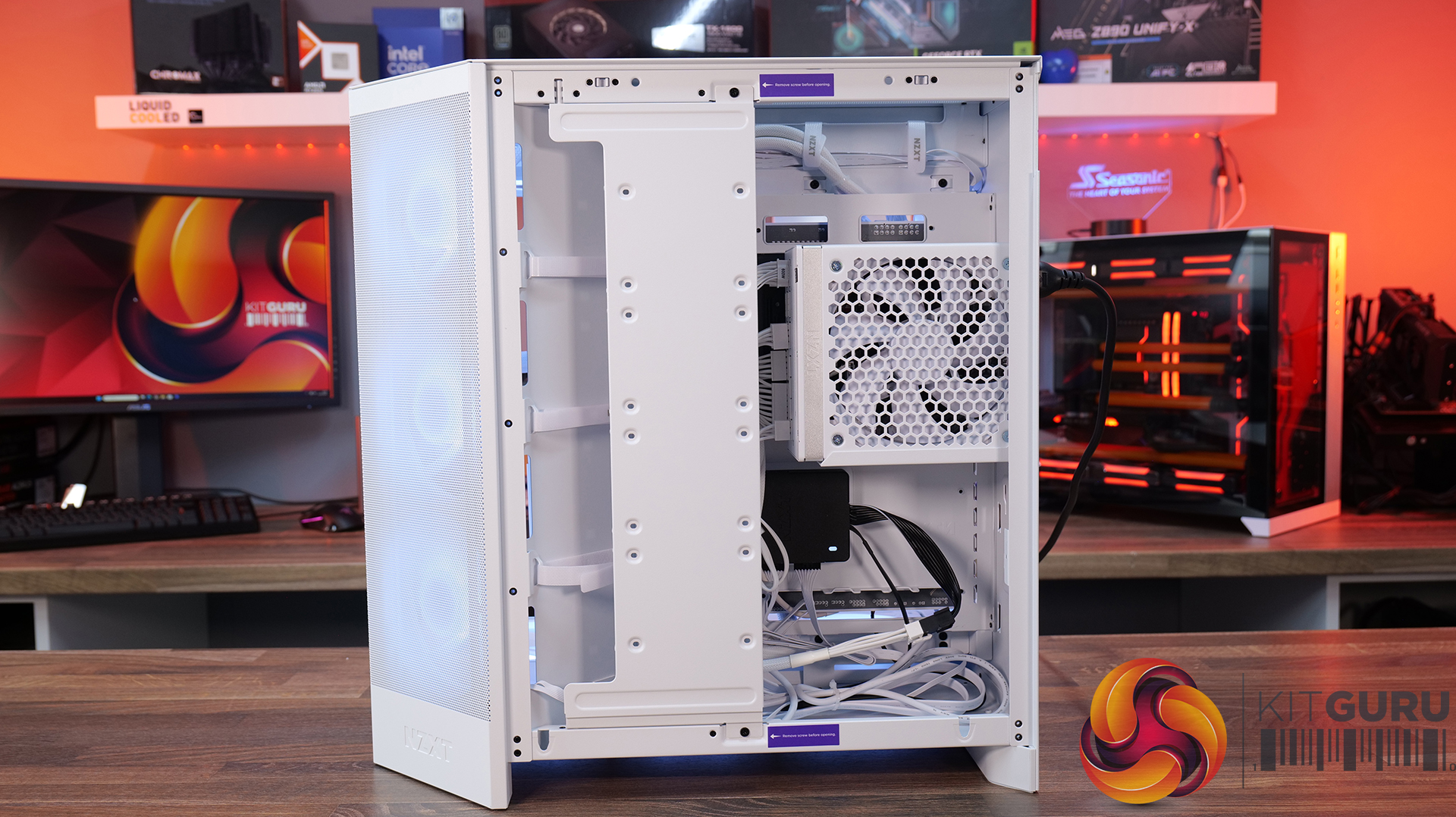

• The dual chamber design of the H9 Flow RGB + separates the power supply and drives from the main chamber for improved thermal performance and cable management.

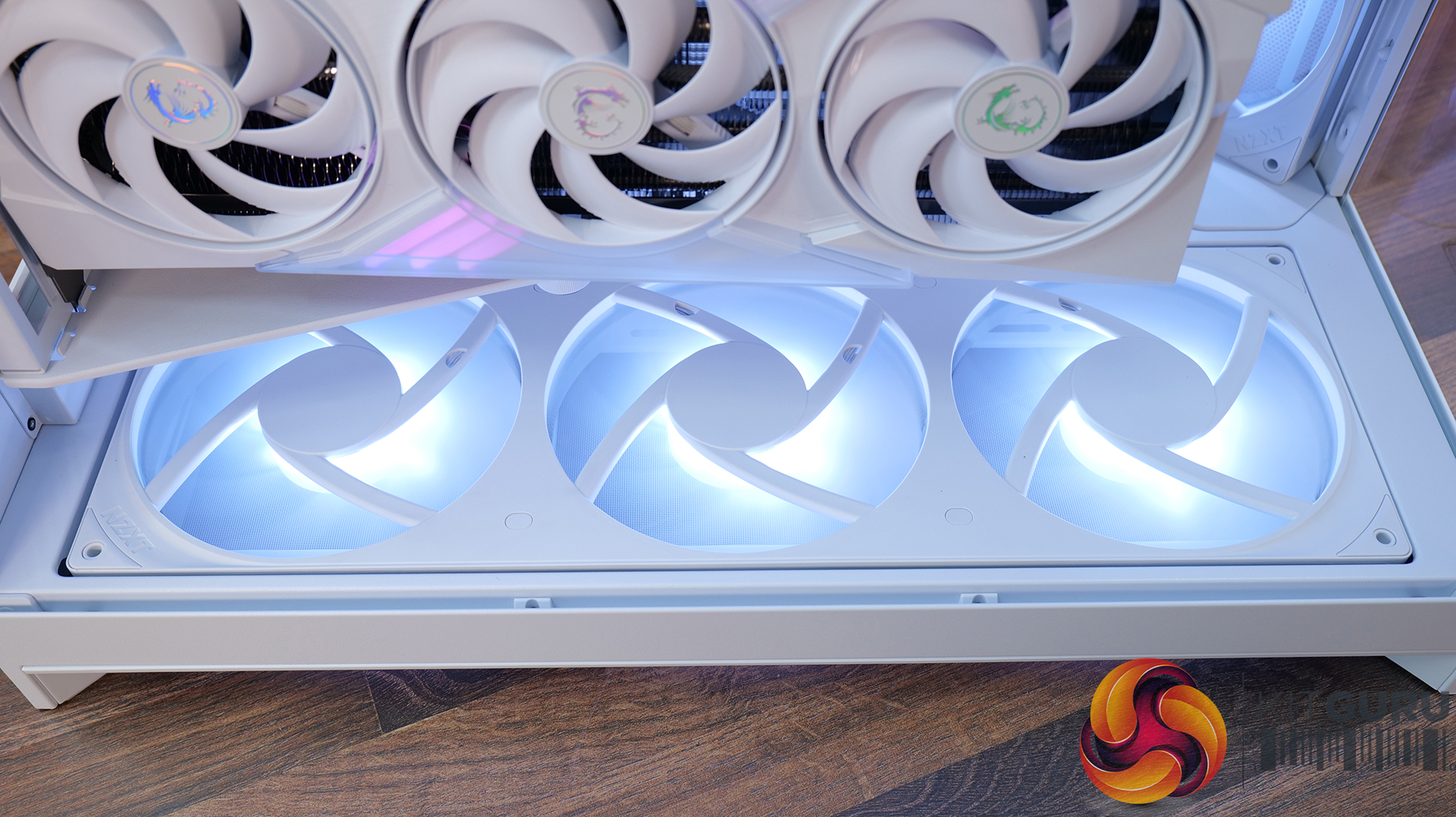

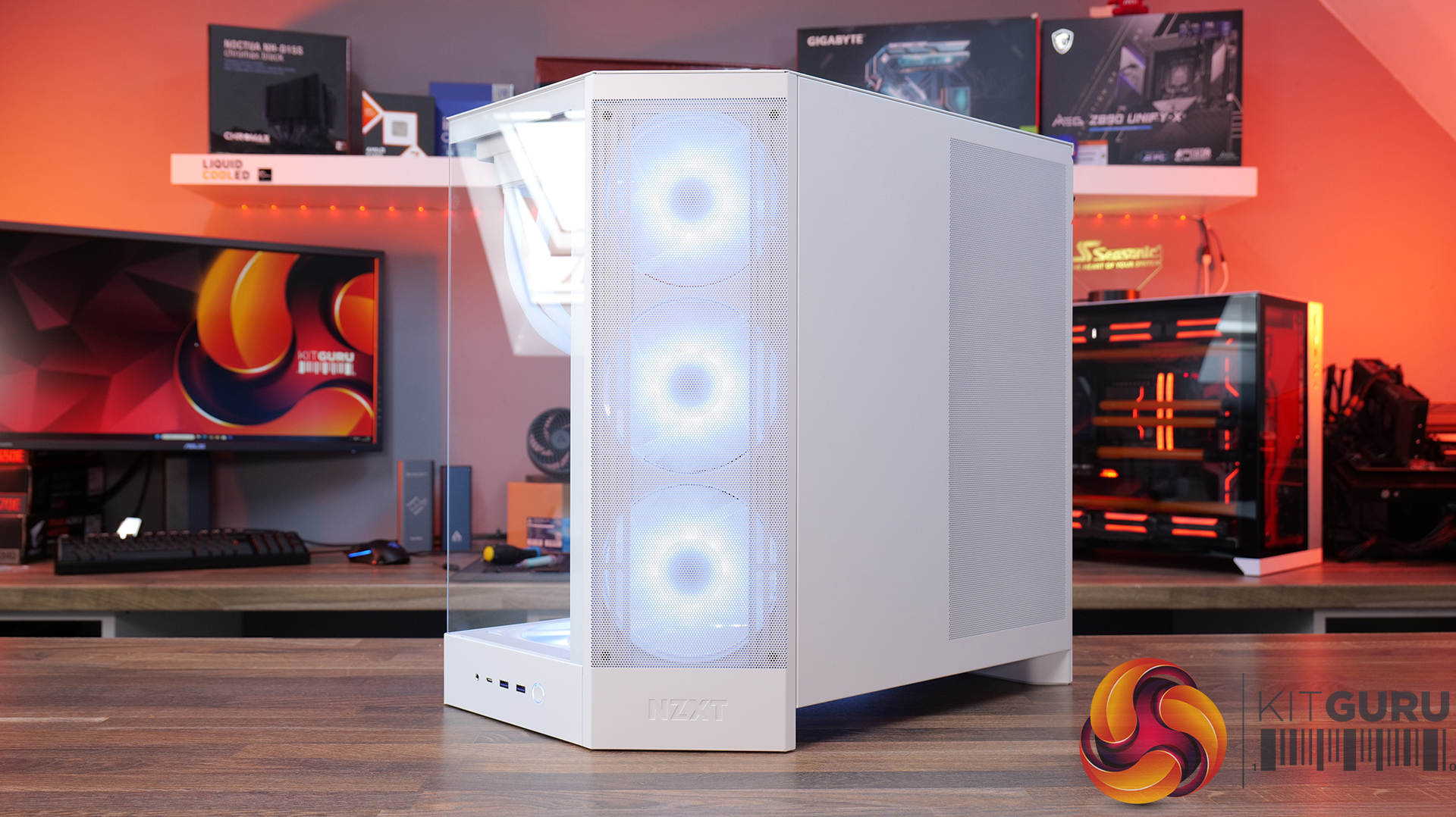

• To boost cooling efficiency, the H9 Flow RGB + features perforated steel panels and angled front fans with two NZXT F420 RGB Core single-frame fans, plus one F120 RGB Core fan and an NZXT Control Hub included.
• NZXT H9 Flow RGGB + can support up to 420mm long radiators at the top and front-right, there's loads of clearance for high-end graphics cards and it's compatible with the latest back-connect motherboards such as MSI Project Zero and Asus BTF.

Specifications

• Case Type: ATX Mid-Tower
• Dimensions: 506 x 315 x 481mm (H x W x D)
• Motherboard Support: E-ATX (Up to 277 mm), ATX (Including Back connect), Micro-ATX, Mini-ITX
• Expansion Slots: 7
• Storage Bays: 4 + 2 x 2.5”, 2 x 3.5”
• Max GPU Length: Up to 459mm
• Max CPU Cooler Height: 165mm
• Max PSU Size: ATX 200mm
• Pre-installed Fans: 2 x F420 RGB Core, 1 x F120 RGB Core
• Fan Support: 3 x 120 mm / 3 x 140 mm (Front), 3 x 120 mm / 3 x 140 mm (Top), 3 x 120 mm / 3 x 140 mm (Bottom), 1 x 120 mm (Rear)
• Radiator Support: Up to 420 mm (Front & Top), Up to 360 mm (Bottom), Up to 120 mm (Rear)
• Dust Filters: Bottom
• Font I/O: 2 x USB 3.0 Type-A, 1 x USB Type-C, combined 3.5mm audio jack (Mic and Headphones), Power button

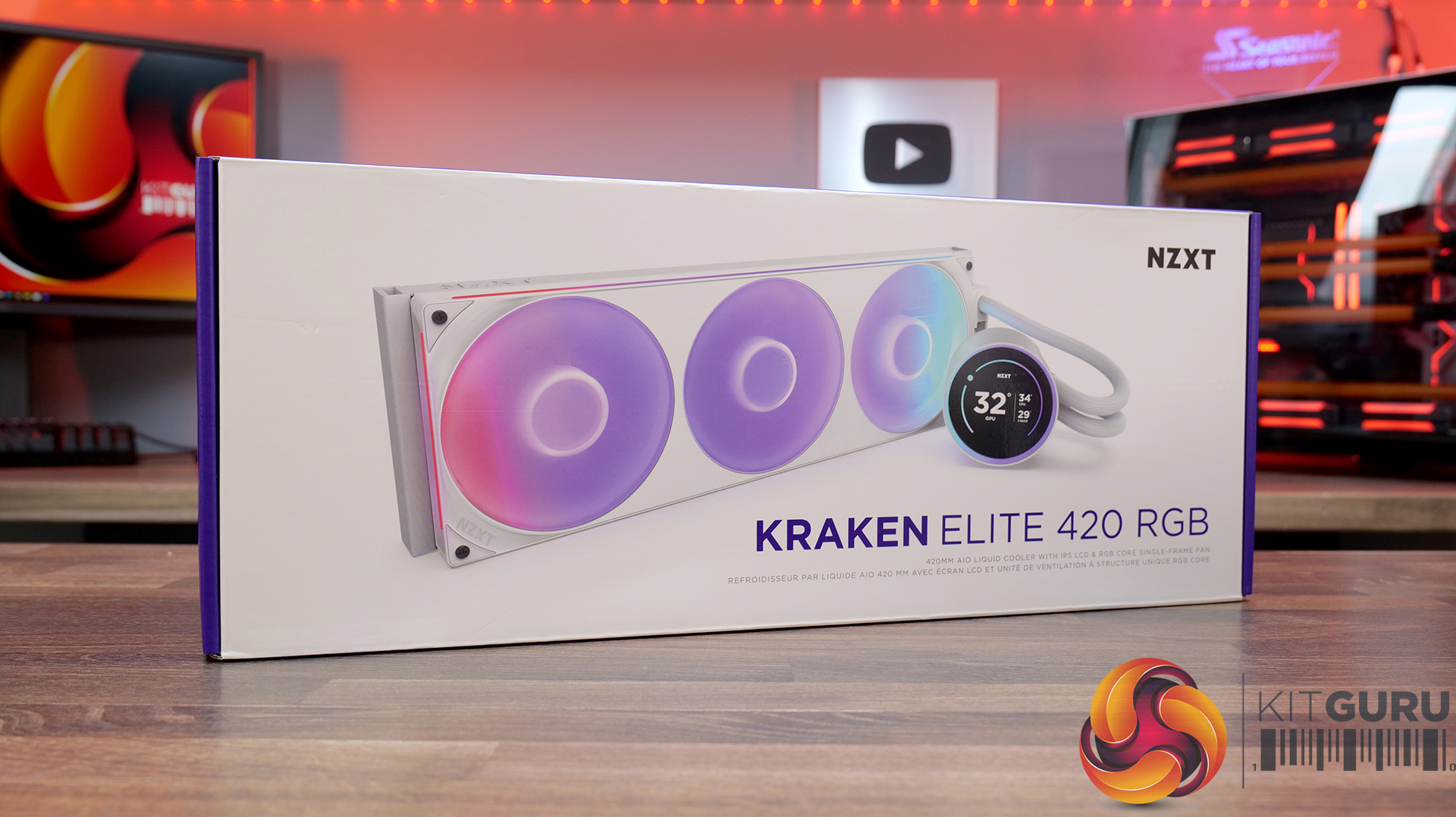

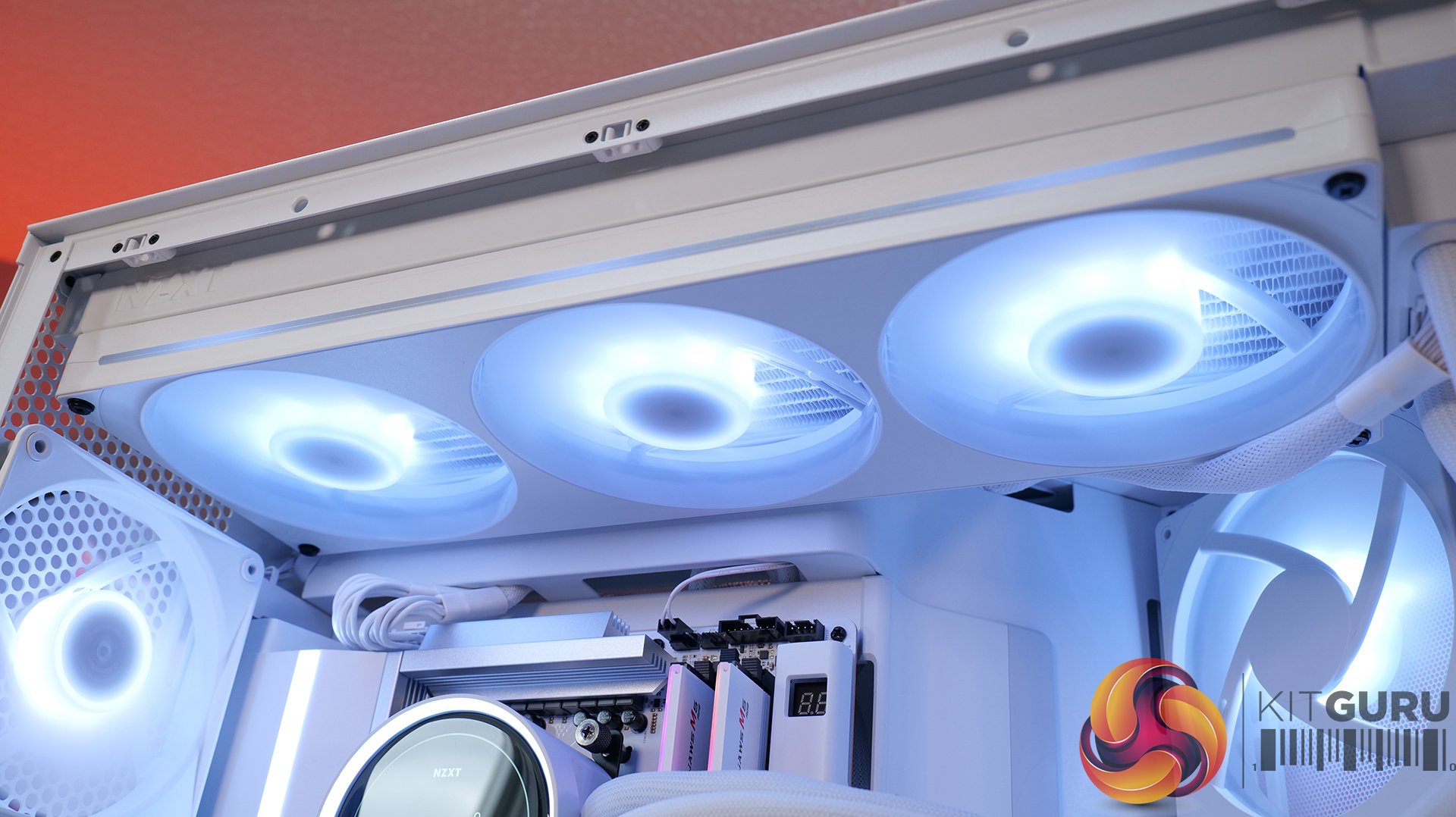

CPU Cooler: NZXT Kraken Elite 420 RGB – available now from Scan priced at £279.98 HERE.

• Kraken Elite 420 RGB is equipped with a custom NZXT pump designed for high flow rate and head pressure but quiet operation, while the 420mm RGB Core single frame fan provides optimal airflow and vibrant RGB lighting effects.

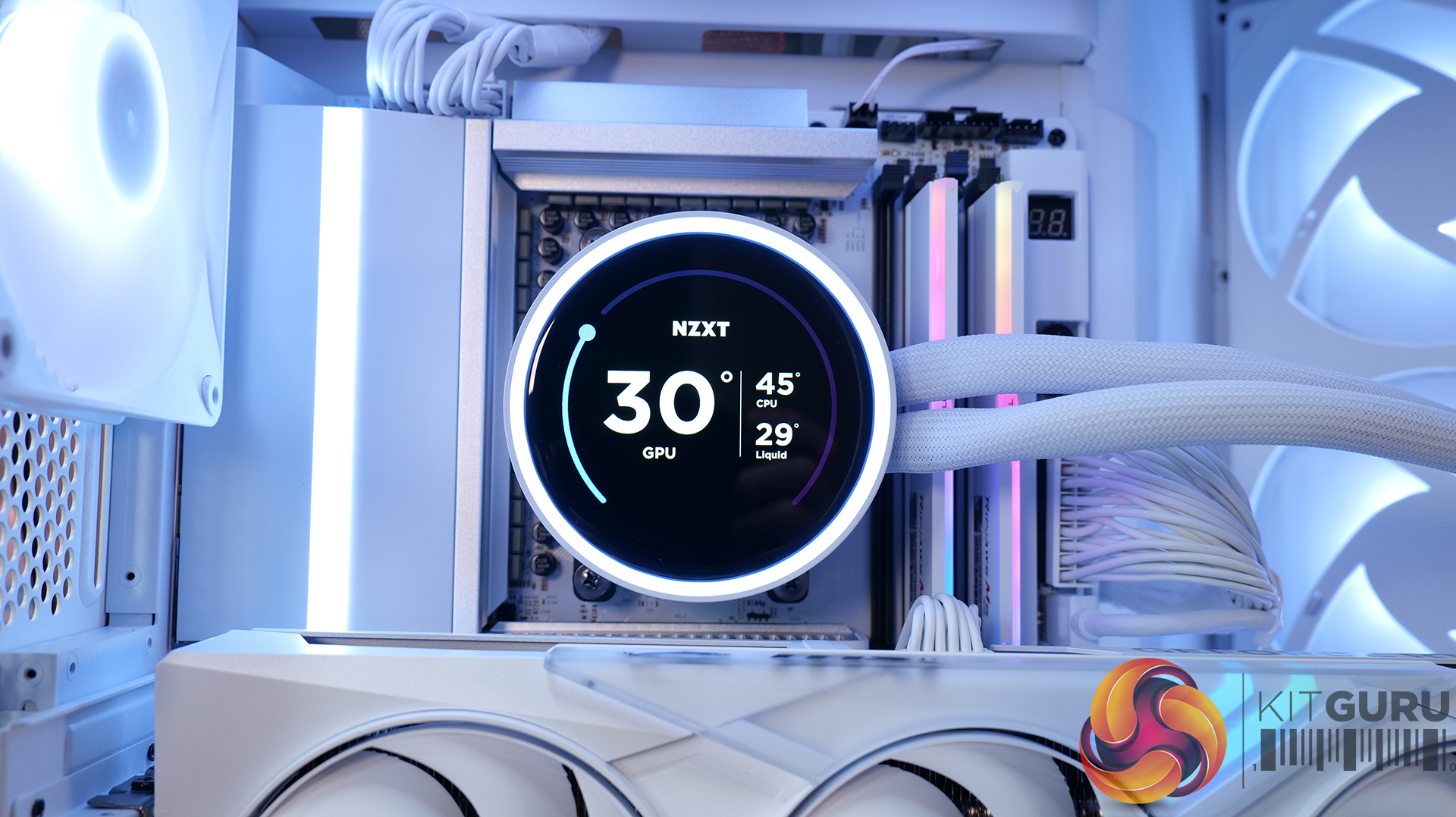

• Showcase your favourite GIFs or custom images on the pump top-mounted 2.72” IPS display, with 640×640 resolution and smooth 60Hz refresh rate. Also keep track of system information and integrate with Spotify, YouTube and more on the display.
• Compatible with all current desktop platforms, including Intel LGA 1851/1700, 1200/115X and AMD AM5, AM4 and features tool-free mounting hardware and pre-applied thermal compound for a speedy installation.

Specifications

• CPU Socket Compatibility: Intel LGA 1851/1700, 1200/115X, AMD AM5, AM4
• Radiator Material: Aluminium
• Radiator Dimensions: 457 x 140 x 27 mm
• Radiator Tube Length: 460mm
• CPU Block/Pump Dimensions: 93.5 x 65mm
• Pump Speed: 1200 – 2800 ± 300 RPM
• Cold Plate Material: Copper
• Pump Connector: Propriaetary
• Pump LED: ARGB
• Fan Dimensions: 420 x 140 x 26 mm
• Fan LED: ARGB
• Fan Speed (PWM): 500 – 2,000 ± 200 RPM per fan
• Fan Max Airflow: 98.61 CFM per fan
• Fan Max Air Pressure: 3.2 mm H2O per fan
• Noise (dBA): 34.5 dBA per fan
• Fan Bearing: Fluid Dynamic Bearing
• Fan Connector: 8-pin for PWM & RGB
• LCD Screen: IPS, 640 x 640 px
• Warranty: 6 Years

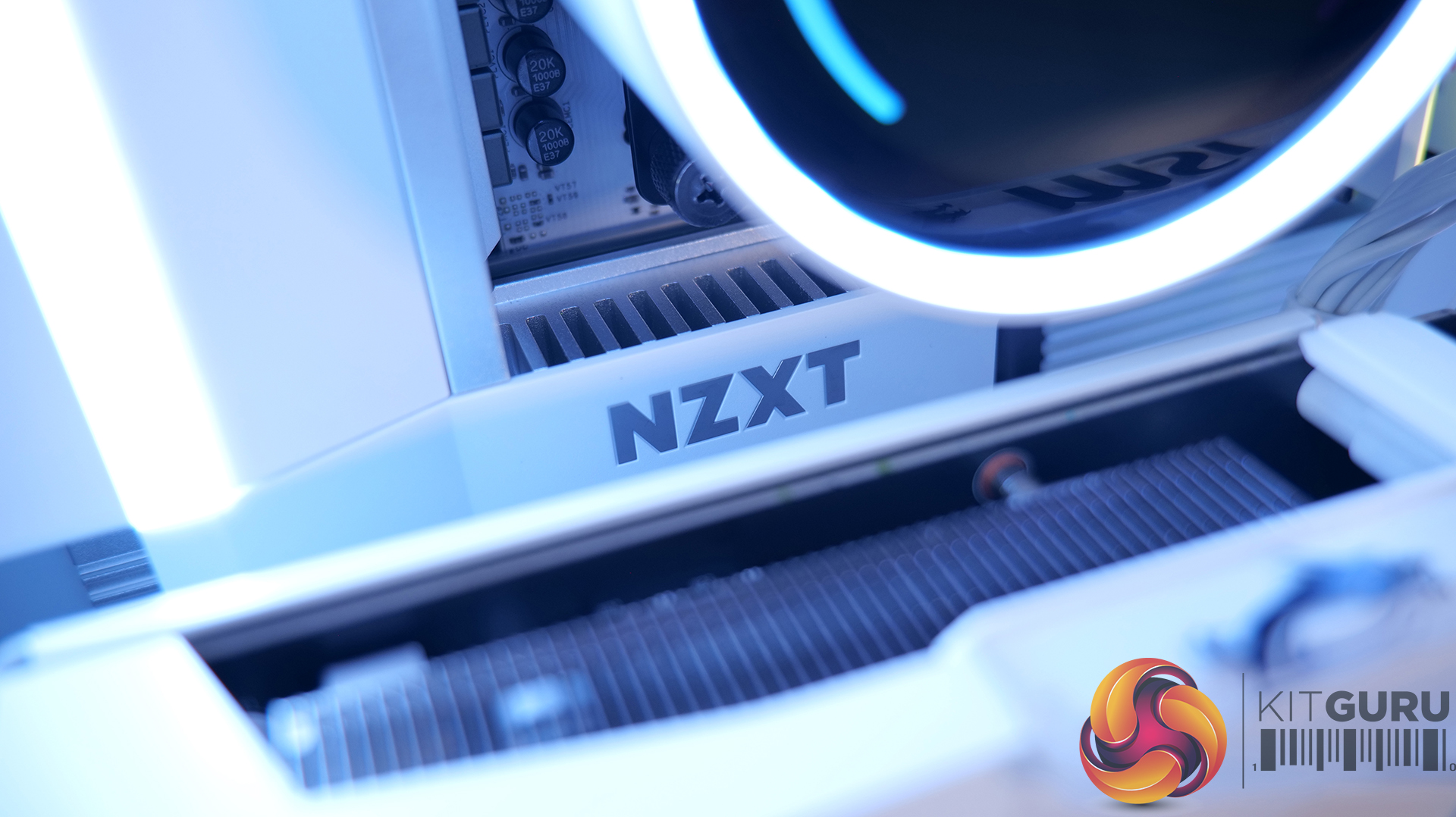

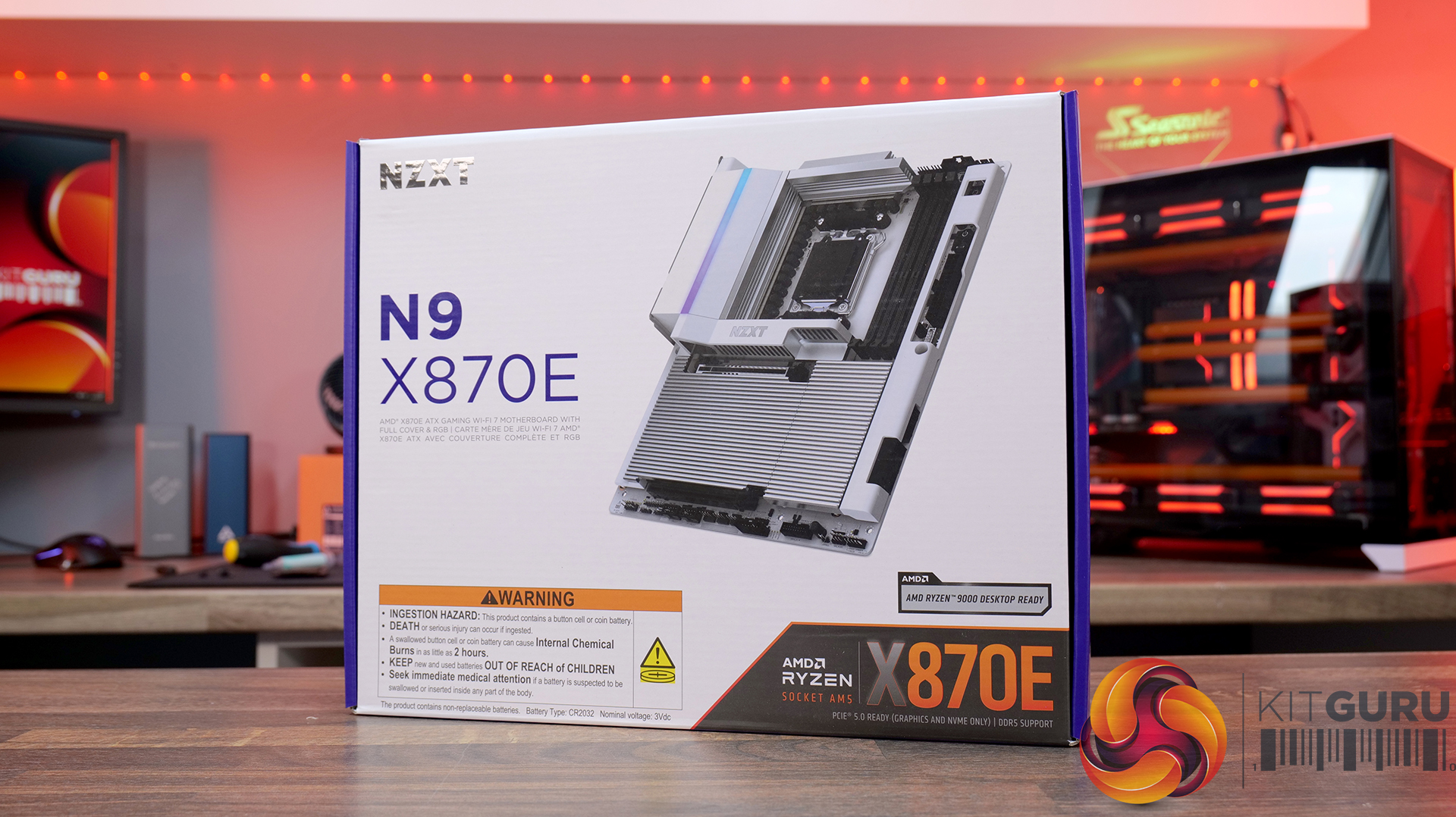

Motherboard: NZXT N9 X870E – available now from Scan priced at £419.99 HERE.

• Built on the AMD AM5 platform ready for Ryzen 9000, 8000 and 7000 CPUs and utilising the X870E chipset and an advanced cooling solution with VRM heatsink array, dual PWM fans and dedicated M.2 heatsinks.
• Equipped with a robust 20+2+1 power phase VRM design with 110A SPS and an 8-layer PCB for high stability and overclocking potential. Four dual-channel DDR5 DIMM slots capable of speeds up to 8000+ MT/s.
• Featuring four M.2 storage slots (one PCIe 5.0 and three PCIe 4.0) to provide low loading times and ultra-fast data storage speed with next-gen connectivity from USB 4 (40Gbps) Wi-Fi 7 and 5GbE networking.

Specifications

• CPU Compatibility: AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 series processors
• Chipset: X870E
• Form Factor: ATX
• Memory: 4 x DDR5 only
• Extreme Memory Profile (XMP): Supported
• EXTended Profiles for Overclocking (EXPO): Supported
• Expansions slots: PCIe 5.0 x16 x 1, PCIe 3.0 x16 x 1 (x2 mode)
• 2 Storage: 1 x Type 2280 (PCIe 5.0 ×4 mode), 3 x Type 2280 (PCIe 4.0 ×4 mode)
• SATA 6Gb/s ports: 4
• LAN: Realtek 5.0G LAN
• Wi-Fi: Tri-Band WiFi 7
• Bluetooth:4
• Audio: Realtek ALC4082 Audio Codec
• Warranty: 3 Years

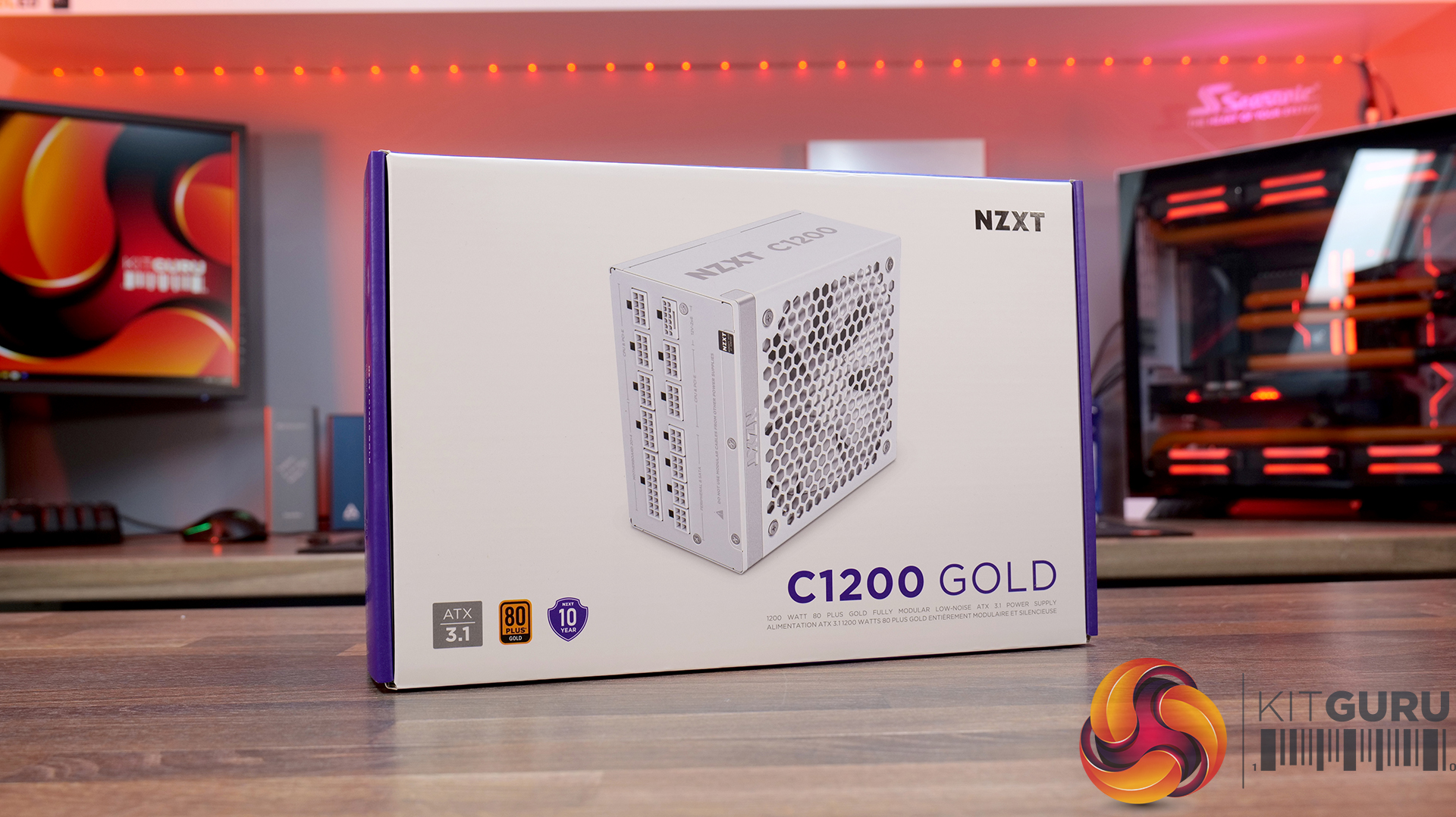

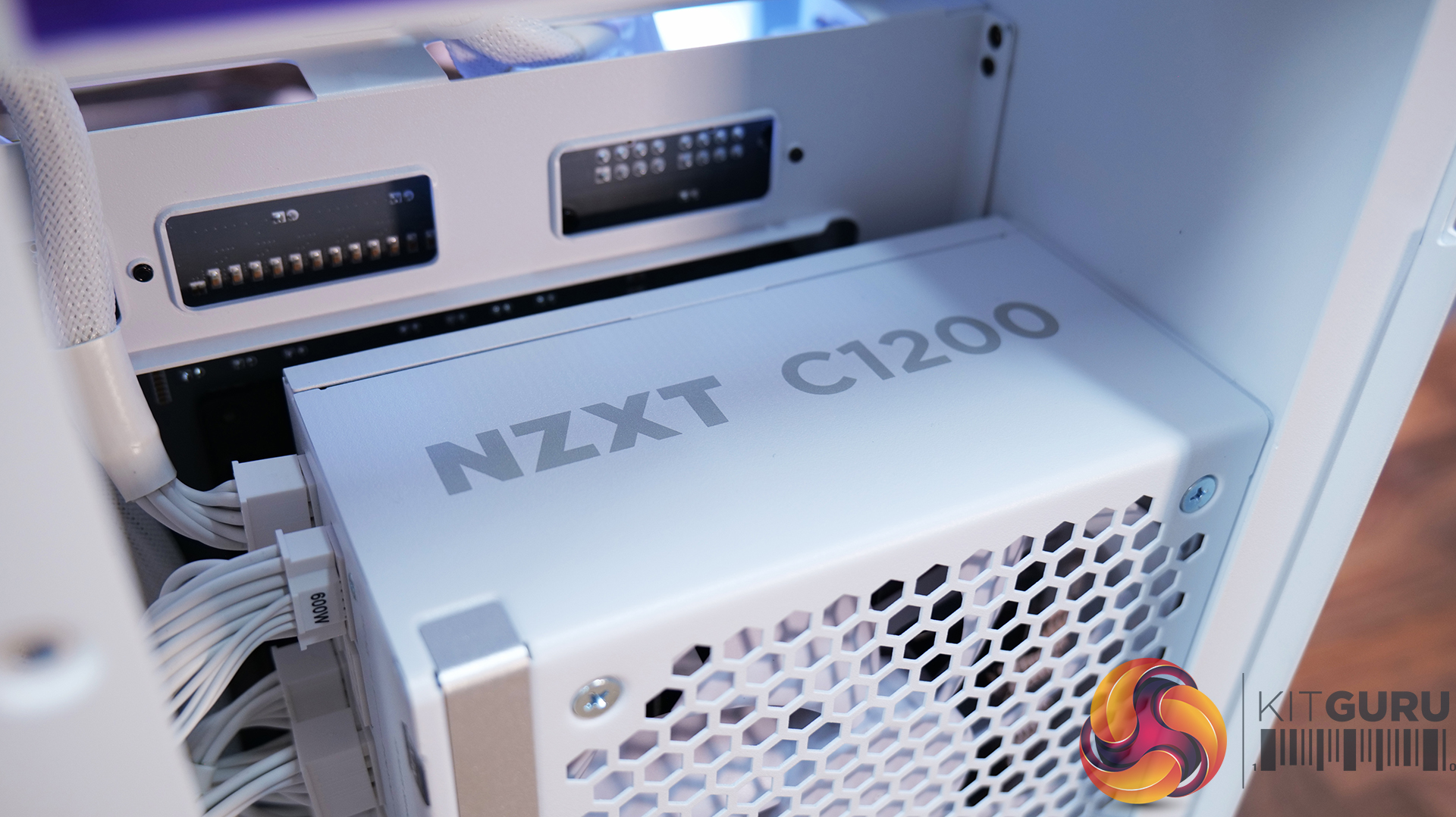

Power Supply: NZXT C1200 Gold ATX 3.1 – available now from Scan priced at £159.98 HERE.

• ATX 3.1 compliant, 80+ Gold certified for high-performance, reliable PC components. Equipped with a 12V-2×6 600W connector to power the latest Nvidia RTX 50 series graphics cards.
• Featuring a 135mm fluid dynamic bearing fan with zero rpm mode, 100% premium Japanese capacitors to ensure stable and reliable power delivery.
• Fully modular cable design so only essential cables need to be connected to maintain a clean look and it comes with a 10-year warranty.

Specifications

• Type: ATX12V v3.1 / EPS12V v2.92
• Dimension: 150 x 86 x 160mm (W x H x D)
• Certification: 80+ Gold
• Power Output: 1200W
• Protections: OVP / UVP / SCP / OTP / OPP / OCP
• Fan: Fluid Dynamic Bearing (FDB)
• Fan Size: 135 x 135 x 25 mm
• Fan Noise: 44.5 dBA max
• Operating Temperature: 0 – 50 °C
• AC Input: 14A 50Hz-60Hz
• Modularity: Full
• MTBF: 100,000 hours
• Warranty: 10 Years

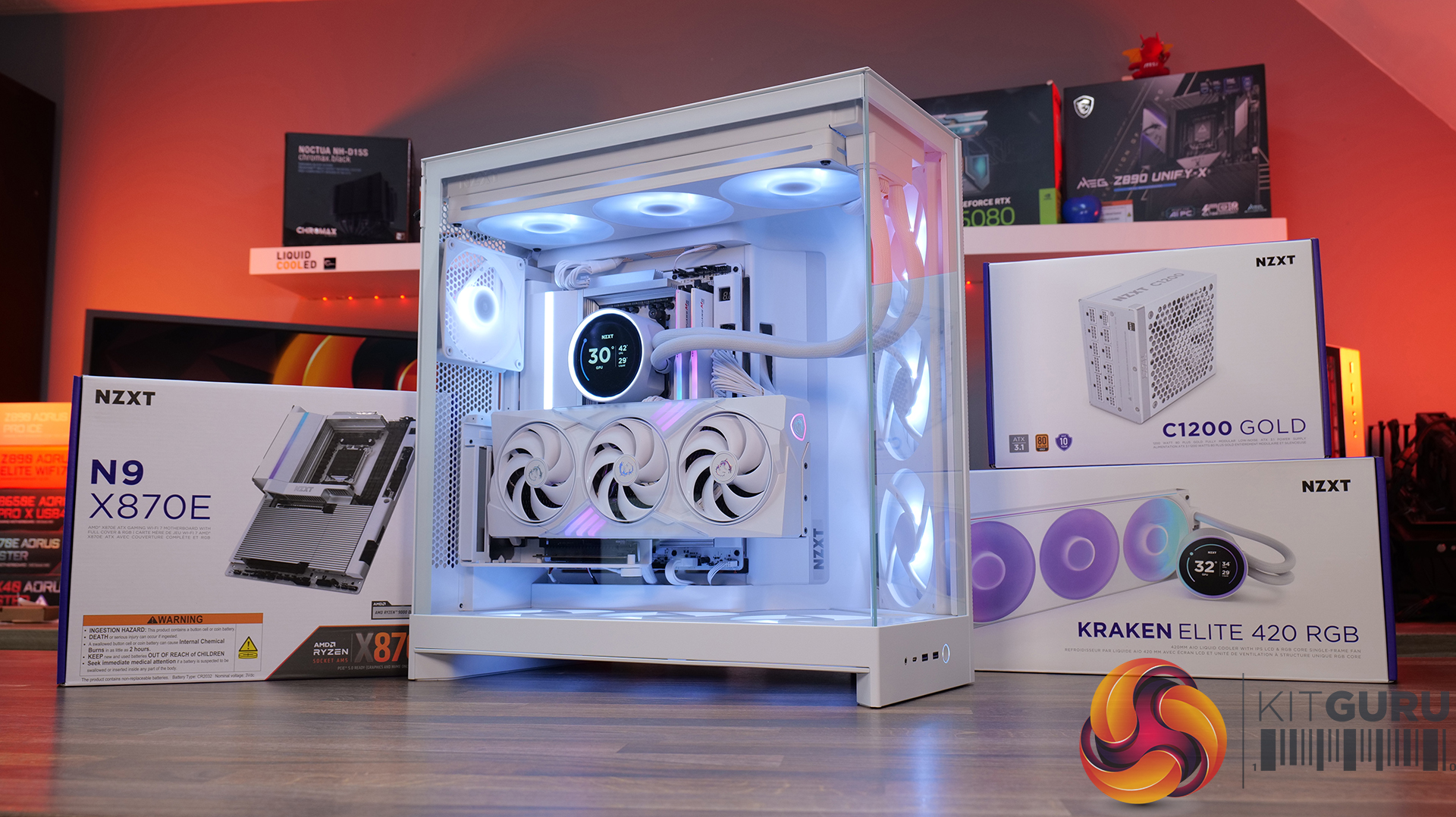

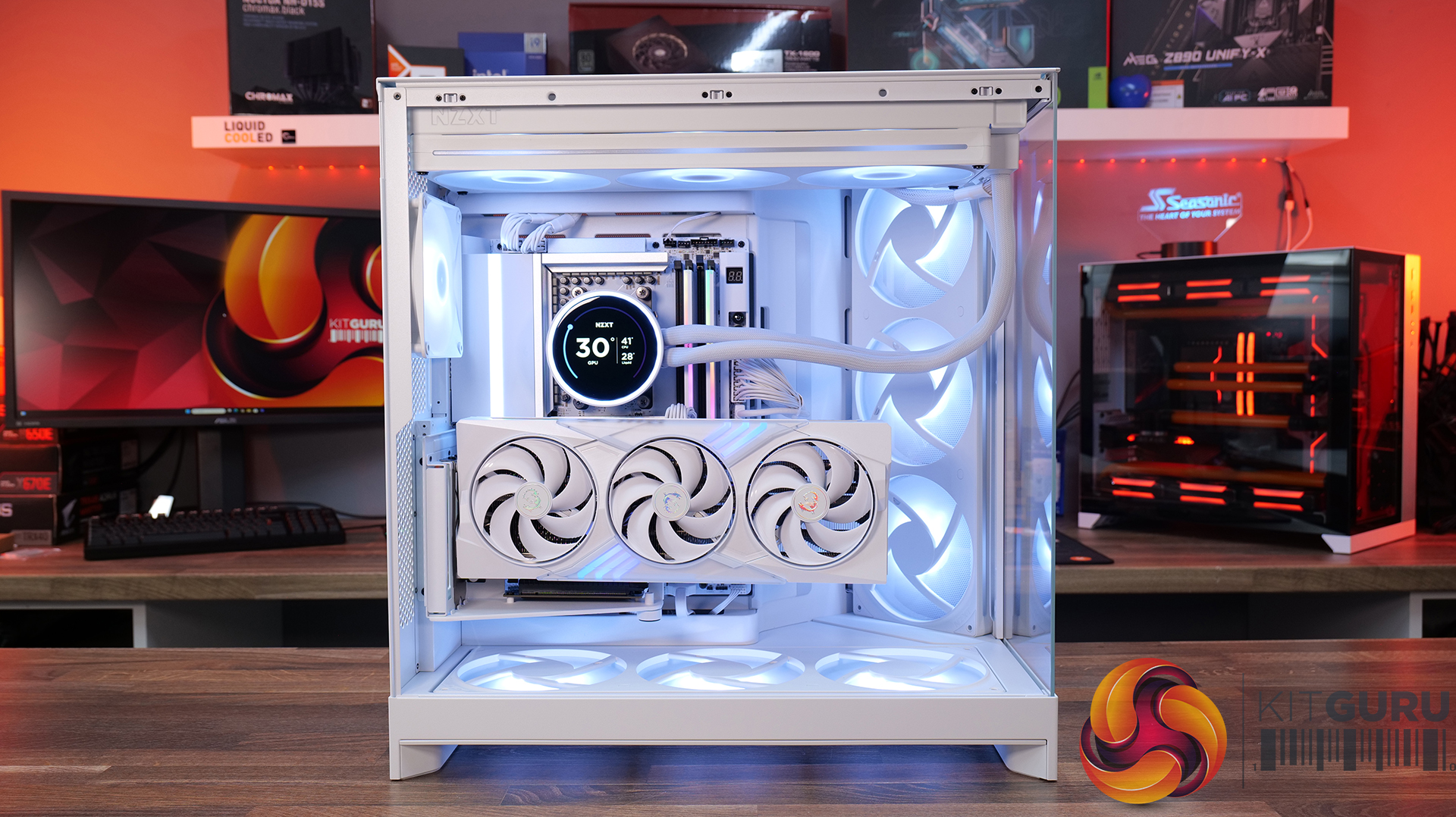

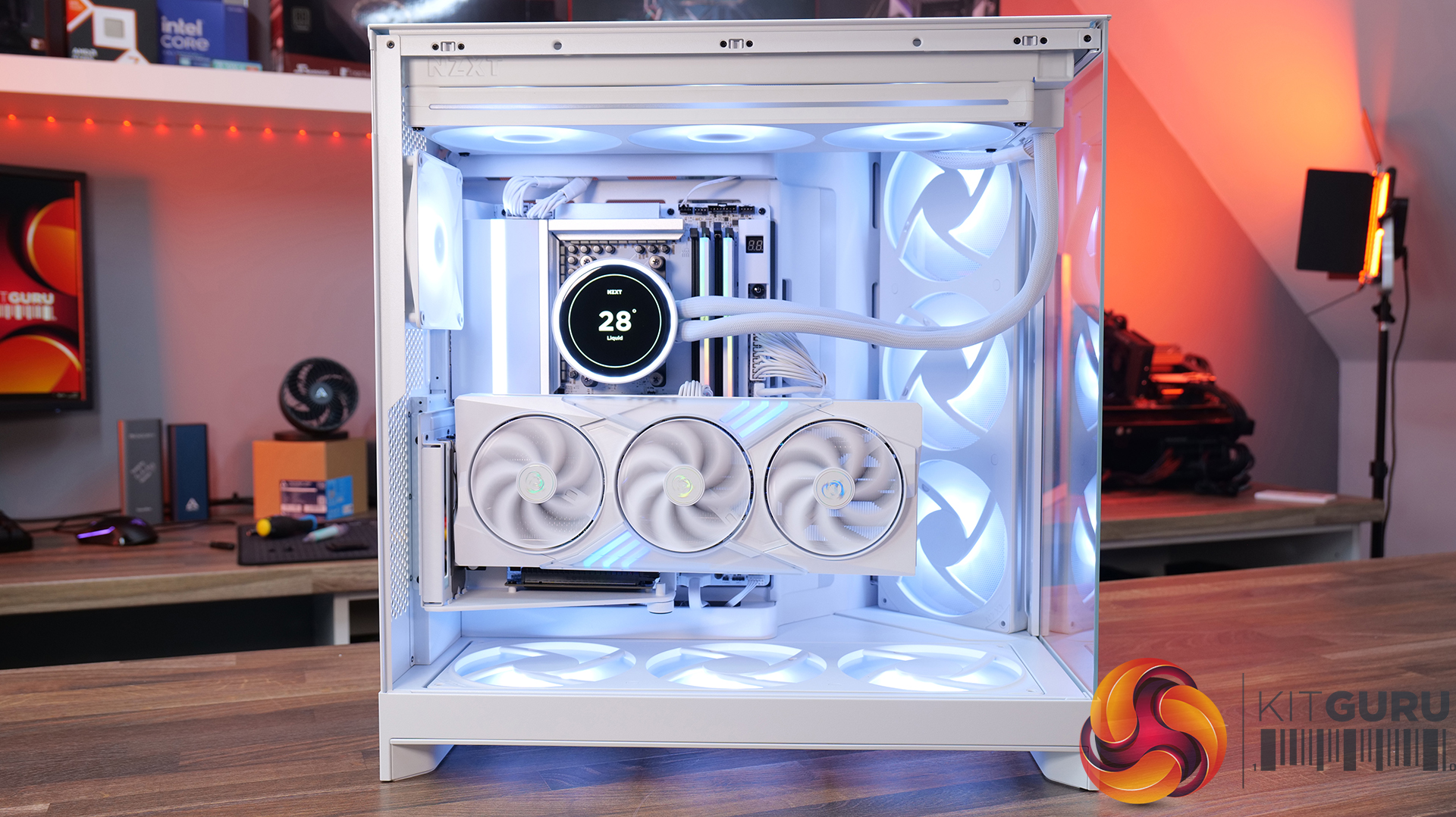

Build Specification:

• CPU – AMD Ryzen 9 9950X3D
• Motherboard – NZXT N9 X870E

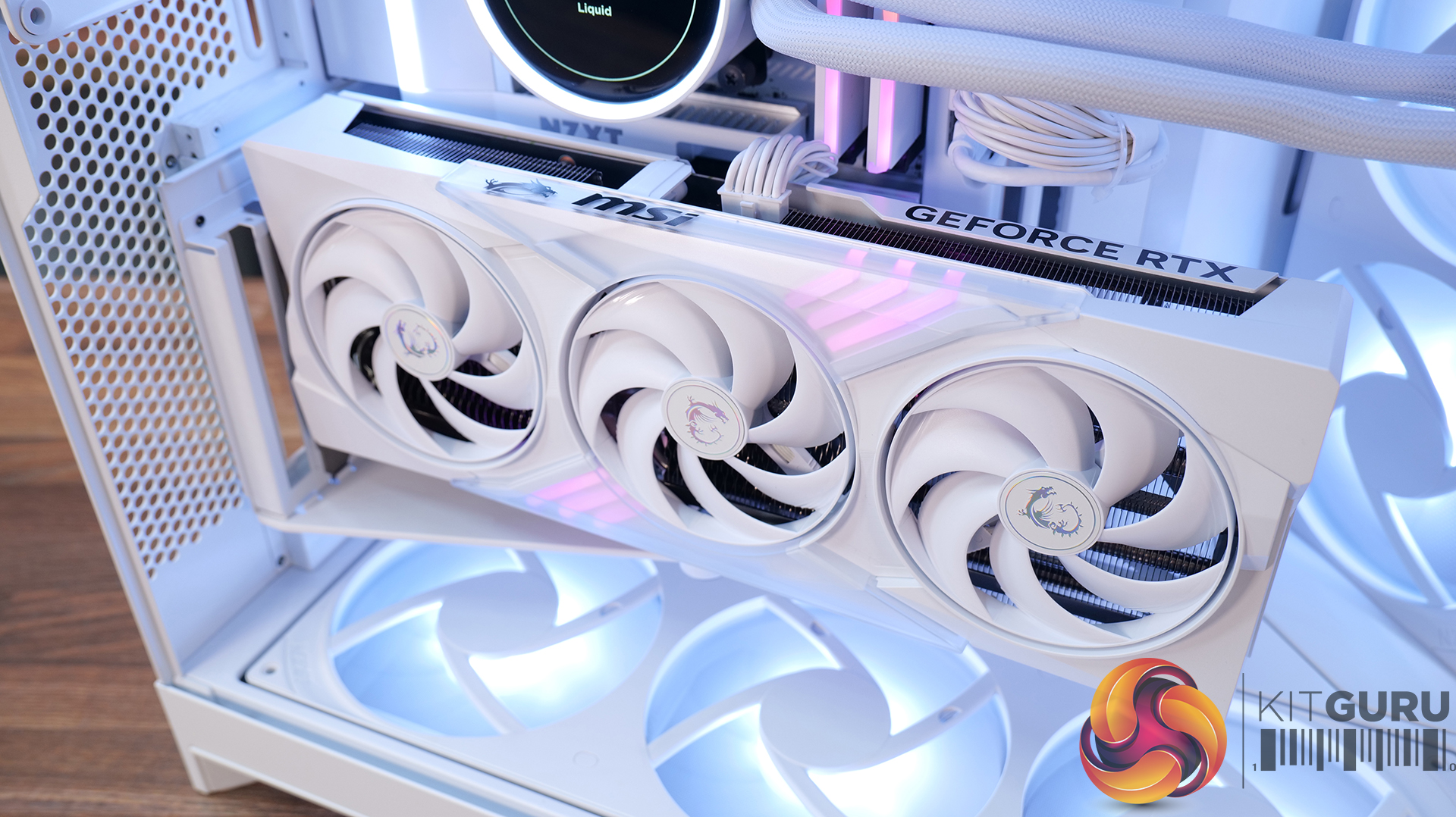

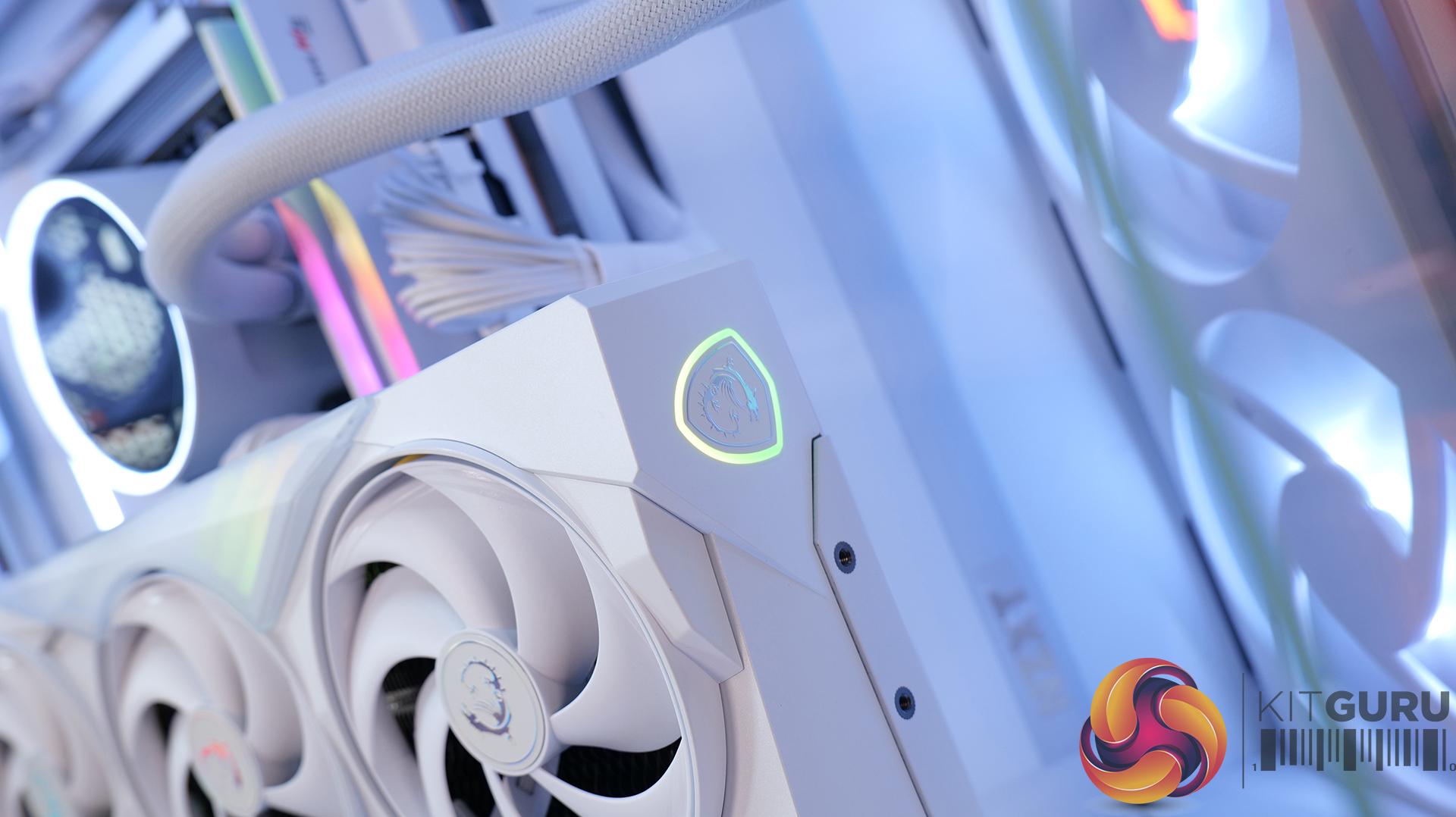

• Graphics Card – MSI RTX 5080 Gaming Trio White

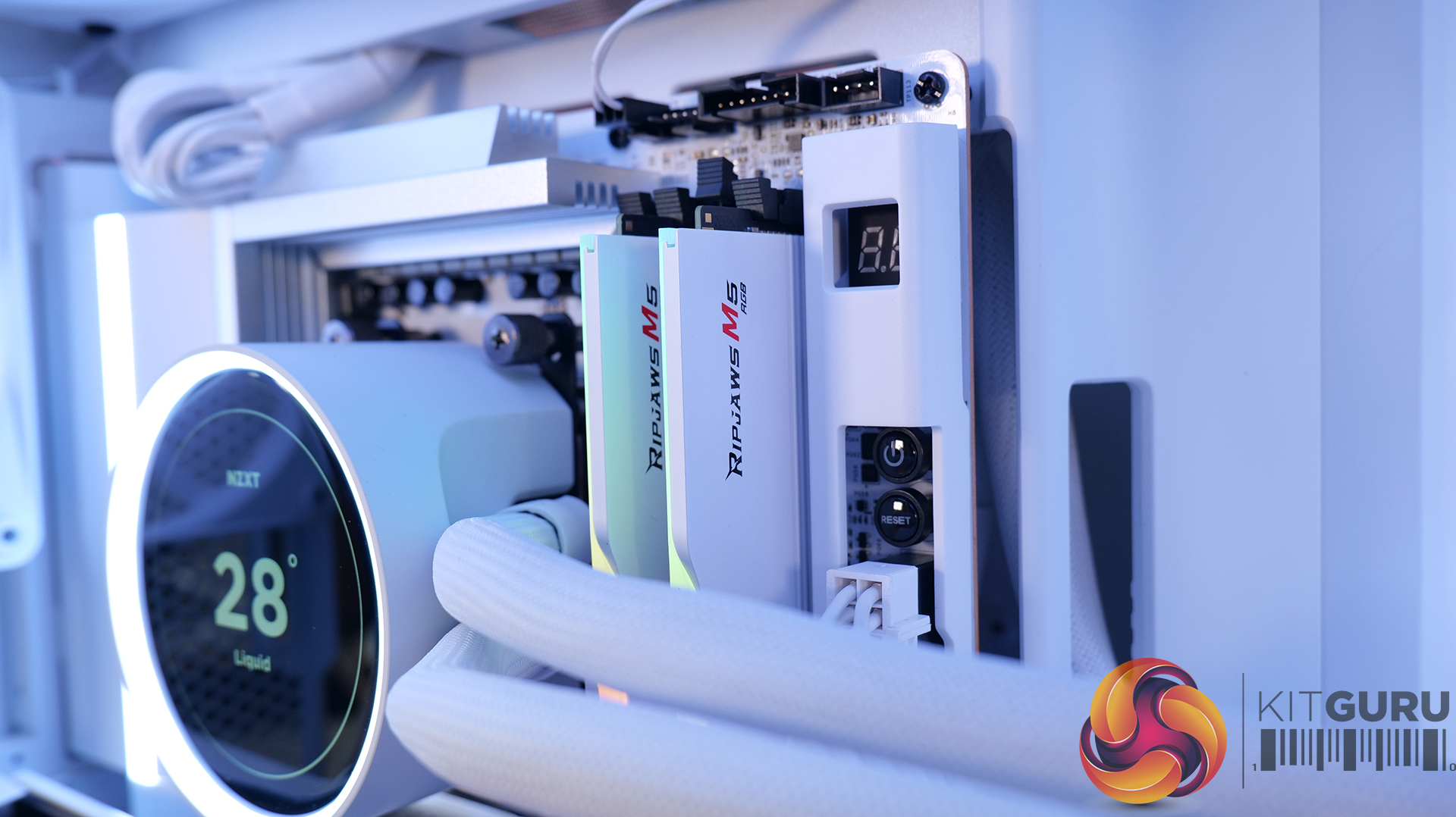

• Memory – 64GB (2 x 32GB modules) G.SKILL Trident Z5 RGB DDR5-6000
• Storage – 1TB Corsair MP600 Elite PCIe Gen4x4 NVMe M.2 SSD
• CPU Cooler – NZXT Kraken Elite 420 RGB
• Power Supply – NZXT C1200 Gold ATX 3.1
• Case fans – Stock
• Operating System: Windows 11

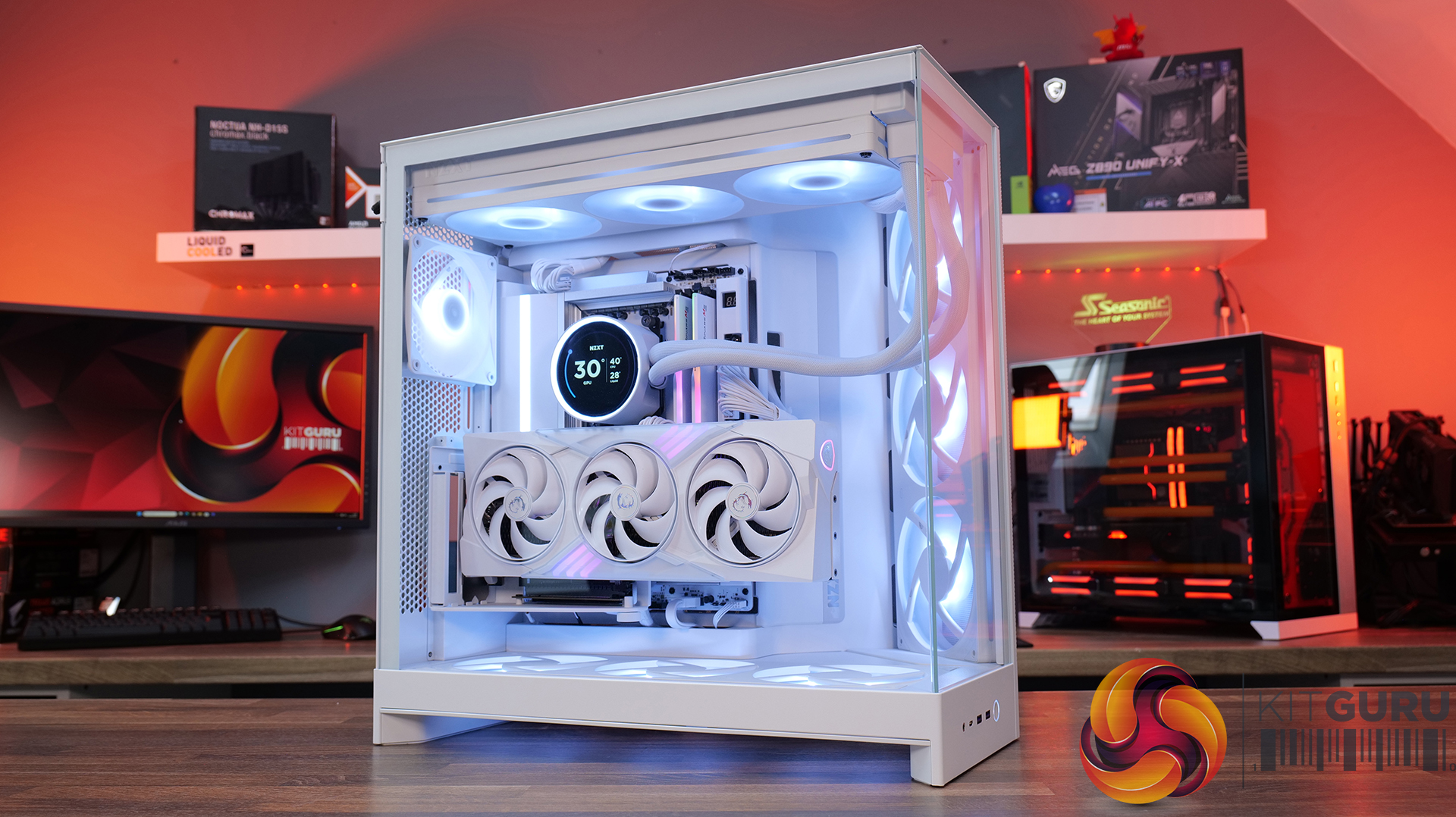

KitGuru says: Even though the build didn't use a back-connect motherboard, it still looks super clean, one of the sleekest-looking builds we have done for a while!
