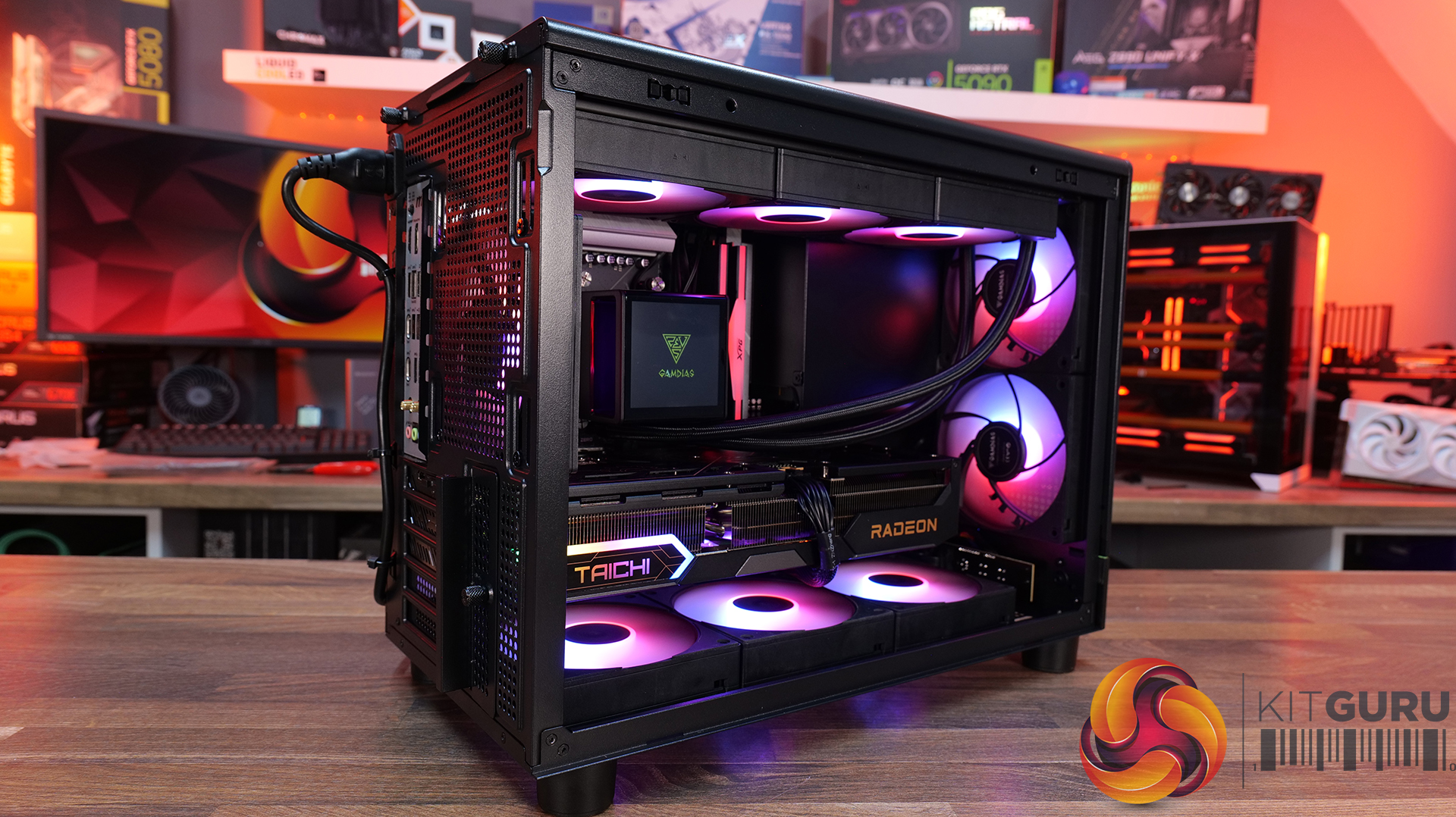

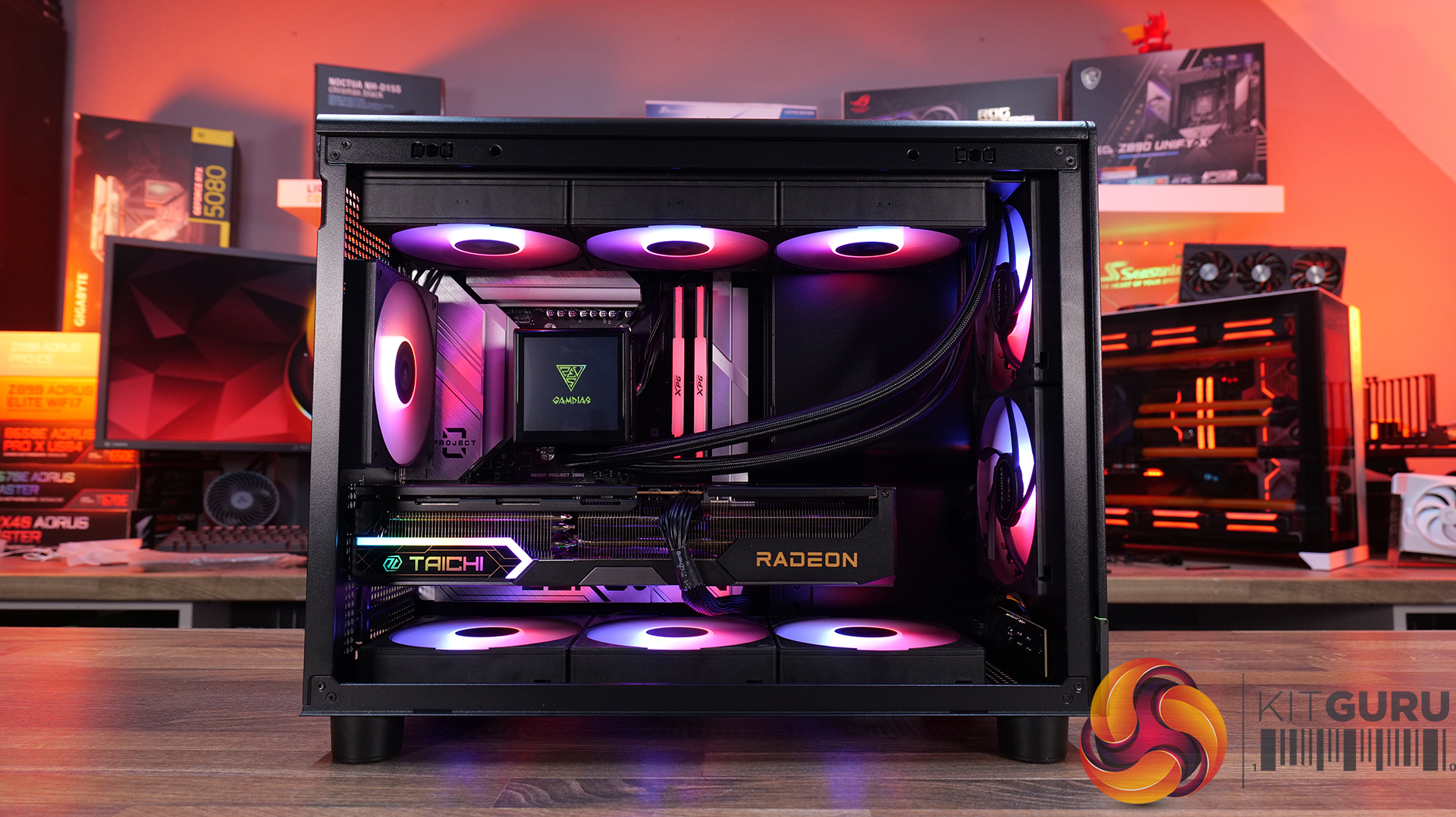

Gamdias Athena mATX Featured Build (9070 XT + 9800X3D)

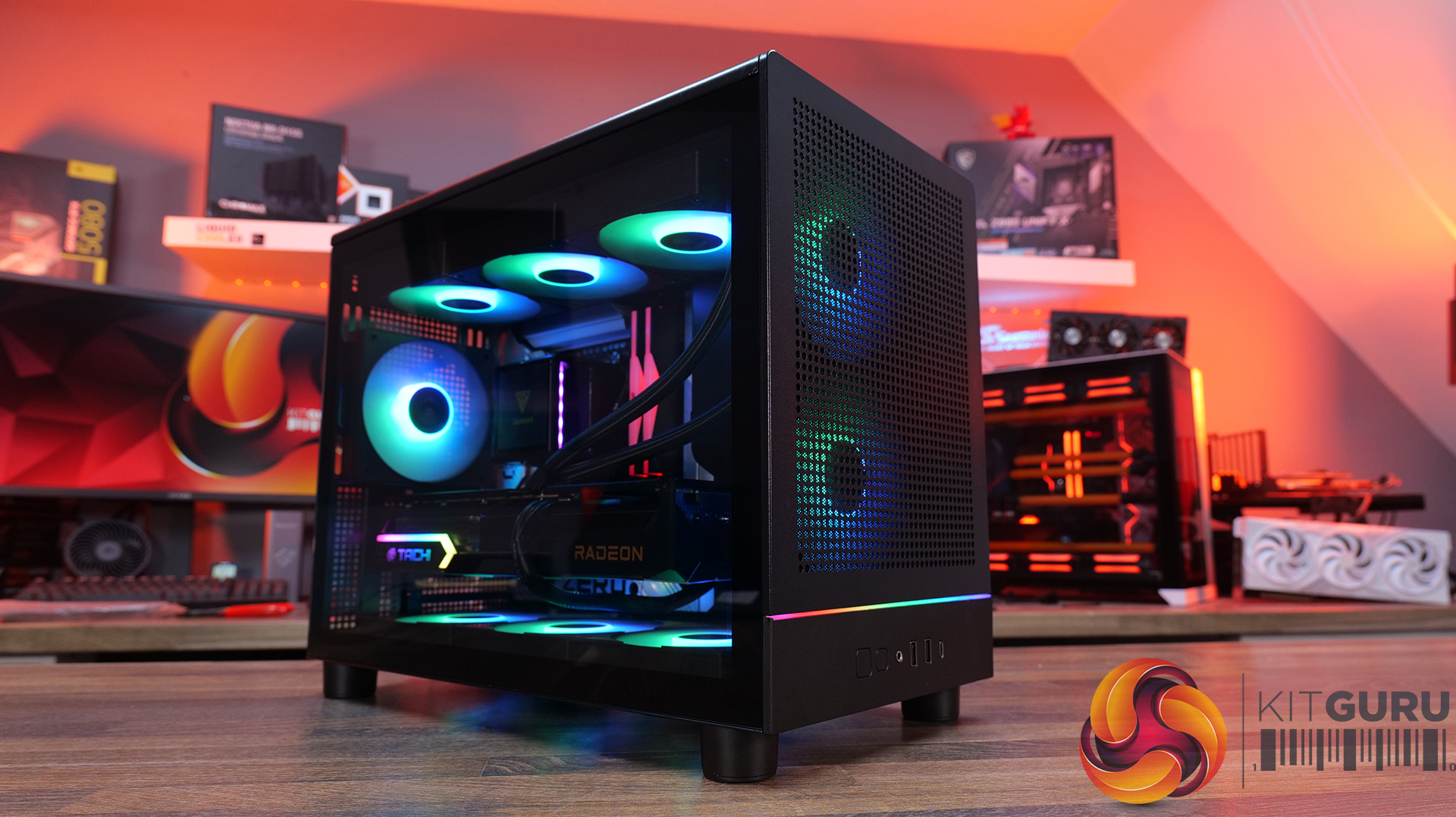

Gamdias has been expanding its lineup with a focus on airflow inside a small form factor, but what happens when you combine the Athena M4M chassis, a full setup of Notus M1 ARGB fans, a Chione P5 360 AIO and the Helios P2A 1300G power supply? You get a compact system with cooling ready to take on anything from gaming to heavier workloads, all within the Gamdias ecosystem. Join us to see how it comes together in our latest featured build video!

Timestamps:

00:00 Smoke intro
00:19 Unboxing the Case: Gamdias Athena M4M
00:42 B Roll Of Empty Case
01:21 Unboxing the Fans: Gamdias Notus M1 ARGB
01:41: B-Roll Of fans
03:03 Motherboard: MSI B650M Project Zero
03:07 CPU Installation: AMD Ryzen 7 9800X3D
03:13 RAM Installation: 32GB XPG Lancer RGB DDR5-6000MT/s
03:30 M.2 SSD Installation: 1TB Corsair MP700 PCIe Gen5 NVMe M.2 SSD
04:28 AIO Unboxing: Gamdias CHIONE P5 360
05:16 AIO B Roll
08:03 Power Supply Unboxing: Gamdias Helios P2A 1300G
08:40 PSU B Roll

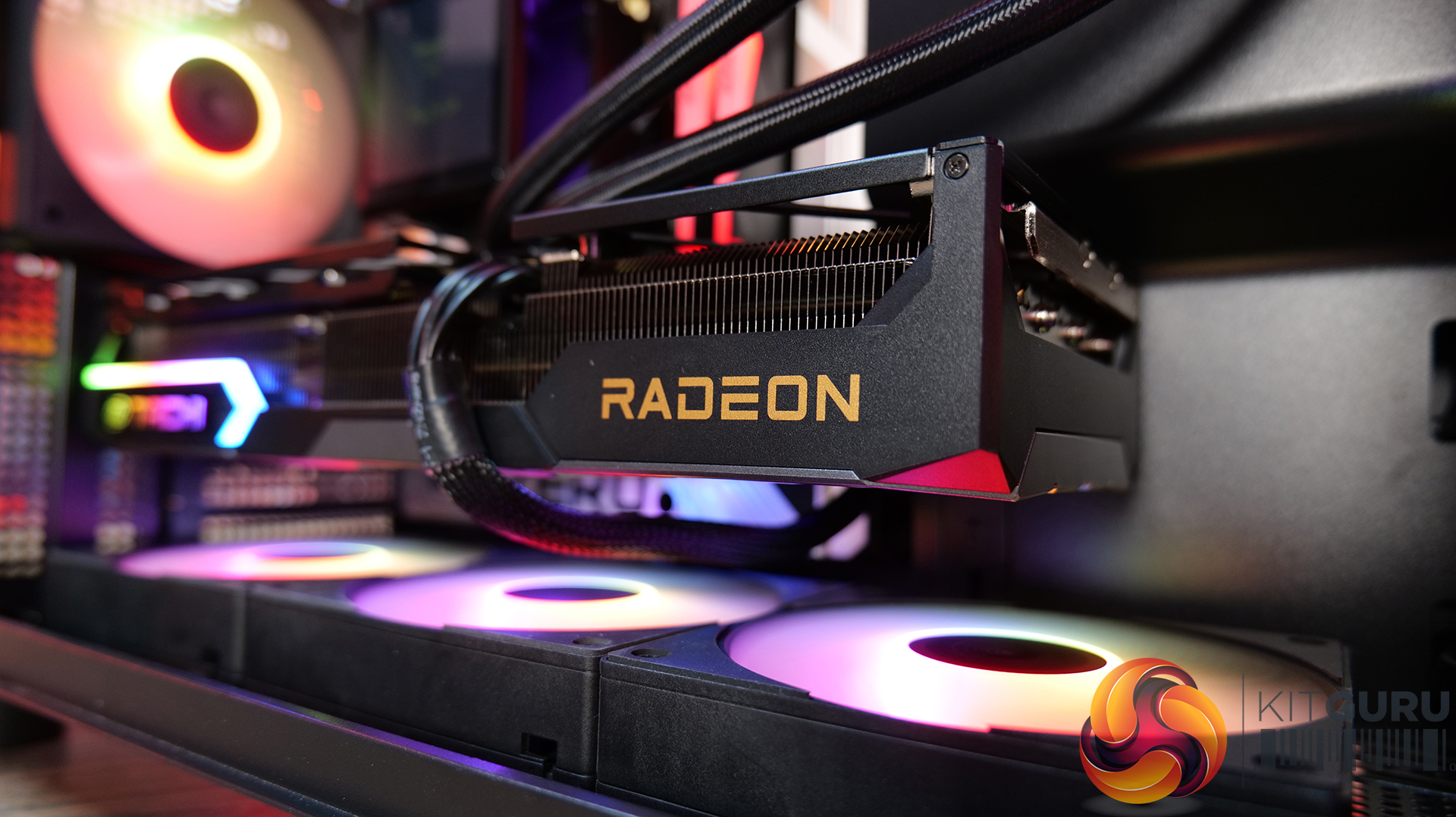

09:57 Graphics Card Installation: ASRock Taichi Radeon RX 9070 XT

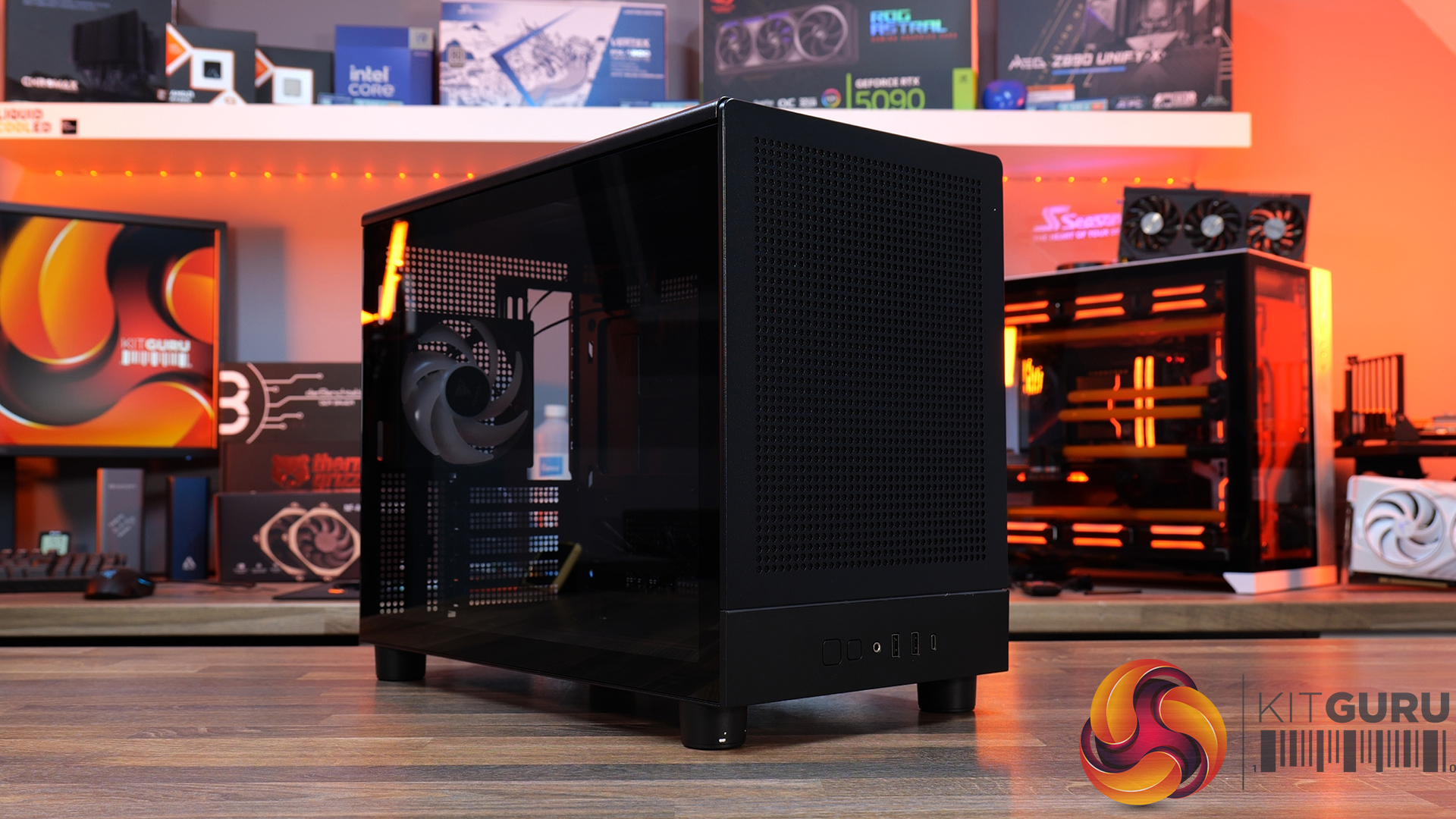

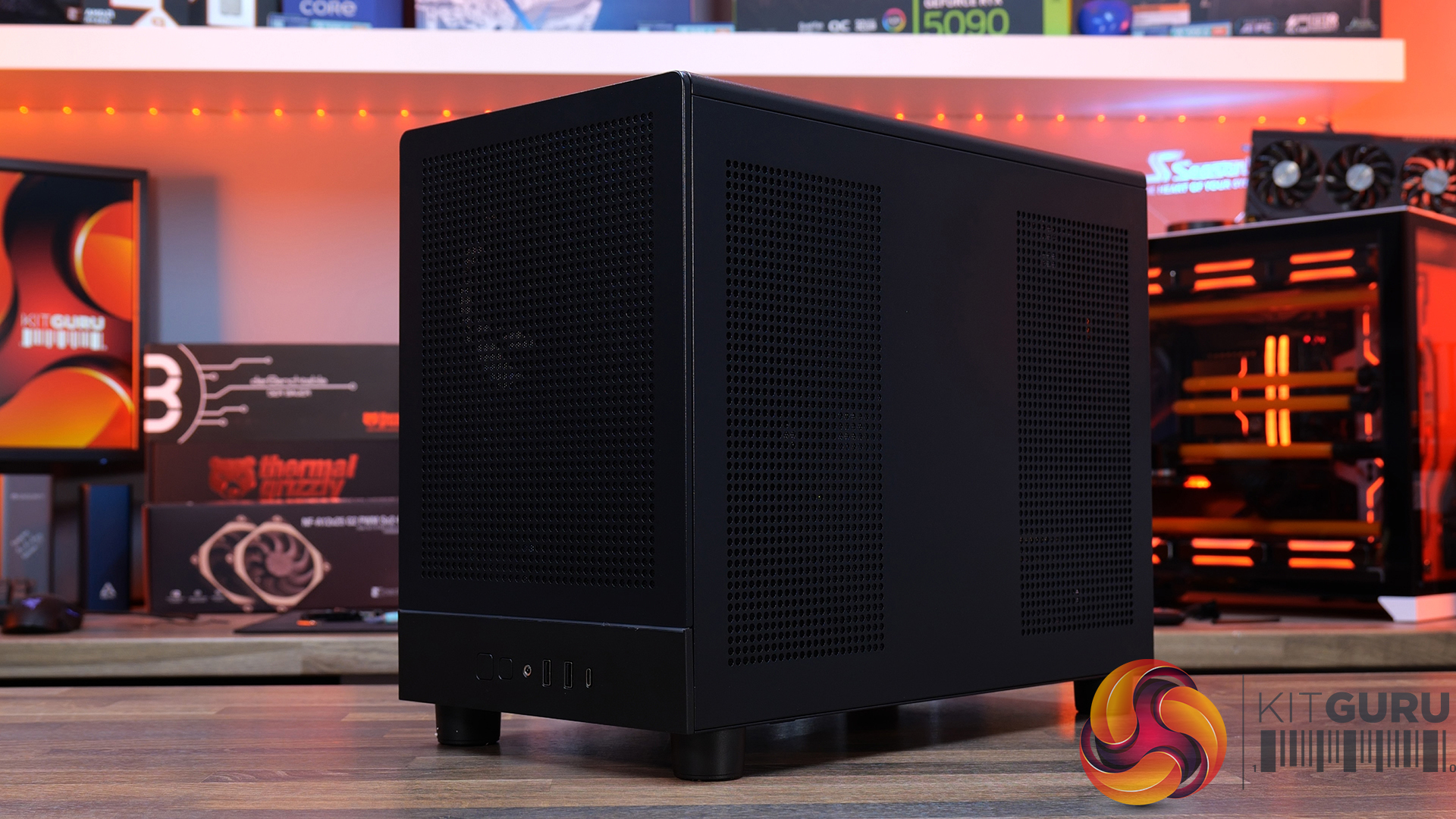

Case: Gamdias Athena M4M – Available to purchase now from Amazon UK priced at £66.99 HERE.

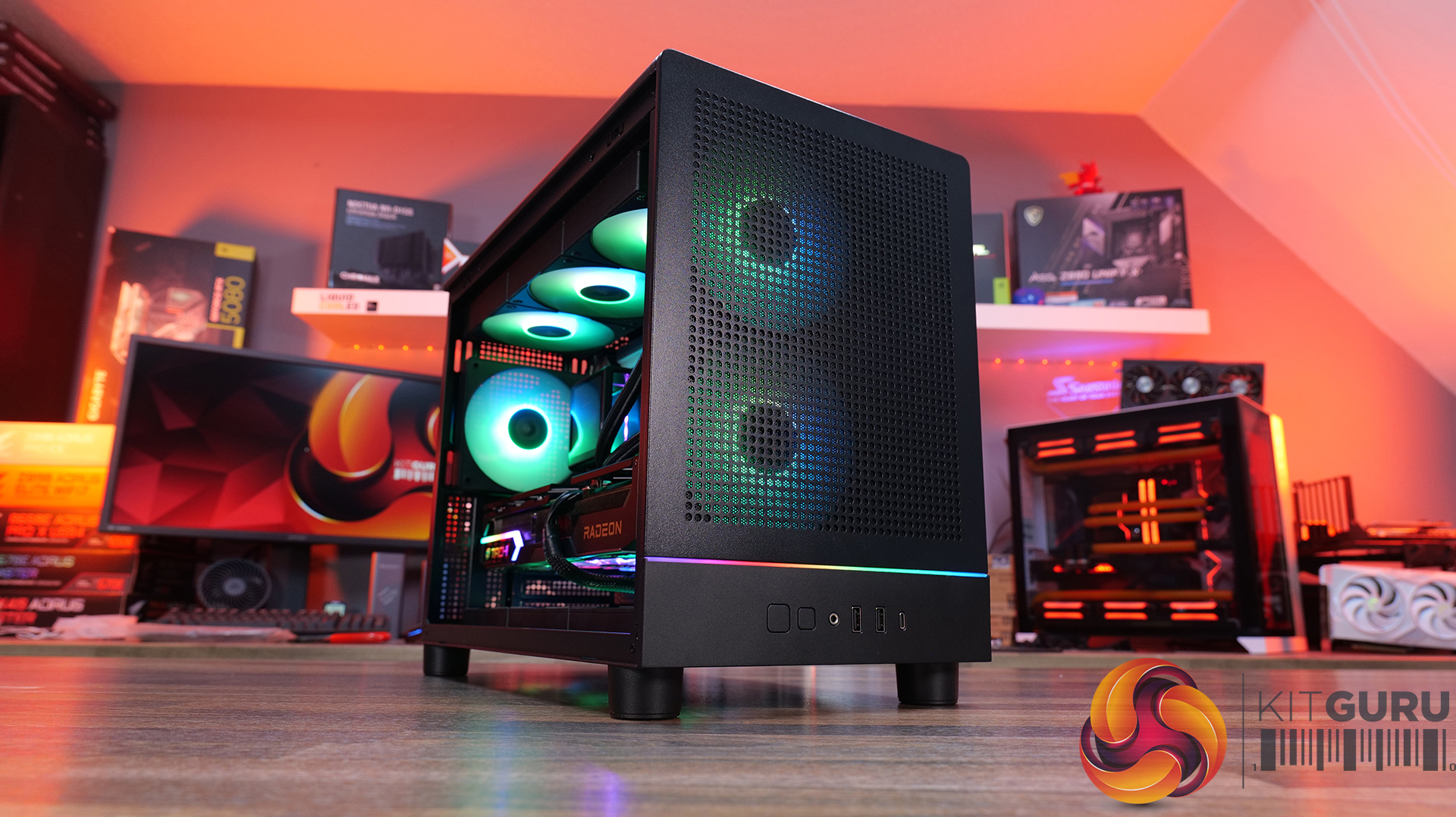

• Mesh Front Panel with Lighting Strip – Athena M4M features a fully perforated front panel, allowing for strong airflow. It’s also equipped with a built-in lighting strip that adds a clean, modern aesthetic.
• Three Pre-Installed NOTUS M1 Fans – Pre-installed with three 120 mm NOTUS M1 PWM fans, providing solid out-of-the-box airflow without the need to purchase additional fans immediately.

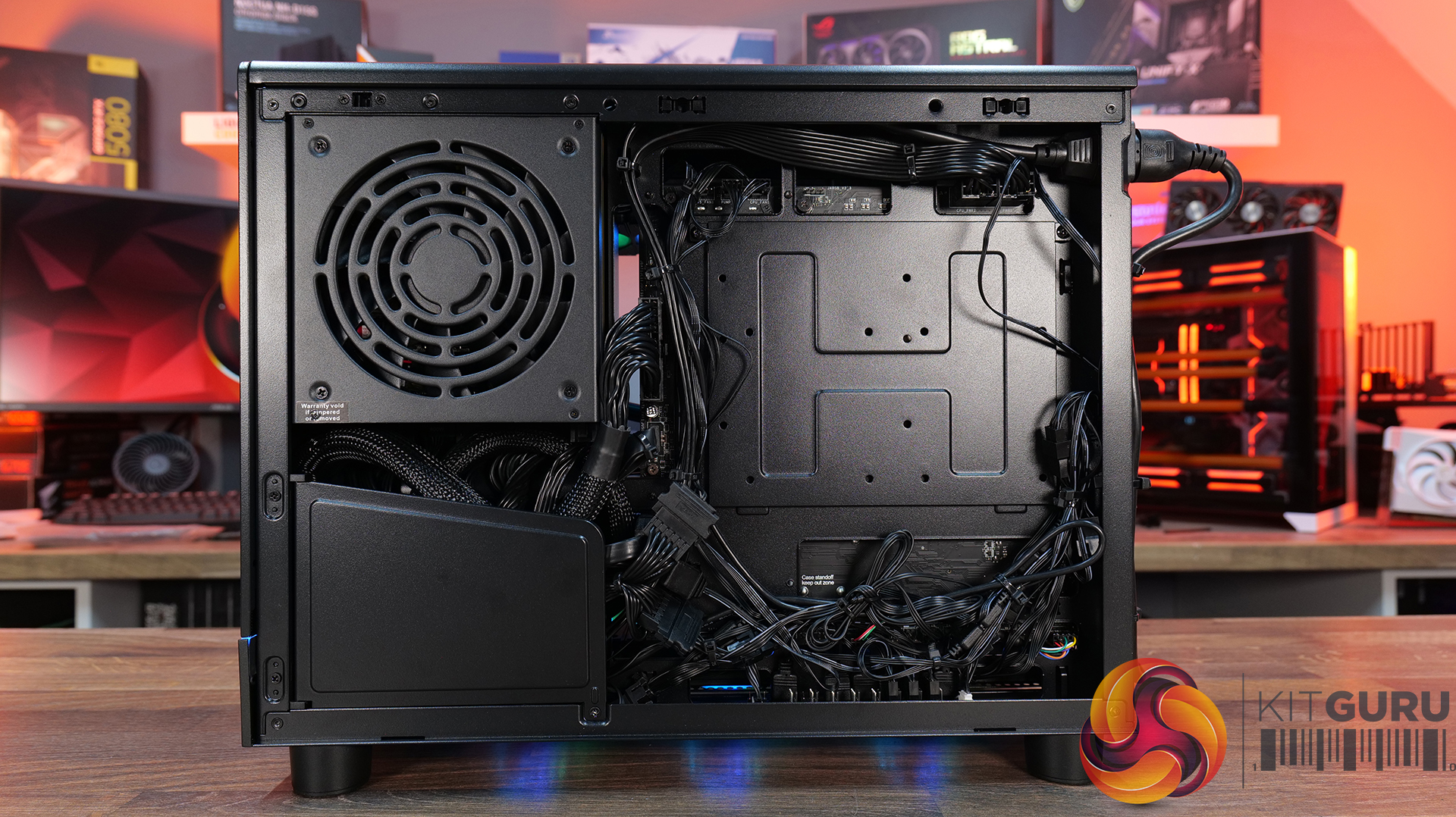

• Front-Mounted PSU Design – Front-mounted PSU design helps with cable management for a clean build and contributes to a more efficient airflow path.
• Dual 360 mm Radiator Support – Two 360mm radiators supported — one at the top and one at the bottom for flexibility when running a high-performance liquid cooling setup.

Specifications

• Case Type: Micro Tower
• Dimensions (L x W x H): 446 x 235 x 347mm
• Motherboard Support: Mini-ITX、Micro-ATX
• Expansion Slots: 5
• Storage Bays: 1 x 3.5″ + 1 x 2.5″ or 2 x 2.5″
• Max GPU Length: 395mm
• Max CPU Cooler Height: 175mm
• Max PSU Size: ATX up to 150mm
• Pre-installed Fans: 2 x 120mm BK PWM (Front), 1 x 120mm ARGB PWM (Rear)
• Fan Support: Top 3 x 120mm, Bottom 3 x 120 mm, Front 2 x 120 mm, Rear 1 x 120mm
• Radiator Support: Top 360 mm, Front 240mm, Bottom 360mm
• Dust Filters: Bottom, Front, Top, Side
• Front I/O: USB 3.0 x 2, Type C x 1, HD Audio x 1, LED Control x 1

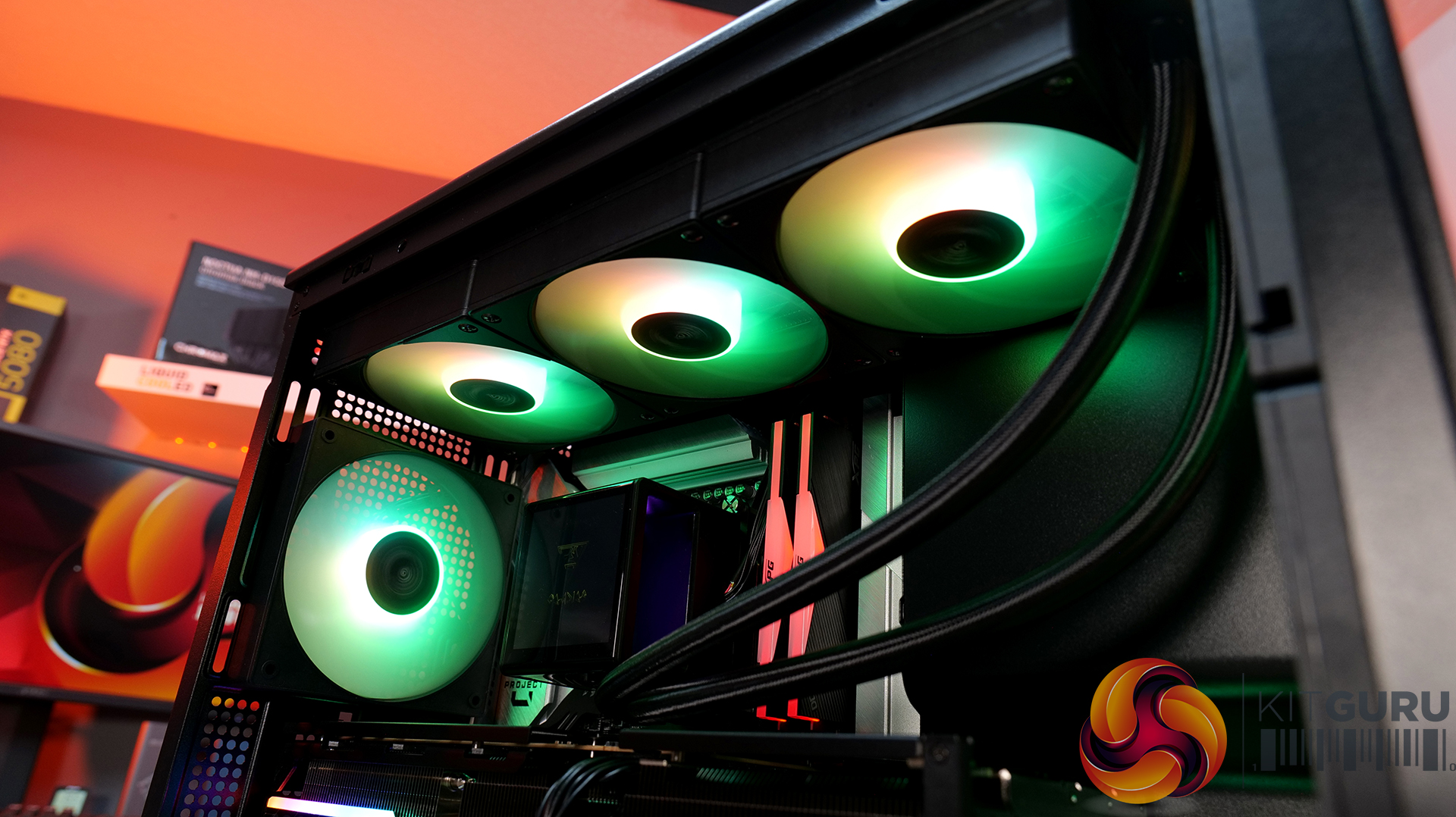

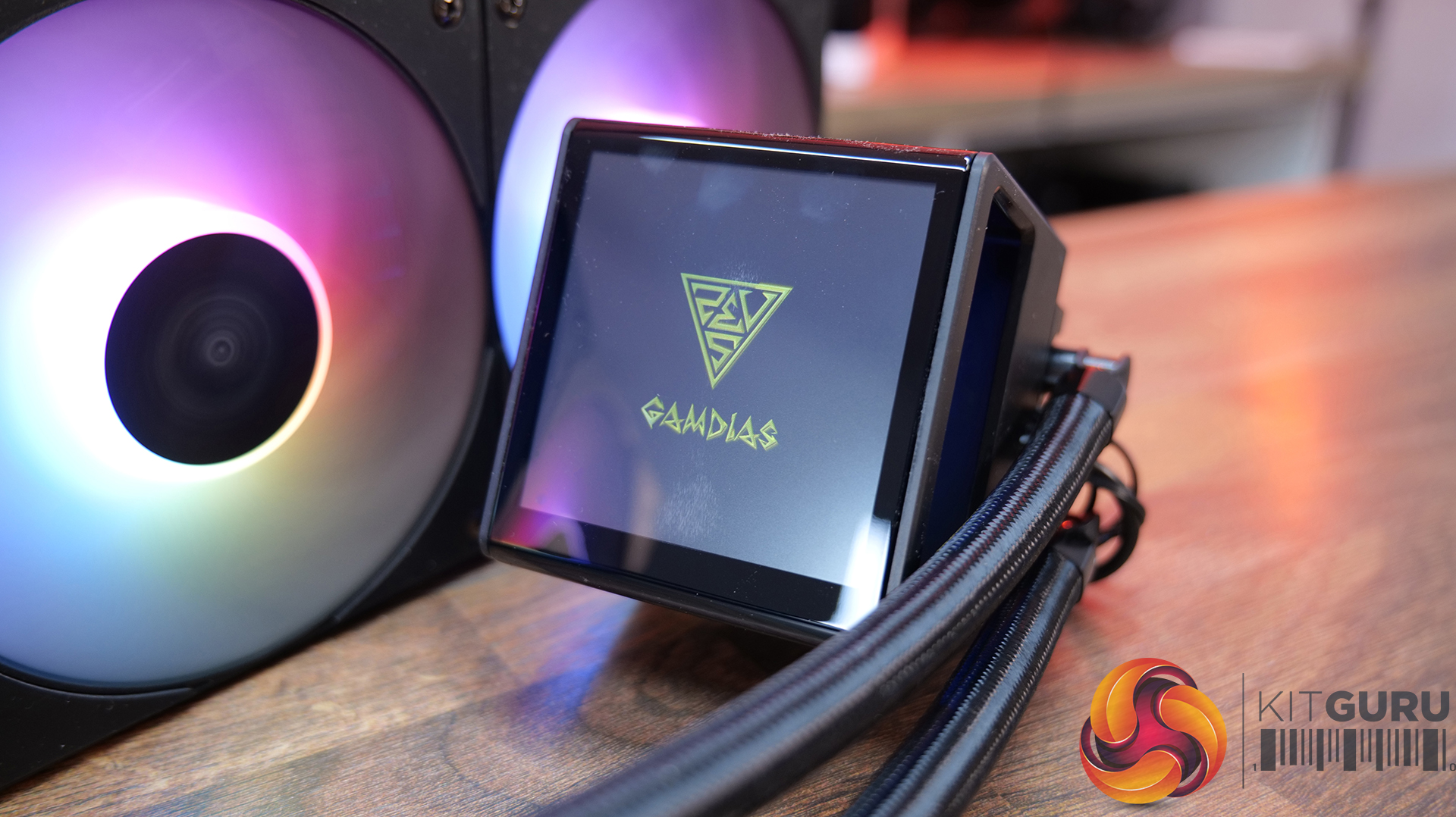

CPU Cooler: Gamdias CHIONE P5 360 – Available to purchase now from Amazon UK priced at £126.37 HERE.

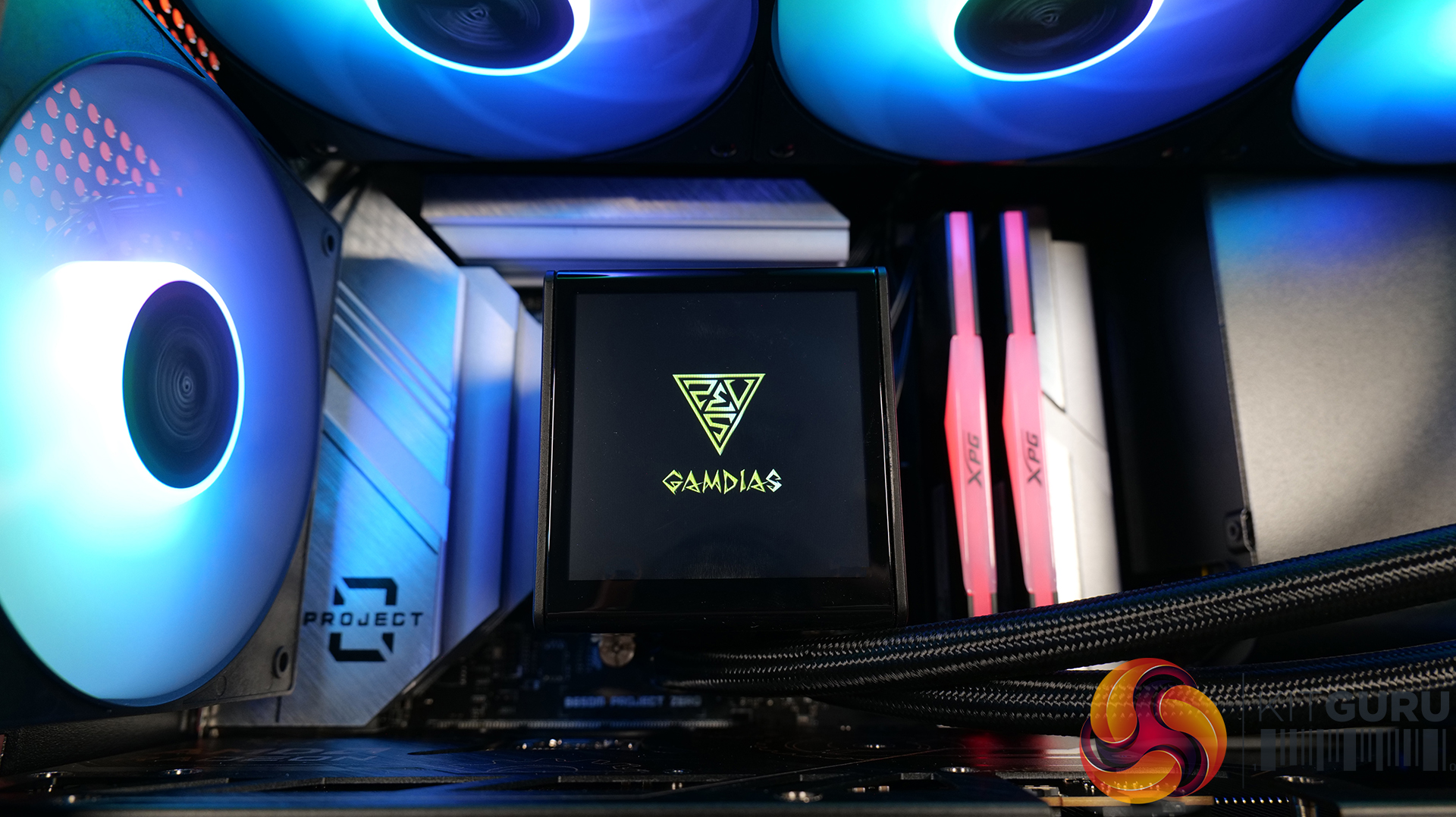

• Pump Top Mounted IPS Display – with 480 x 480 resolution and 60 Hz refresh rate. The screen can be customised to show real-time system info, as well as custom images and can be manually rotated for always correct orientation.
• High-quality Performance Fans – Included fans feature hydraulic bearings and hidden daisy-chained cabling routing so cable clutter is kept away from view, as well as built-in ARGB lighting effects.
• A high-performance pump – featuring a 12-slot 10-pole motor with rotational speed up to 2700rpm and optimal fluid circulation as well as quiet operation.

Specifications

• CPU Socket Compatibility: LGA2066 / 2011-v3 / 2011 / 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
• Radiator Material: Aluminium
• Radiator Dimensions: 396 x 120 x 27 mm
• Radiator Tube Length: 400mm (Approx)
• Cold Plate Material: Micro-Skived Copper
• Pump Connector: 4-Pin PWM
• VRM Fan: N/A
• Fan Dimensions: 120 x 120 x 25 mm
• Fan Speed (PWM): 400 – 2200 RPM±10%
• Fan Max Airflow: 81.81 CFM
• Fan Max Air Pressure: 3.15 mmH2O
• Noise (dBA): 11 – 34.91 dBA
• Fan Bearing: Hydraulic
• Fan Connector: 4-Pin PWM
• LCD Screen: 3.4-inch IPS
• Warranty: 5 Years

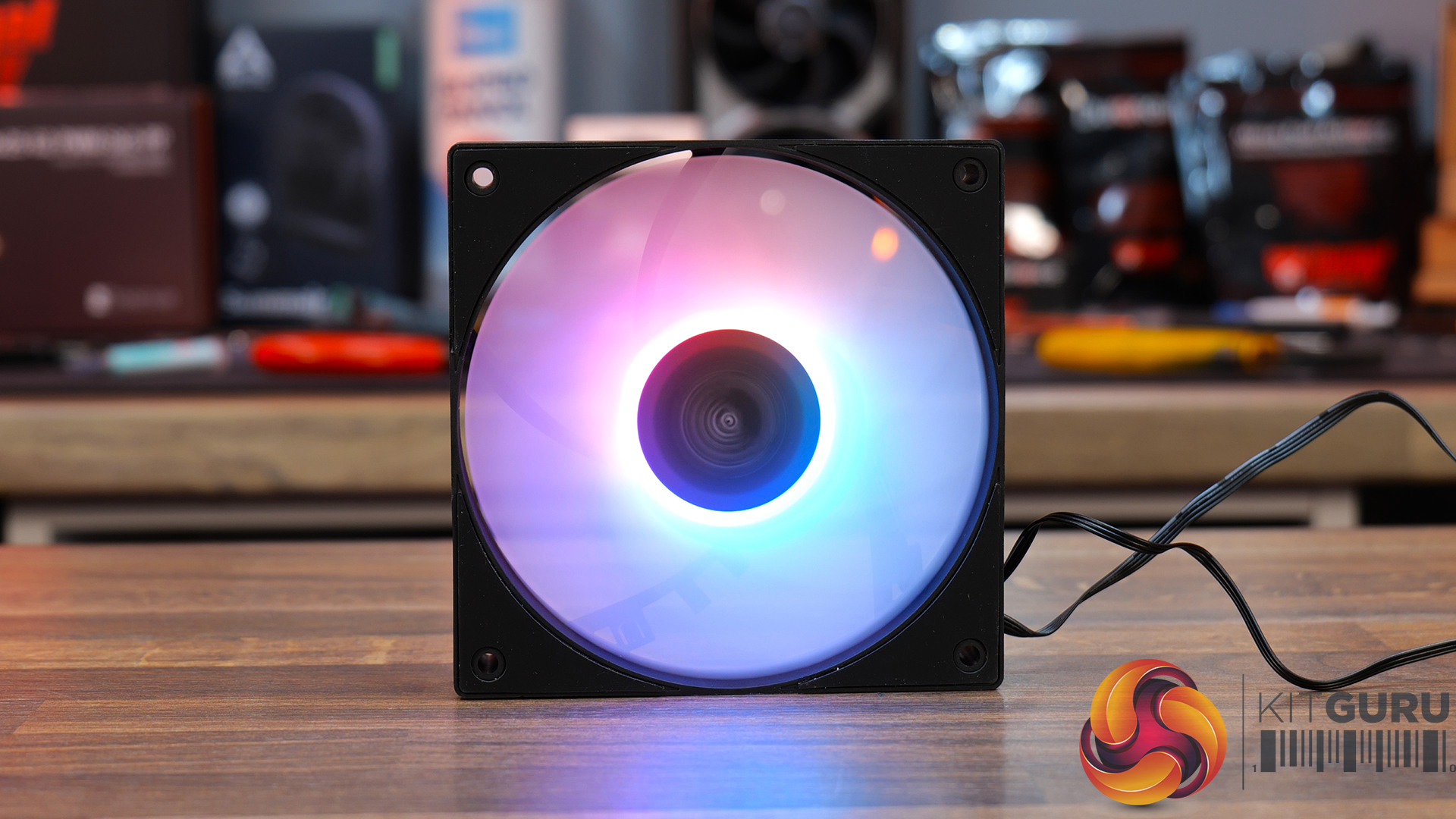

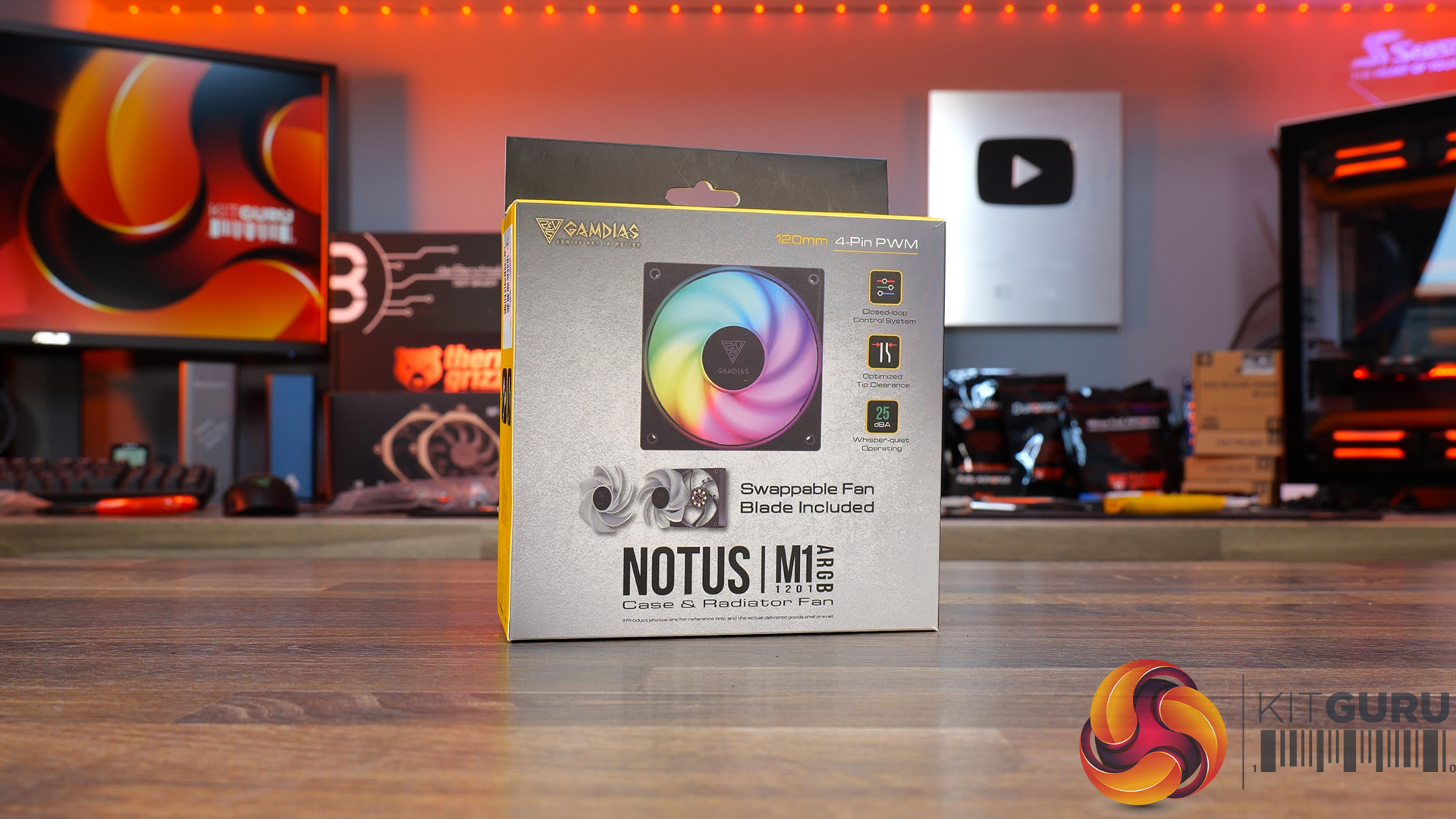

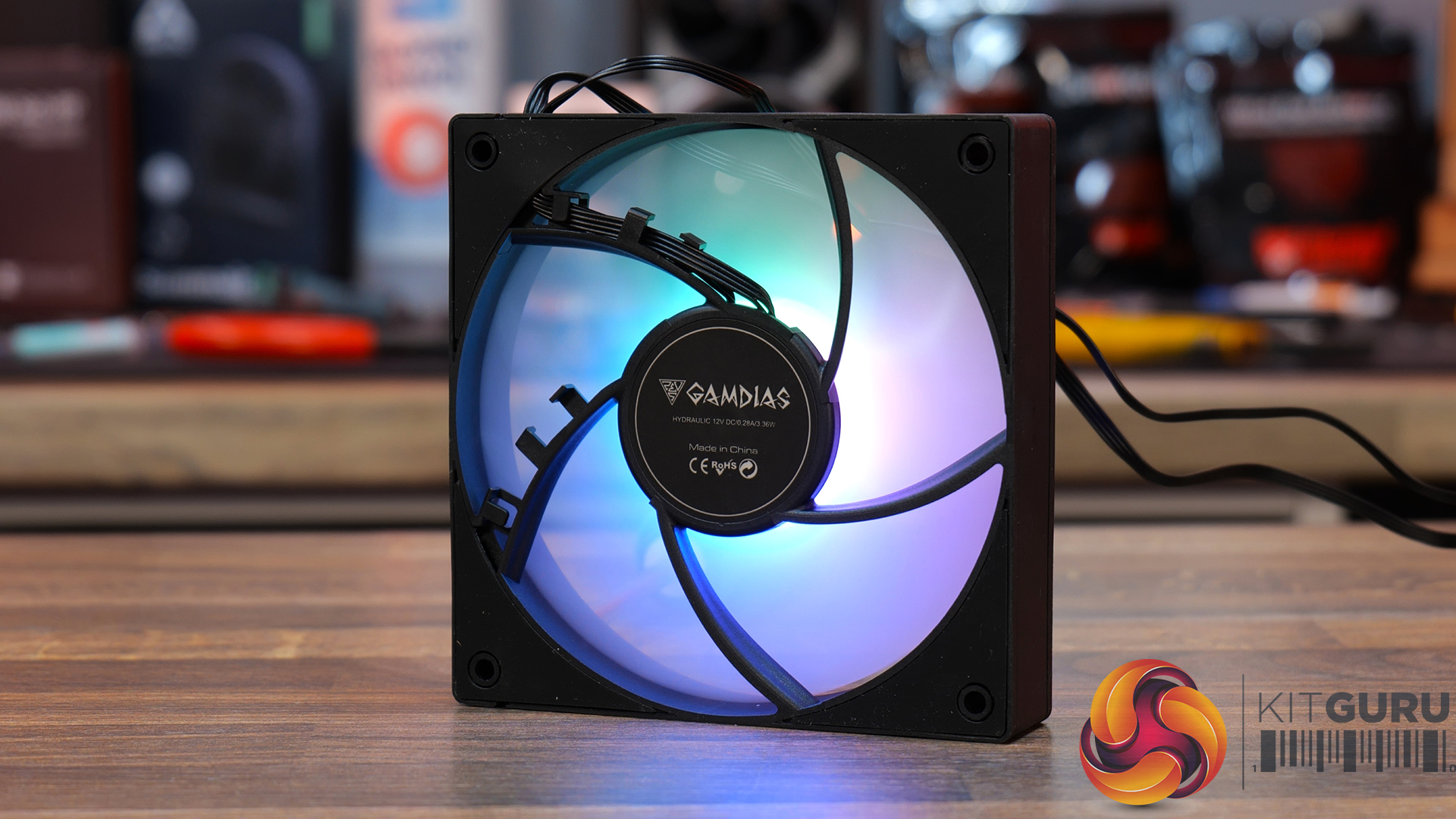

Fans: Gamdias Notus M1 ARGB – 3 pack available to purchase now from Amazon UK priced at £12.99 HERE. (Black Friday deal, normally £19.99)

• High airflow/performance design — delivers up to 57.56 CFM maximum airflow for powerful cooling.
• Closed-loop control system + advanced P/Q curve — optimises performance across different speeds and loads.
• Quiet operation — labelled “whisper-quiet” by GAMDIAS, making it suitable for noise-sensitive builds.
• Optimised tip clearance — the design minimises air leakage around the blade edges for more efficient airflow.

Specifications

• Dimensions: 120 x 120 x 25 mm
• Colour Option: Black
• Speed: 400 – 1600 RPM±10%
• Max Noise Output: 25dBA
• Max Airflow: 57.56 CFM
• Max Air Pressure: 1.75 mmH2O
• Bearing Technology: Hydraulic
• Lighting Effect: ARGB
• LED Number: 8
• Connector: 4Pin PWM Connector 3Pin ARGB Connector
• Swappable Blade: Yes

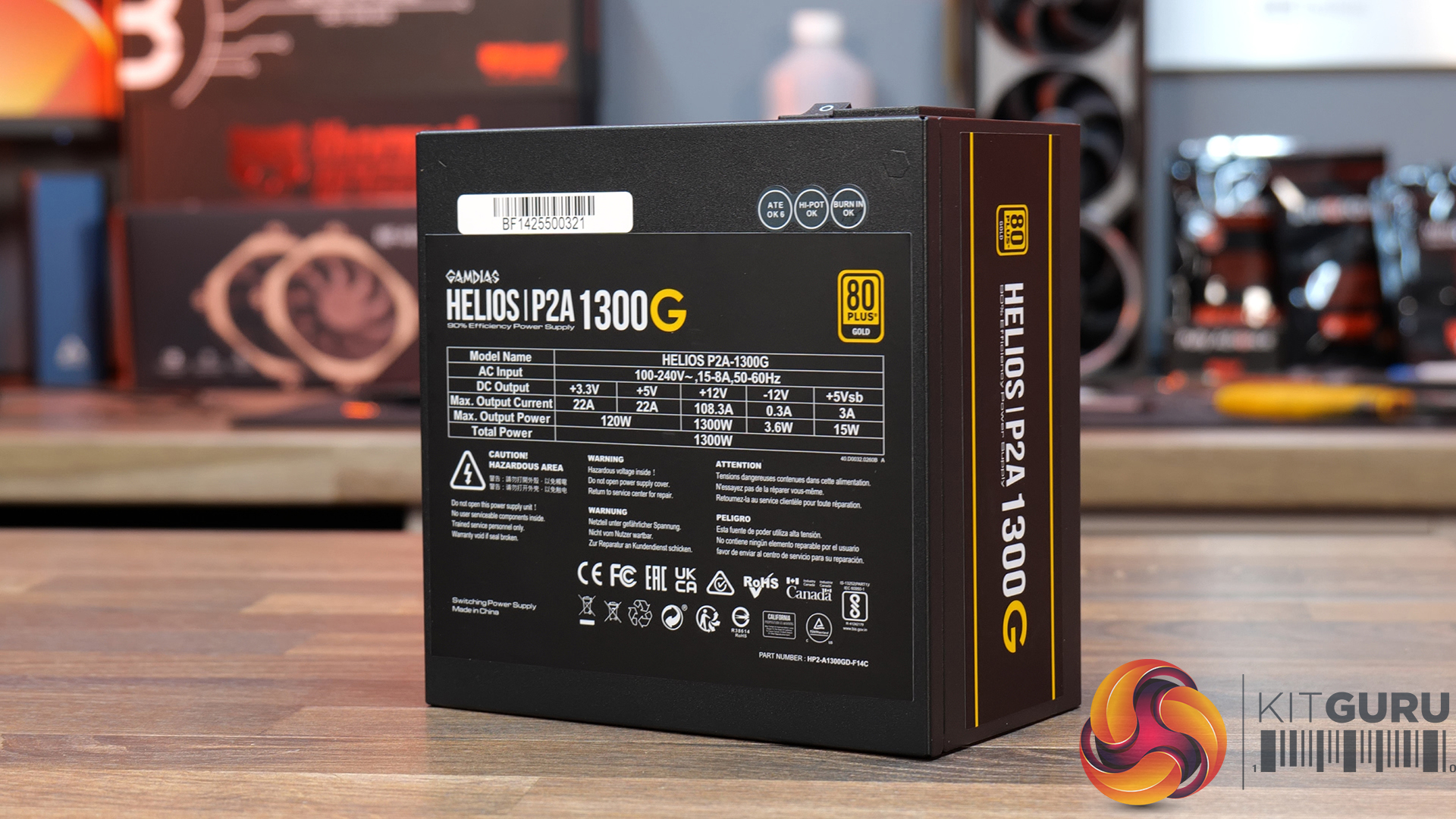

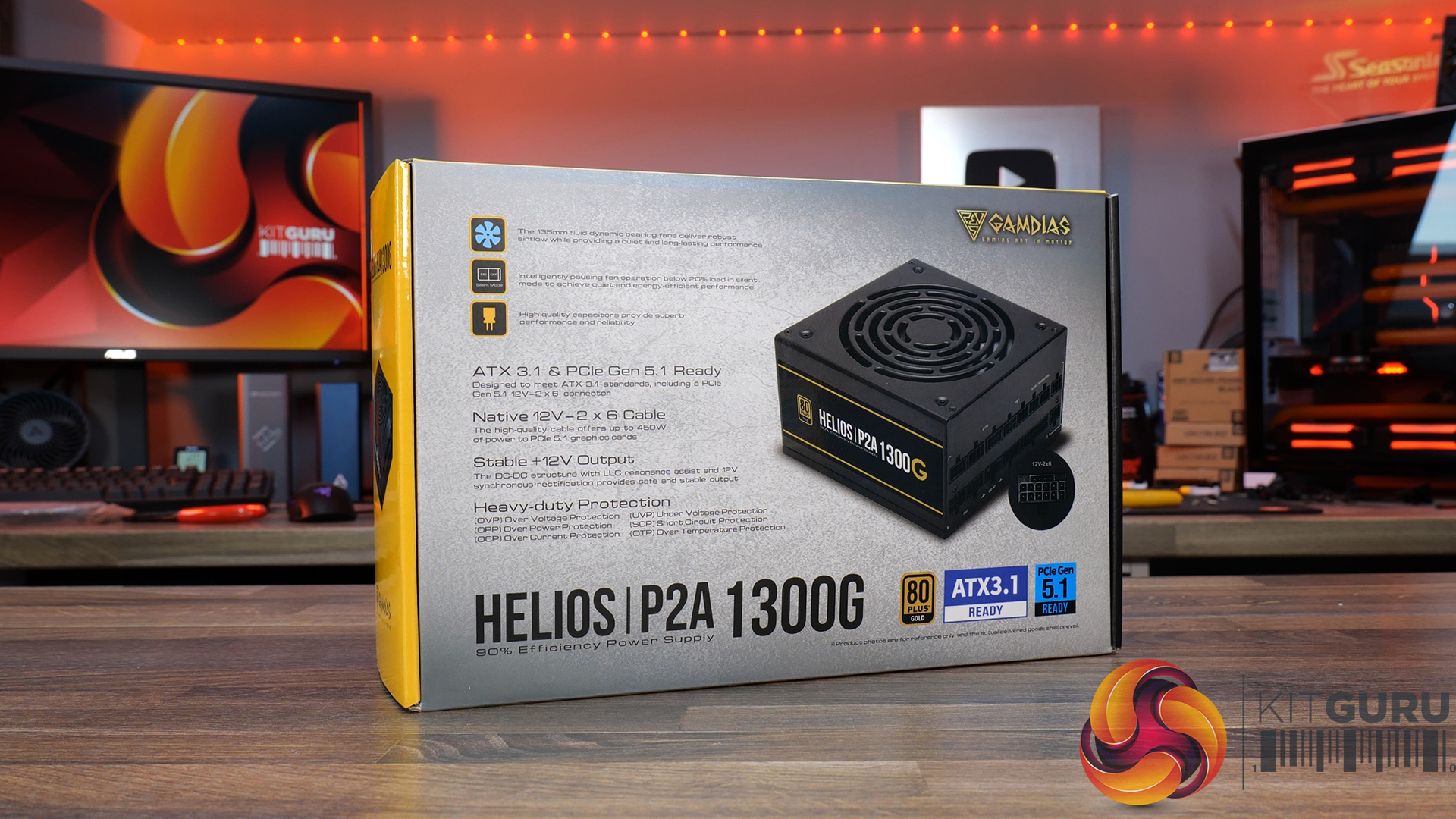

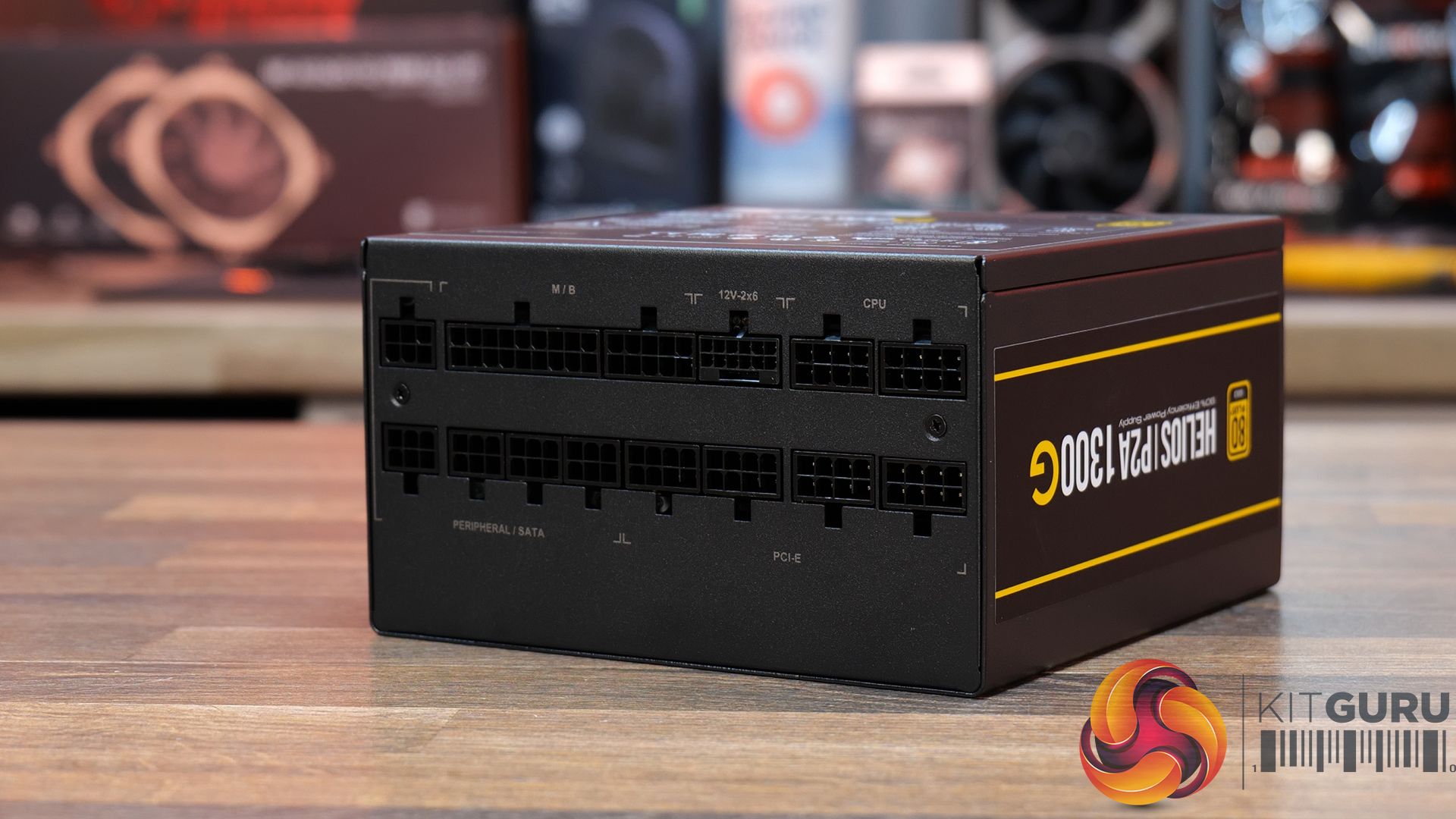

Power Supply: Gamdias Helios P2A 1300G – Currently unavailable in the UK

• 80 PLUS Gold Efficiency — The Helios P2A 1300G is certified to the 80+ Gold standard, meaning it delivers high efficiency and less wasted power.
• Fully Modular Design — All cables can be disconnected, helping to provide cleaner builds and easier cable routing.
• Native 12VHPWR Connector — Includes a 12 + 4-pin 12VHPWR cable, making it ready for latest gen graphics cards and power demands.
• Heavy-Duty Protection Suite — Equipped with comprehensive safety protections including over-voltage (OVP), under-voltage (UVP), over-power (OPP), short-circuit (SCP), over-current (OCP), and over-temperature (OTP).

Specifications

• Type: ATX 3.1
• Dimension: 150 x 150 x 86 mm
• Certification: Meets 80 PLUS Gold efficiency
• Power Factor Correction: APFC with PF value of 0.99
• Peak Power: 1690W
• Protections: OVP / UVP / OPP / SCP / OCP / OTP
• Fan: 135mm Fluid Dynamic Bearing (FDB) silent fan
• Silent Mode: Yes
• AC Input: 100-240V~ / 15-8A / 50-60Hz
• DC Output: +3.3V / +5V / +12V / -12V / +5Vsb
• Modularity: Fully Modular
• Warranty: 7 Years

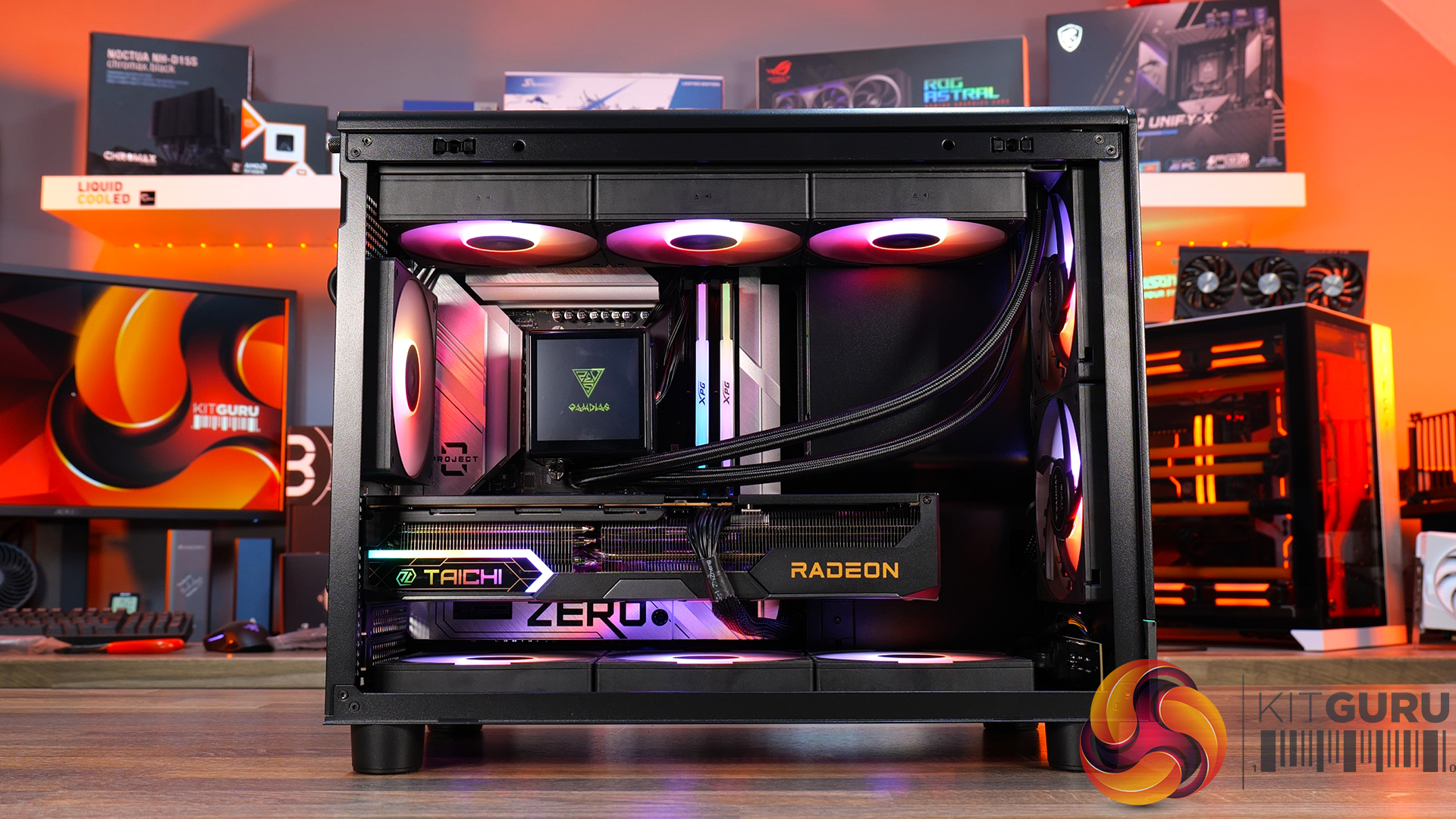

Build Specification:

• CPU – AMD Ryzen 7 9800X3D

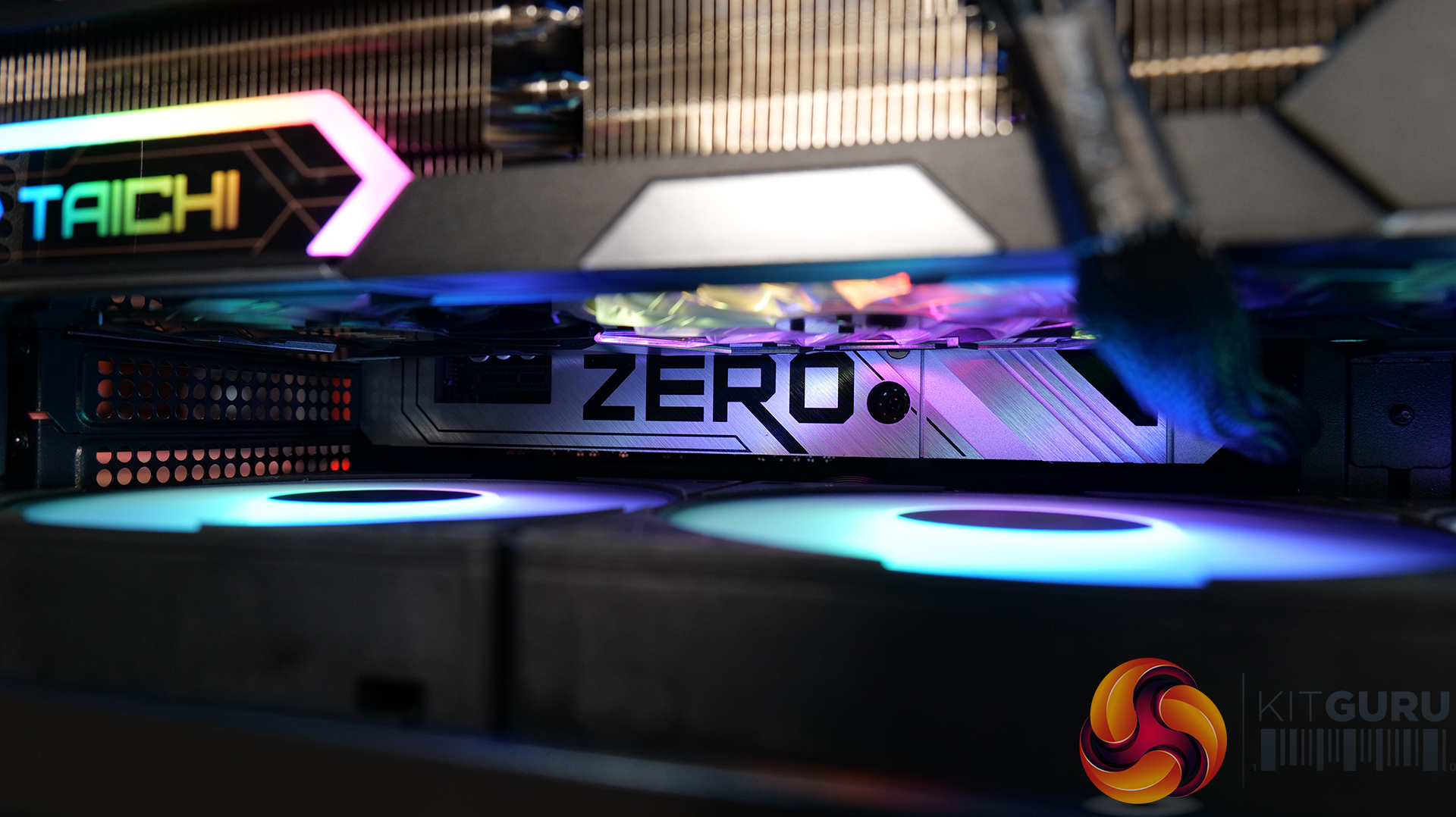

• Motherboard – MSI B650M Project Zero
• Graphics Card – ASRock RX 9070 XT Taichi

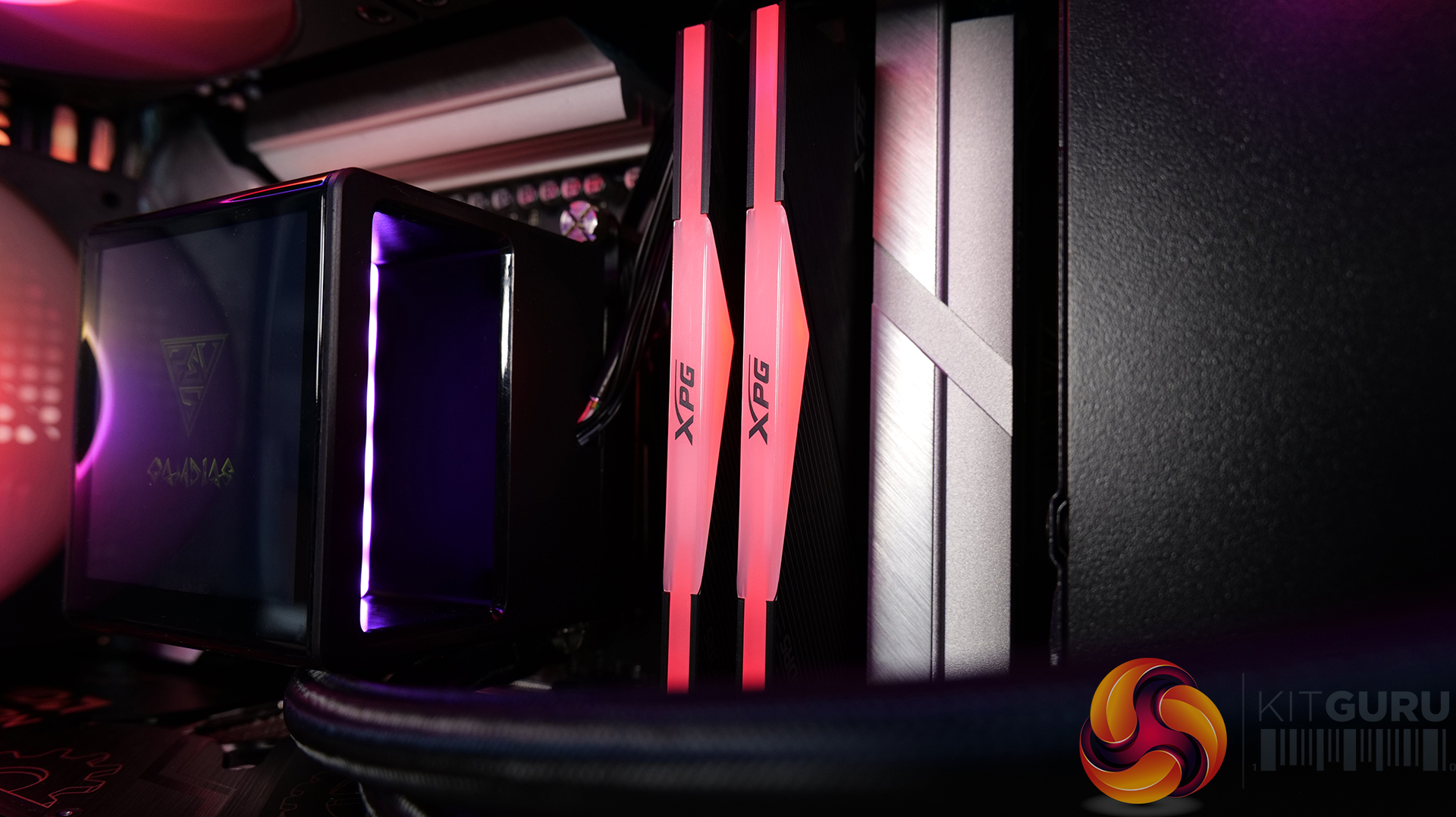

• Memory – 32GB (2 x 16GB Modules) XPG Lancer RGB DDR5-6000
• Storage – 1TB Corsair MP700 PCIE Gen 5 NVMe M.2 SSD
• CPU Cooler – Gamdias Chione P5 360
• Power Supply – Gamdias Helios P2A 1300G
• Case fans – Gamdias Notus M1 ARGB
• Chassis – Gamdias Athena M4M
• Operating System – Windows 11

KitGuru says: Gamdias might not be a familiar name for all, but the company has an extensive range of reasonably priced hardware. Will you check Gamdias out for your next build?
