WD Black SN750 1TB SSD Review

1. Introduction2. WD Black SN750 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Closing Thoughts19. View All Pages

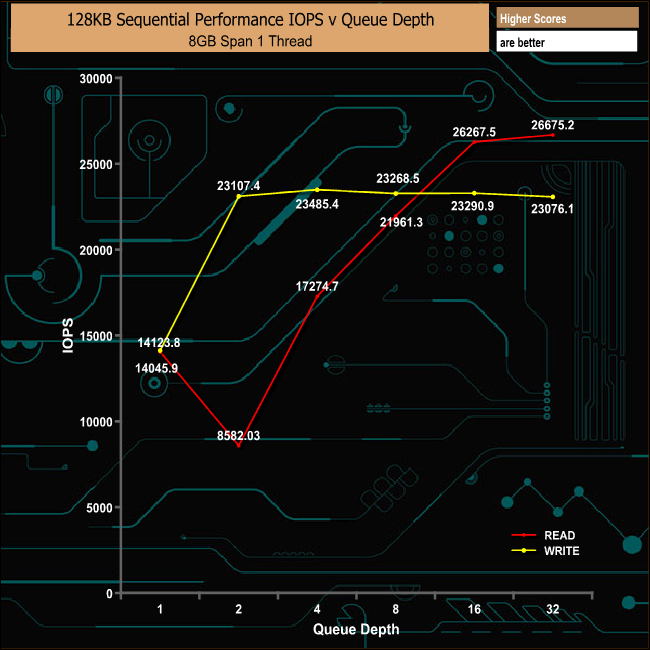

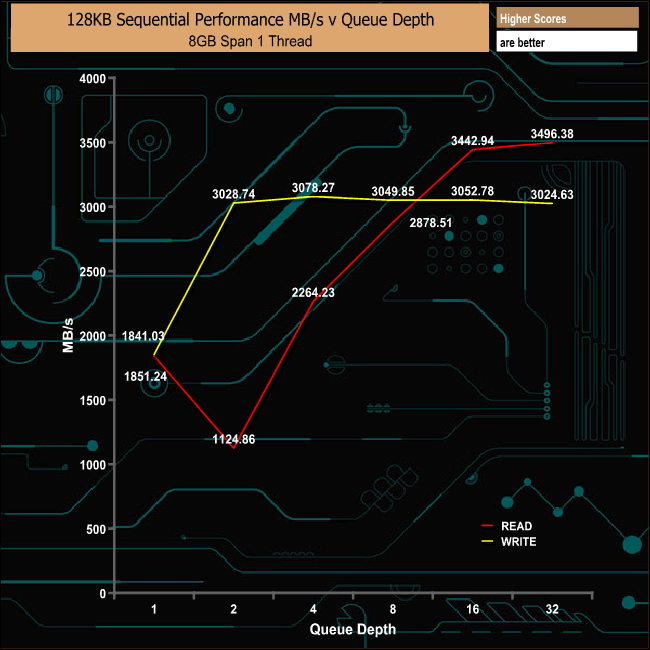

As with the ATTO benchmark results, we could confirm the official Sequential performance figures of the drive using our 128KB tests. The drive produced a read score of 3,496MB/s with writes at 3,024MB/s against the official 3,470MB/s reads and 3,000MB/s writes.

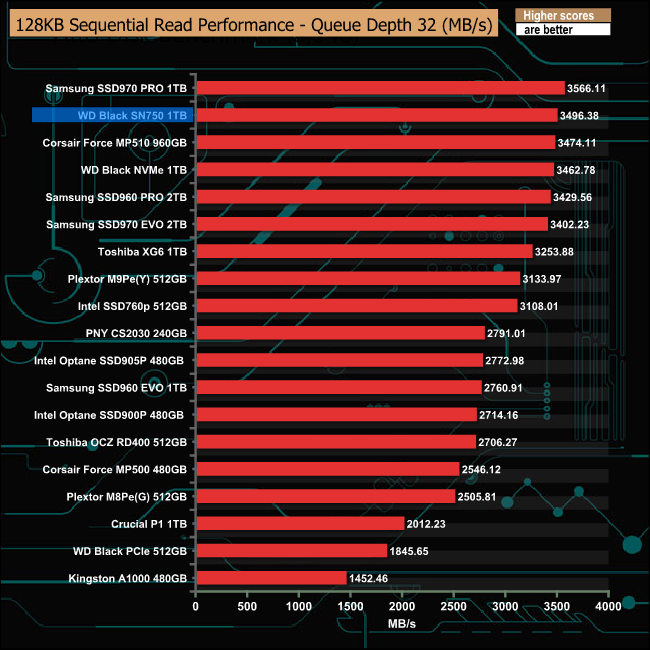

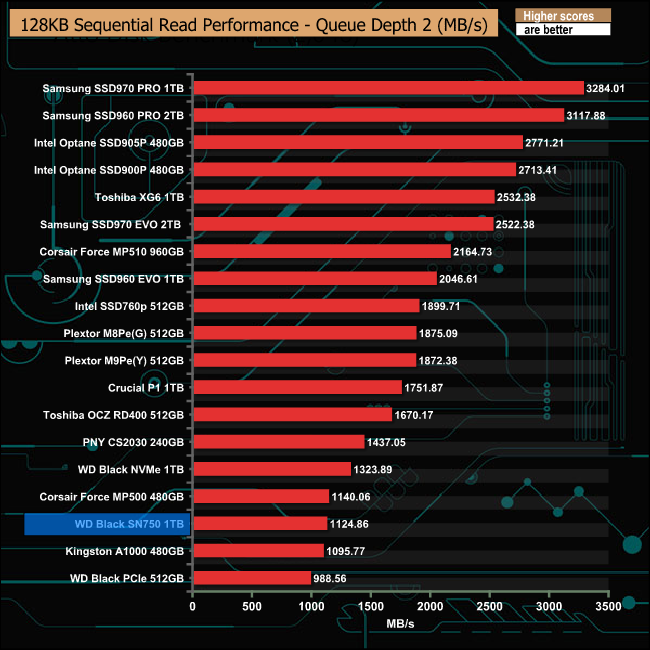

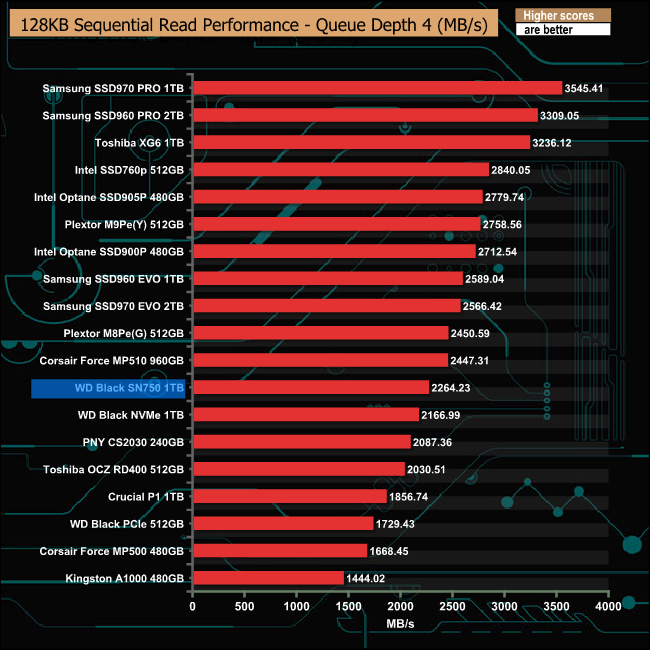

128KB Sequential Read Performance v QD

The read performance of the SN750 falls below the previous generation NVMe drive at QD2 but for QD's 1, 4 and 32 the new drive is the faster performer.

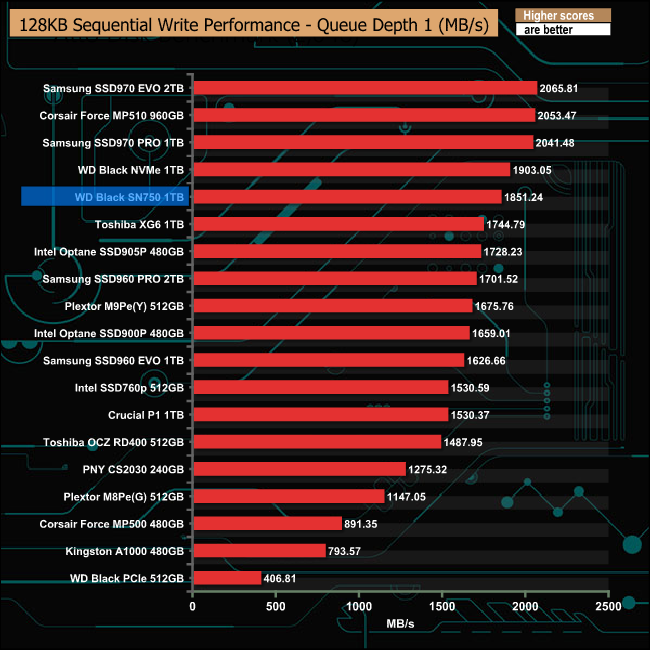

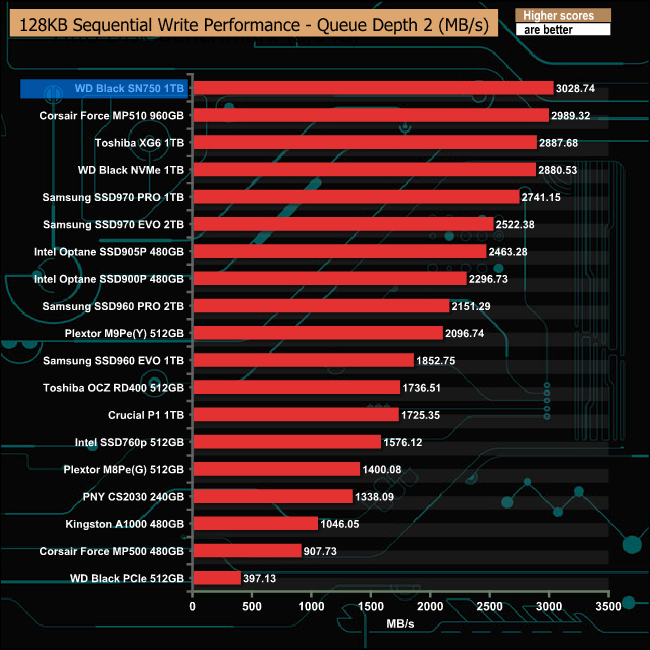

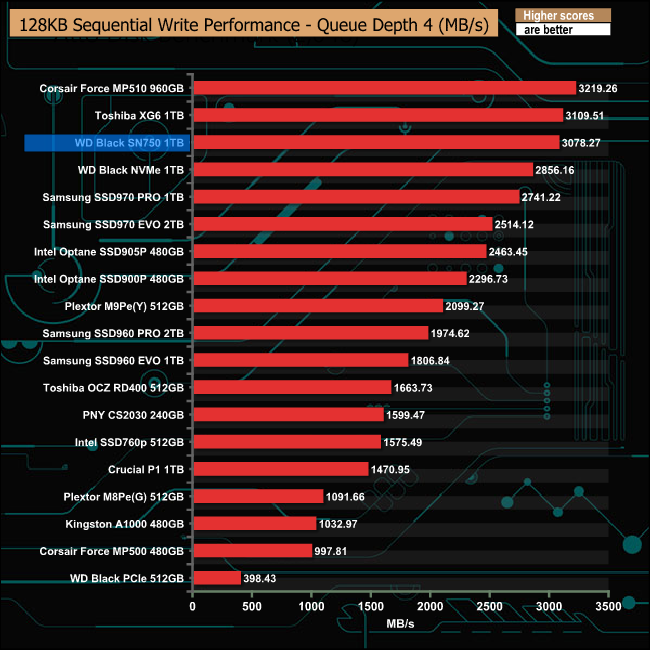

128KB Sequential Write Performance v QD

When it came to our Sequential write test, the new SN750 outshone the previous drive at all queue depths apart from QD1 where the older drive still has the advantage.
