Seagate FireCuda 520 1TB SSD Review

1. Introduction2. Seagate FireCuda 520 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Sequential Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. Performance Stability14. PCMark 10 Full System Drive Benchmark15. Real Life File Testing16. Closing Thoughts17. View All Pages

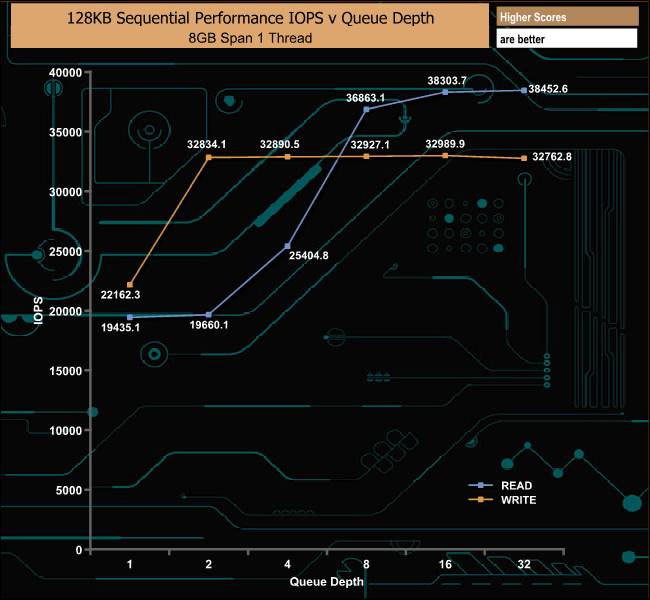

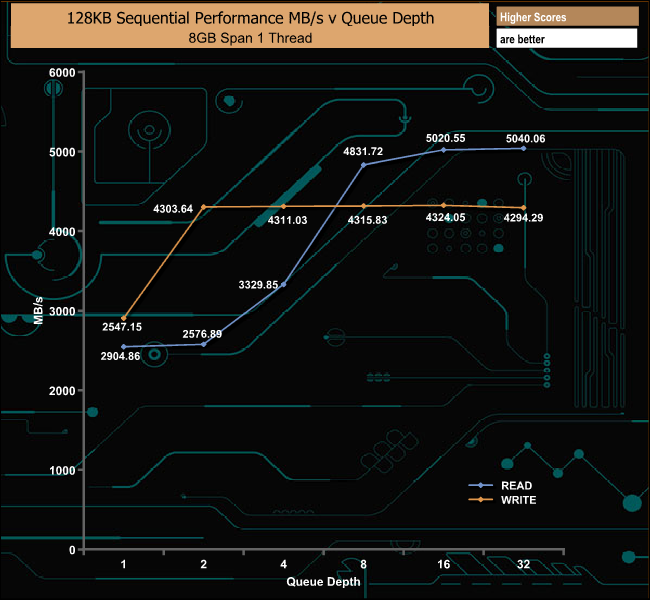

In our own Sequential tests, we could confirm the official maximum read figure of 5,000MB/s as the drive produced a peak of 5,040.06MB/s when tested. Tested writes peaked at 4,324.05MB/s, a little shy of the official maximum of 4,400MB/s.

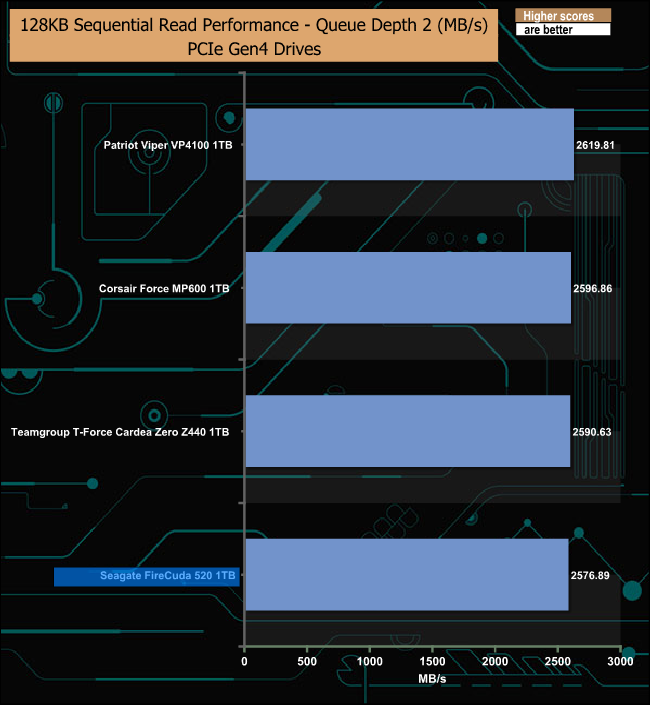

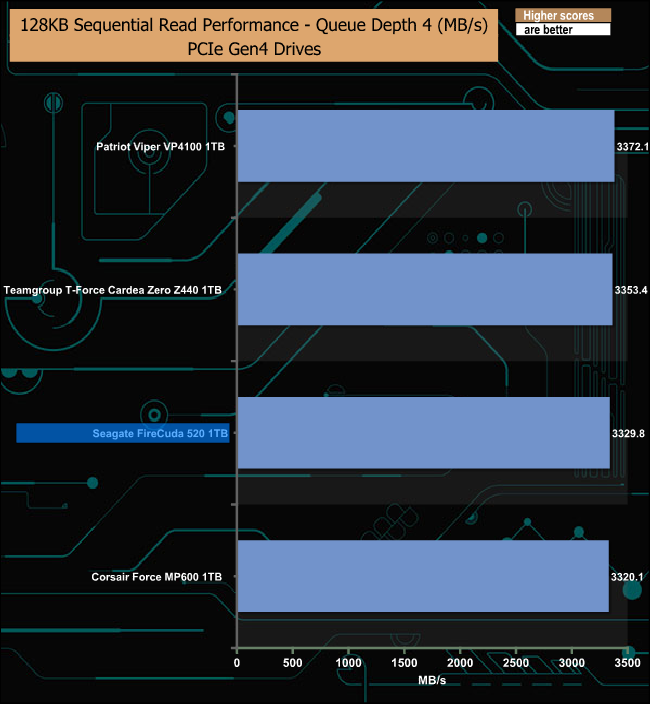

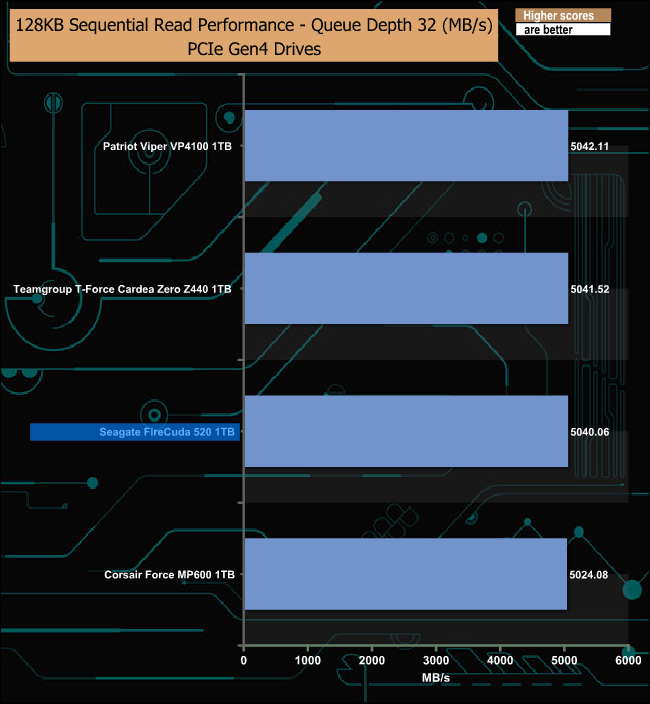

128KB Sequential Read v QD Performance Comparison

With all the tested PCIe Gen4 drives using the same controller and NAND combination, there is very little to choose between them when it comes to Sequential read performance.

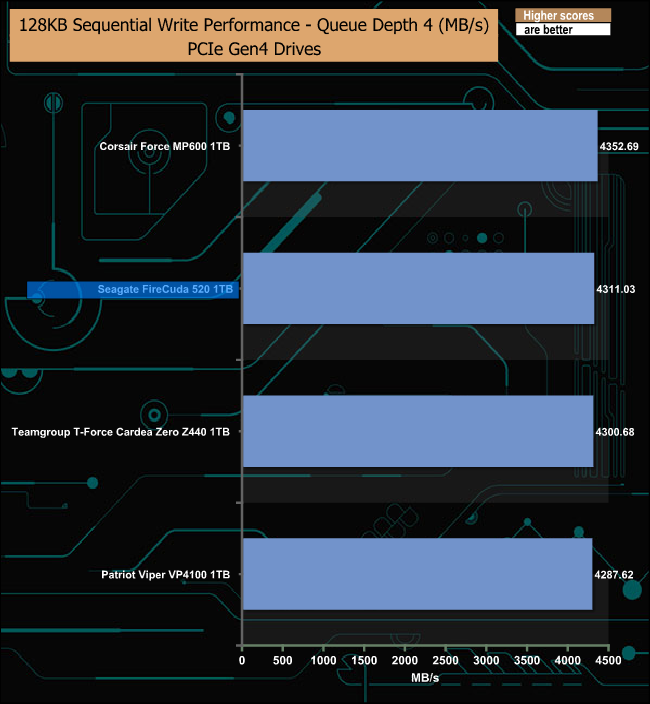

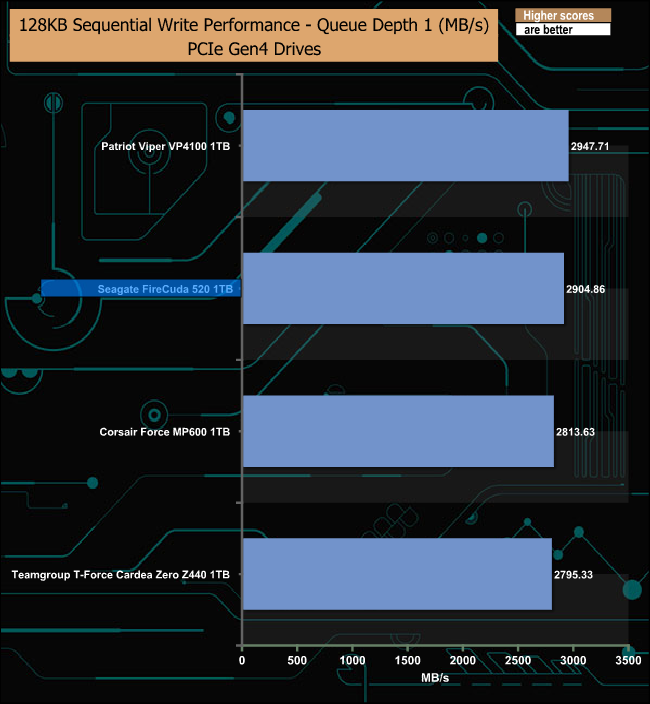

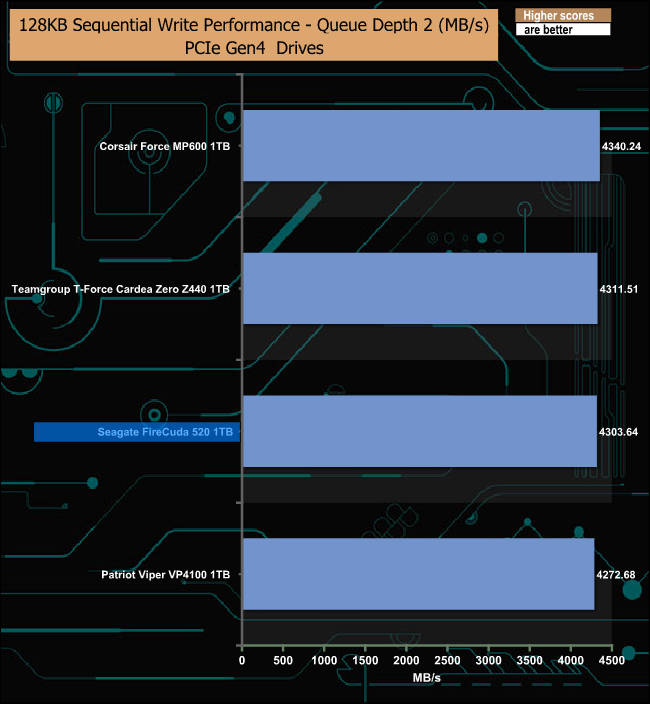

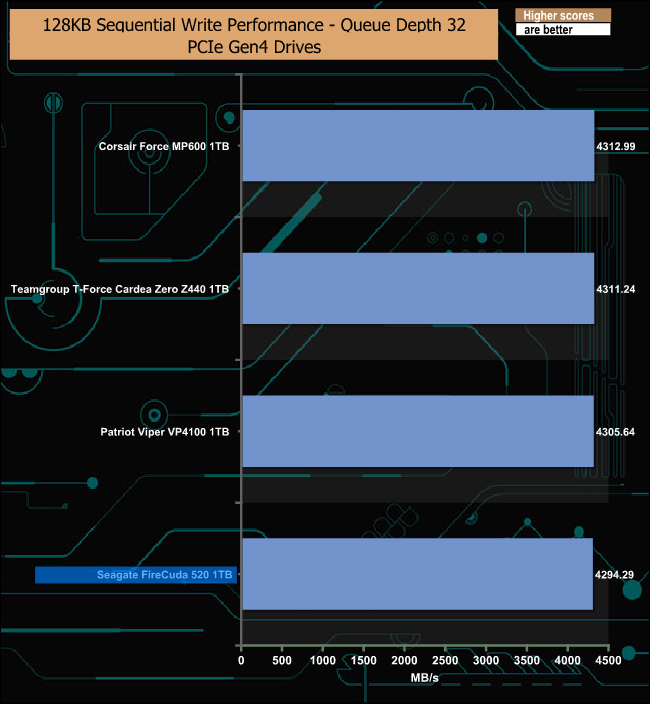

128KB Sequential Write v QD Performance Comparison

The only time the drive drops back a little from its competitors in Sequential write test was at a QD of 32.
