Samsung 980 Pro with Heatsink 1TB Review

1. Introduction2. Samsung SSD980 Heatsink 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Performance Stability16. Drive Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

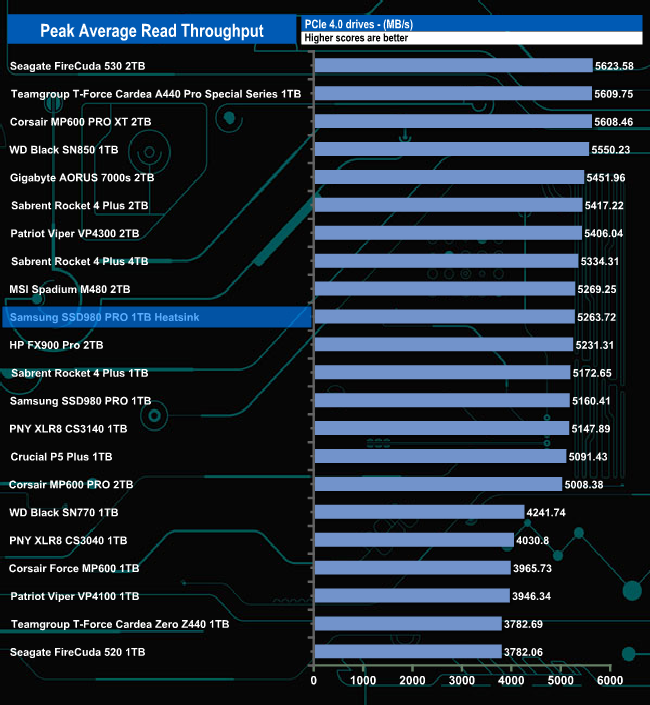

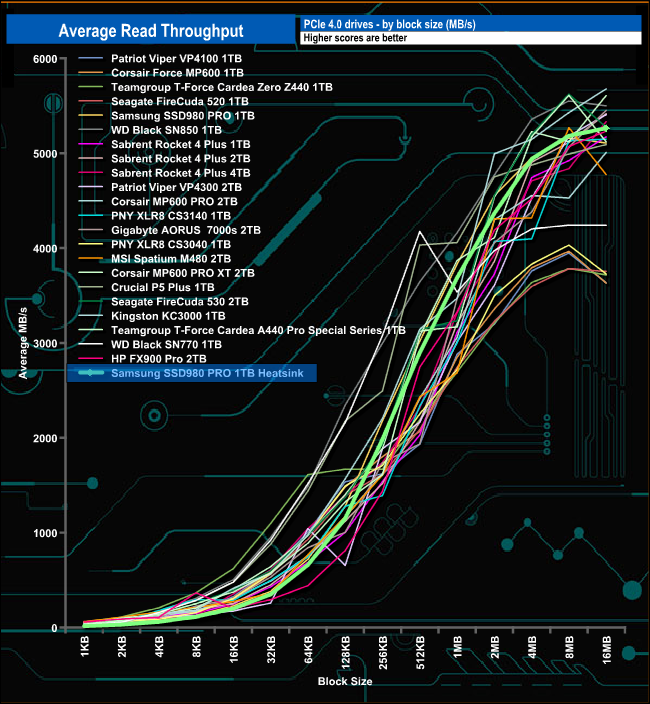

In our read throughput test, the drive peaked at 5,263.72MB/s at the 16MB block mark which is some way short of the official maximum of 7,000MB/s.

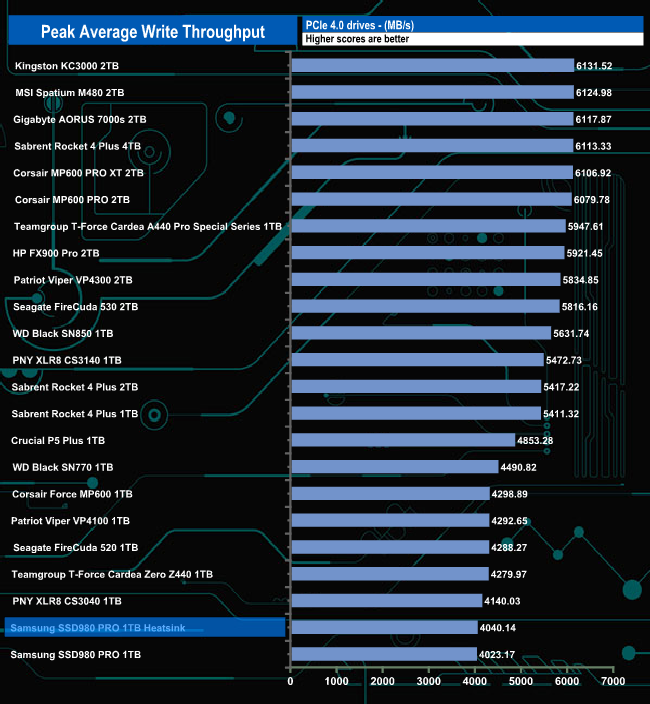

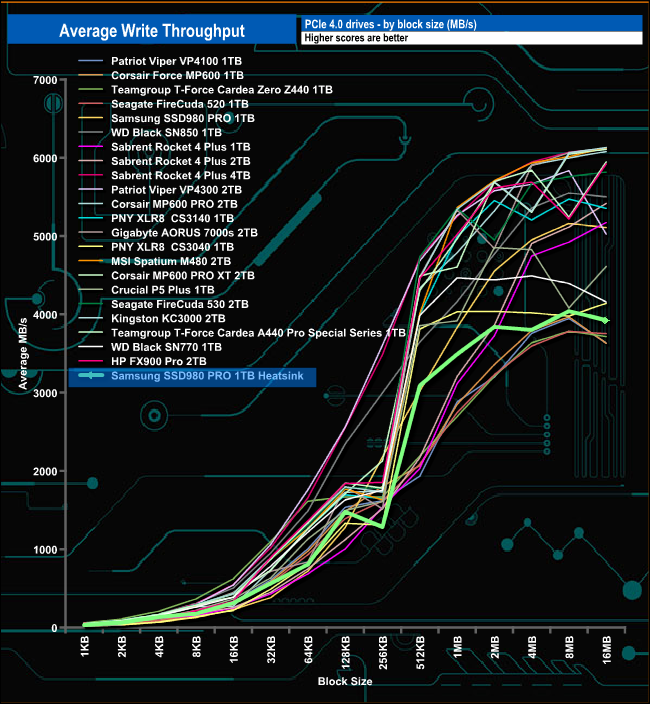

Peak write throughput came at the 8MB block mark at 4,040MB/s, again slower than the official maximum figure of 5,000MB/s. The performance of the drive seems to plateau out between the 128KB and 256KB block marks but it recovers very well.
