MSI Spatium M480 HS 2TB SSD Review

1. Introduction2. MSI Spatium M480 2TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. Performance Stability15. Drive Temperatures16. Real Life File Testing17. Closing Thoughts18. View All Pages

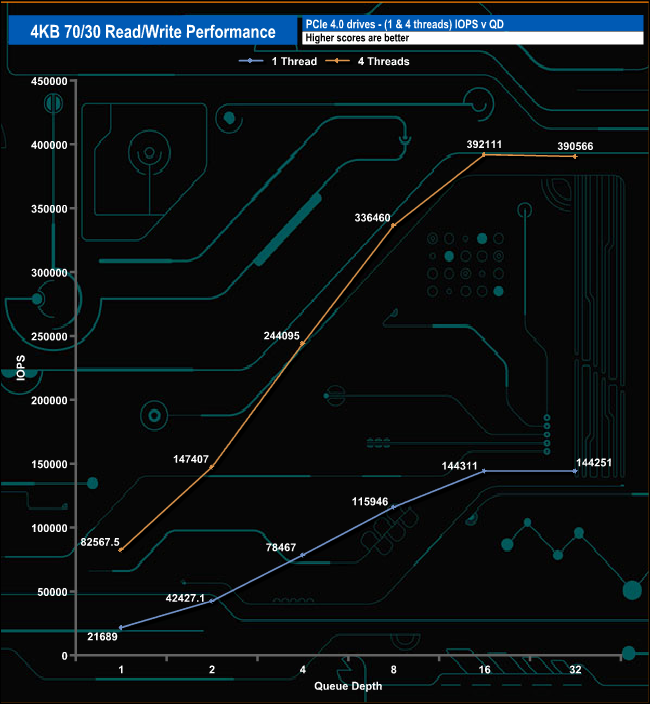

In the 4K 70/30 read/write test the drive peaks at a QD of 16 using both one thread (144,311 IOPS) and 4 threads (392,111 IOPS) before dropping back slightly finishing the test run (QD32) at 144,251 IOPS with a single thread and 390,566 using four threads.
