The 3DMark Storage Benchmark uses traces recorded from popular games and gaming-related activities to measure real-world gaming performance.

Traces used –

Battlefield V
Loading Battlefield™ V from launch to the main menu.

Call of Duty Black Ops 4
Loading Call of Duty®: Black Ops 4 from launch to the main menu.

Overwatch
Loading Overwatch® from launch to the main menu.

Game Move
Copying the Steam folder for Counter-Strike®: Global Offensive from an external SSD to the system drive.

Game Recording
Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch®.

Installing Game
Installing The Outer Worlds® from the Epic Games Launcher.

Game Saving
Saving progress in The Outer Worlds game.

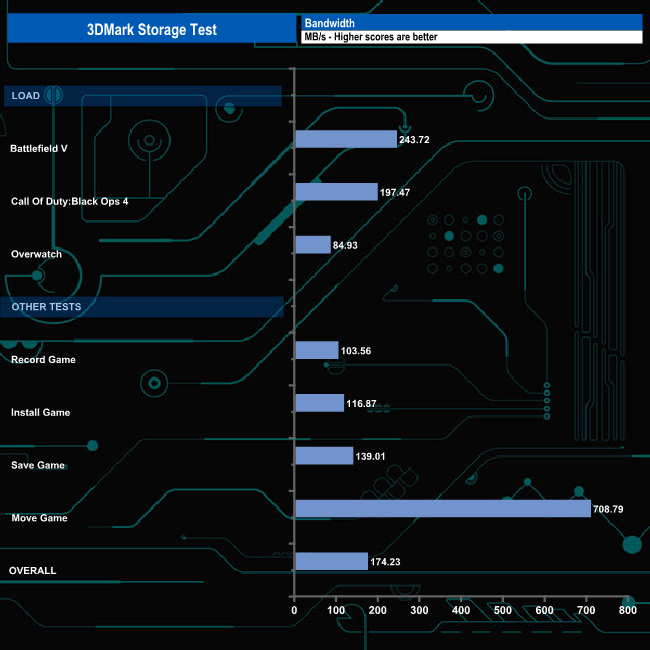

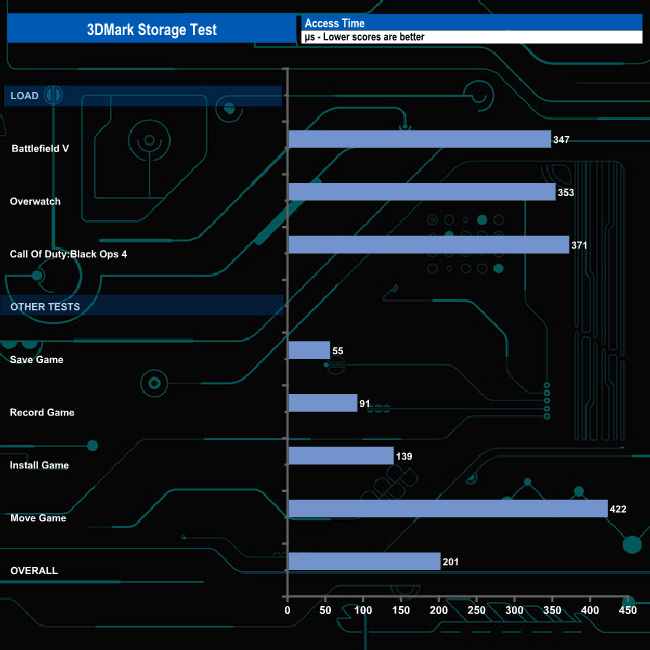

When tested with the 3DMark Storage benchmark, the drive had an average bandwidth of 175.37MB/s when loading the three games (at an average time of 357μs, 0.357ms), the fastest being the 243.72MB/s for Battlefield V trace (347μs, 0.347ms). For the other four tests, the drive averaged 253.84MB/s (average time of 176.7μs). For the whole test, the Datamag averaged 174.23MB/s.
