MSI Datamag 20Gbps 2TB External SSD Review

1. Introduction 2. MSI Datamag 20Gbps 2TB3. ATTO/CrystalDiskMark/AS SSD4. Throughput 5. PCMark 10 Data Drive Benchmark6. 3DMark Storage Benchmark7. Real Life File Transfers8. Closing Thoughts9. View All Pages

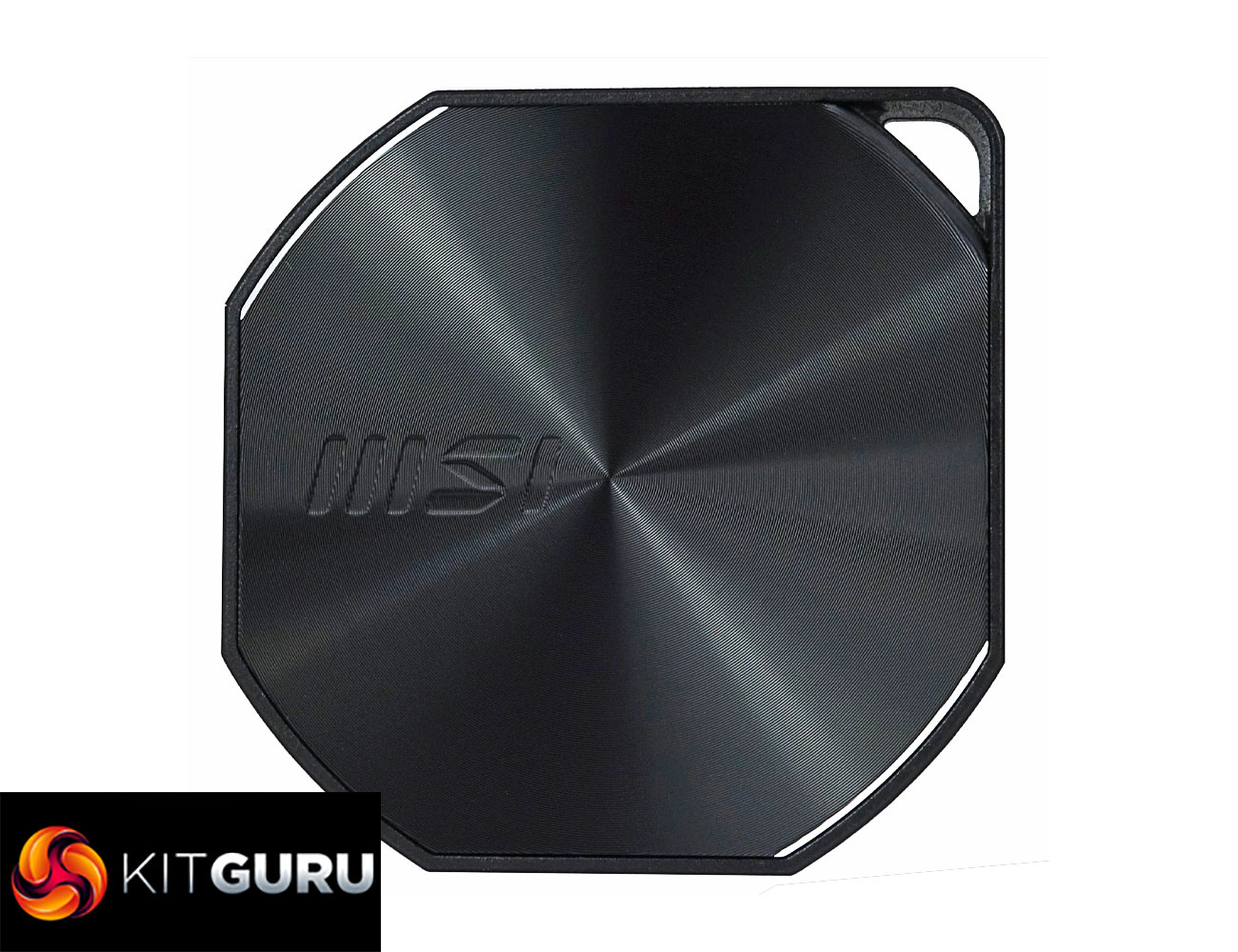

The Datamag is MSI's first external SSD storage device. The drive uses a USB 3.2 Gen2 x2 (20Gbps) interface and fits neatly in the palm of the hand. Priced at around £140 in the UK for the 2TB model, we put it through its paces and find out if it's worth buying.

The tiny drive (it measures 66 x 13 x 6mm) is available in three capacities: 1TB, 2TB (the drive we are reviewing) and the flagship 4TB drive. The Datamag uses a Phison PS2251-U18 controller, which looks after 3D TLC NAND. MSI quotes Sequential read / write performance figures for the drive of up to 1,600MB/s and 1,500MB/s, respectively, so a little short of the interface's maximum speed.

The base of the drive includes a magnet, hence the mag part of the drive's name. MSI bundles two steel rings with the drive so it can be attached to non-magnetic surfaces.

Physical Specifications:

• Usable Capacities: 2TB.
• NAND Components:  3D TLC.
• NAND Controller: Phison PS2251-U18.
• Interface: USB 3.2 Gen2 x2.
• Form Factor: External.
• Dimensions: 66 x 13 x 6mm.
• Drive Weight: 81g.

Firmware Version: PMAP.
