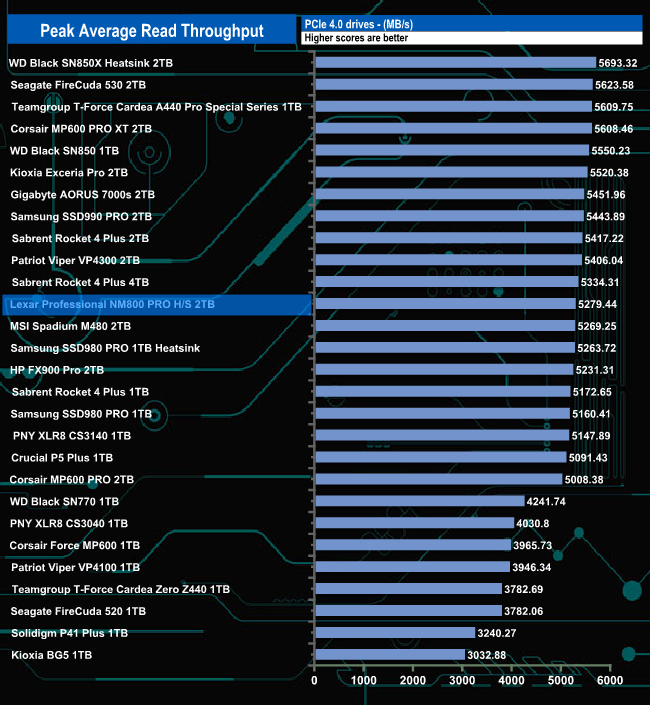

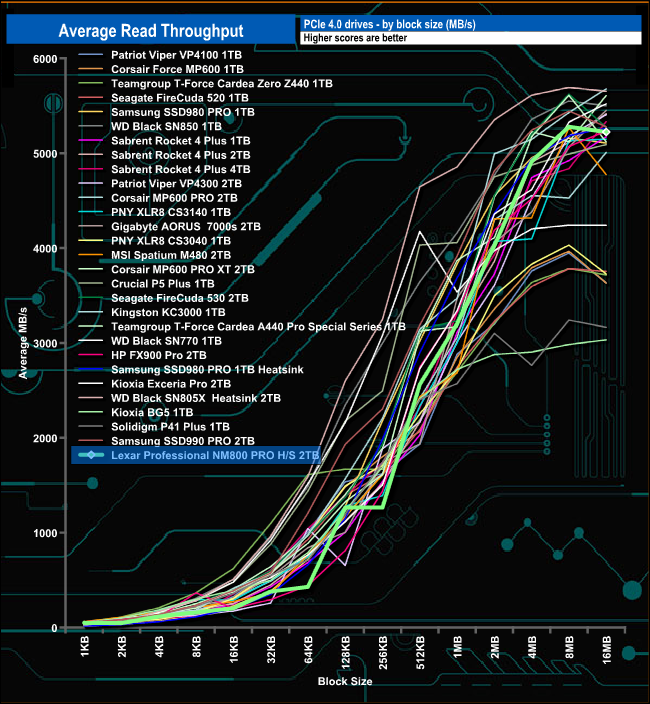

In the read throughput test, the drive peaked at the 8MB block mark with a figure of 5,279.44MB/s before dropping back slightly to finish the test run (QD32) at 5,224MB/s, both figures are quite some distance back from the official high point of 7,500MB/s.

That peak test result of 5,279MB/s sees the drive in mid-table.

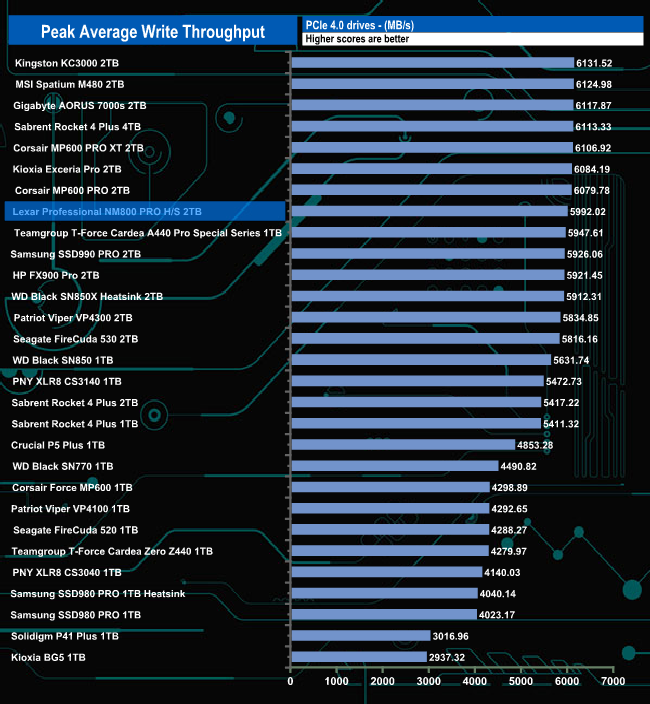

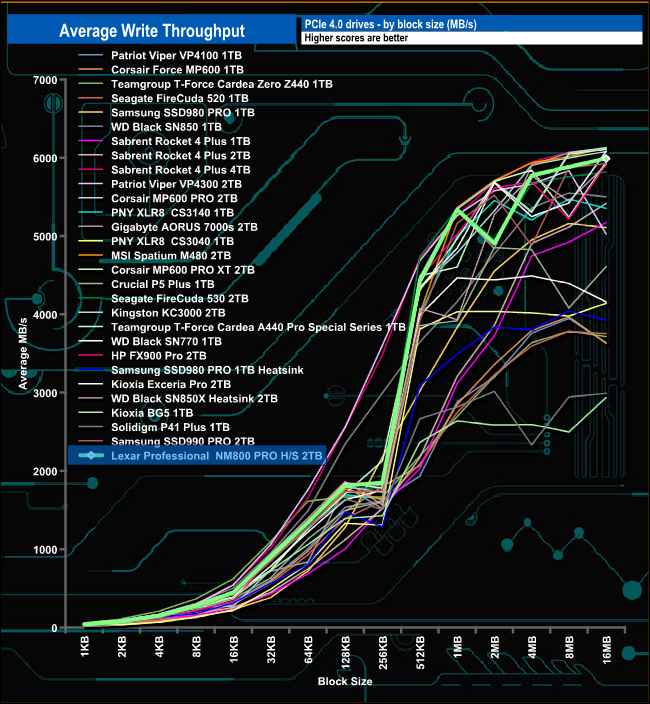

In the write throughput test, the drive peaked at 5,992MB/s at the end of the test run. But once again it was short of the maximum official figure of 6,500MB/s.

The peak write result we saw of 5,992MB/s sees the drive in the top ten in our results chart.
