Klevv CRAS C925G 2TB SSD Review

1. Introduction2. Review Model3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

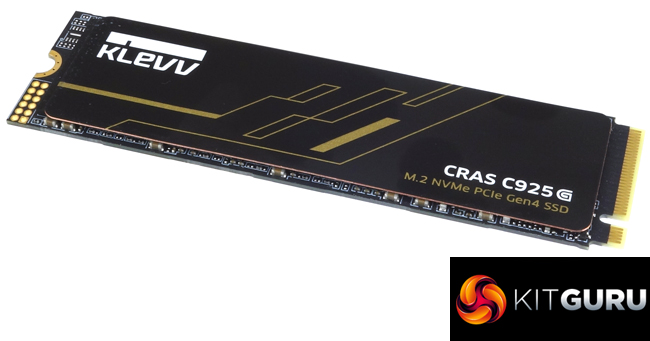

One of the latest models to join Klevv's Gen 4 SSD lineup is the CRAS C925G, a drive that utilises a DRAM-less design controller supporting NVMe 2.0 and features a thin copper-graphene composite heatsink.

The M.2 2280 Klevv CRAS C925G combines a Maxio MAP1602 4-channel DRAM-less controller and 238-Layer 3D TLC NAND. Available in 500GB, 1TB and 2TB (the drive we are looking at here) capacities, the drive comes with a very thin copper-graphene composite heatsink to help keep it cool.

Officially, the 2TB CRAS C925G is rated as up to 7,400MB/s and 6,500MB/s for Sequential reads and writes, respectively. The 500GB and 1TB drives have the same read rating, but with 6,200MB/s and 6,300MB/s, respectively, write ratings.

The random 4K read performance for the range is quoted up to 670,000 IOPS for the 500GB and 1TB drives, with the 2TB drive rated at up to 700,000 IOPS. As for random writes, the 500GB and 1TB drives are rated as up to 980,000 IOPS, with the 2TB drive getting a 1M IOPS figure.

The endurance for the 2TB CRAS C925G is 2400TBW, the 1TB drive gets 1200TBW and the 500GB drive gets 600TBW.

Klevv backs the CRAS C925G with a 5-year warranty.

Physical Specifications:

• Usable Capacities: 2TB.
• NAND Components: 238-Layer 3D TLC,
• NAND Controller: Maxio MAP1602.
• Cache: None, DRAM-less (HMB).
• Interface: PCIe Gen 4 x4, NVMe 2.0.
• Form Factor: M.2,2280.
• Dimensions: 80 x 22 x 2.8mm.
• Drive Weight: 9g.

Firmware Version: SVN27141.
