We used CrystalDiskMark 8‘s custom settings to test the Sequential read and write performance of the drive through a range of queue depths. The setup for the tests is listed below.

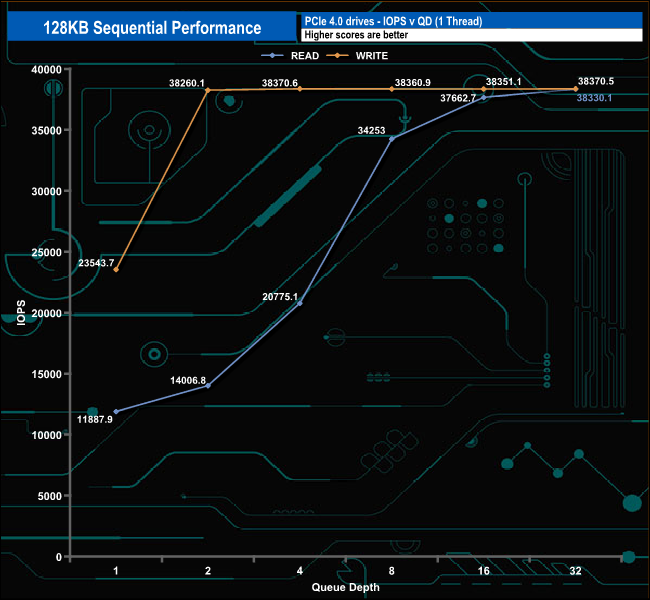

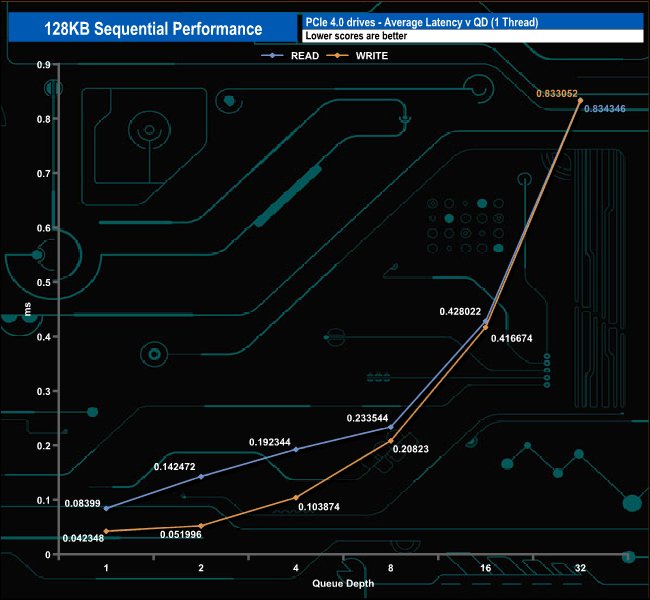

128KB Sequential Read / Write.
Transfer Request Size: 128KB, Thread(s): 1, Outstanding I/O: 1-32.

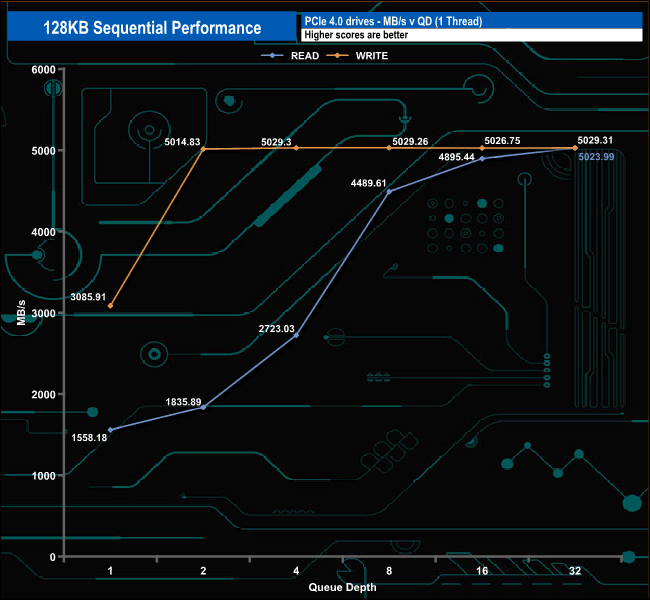

With our 128KB Sequential tests, we came up just short of the maximum figures in the read test with a test result of 5,023MB/s some 177MB/s short of the official maximum. On the other hand, the write test result of 5,029MB/s was 229MB/s faster than the official figure,

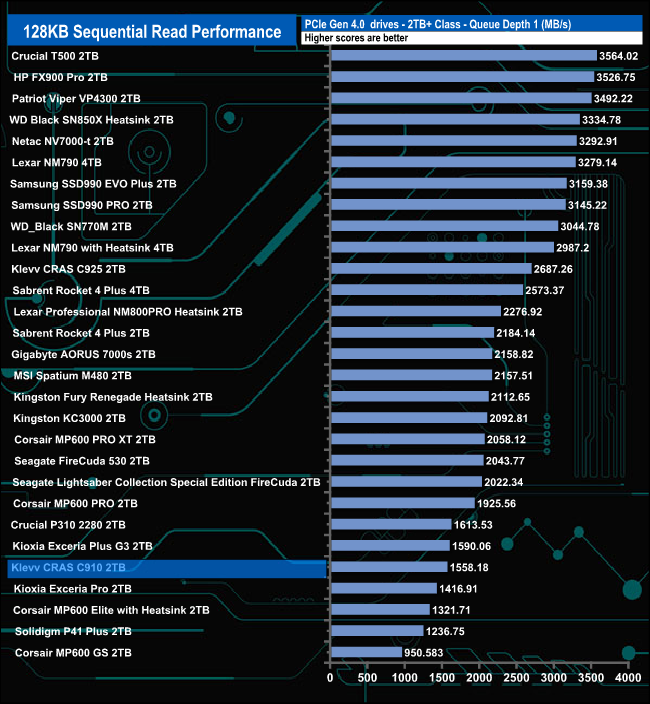

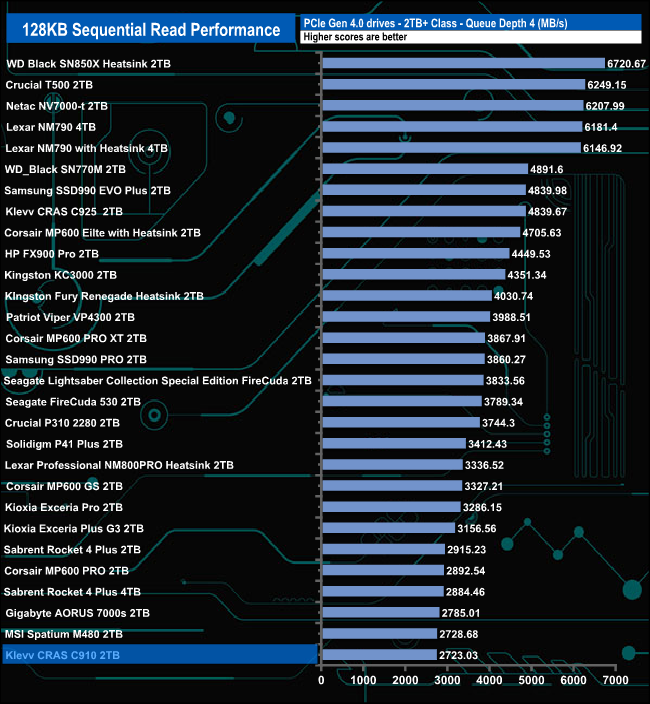

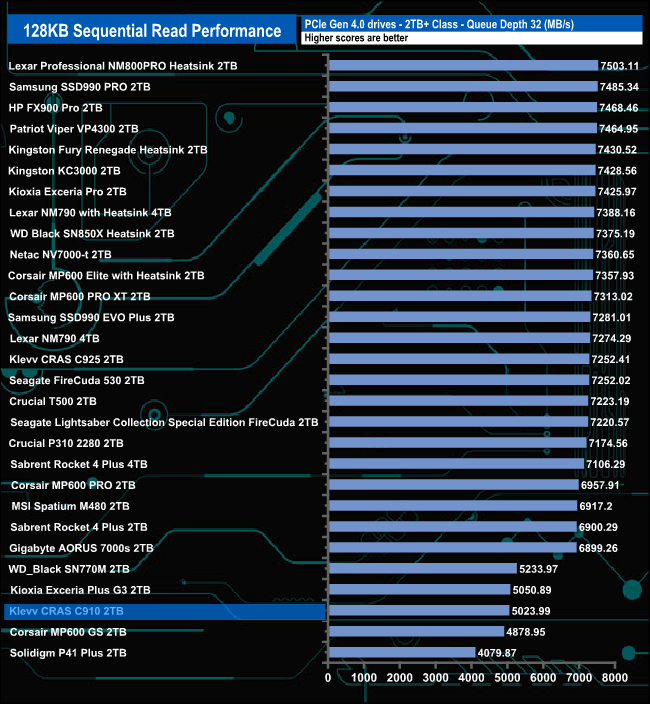

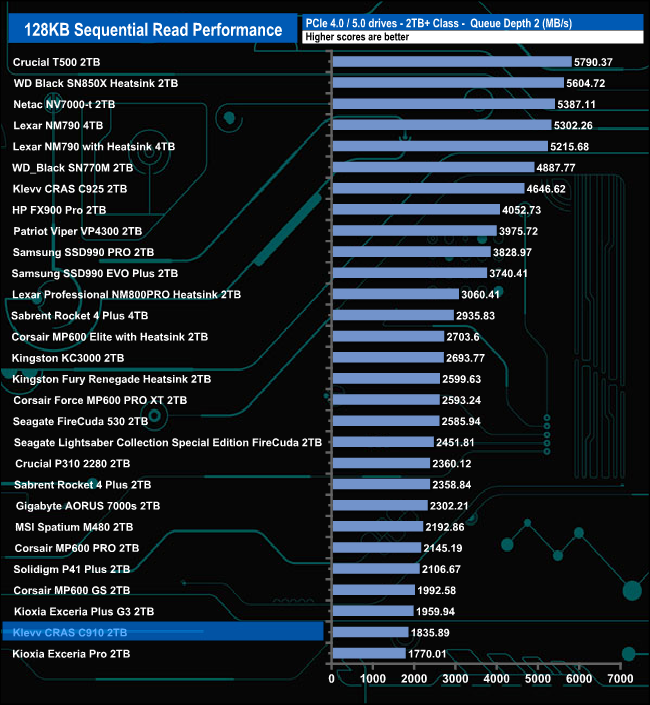

128KB Sequential Read performance compared.



Compared to its competitors, the 2TB version of the CRAD C910 performs best at QD1 where it sits five places off of the bottom of the results table. At QD2 it's dropped to the penultimate place and sits at the bottom of the table at QD4. However, at QD32 it stages a small recovery to move off the bottom of the table.

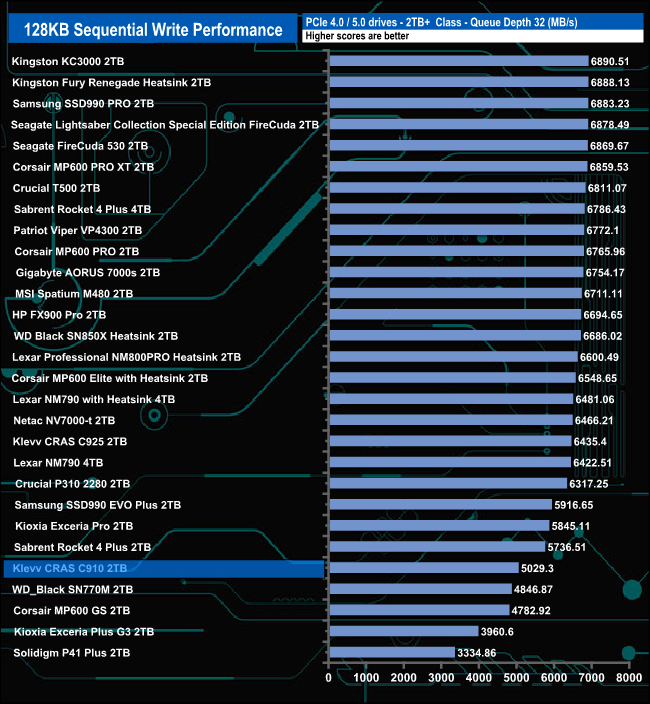

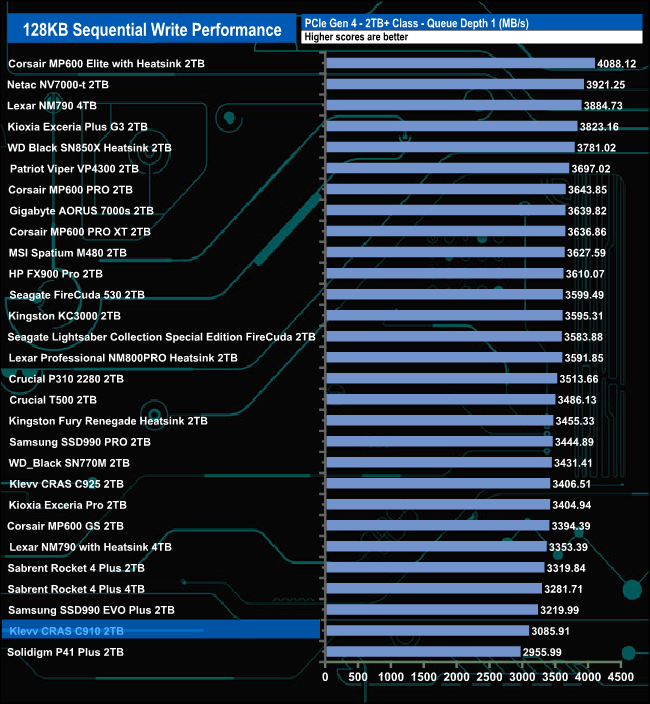

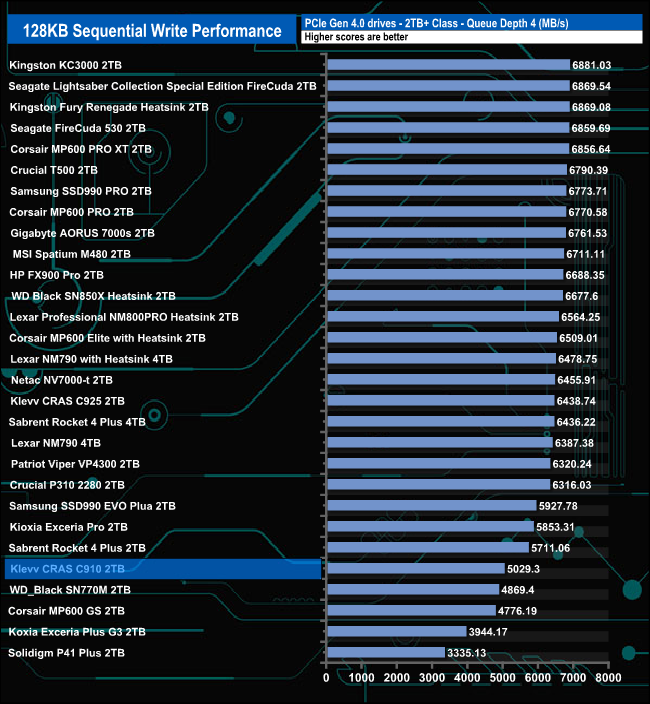

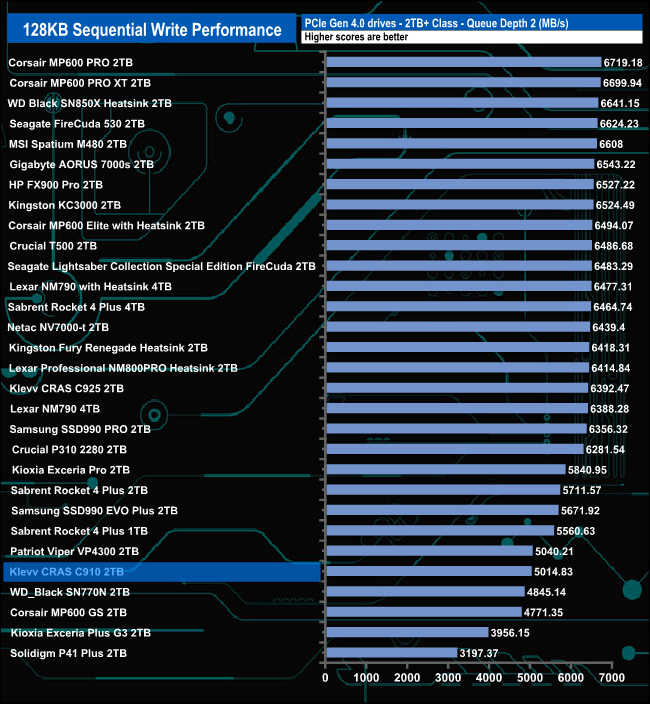

128KB Sequential Write performance compared.

The poorest performance in the Sequential write tests comes at QD1 where the drive sits just above Solidigm's P41 Plus that props up the table. At QD2 the drive moves up a few places and stays there for the rest of the test run displaying consistency if nothing else.
