The PCMark 10 Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The benchmark is designed to measure the performance of fast system drives using the SATA bus at the low end and devices connected via PCI Express at the high end.
The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. It typically takes an hour to run.
Traces used:
Booting Windows 10.
Adobe Acrobat – starting the application until usable.
Adobe Illustrator – starting the application until usable Adobe Premiere Pro – starting the application until usable.
Adobe Photoshop – starting the application until usable.
Battlefield V – starting the game until the main menu.
Call of Duty Black Ops 4 – starting the game until the main menu.
Overwatch – starting the game until main menu.
Using Adobe After Effects.
Using Microsoft Excel.
Using Adobe Illustrator.
Using Adobe InDesign.
Using Microsoft PowerPoint.
Using Adobe Photoshop (heavy use).
Using Adobe Photoshop (light use).
cp1 Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test).
cp2 Making a copy of the ISO files (read-write test).
cp3 Copying the ISO to a secondary drive (read test).
cps1Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test).
cps2 Making a copy of the JPEG files (read-write test).
cps3 Copying the JPEG files to another drive (read test).

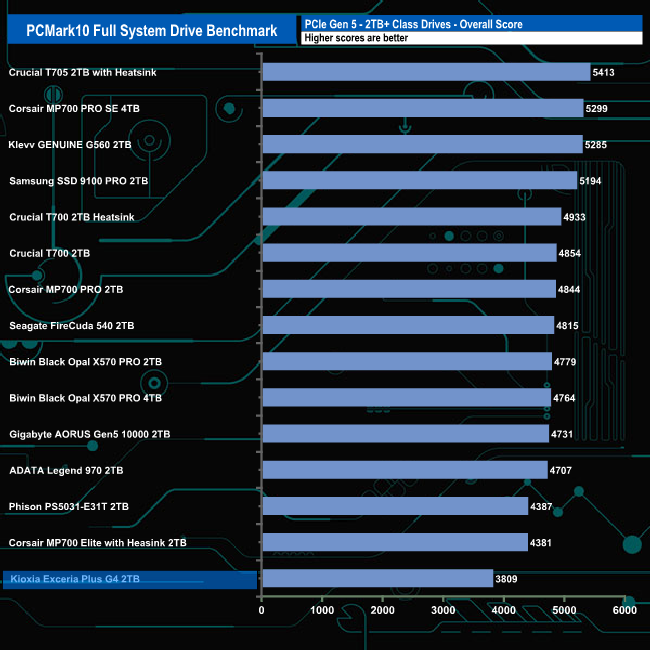

The 2TB version of Kioxia's Exceria Plus G4 drive didn't exactly cover itself in glory in PCMark10's Full System Drive Benchmark. It did a good enough job running through all the test traces, but nothing really stood out.

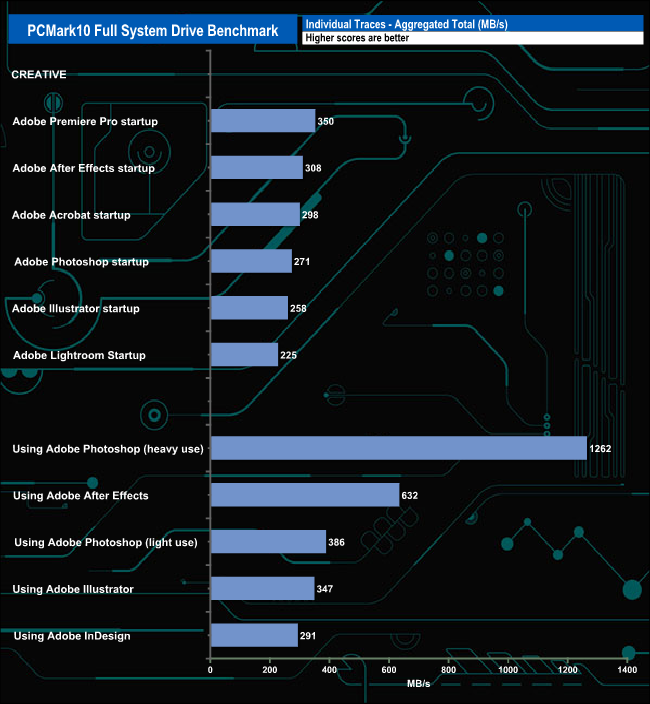

It averaged 285MB/s for the six Adobe startup traces, the fastest being 350MB/s for the startup test trace of Premiere Pro, the slowest being the Lightroom startup trace at 225MB/s.
Switching to the five Adobe usage traces, it averaged 583.6MB/s for the five tests, including the 1,262MB/s figure for the Adobe Photoshop heavy usage trace.

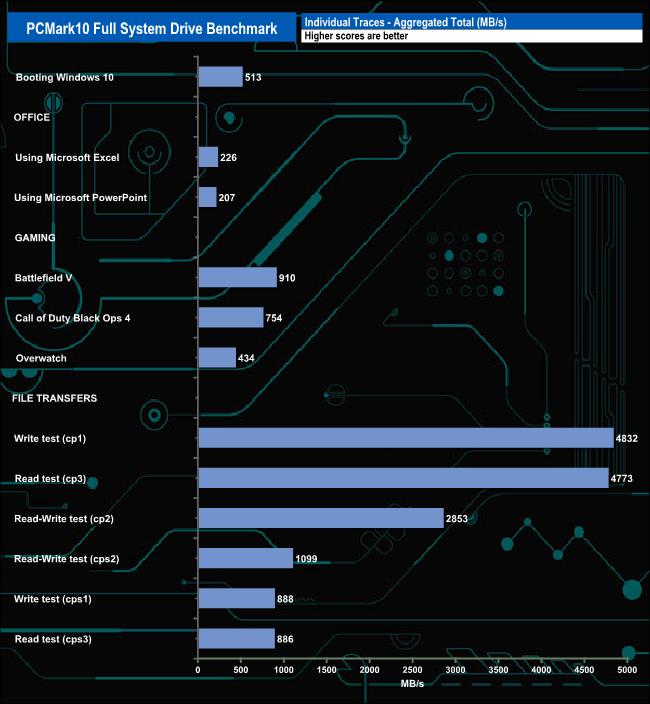

When it came to the three gaming test traces, the drive averaged 554MB/s, with the fastest being Battlefield V at 910MB/s and the slowest, Overwatch, at 434MB/s. Call Of Duty Black Ops 4 was in the middle of these two at 754MB/s. Switching over to the file transfer tests, the drive averaged 2,555MB/s for the six tests, the fastest of which was the cp1 Write test at 4,832MB/s.

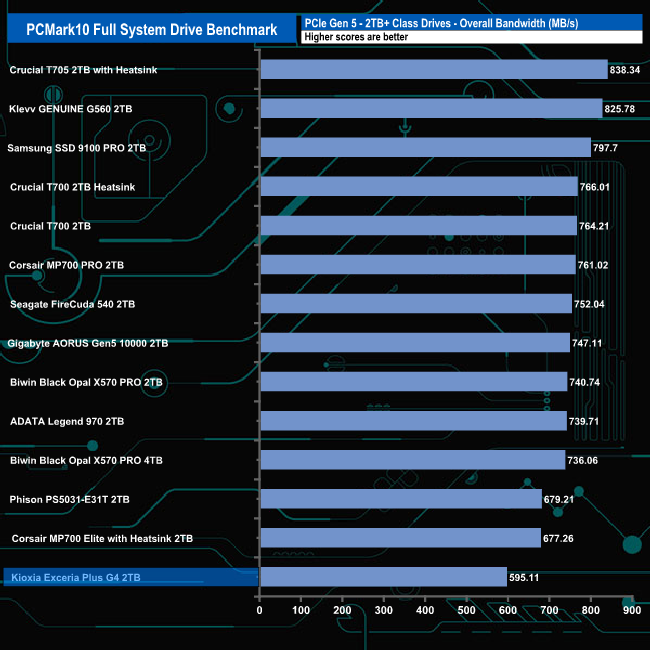

With an overall bandwidth figure of 595.11MB/s, the drive sits in last place in the table, some distance from the next slowest drive, Corsair's MP700 Elite with Heatsink, which also uses the Phison PS5031-E31T controller.
