Corsair MP700 Micro 4TB SSD Review

1. Introduction2. Corsair MP700 Micro 4TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

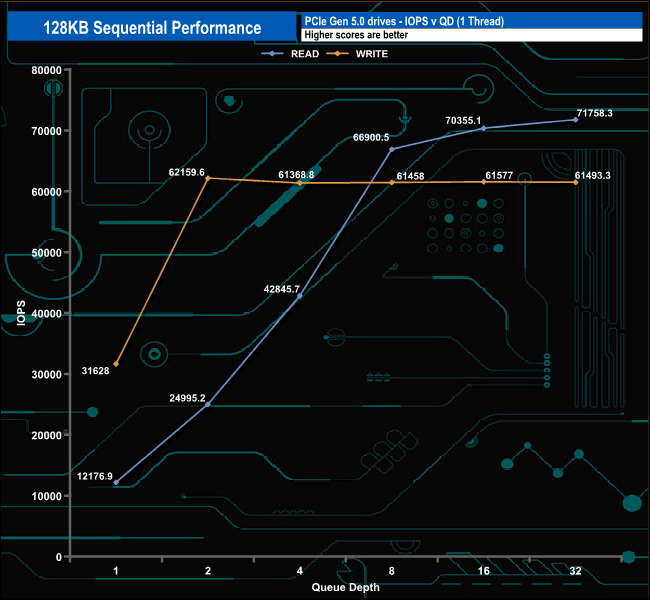

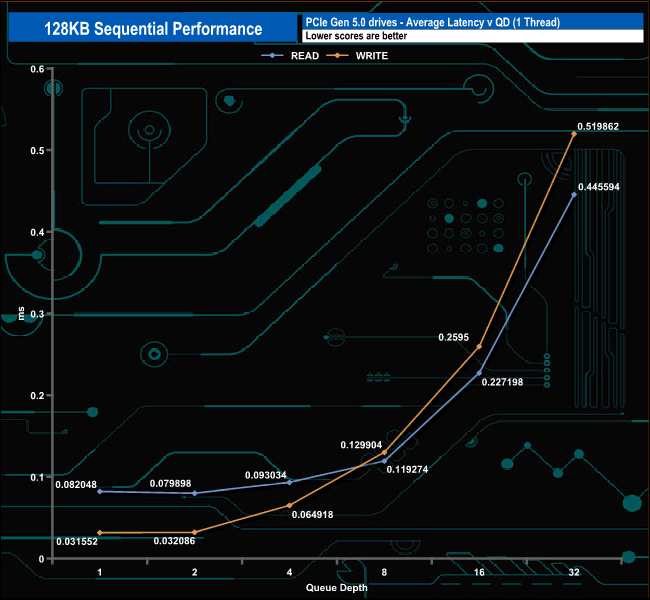

We used CrystalDiskMark 8‘s custom settings to test the Sequential read and write performance of the drive through a range of queue depths. The setup for the tests is listed below.

128KB Sequential Read / Write.

Transfer Request Size: 128KB, Thread(s): 1, Outstanding I/O: 1-32.

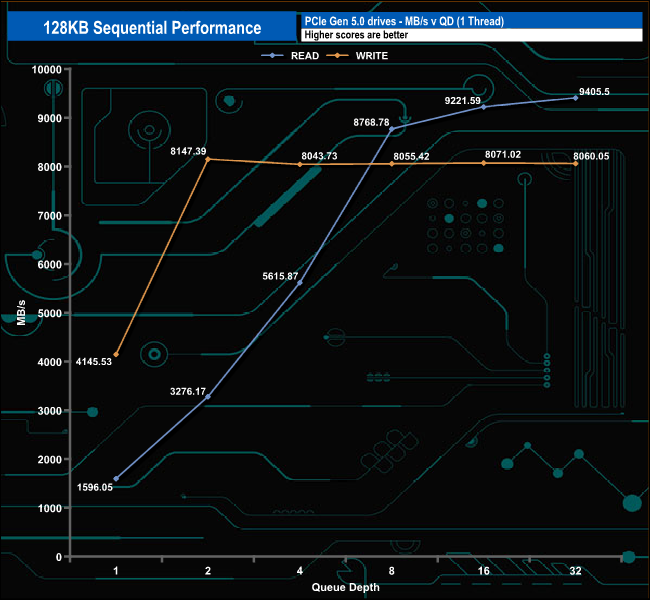

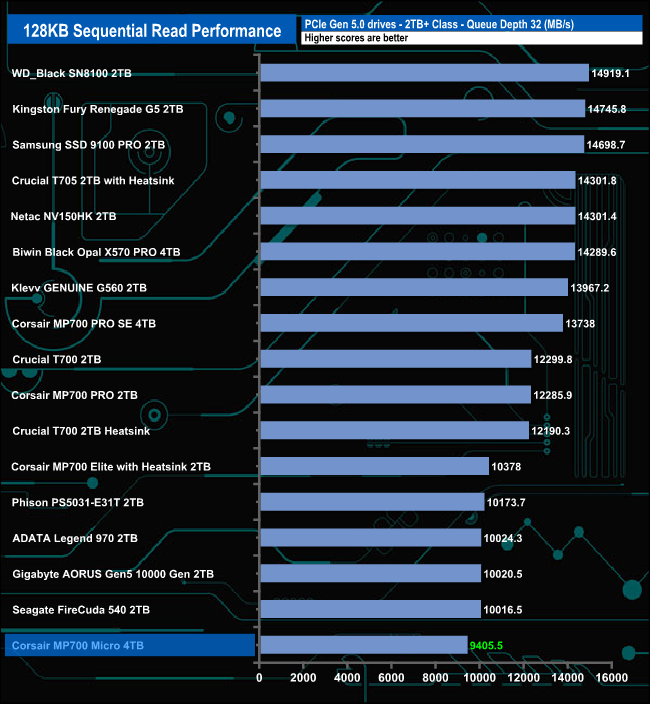

Using these tests, the reads came in bang on the money for the official maximum, yielding a test result of 9,405MB/s. Writes, on the other hand, were just shy of the official  figure at 8,060MB/s.

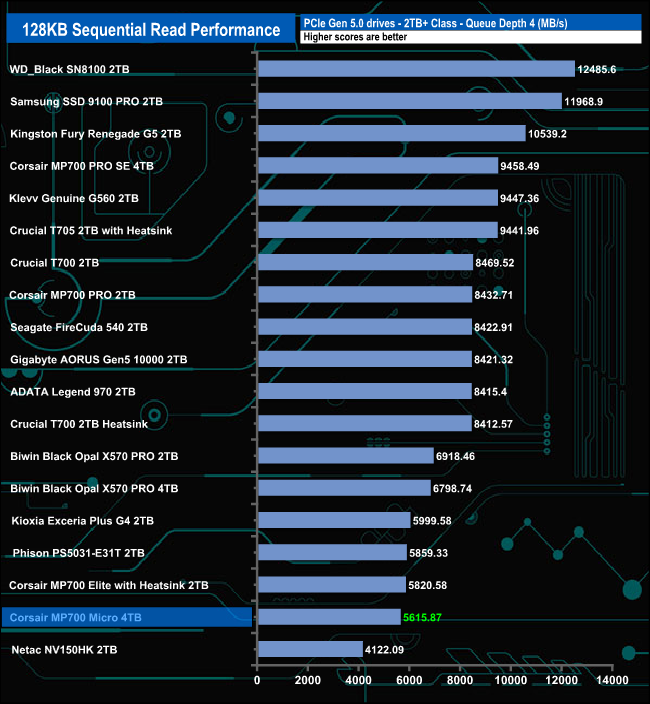

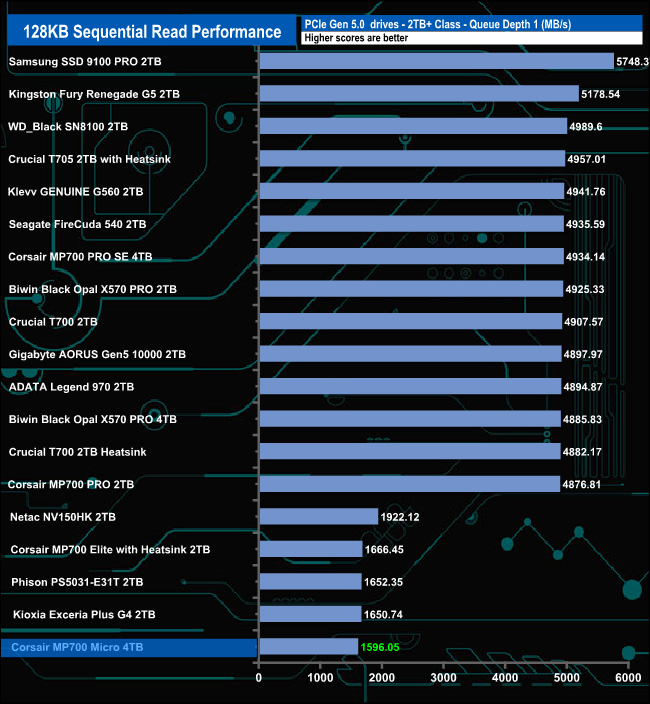

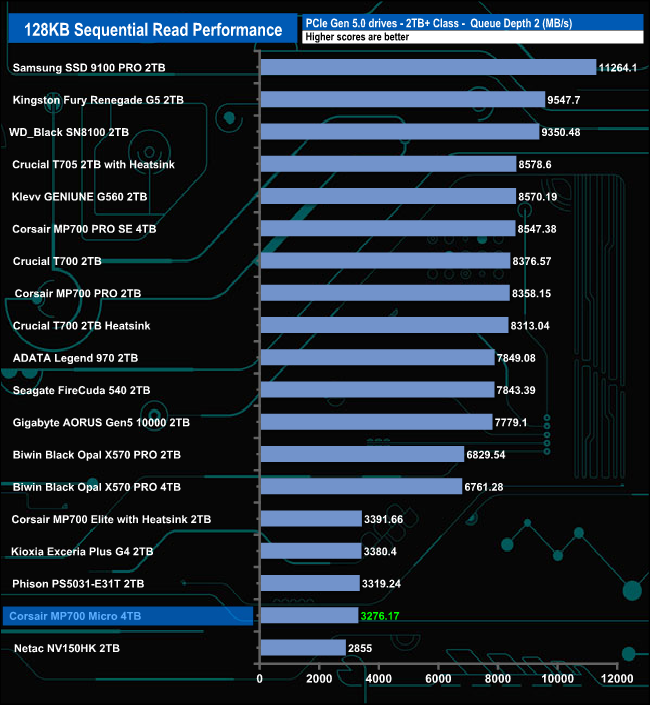

128KB Sequential Read v QD performance

Compared to the drives around it, the MP700 Micro performs best at QDs 2 and 4.

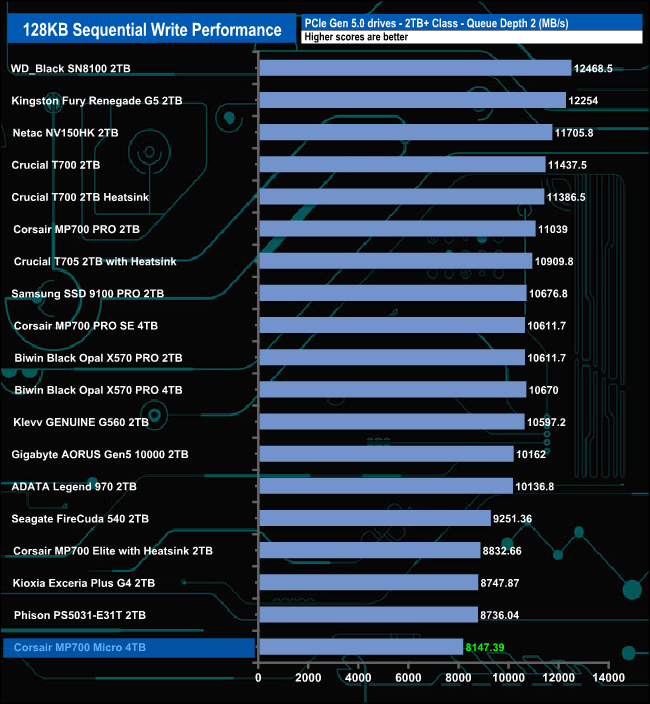

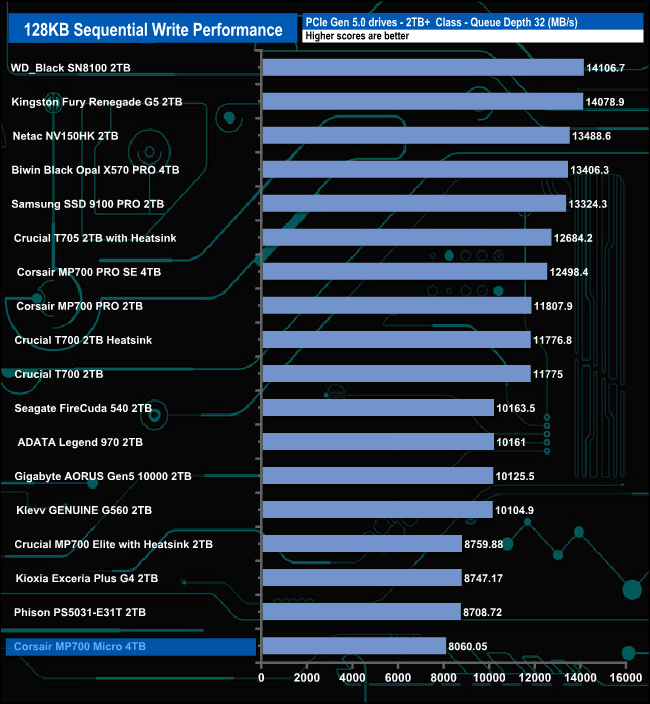

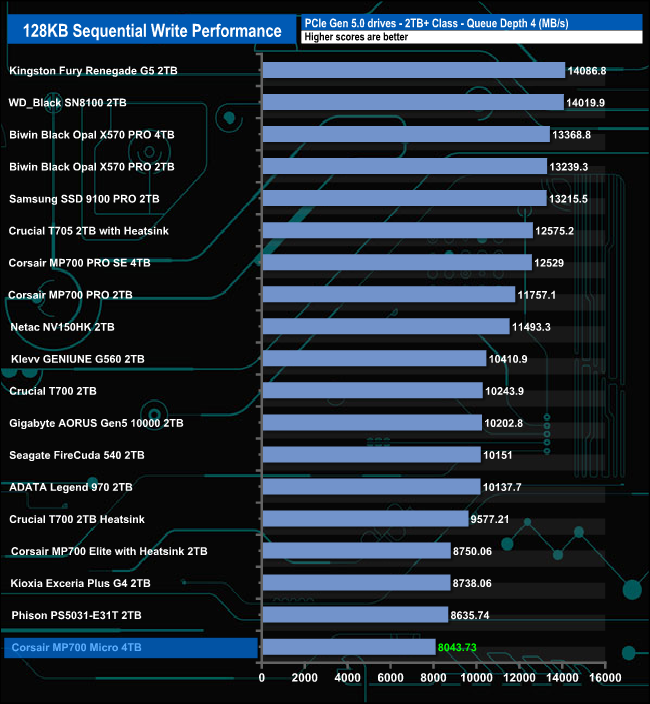

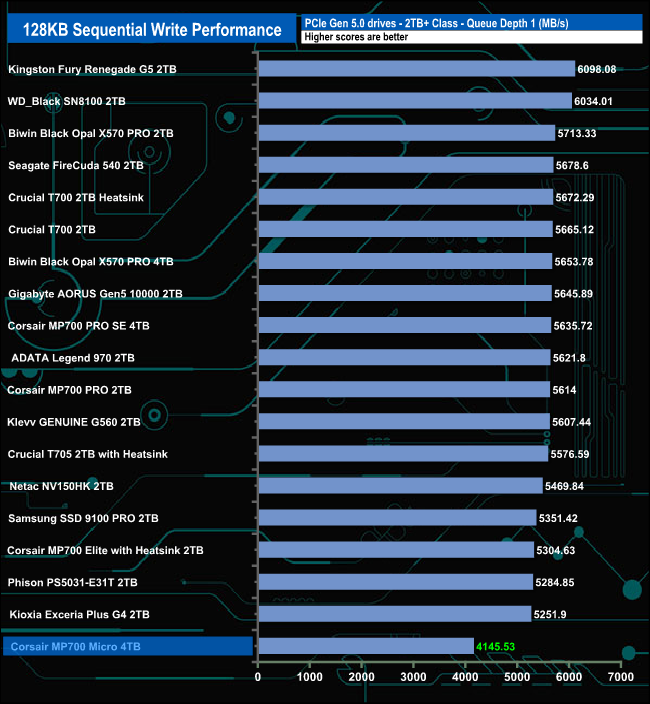

128KB Sequential Write v QD performance

When it comes to Sequential write performance, the drive props up the table at every tested queue depth. It's closest to the next drive in the table at QD2.
