The PCMark 10 Full System Drive Benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The benchmark is designed to measure the performance of fast system drives using the SATA bus at the low end and devices connected via PCI Express at the high end.

The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. It typically takes an hour to run.

Traces used:

Booting Windows 10.
Adobe Acrobat – starting the application until usable.
Adobe Illustrator – starting the application until usable. Adobe Premiere Pro – starting the application until usable.
Adobe Photoshop – starting the application until usable.
Battlefield V – starting the game until the main menu.
Call of Duty Black Ops 4 – starting the game until the main menu.
Overwatch – starting the game until main menu.
Using Adobe After Effects.
Using Microsoft Excel.
Using Adobe Illustrator.
Using Adobe InDesign.
Using Microsoft PowerPoint.
Using Adobe Photoshop (heavy use).
Using Adobe Photoshop (light use).
cp1 Copying 4 ISO image files, 20 GB in total, from a secondary drive to the target drive (write test).
cp2 Making a copy of the ISO files (read-write test).
cp3 Copying the ISO to a secondary drive (read test).
cps1Copying 339 JPEG files, 2.37 GB in total, to the target drive (write test).
cps2 Making a copy of the JPEG files (read-write test).
cps3 Copying the JPEG files to another drive (read test).

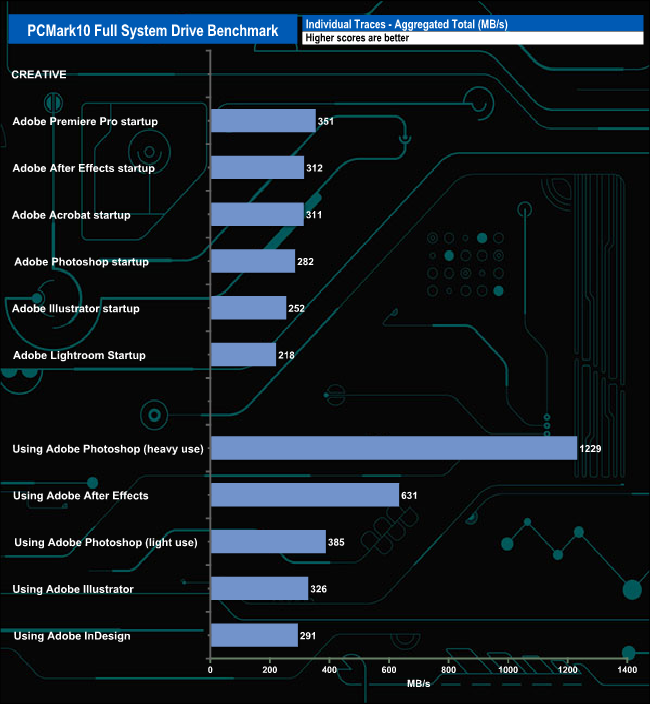

Using PCMark10's Full System Drive Benchmark, the six Adobe startup traces produced an average of 239MB/s, with the fastest being the Adobe Premiere Pro startup trace at 351MB/s, with the Lightroom trace the slowest at 218MB/s. For the five usage traces, the fastest was, as usual, the Photoshop heavy usage trace at 1,229MB/s, and including this result, the drive averaged 572.4MB/s for the five traces.

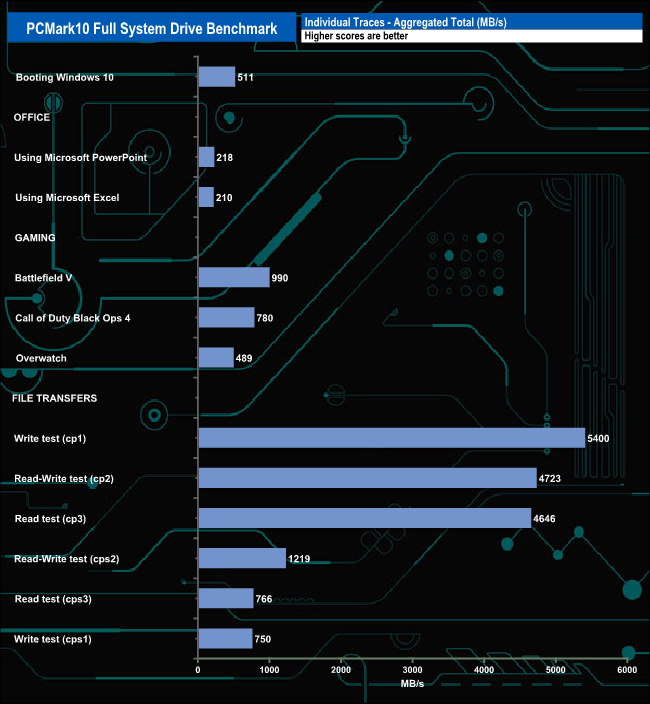

The three gaming traces produced an average result of 753MB/s, the fastest being Battlefield V at 990MB/s. Next came Call Of Duty Black Ops 4 at 780MB/s, followed by Overwatch at 489MB/s. When it came to the six file transfers, the drive averaged  2,9177MB/s with the fastest being the cp1 Write test at 5,400MB/s.

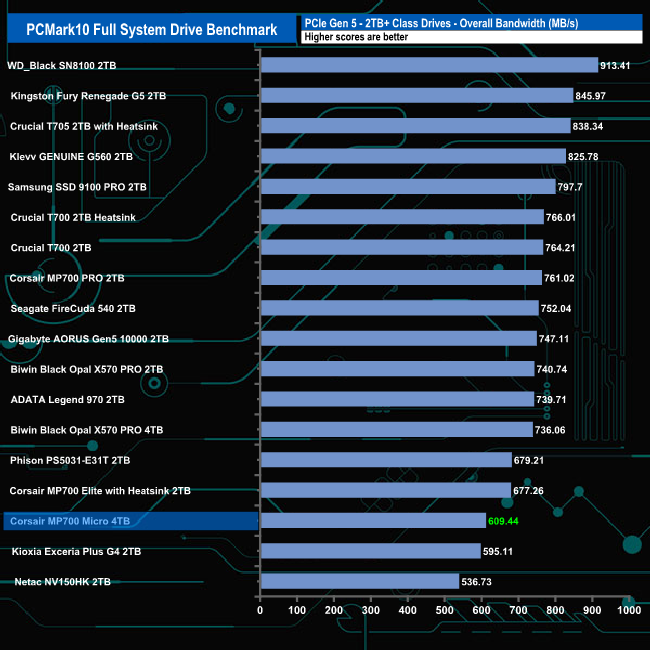

With an overall bandwidth figure of 609.44MB/s, the 4TB MP700 Micro sits in the lower half of the results chart.
