Corsair MP700 Micro 4TB SSD Review

1. Introduction2. Corsair MP700 Micro 4TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. 128KB Sequential Performance8. 4K Random Read v QD Performance9. 4K Random Write v QD Performance10. 4K 70/30 Mixed Performance11. 4K Random Performance QD1-QD812. Throughput13. PCMark 10 Full System Drive Benchmark14. 3DMark Storage Benchmark 15. Final Fantasy XIV Endwalker Official Benchmark16. Temperatures17. Real Life File Testing18. Closing Thoughts19. View All Pages

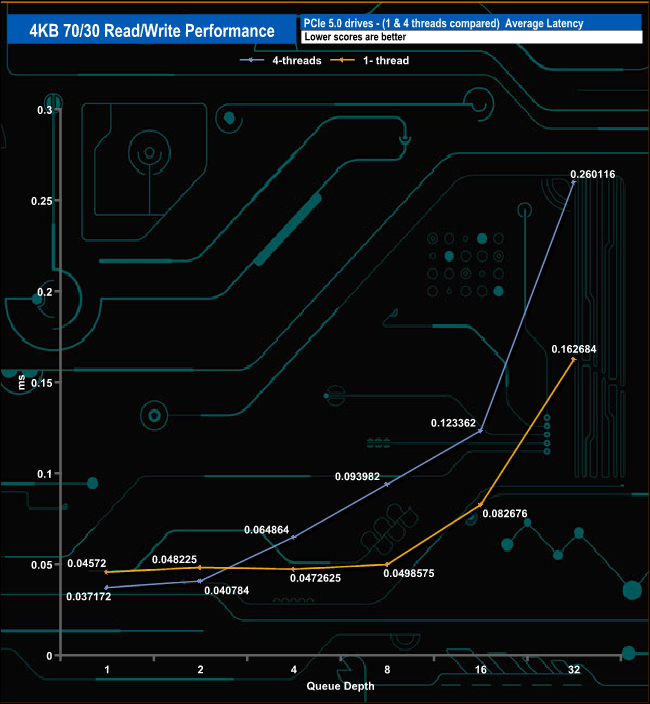

We used CrystalDiskMark 8’s custom settings to test the 4K 70/30 mixed read/write performance of the drive through a range of queue depths using a single thread and four threads.

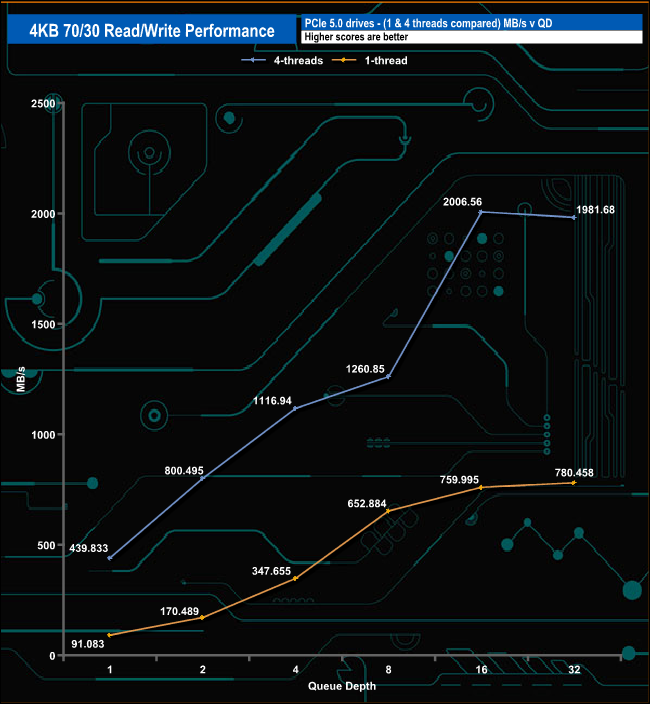

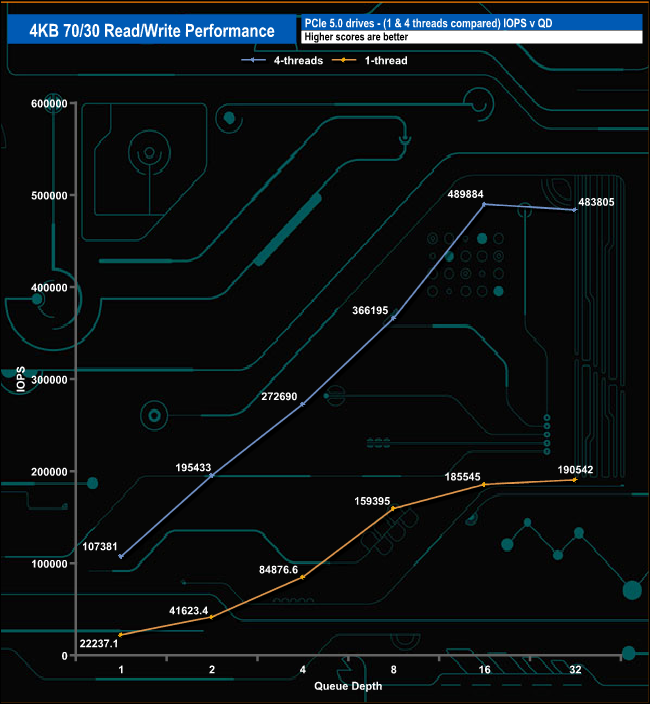

Using the four threaded 4K 70/30 read/write tests, the performance of the 4TB Corsair MP700 Micro ranges from 107,381 IOPS (439.83MB/s) at QD1 to 489,884 IOPS (2,006.56MB/s) at QD16 before fading slightly to finish the test run at QD32 at 483,805 IOPS (1,981.68MB/s). Switching over to a single thread, the test results range from 22,237 IOPS (91.08MB/s) at QD1 up to 190,542 IOPS (780.45MB/s) at QD32.
