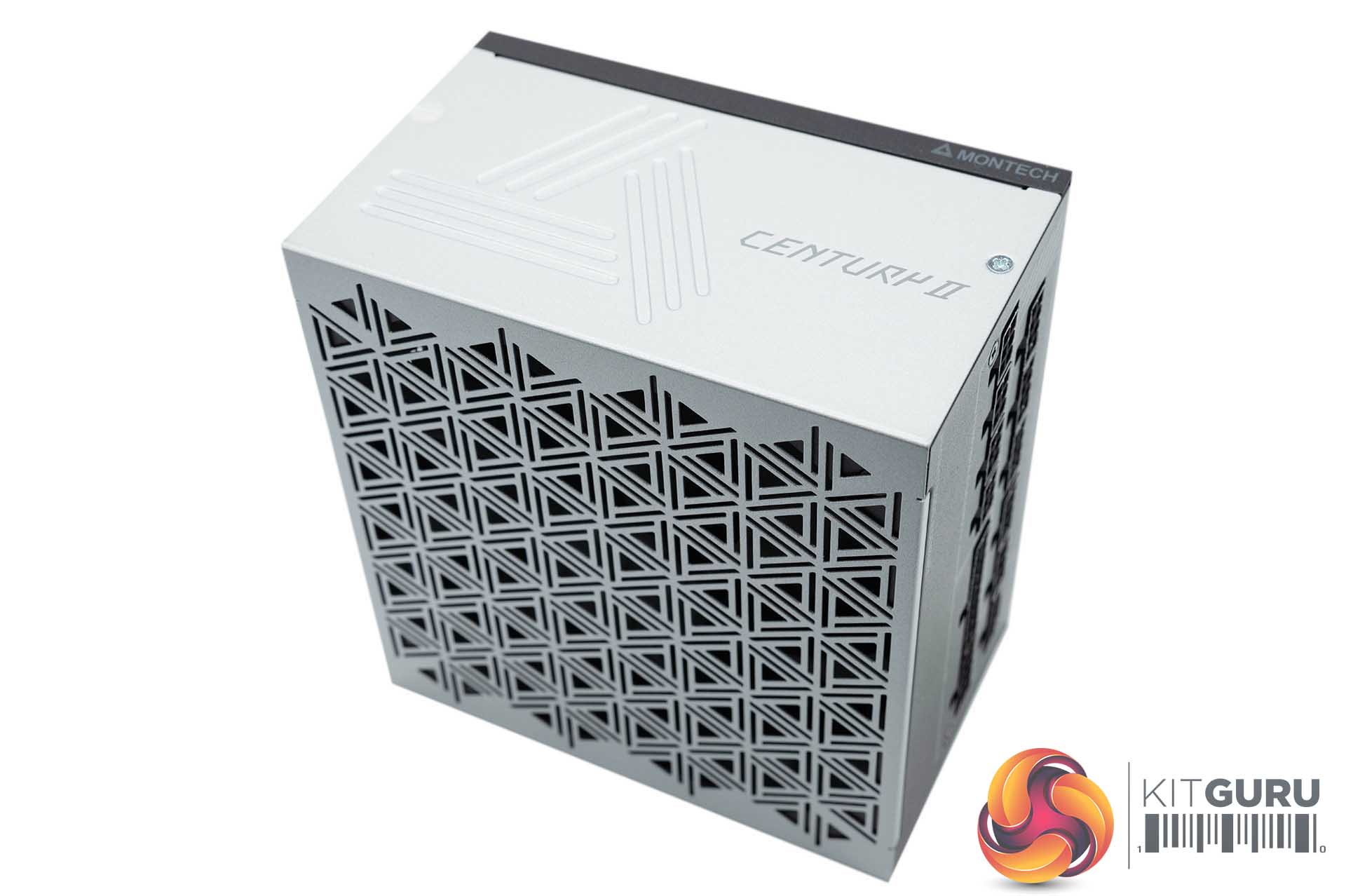

The Montech Century II 1050W Power Supply is finished in a way that makes it stand out a little from the normal power supplies we see. This is a relatively compact unit for the capacity, measuring 150x85x140mm and weighing around 1.5kg.

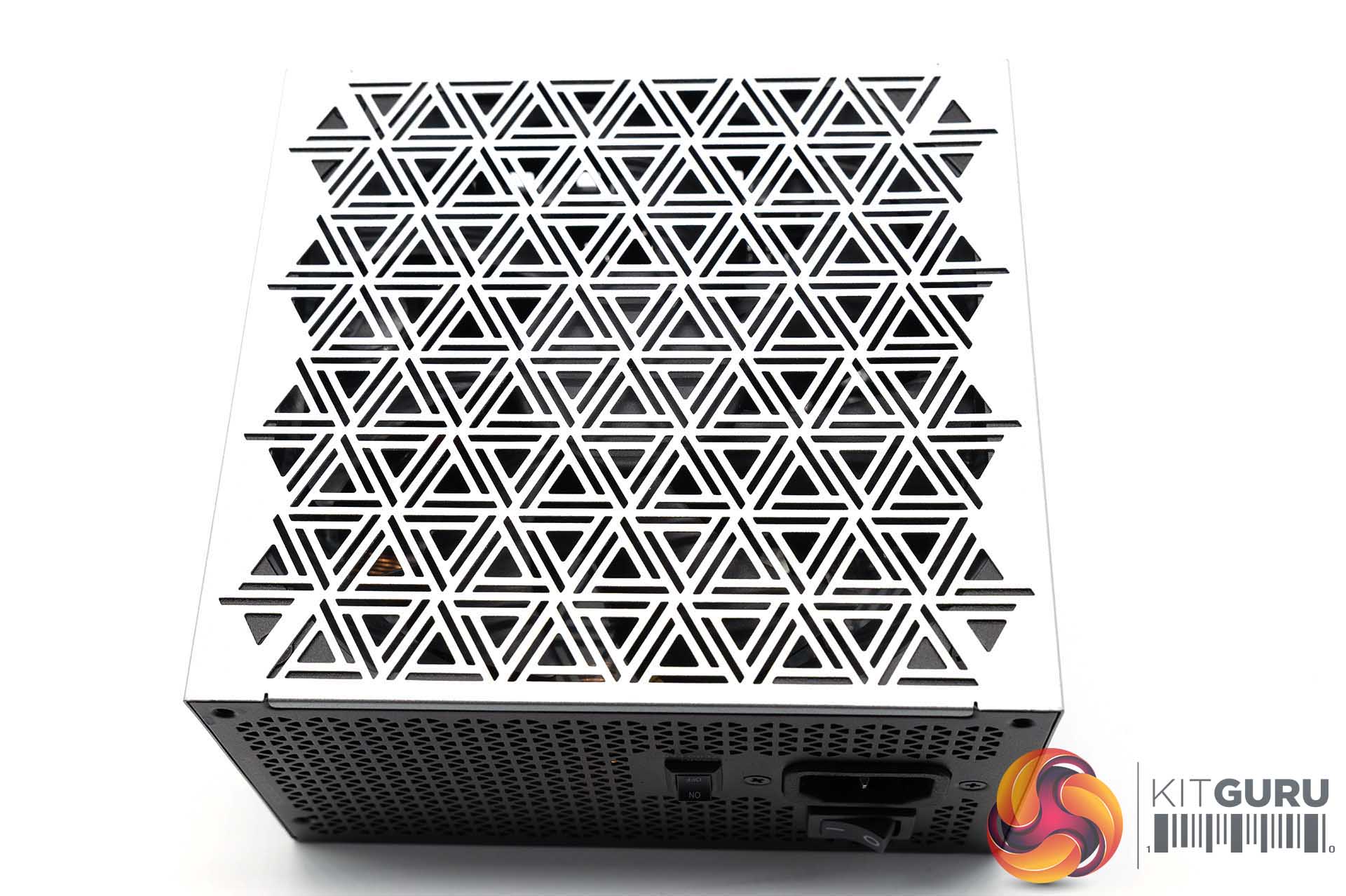

The venting for the fan inside takes over the whole top of the chassis and looks to offer pretty good airflow by the design pattern. We will take a closer look at the fan when we open the unit up shortly.

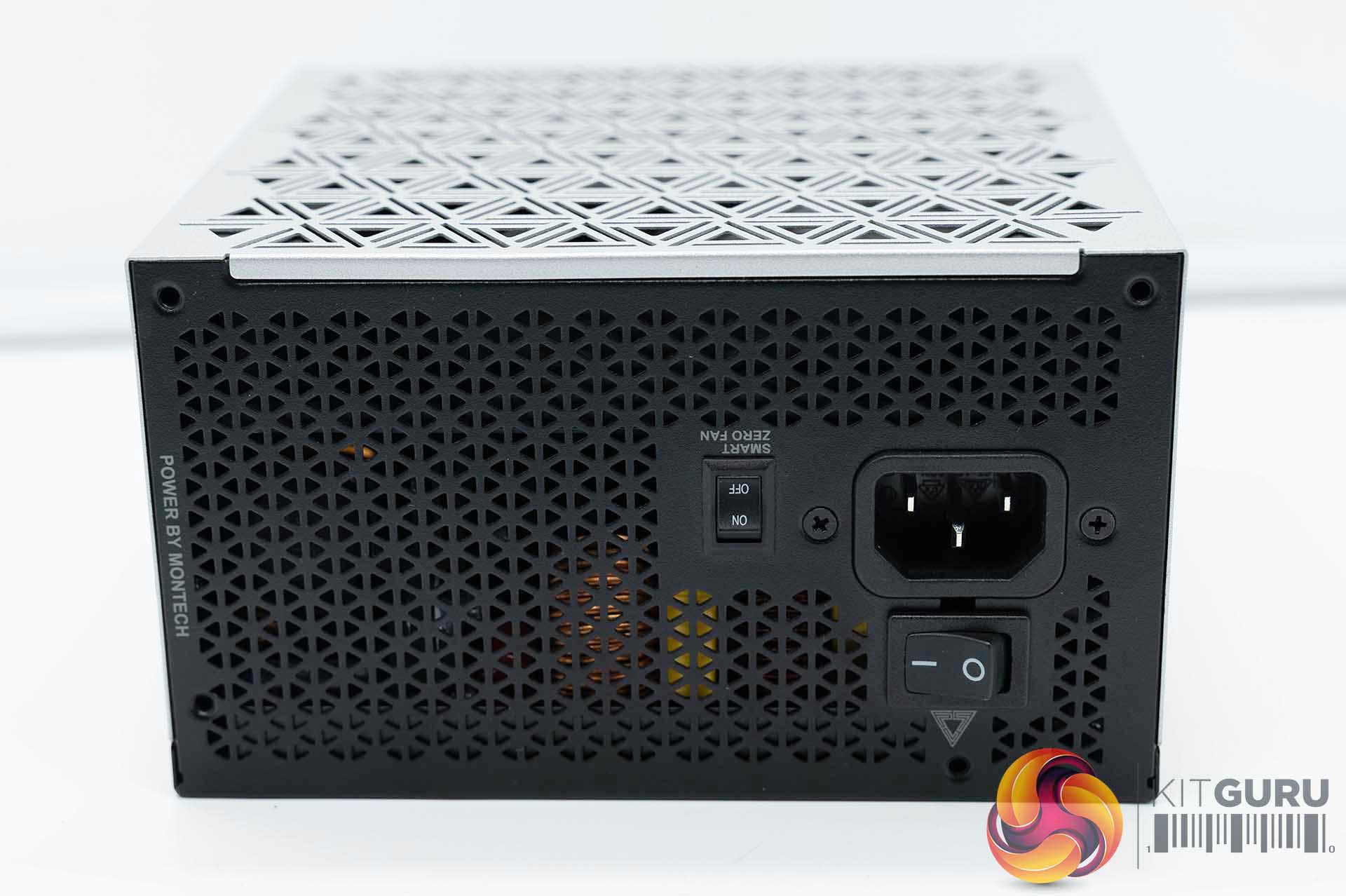

The power side of the unit is home to the power switch, cable connector and smart zero fan button.

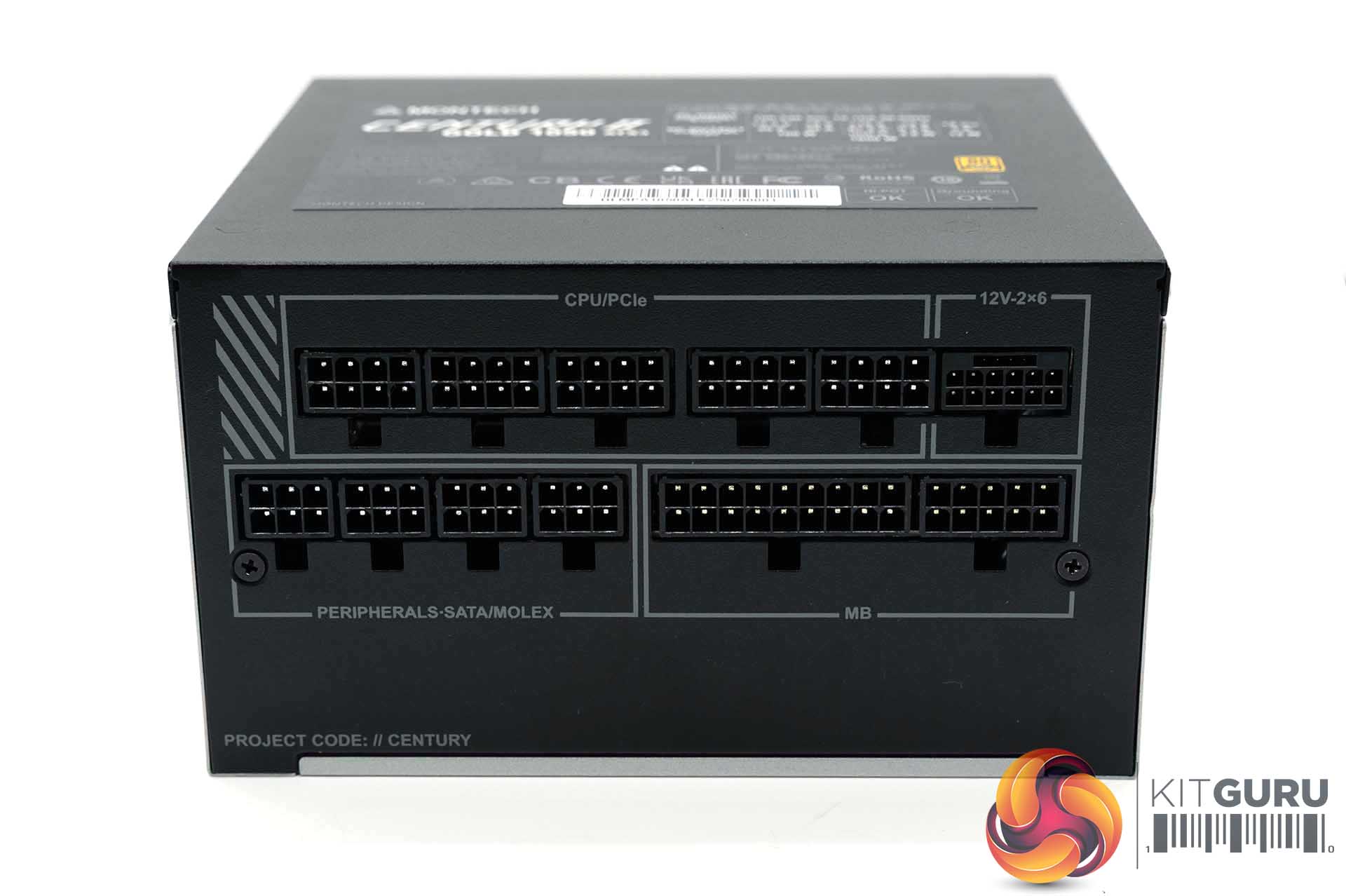

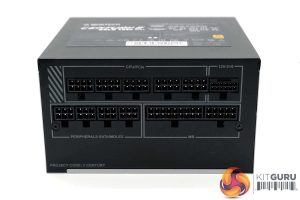

The modular bay side is simply laid out over 2 rows of connectors, all labelled for clarity during the build phase.

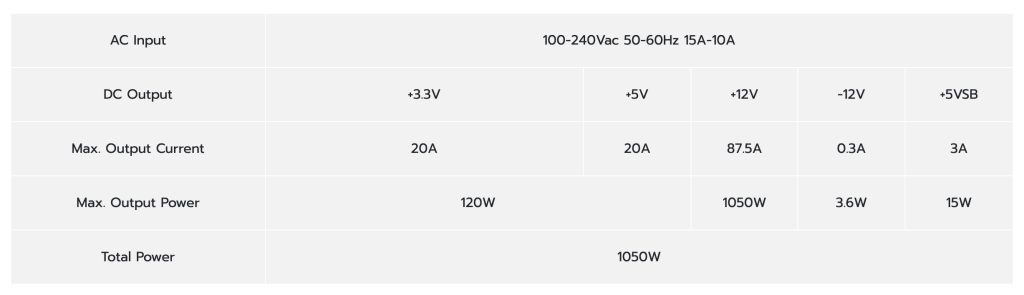

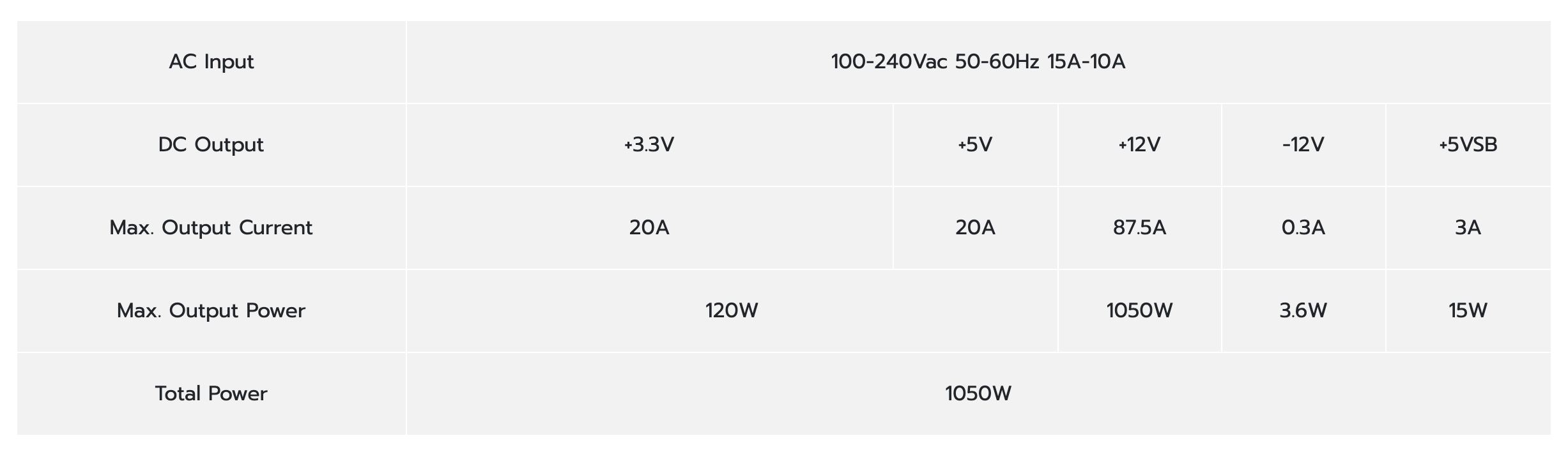

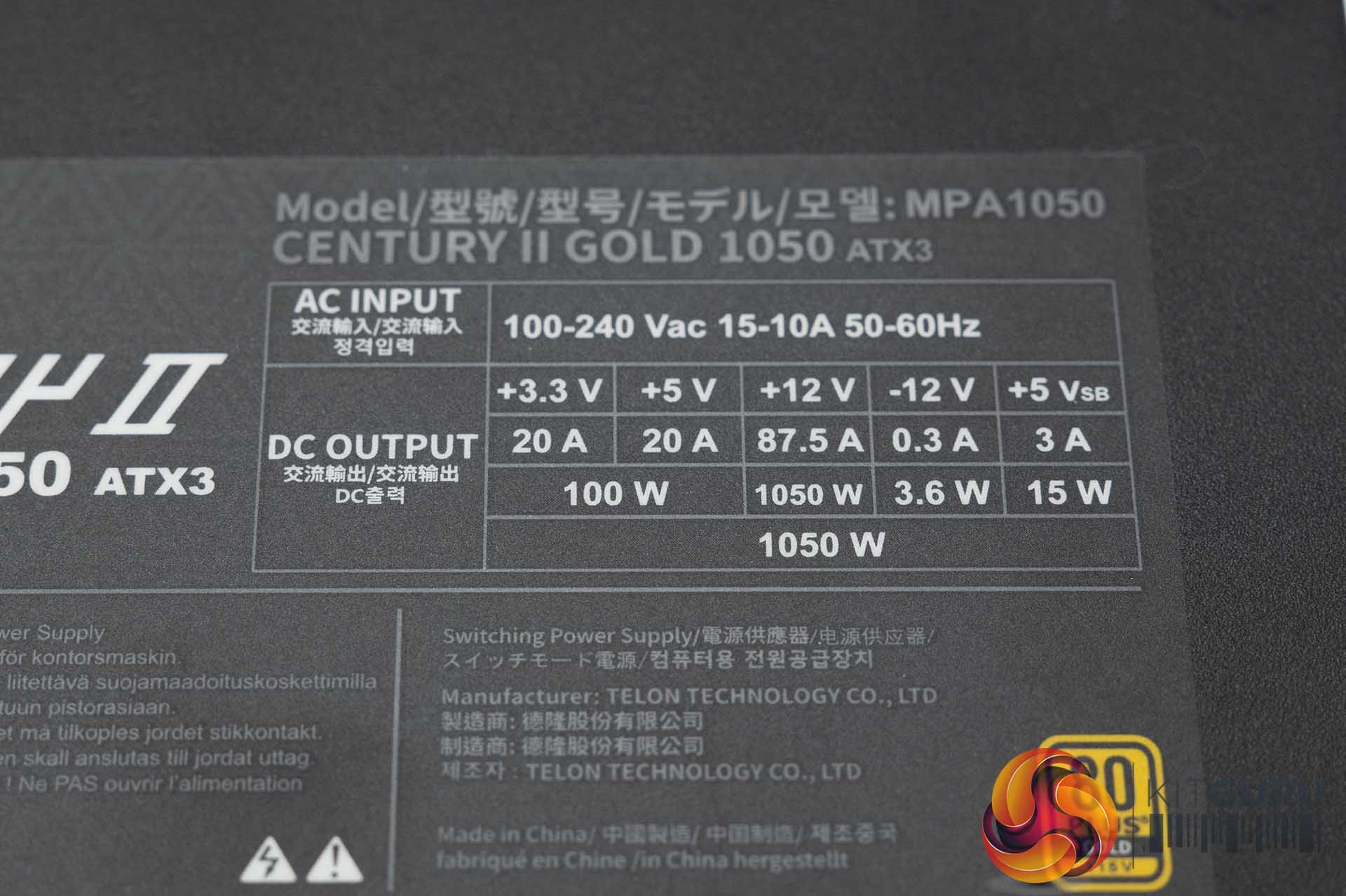

The power supply is able to deliver 87.5A via the +12V rail. 20A are available to the secondary +3.3V and +5V rails. Total power output is 1050 watts.
