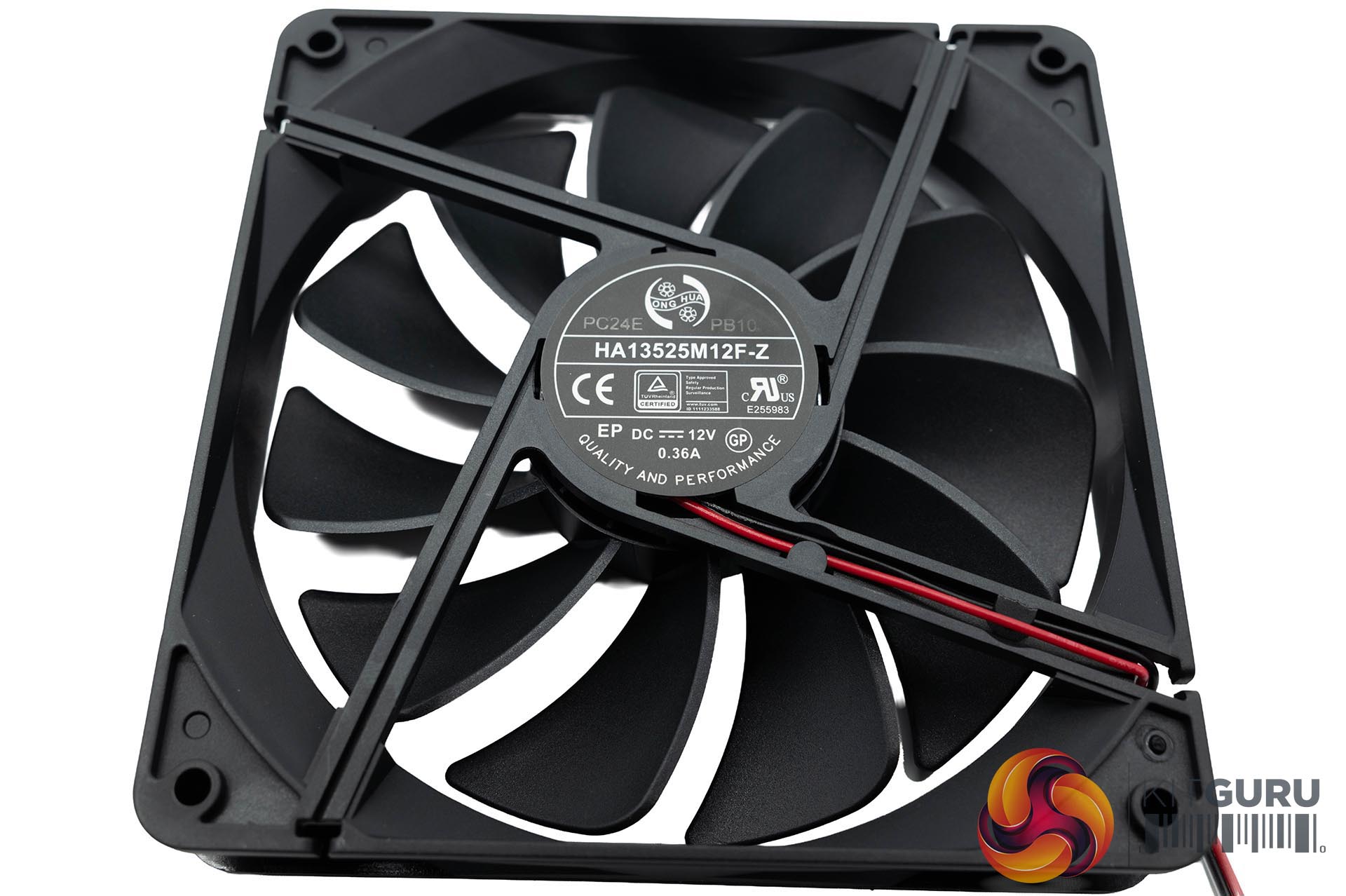

The LC1200P2 is using a Hong Hua HA13525M12F-Z fan. As I mentioned previously I am quite surprised LC-Power didn't really detail this fan in any of their literature or datasheets as it's a quality fluid dynamic bearing (FDB) fan! We have seen this fan used in a lot of quality Seasonic power supplies in recent years.
This fan is rated 12V 0.36A with a maximum rated speed of around 1,800 RPM. I really do like these fans a lot. They are reliable, well made and last a long time.

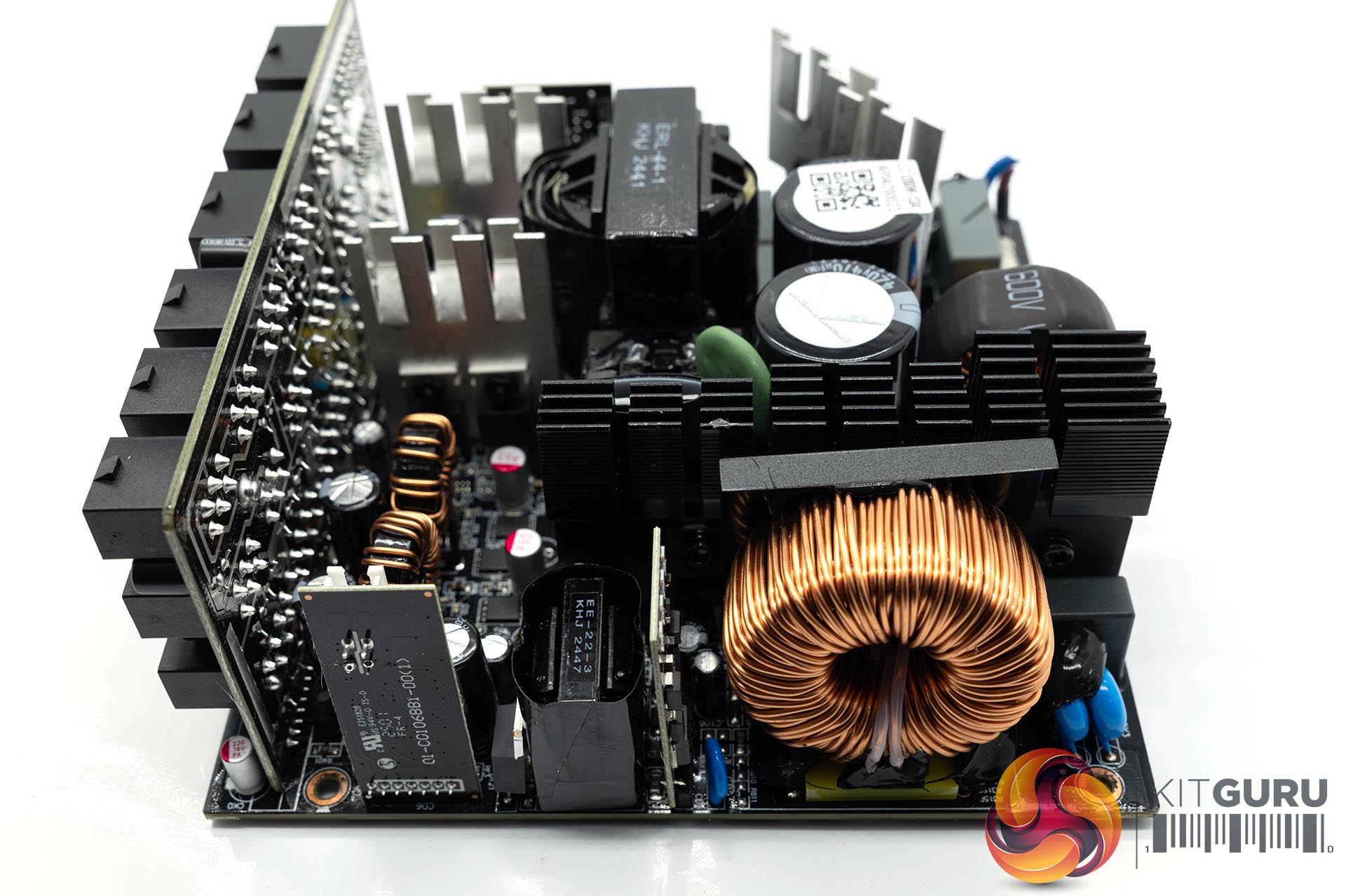

As detailed earlier in the review, this is a DC to DC design with OEM partner RSY. RSY are not one of the more widely known companies on the market for power supply designs but they have created units for Super Flower and Enermax and even some for Seasonic in their earlier budget line up.

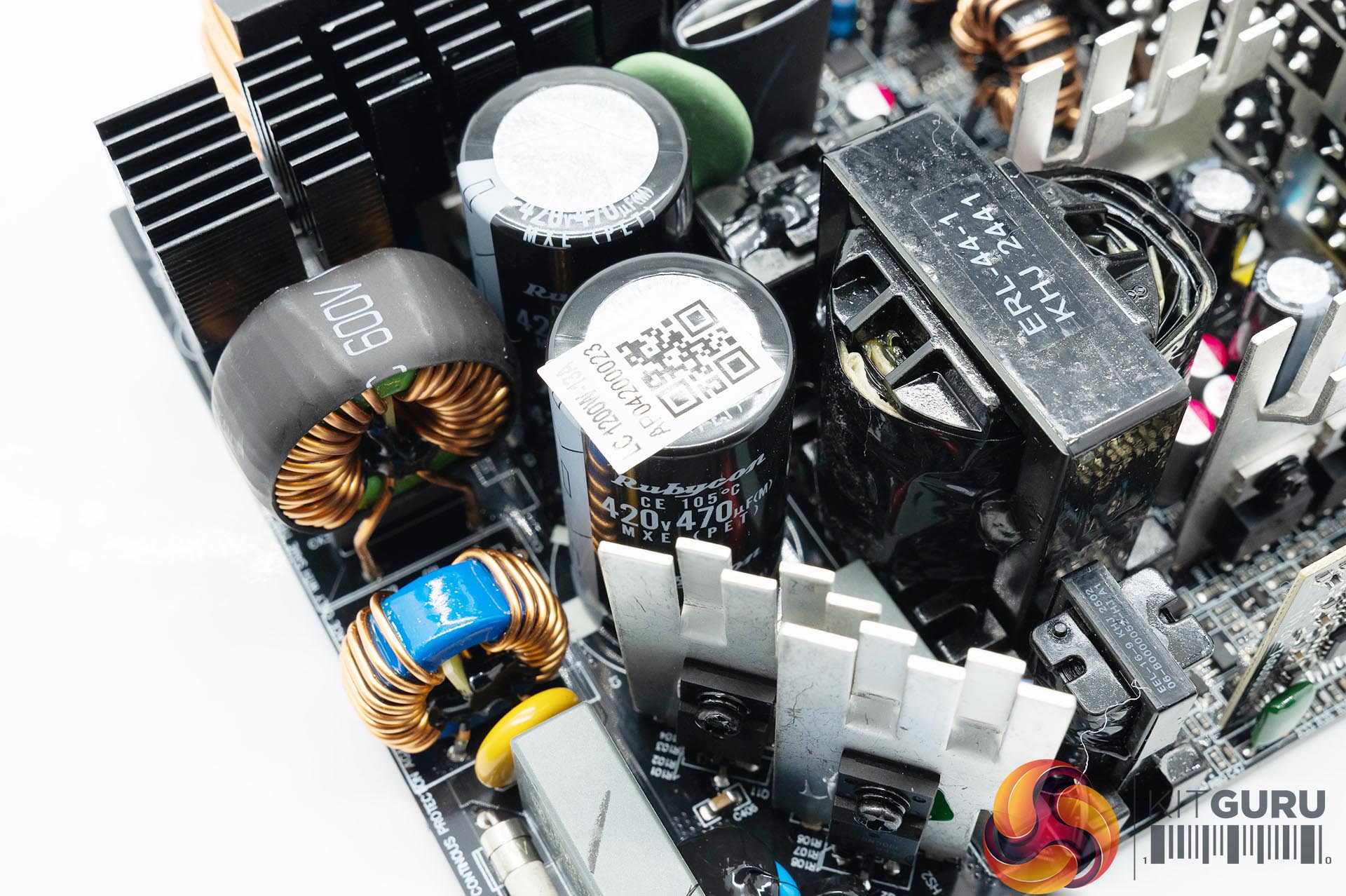

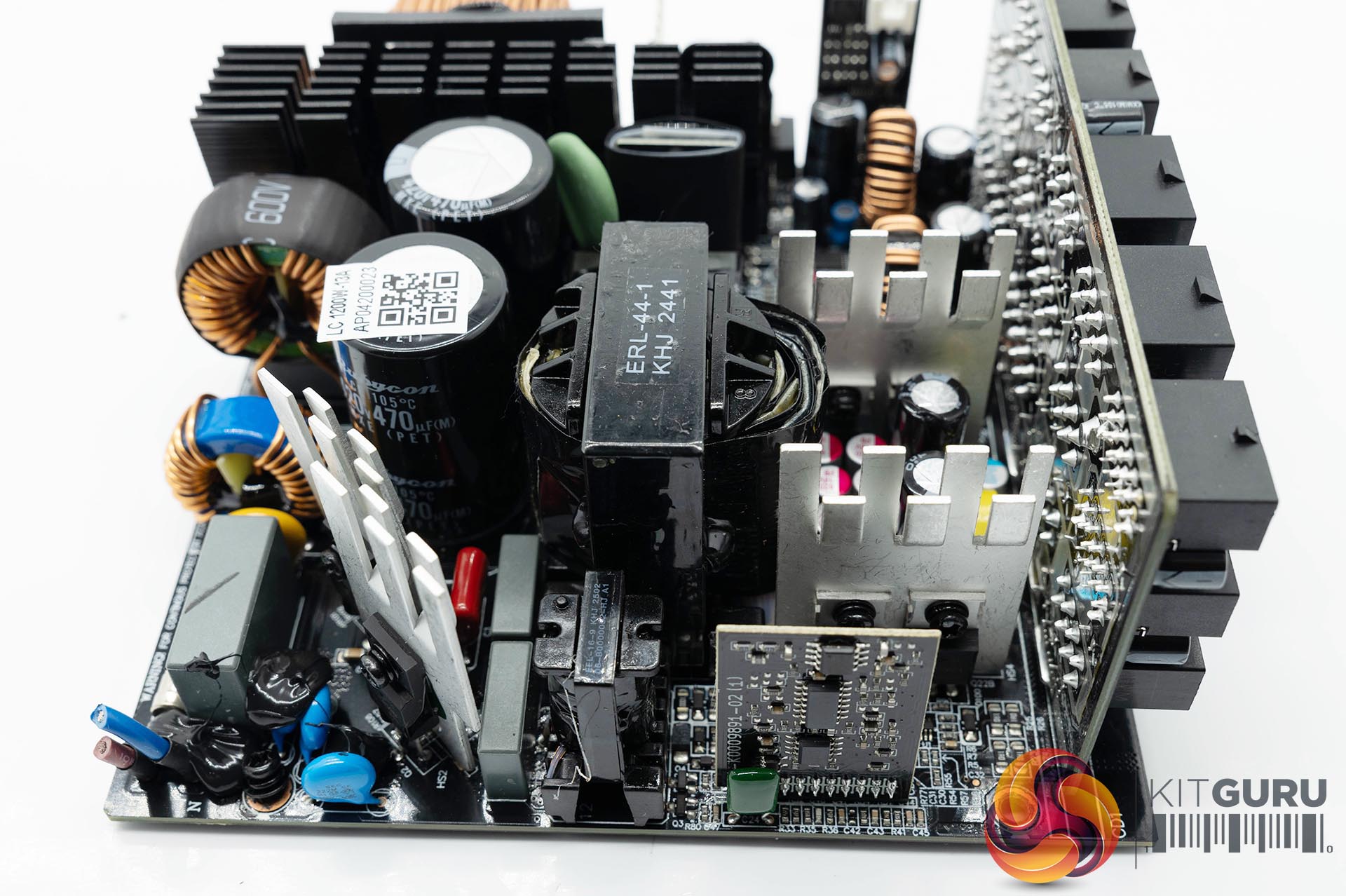

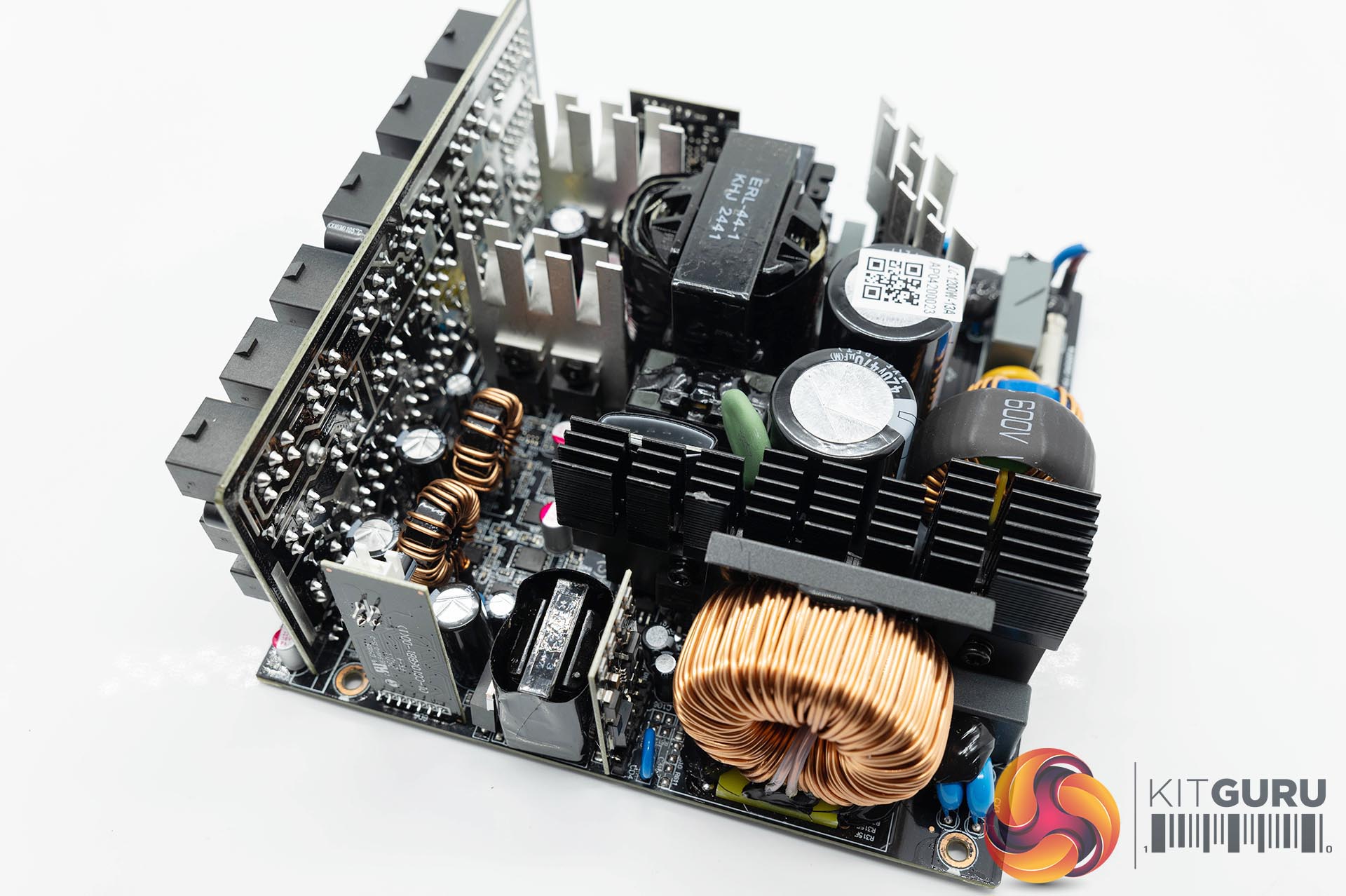

While the 1000 Watt unit we reviewed last week shipped with Nippon Chemi Con capacitors, this 1200 watt unit ships with Rubycon capacitors. Both are equally good and likely the OEM is just taking what capacitors are available at the time. The two primary caps are 105C rated – 420V 470uF for a total of 940uF output. The main transformer is by Kai Hao Jie and the MOSFETs are Wayon, Convert, Maplesemi and HUAYI.

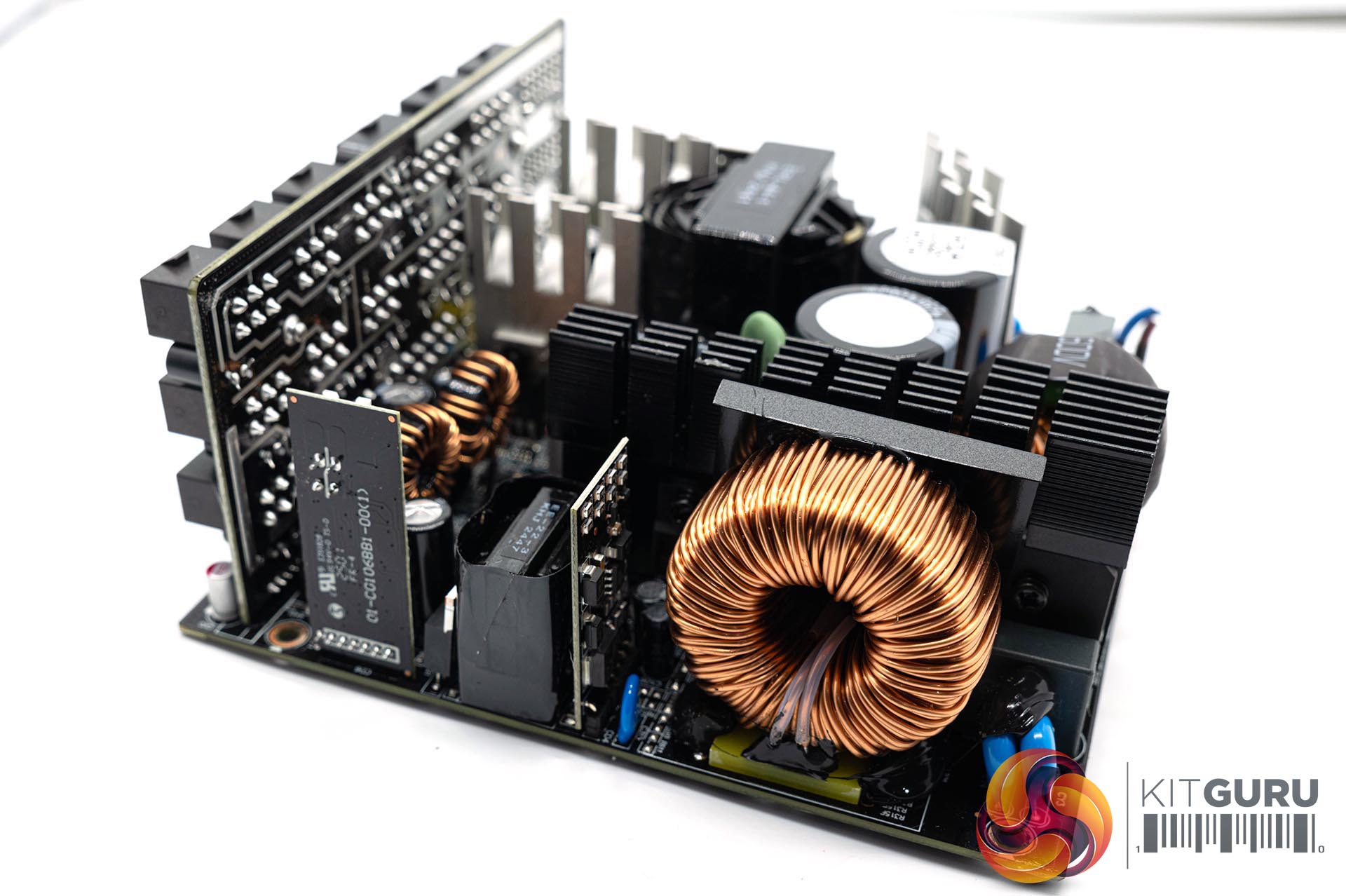

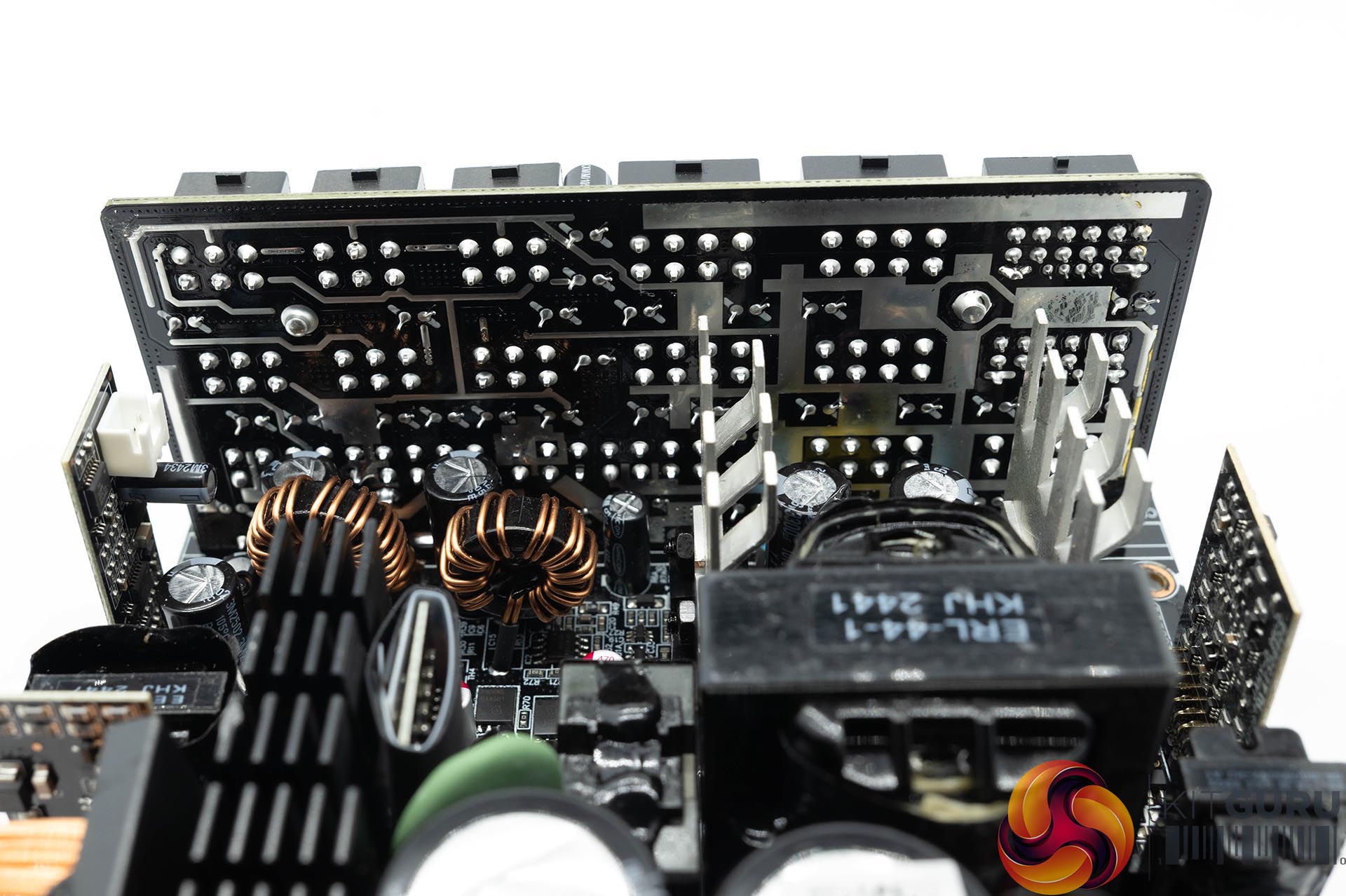

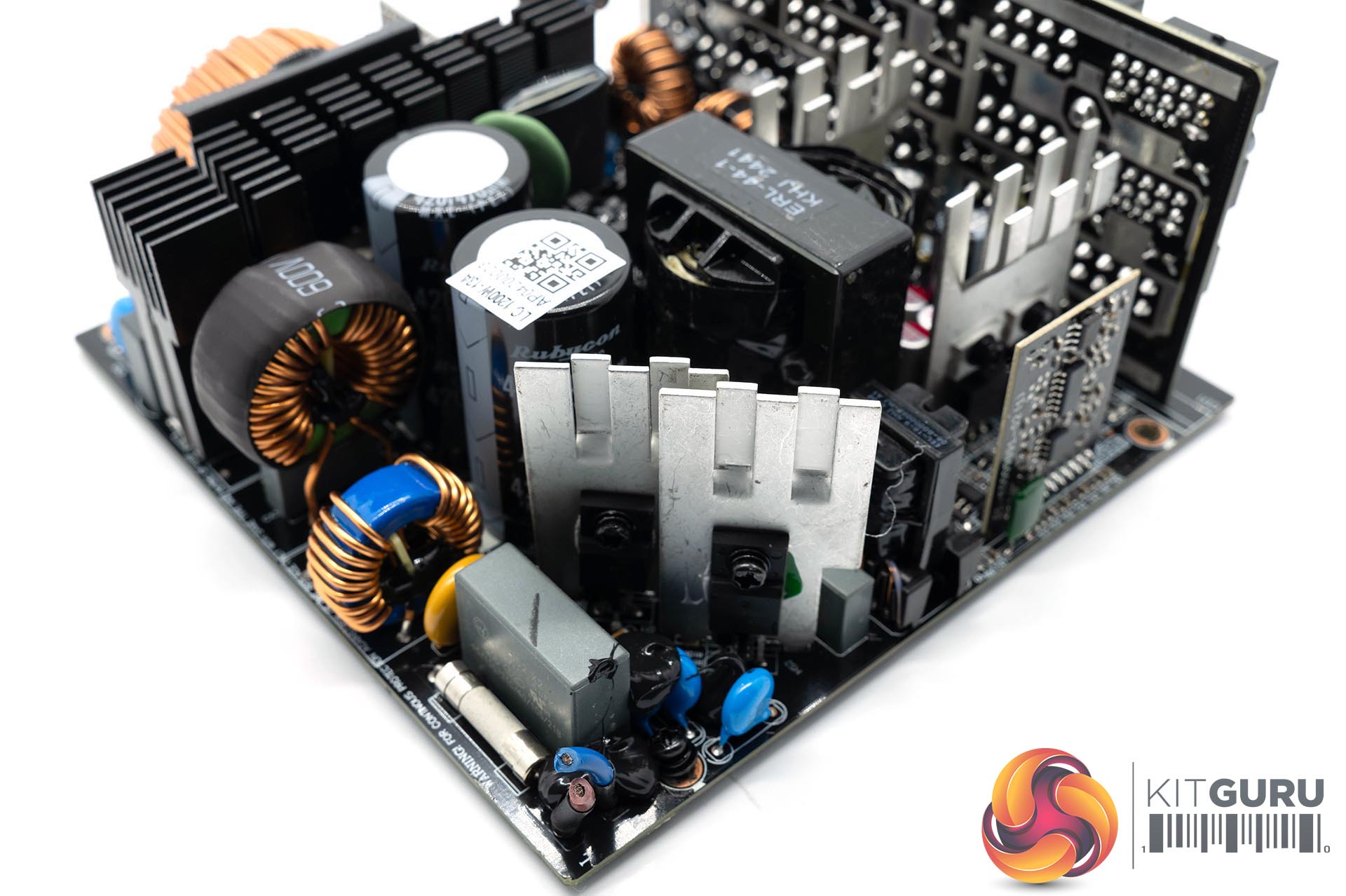

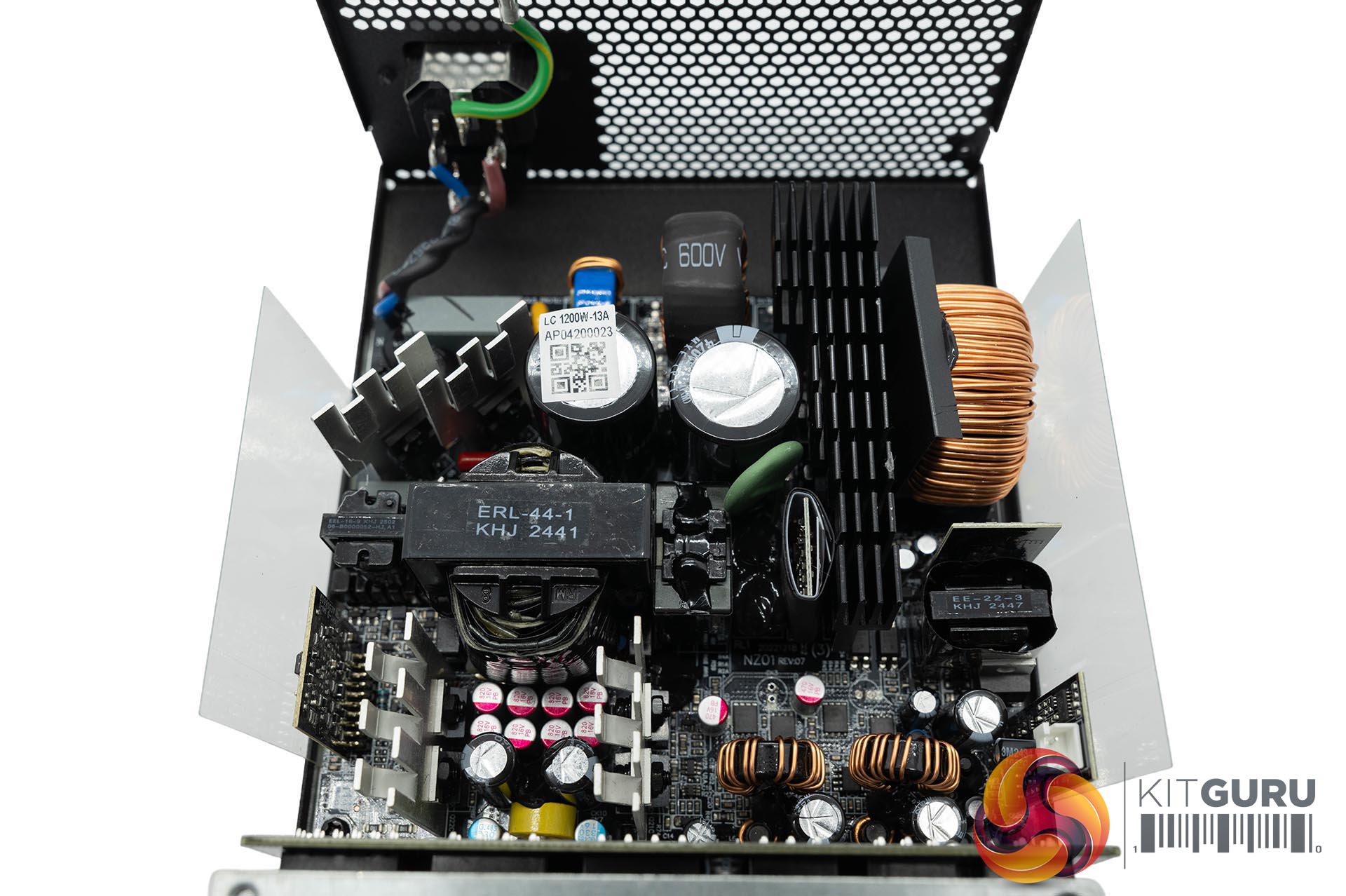

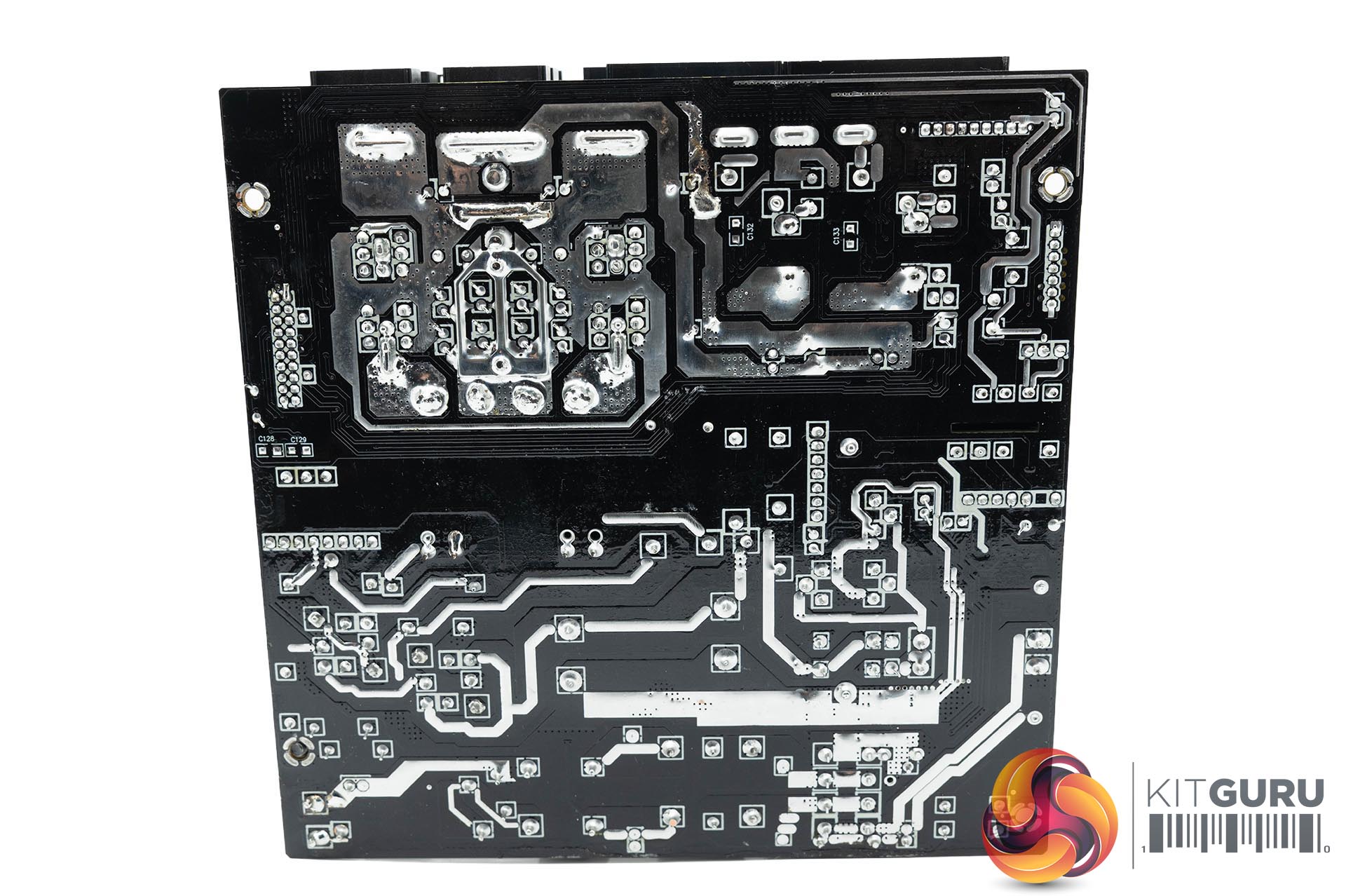

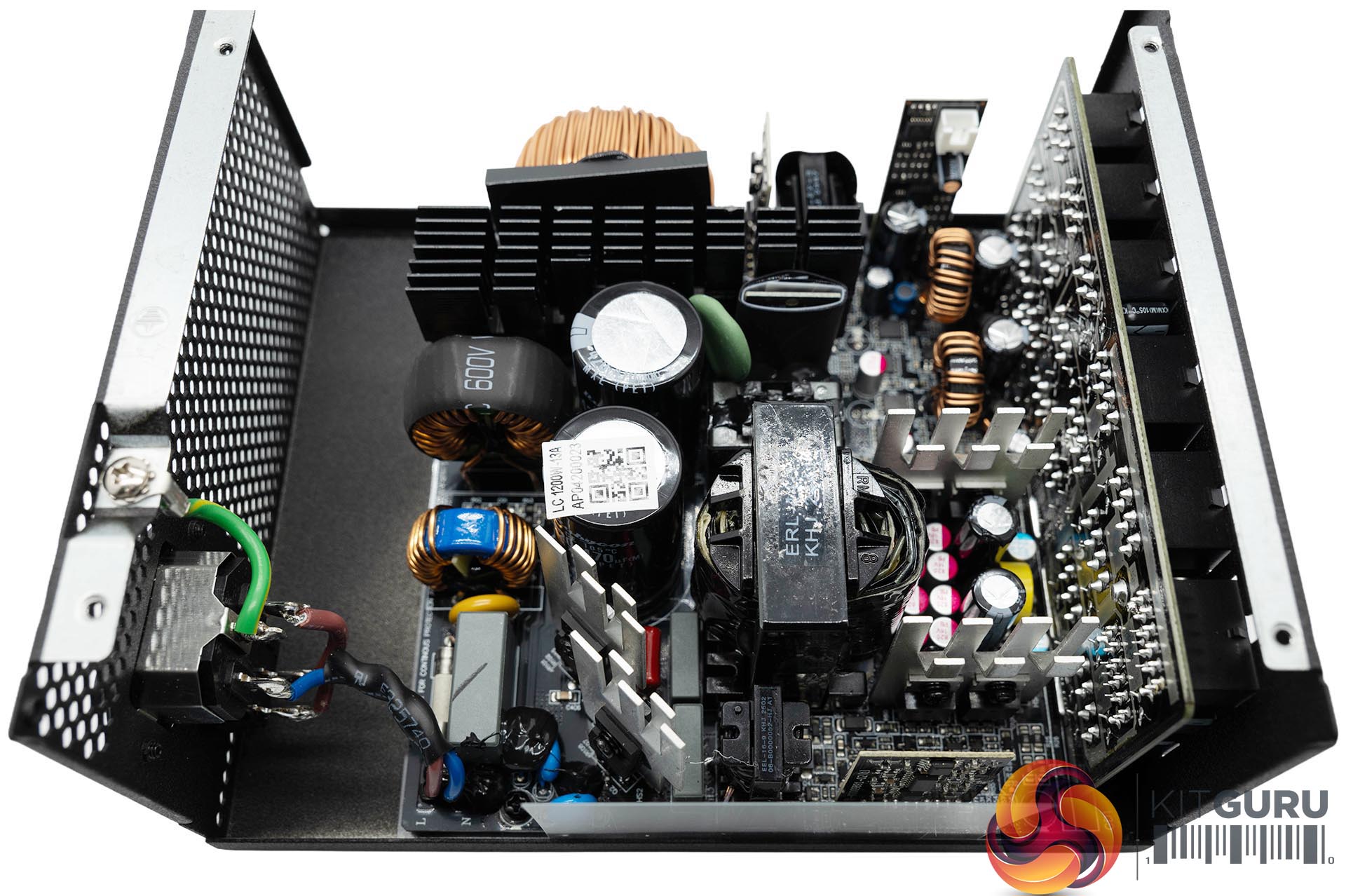

The internal design of the power supply is clean and well laid out with plenty of room for air flow across the board. The soldering quality is also very good on the main PCB and components side.
The power supply ships with OVP, OCP, OPP, OTP, SCP and UVP protections. As we said earlier, LC-Power is supporting these units with a 10-year warranty.
