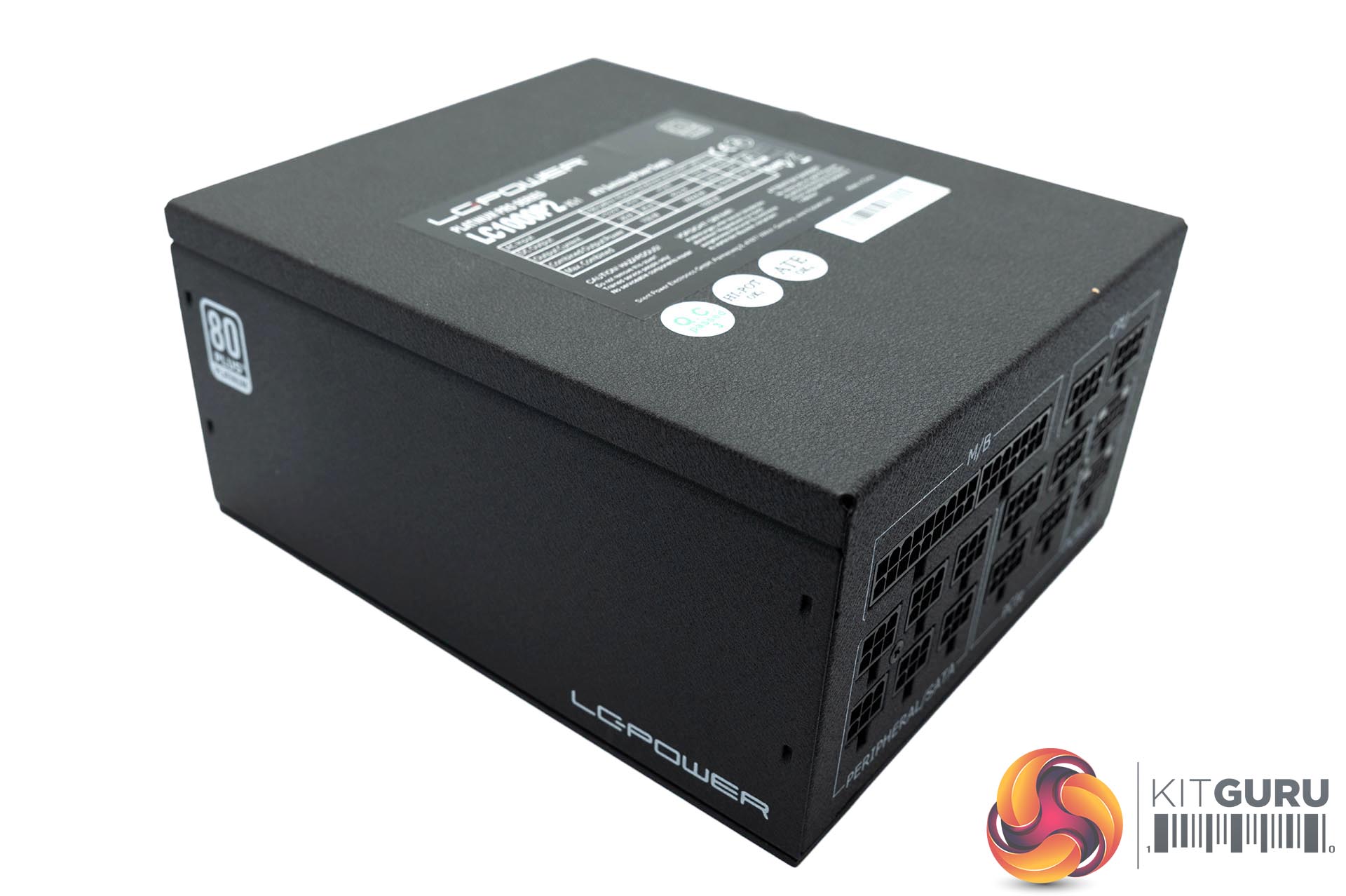

The LC-Power LC1000P2 is finished to a reasonably high standard with colour neutral accenting on the name and 80 Plus Platinum badge. A lot of systems hide the power supply now from view anyway, but at least this one will suit any colour themed system build if it is on show.

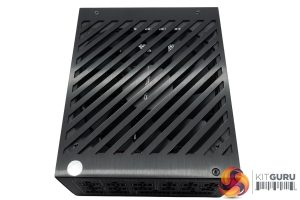

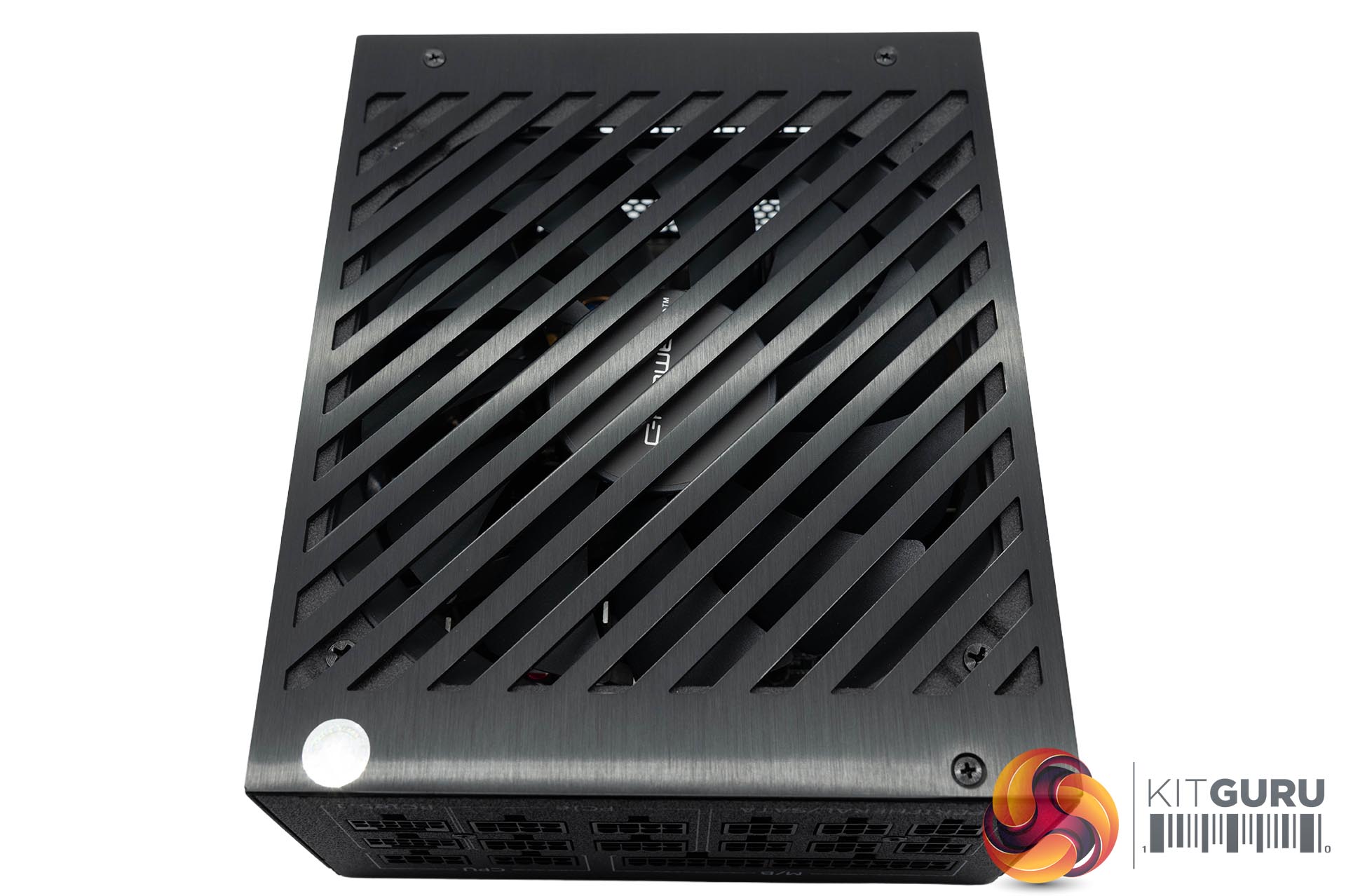

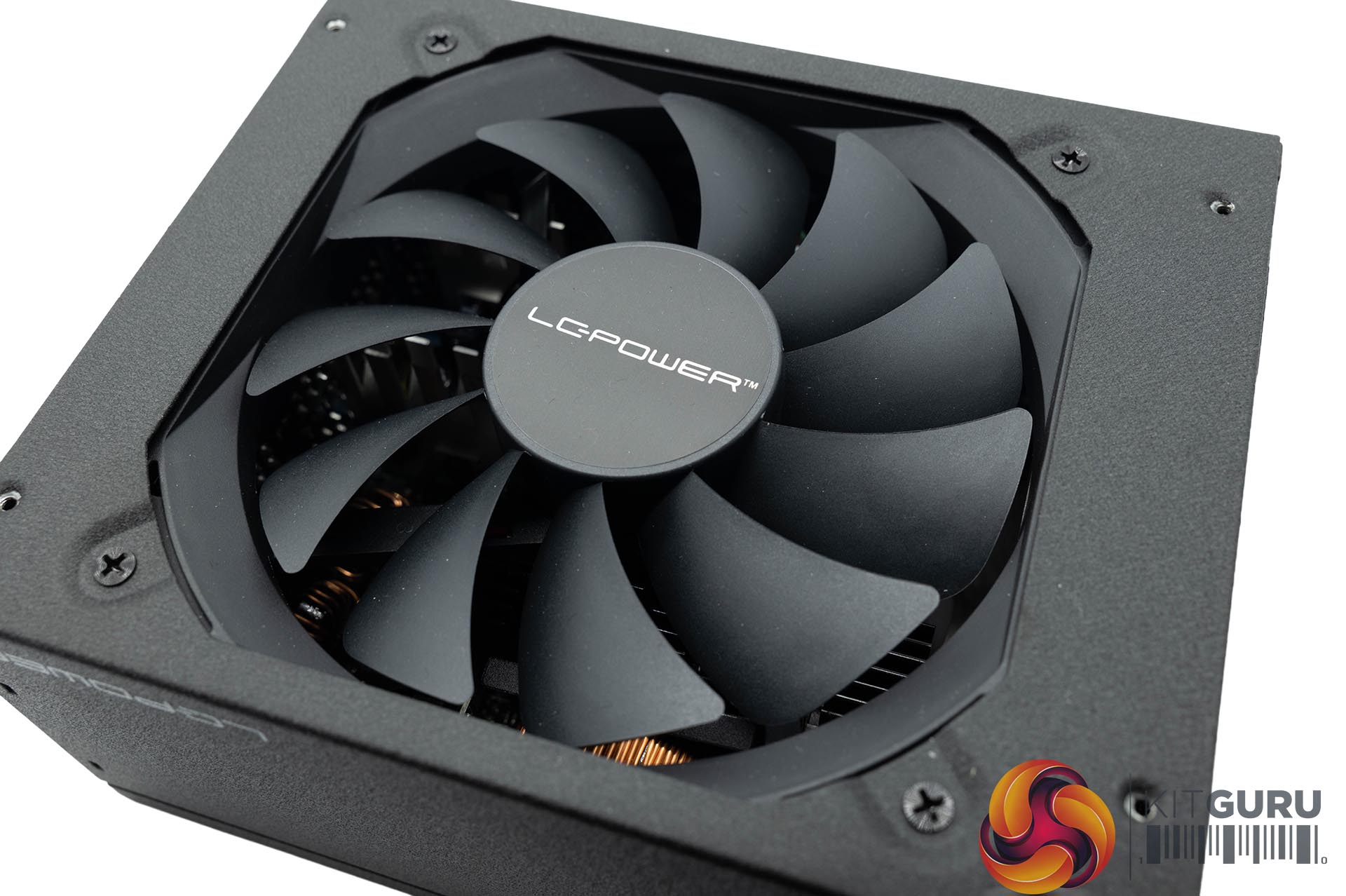

The top of the power supply has a brushed metal grille in place and the large fan is partially visible below it. If you remove the top panel you can see underneath a little better. We will take a closer look at the fan shortly when we open the PSU up properly.

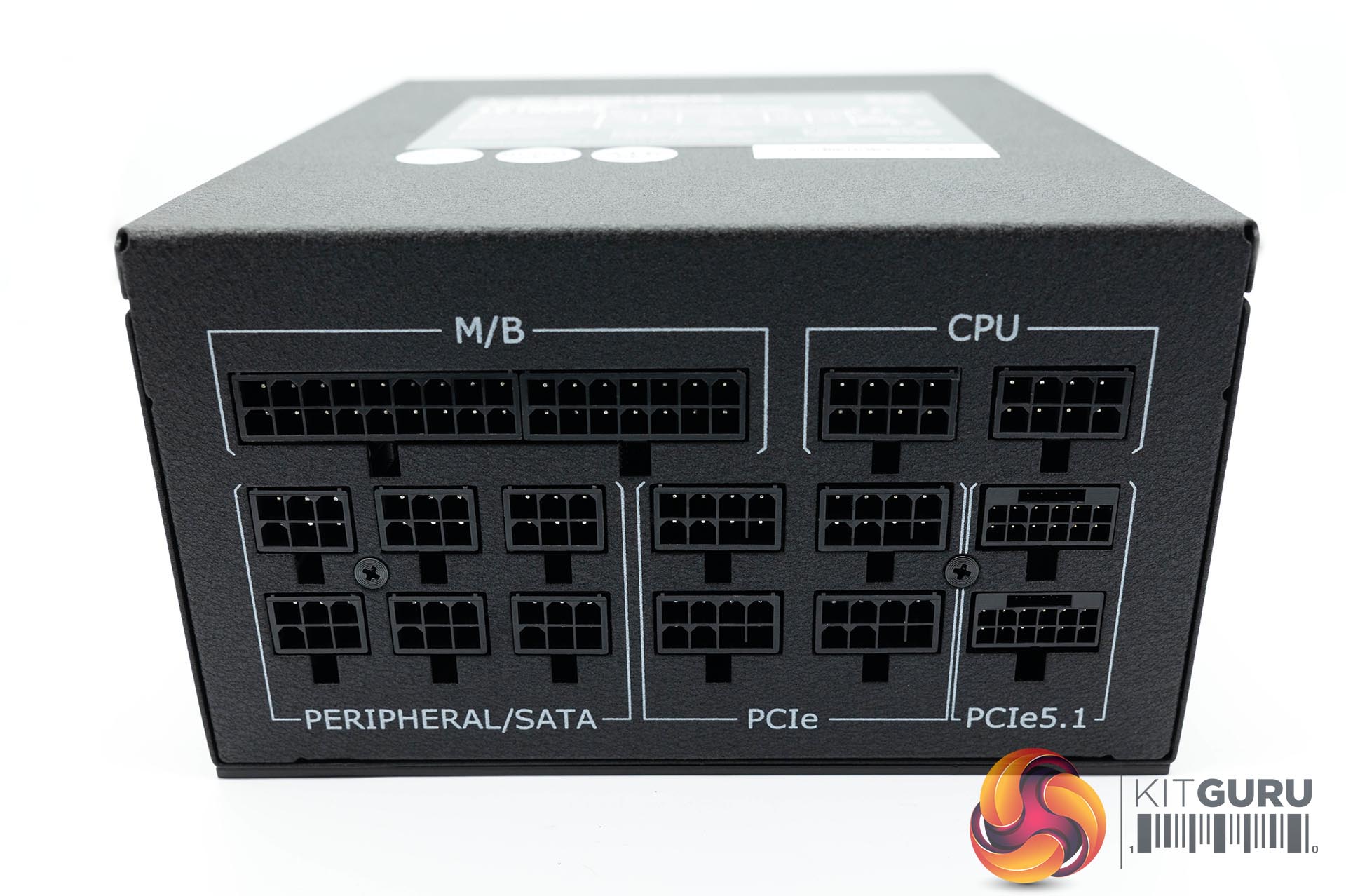

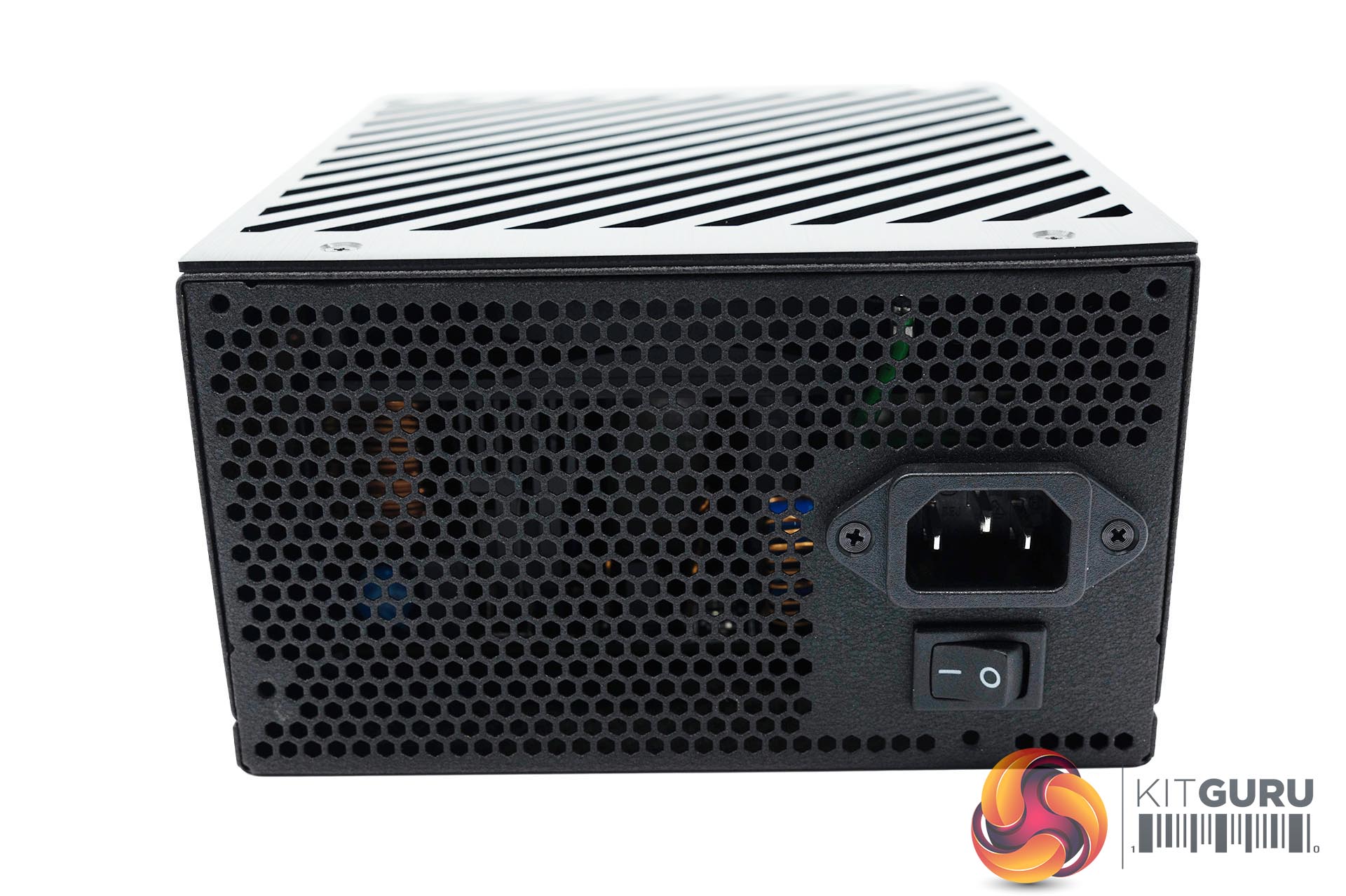

The modular side is split into three rows of connectors, all clearly labelled for ease of use during the installation phase. The power side is home to the power switch, cable connector, and a large vented panel to help with airflow.

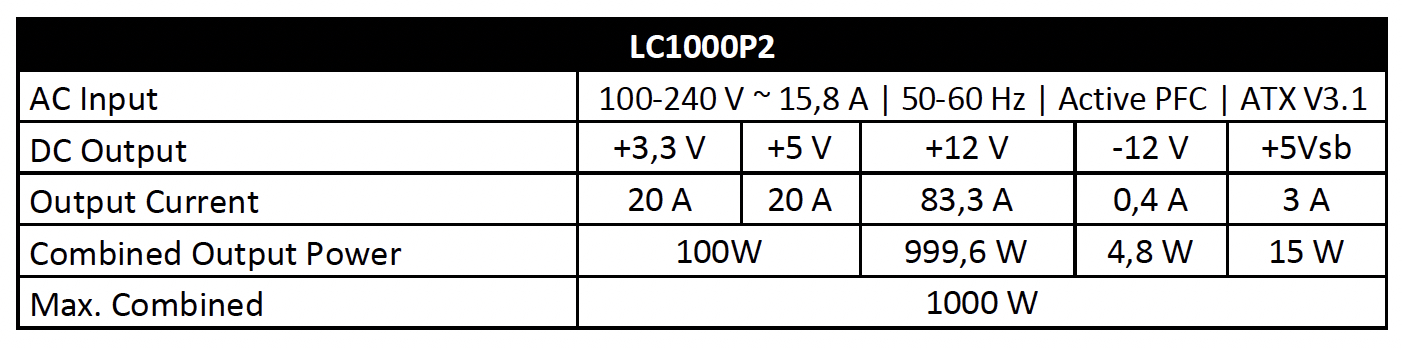

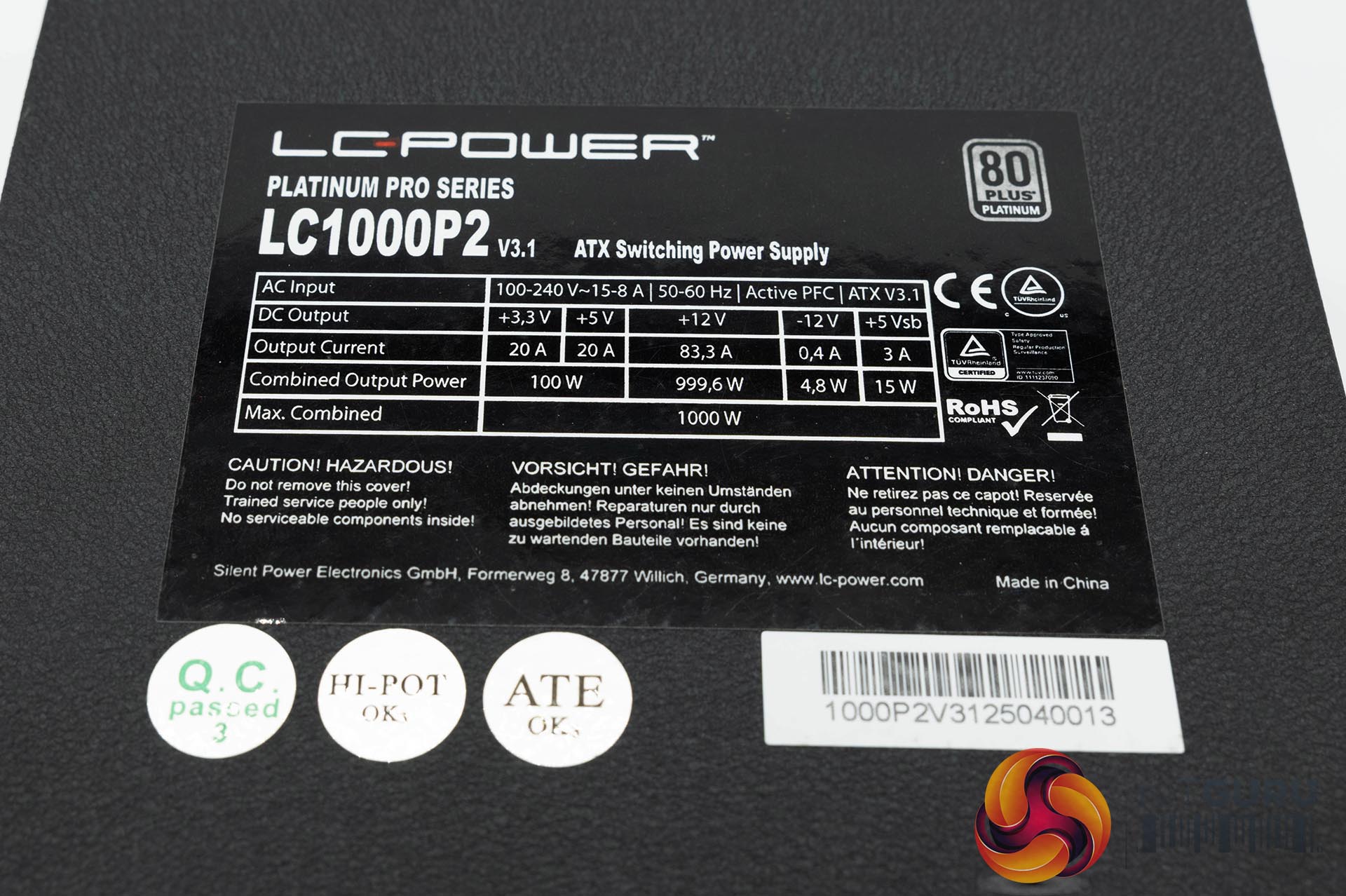

The power configuration follows a fairly traditional output for both primary and secondary rails. The +3.3V and +5V rails are rated at 20A for 100W and the primary +12V rail is rated to 83.3A for 999.6W of total output. This is identical to other units we have tested recently such as the be quiet! Power Zone 2 1000W.
