LC-Power LC1000P2 V3.1 PSU Review

1. Introduction2. Bundle & Cabling3. External4. Internal5. Testing Methodology and Results6. Closing Thoughts7. View All Pages

The LC-Power LC1000P2 ships in a box featuring a high resolution photograph of the power supply, with some key details along the right hand side – such as the 80 Plus Platinum certification, 10-year warranty and adoption of Japanese capacitors.

Unfortunately we don't see any Cybenetics certification and I'd urge LC-Power to contemplate getting these units approved ASAP.

The rear of the box is surprisingly free of details regarding fan curves, or efficiency charts – they simply repeat the same three badges on the front and show some more pictures of the unit including an internal shot and some pictures of the cables.

Inside the box, the power supply is sandwiched between foam on the left side, and the cables on the right, along with a little bit of documentation on top. They also include some cable ties and mounting screws and a region-specific power connector.

The cables are all included inside a little felt bag.

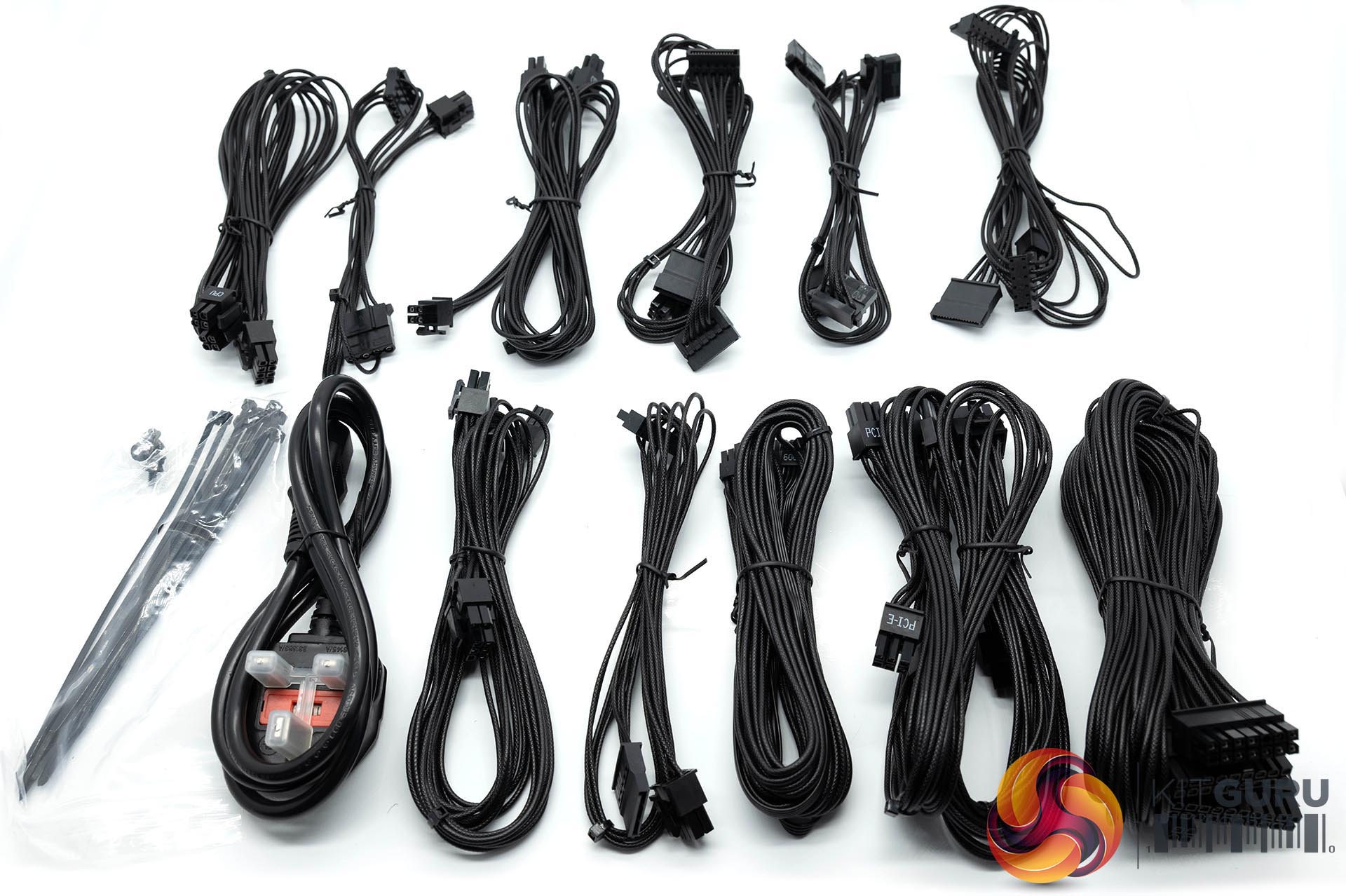

The cables are all individually sleeved and seem decent enough quality.

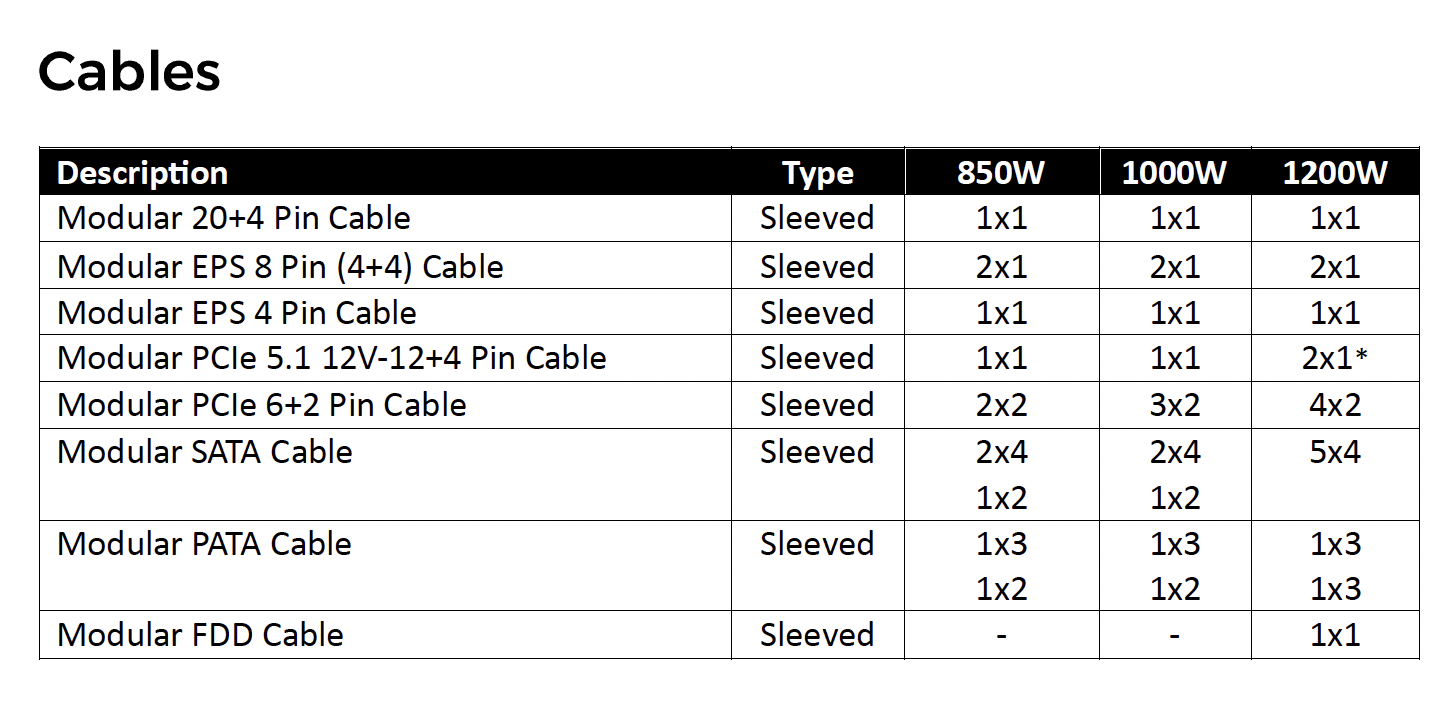

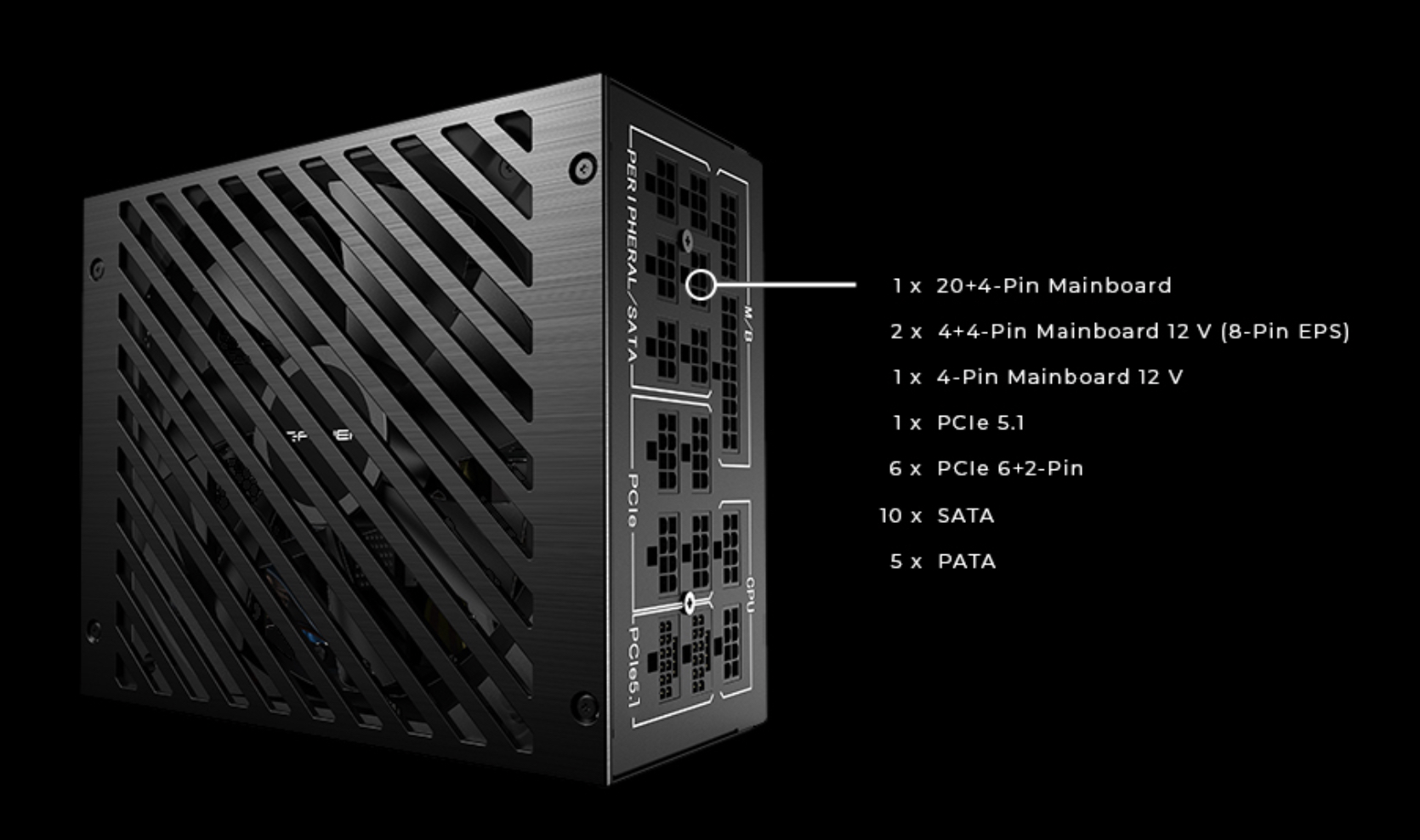

Connectors:

• 20+4 pin mainboard: 1 x 650mm
• 4+4 pin mainboard 12V : 2 x 650mm
• 4 pin mainboard 12V: 1 x 800mm
• PCI-Express 5.1 12+4 pin: 1 x 600mm
• PCI-Express 6+2 pin: 4 x 675 mm / 3 x 750mm
• SATA: 3 x 500mm / 3 x 650mm / 2x 800mm / 2x 950mm / 1 x 350mm / 2 x 500mm / 1 x 650mm / 1 x 800mm
• PATA: 1 x 350mm / 2 x 500mm / 1 x 650mm / 1 x 800mm
