To learn more about our EMI testing equipment, please check out How We Test Power Supply Units.

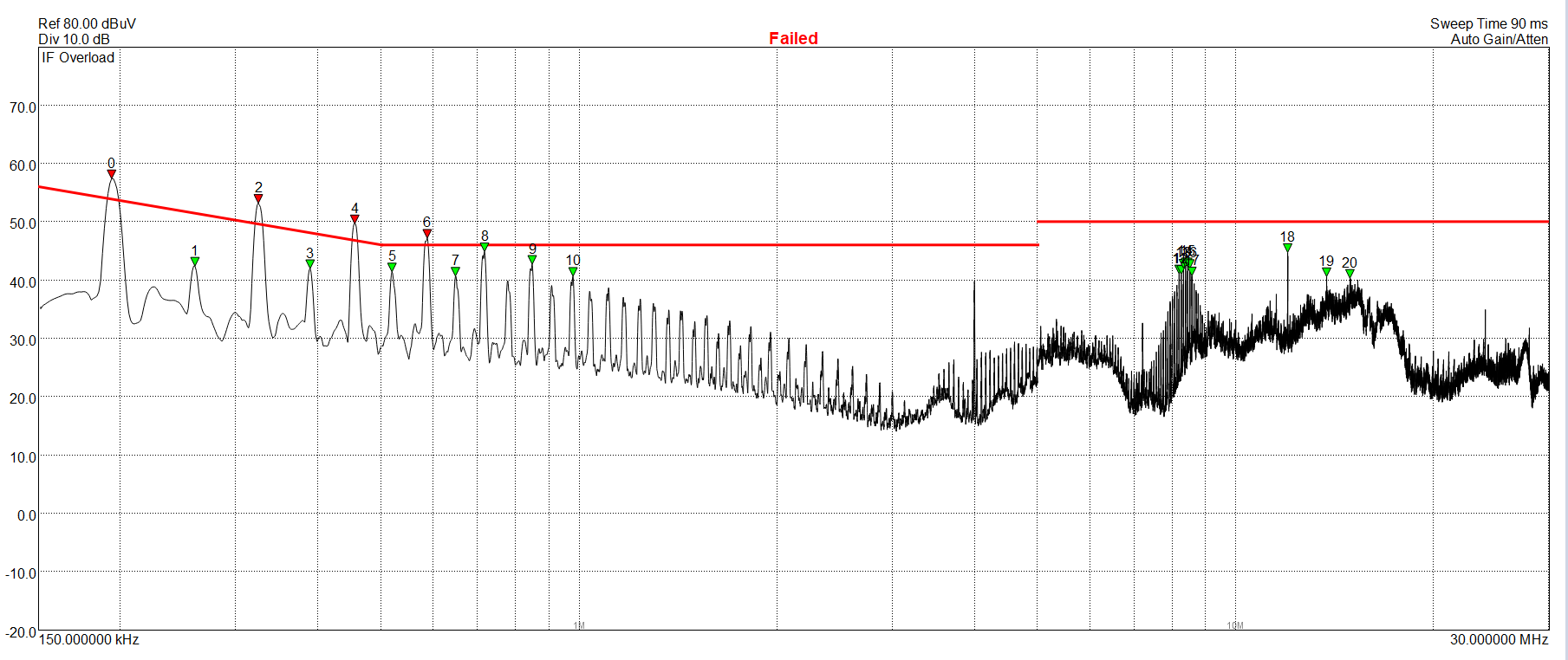

EMI Results – Average Detector

The unit's EMI emissions go over the limits at low frequencies, while we also noticed some increased spurs at higher frequencies.

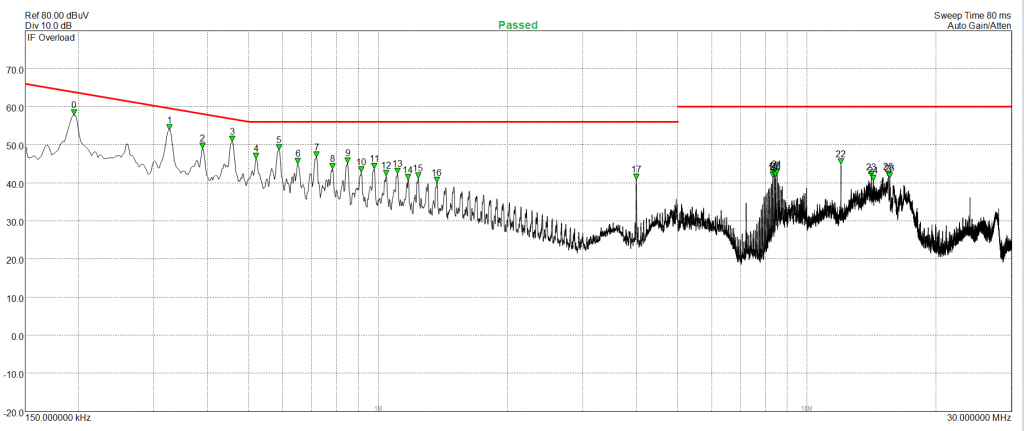

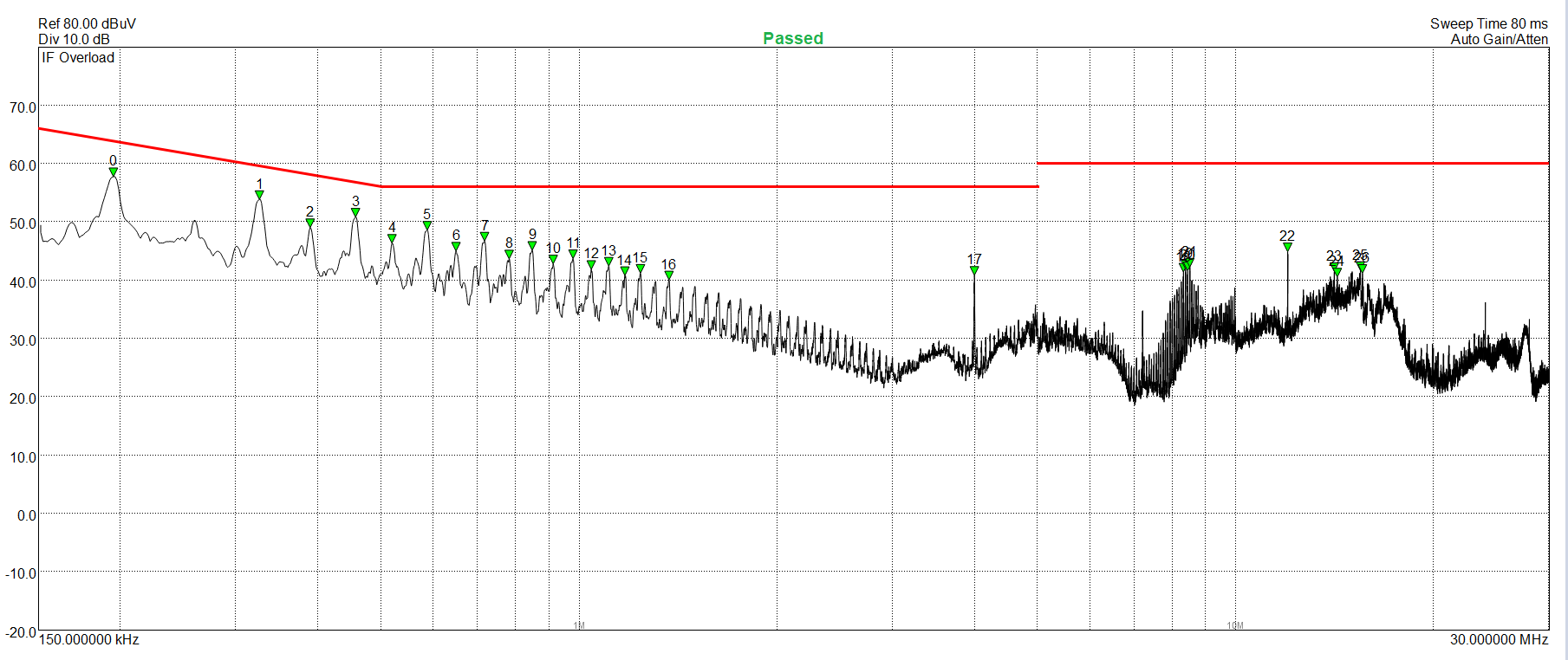

EMI Results – Peak Detector

There are notable spurs with the peak detector as well, however none of the exceeds the limits.
