To learn more about our EMI testing equipment, please check out How We Test Power Supply Units.

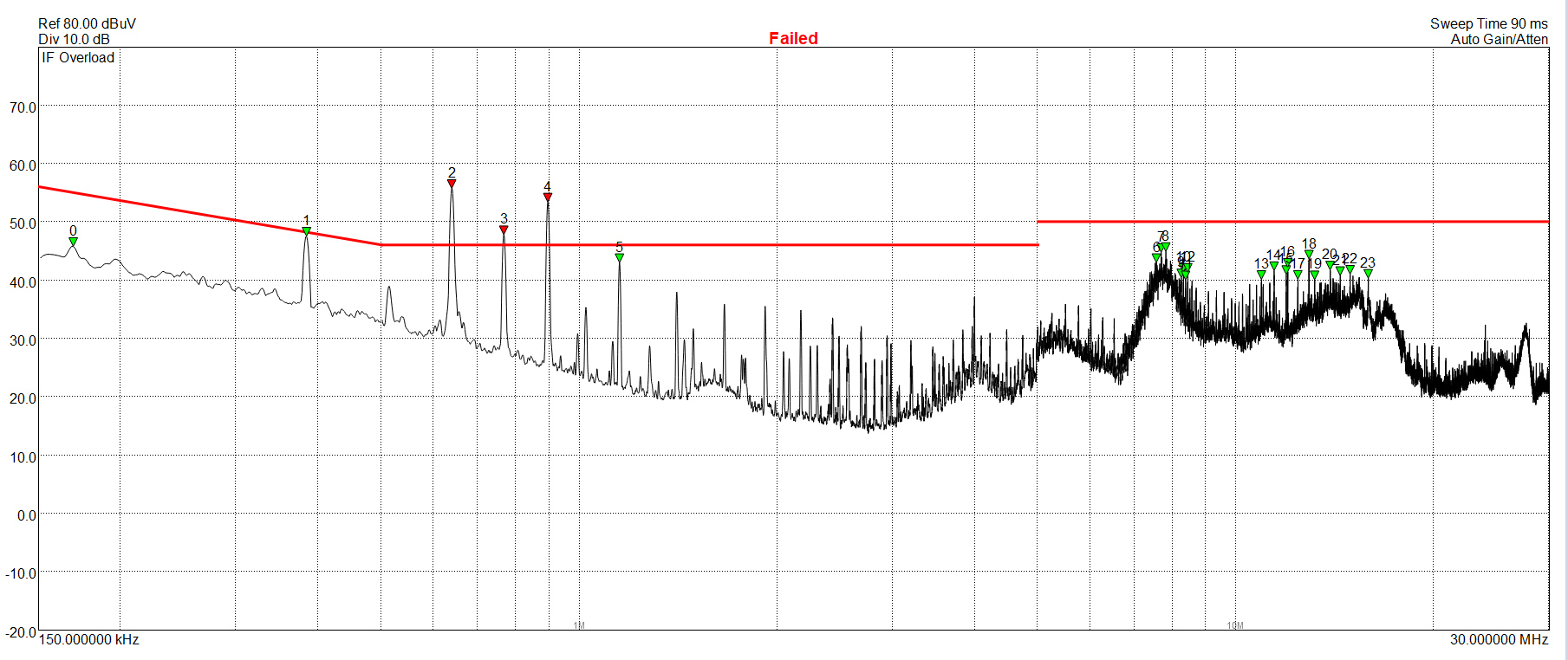

EMI Results – Average Detector

As you can see the HX750 doesn't perform well, since there are many high spurs with three of them exceeding the limit.

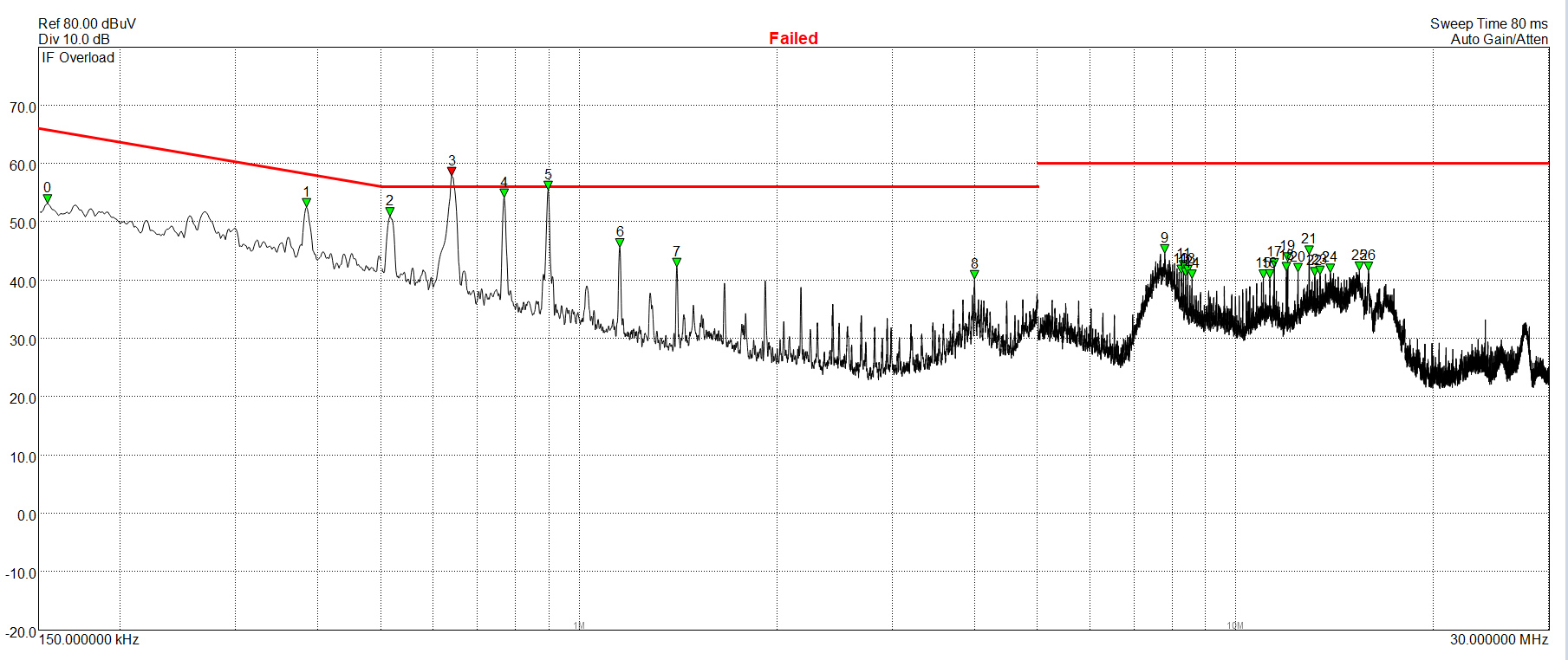

EMI Results – Peak Detector

It is very rare to see a PSU failing the peak EMI detector, especially a high-end model.
