Asus ROG Thor 1200W PSU Review – a heavily modified Seasonic!

1. Introduction2. Packaging, Contents & Exterior3. Teardown & Component Analysis4. Load Regulation, Hold-Up Time & Inrush Current5. Efficiency, Temperature & Noise6. Protection Features & DC Power Sequencing7. Cross-Load Tests & Infrared Images8. Transient Response Tests9. Ripple Measurements10. EMC Pre-Compliance Testing11. Performance, Value, Noise & Efficiency12. Final Analysis13. View All Pages

To learn more about our EMI testing equipment, please check out How We Test Power Supply Units.

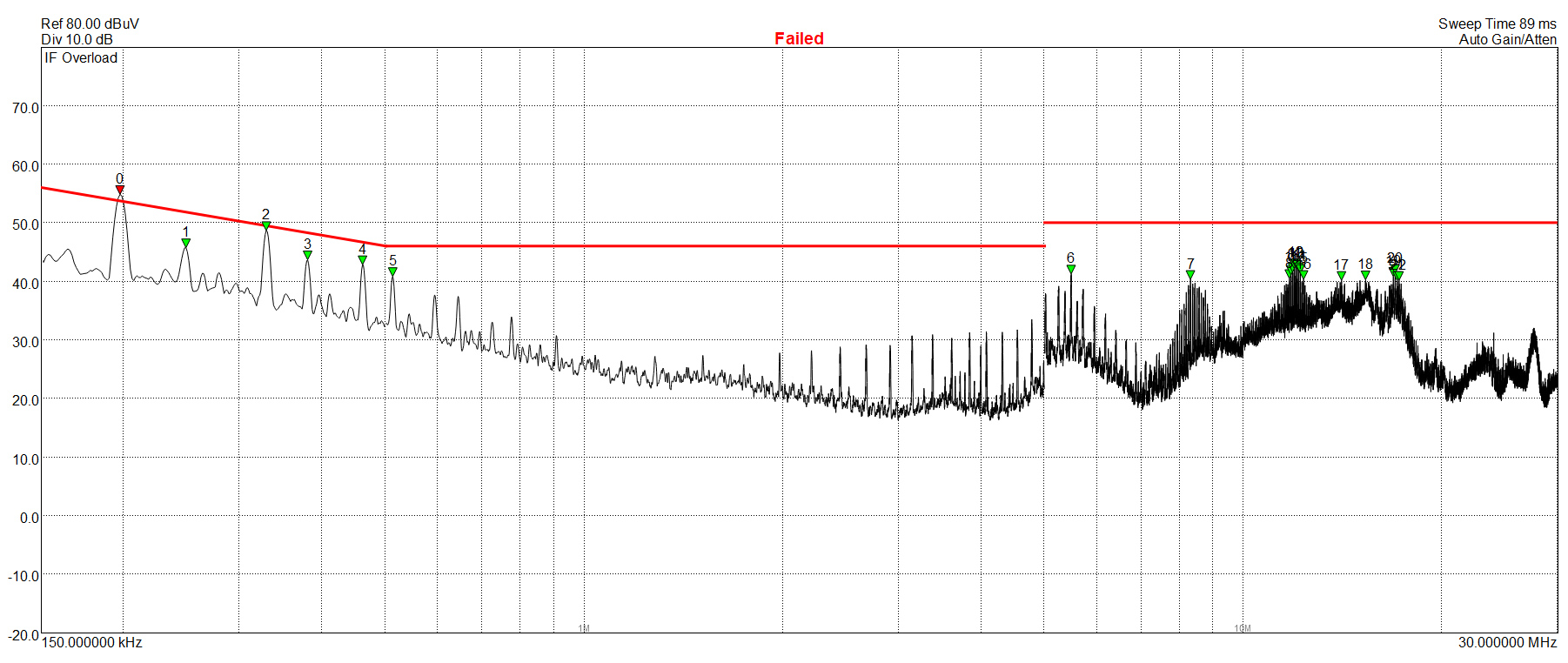

EMI Results – Average Detector

The unit fails because of a single high spur that exceeds the limits. There are some other high spurs, which however are below the corresponding limits.

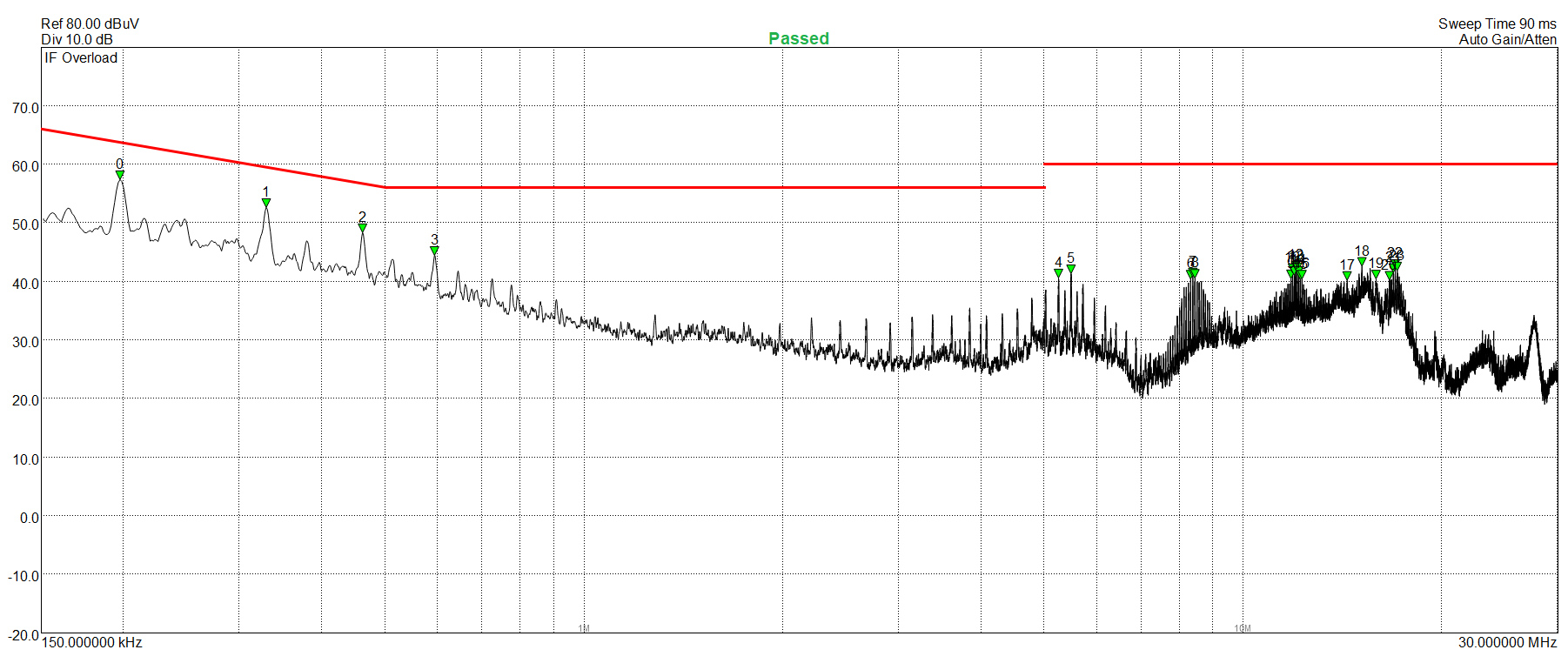

EMI Results – Peak Detector

No problems here.
