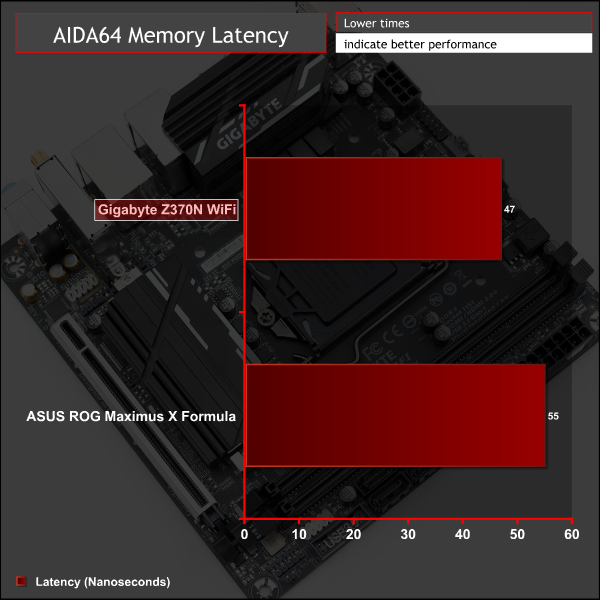

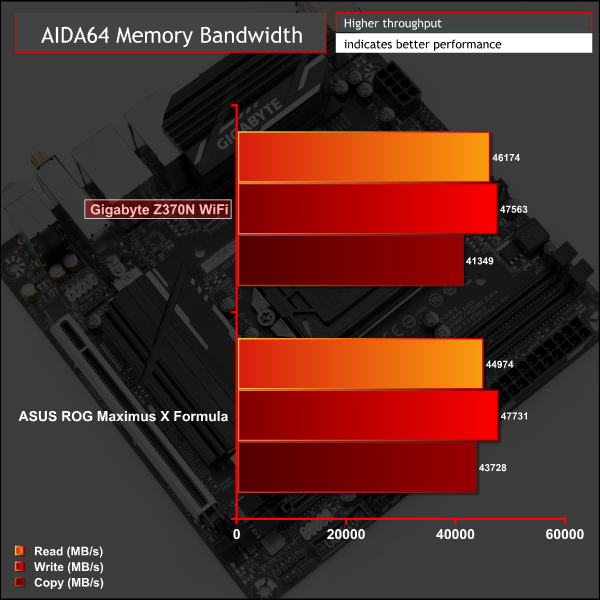

AIDA64 Engineer

AIDA64 Engineer is a multi-featured software suite for diagnostics, stress testing, benchmarking, software auditing and various other measurement parameters. We use AIDA64 Engineer to benchmark memory throughput and latency.

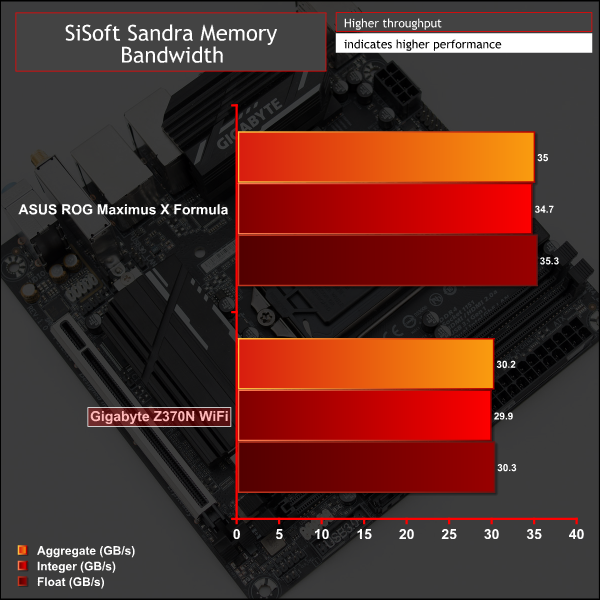

Sandra Memory Bandwidth

SiSoft Sandra 2017 is a multi-function utility program that supports remote analysis, benchmarking and diagnostic features for PCs, servers, mobile devices and networks. We use the SiSoft Sandra memory bandwidth test to provide a set of memory bandwidth results.

Memory performance varied slightly depending on the benchmark but its worth keeping in mind the Gigabyte board was only using two out of four modules due to its physical size limitation.
