AIDA64 Engineer

Sandra Memory Bandwidth

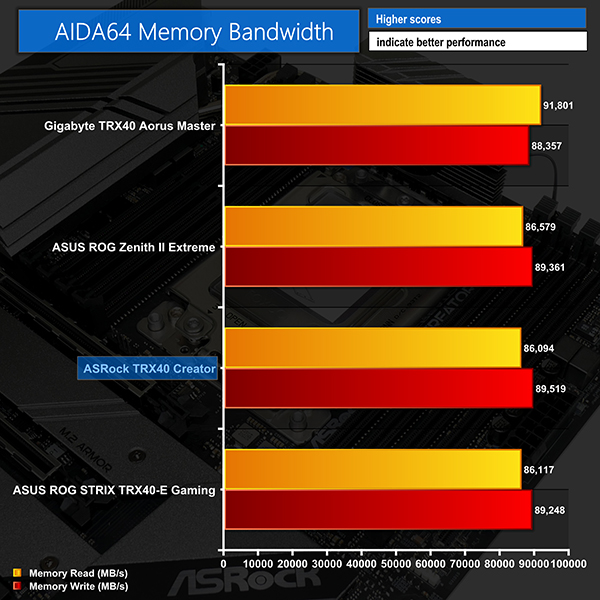

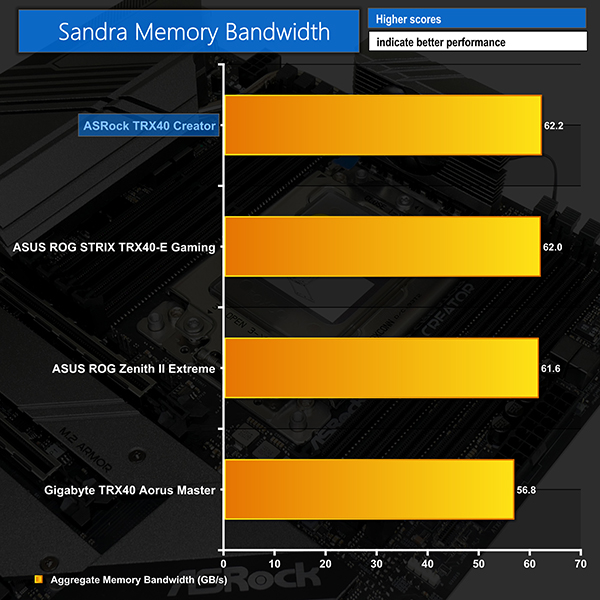

ASRock’s memory bandwidth results in AIDA64 are comparable to those from ASUS but cannot quite match the Gigabyte TRX40 Aorus Master. Switching to the SiSoft Sandra test, however, sees ASRock take the lead and deliver just over 62GBps of bandwidth with 3200MHz CL14 quad-channel modules.

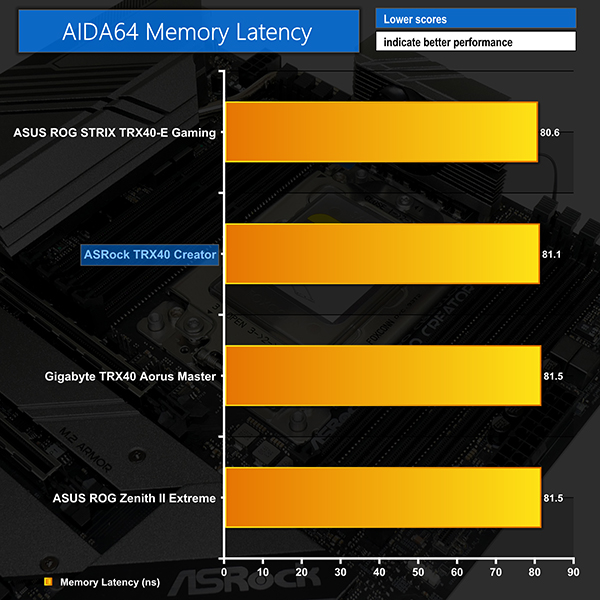

Latency performance is perfectly fine, with ASRock’s board sitting between the results of ASUS’ and Gigabyte’s similarly priced competitors.
