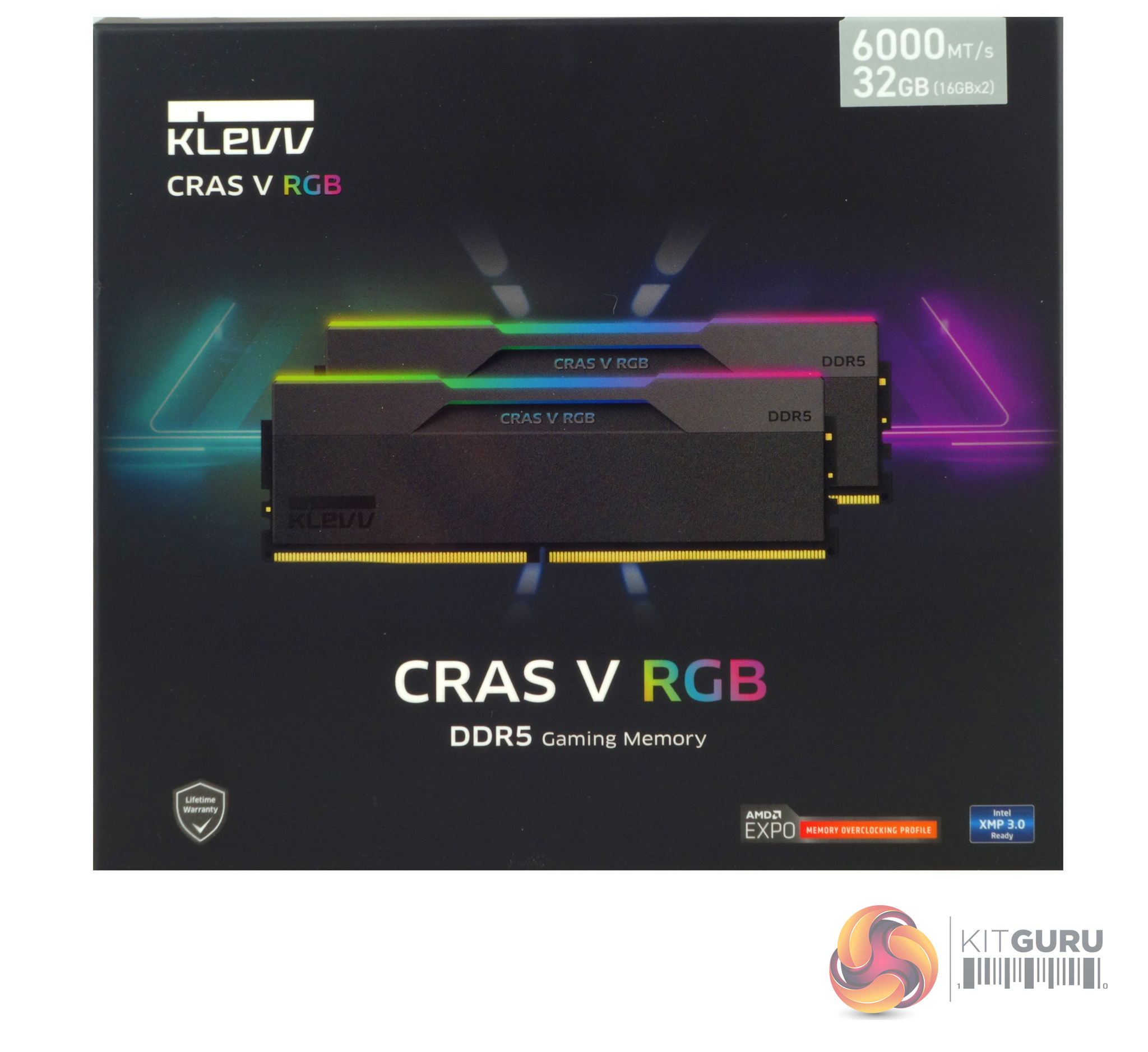

The front of the box has a good, clear image of what the memory modules look like. At the top right of the box is a sticker displaying the memory speed and the kit capacity (in this case, 6000MT/s and 32GB). The bottom left of the box has an icon displaying that the memory comes with a lifetime warranty, while the bottom right has the icons for Intel XMP and AMD EXPO support. At the top of the rear of the box is the other end of the speed and capacity sticker. Below this is a small feature list, multilingual information about the modules and icons displaying the motherboard RGB systems supported: Asus Aura Sync, Gigabyte RGB Fusion 2.0, MSI Mystic Light Sync, and ASRock Polychrome Sync.

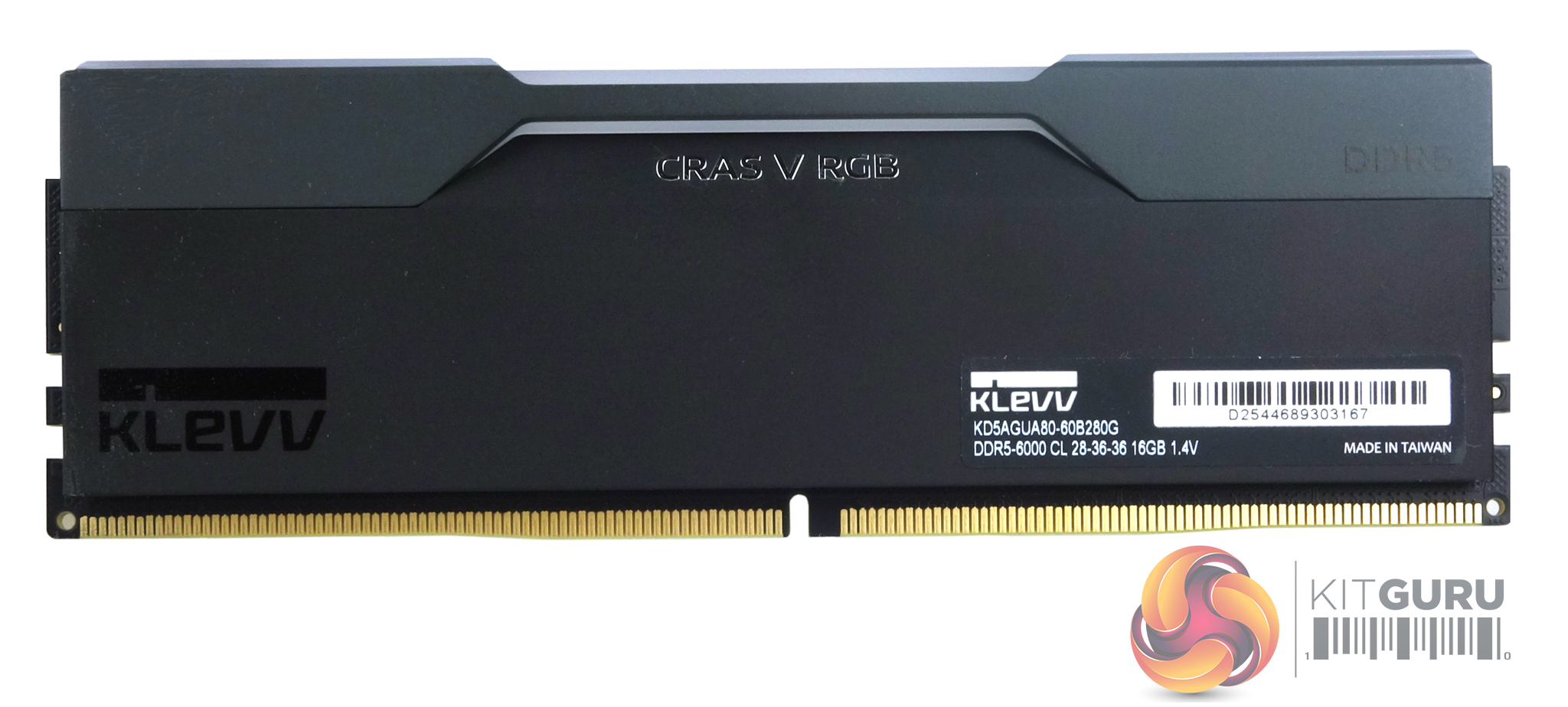

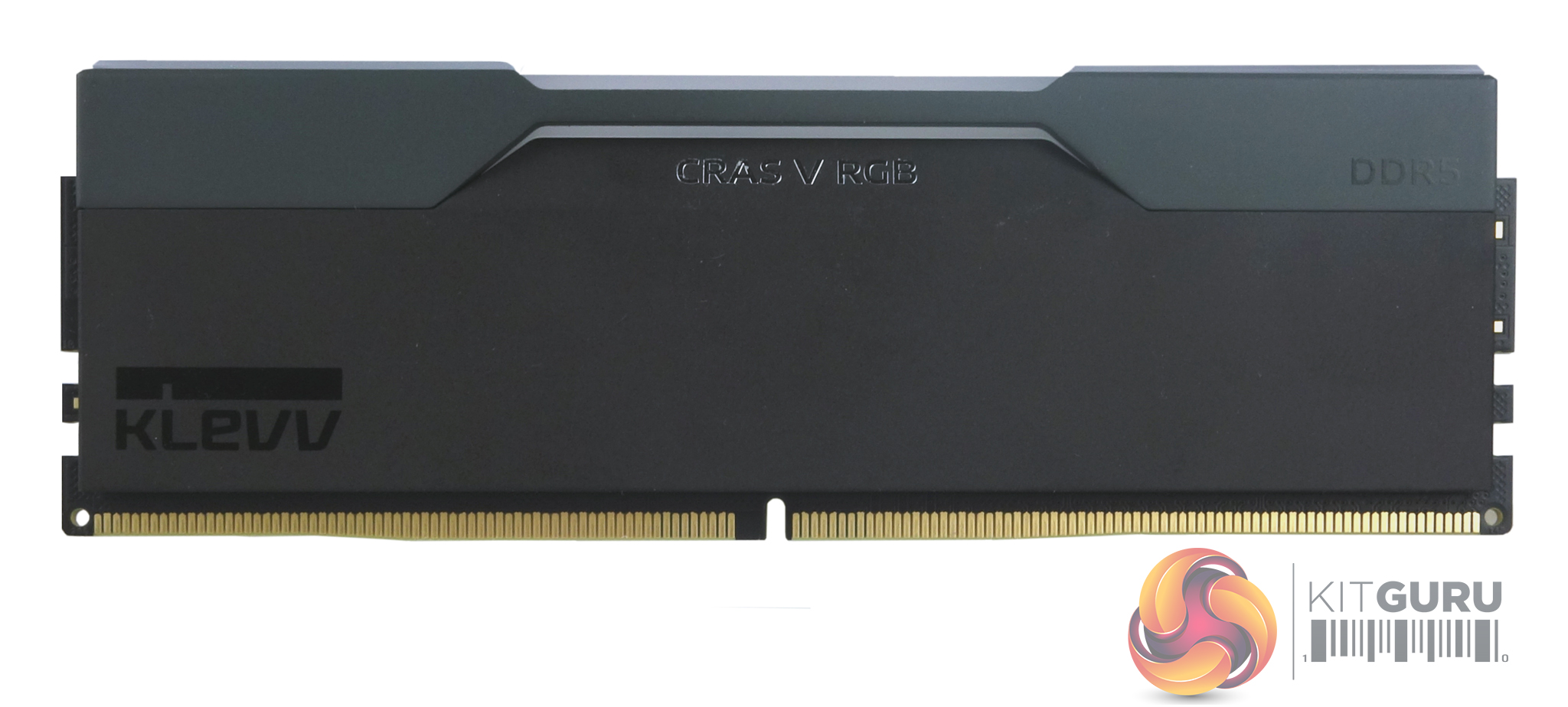

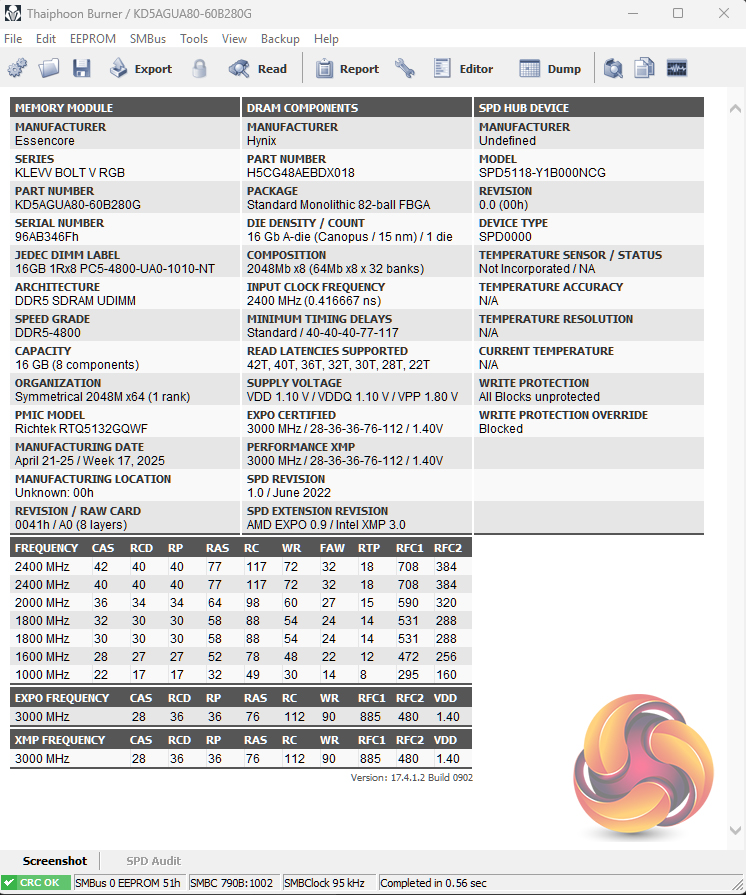

Built on a 10-layer PCB, the modules are a single-rank design. Under the heat spreader, there are eight 2GB SK Hynix A die chips (H5CG48AEBDX0 18) along with a Richtek RTQ5132GQWF power management IC (PMIC). The heat spreaders on the modules are made from aluminium finished in either black (Obsidian Black), like our review sample, or white (Brilliant White). The black finish helps the product name (which looks like it has a chrome finish) stand out, while the spreaders give the module a height of 44mm. The top of the module is home to the RGB defuser bar, which covers the lighting zones which are controlled by the motherboard RGB system.

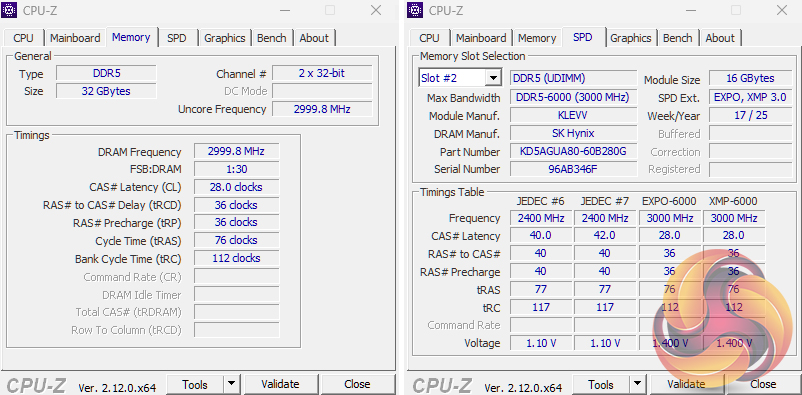

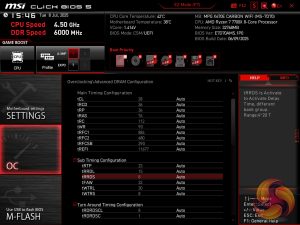

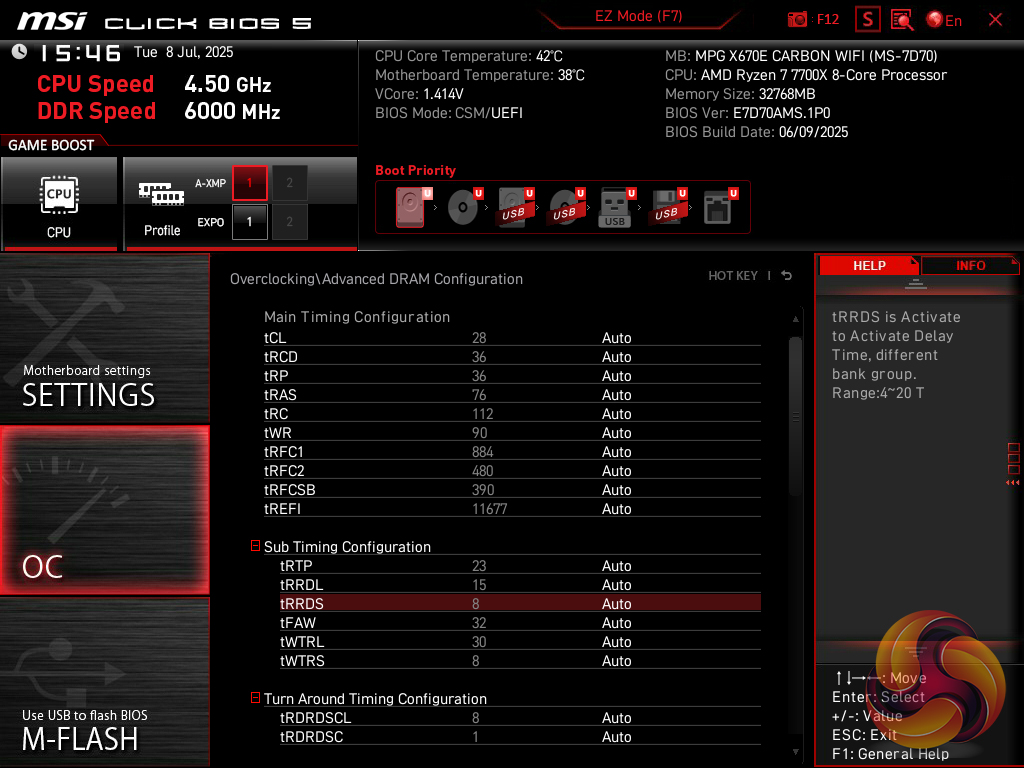

The memory runs at DDR5-4800 with timings of 40-40-40-77-117 natively with the XMP 3.0 and EXPO profiles supporting DDR5-6000 with 28-36-36-76-112 timings at 1.4V.
