Seagate Exos M 30TB HDD Review

1. Introduction2. Seagate Exos M 30TB3. Testing Methodology4. ATTO Disk Benchmark5. 4K Random Performance6. Throughput7. Workload Scenarios8. UL Solutions PCMark 10 Data Drive Benchmark9. SPEC Workstation 3.110. Real Life File Testing11. Closing Thoughts12. View All Pages

The PCMark 10 Data Drive Benchmark has been designed to test drives that are used for storing files rather than applications. You can also use this test with NAS drives, USB sticks, memory cards, and other external storage devices.

The Data Drive Benchmark uses 3 traces, running 3 passes with each trace.

Trace 1. Copying 339 JPEG files, 2.37 GB in total, in to the target drive (write test).
Trace 2. Making a copy of the JPEG files (read-write test).
Trace 3. Copying the JPEG files to another drive (read test)

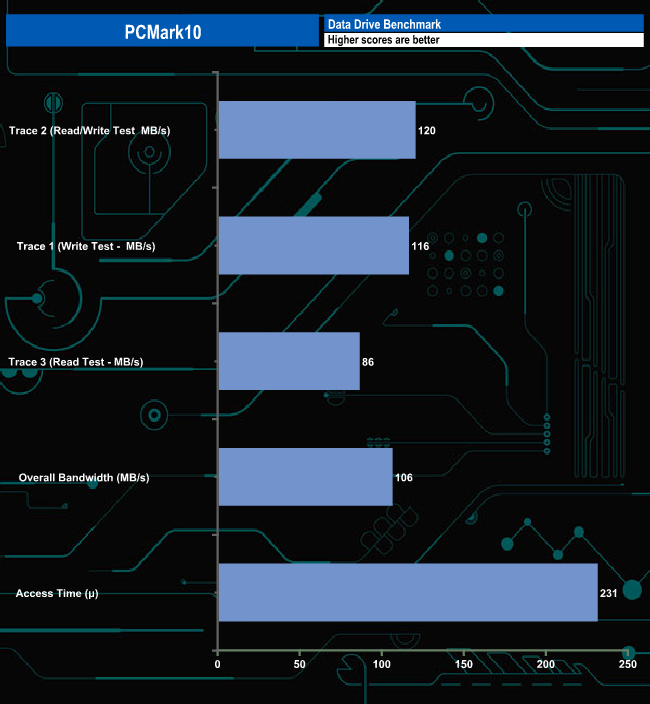

The 30TB Exos M handles the rigours of the PCMark 10 Data Drive Benchmark pretty well with an overall bandwidth figure of 106MB/s with an average access time of 231μs.
