Seagate Exos M 30TB HDD Review

1. Introduction2. Seagate Exos M 30TB3. Testing Methodology4. ATTO Disk Benchmark5. 4K Random Performance6. Throughput7. Workload Scenarios8. UL Solutions PCMark 10 Data Drive Benchmark9. SPEC Workstation 3.110. Real Life File Testing11. Closing Thoughts12. View All Pages

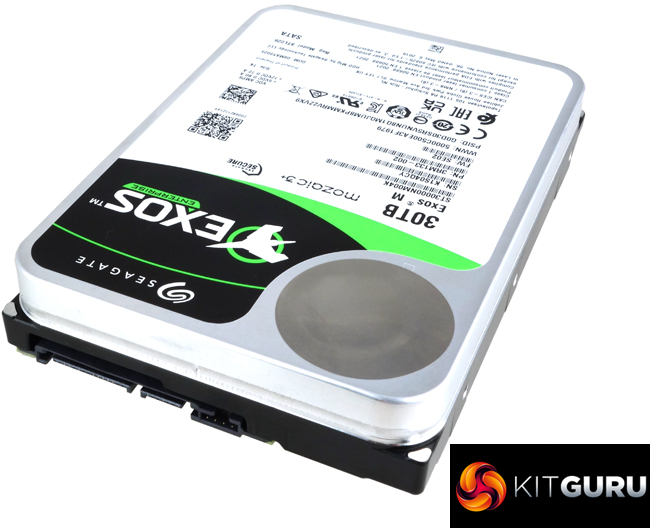

Launched at the same time as the 30TB IronWolf Pro, the 30TB Exos M is designed for use in cutting-edge cloud and enterprise environments and has a feature set that reflects this type of usage. We put it through its paces to find out what it can offer at the £600 asking price.

Seagate's Exos M is built on the company's Mozaic3+ technology, which makes use of HAMR (Heat-Assisted Magnetic Recording) to enable the 10 high areal density (3TB) discs the drive uses. It has a spindle speed of 7,200rpm and uses 512MB of cache. Seagate quote an official maximum transfer rate of 275MB/s while the average latency is quoted at 4.16ms.

Seagate quote an average 6.9W idle power rating for the 30TB Exos M with a max operating Random Read (4K QD16) figure of 9.5W.

The official workload rating of the drive is 550TB/year with an MTBF of 2.5M hours, and Seagate backs the drive with a 5-year warranty.

Physical Specifications:

• Usable Capacities: 30TB.
• Spindle Speed: 7,200rpm.
• No. Of Heads: 20.
• No. Of Platters: 10.
• Cache: 512MB.
• Recording Method: Conventional Magnetic Recording (CMR) / HAMR (Heat-Assisted Magnetic Recording).
• Interface: Serial ATA (SATA) 6Gb/s (SATA III).
• Form Factor: 3.5in
• Dimensions: 26.1 x 101.85 x 147mm.
• Drive Weight: 695g.

Firmware Version: SE02.
