The PCMark 10 Data Drive Benchmark has been designed to test drives that are used for storing files rather than applications. You can also use this test with NAS drives, USB sticks, memory cards, and other external storage devices.
The Data Drive Benchmark uses 3 traces, running 3 passes with each trace.

Trace 1. Copying 339 JPEG files, 2.37 GB in total, in to the target drive (write test).
Trace 2. Making a copy of the JPEG files (read-write test).
Trace 3. Copying the JPEG files to another drive (read test)

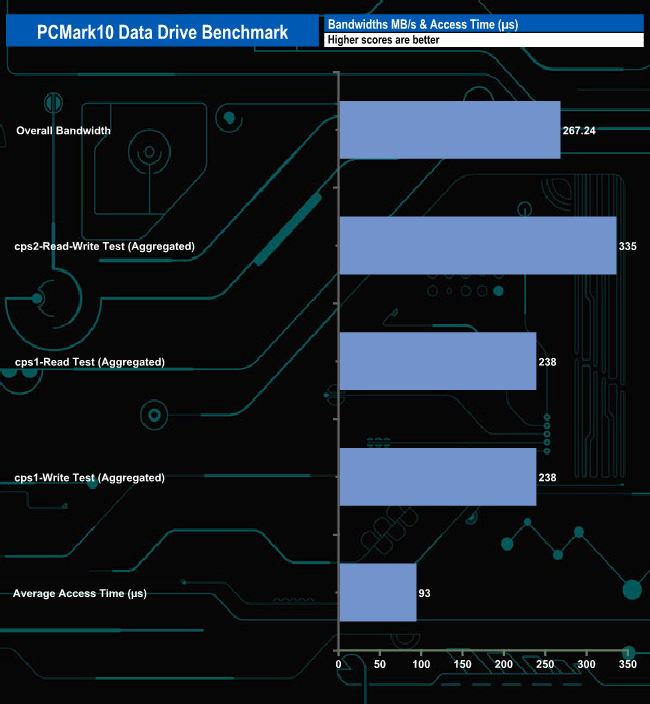

Here we show the total bandwidth performance for each of the individual traces.

The WD Blue SN570 inside the Oracle Air handled the PCMark 10 PCMark 10 Data Drive Benchmark test pretty well with an overall bandwidth result of 267.24MB/s with an average score for the three file transfer tests of 270.3MB/s.
