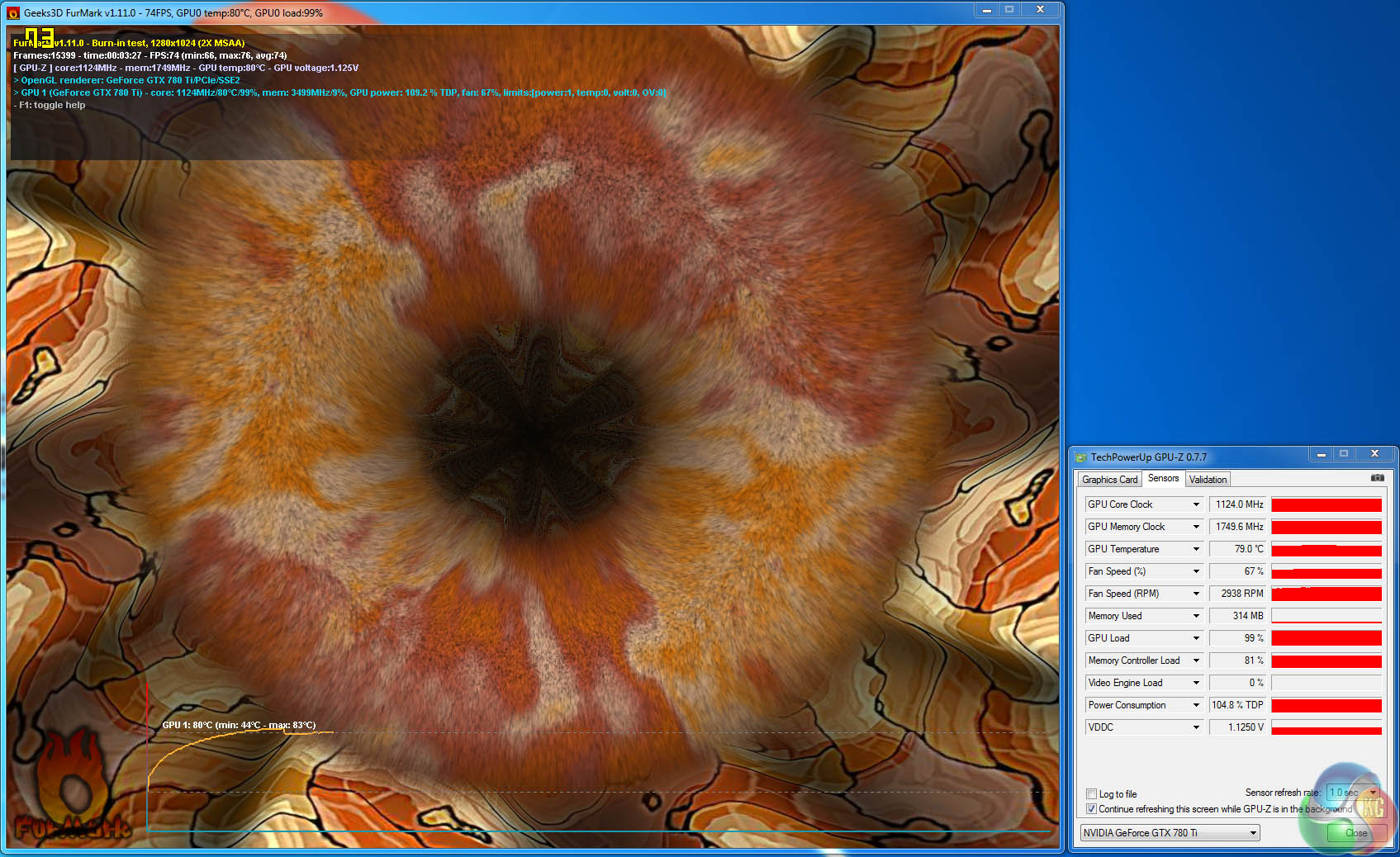

The tests were performed in a controlled air conditioned room with temperatures maintained at a constant 24c – a comfortable environment for the majority of people reading this.Idle temperatures were measured after sitting at the desktop for 30 minutes. Load measurements were acquired by playing Crysis Warhead for 30 minutes and measuring the peak temperature. We also have included Furmark results, recording maximum temperatures throughout a 30 minute stress test. All fan settings were left on automatic.

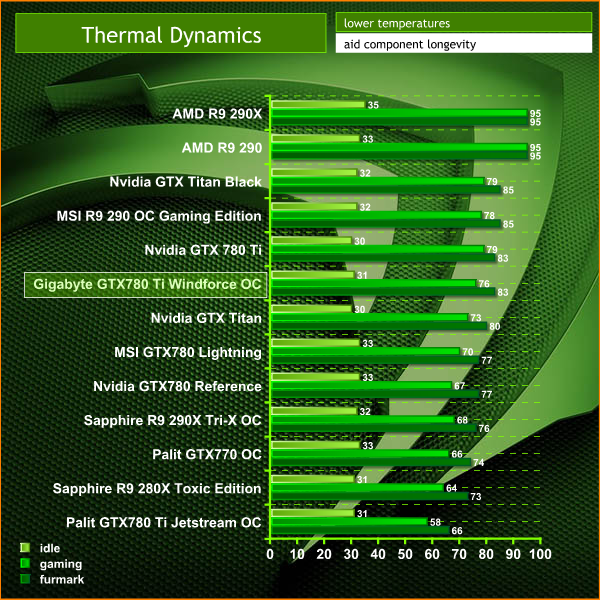

The cooler copes well, hitting mid 70's when gaming in the 24c environment. The Sapphire Tri-X cooler is one of the best we have seen this year, but the Gigabyte Windforce is very good.
