Here, we take a further look at the impact of our overclock, looking at the increased temperatures, acoustics and power draw.

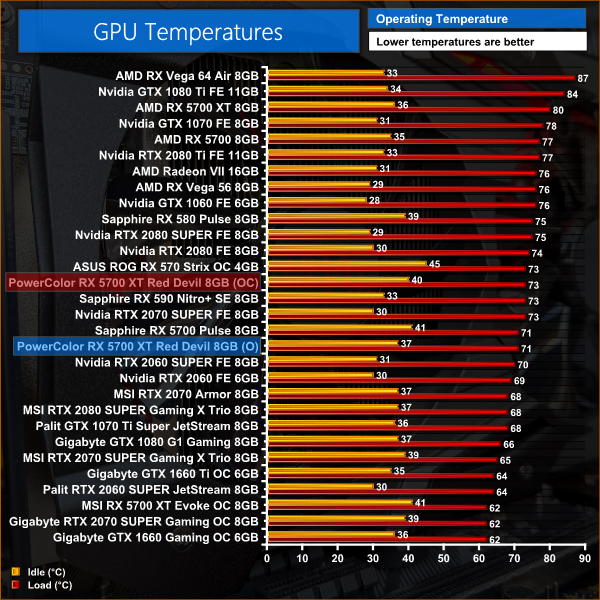

Temperatures

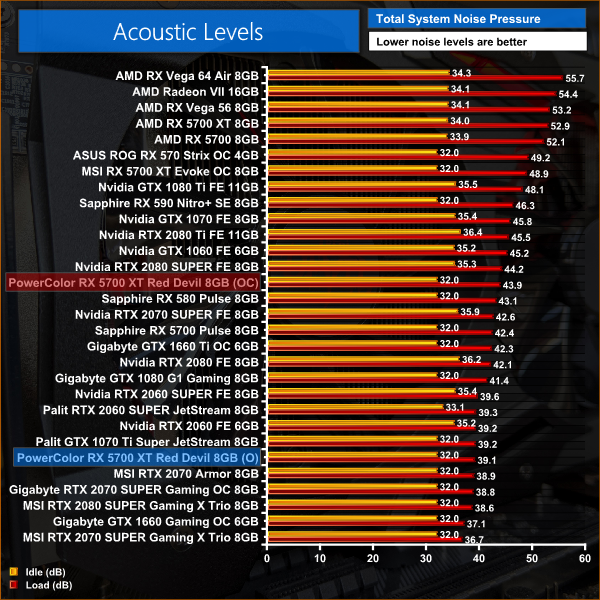

Acoustics

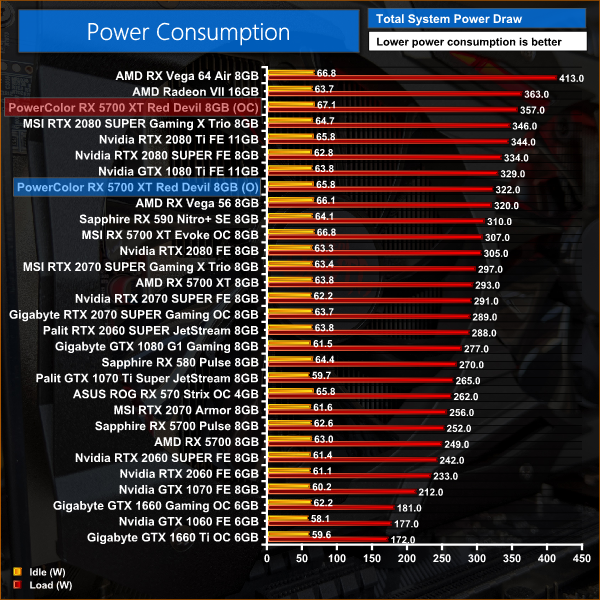

Power consumption

Overview

The card isn't quite as impressive when manually overclocked, but things are still very good considering the power limit has been raised 50% and the card is running at 2050MHz. Temperatures only rose 3C, and while noise levels increased by just under 5dB, this is still not very loud at all. Lastly, as expected, power draw also rose to just under 360W for the whole system.
