Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

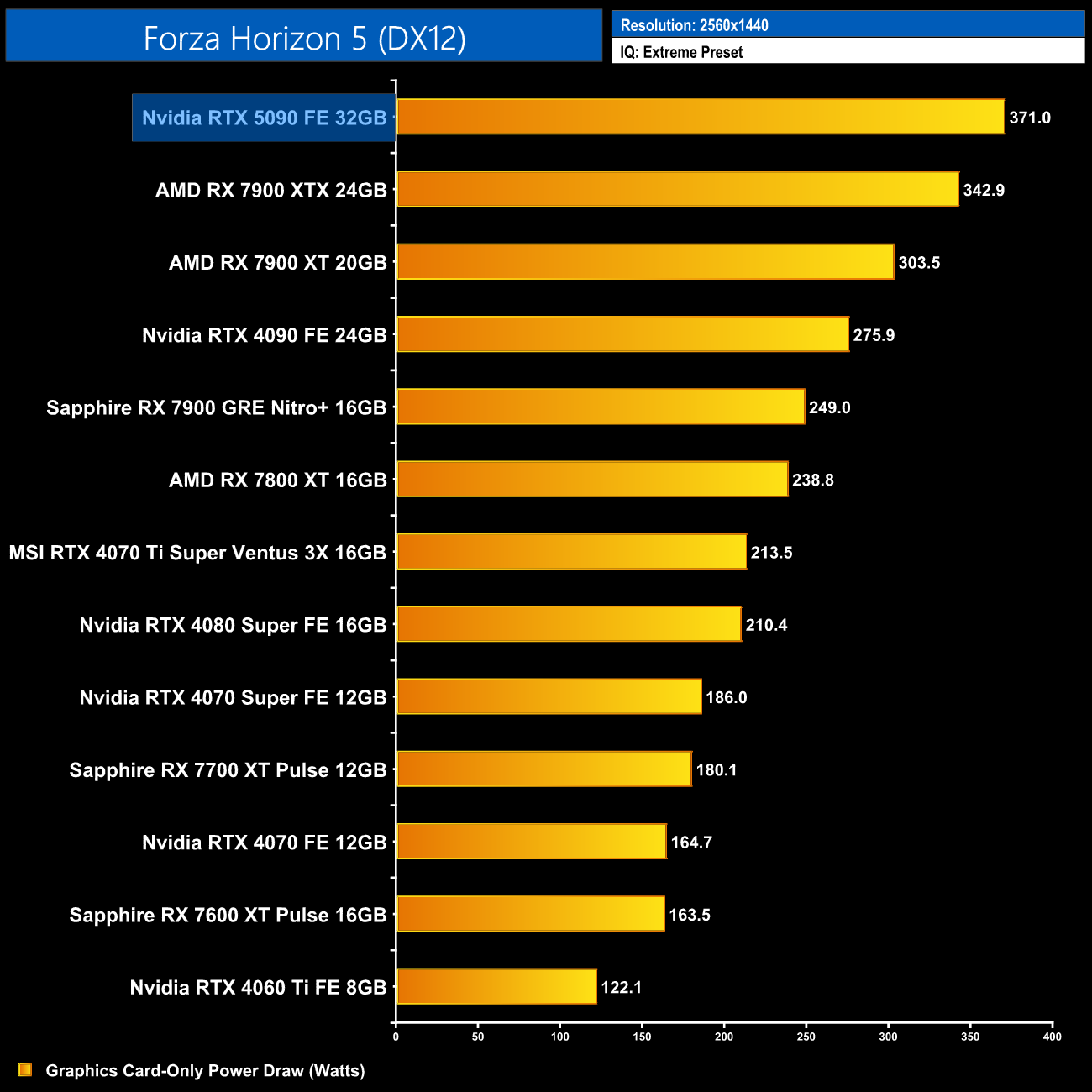

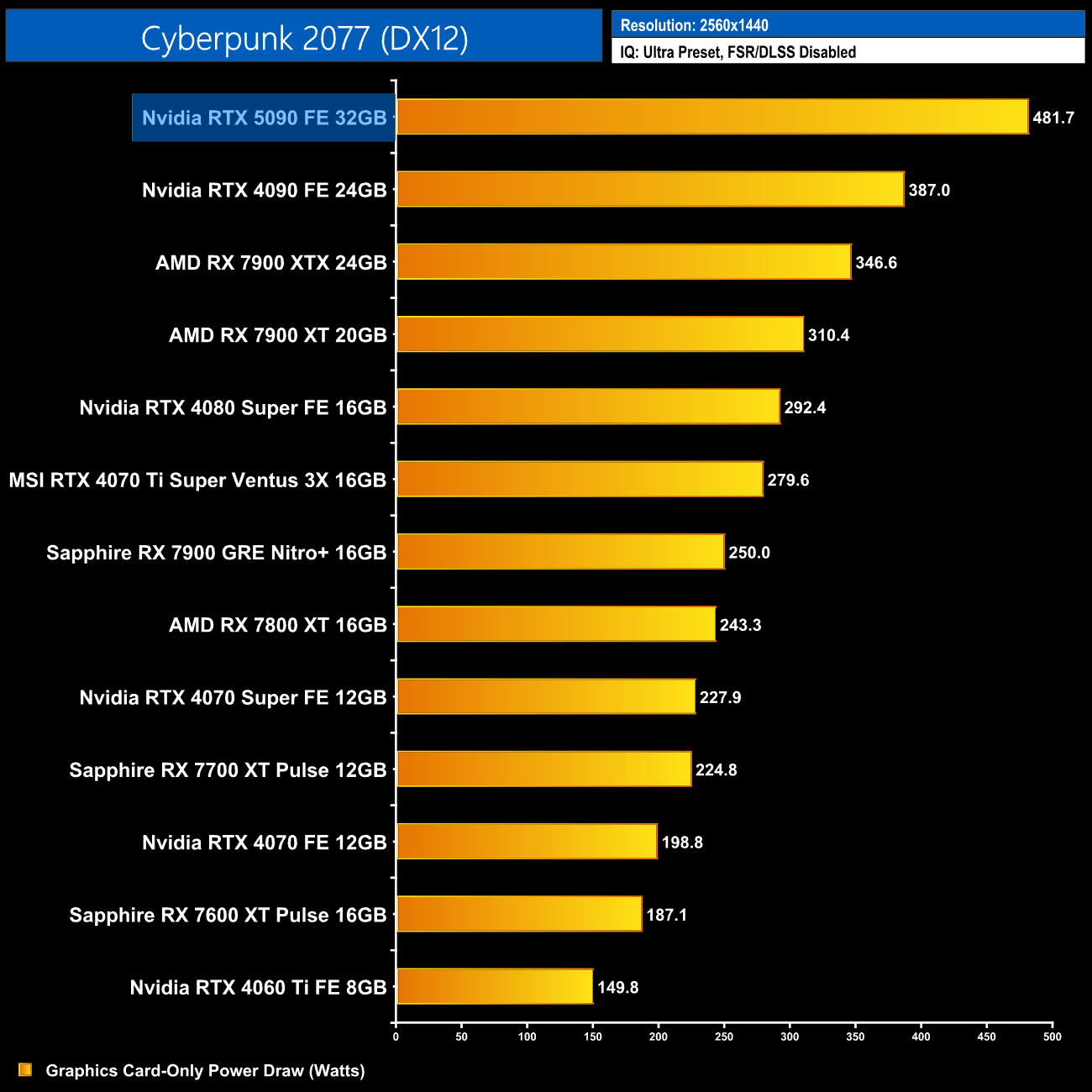

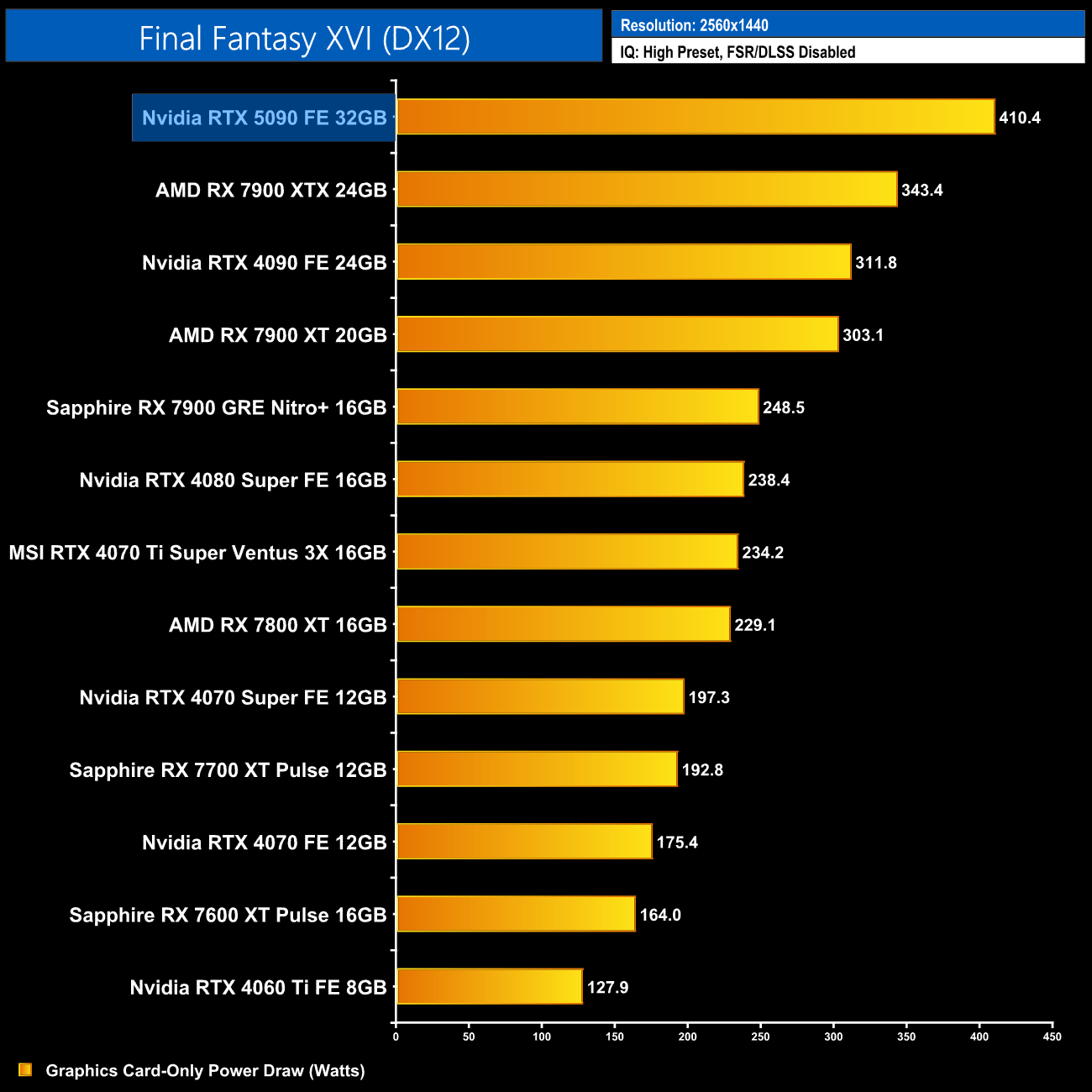

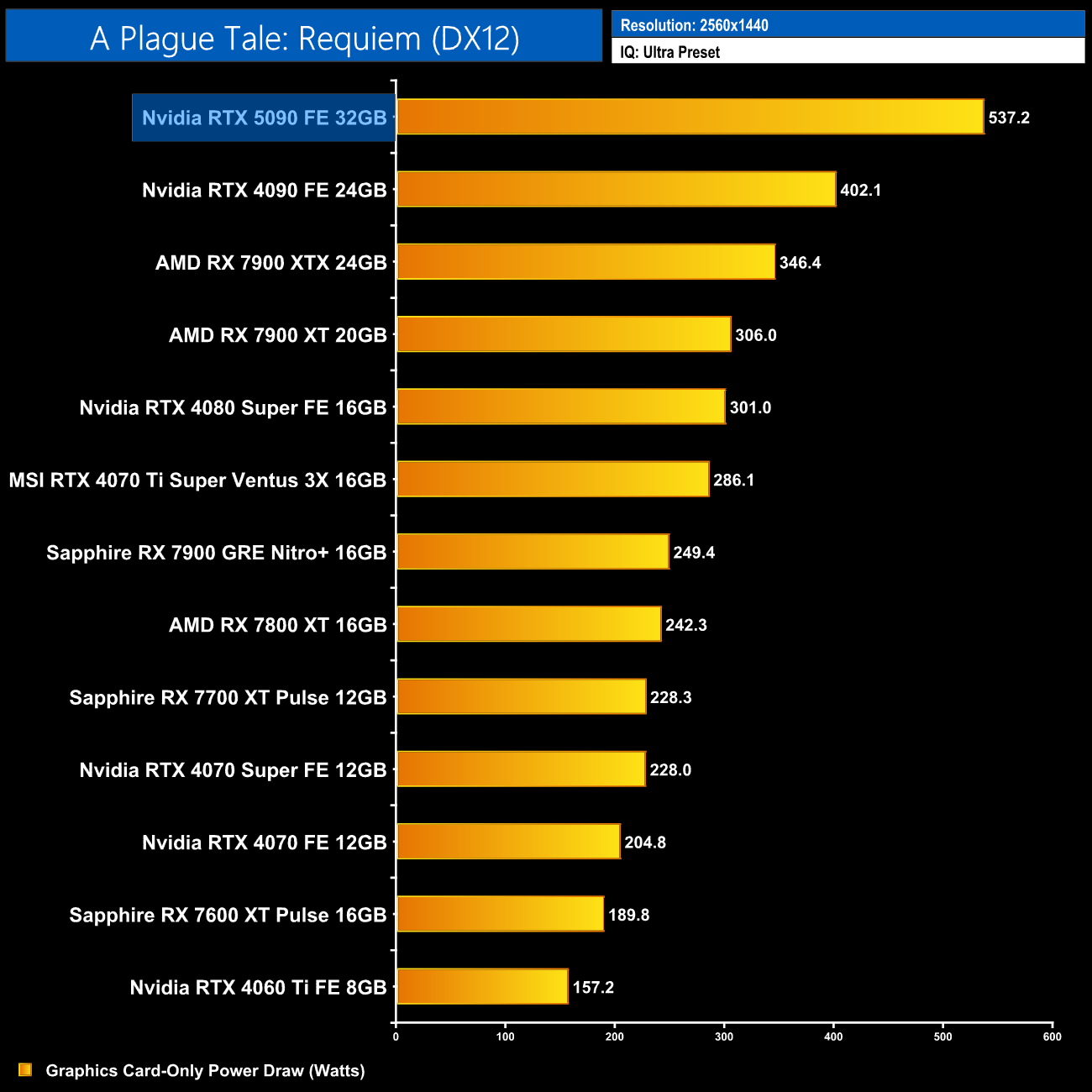

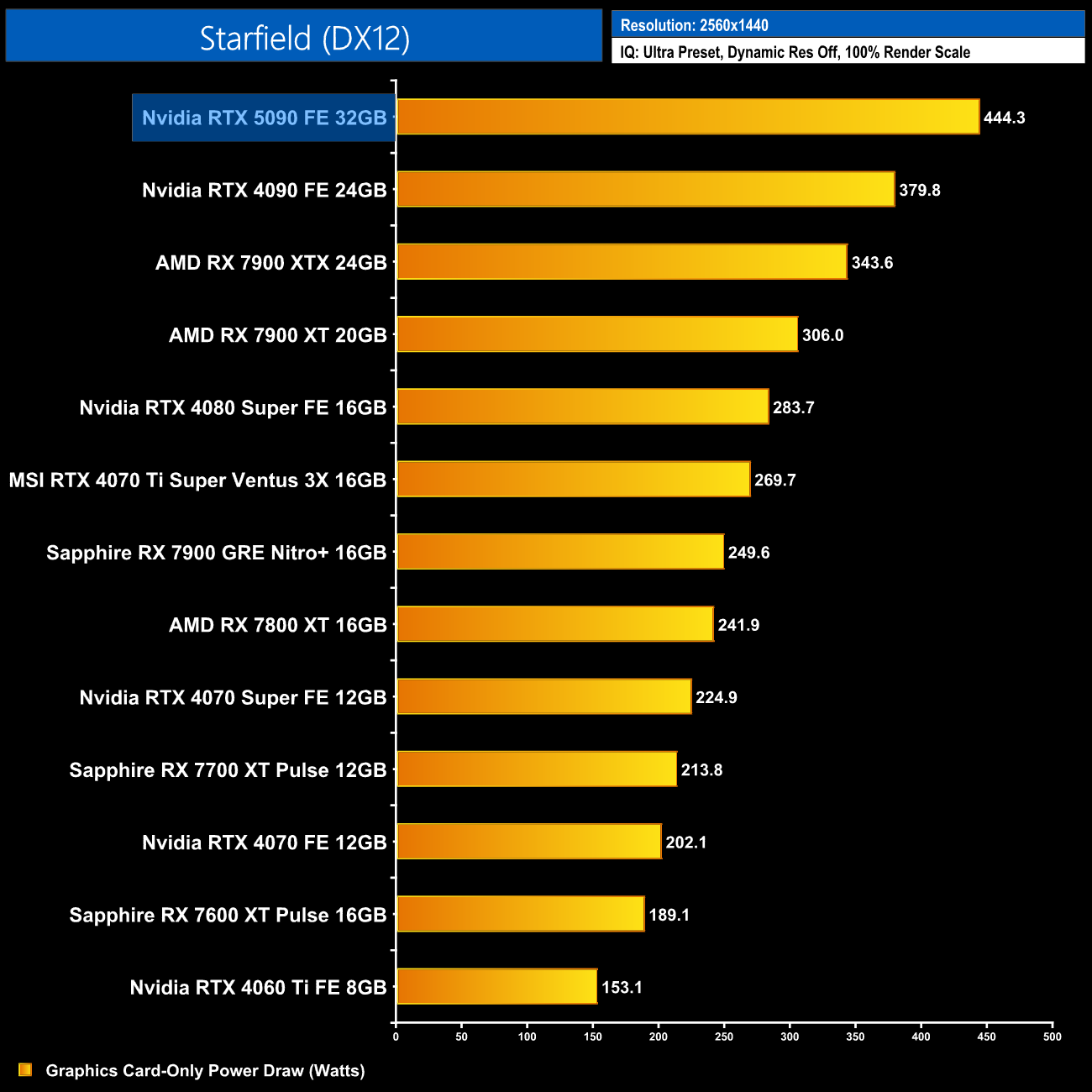

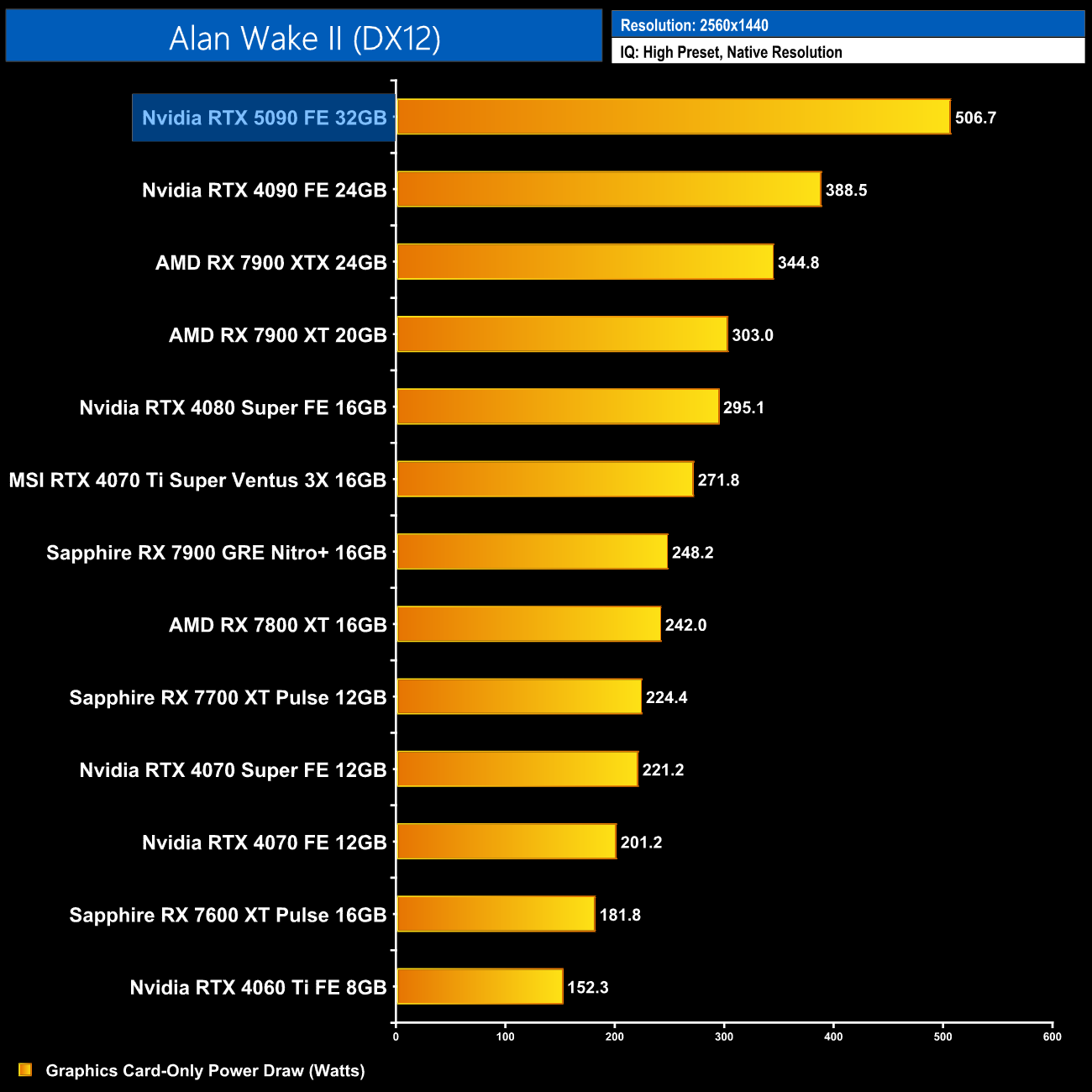

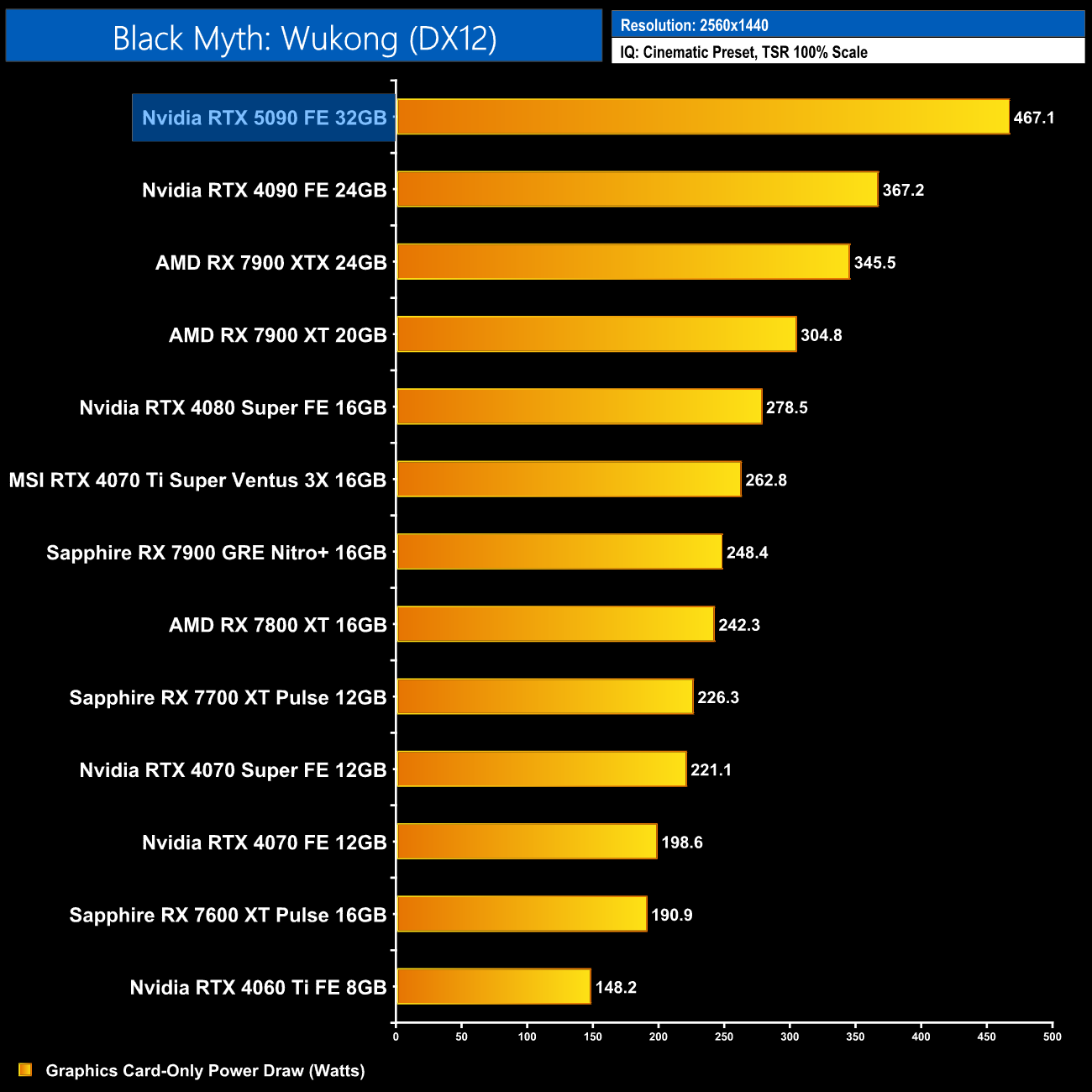

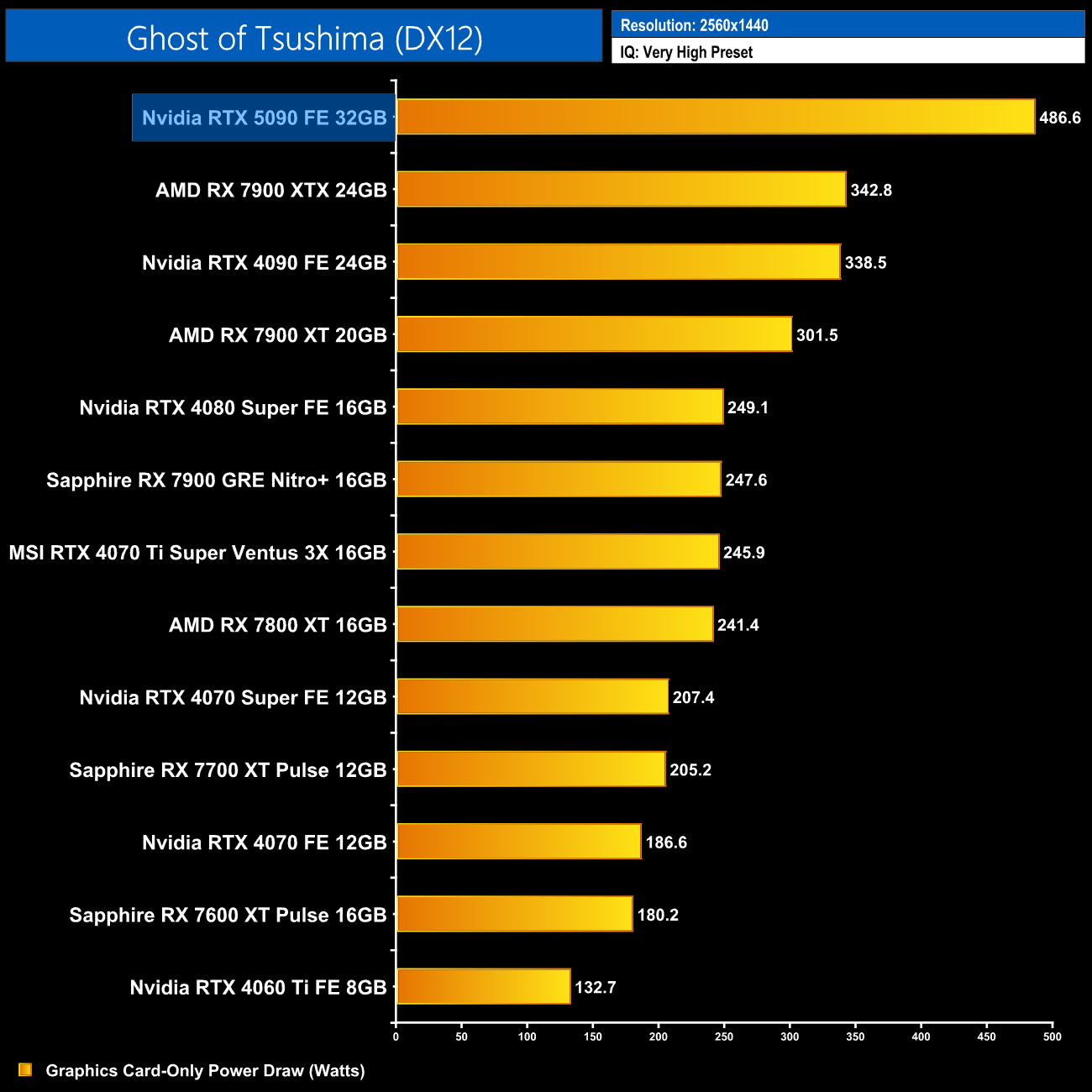

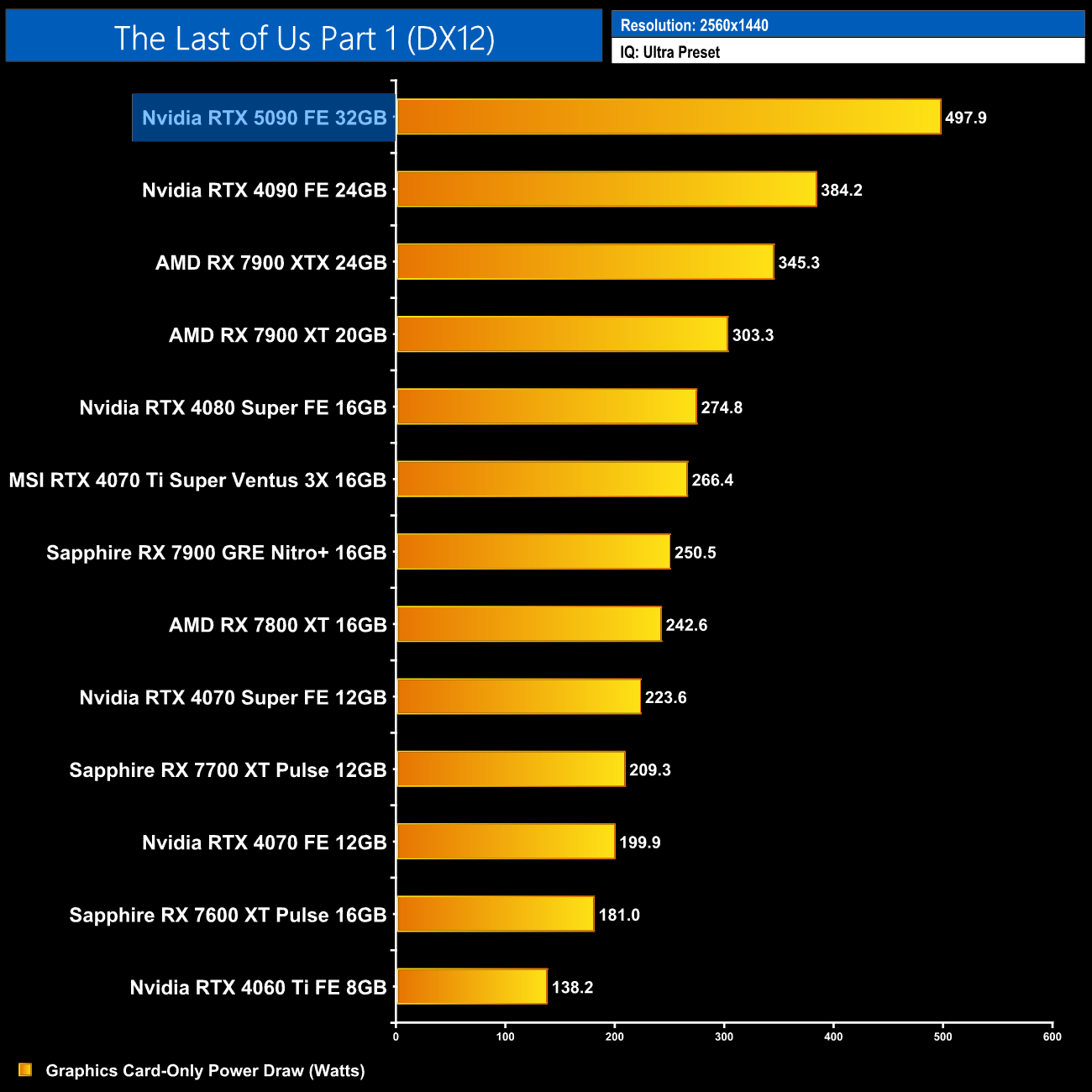

Per-Game Results at 1440p:

Click to enlarge.

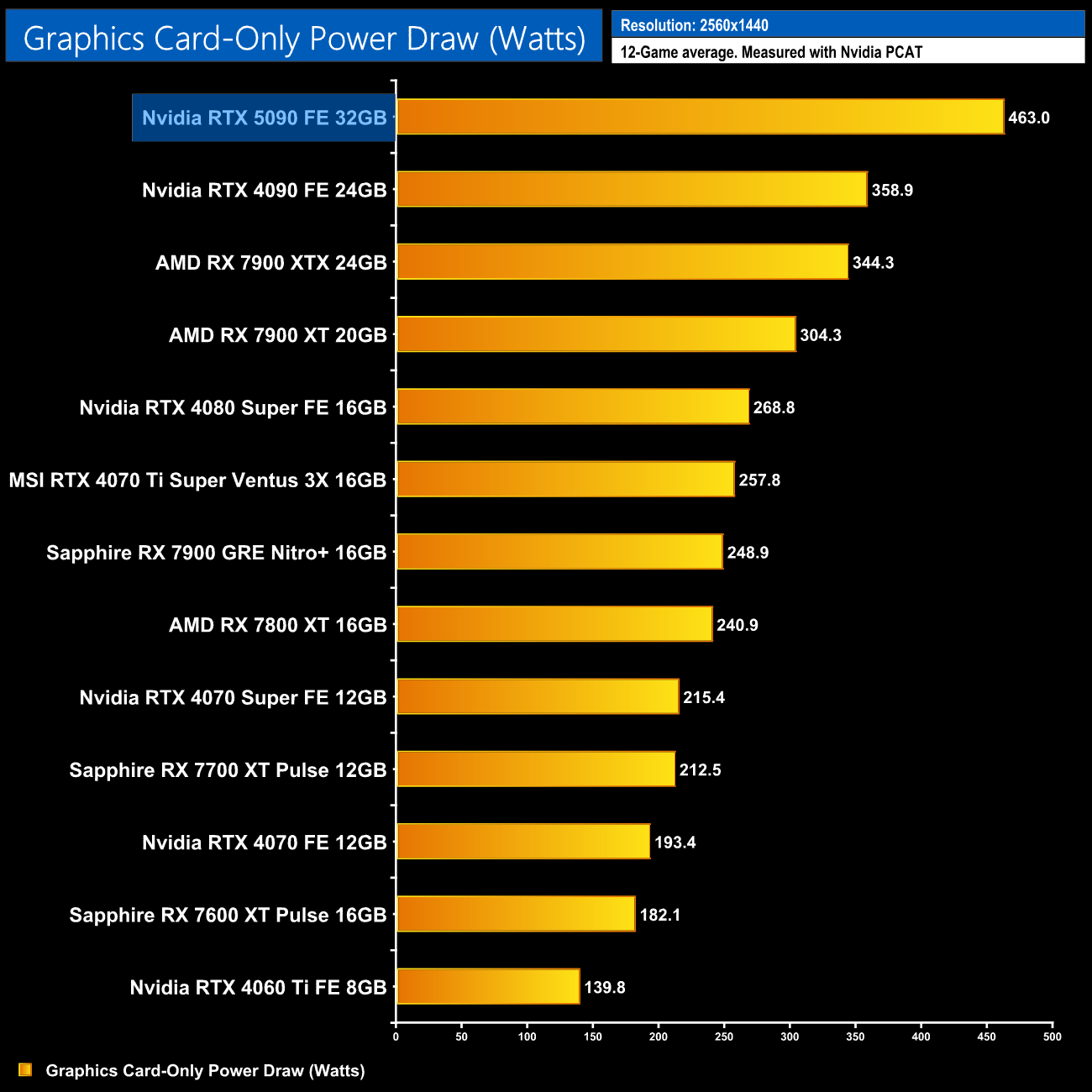

12-Game Average at 1440p:

Up at 1440p we do see power increasing and a couple of games now show over 500W of power draw, but most are still below that. Still, the average of 463W is still very high – over 100W above the RTX 4090, working out as a 29% increase. Remember, the 5090 proved 22% faster in our testing, so that gives you an idea of the efficiency, which we will look at shortly…

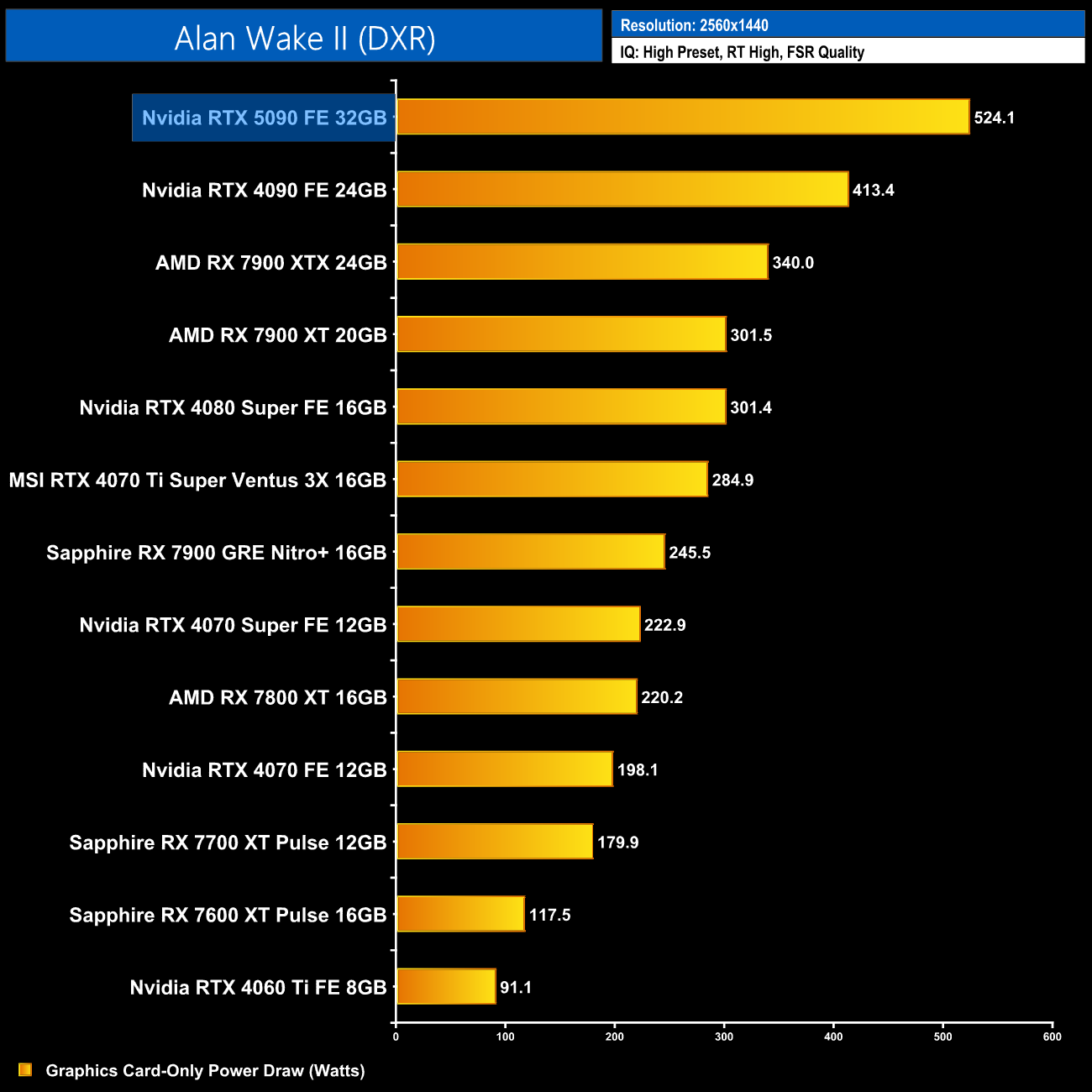

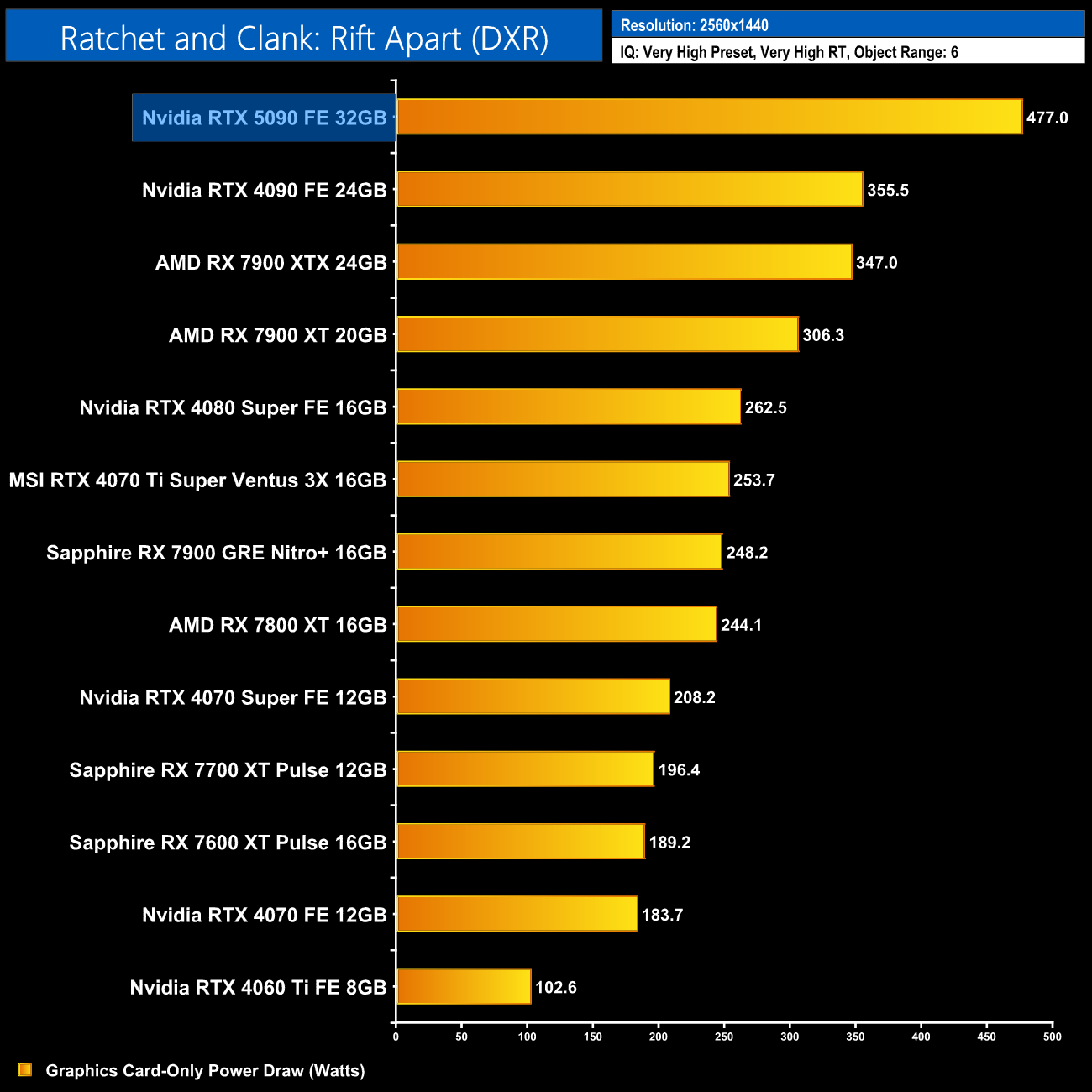

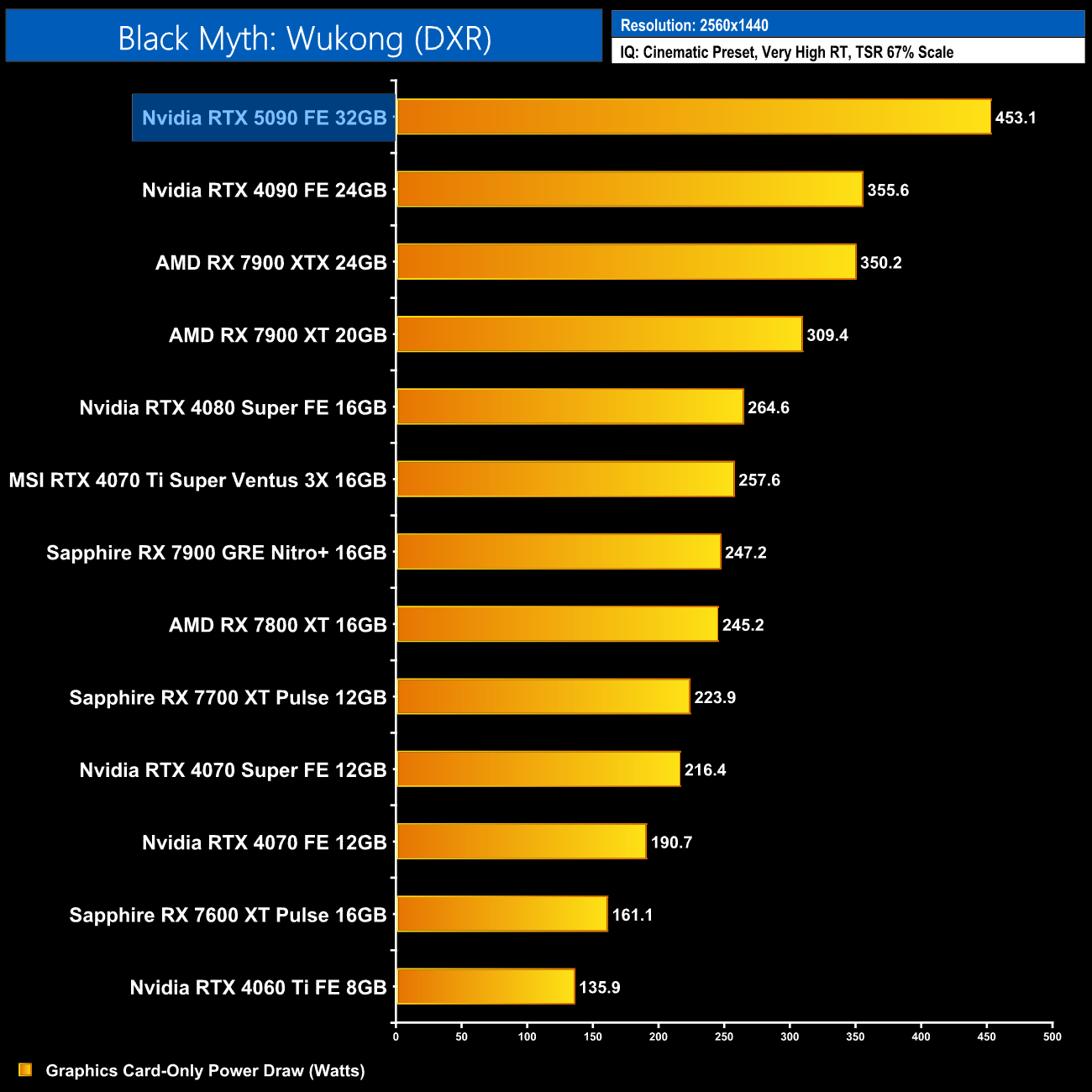

Ray tracing results

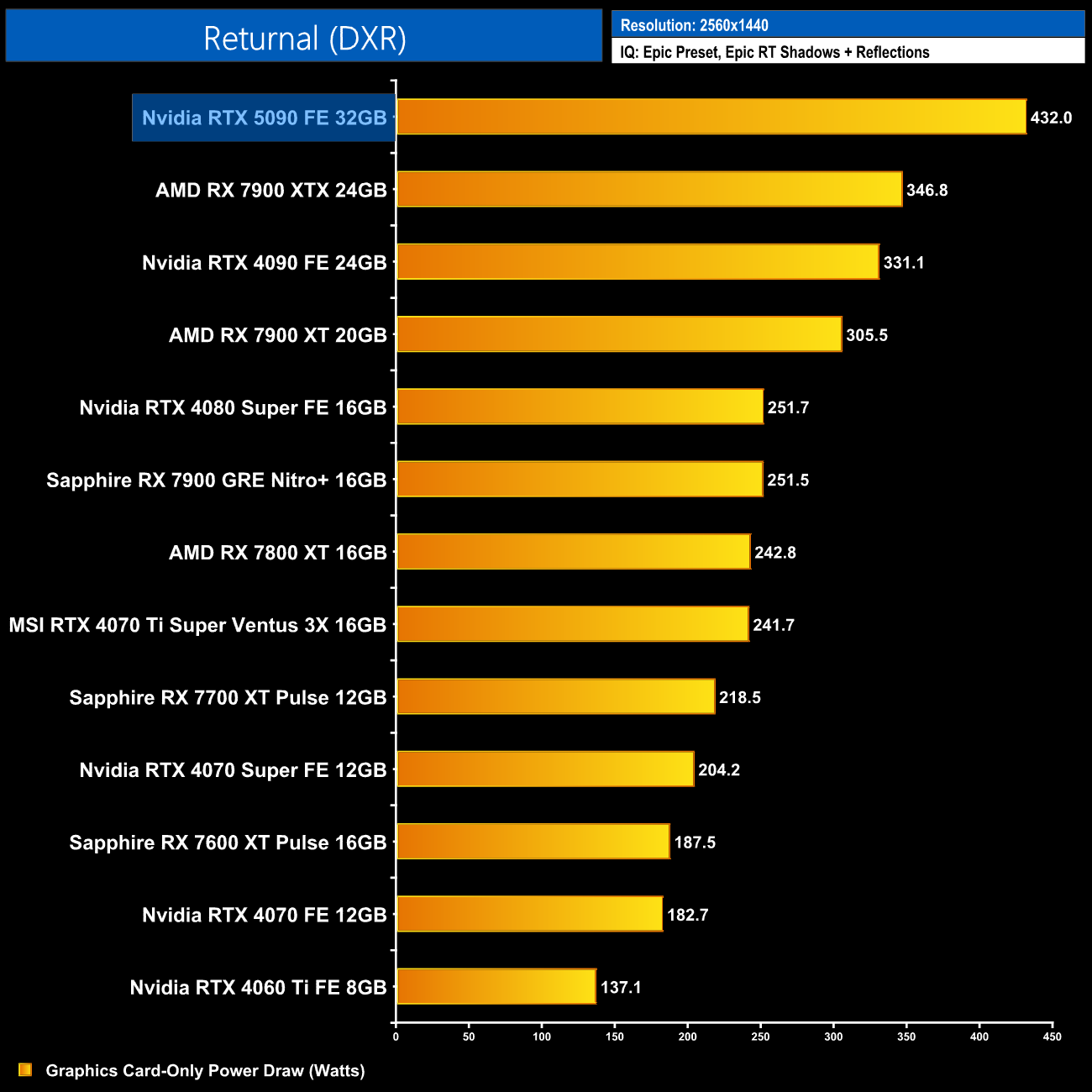

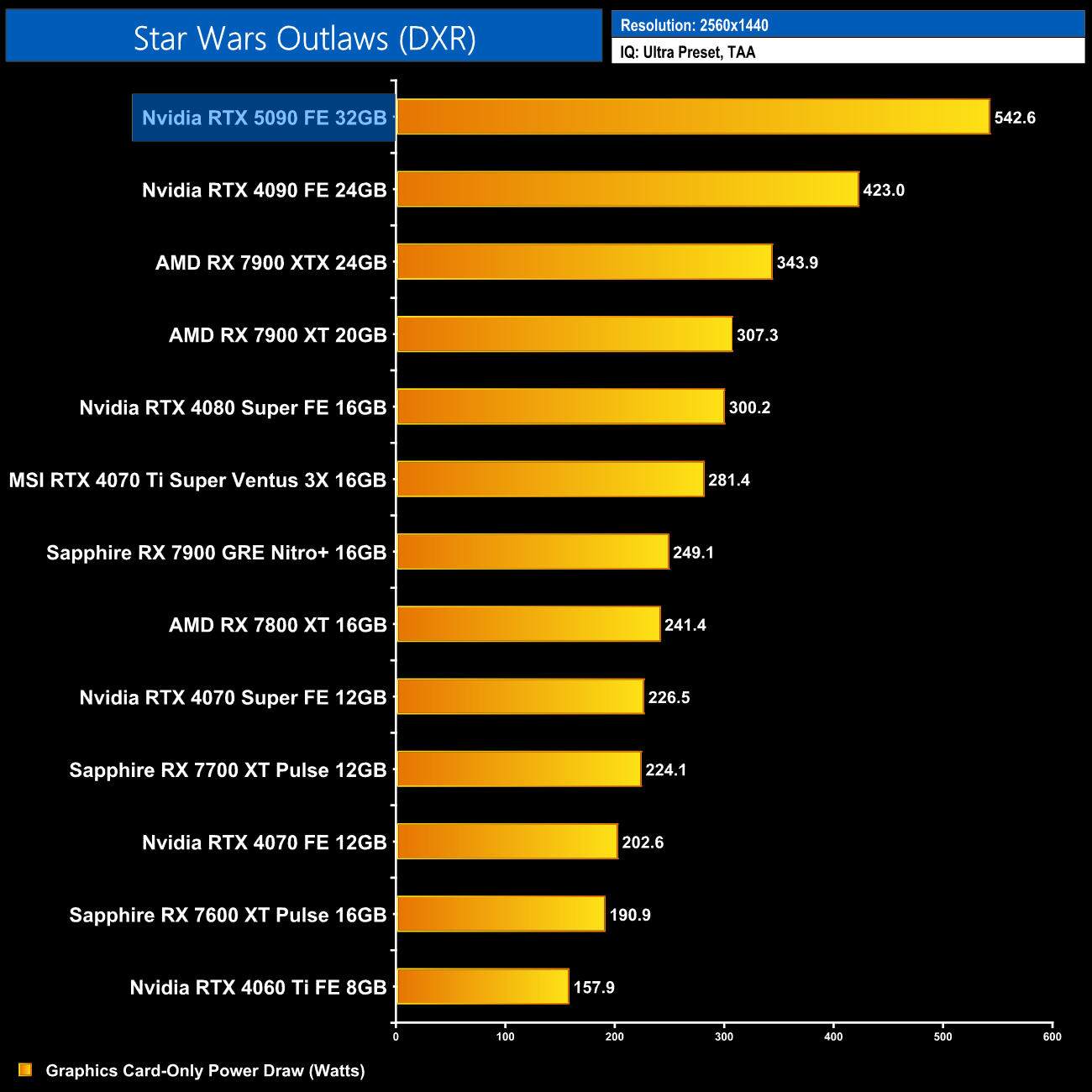

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

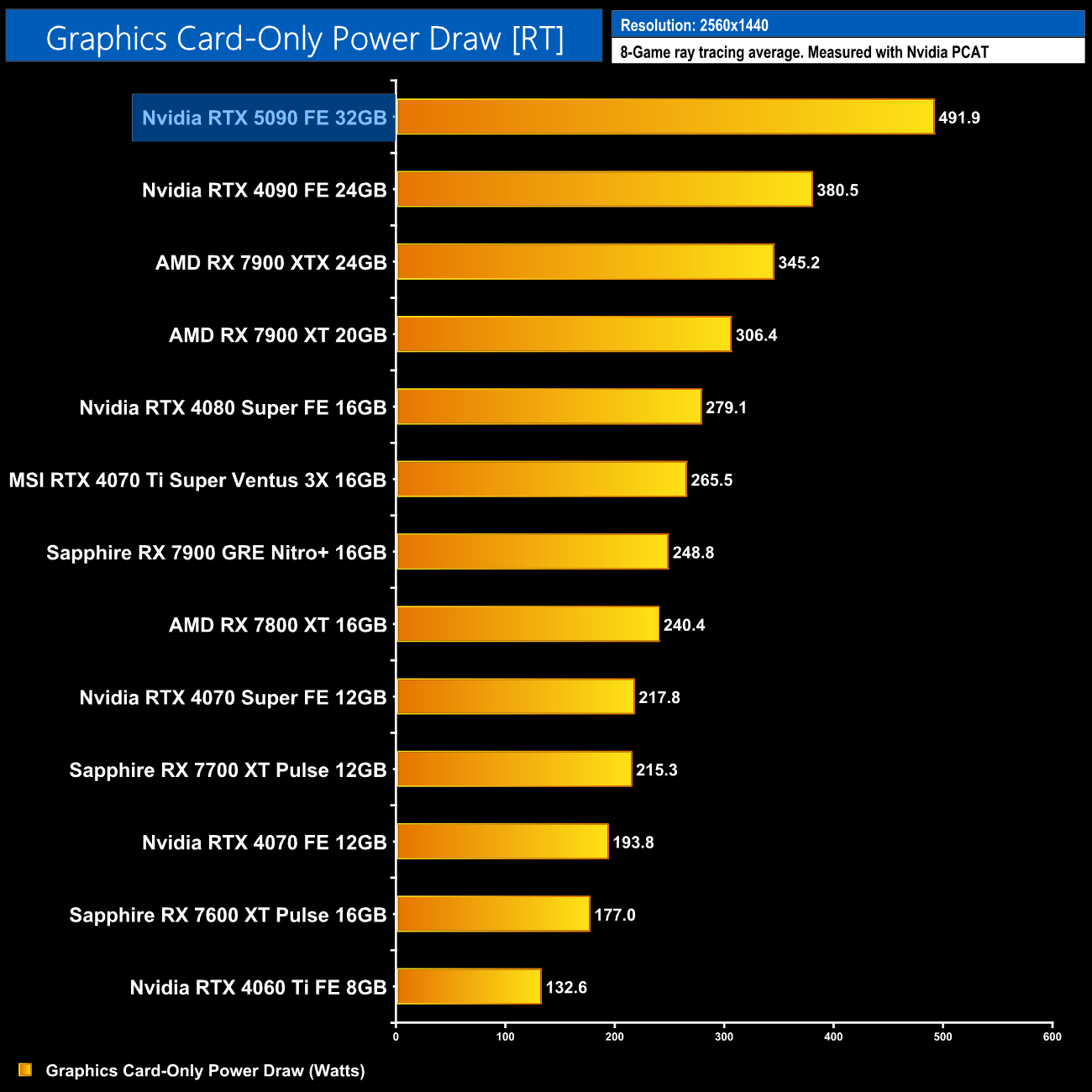

8-Game ray tracing average:

As expected, power draw is higher still with RT enabled, this time averaging 491.9W at 1440p.
