Just like the RTX 5090, the RTX 5080 ships in a compact eco-friendly box.

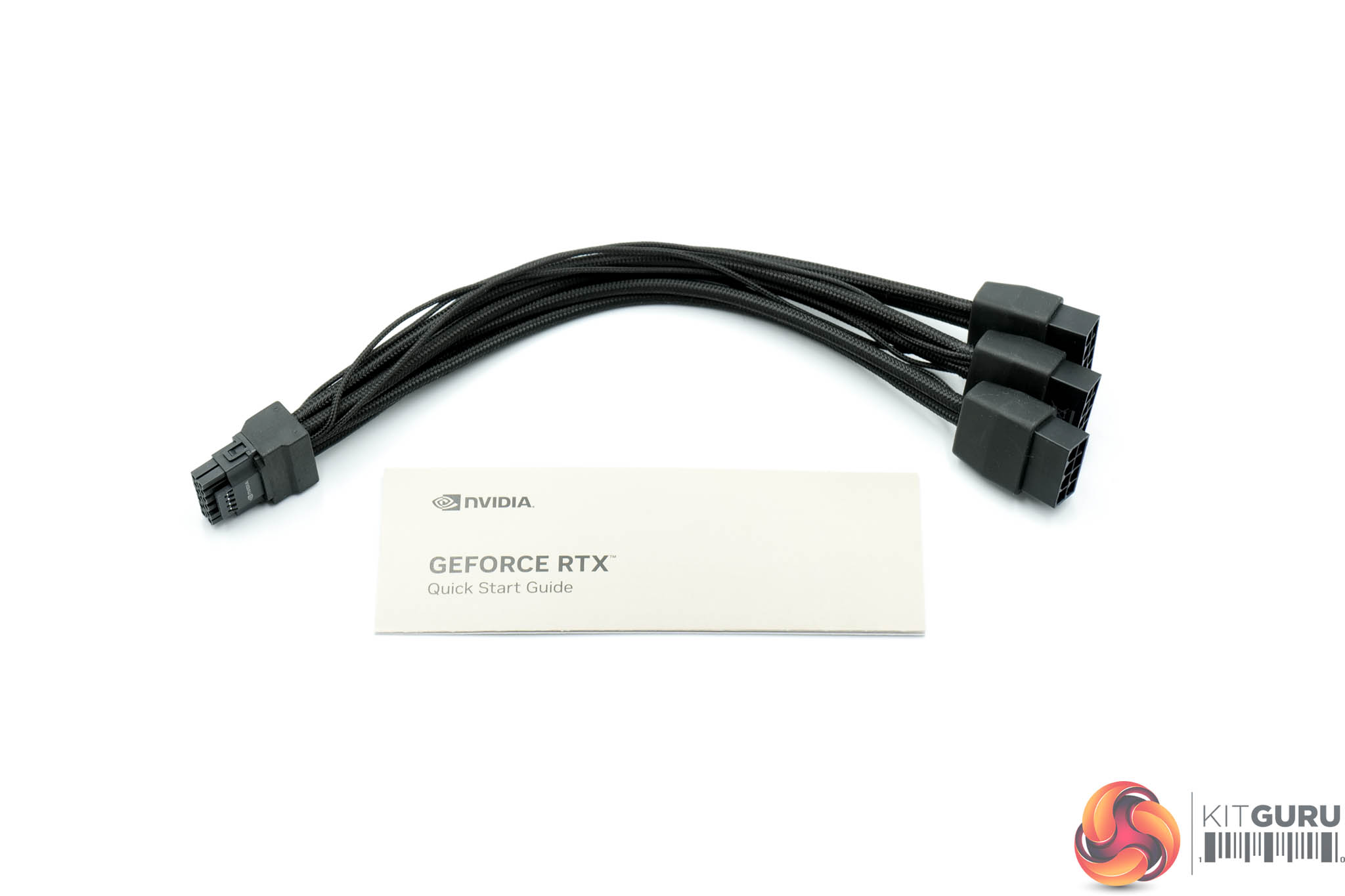

Inside, a smaller box houses the quick-start guide and triple 8-pin to 12VHPWR adapter.

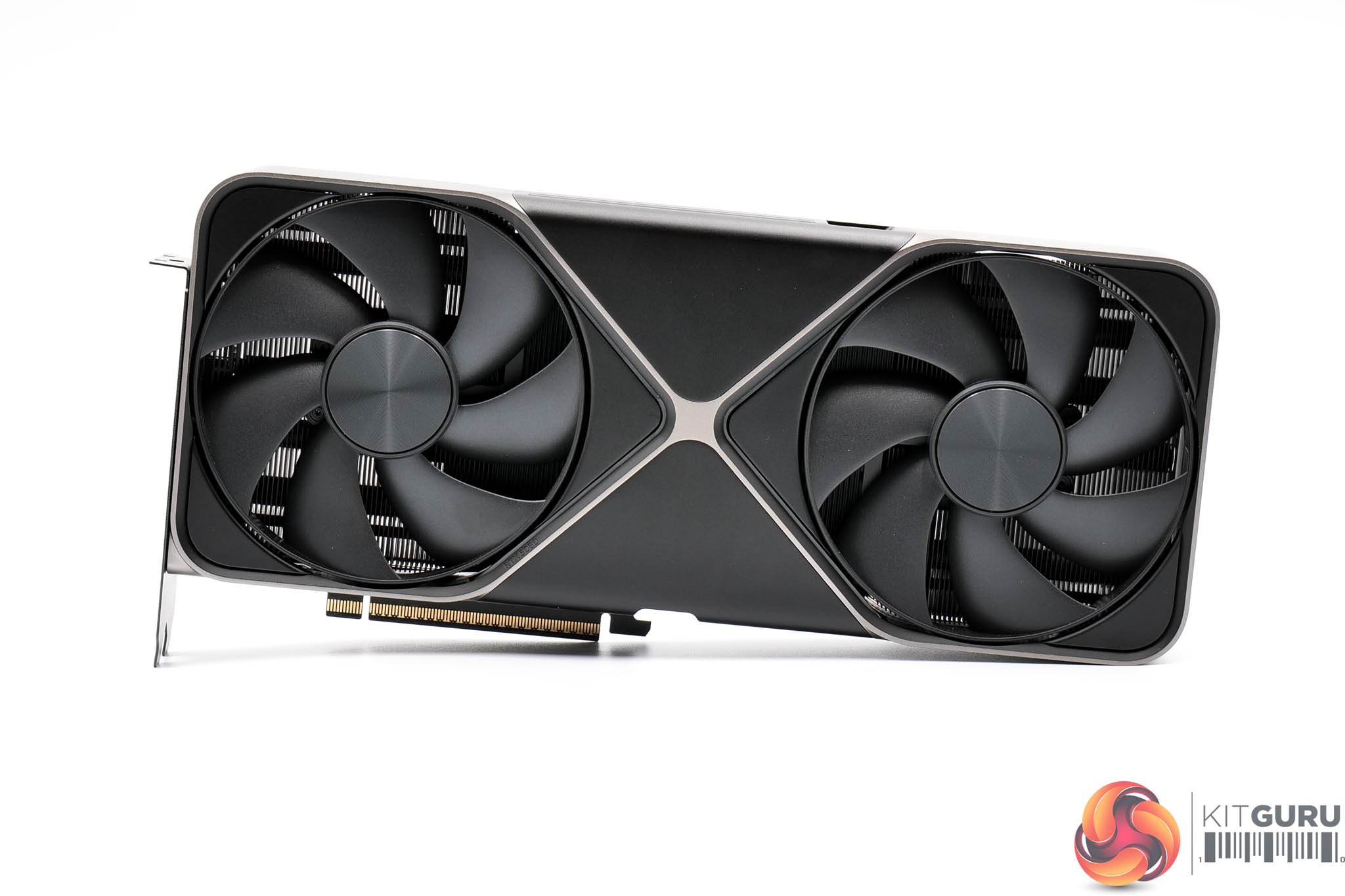

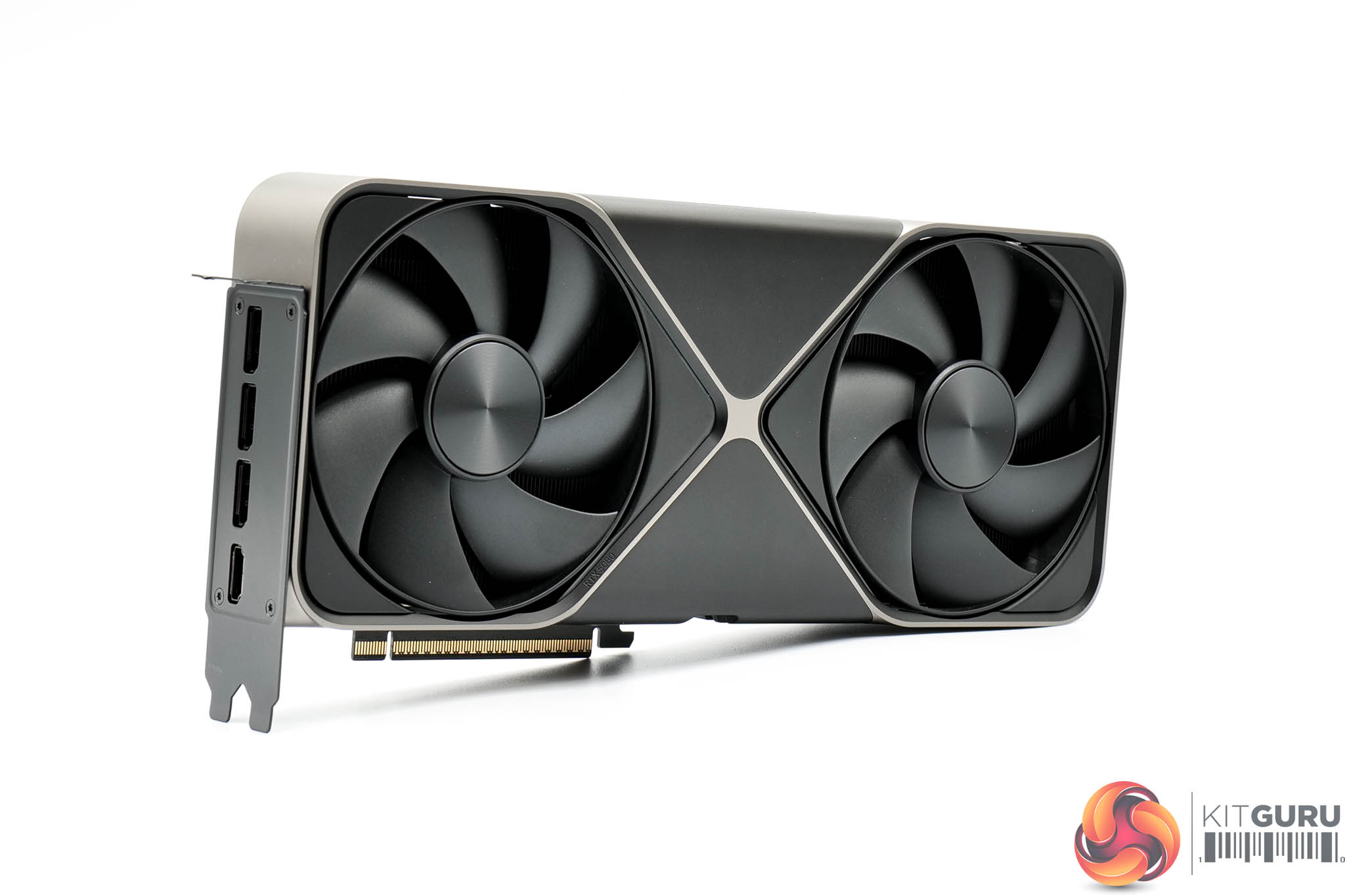

Visually, the RTX 5080 Founders Edition is identical to the RTX 5090. It sports the same industrial design language, with the two large fans part of what Nvidia calls the ‘double flow through' cooler, given the PCB has been moved to the dead centre of the card itself to allow maximum airflow to pass through the heatsink.

Internally, though, we are told there have been a few changes. Gone is the 3D Vapour Chamber of the RTX 5090, and instead the RTX 5080 uses a more traditional heatpipes and baseplate configuration. It has also ditched the liquid metal thermal interface material (TIM), presumably to save on cost.

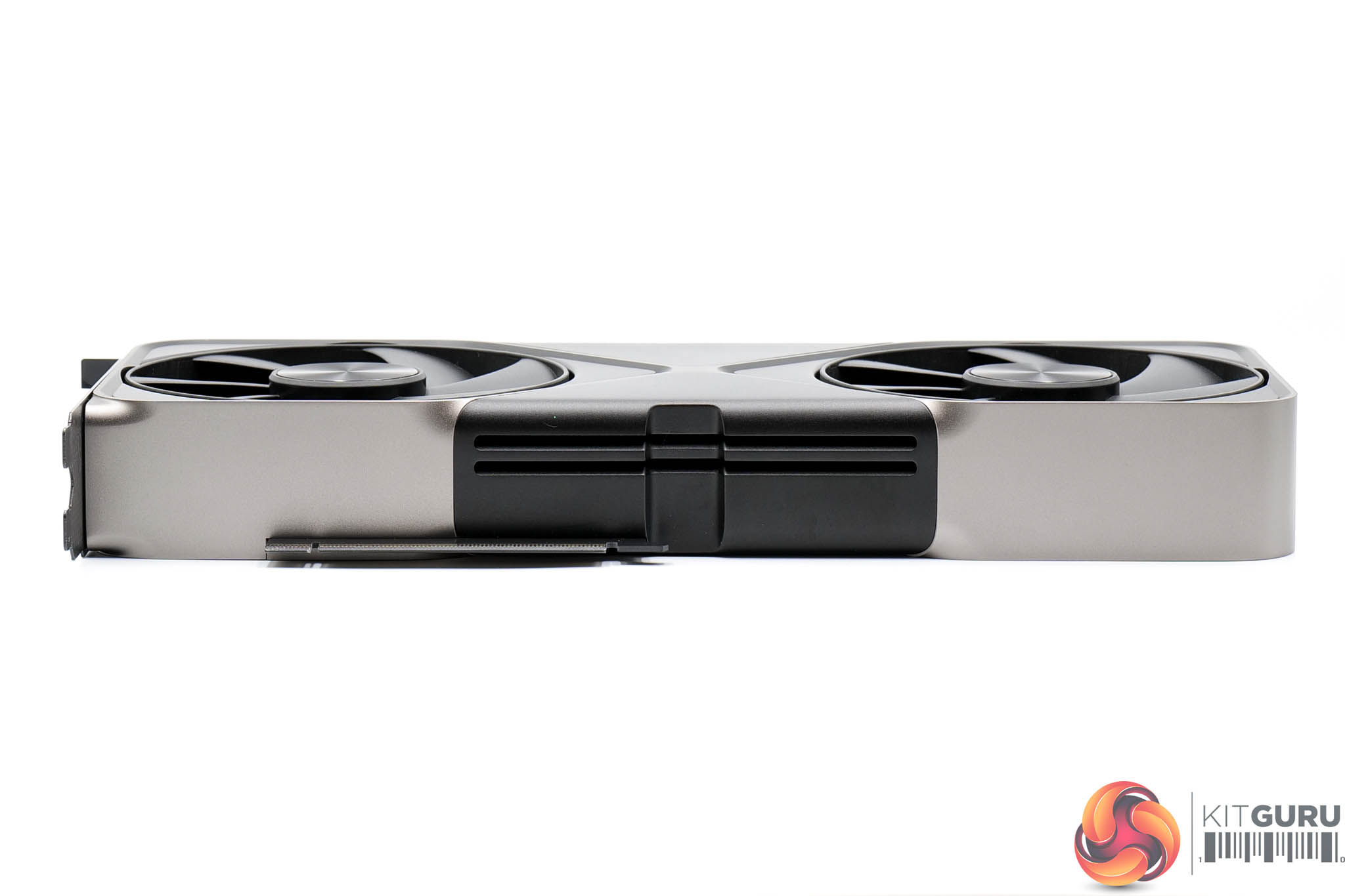

As per the RTX 5090 though, the 5080 is still just a dual-slot card and it measures 304mm long and 137mm tall.

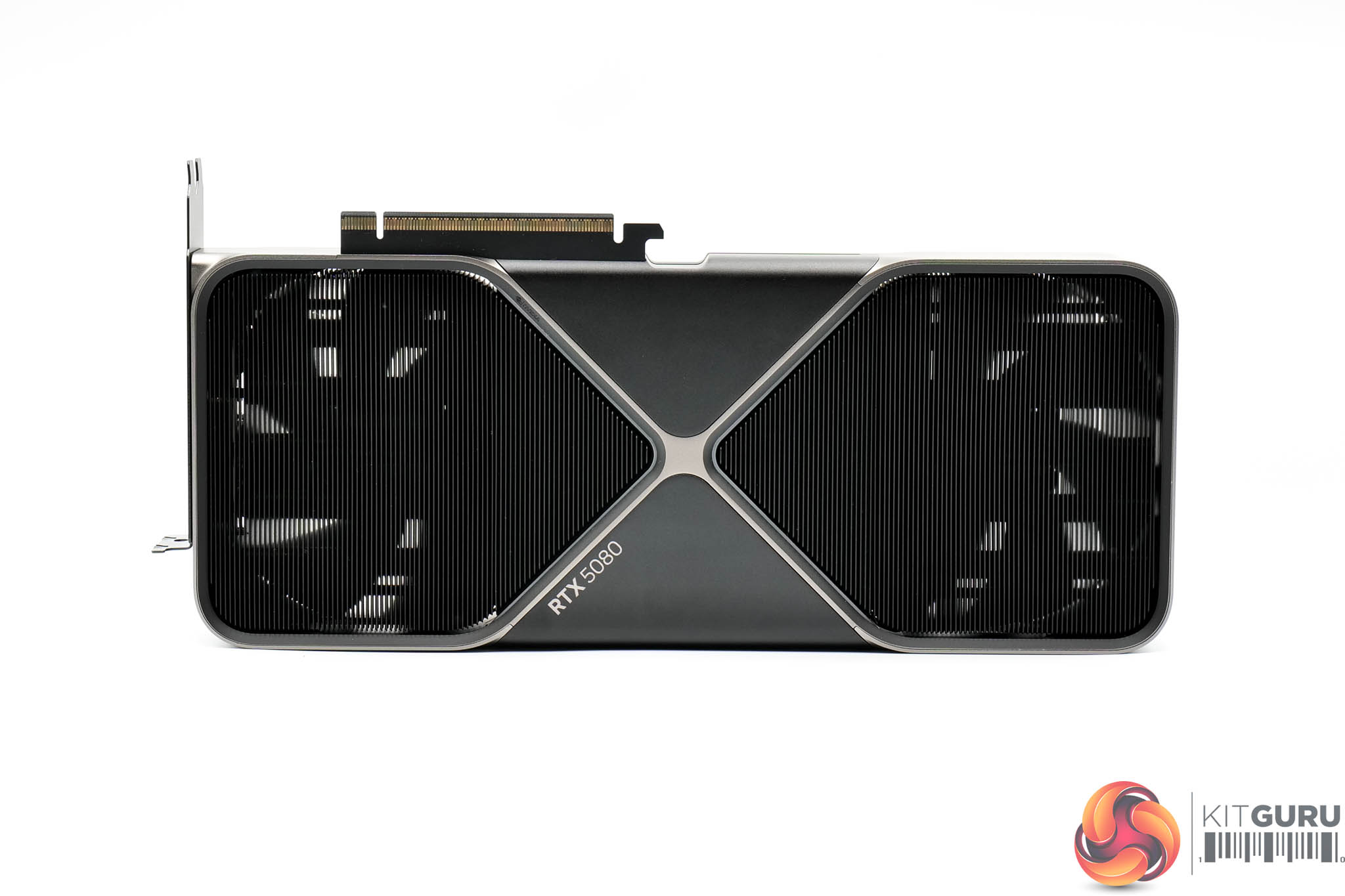

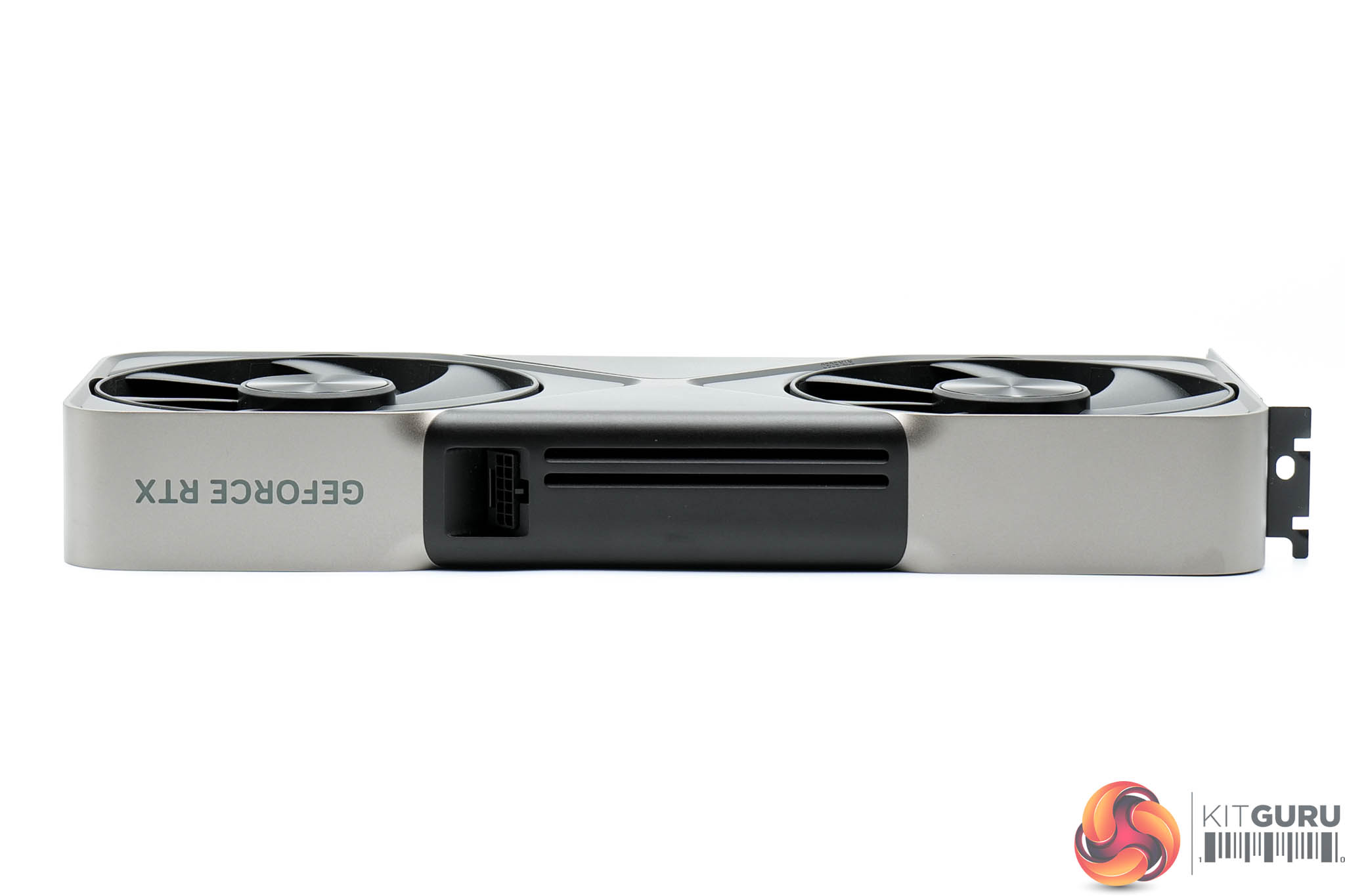

The front side is home to the GeForce RTX logo, which lights up with a white LED once powered on. We also get a look at the back of the card, and you can even see the outline of the two fans coming through the fin stack – that shows just much how of a focus the ‘flow through' design has been for Nvidia when manufacturing this card, as airflow is almost completely unobstructed.

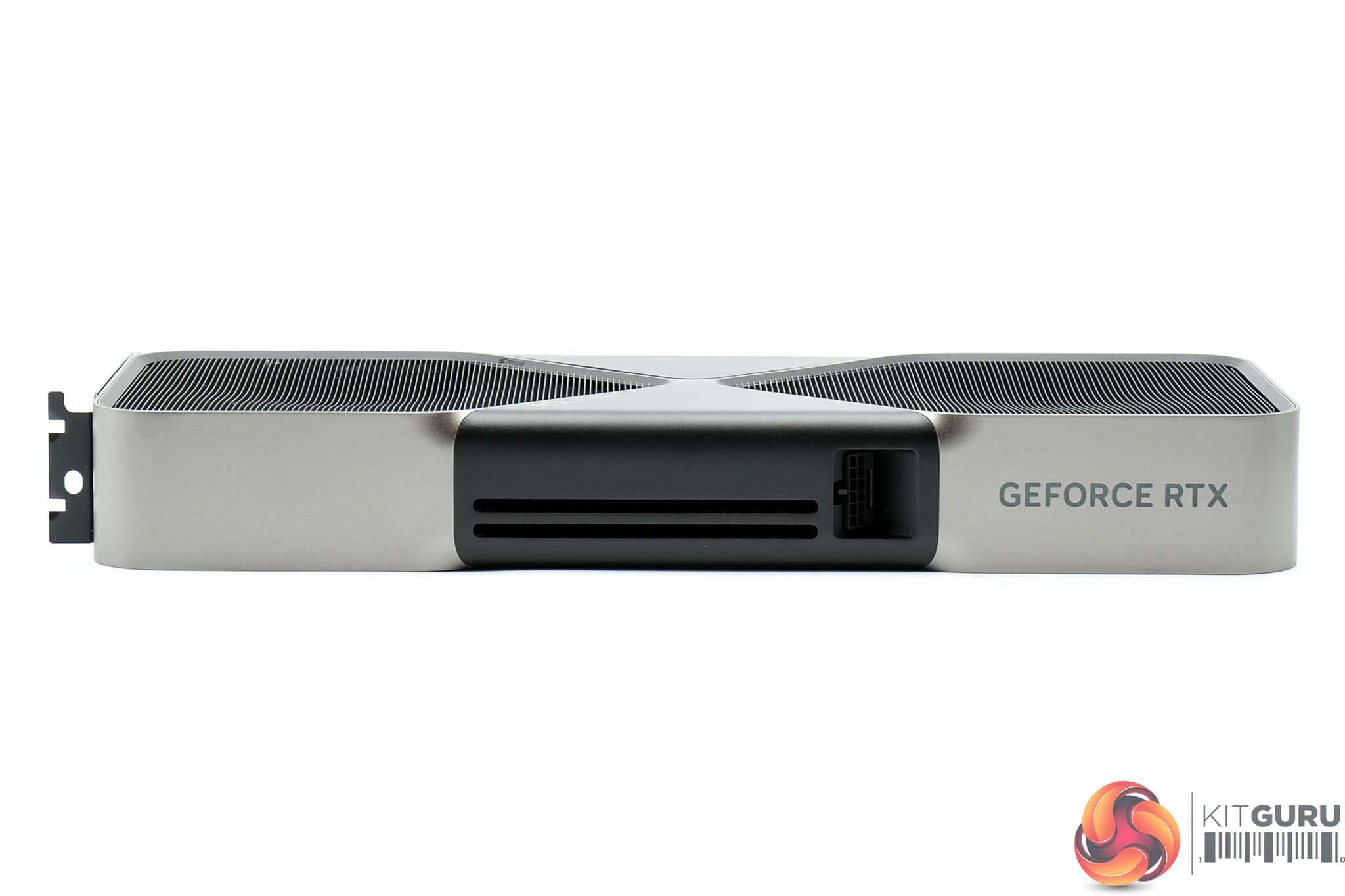

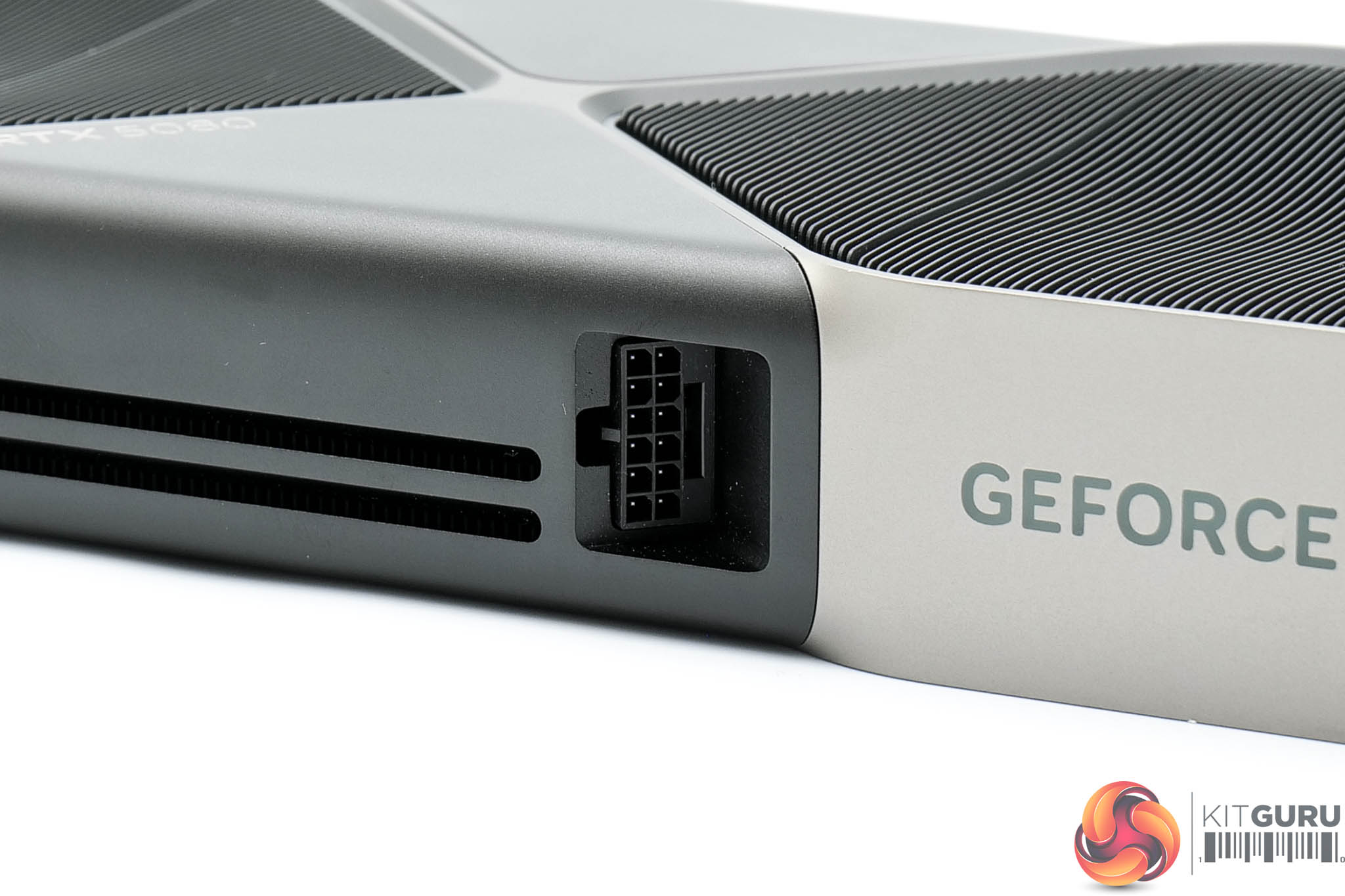

Power is delivered by a single 12VHPWR, AKA PCIe 5.0, connector, rated for up to 600W.

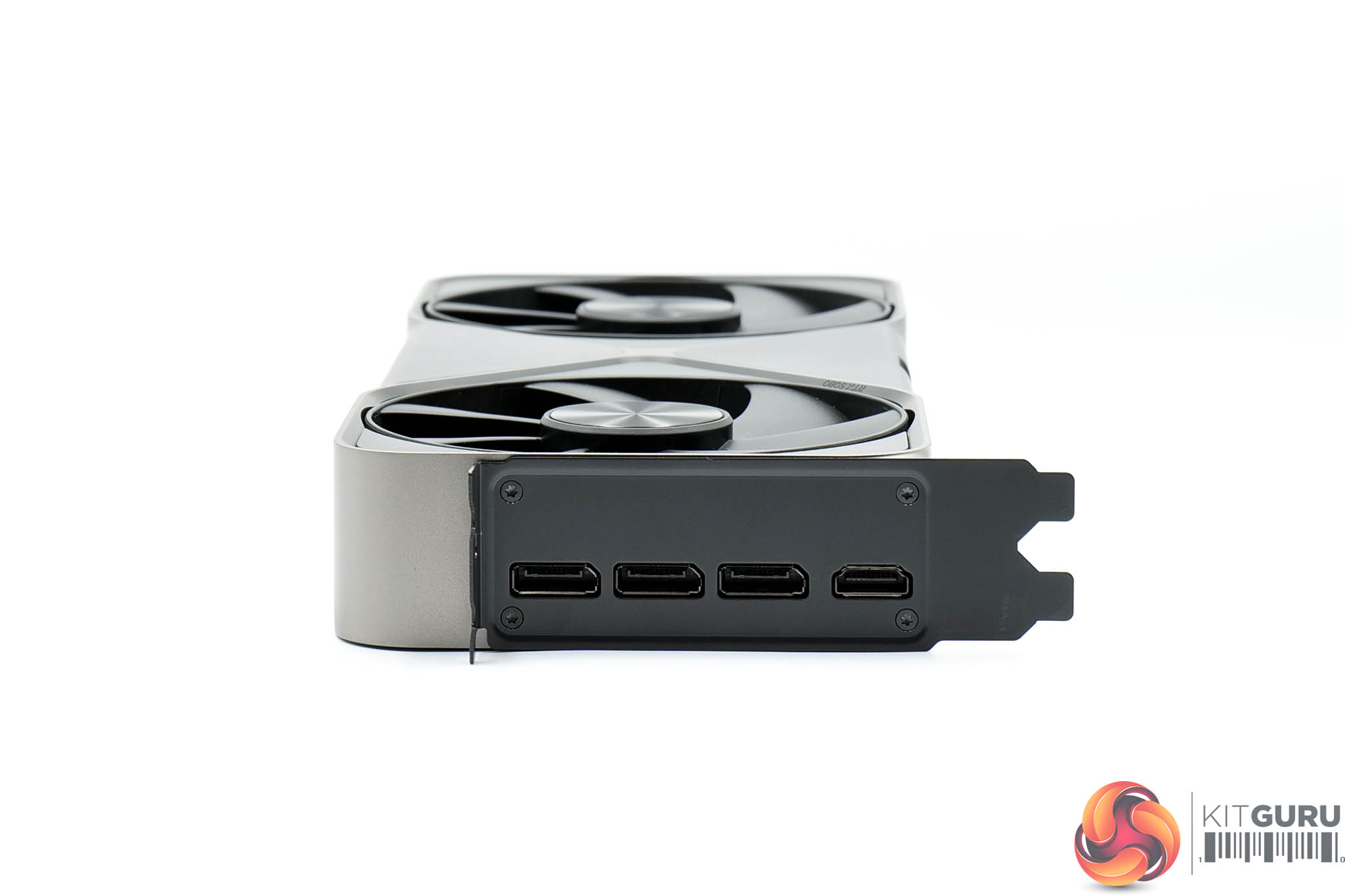

Video outputs are also upgraded for this generation, with the RTX 5080 offering three DisplayPort 2.1 UHBR20 connectors and one HDMI 2.1.
