Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

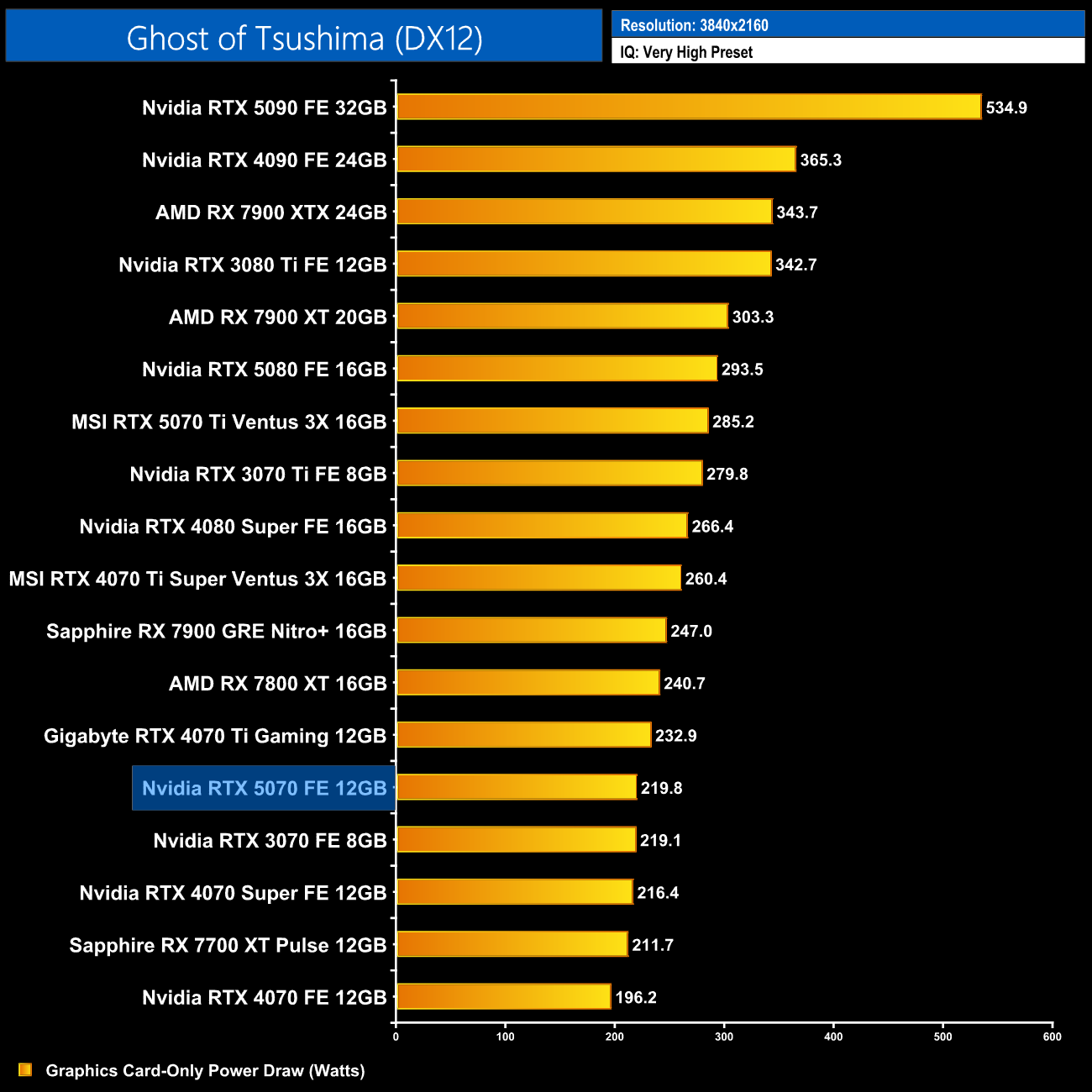

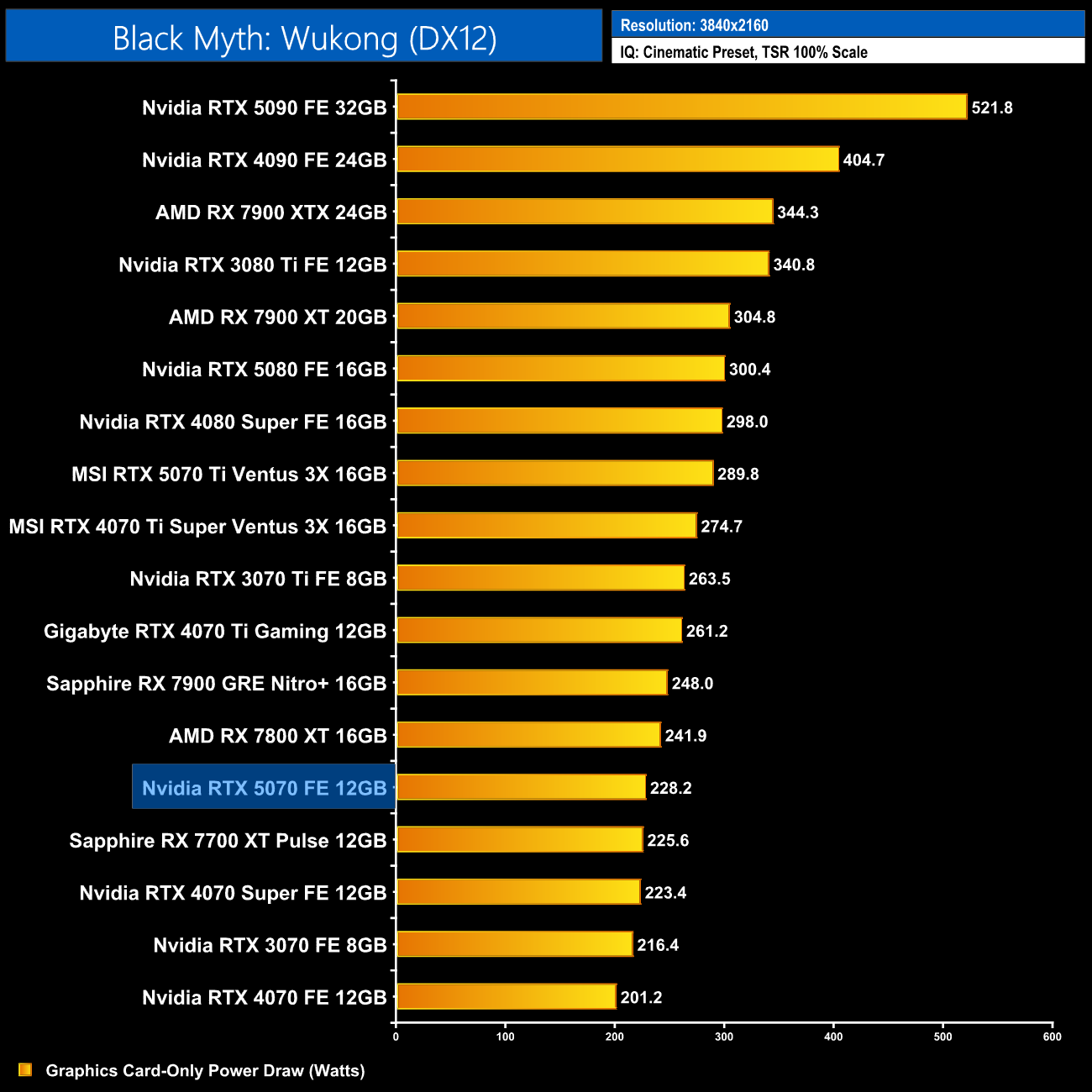

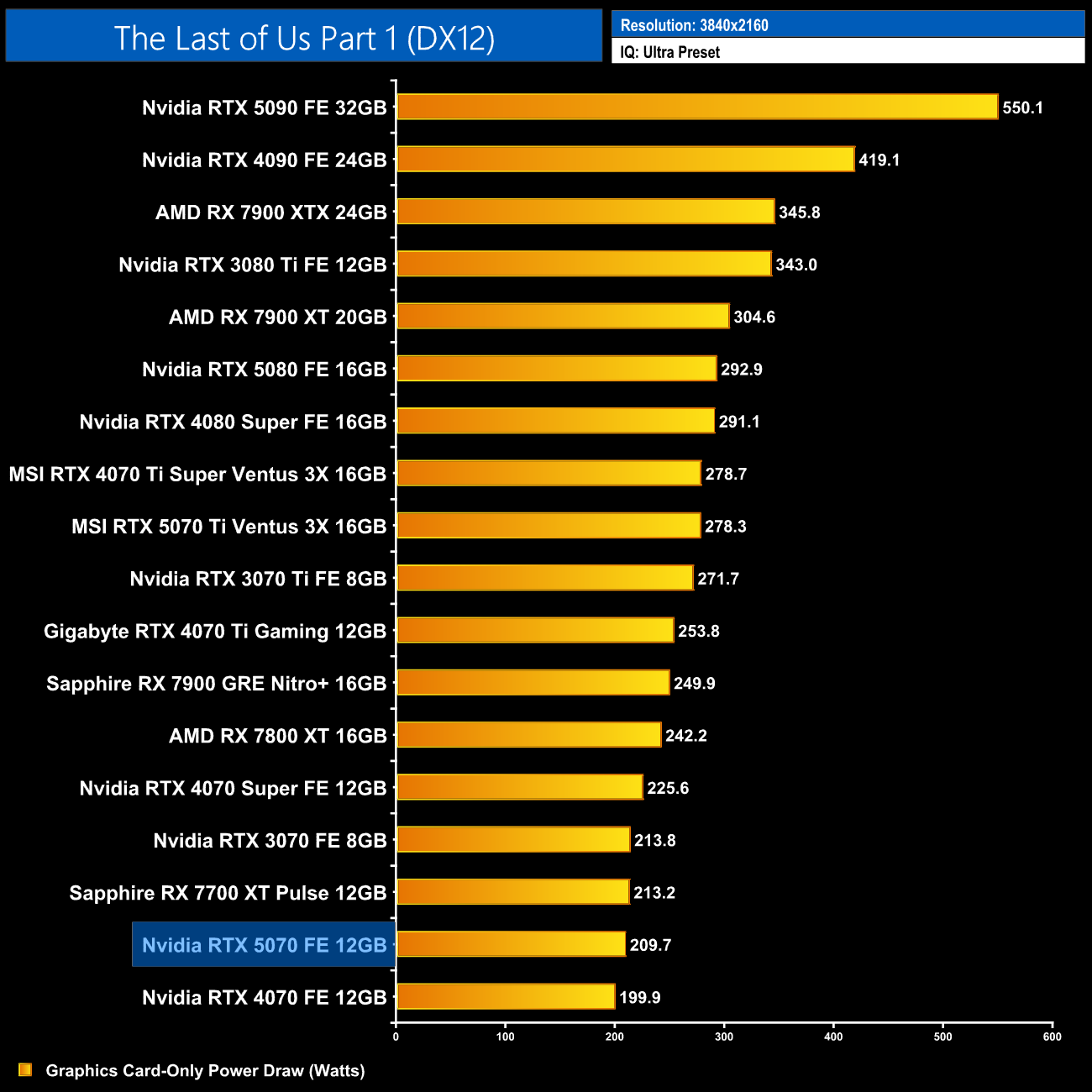

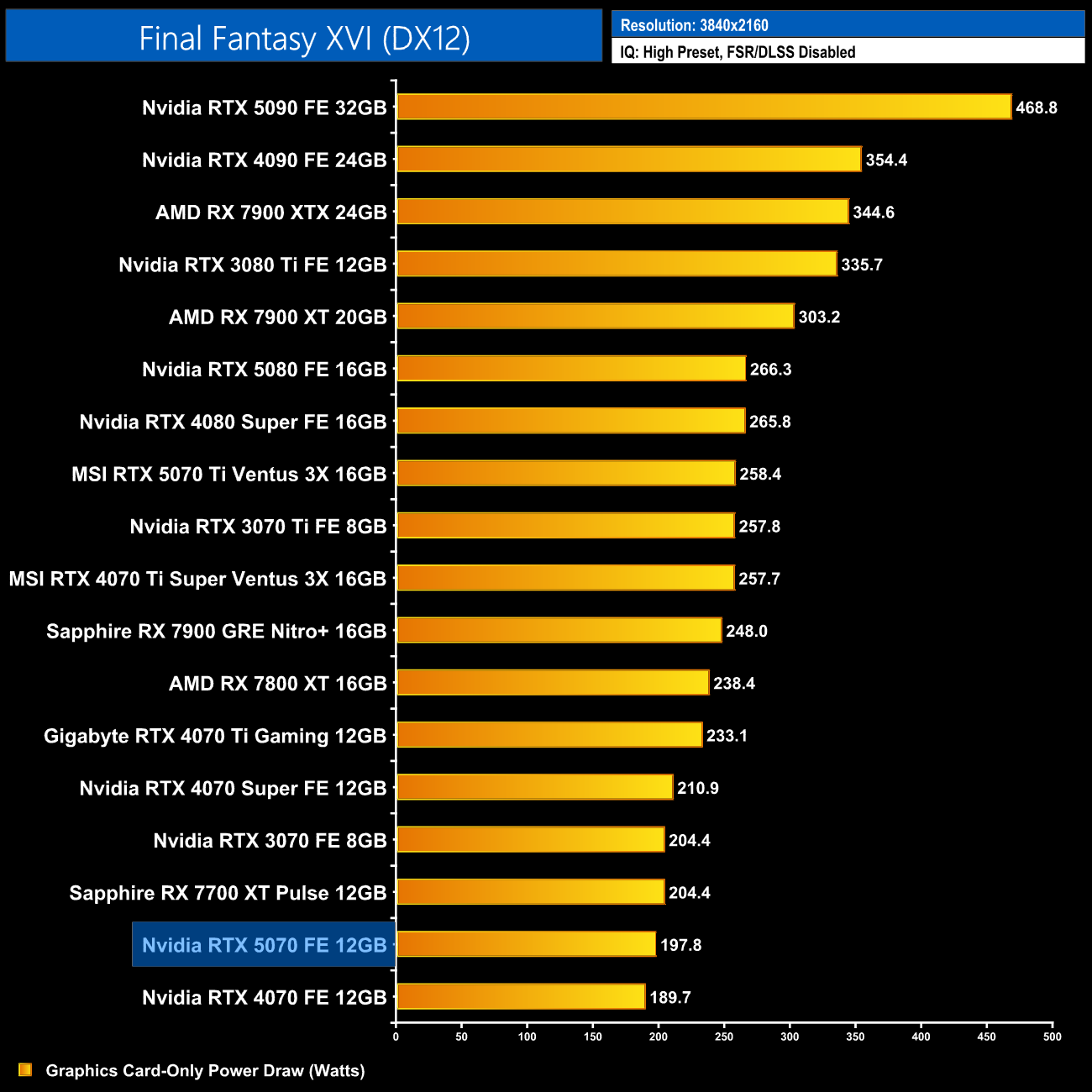

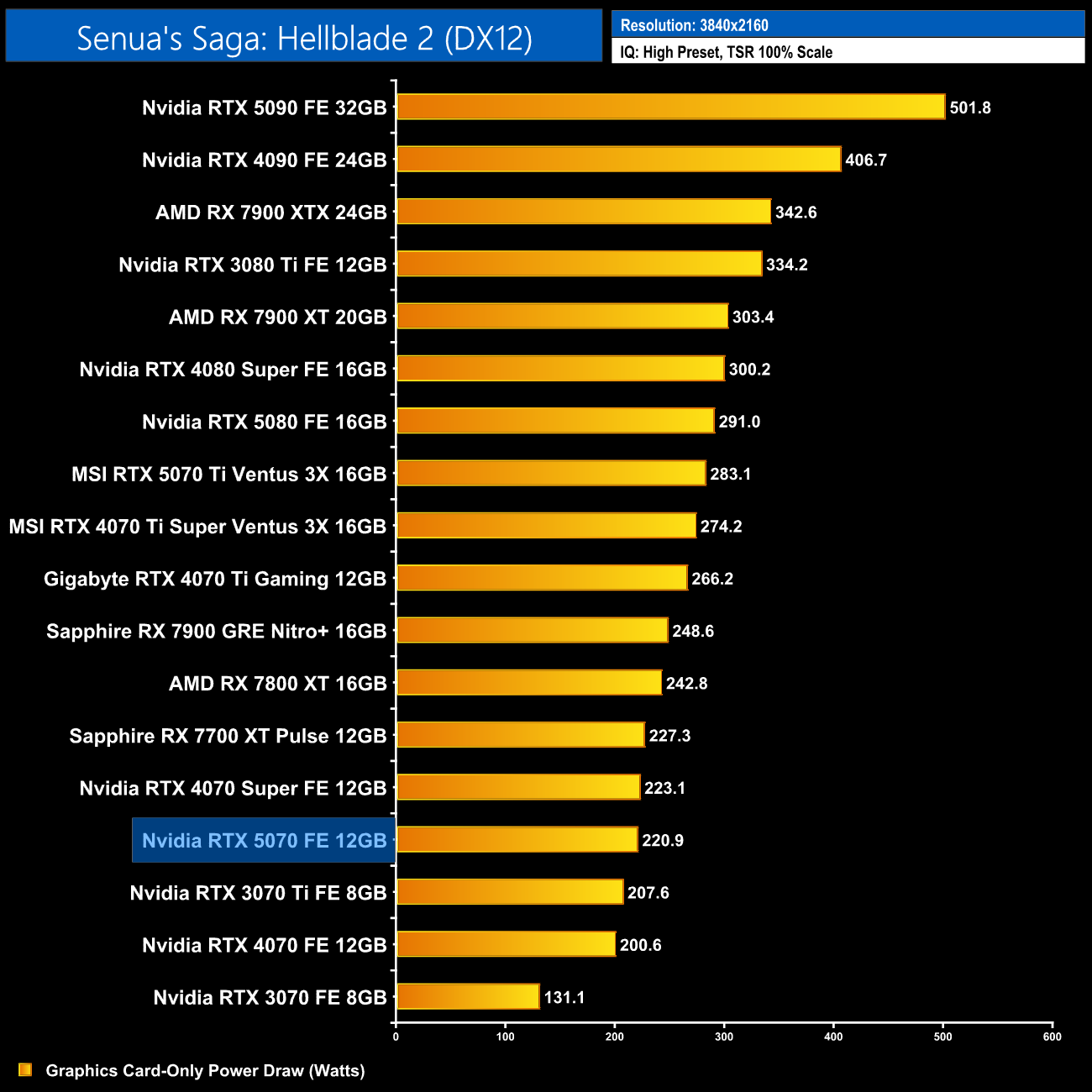

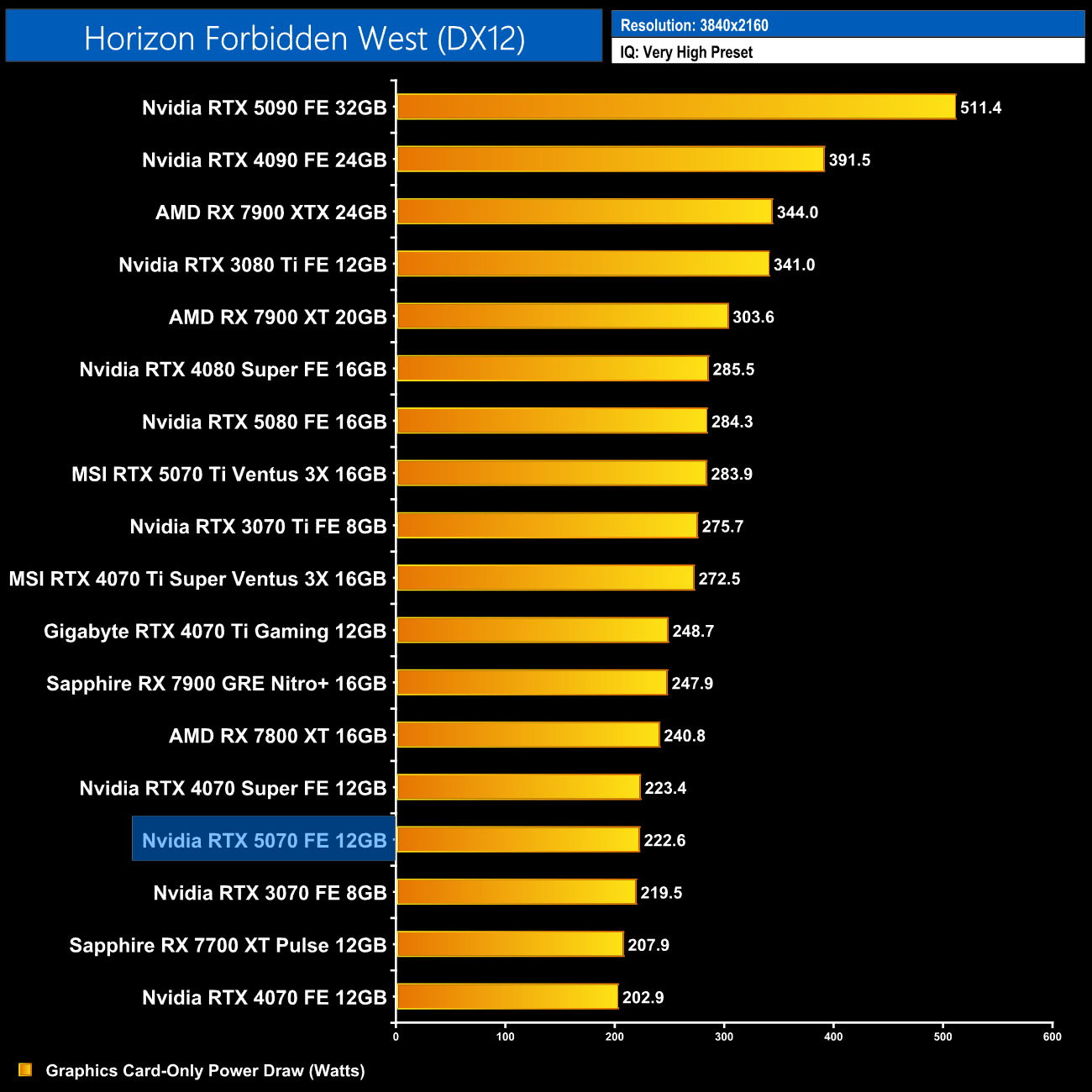

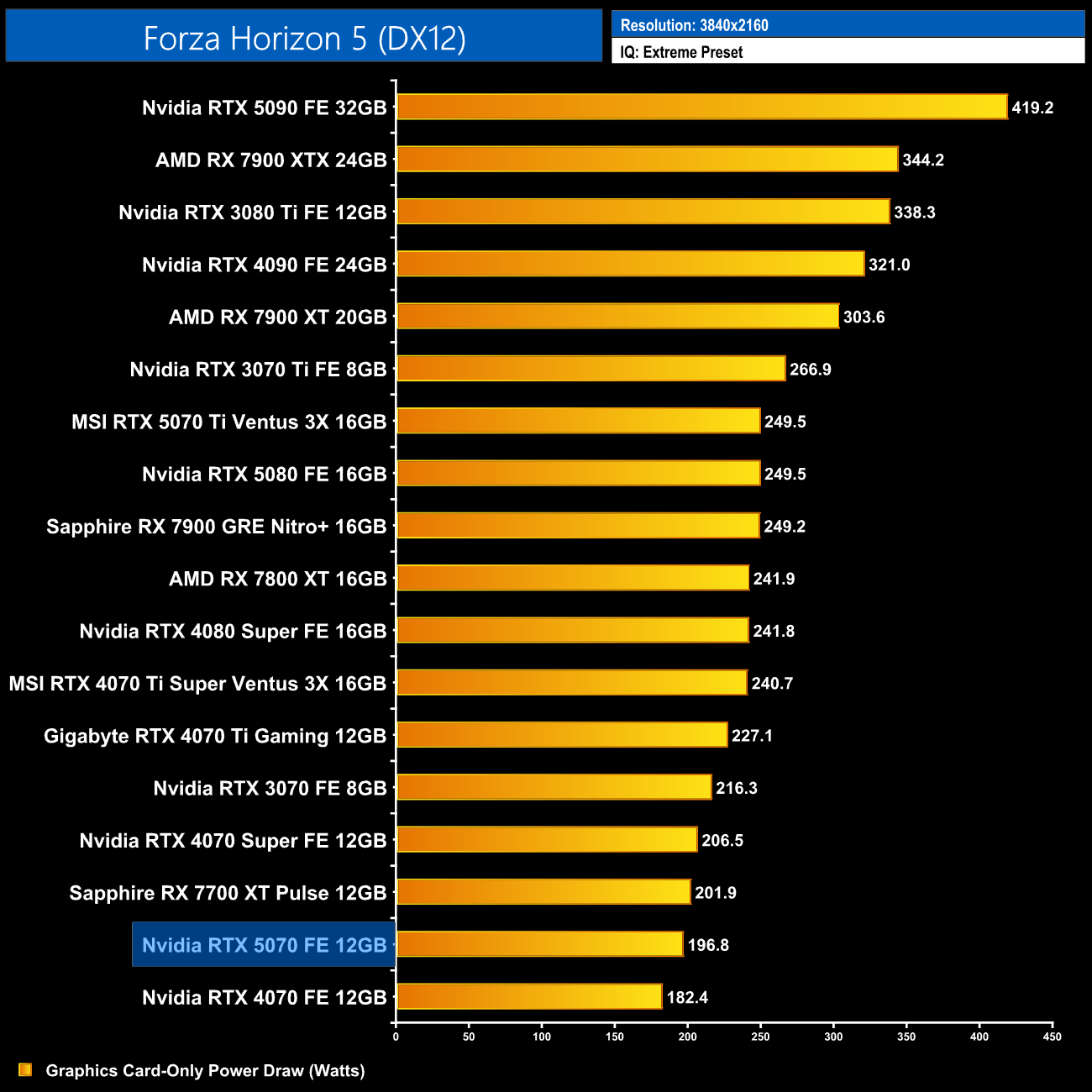

Per-Game Results at 2160p (4K):

Click to enlarge.

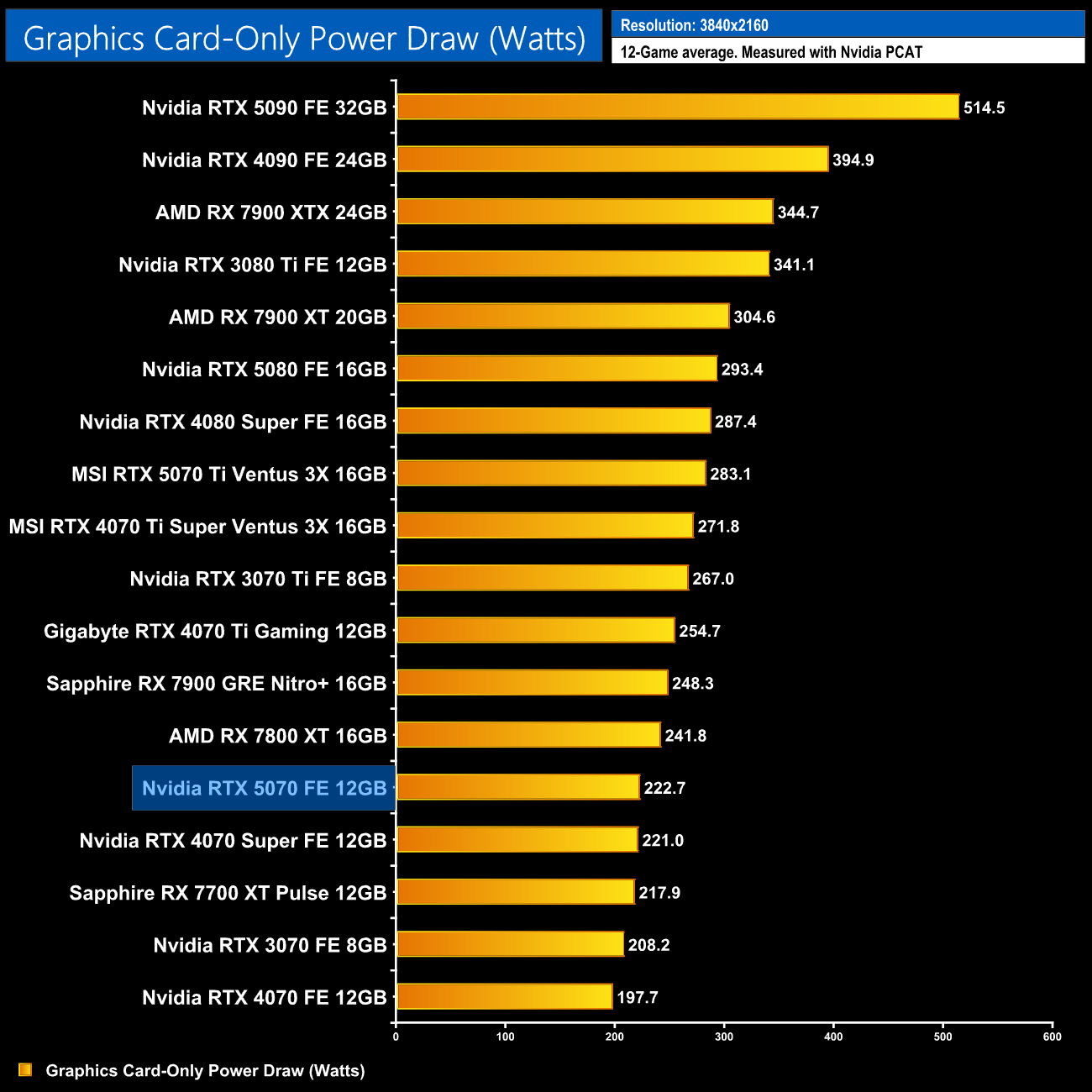

12-Game Average at 2160p (4K):

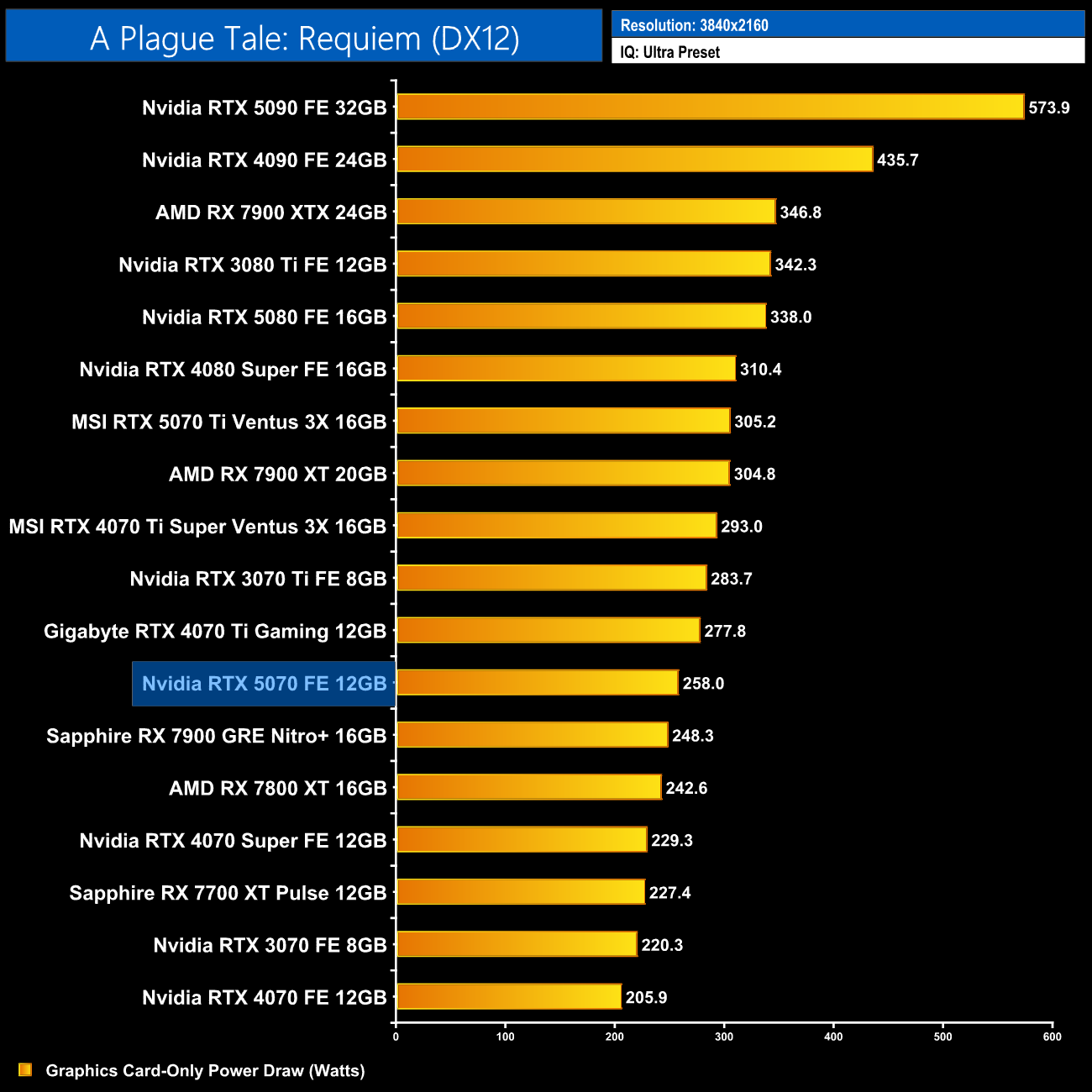

Up at 4K, we can see power now matching the RTX 4070 Super, but it's still barely exceeding 220W – well below the 250W TGP. A couple of games get closer to that figure, as you can see at the top of the page, including Cyberpunk 2077 and A Plague Tale: Requiem, but there's also a few that don't even hit 200W.

Ray tracing results

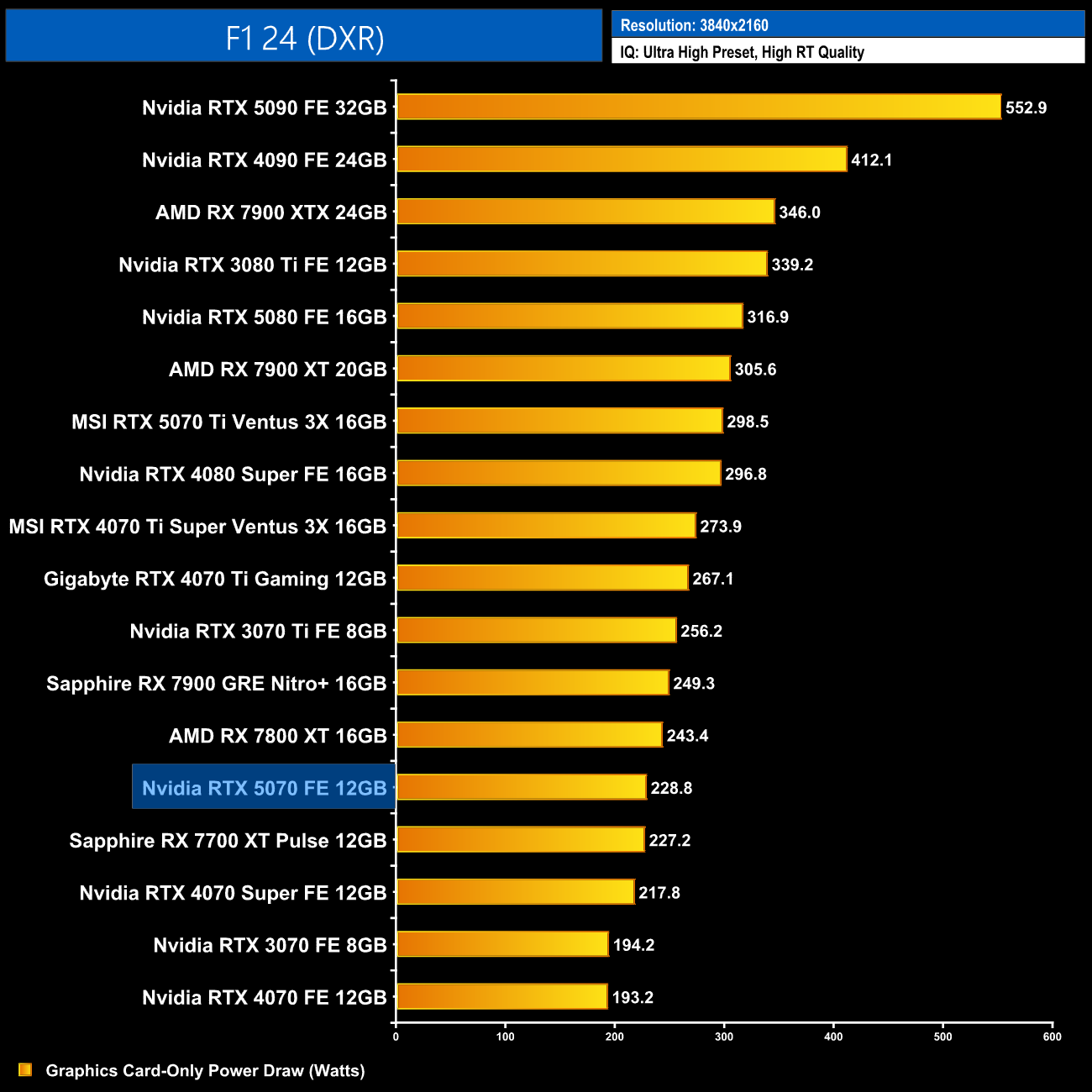

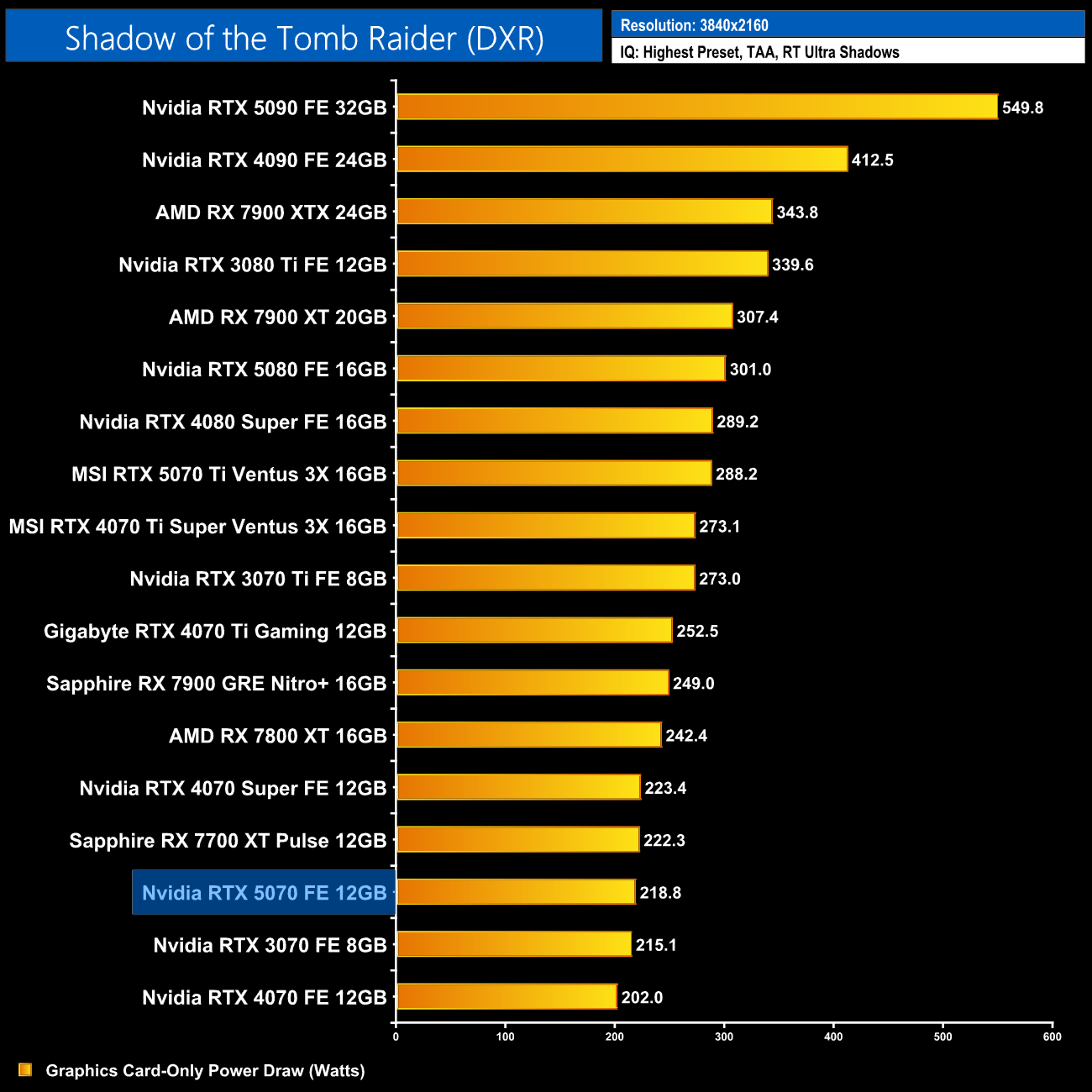

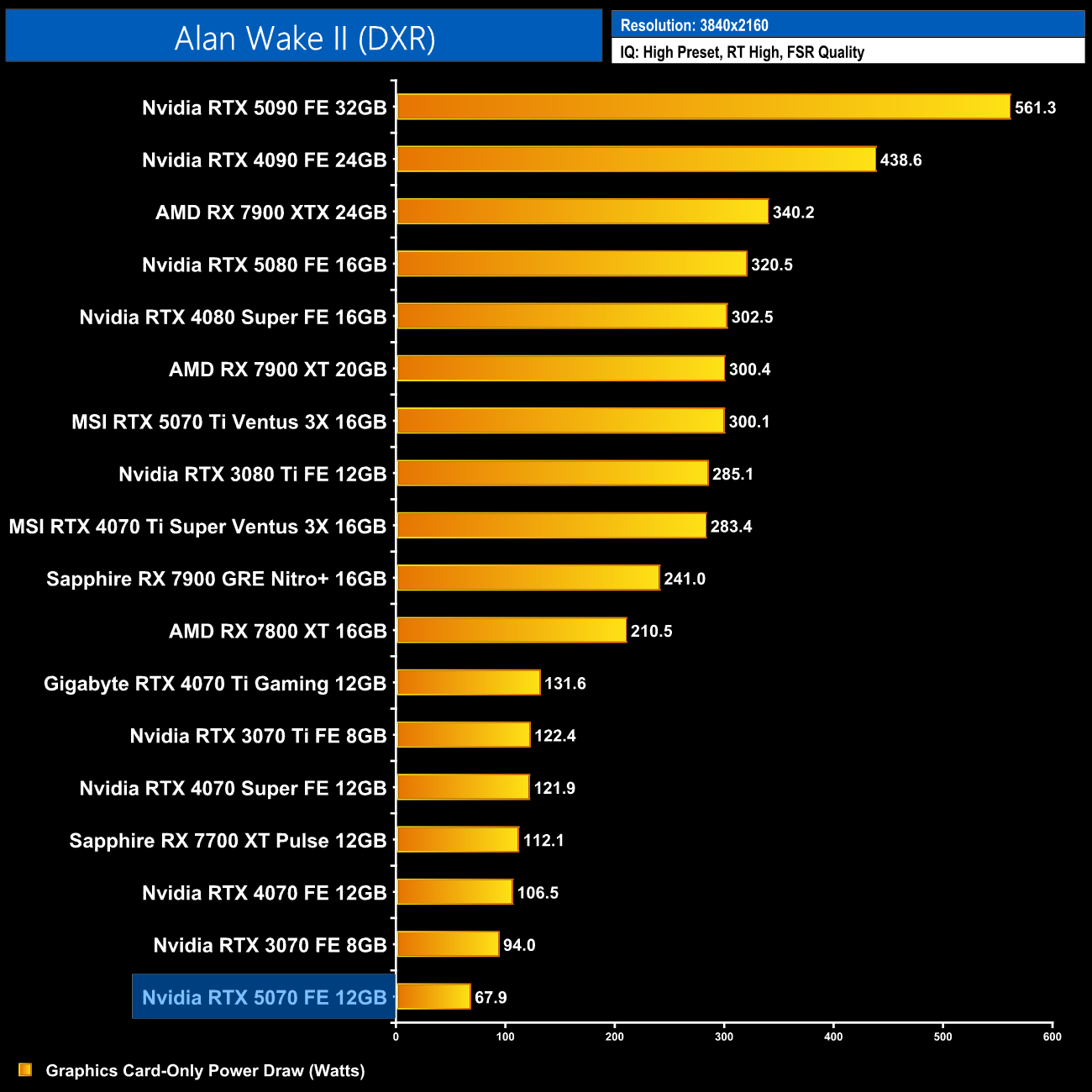

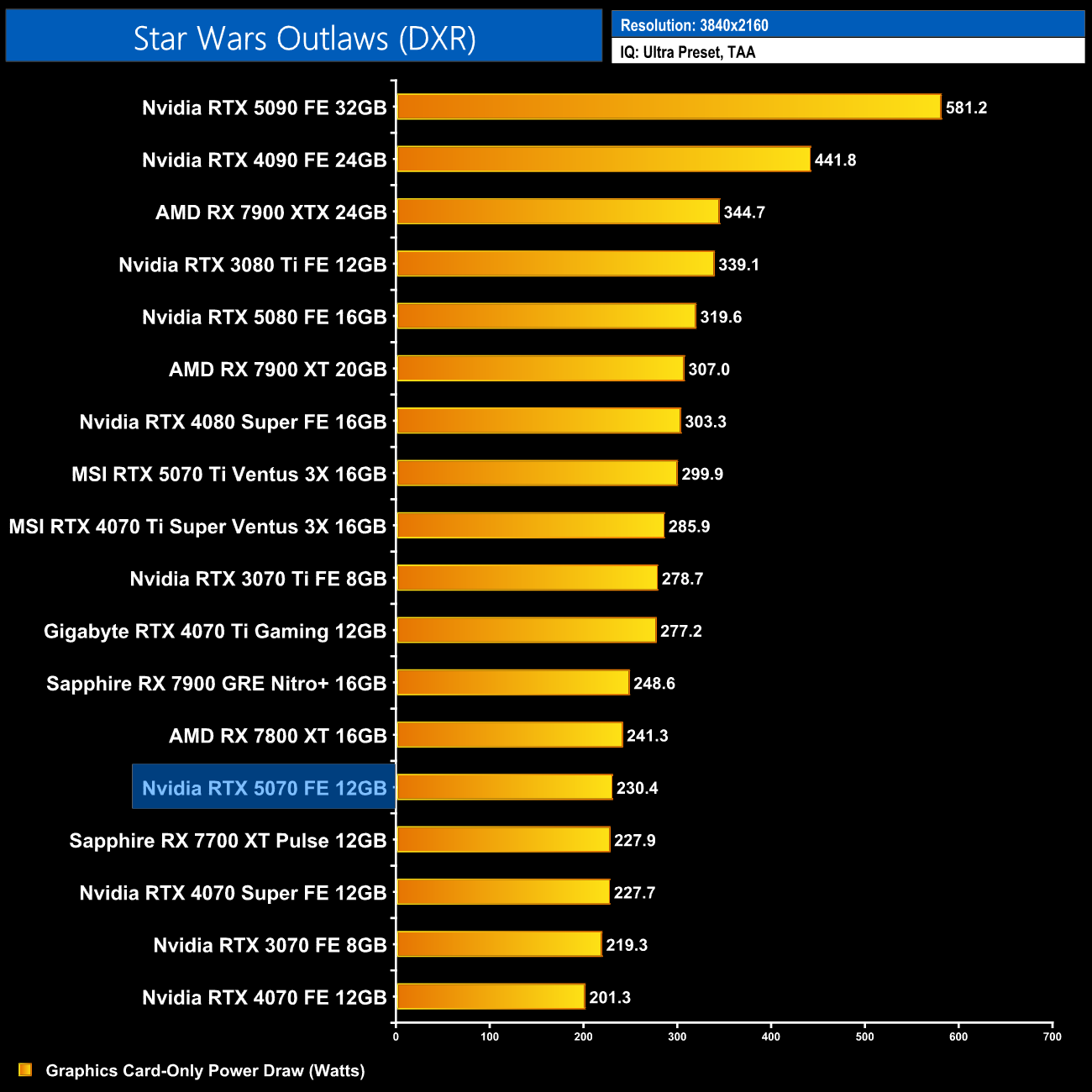

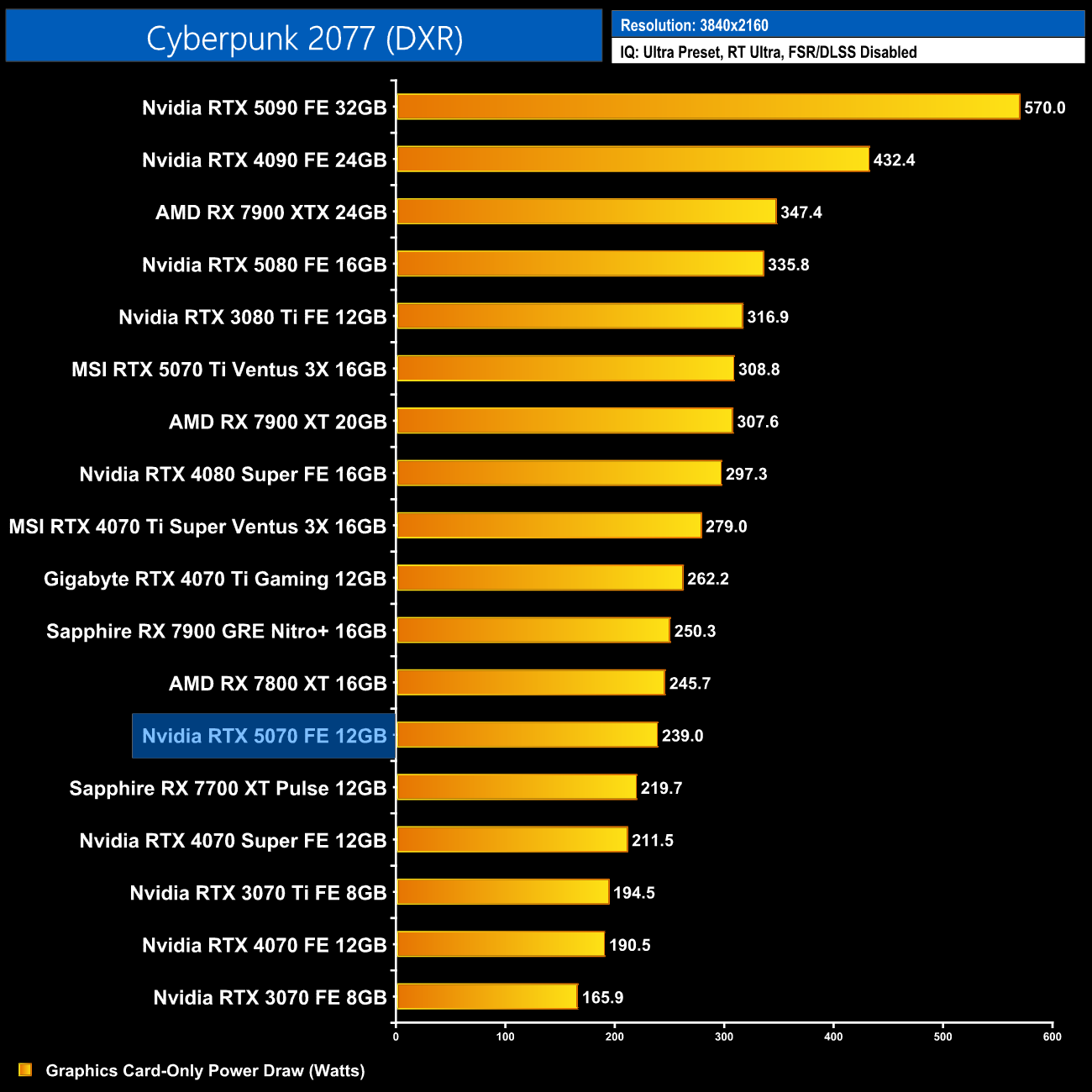

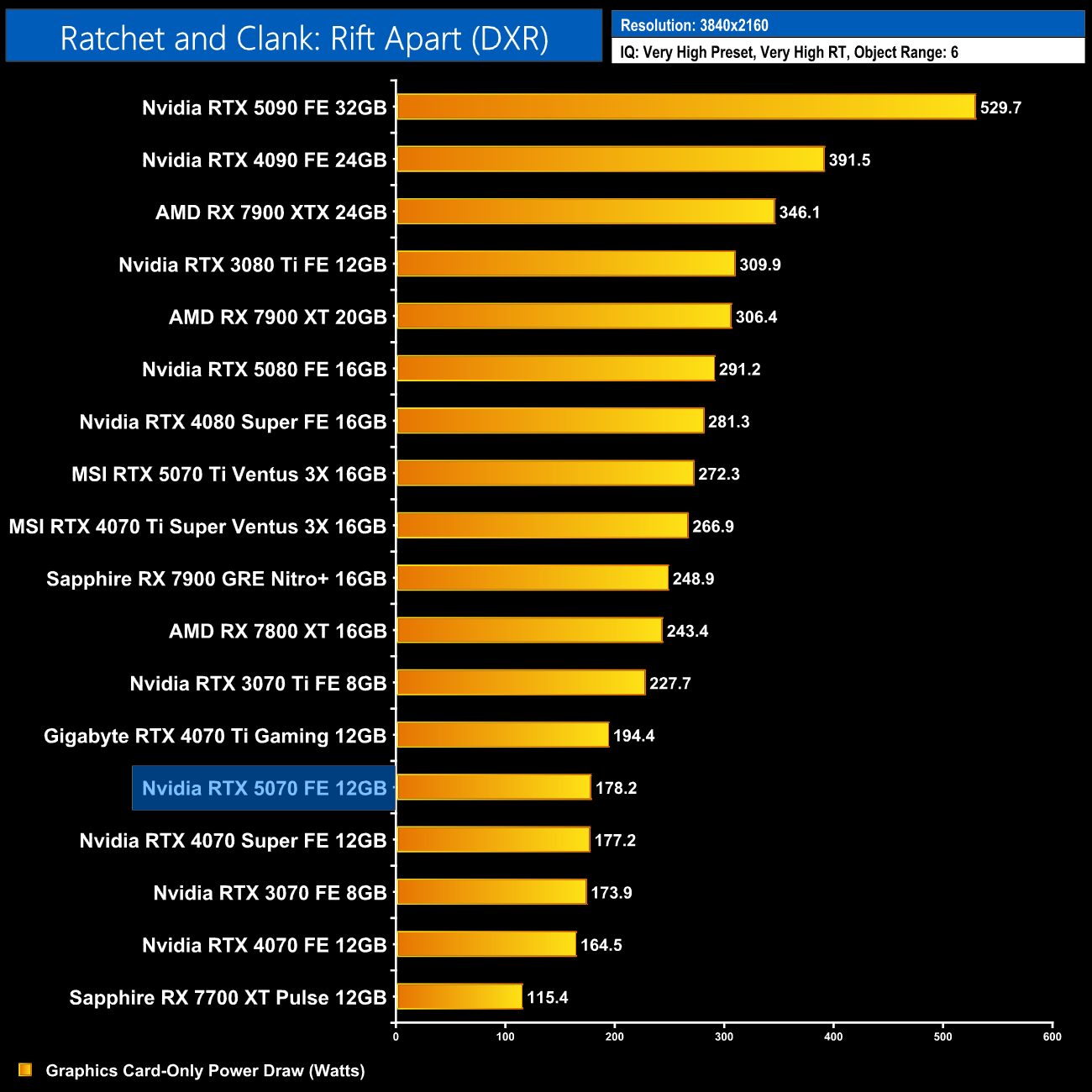

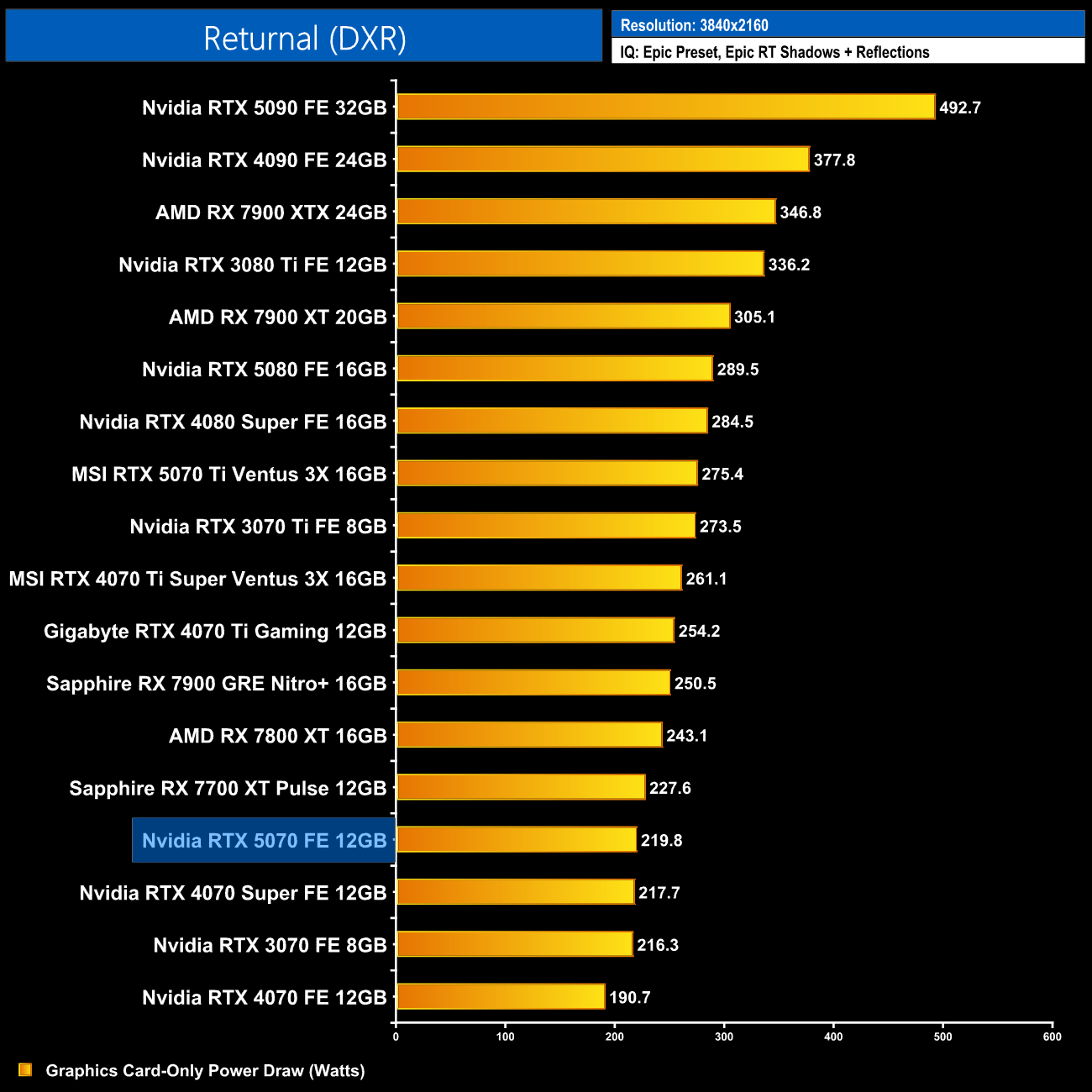

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

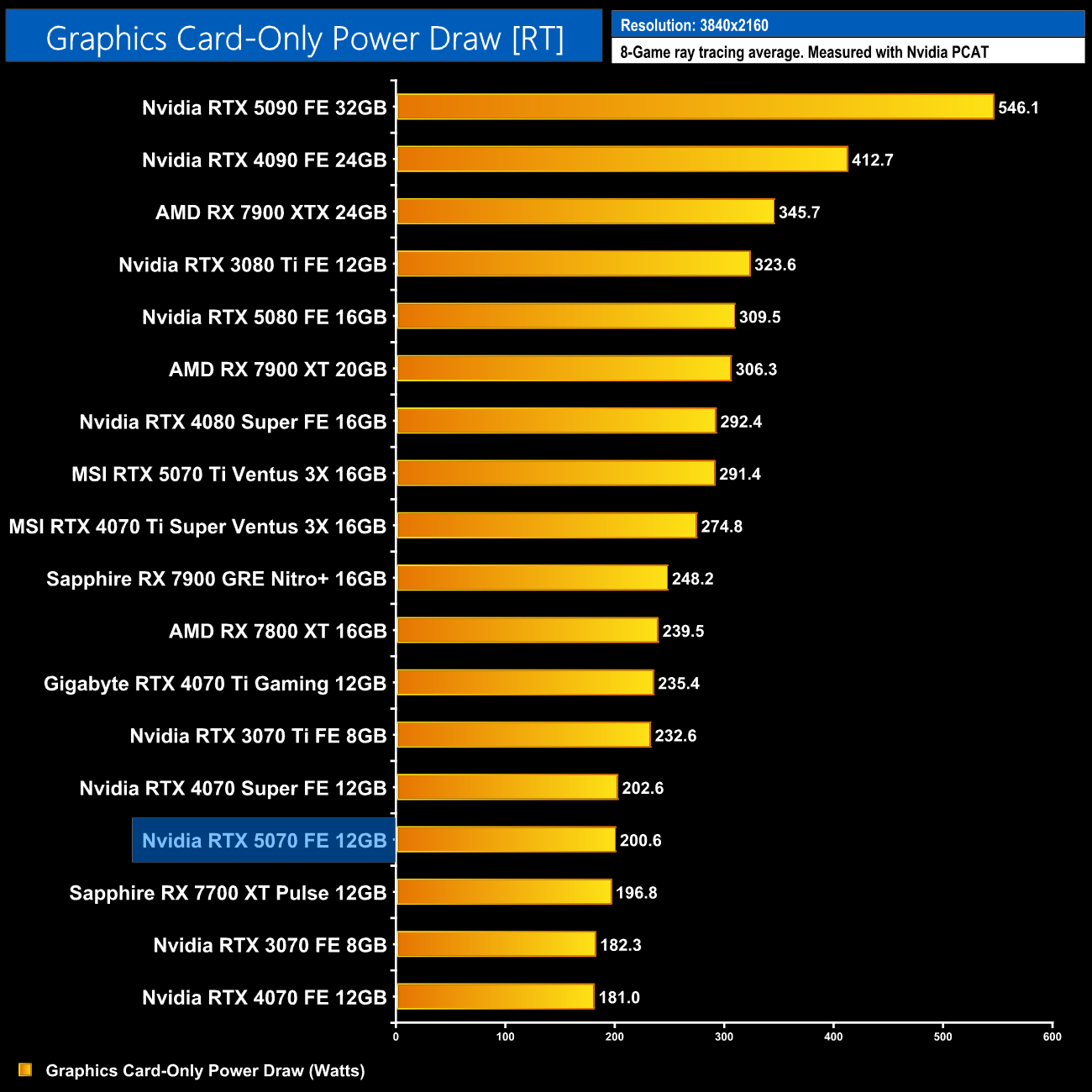

8-Game ray tracing average:

Interestingly, the ray tracing average at 4K is slightly lower, given a couple of games tested ran into VRAM limits, thus choking overall performance and lowering power draw.
