Nvidia RTX 5060 Ti 16GB Review ft. Gigabyte & Palit

Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

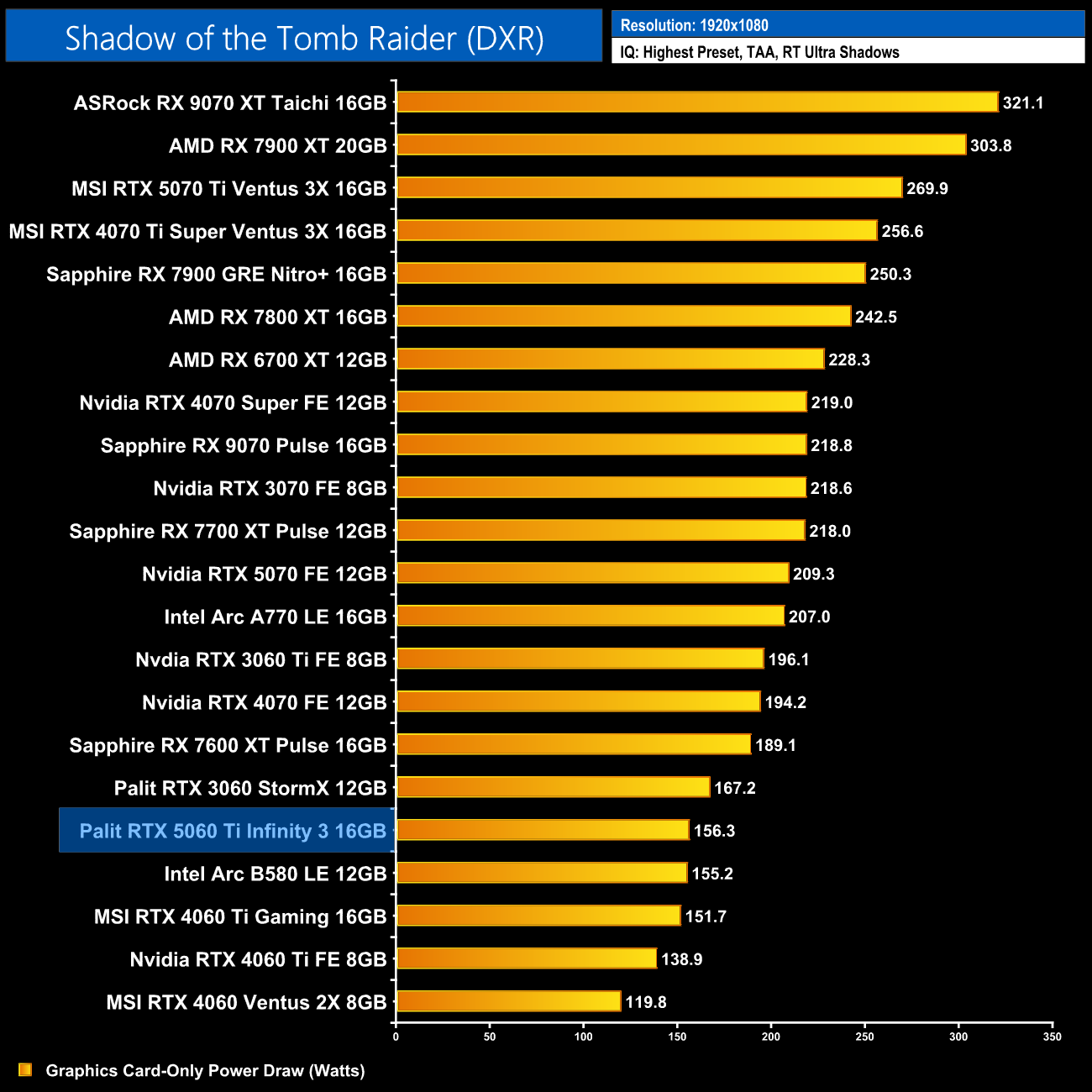

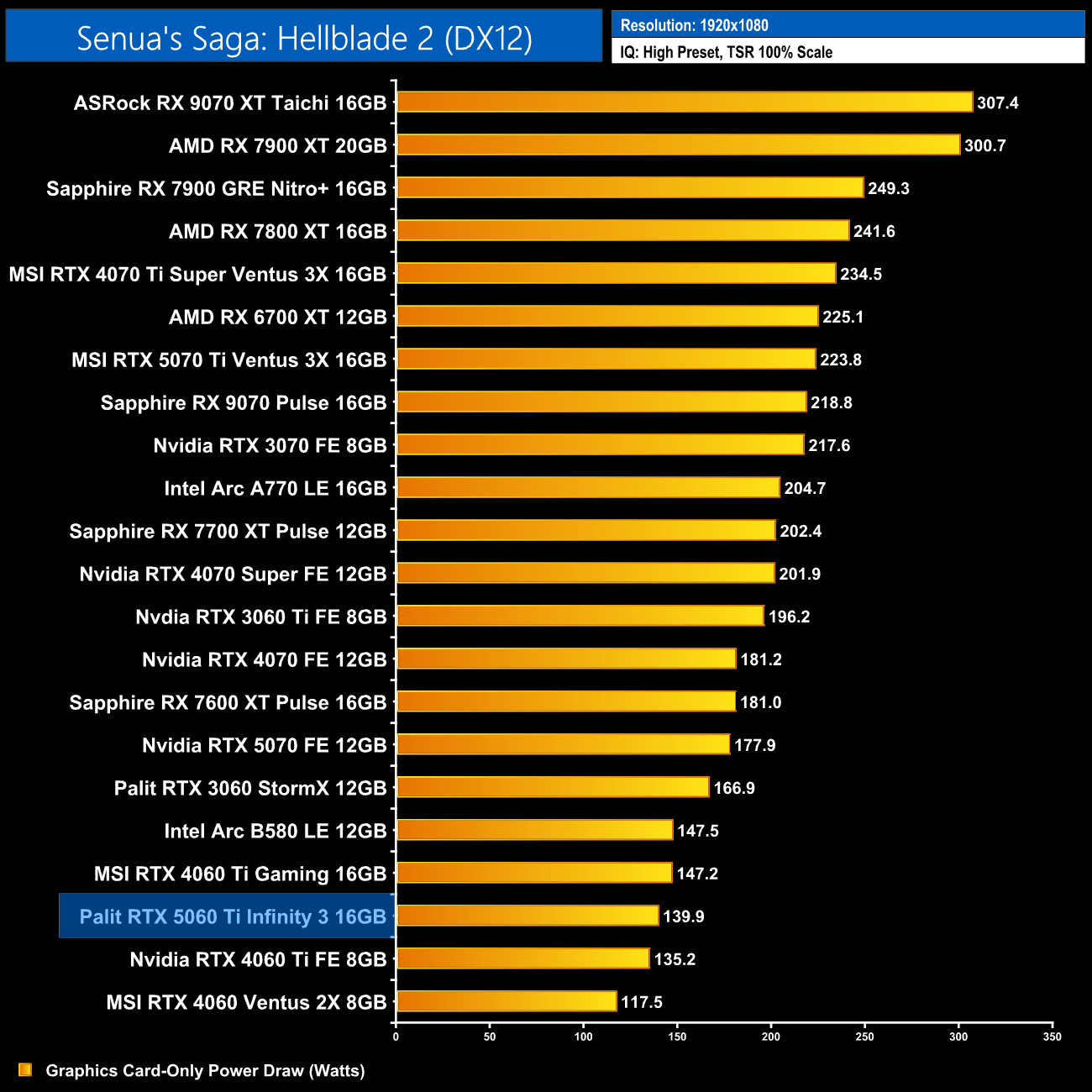

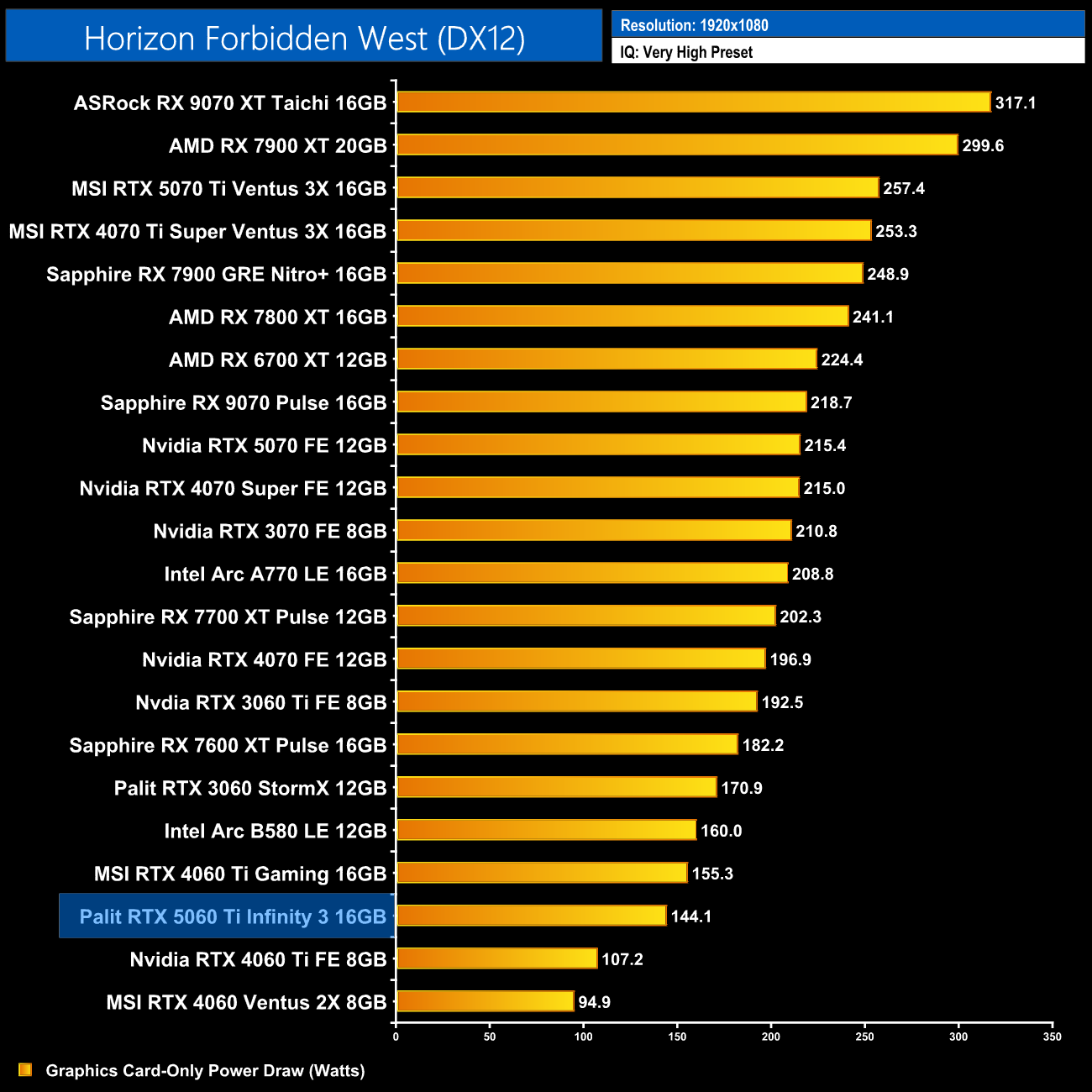

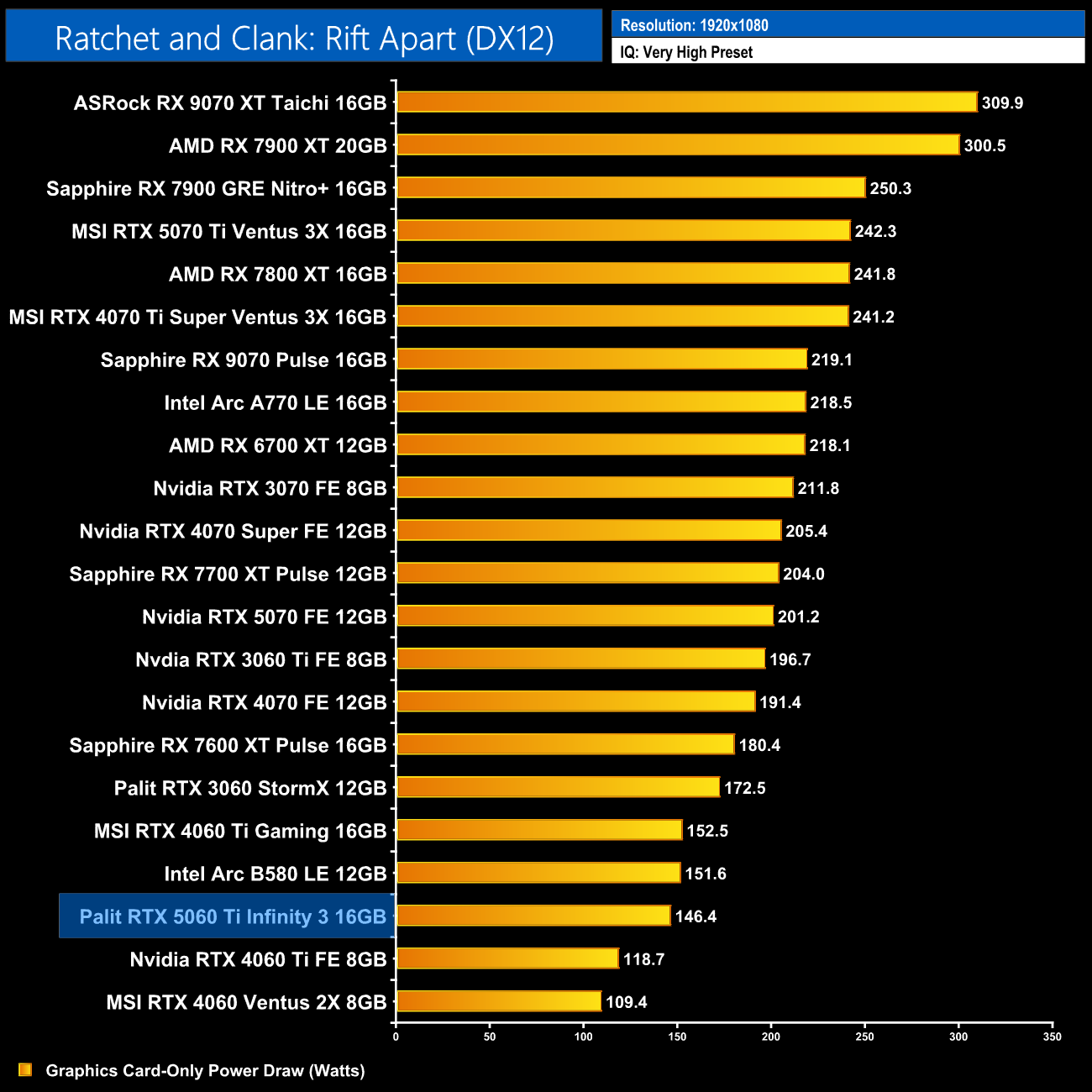

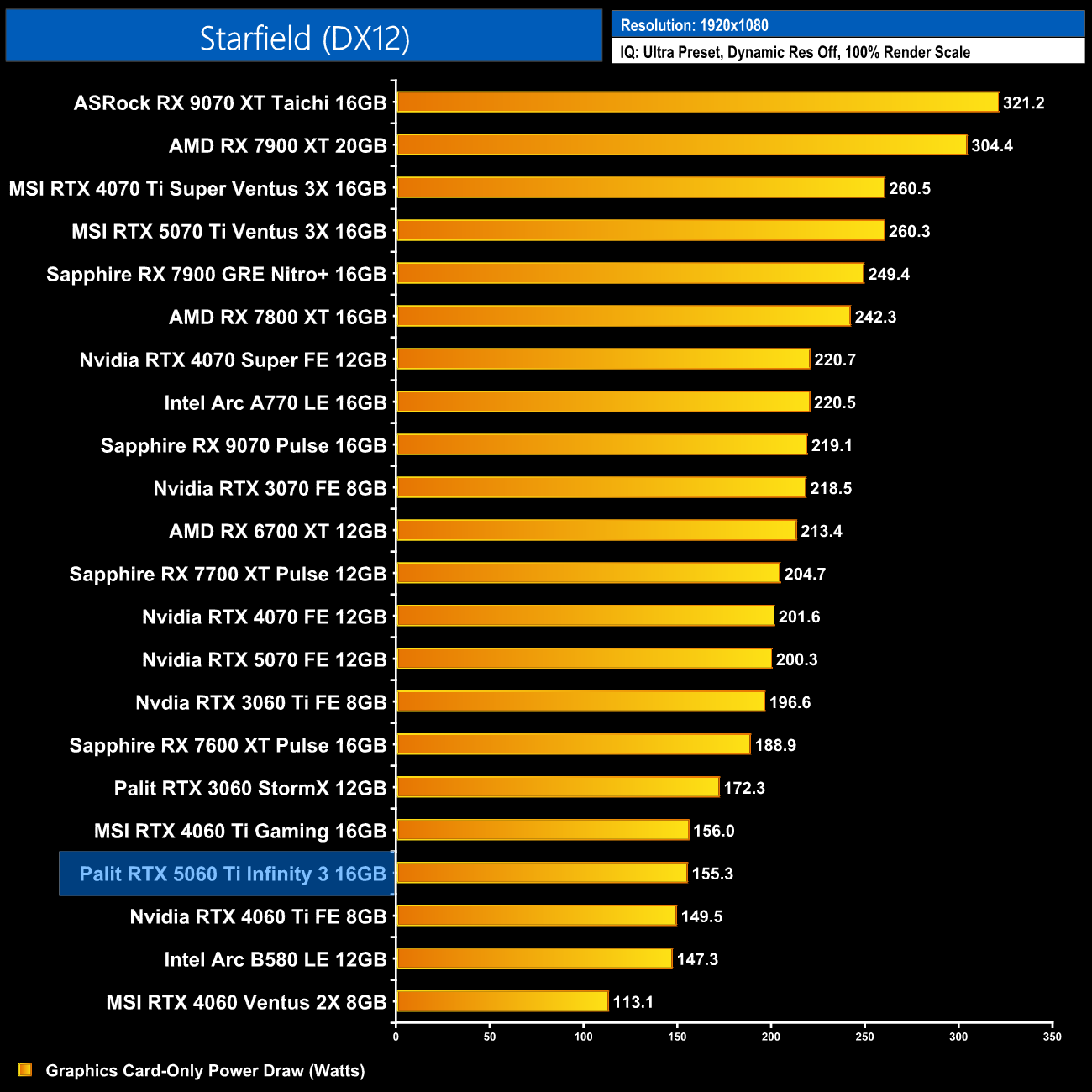

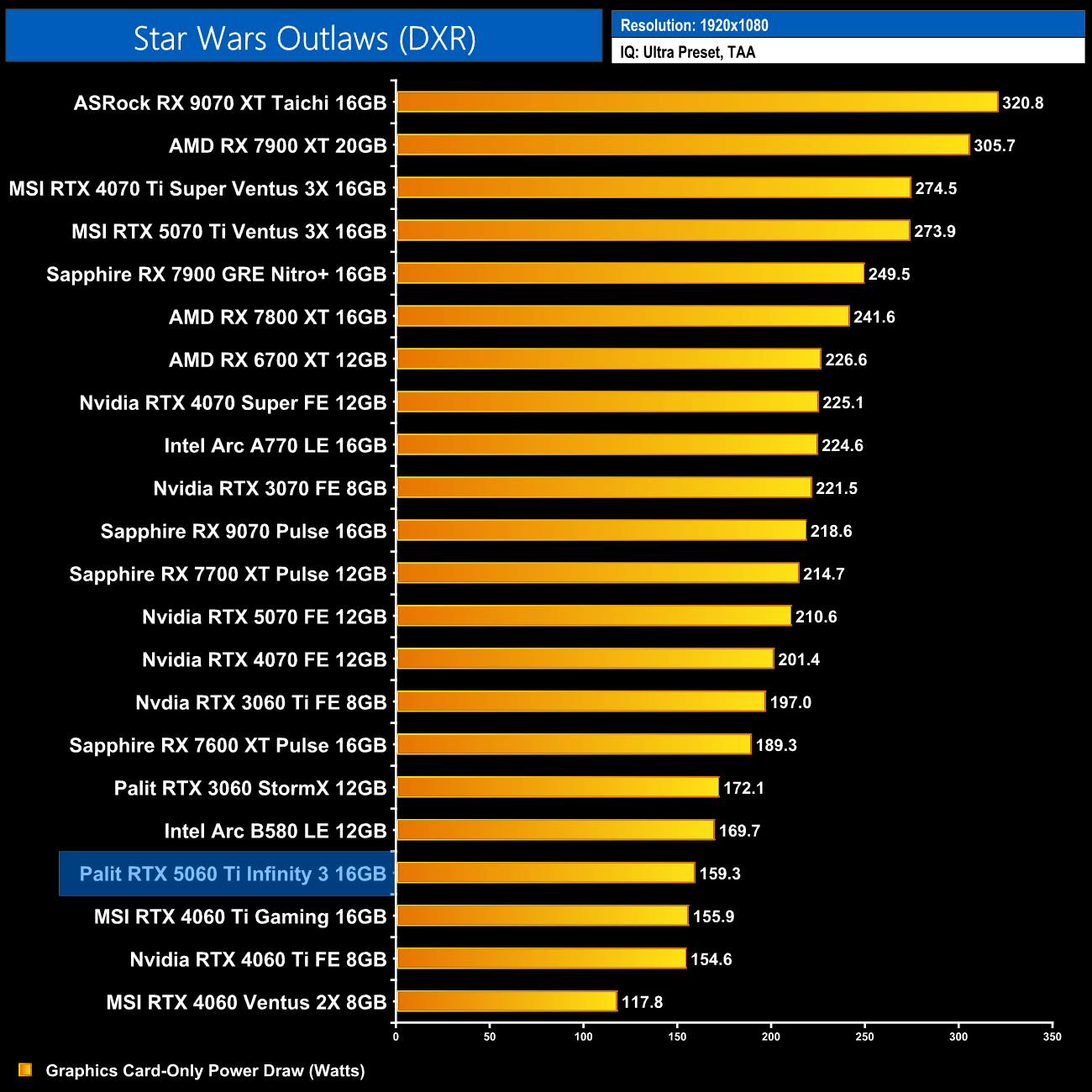

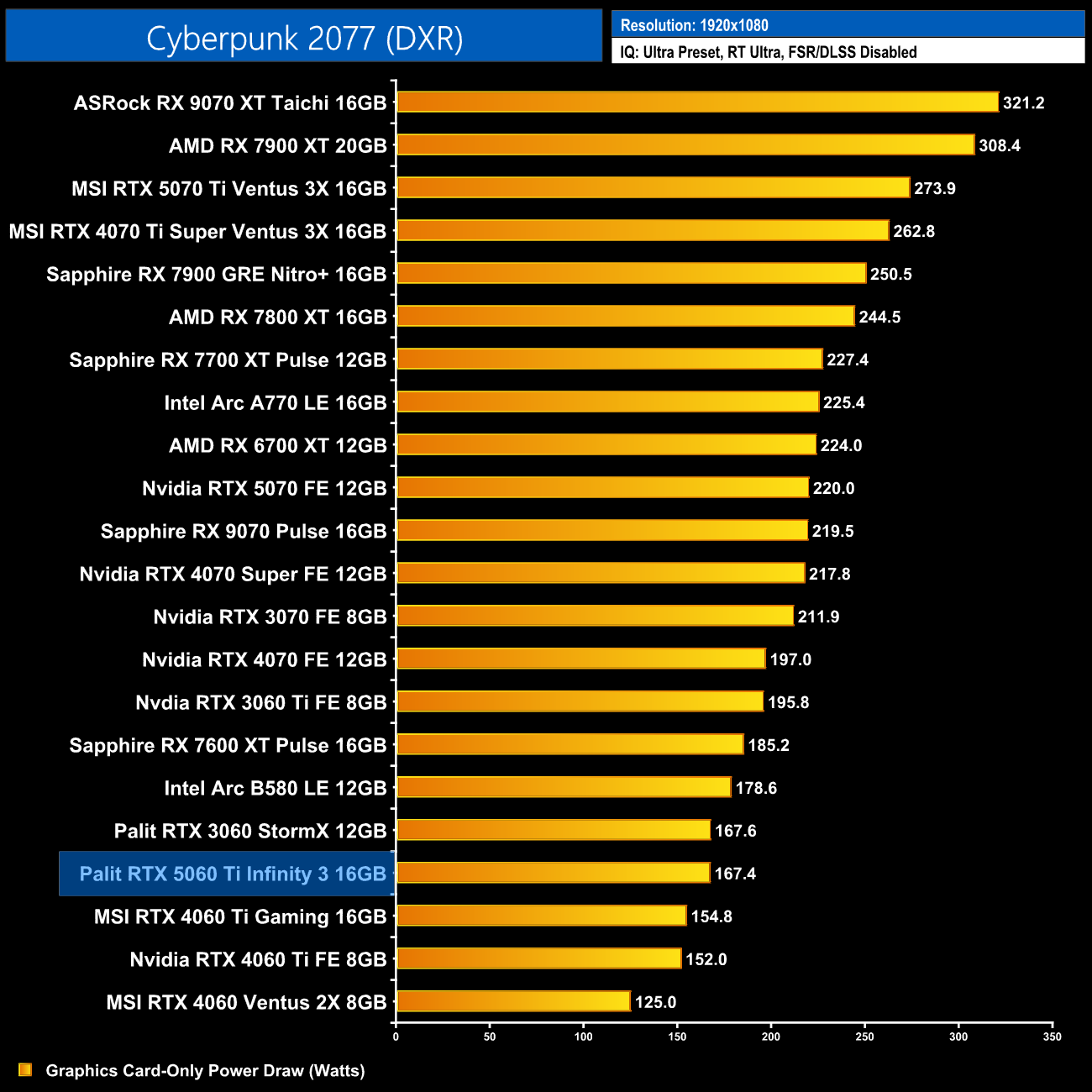

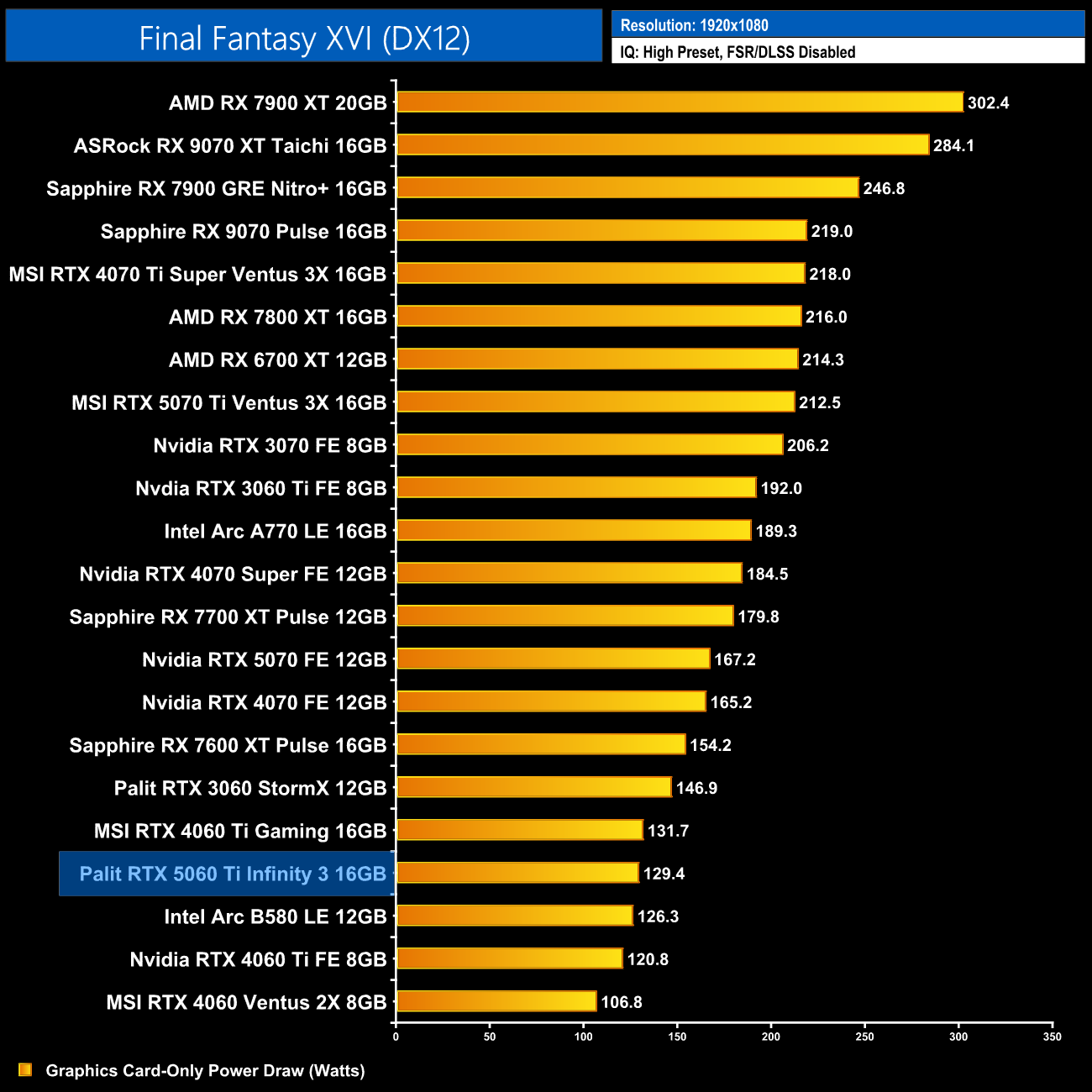

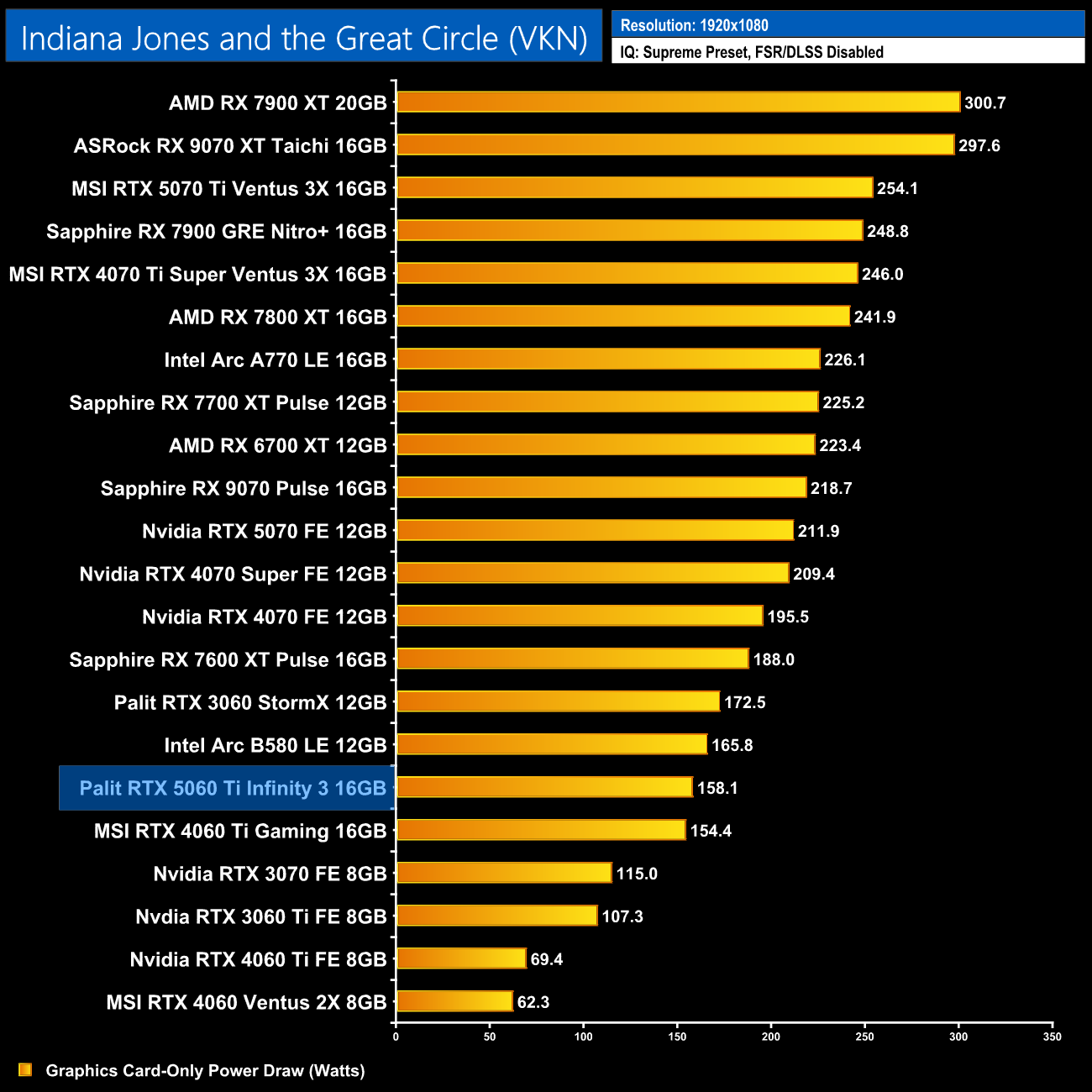

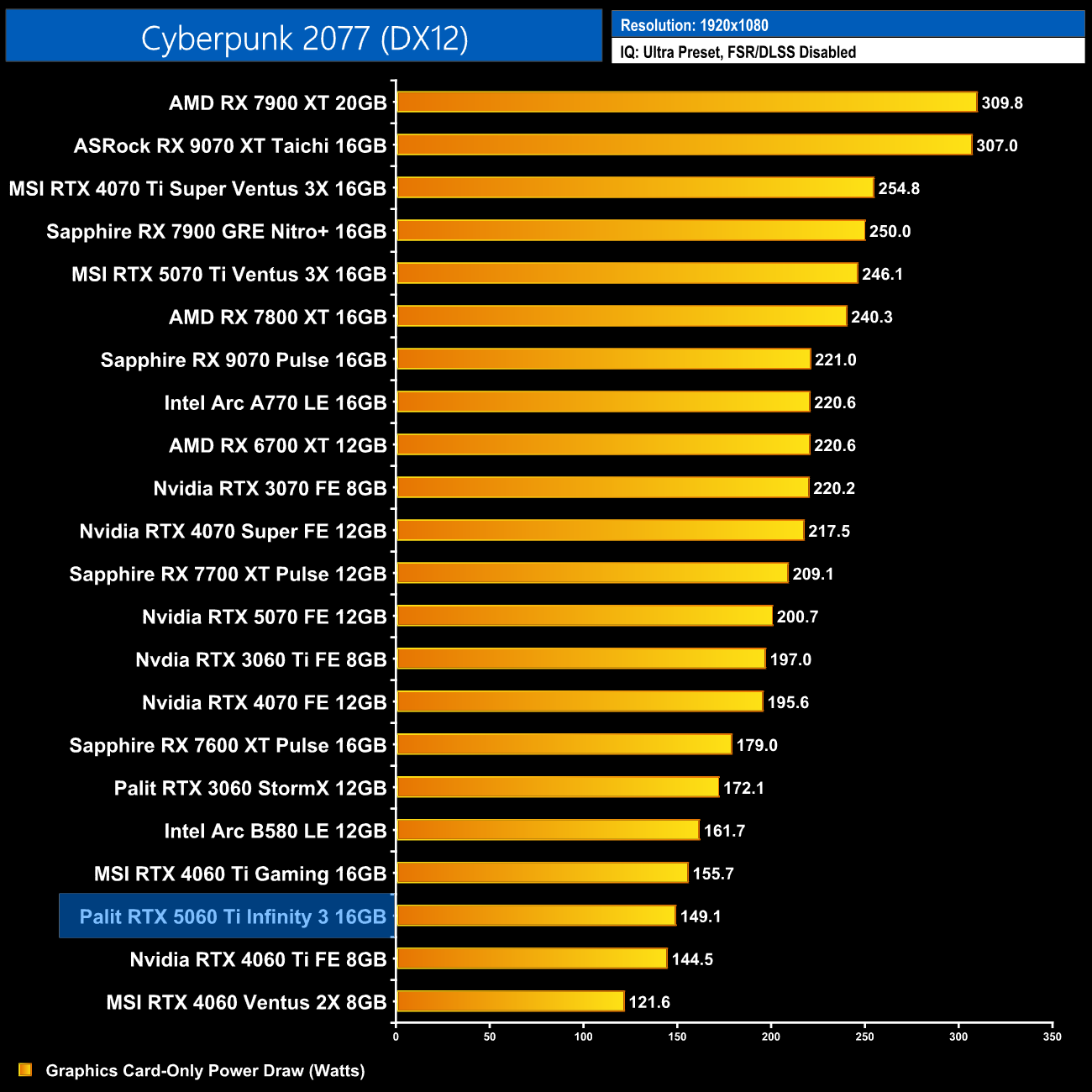

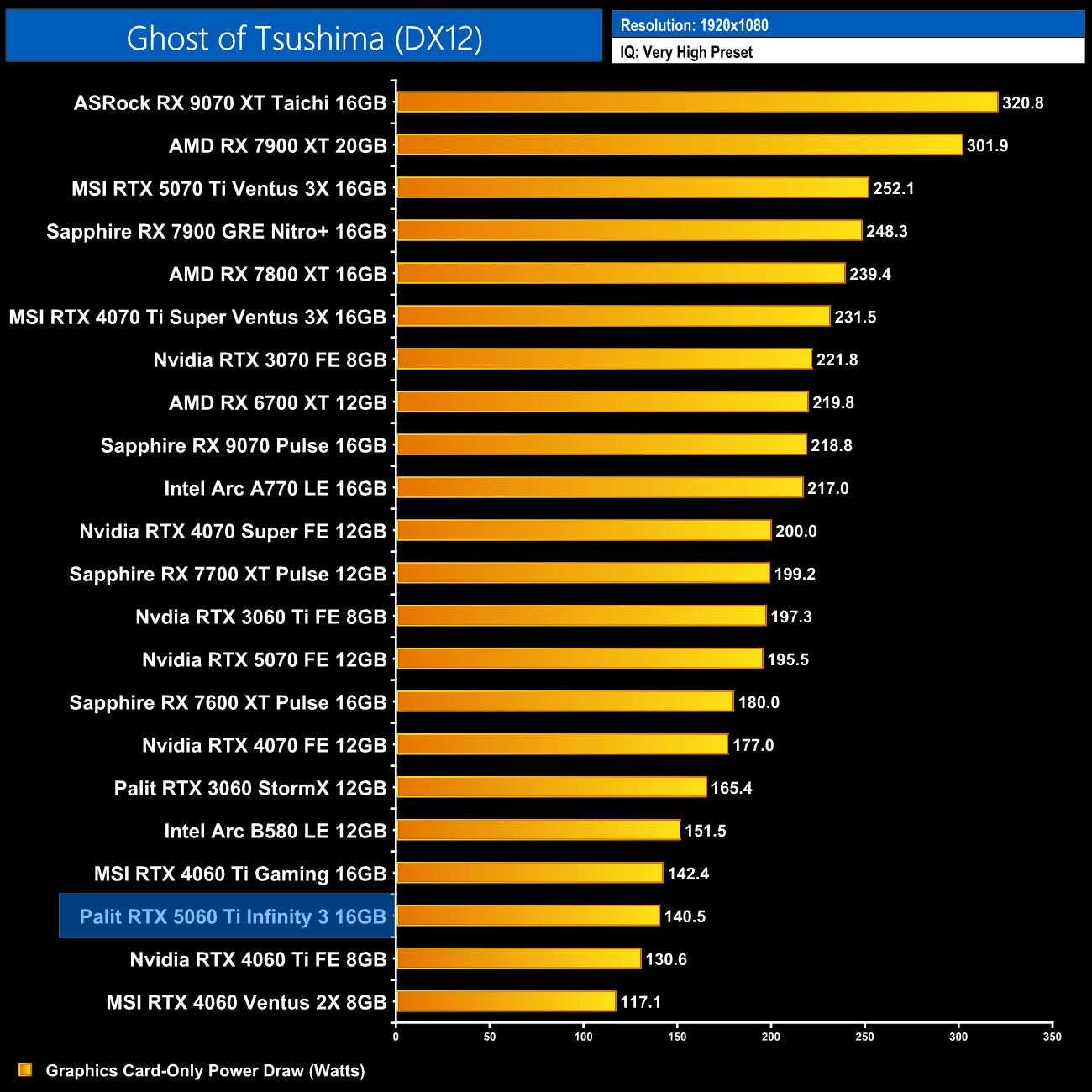

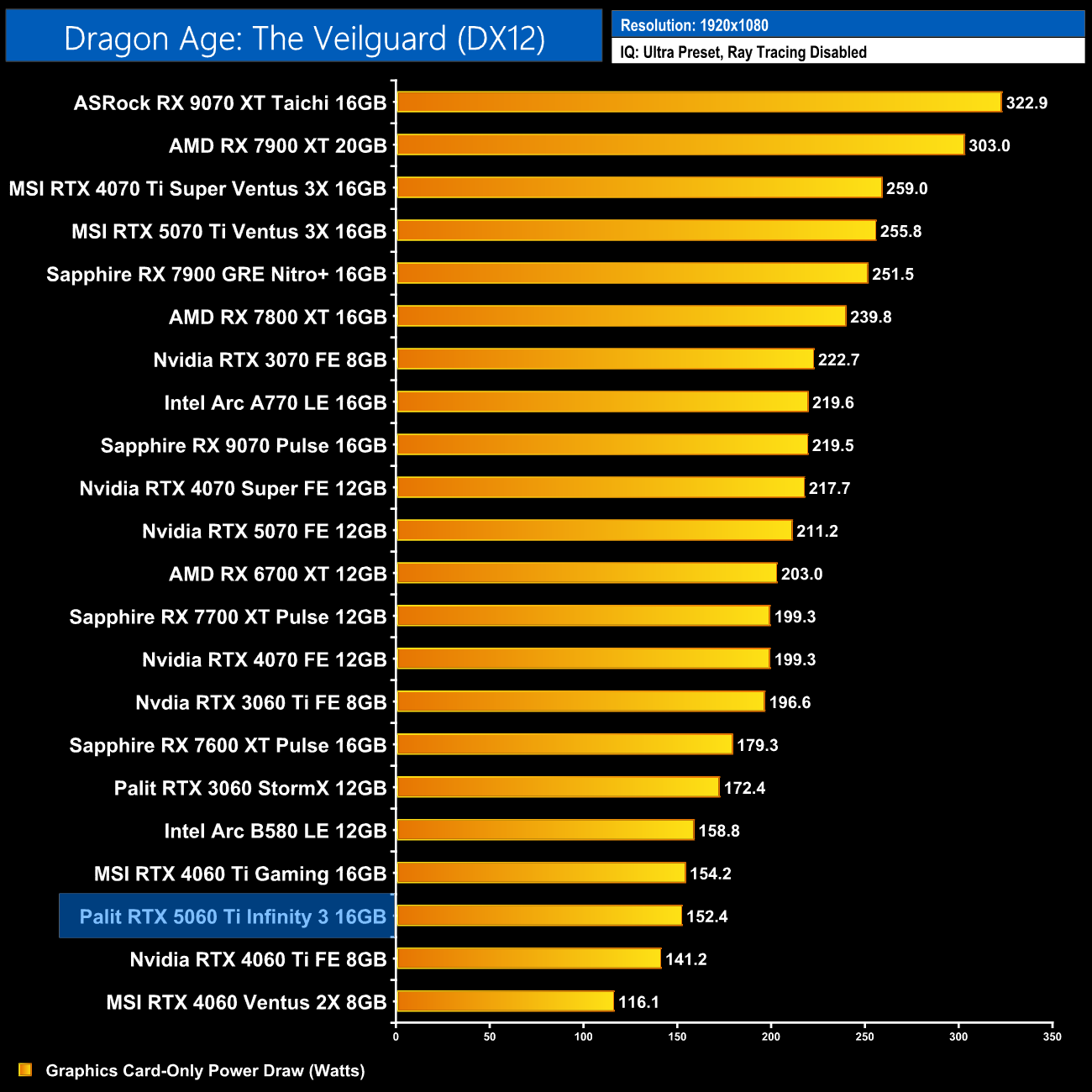

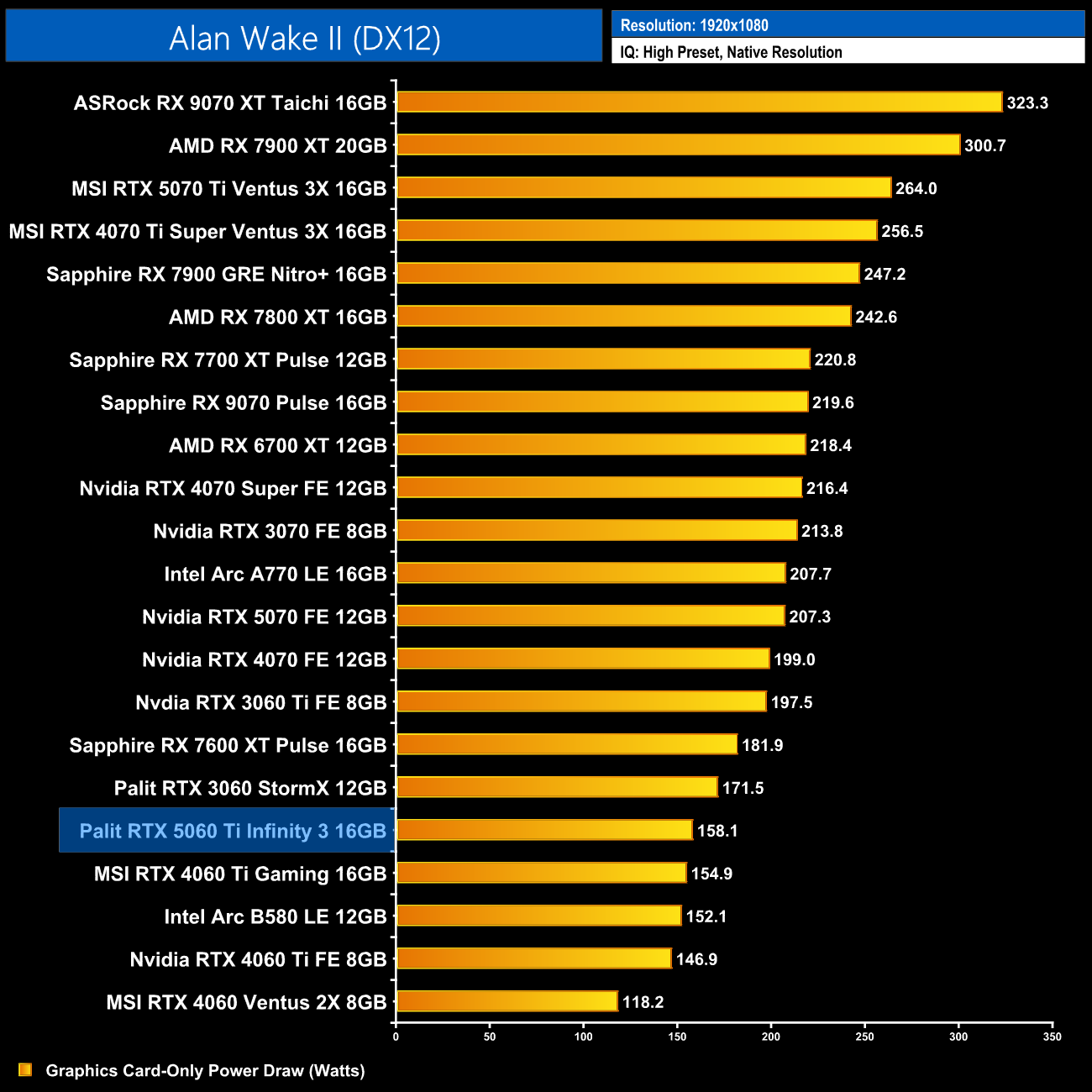

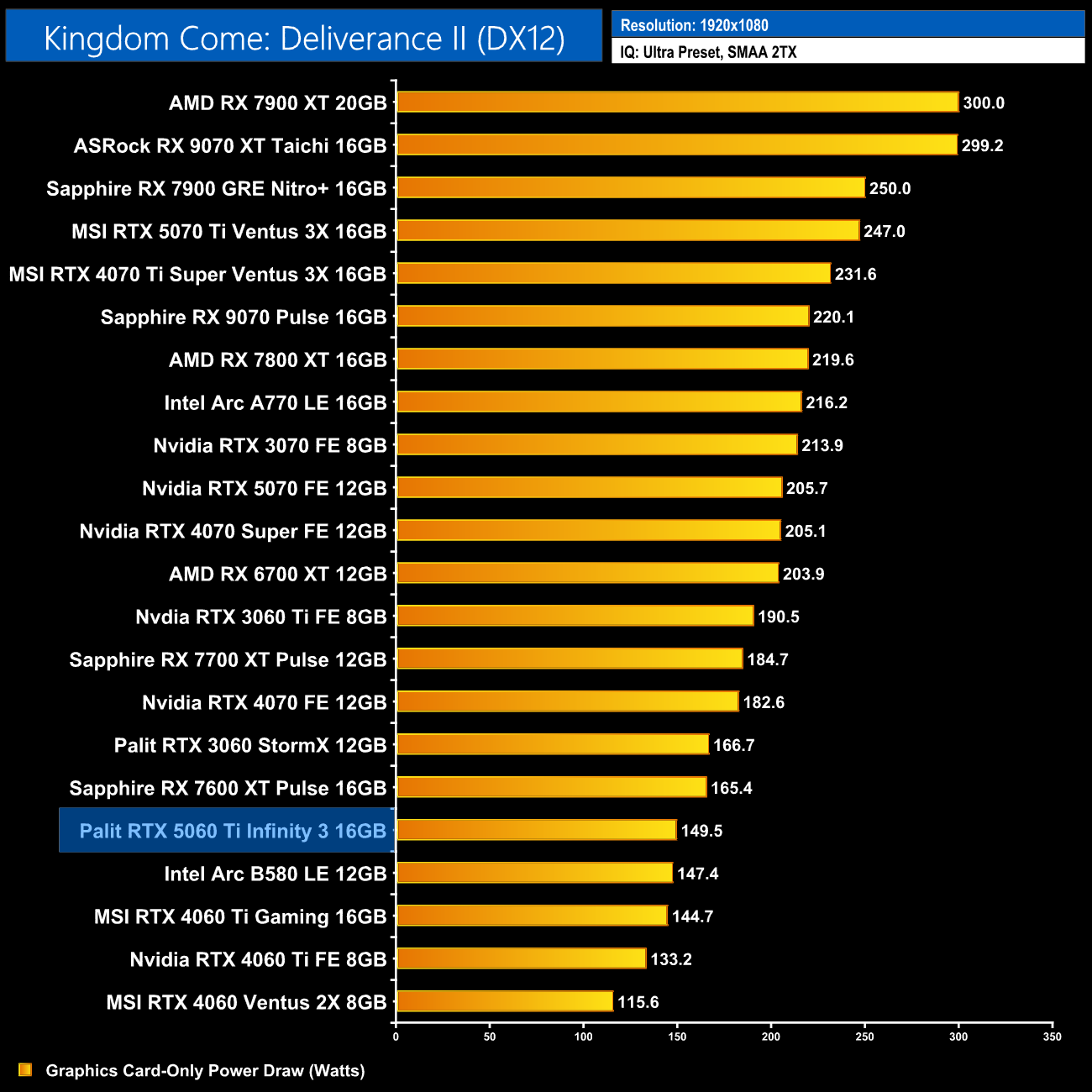

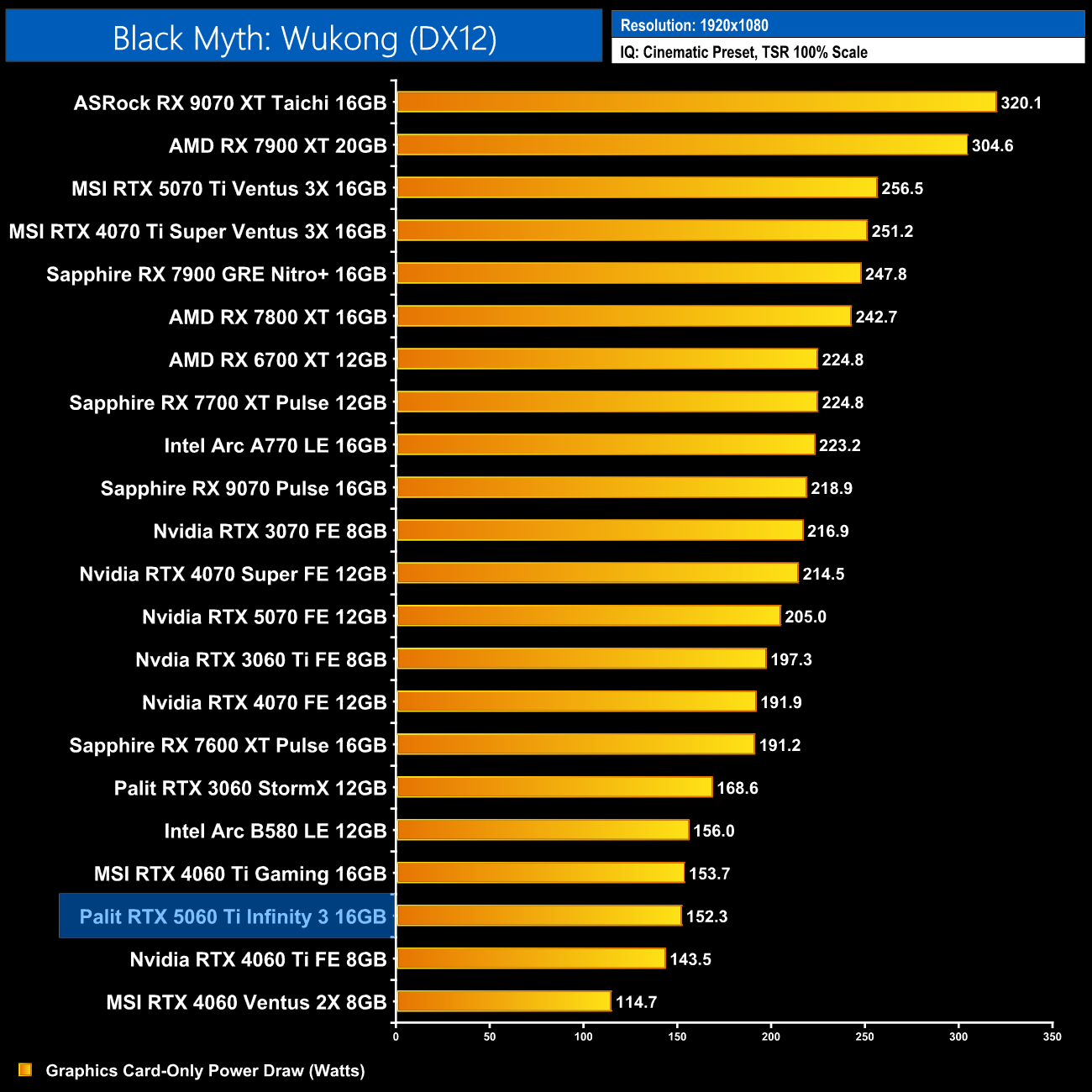

Per-Game Results at 1080p:

Click to enlarge.

12-Game Average at 1080p:

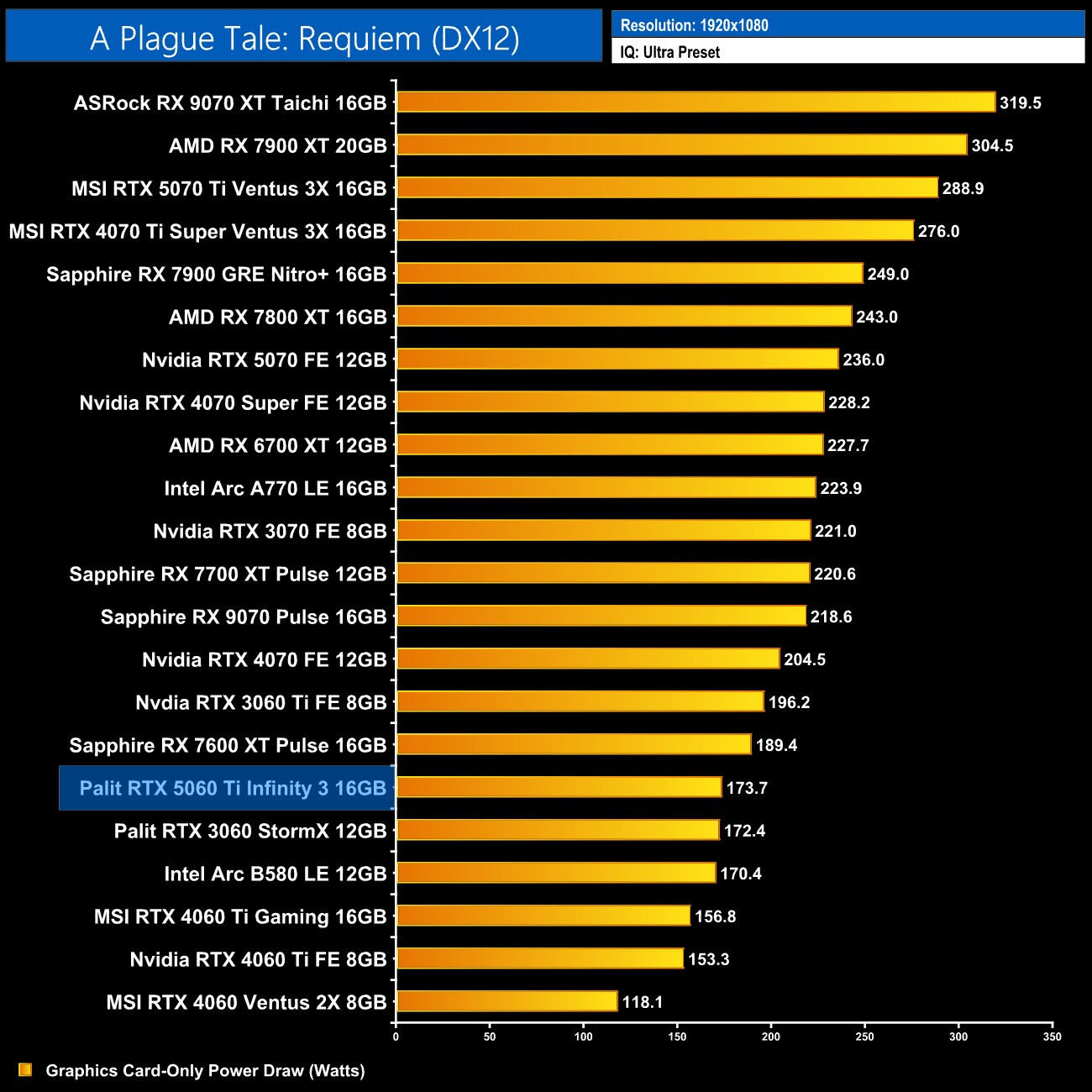

As for power draw, despite the RTX 5060 Ti 16GB having a rated TGP of 180W, in practice we saw power draw averaging just under 150W. The closest we came to the 180W figure was 174W in A Plague: Tale Requiem, but overall demands are very reasonable and easily dealt with by a single 8-pin connector.

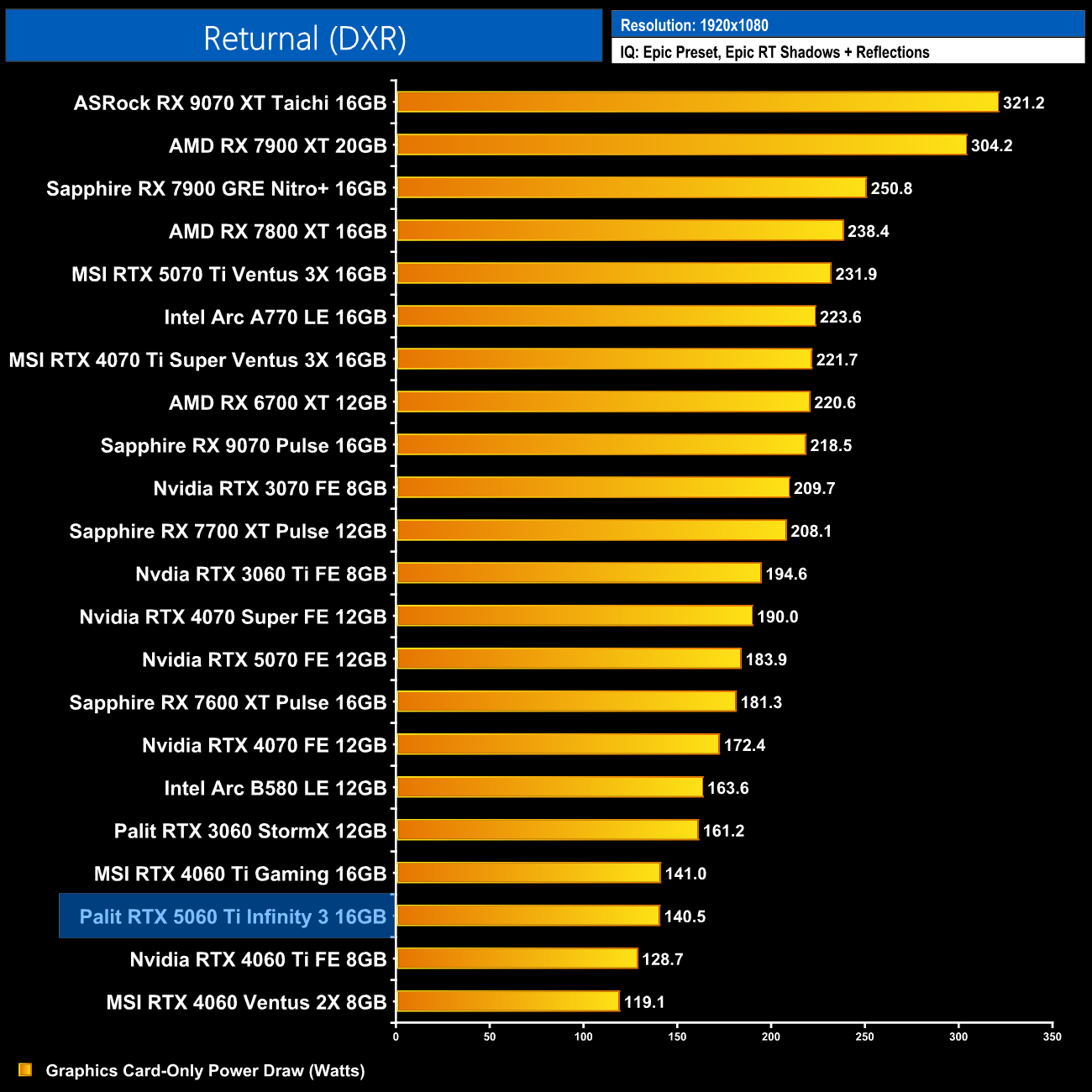

Ray tracing results

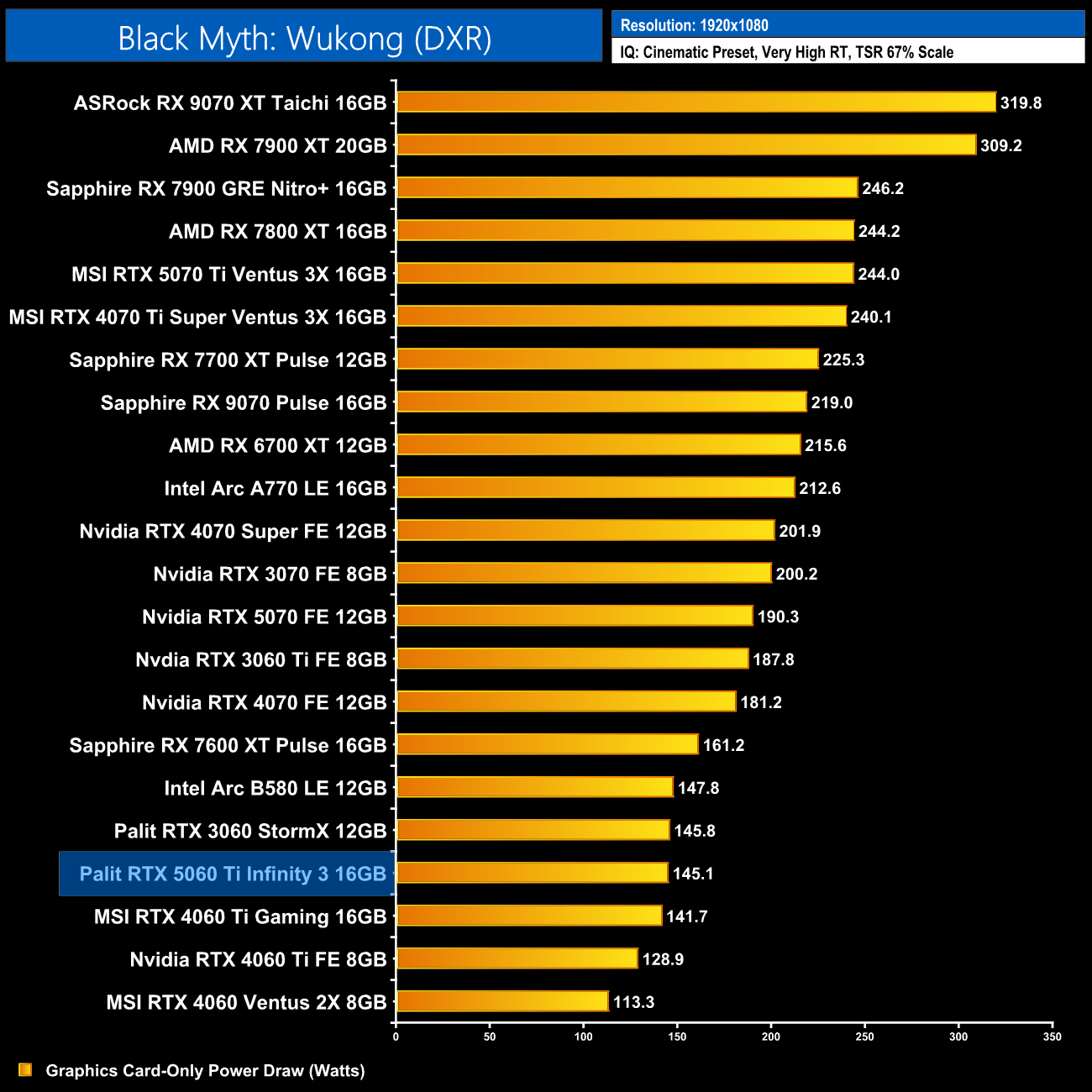

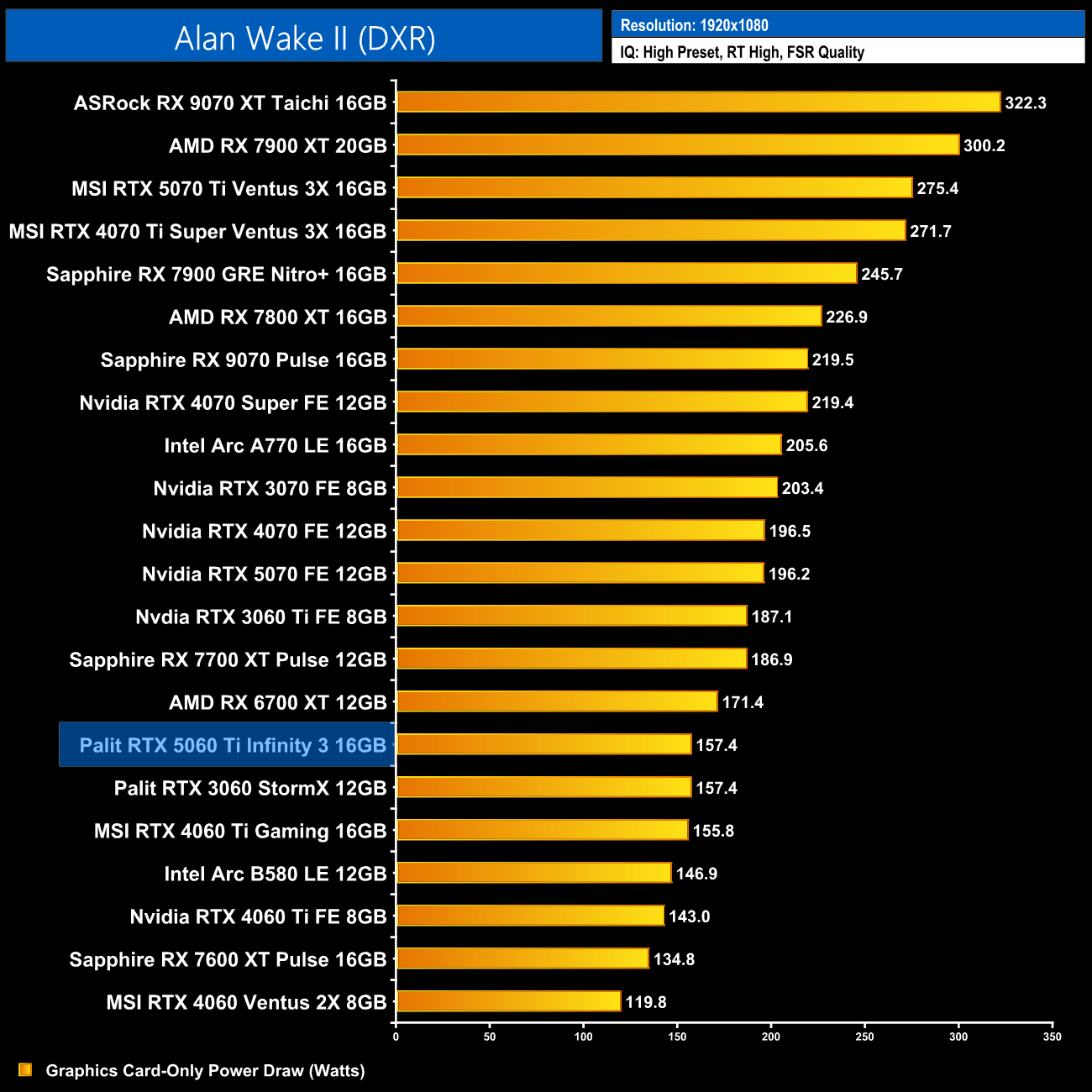

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

8-Game ray tracing average:

The same goes for ray tracing – we averaged 153W, so just a 4W increase over our rasterisation figures.
