Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

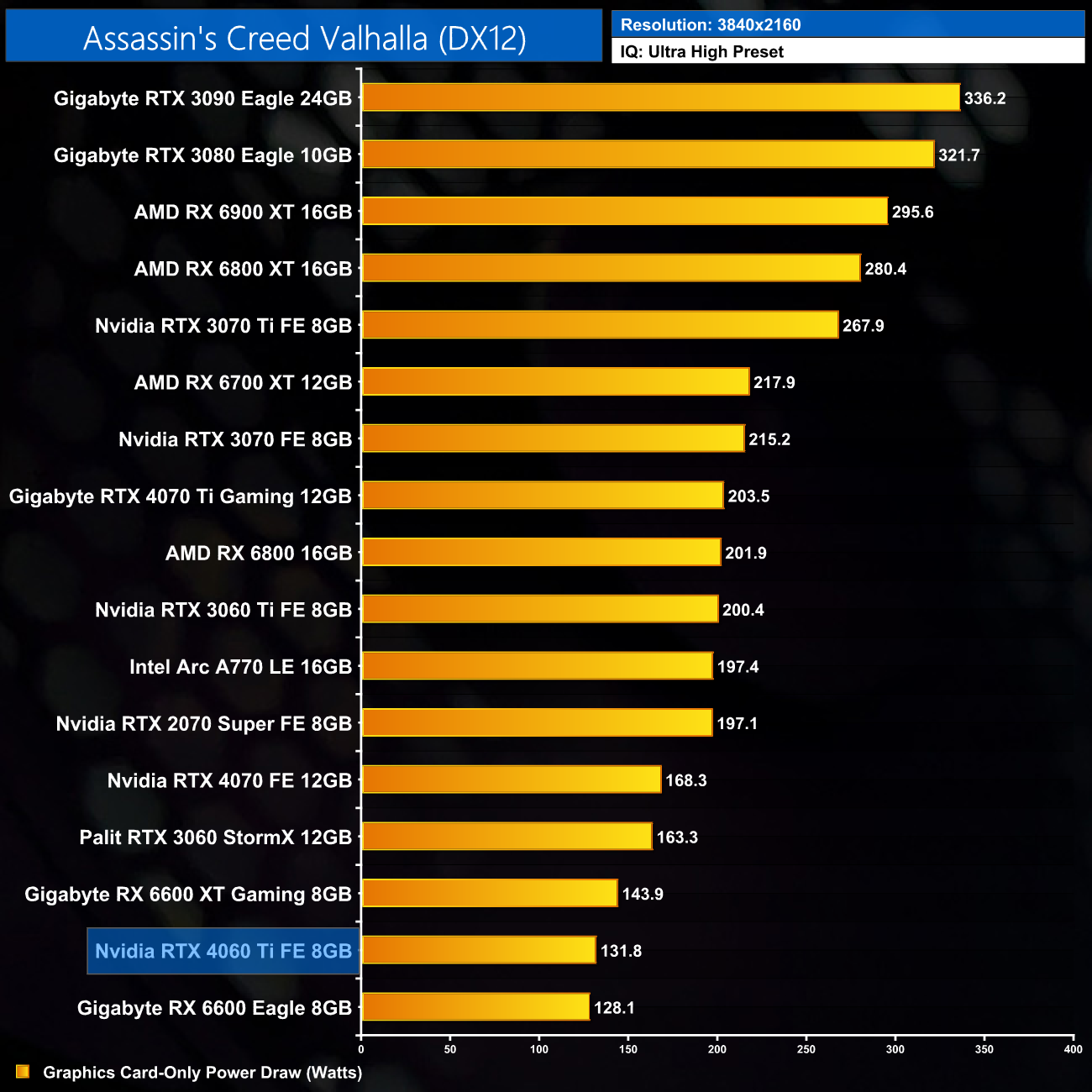

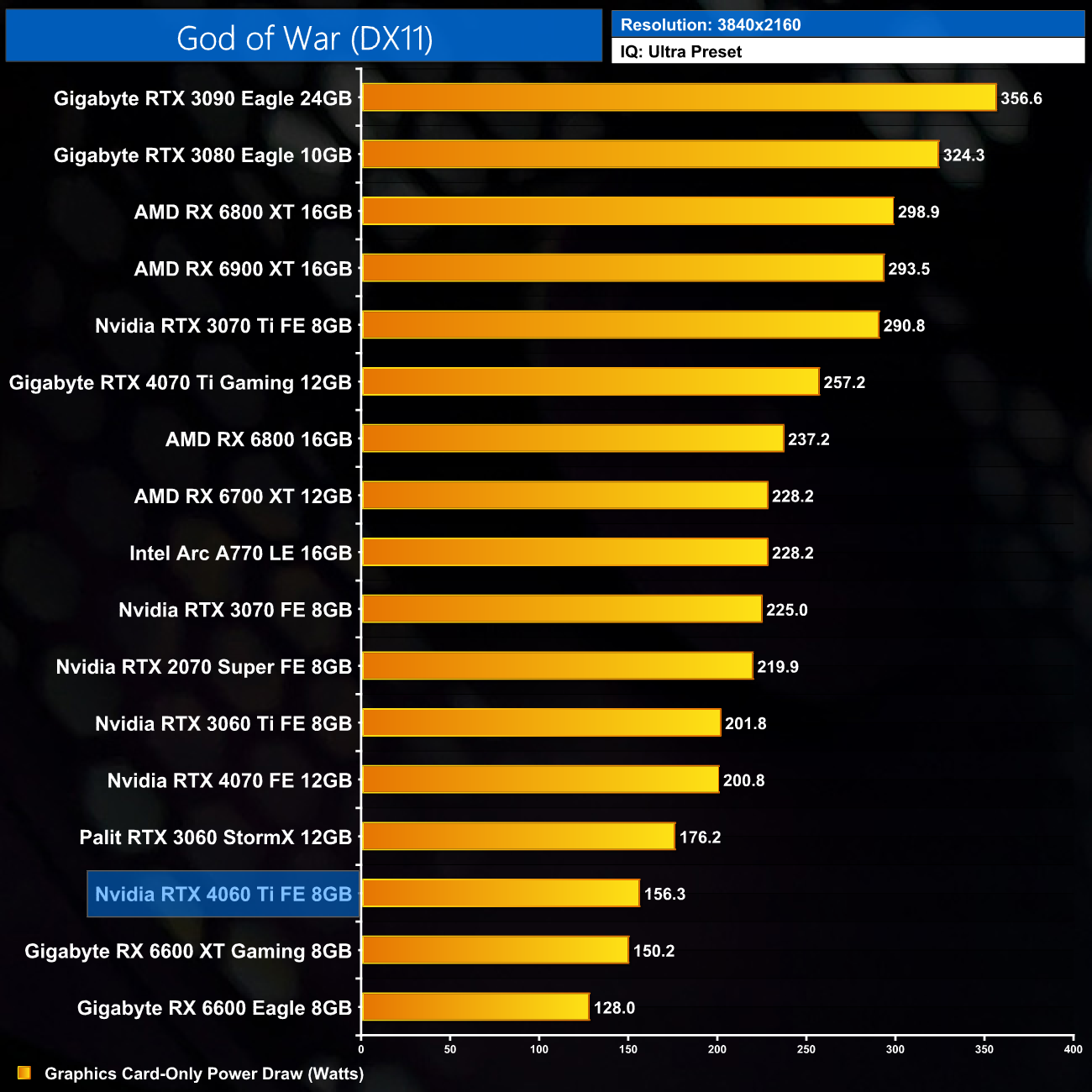

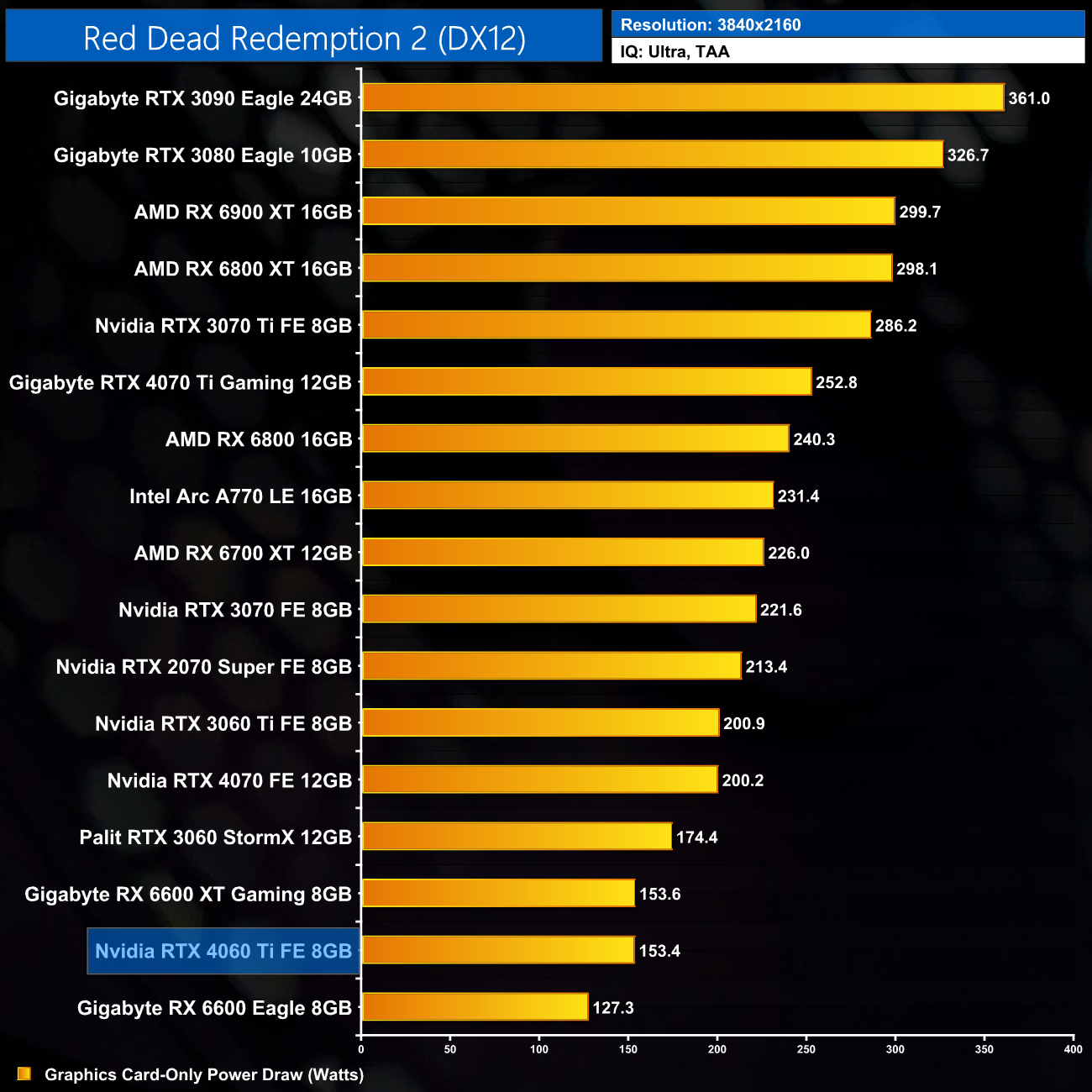

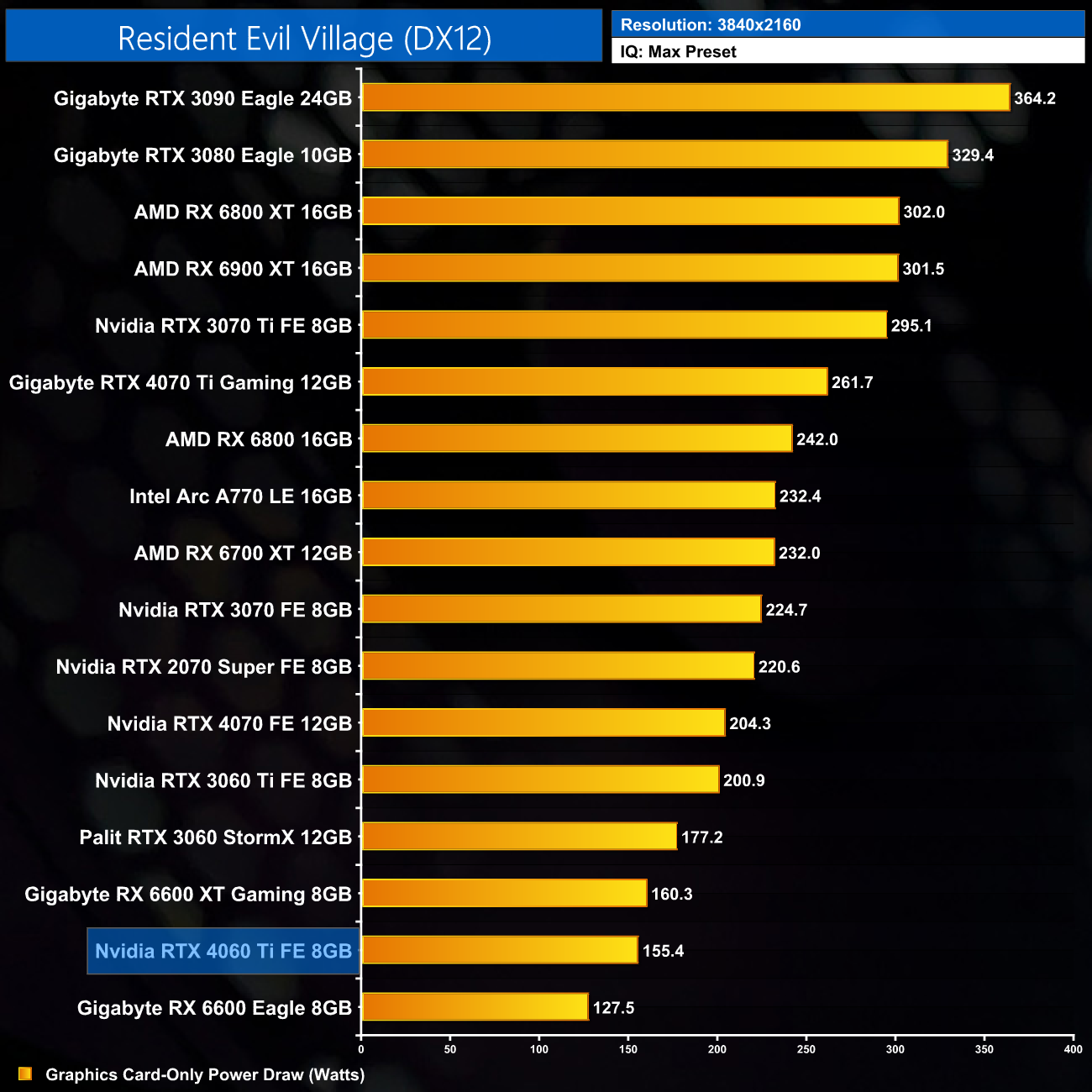

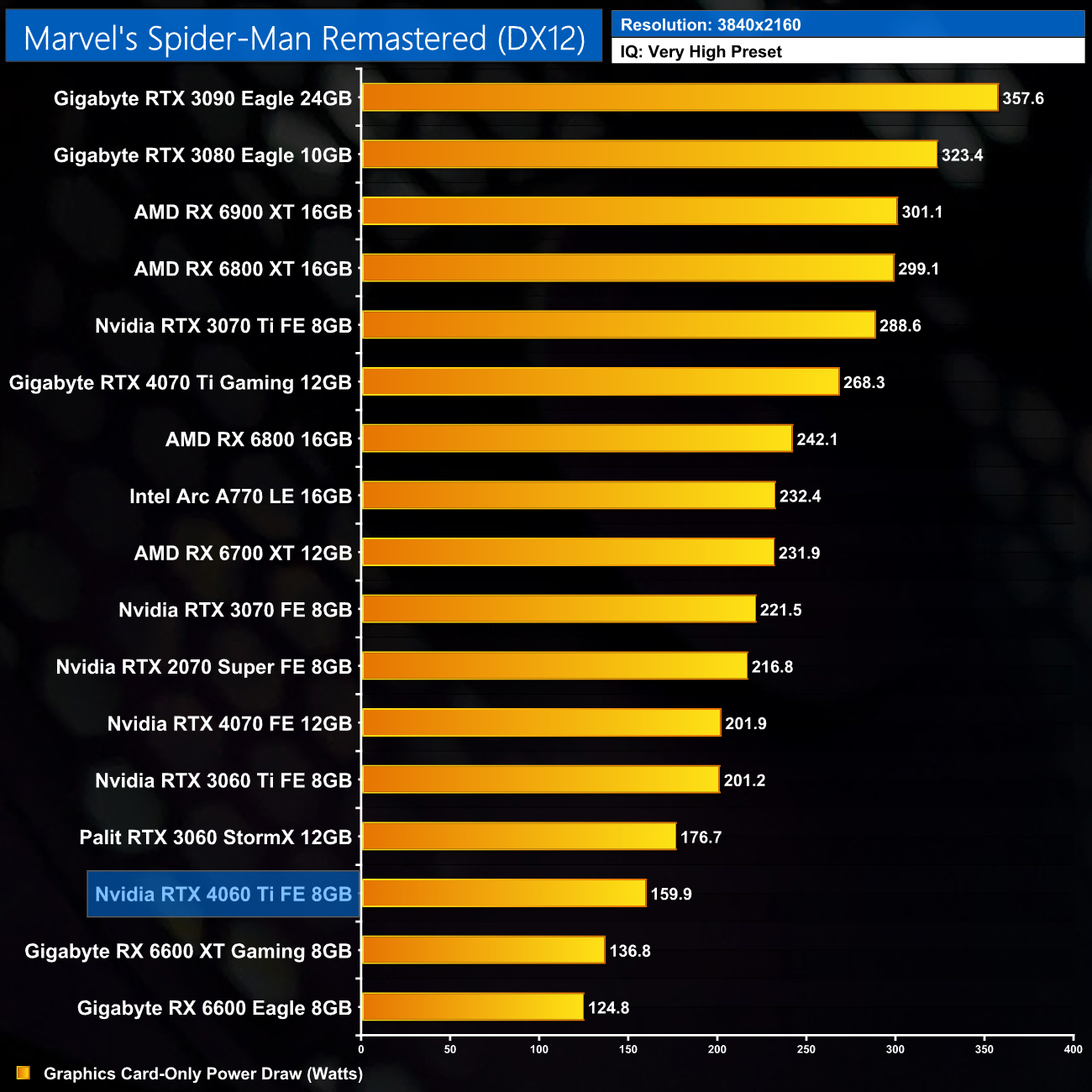

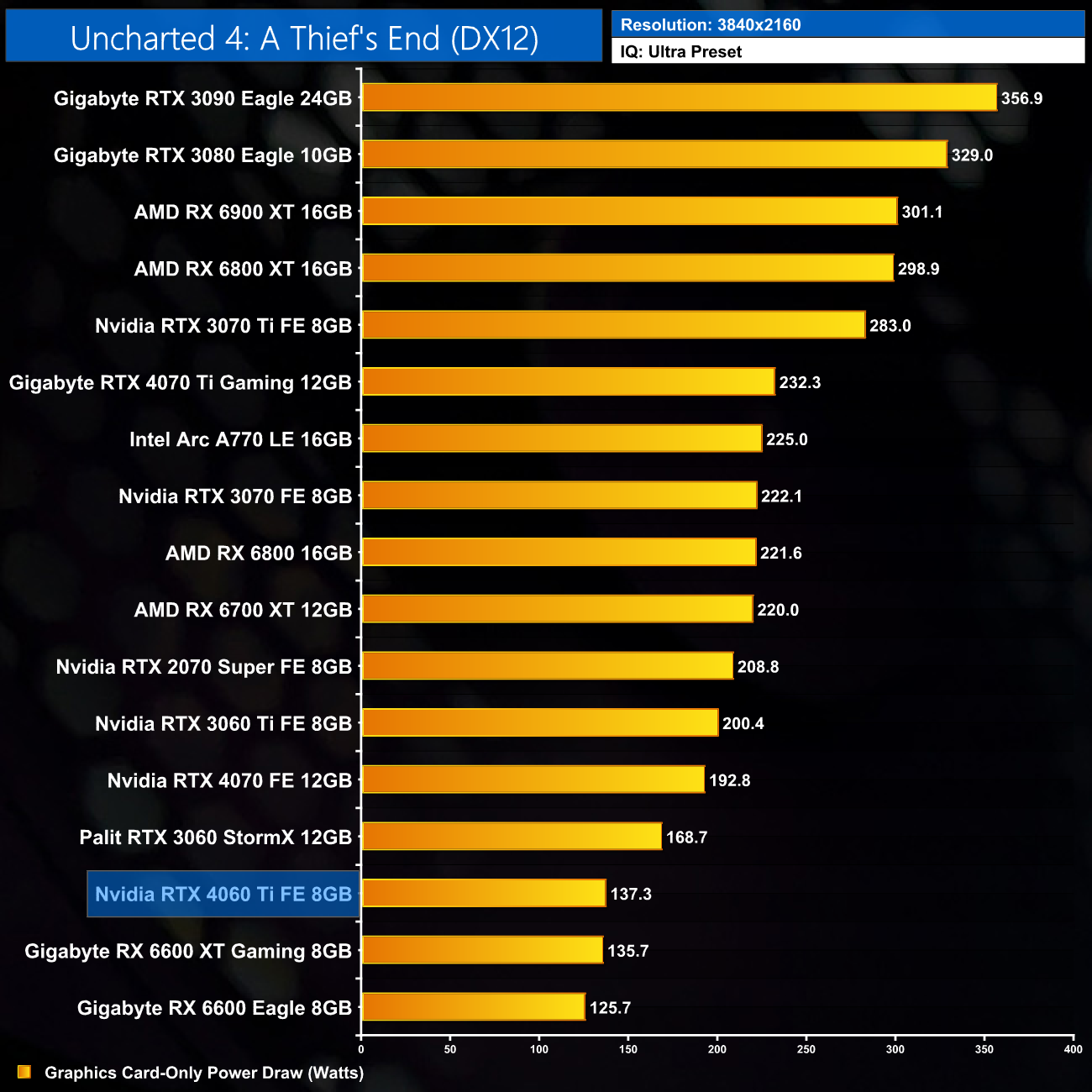

Per-Game Results at 2160p (4K):

Click to enlarge.

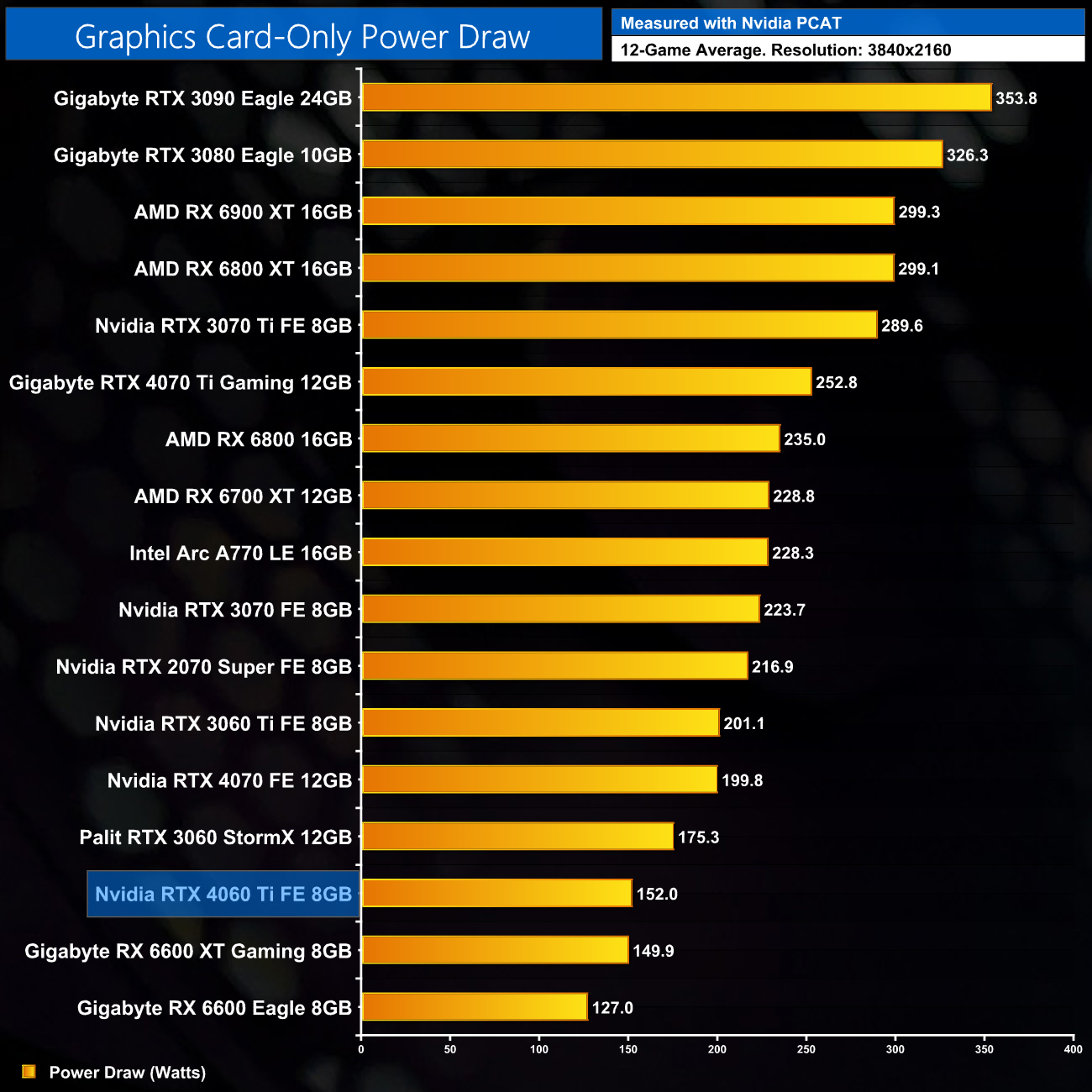

12-Game Average at 2160p (4K):

Finally, up at 4K, we see a new average of 152W power draw for the RTX 4060 Ti – even at UHD, it's not reaching the 160W TGP.

Ray tracing results

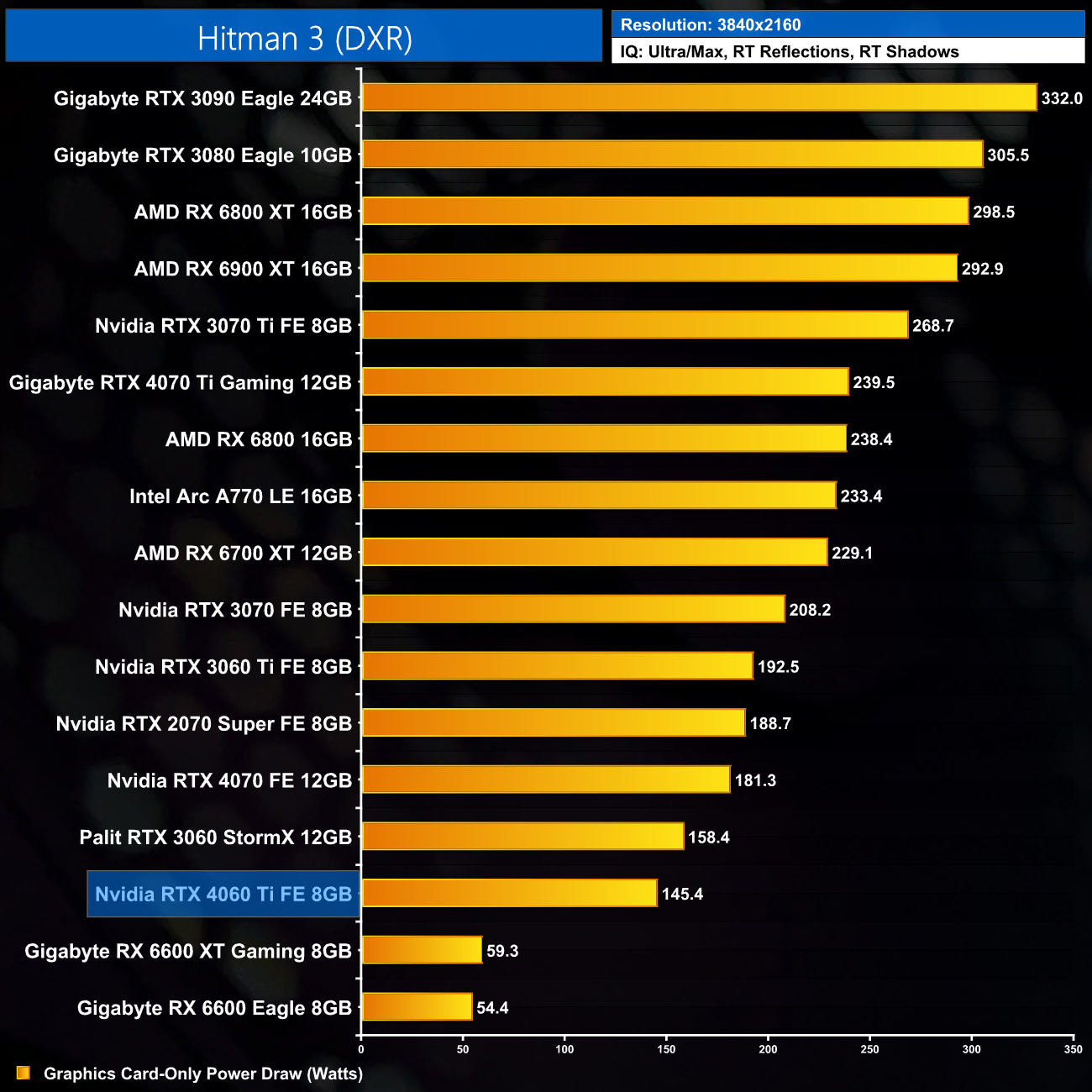

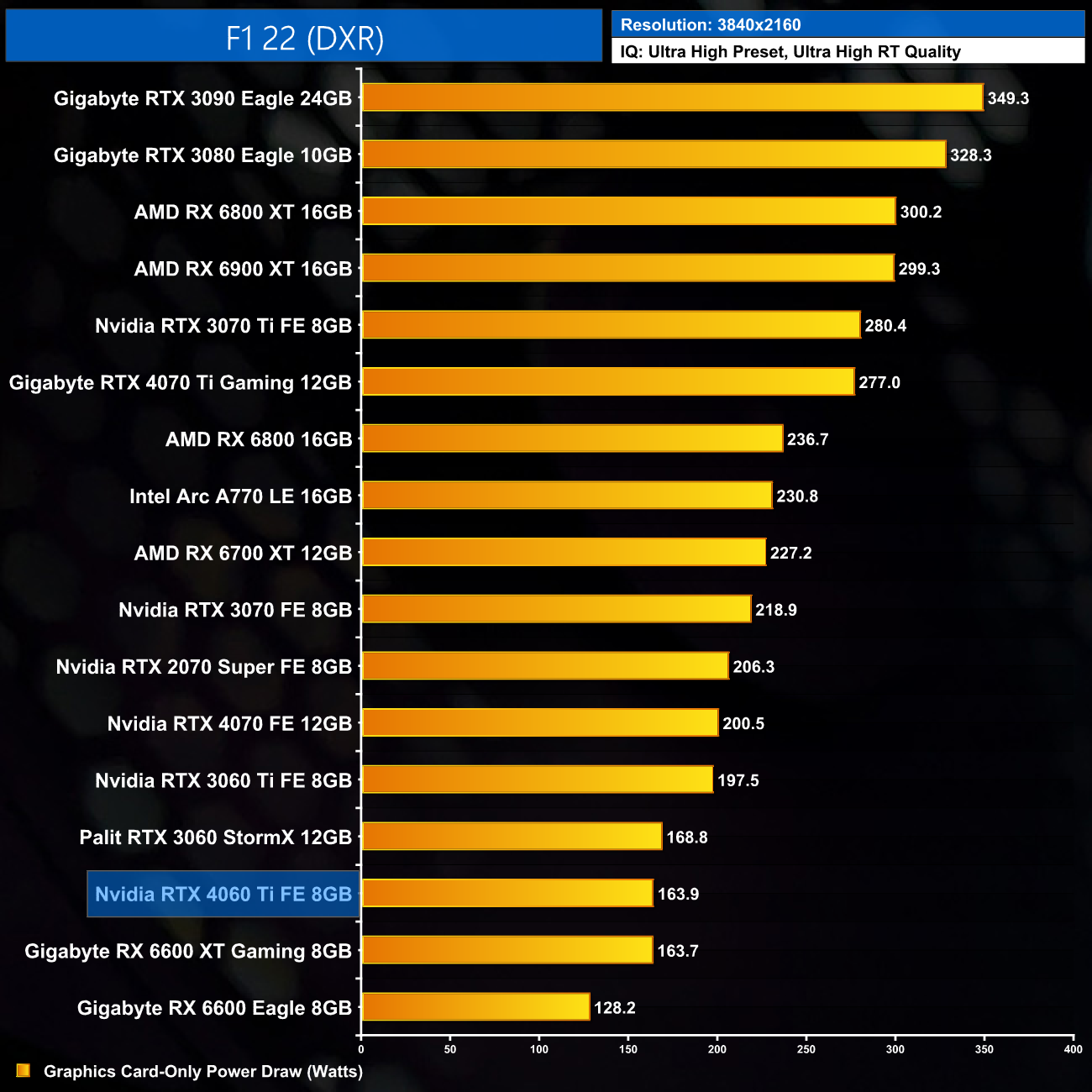

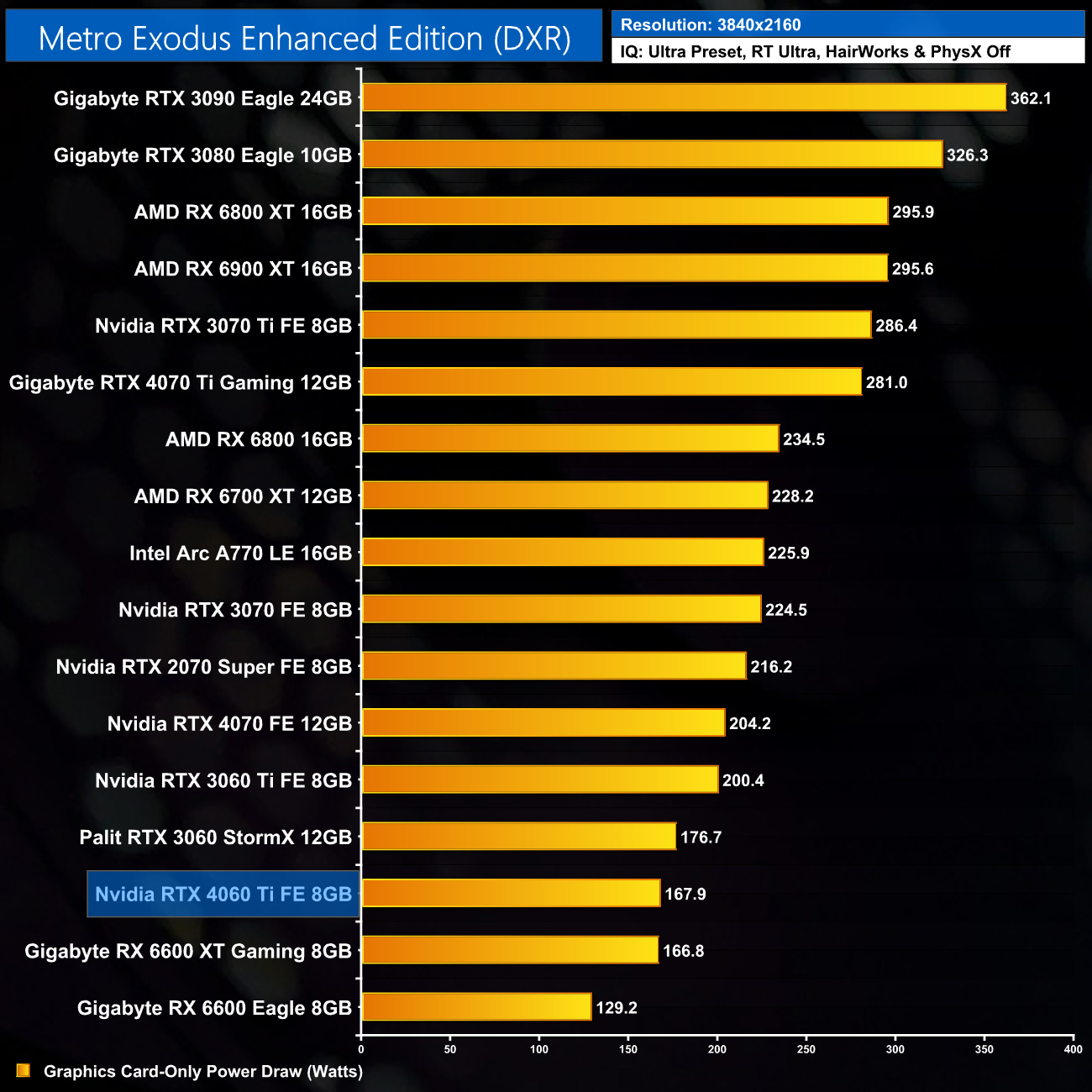

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

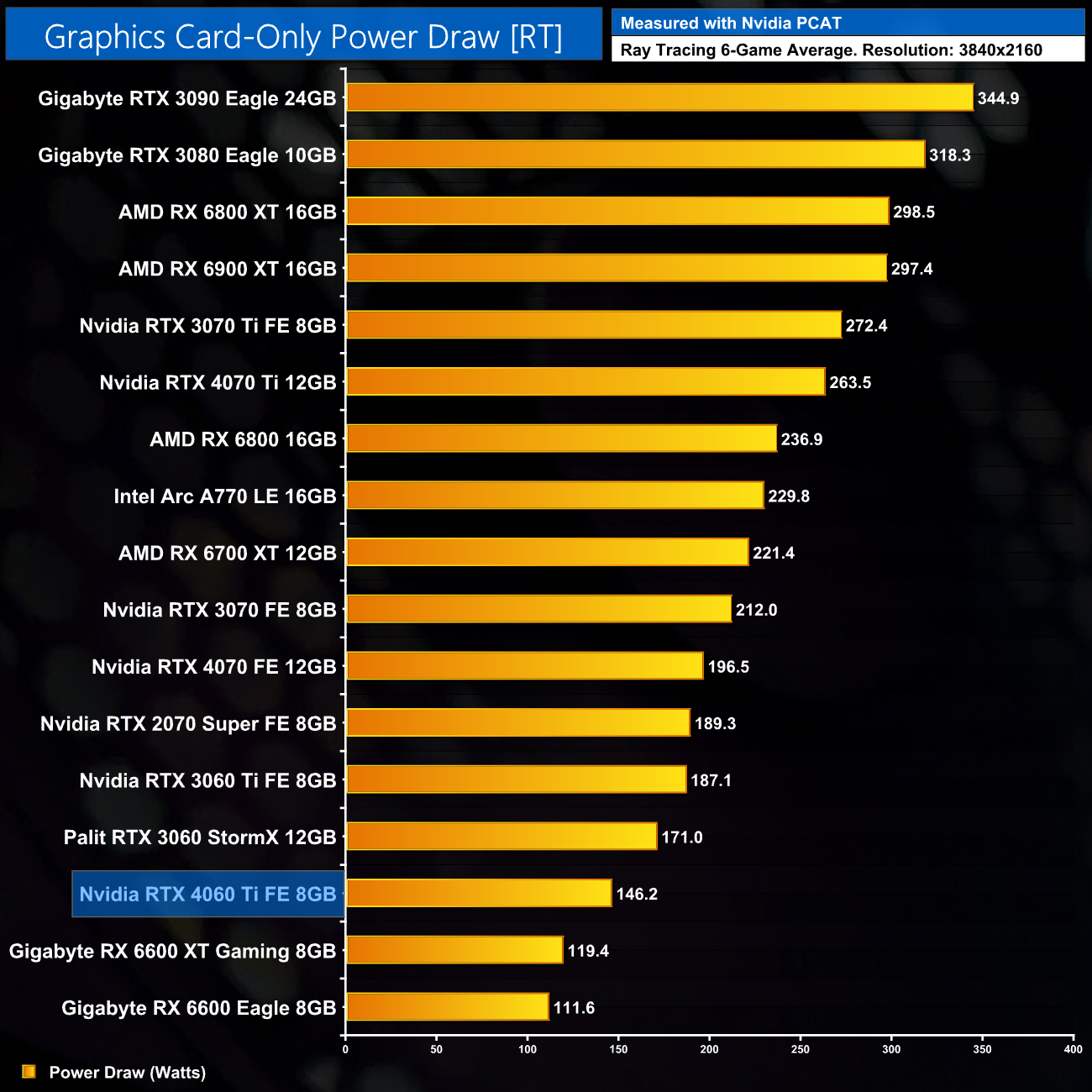

6-Game ray tracing average:

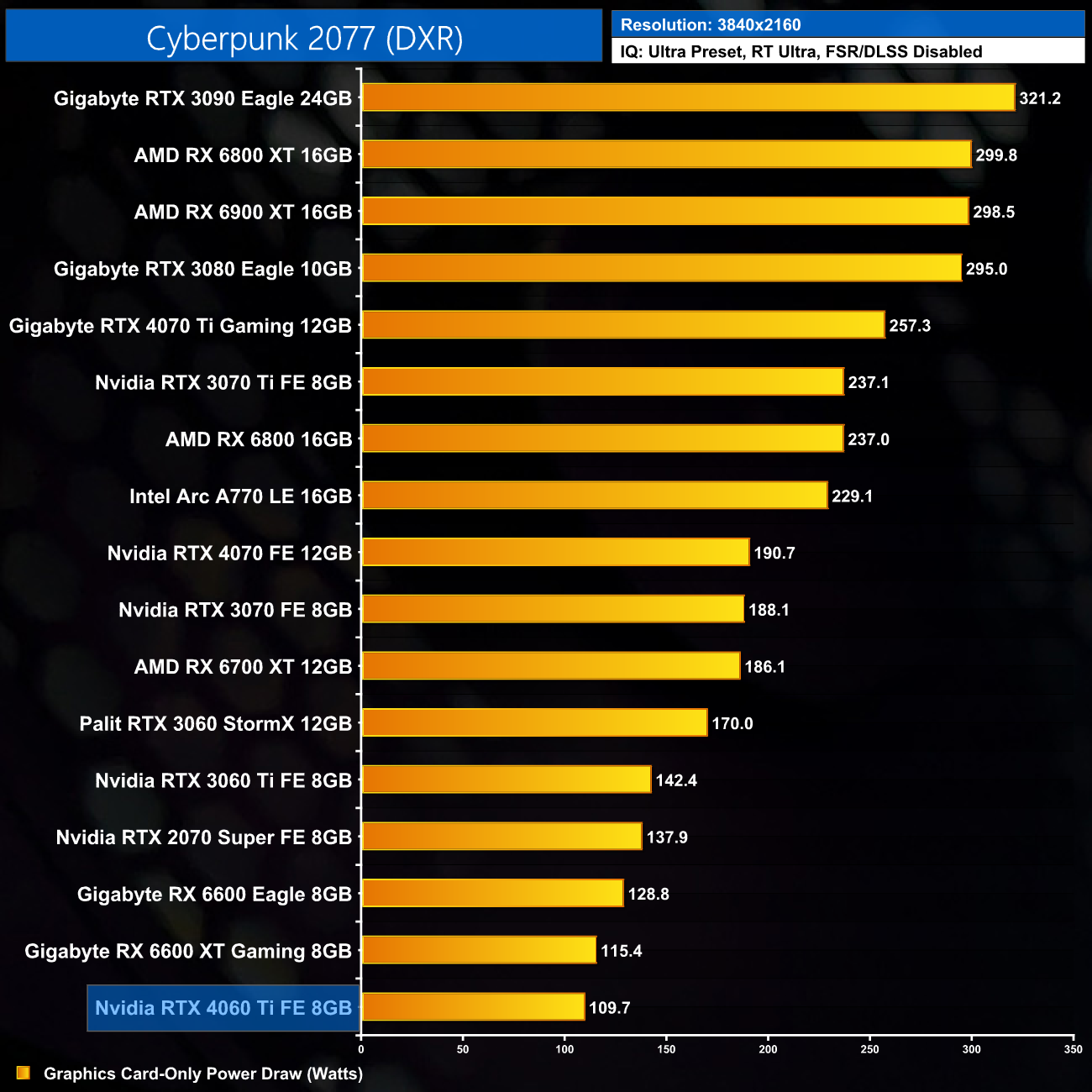

The ray traced result is actually slightly lower than the raster figure, with Cyberpunk 2077 bringing down the average – the game is just too heavy for the 4060 Ti to cope at 4K with Ultra ray tracing, leading to a performance slow down (just 7FPS avg as shown earlier) and therefore lower power as the GPU stalls.
