Gigabyte RX 5600 XT Gaming OC 6G Review

1. Introduction2. Gigabyte RX 5600 XT Gaming OC3. Testing Methodology4. 3DMark Fire Strike & Time Spy (1080p, 1440p, 4K)5. Battlefield V (1080p, 1440p, 4K)6. The Division 2 (1080p, 1440p, 4K)7. F1 2019 (1080p, 1440p, 4K)8. Far Cry New Dawn (1080p, 1440p, 4K)9. Gears 5 (1080p, 1440p, 4K)10. Ghost Recon: Breakpoint (1080p, 1440p, 4K)11. Metro Exodus (1080p, 1440p, 4K)12. Middle Earth: Shadow of War (1080p, 1440p, 4K)13. Red Dead Redemption 2 (1080p, 1440p, 4K)14. Shadow of the Tomb Raider (1080p, 1440p, 4K)15. Total War: Three Kingdoms (1080p, 1440p, 4K)16. Clock Speed17. Temperatures18. Acoustics19. Power Consumption20. Overclocking: Frequency and Games21. Closing Thoughts22. View All Pages

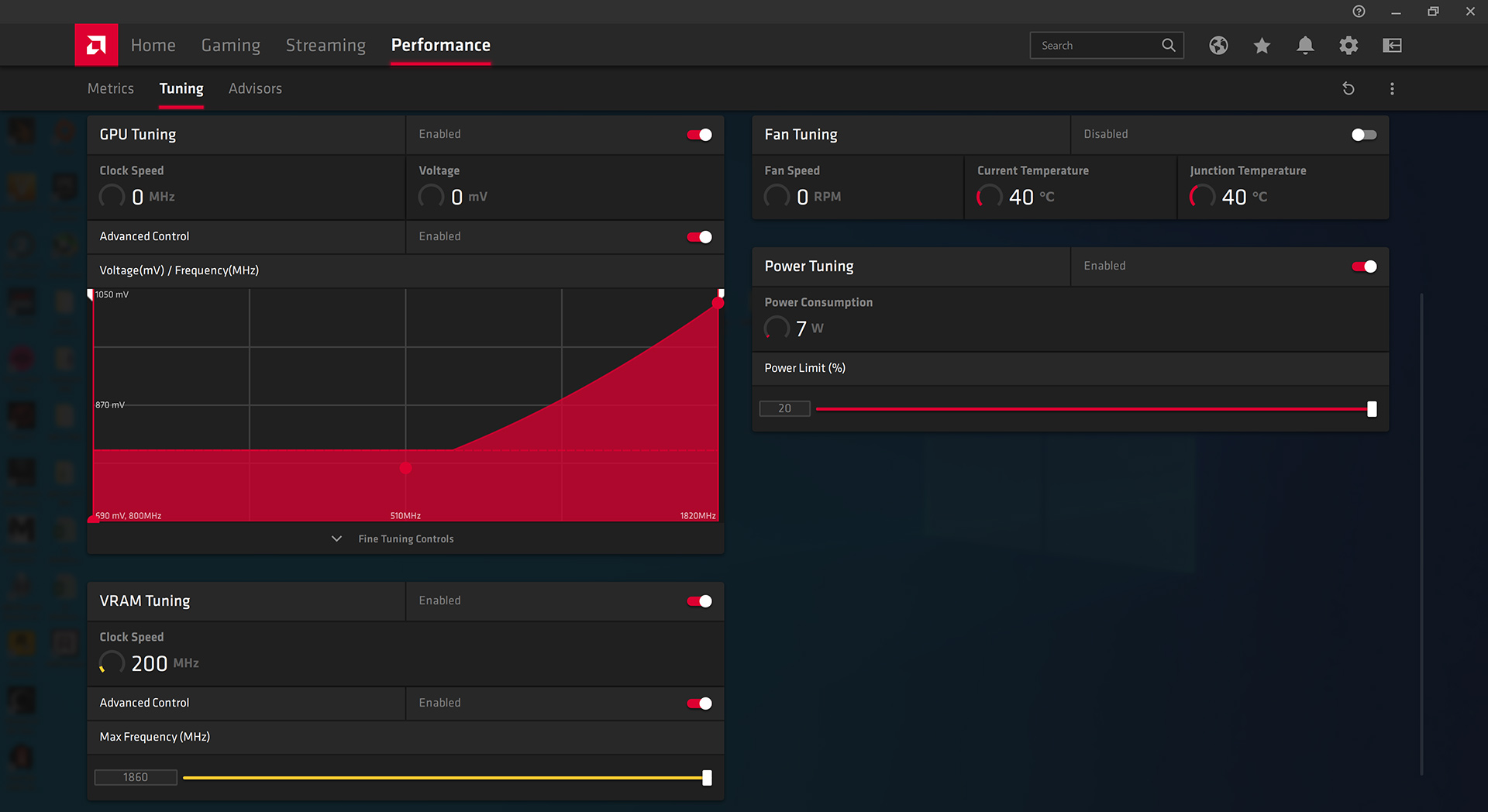

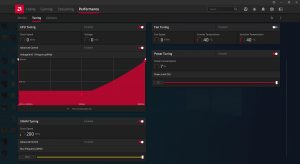

Manually overclocking the 5600 XT is very easy, simply because of the frequency limits within AMD's software. In a nutshell, we could maximise both the GPU and memory frequency sliders with no issues, while also raising the power limit to its maximum for good measure.

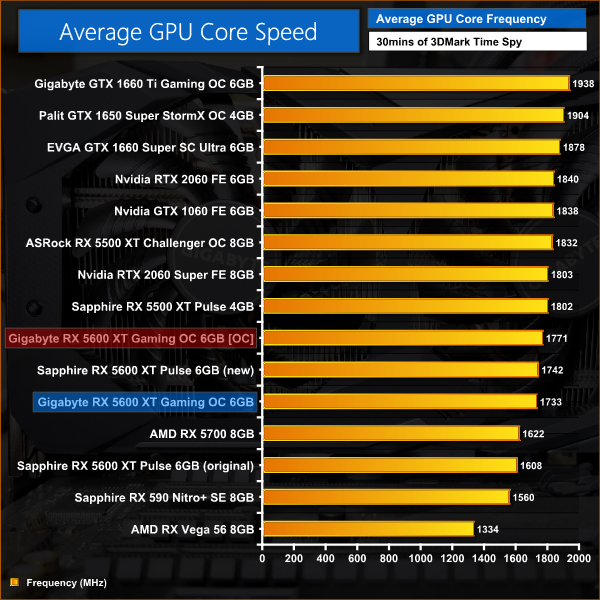

Average clock speed under load

This saw the card's average frequency under load increase by just under 40MHz, so no great shakes there.

Games

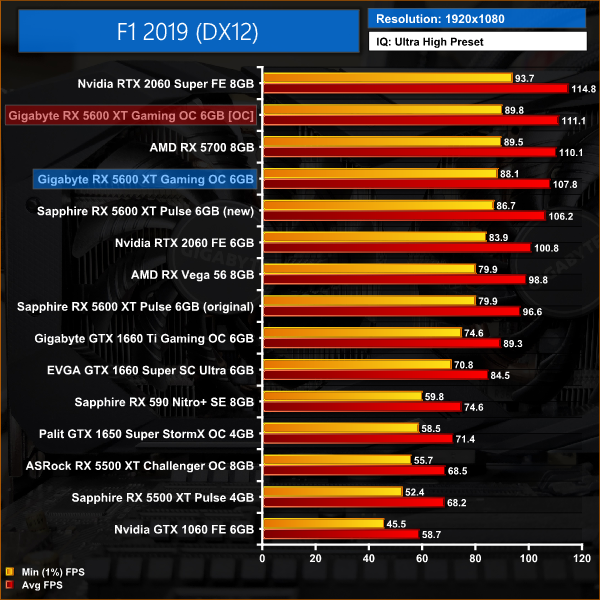

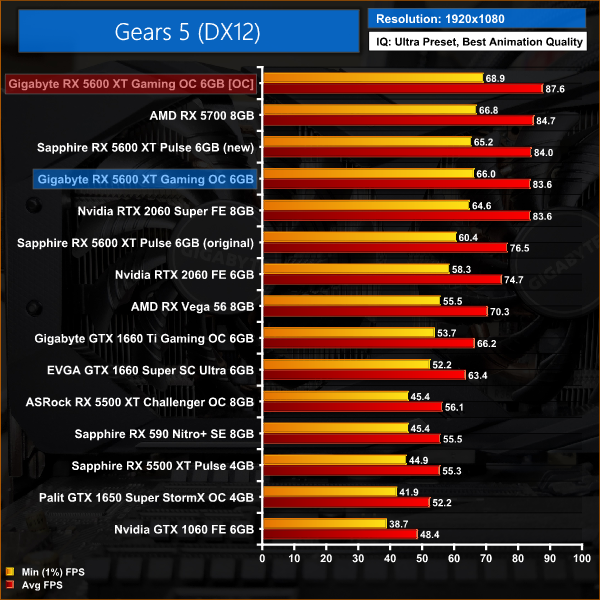

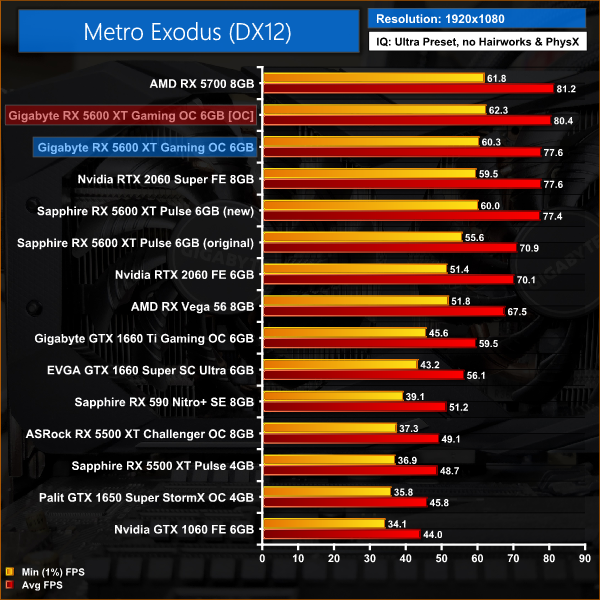

As you might expect, we didn't see big gains from applying this overclock – the performance boost was just 3% in F1 2019, for instance. Metro Exodus saw average FPS increase by 4%, while the 5% performance boost in Gears 5 was the biggest increase across our overclocked testing today.
