Here, we take a further look at the impact of our overclock, looking at the increased temperatures, acoustics, power draw, and lastly, the effect had on the average clock speed.

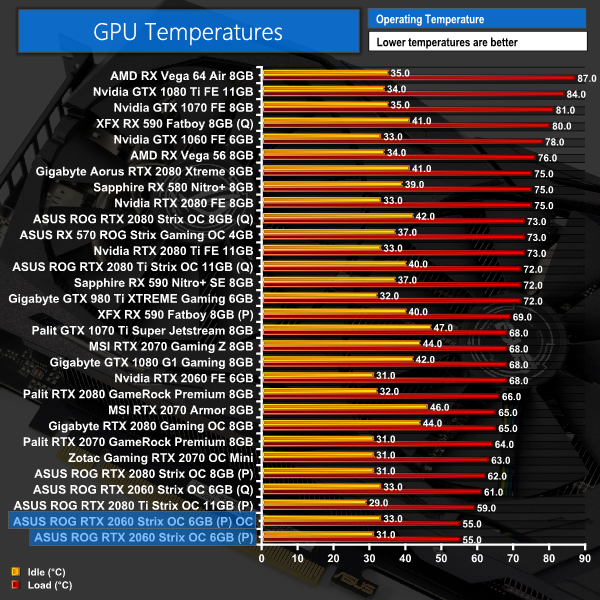

Temperatures

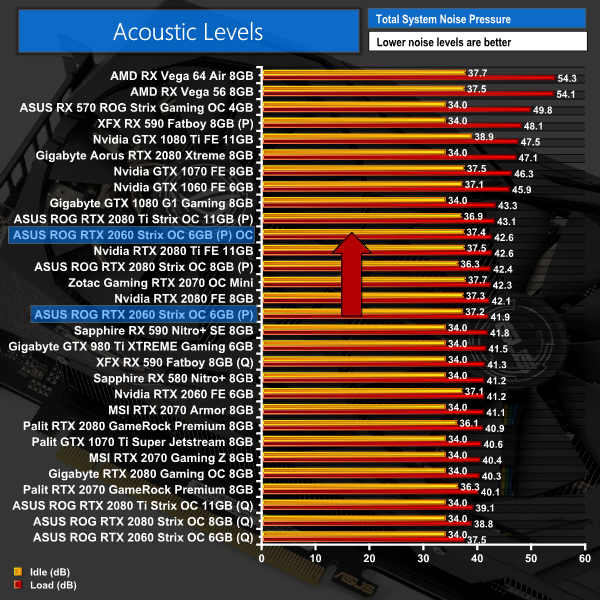

Acoustics

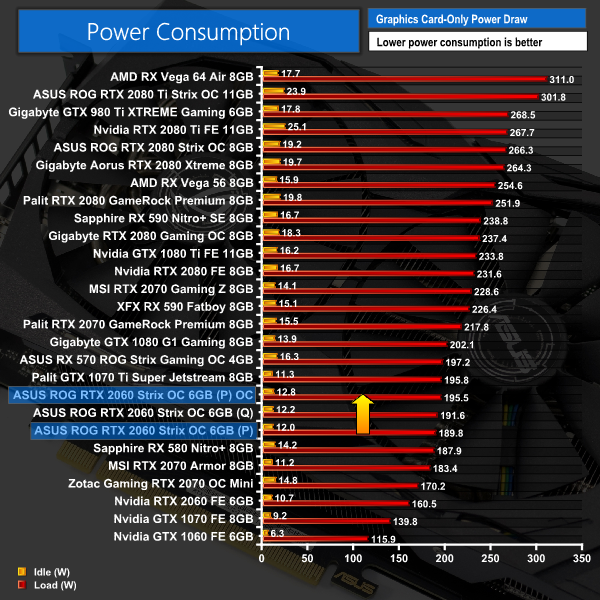

Power consumption

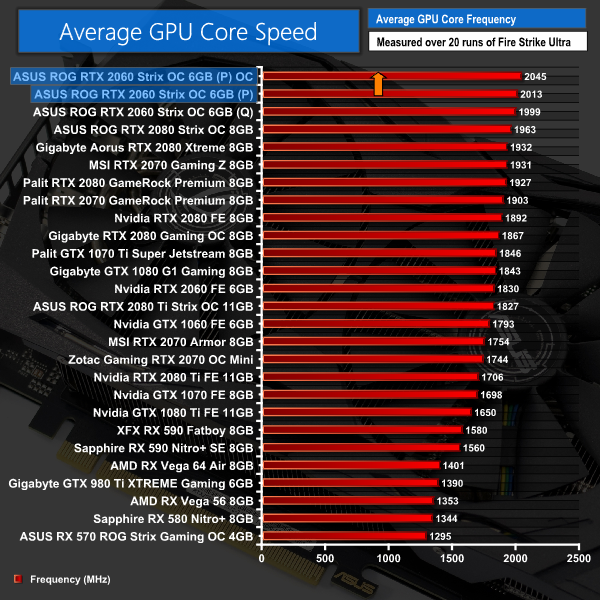

Average clock speed under load

Overview

As the overclock was not very significant at all, we didn't see much extra heat or noise from the card. In fact, the peak GPU temperature stayed at 55C – so the card didn't run any hotter with this small overclock applied versus stock – and noise levels did not even rise 1dB.

Power consumption, too, was barely affected, with total power draw rising by under 6W.
