Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

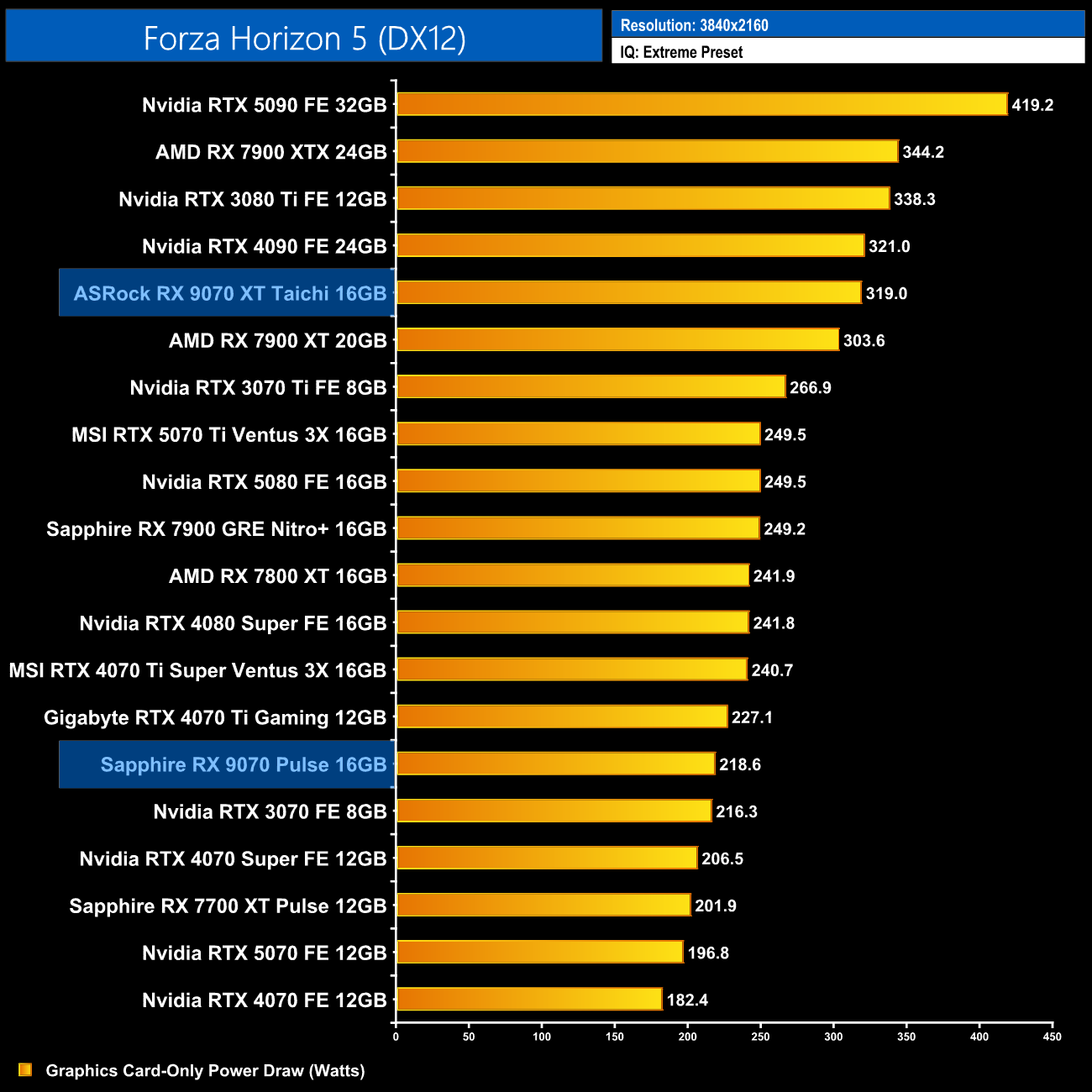

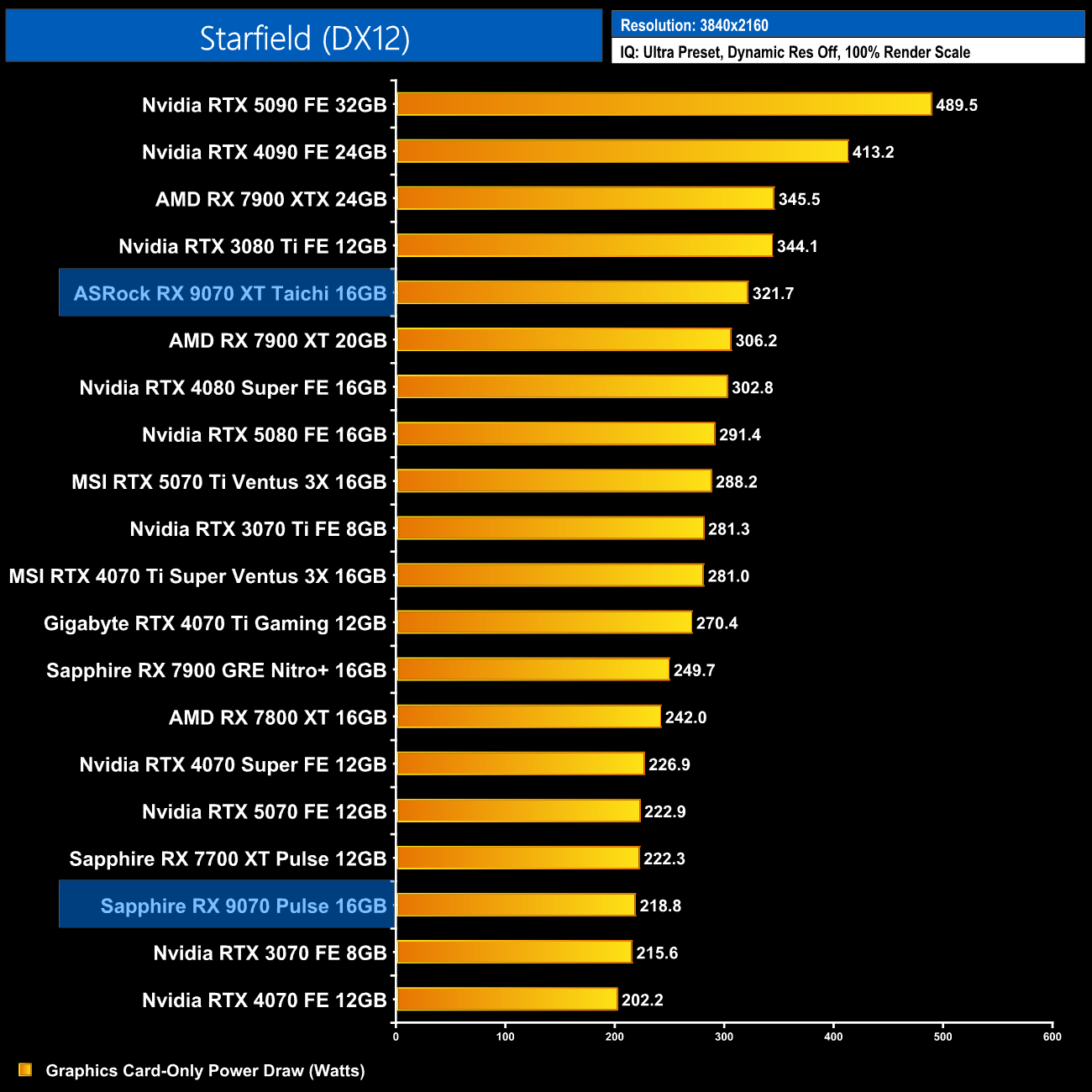

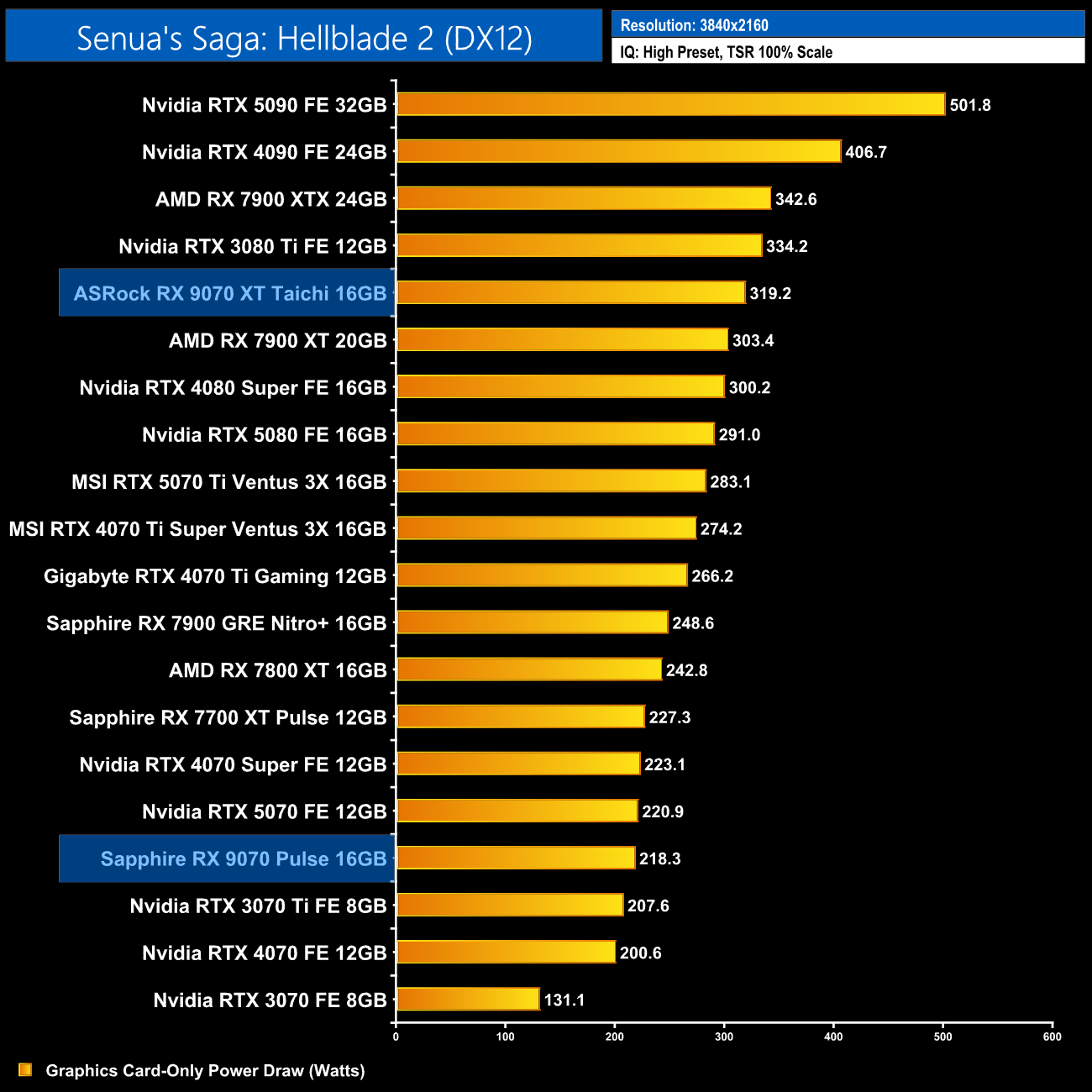

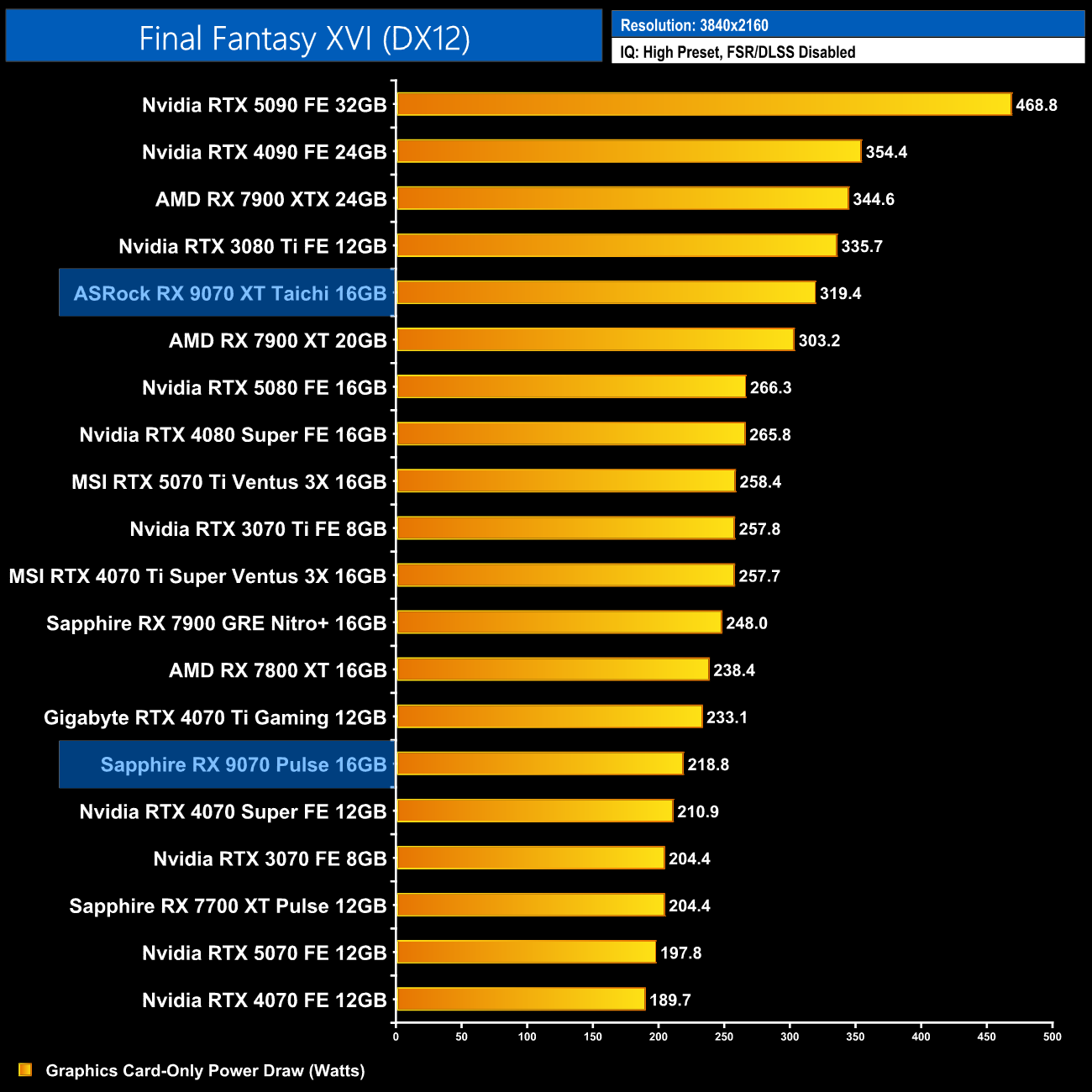

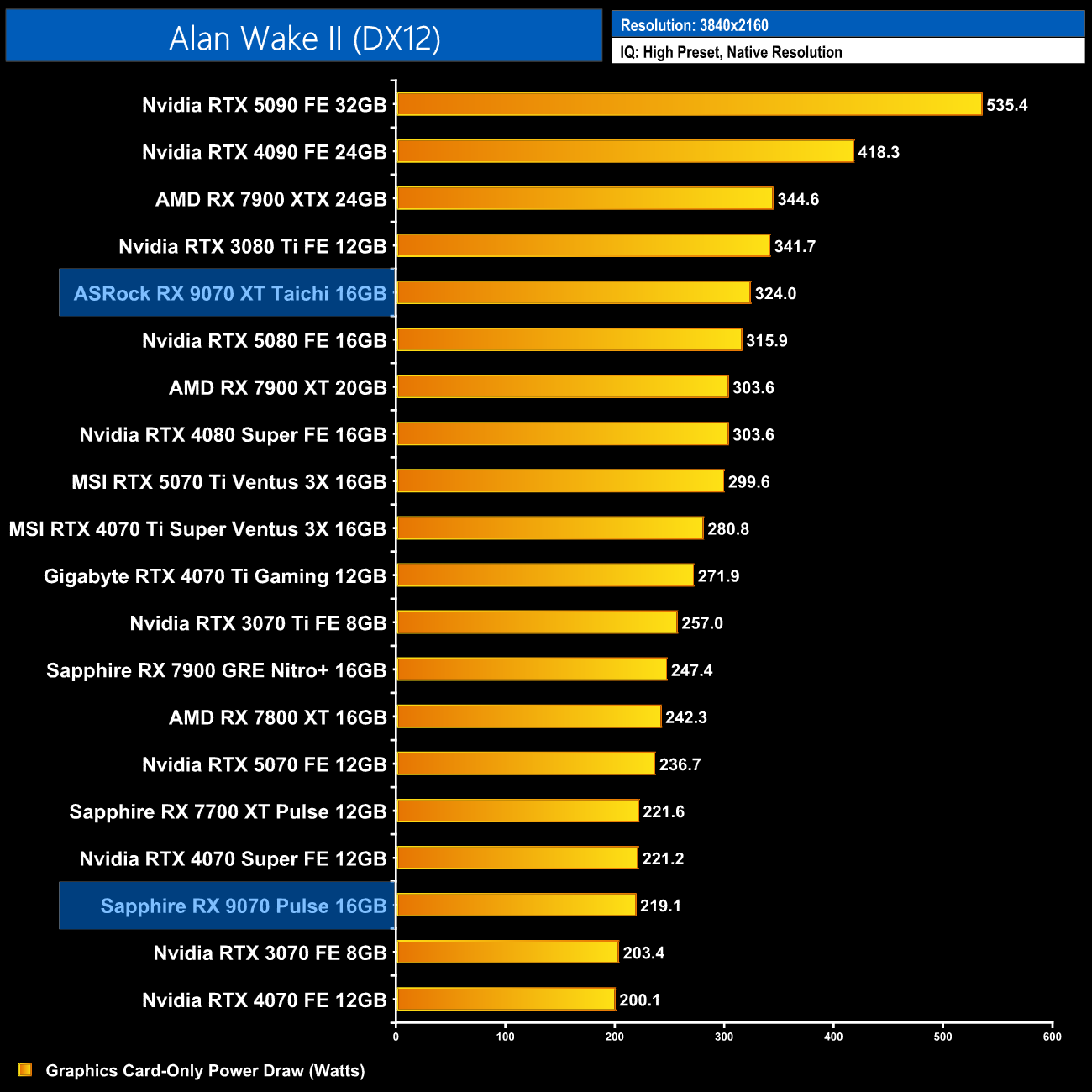

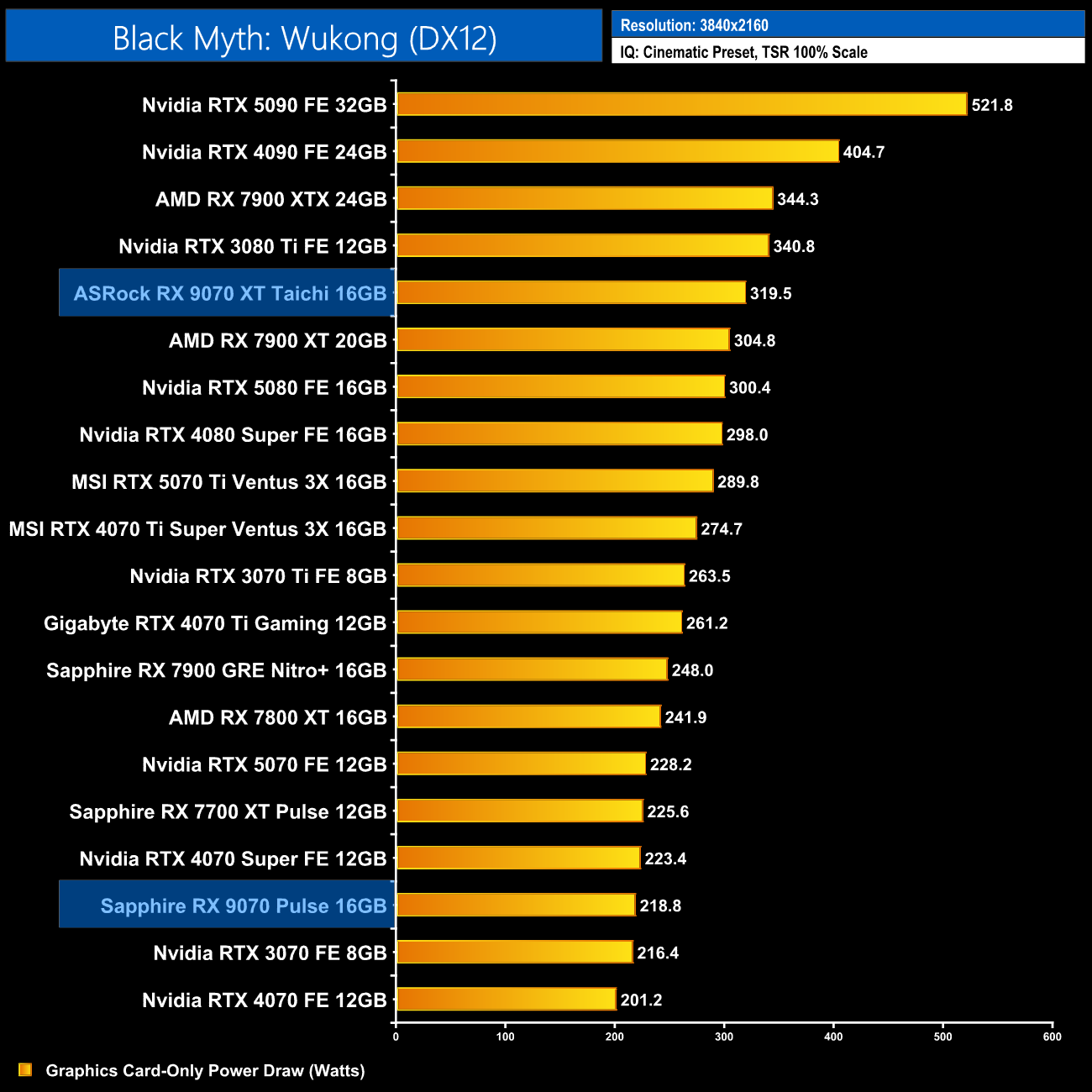

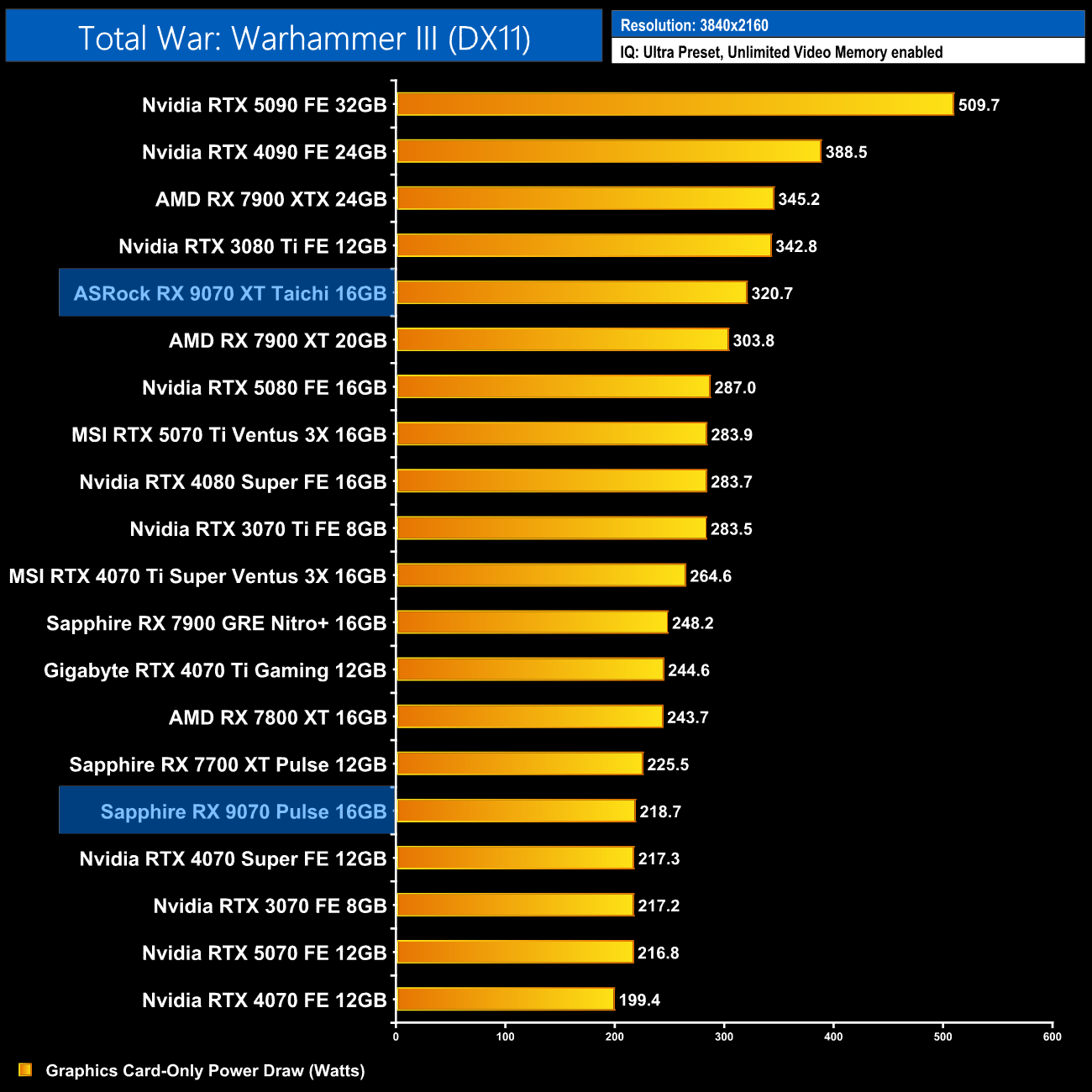

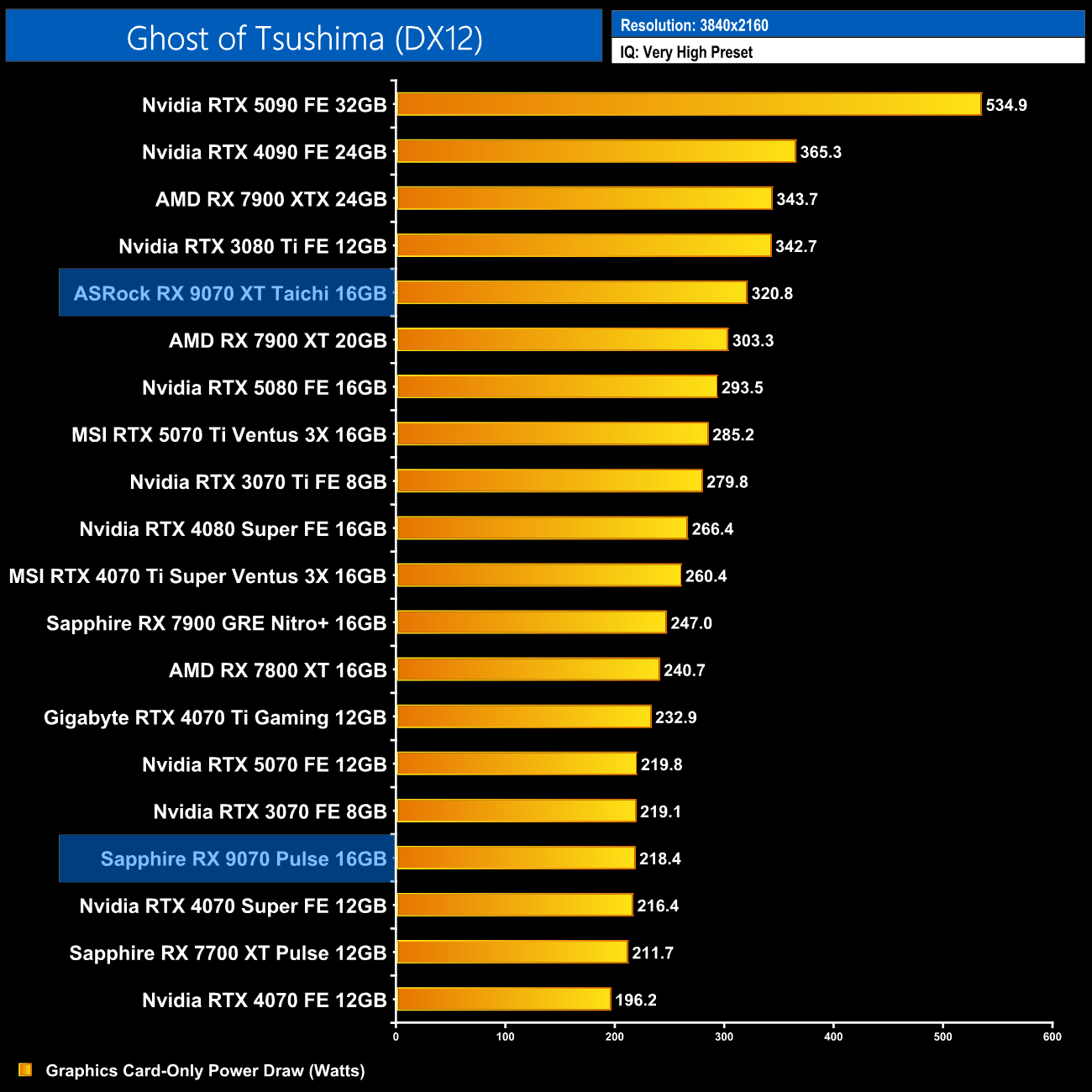

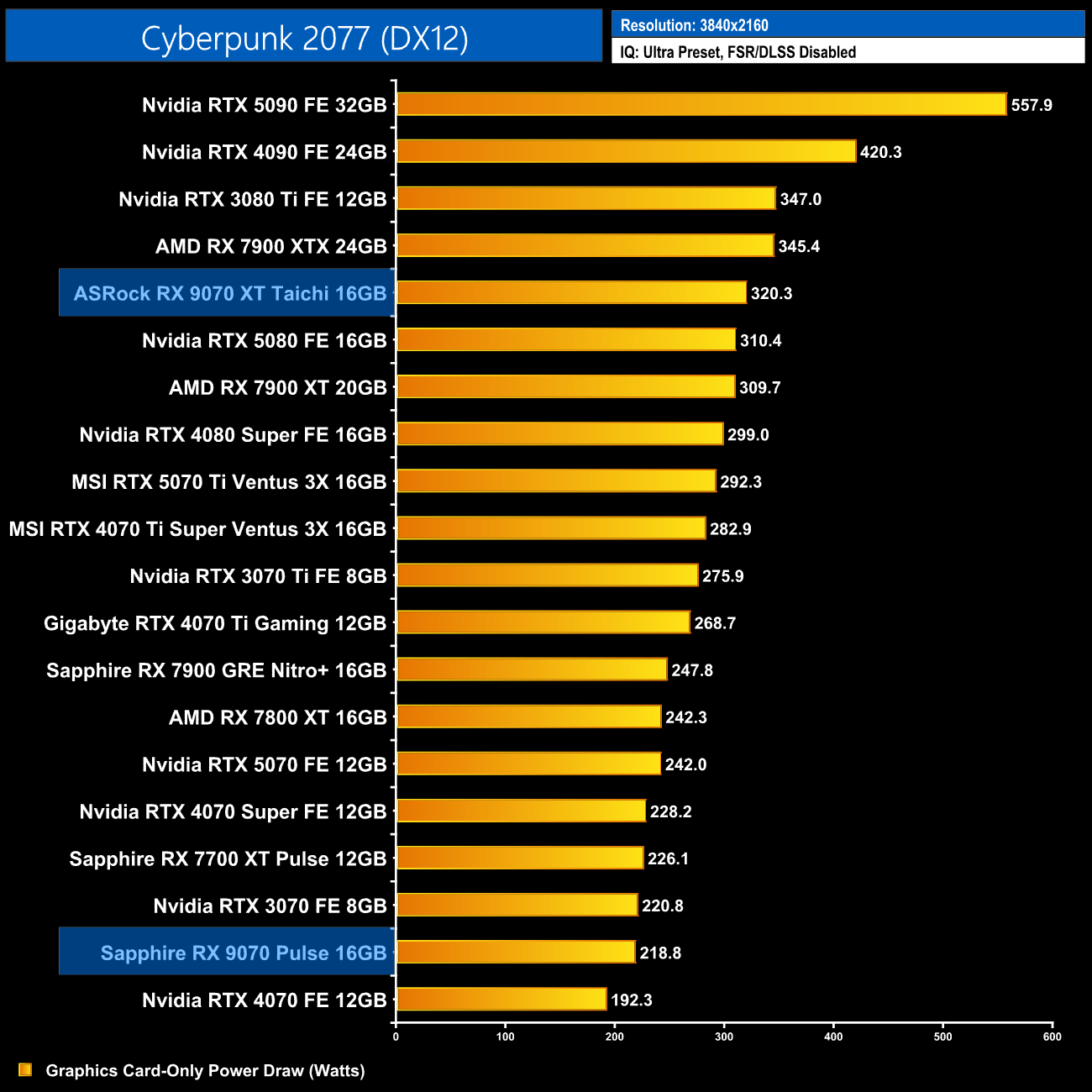

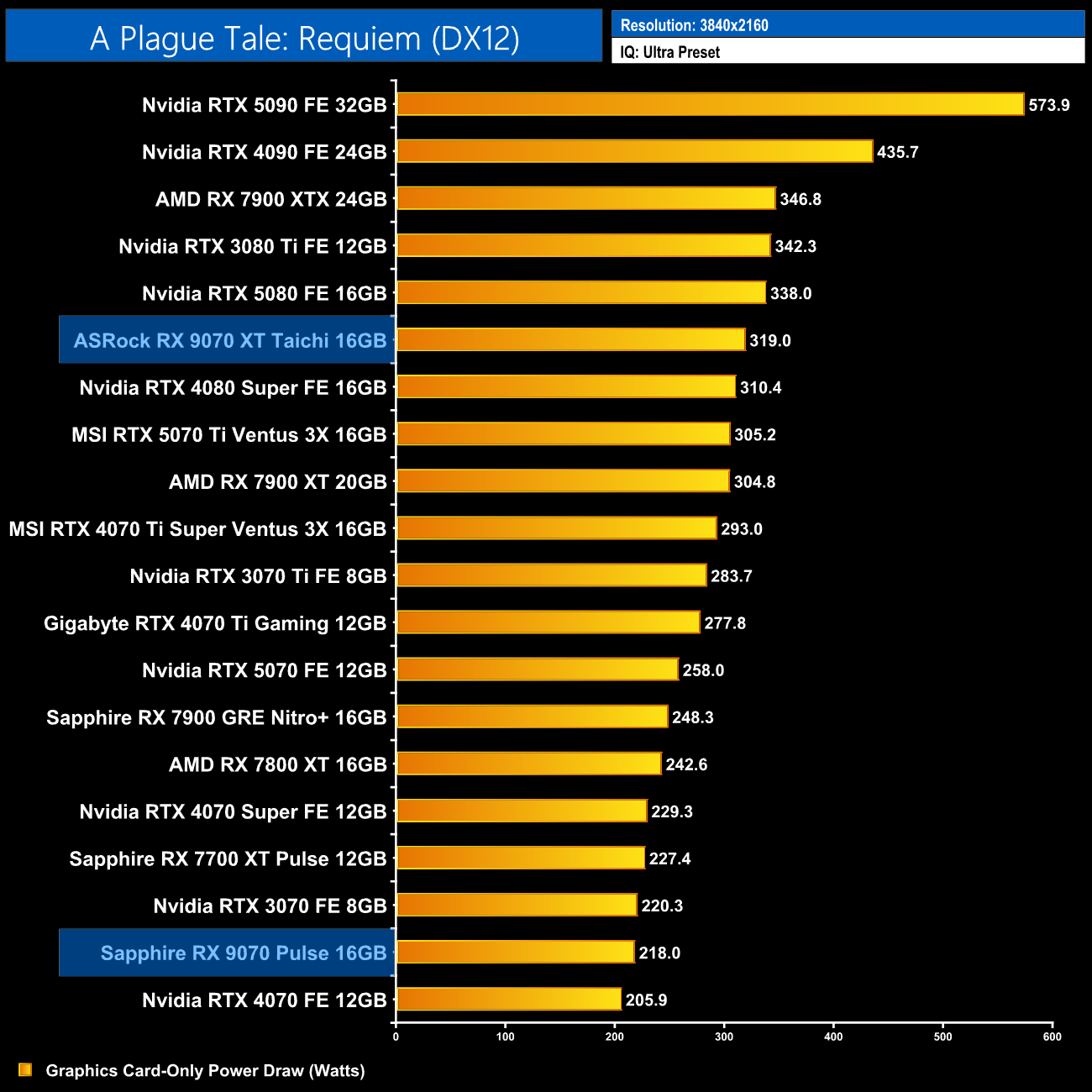

Per-Game Results at 2160p (4K):

Click to enlarge.

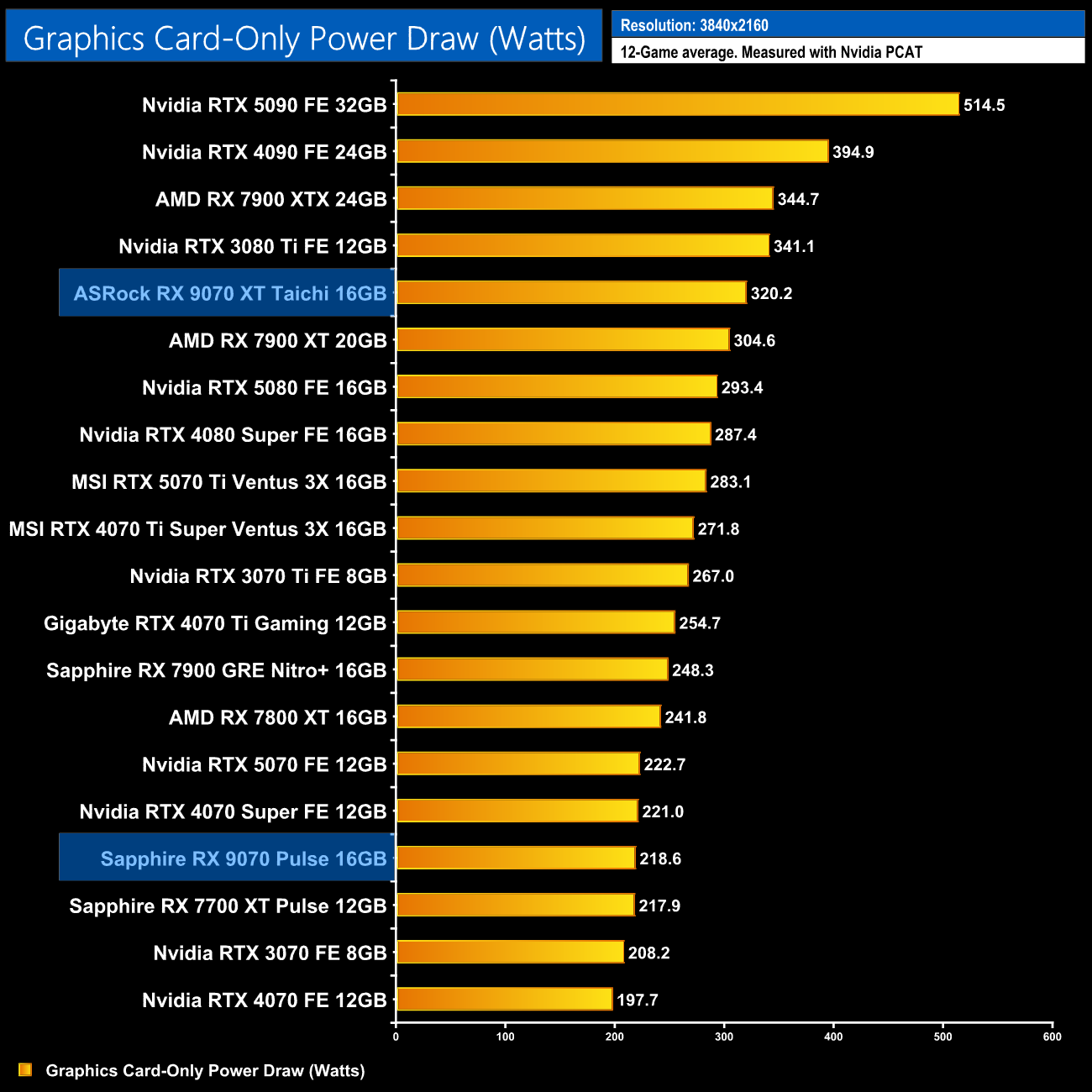

12-Game Average at 2160p (4K):

Likewise, at 4K, power hit 320W bang on, putting it above the likes of the RTX 5080 and RTX 5070 Ti.

Ray tracing results

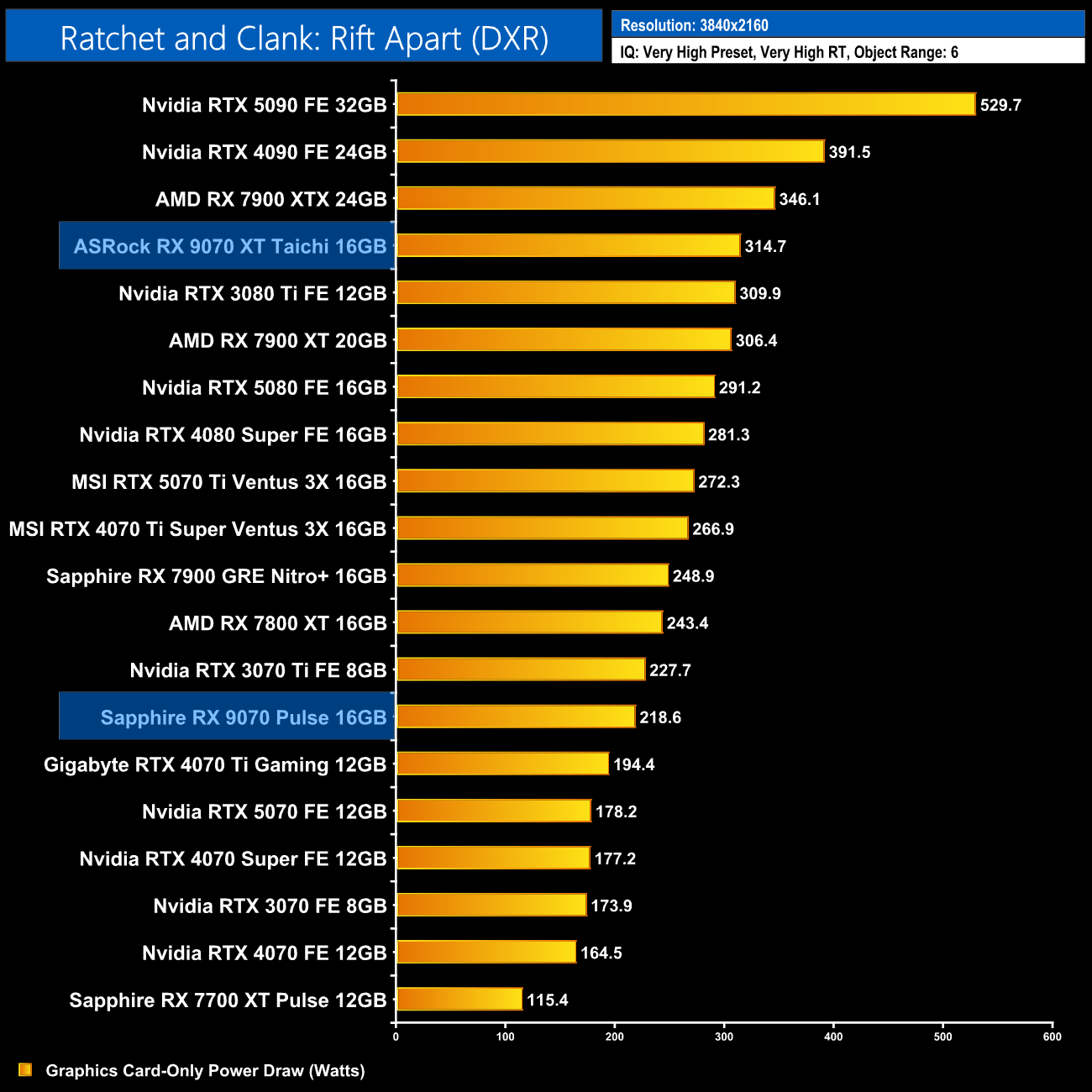

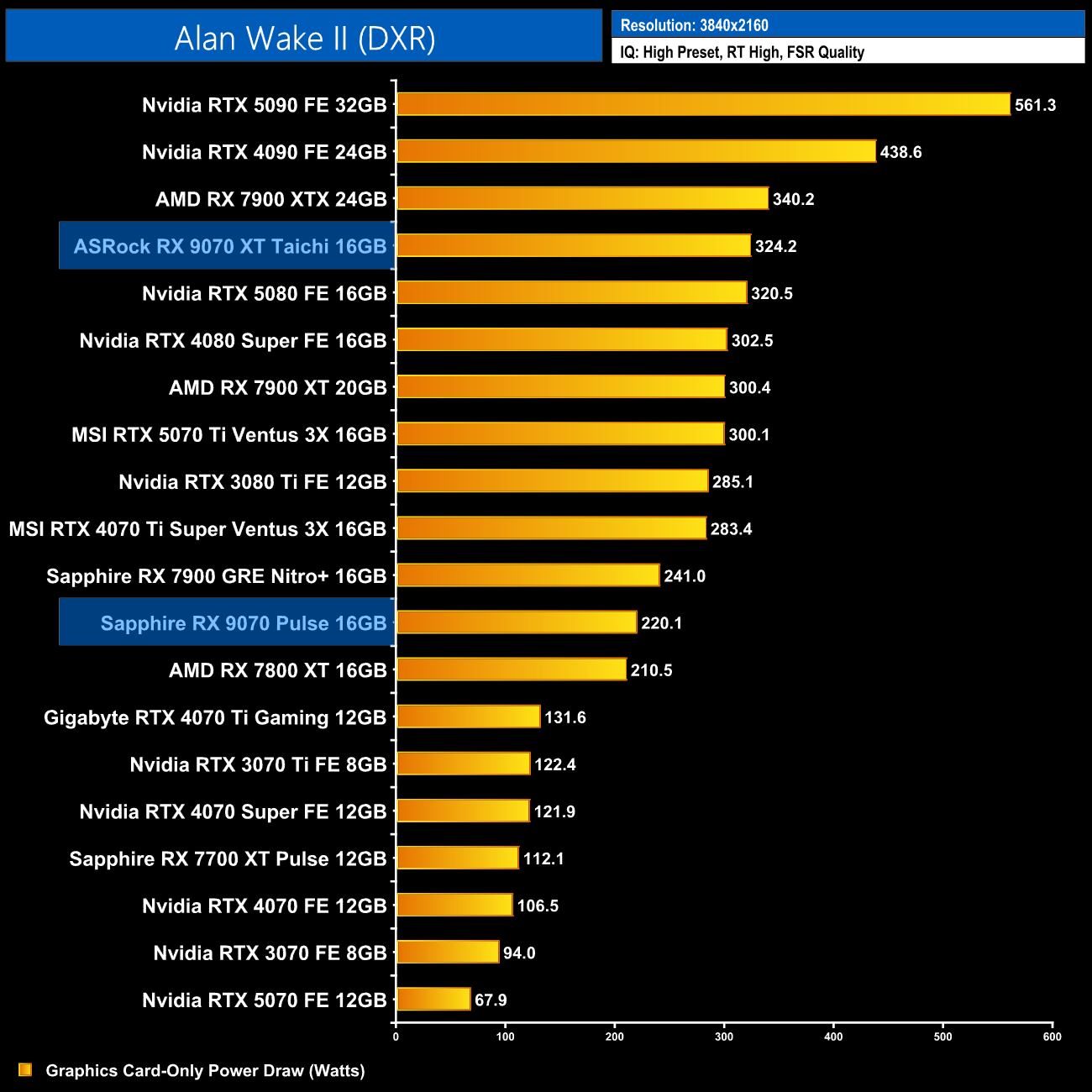

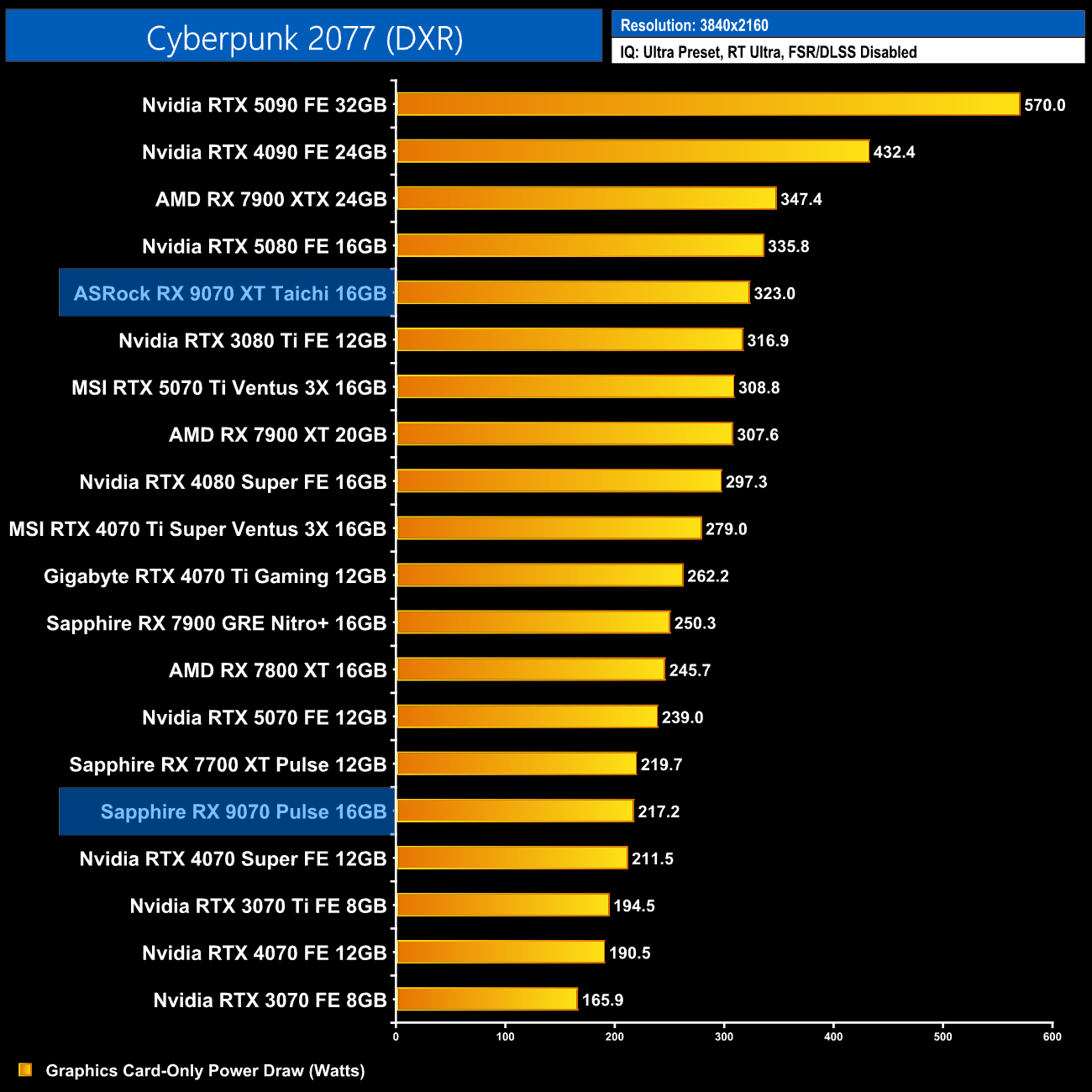

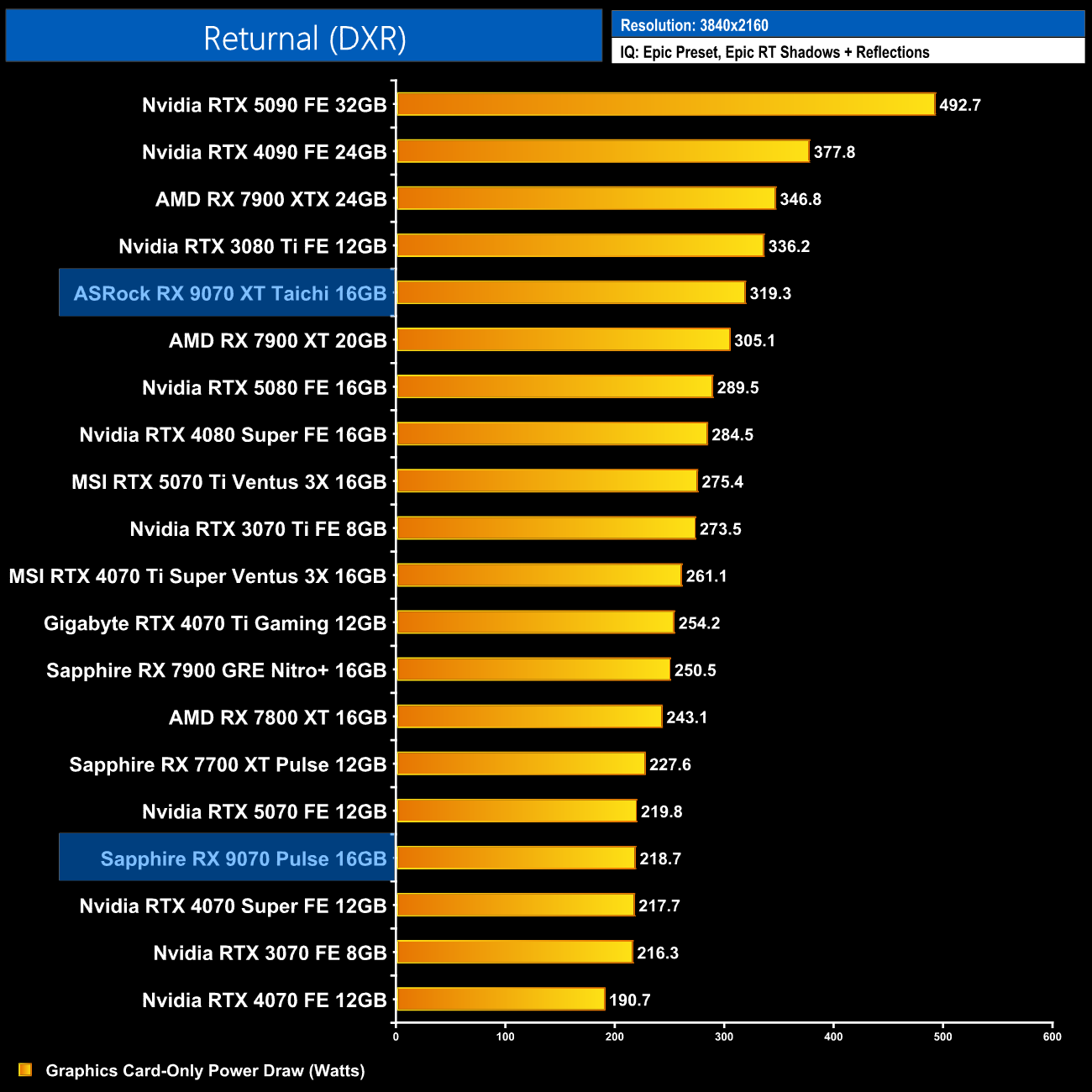

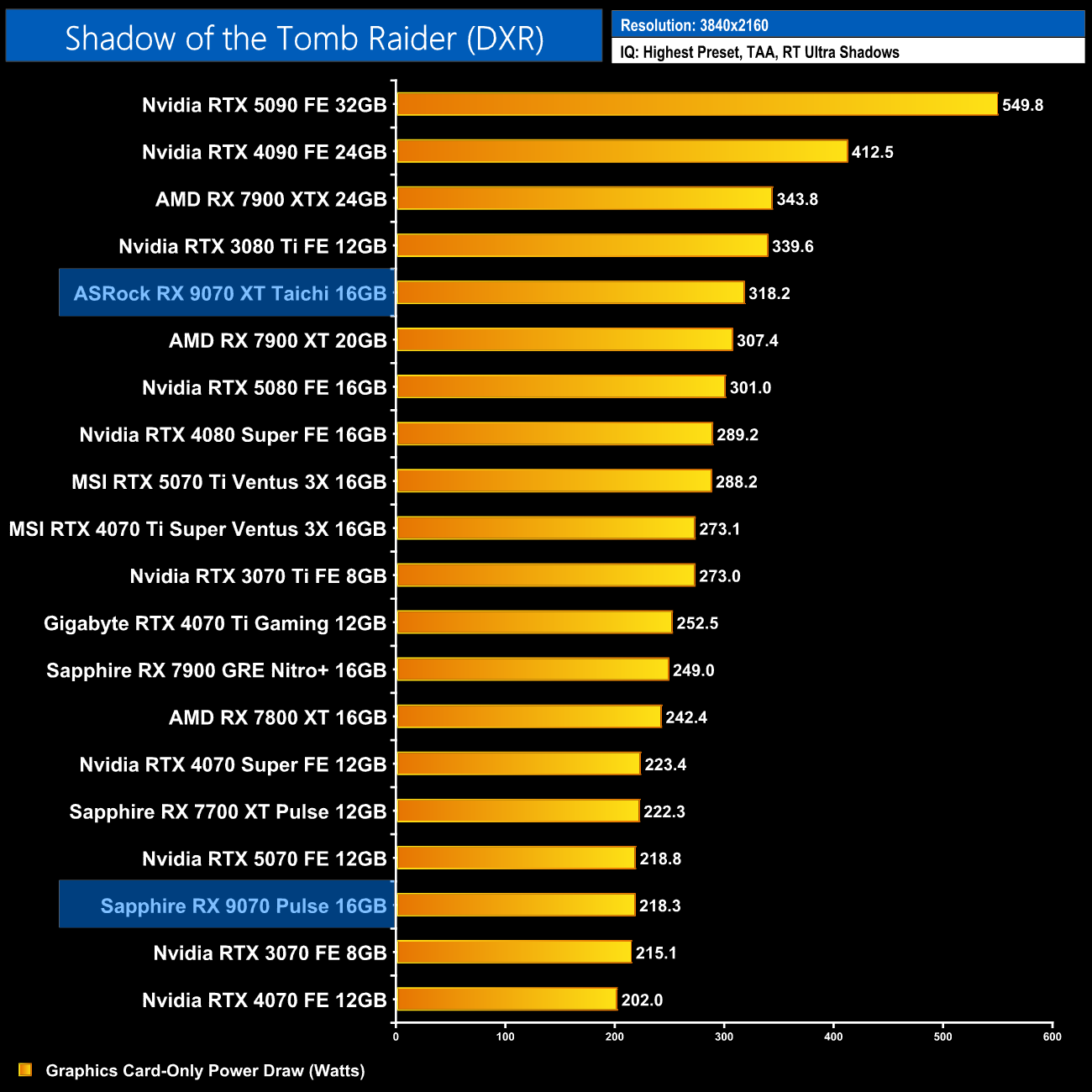

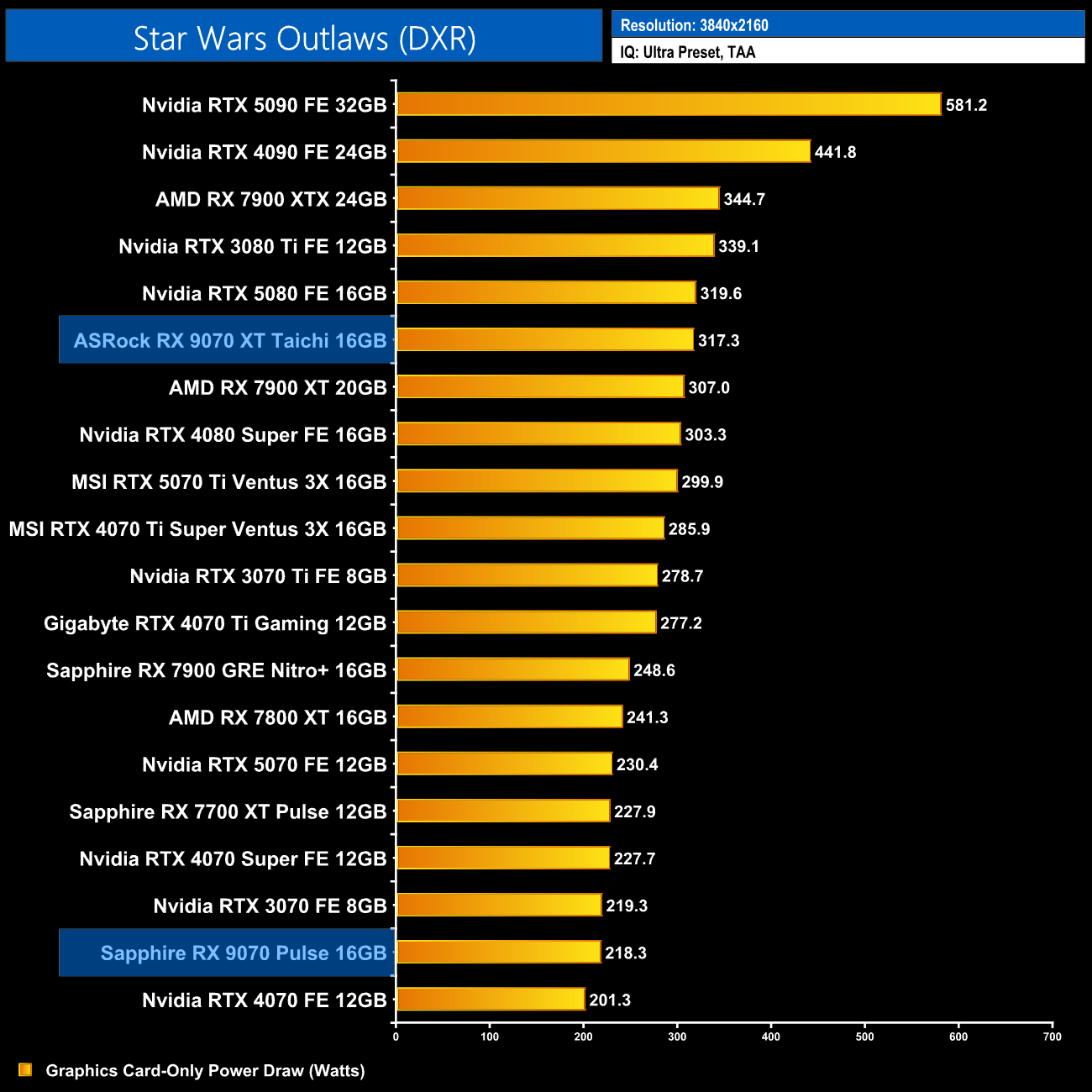

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

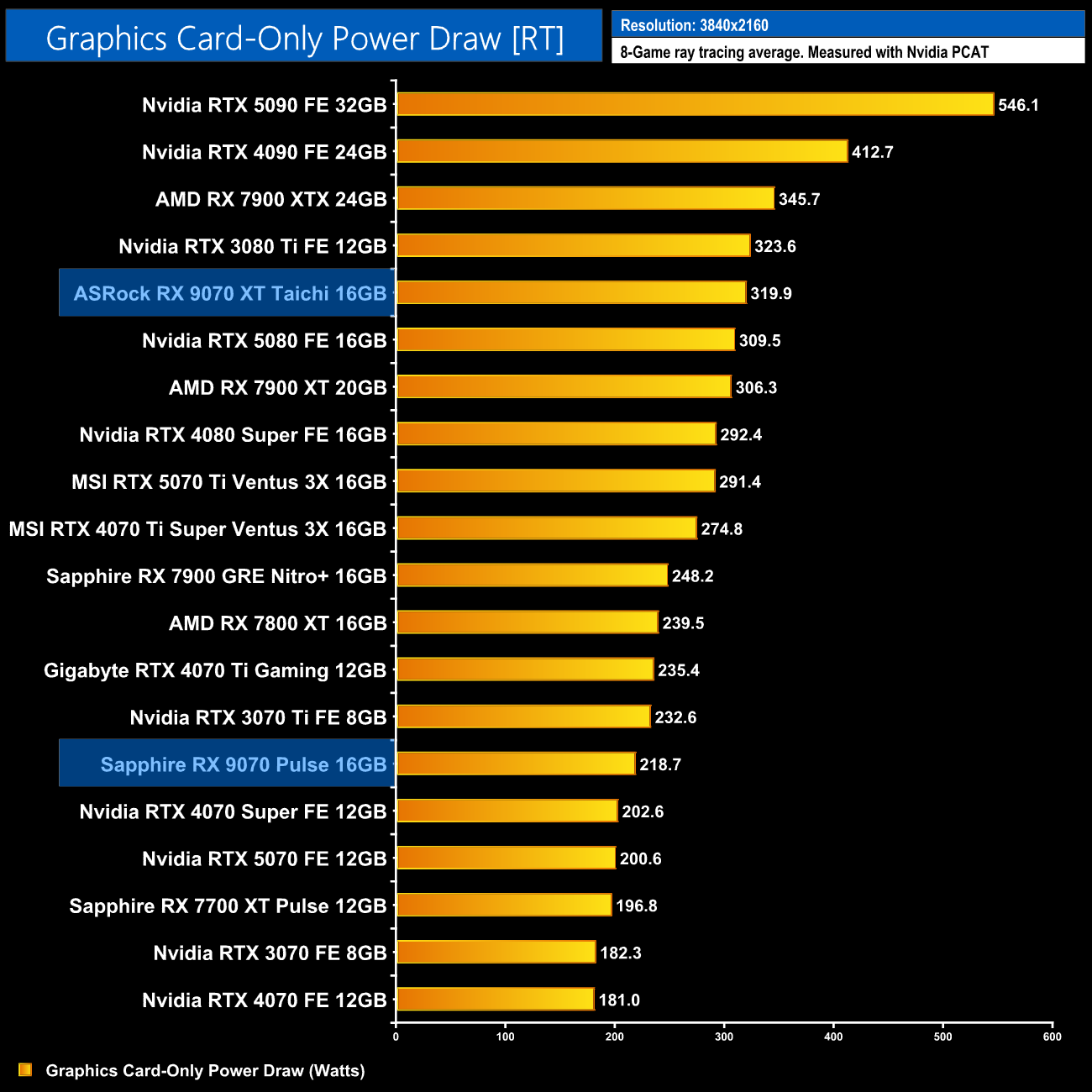

8-Game ray tracing average:

Once more we see 320W power being drawn at 4K with ray tracing enabled.
