The ASUS RX 9060 XT Prime 16GB ships in a grey and black box, with an image of the card visible on the front, alongside ASUS and AMD branding.
On the back, ASUS highlights a few key features of the card, it's cooler, and the GPU architecture.
Inside, the only included accessories are these three leaflets – a thank you note, warranty note and quick start guide.

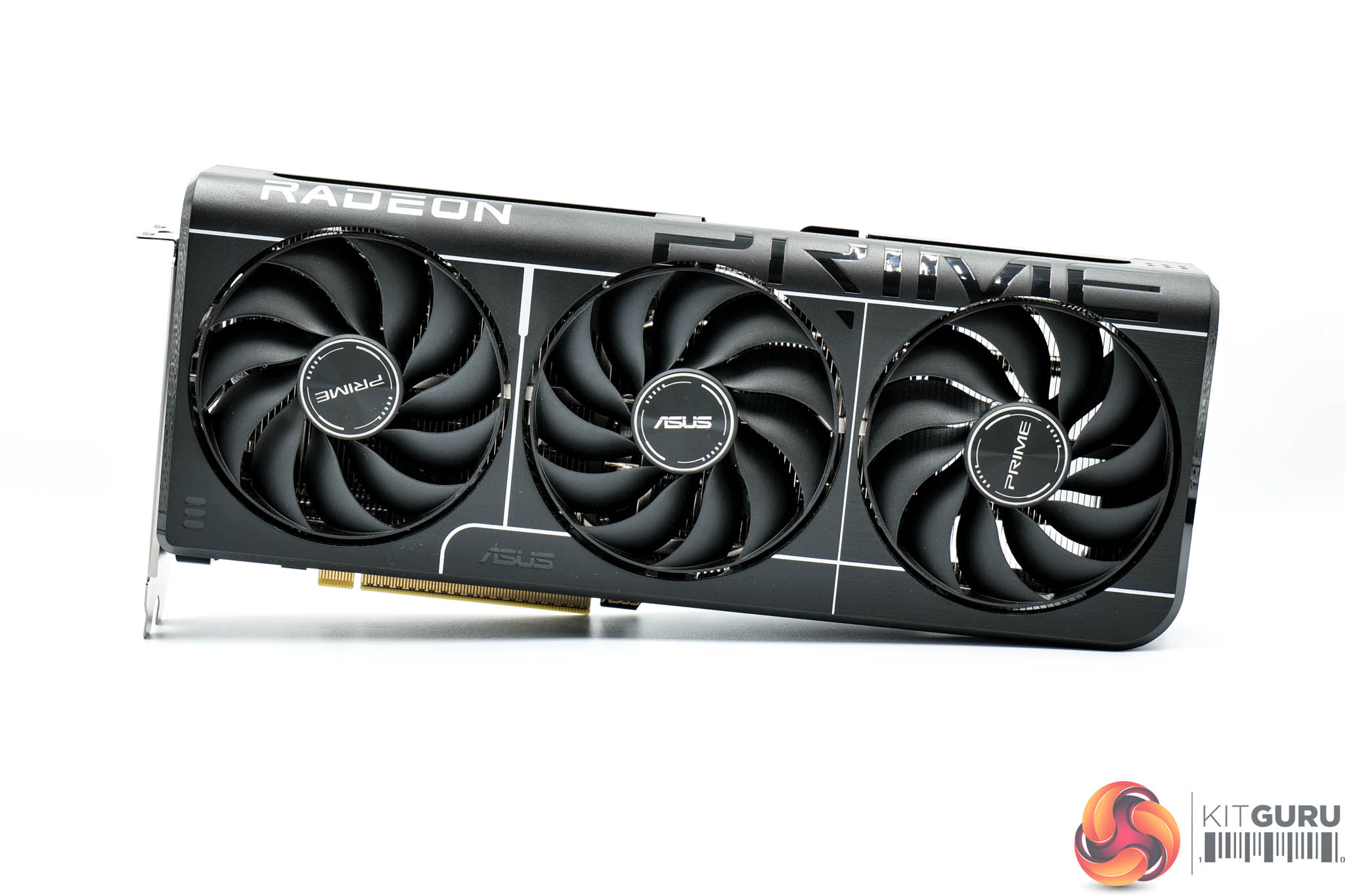

As for the graphics card itself, if you've seen any of ASUS' other Prime models, you will know what to expect here – it's a very clean design, being almost entirely matte black, but with clean white lines that add visual interest. The shroud is made entirely from plastic, but that's to be expected at this price point.

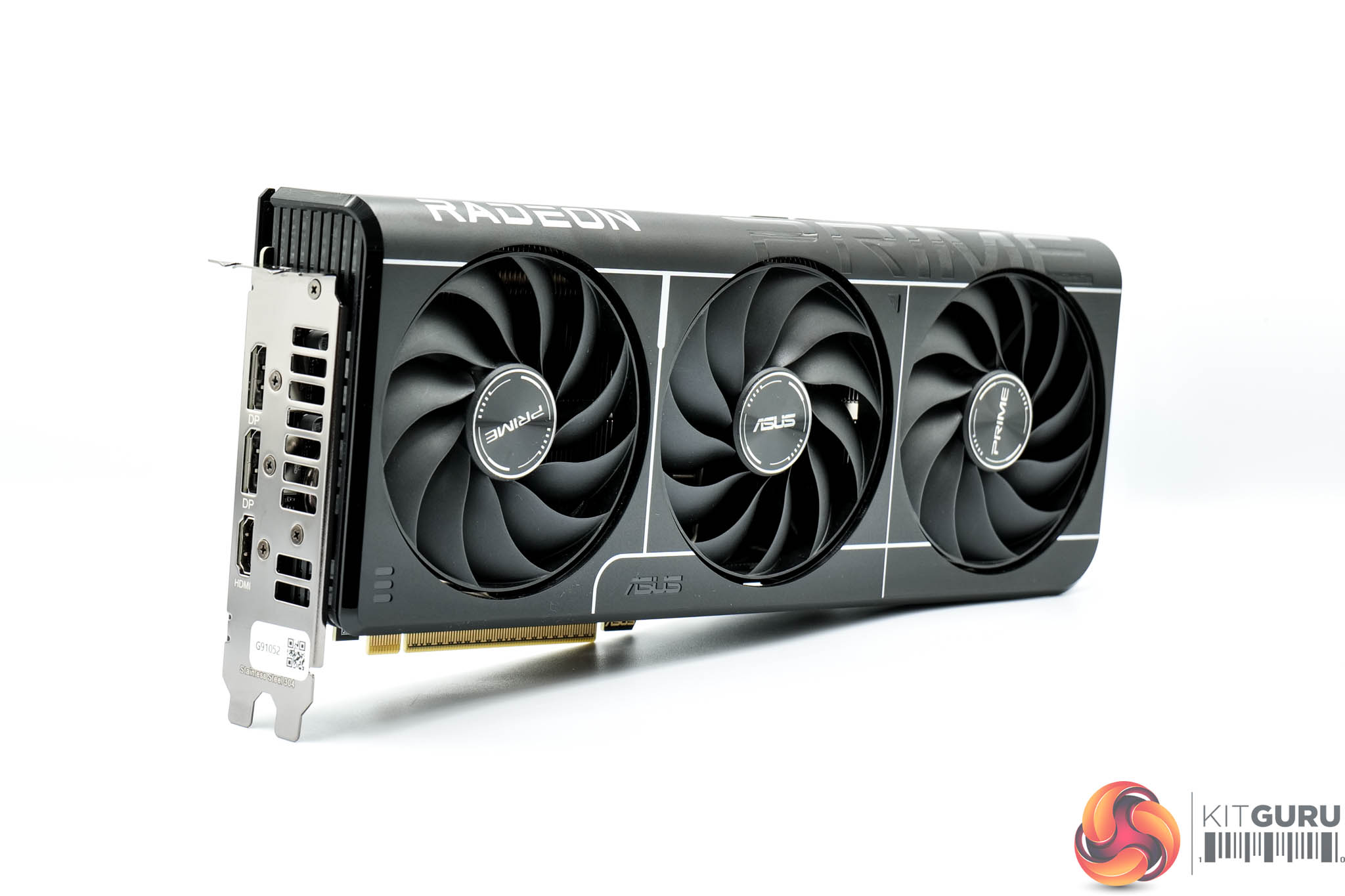

We can also note the triple-fan setup, using ASUS ‘Axial-Tech' design with dual-ball bearings. Each fan measures 90mm in diameter.

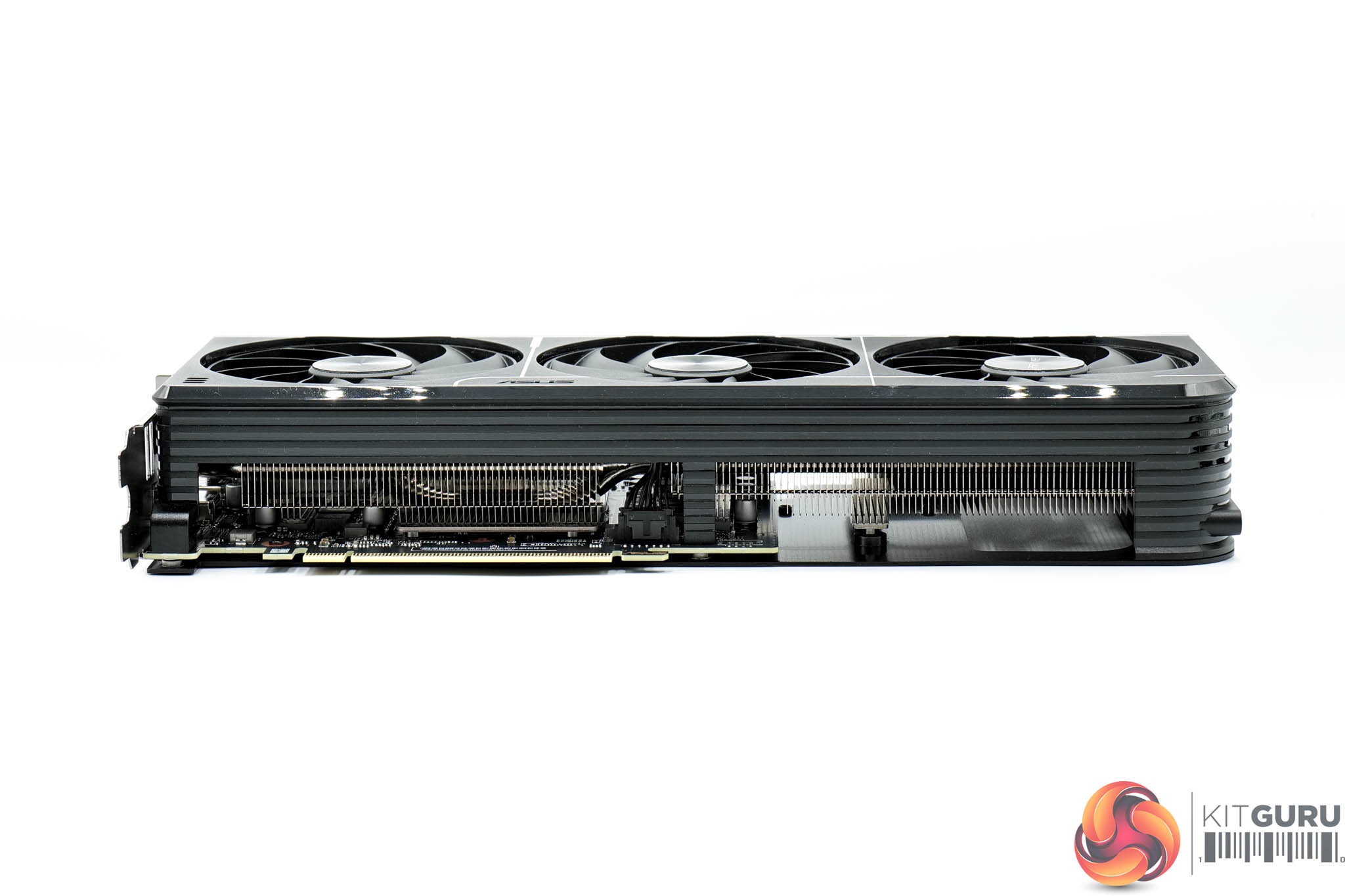

There's no denying this is a fairly large card considering the relatively low power demands – it measures 304 x 126 x 50mm, making it a 2.5 slot thickness. It weighed in at 869g on my scales.

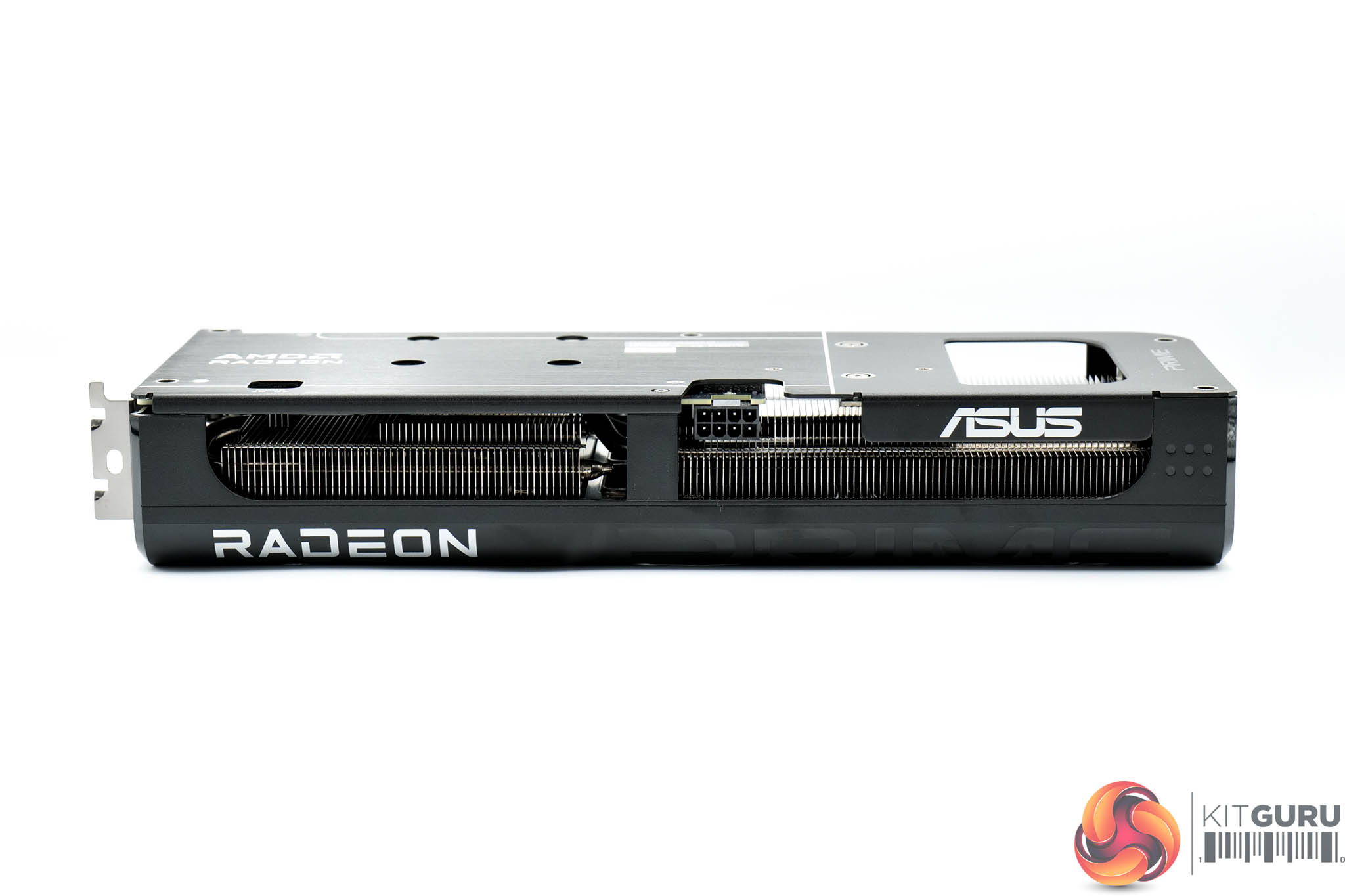

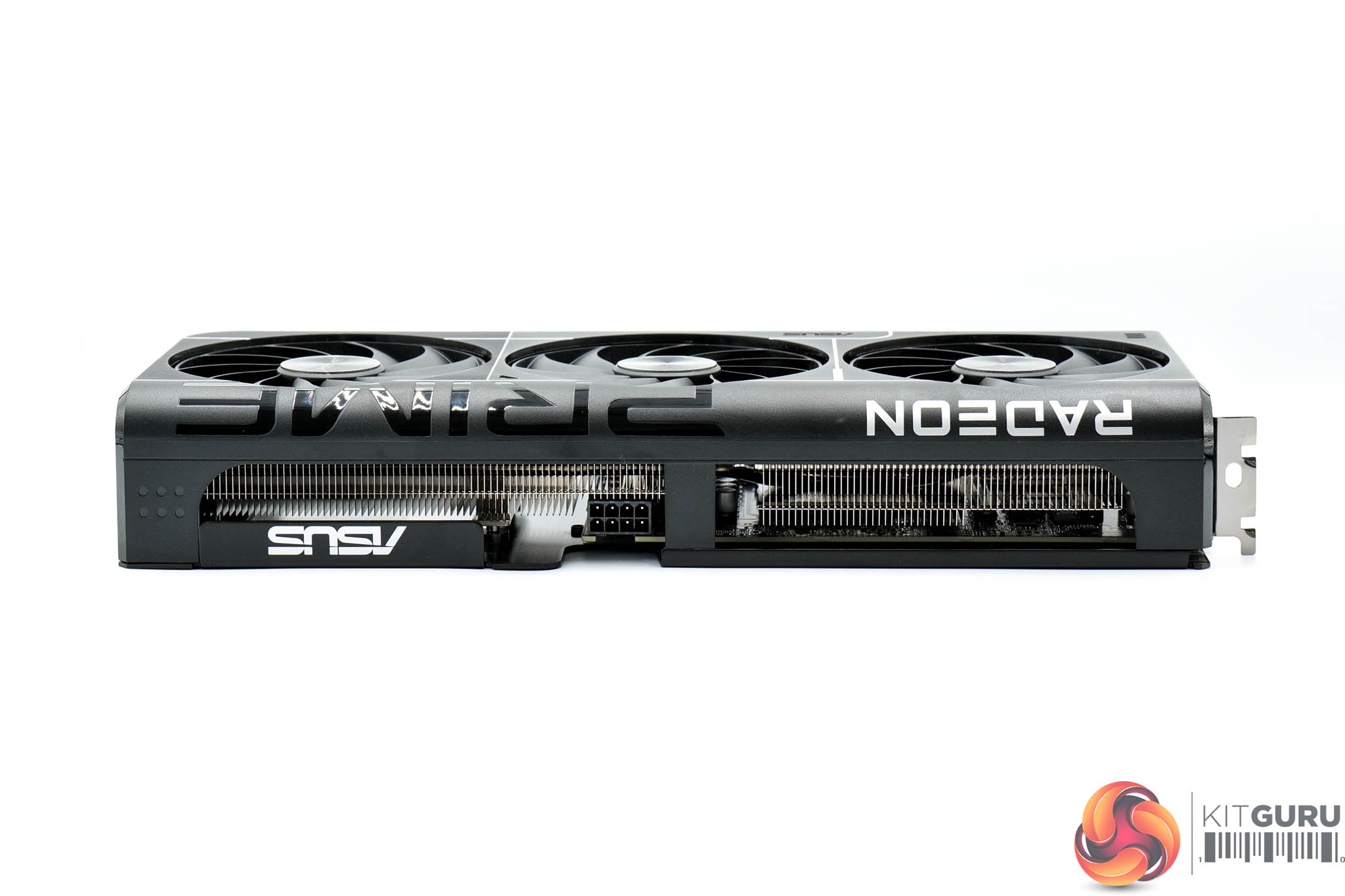

The front side is home to the Radeon logo printed in white, as well as the outline of the Prime logo.

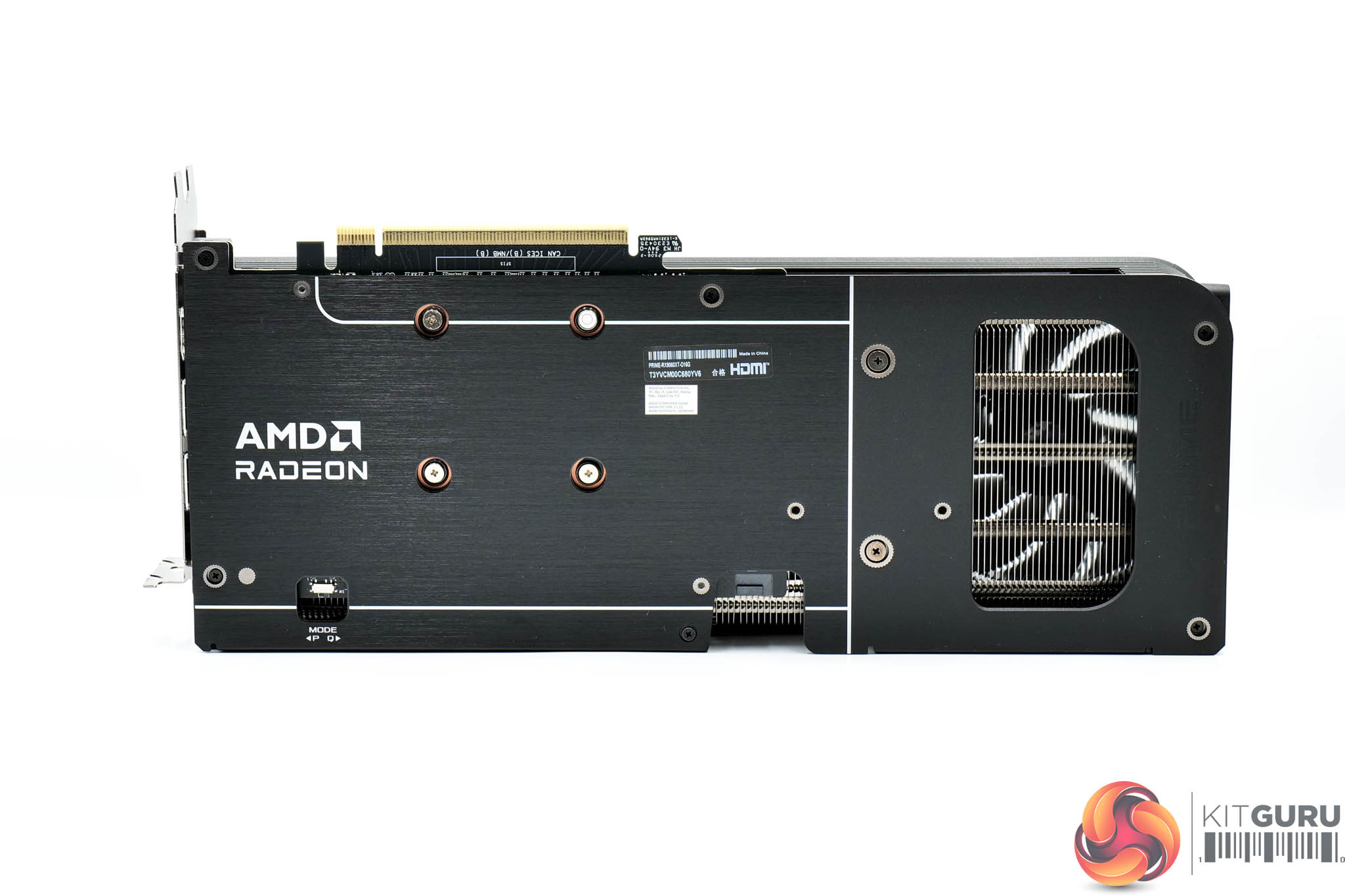

As for the backplate, this is a full length brushed metal design, with just a small flow through area towards the end of the card. ASUS has also fitted a dual-BIOS switch, offering a choice of Performance or Quiet modes.

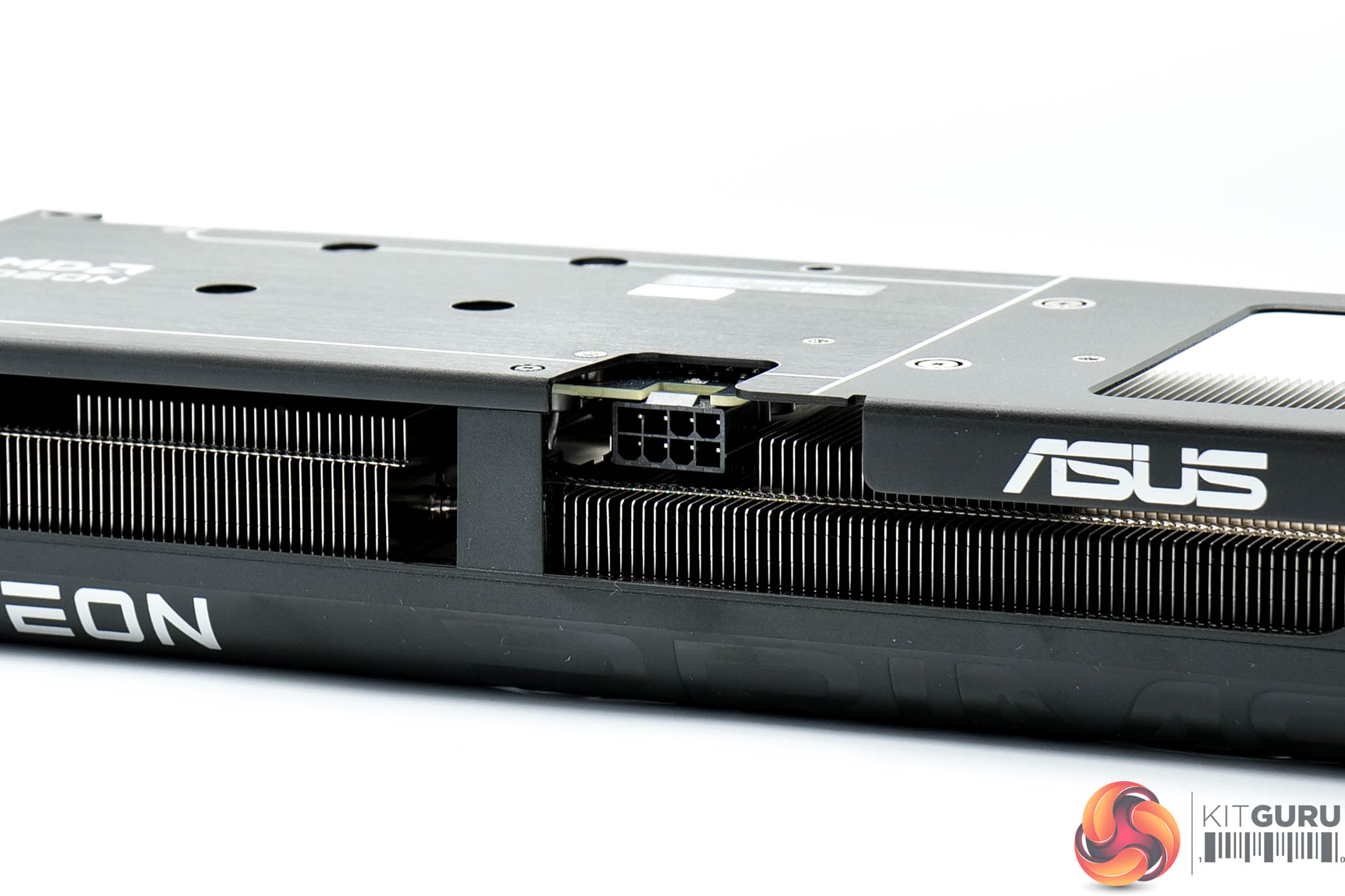

Power is delivered by a single 8-pin connector – no 12VHPWR shenanigans here!

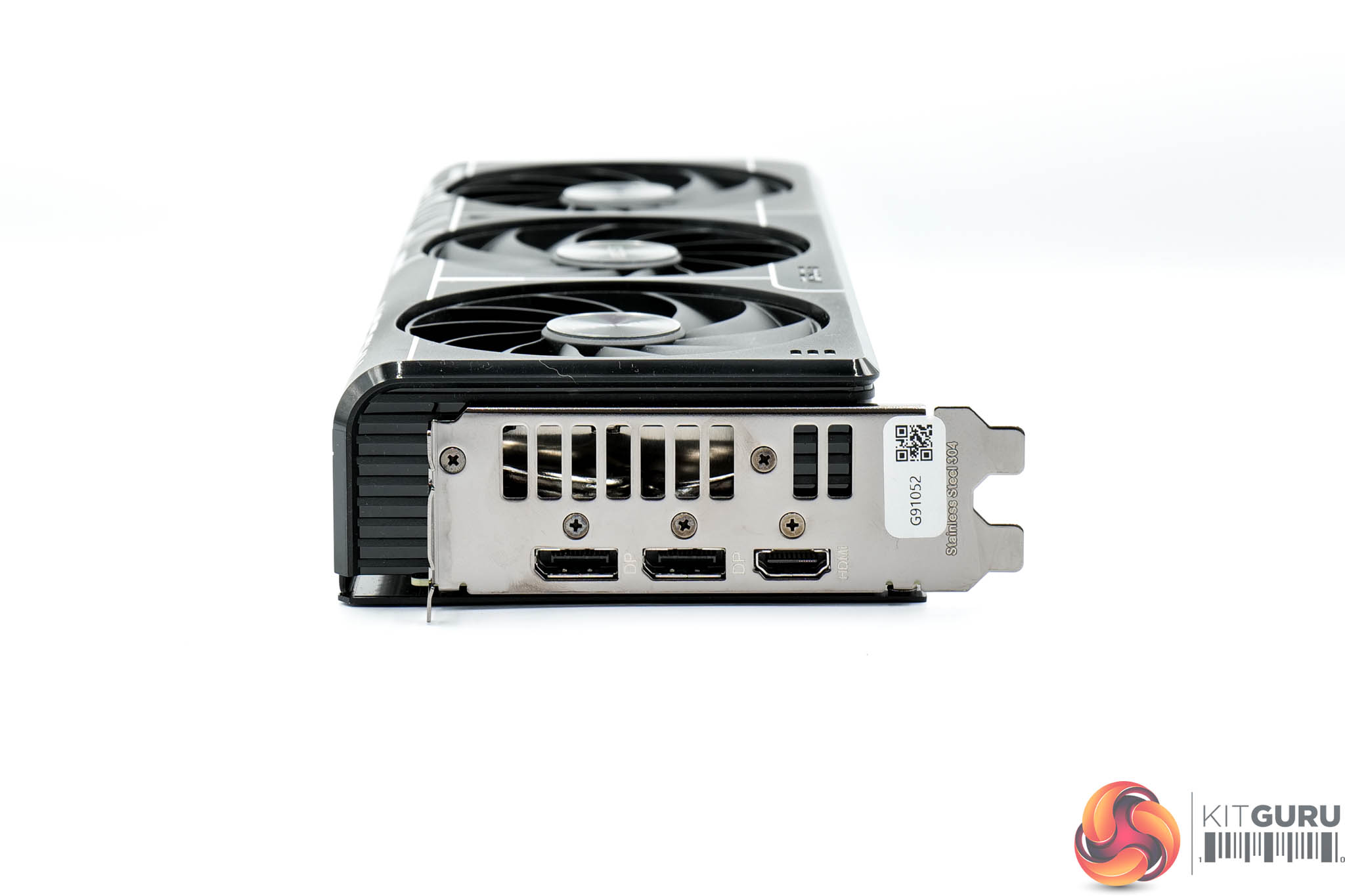

Strangely though, there's just three display outputs, with 2x DisplayPort 2.1 and 1x HDMI 2.1.
