Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

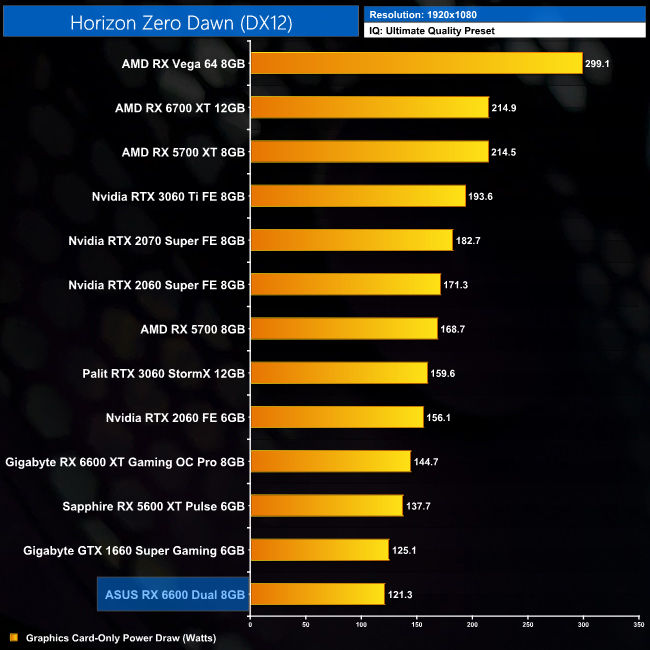

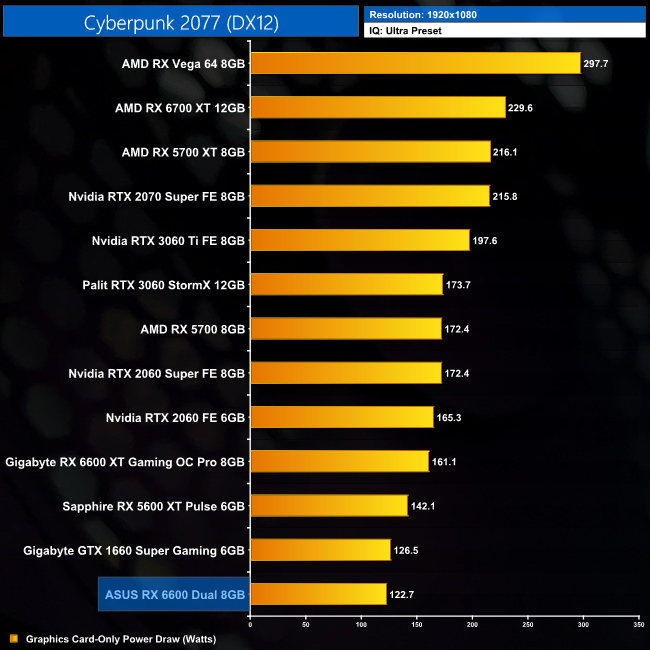

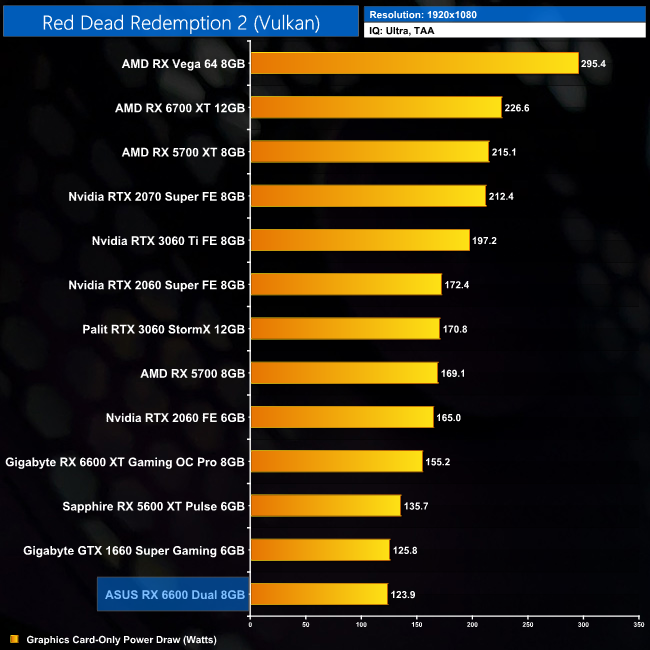

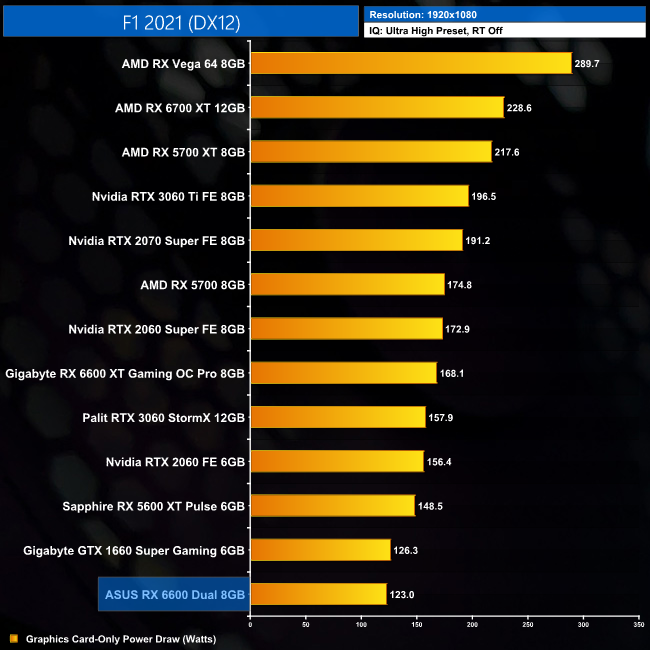

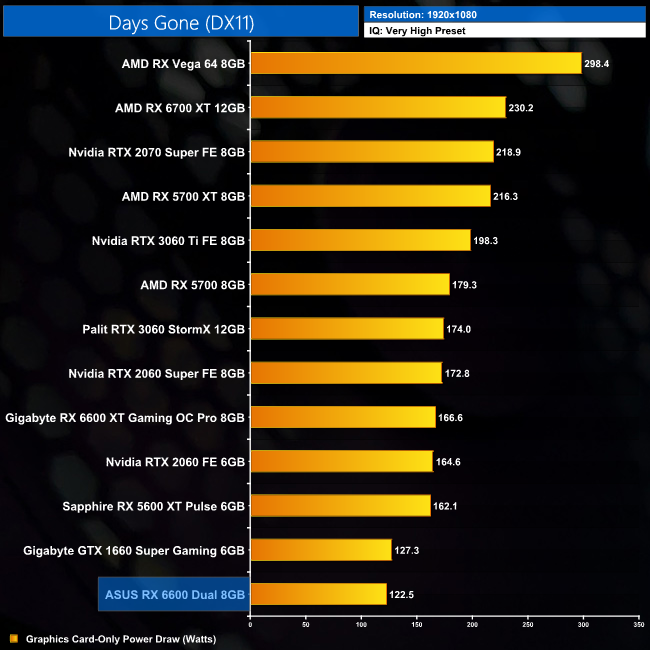

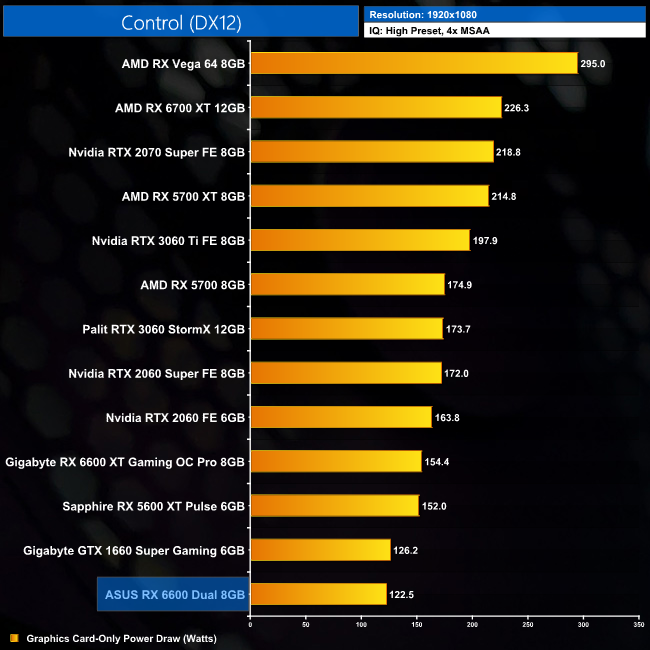

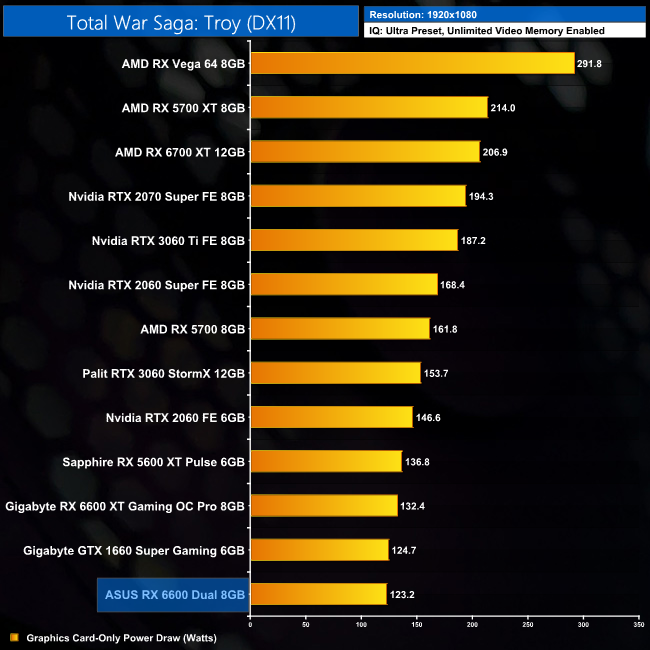

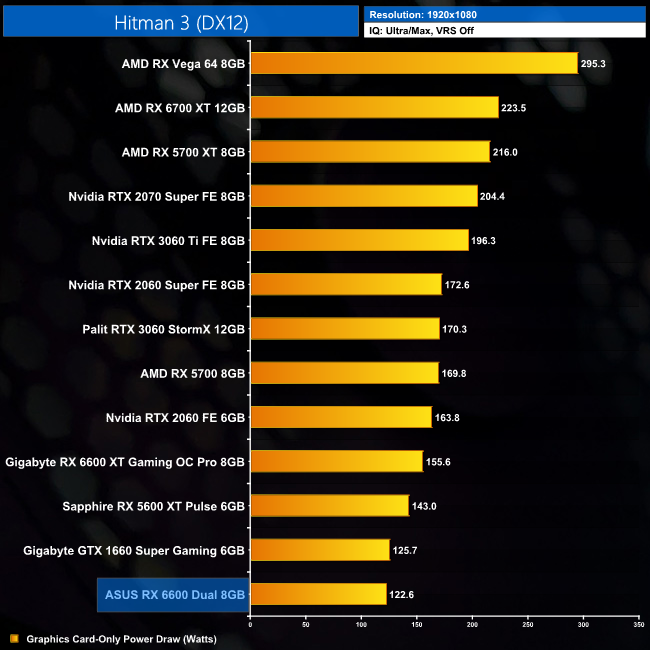

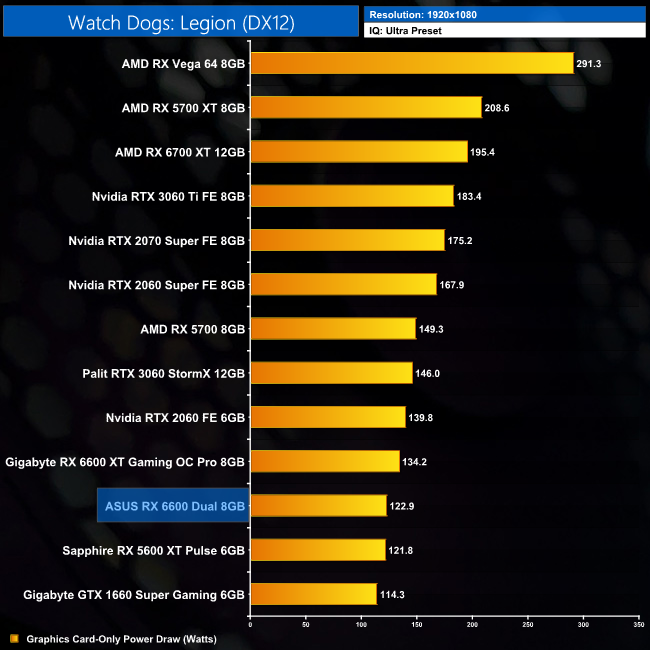

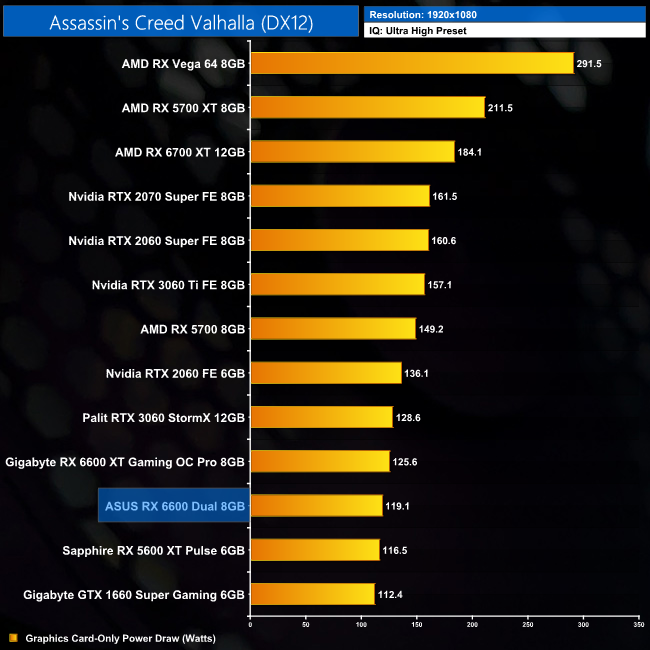

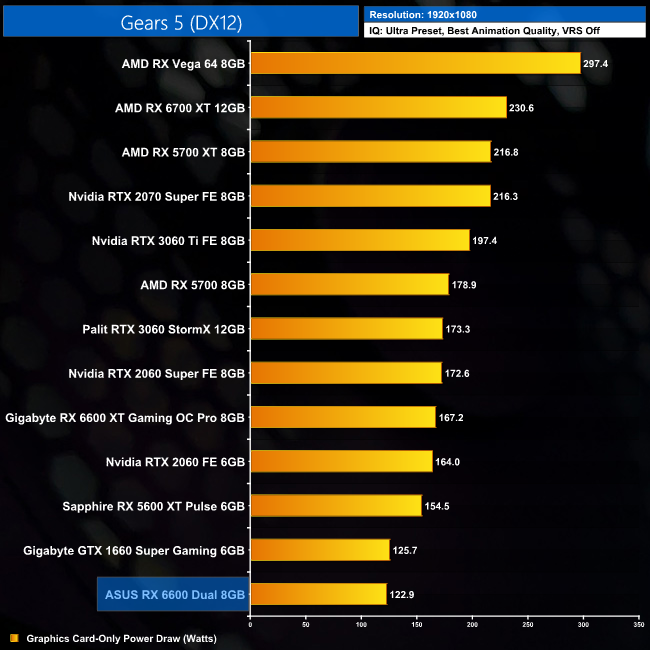

Per-Game Results (ASUS RX 6600 Dual) at 1080p:

Click to enlarge.

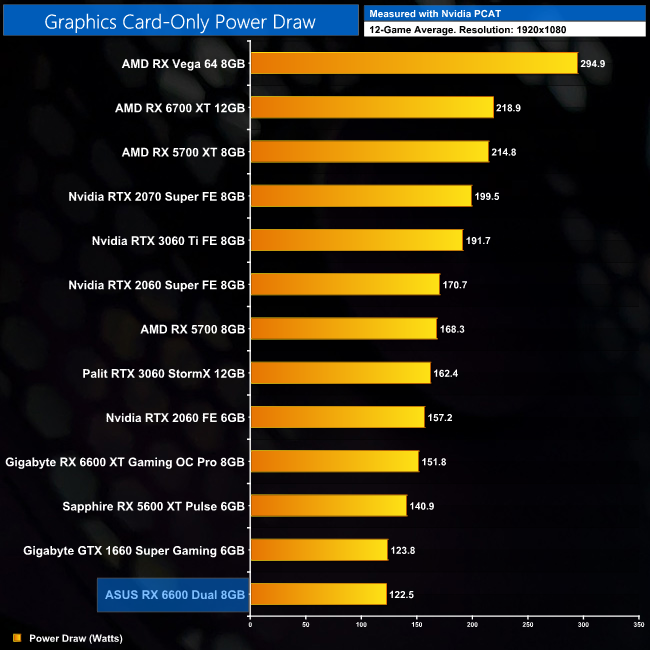

12-Game Average at 1080p:

Power draw is exceptionally low for the RX 6600. Over our 12 games tested, it averaged 122.5W at 1080p, lower than even the GTX 1660 Super (which is a significantly slower GPU). As you can see from the individual charts above, power draw was also very consistent across the 12 games we tested.
