AMD Radeon RX 5700 8GB Review

1. Introduction2. AMD Radeon RX 5700 Reference Card3. Testing Methodology4. 3DMark Fire Strike & Time Spy (1080p, 1440p, 4K)5. Battlefield V (1080p, 1440p, 4K)6. Deus Ex: Mankind Divided (1080p, 1440p, 4K)7. Far Cry 5 (1080p, 1440p, 4K)8. Ghost Recon: Wildlands (1080p, 1440p, 4K)9. Metro: Exodus (1080p, 1440p, 4K)10. Middle Earth: Shadow of War (1080p, 1440p, 4K)11. Shadow of the Tomb Raider (1080p, 1440p, 4K)12. DX11 vs DX12 Scaling13. Clock Speed14. Temperatures15. Acoustics16. Power Consumption17. Overclocking18. Closing Thoughts19. View All Pages

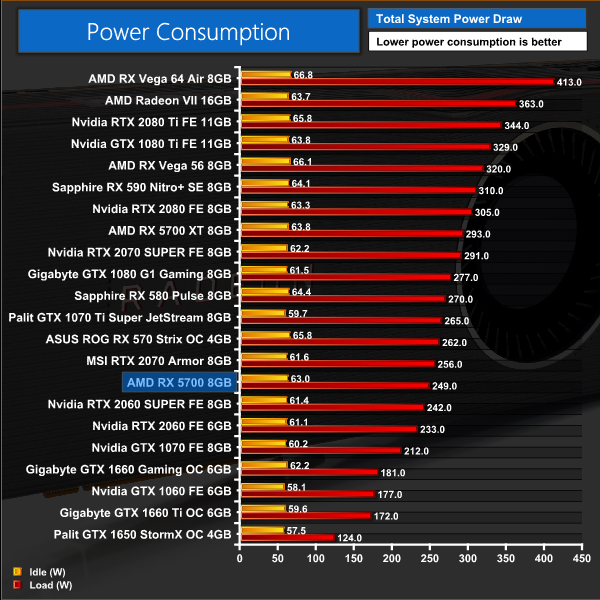

We measure system-wide power draw from the wall while the card is sat idling at the Windows 10 desktop for 30 minutes. A reading under load comes from running the 3DMark Fire Strike Ultra stress test 20 times.

It is great to see AMD much more competitive when it comes to power draw, with system-wide power consumption with the RX 5700 installed hovering around the 250W mark. In fact, its peak reading of 249W is just 7W more than Nvidia's competing RTX 2060 SUPER. This is a far cry from the Vega 56/64 cards, and even RX 570 draws more power despite being significantly slower overall. Times are a-changin', that's for sure.
