Real-time ray tracing is incredibly demanding. The latest graphics cards have dedicated hardware that’s optimized for ray-tracing. The 3DMark DirectX Raytracing feature test measures the performance of this dedicated hardware. Instead of using traditional rendering techniques, the whole scene is ray-traced and drawn in one pass. The result of the test depends entirely on ray-tracing performance. (UL).

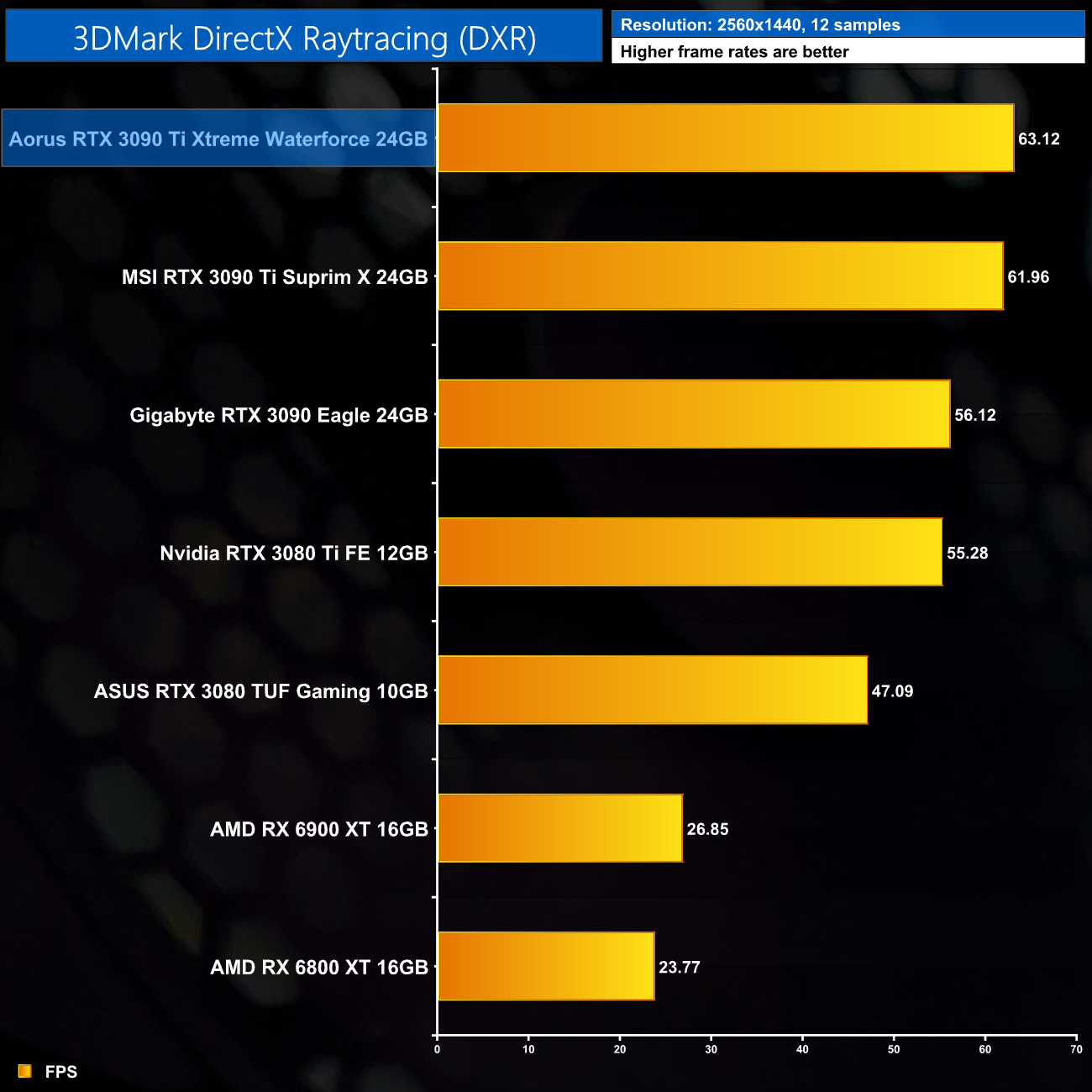

The 3DMark DXR featuretest sees the Xtreme Waterforce sitting right at the top of the chart, delivering an extra 2% performance over the MSI Suprim X. Nvidia GPUs do significantly better than their AMD counterparts in this benchmark too, with the RX 6900 XT over twice as slow here.
