DeepCool CPU Cooler Round-up: 3 AIOs / 2 Air Coolers Tested

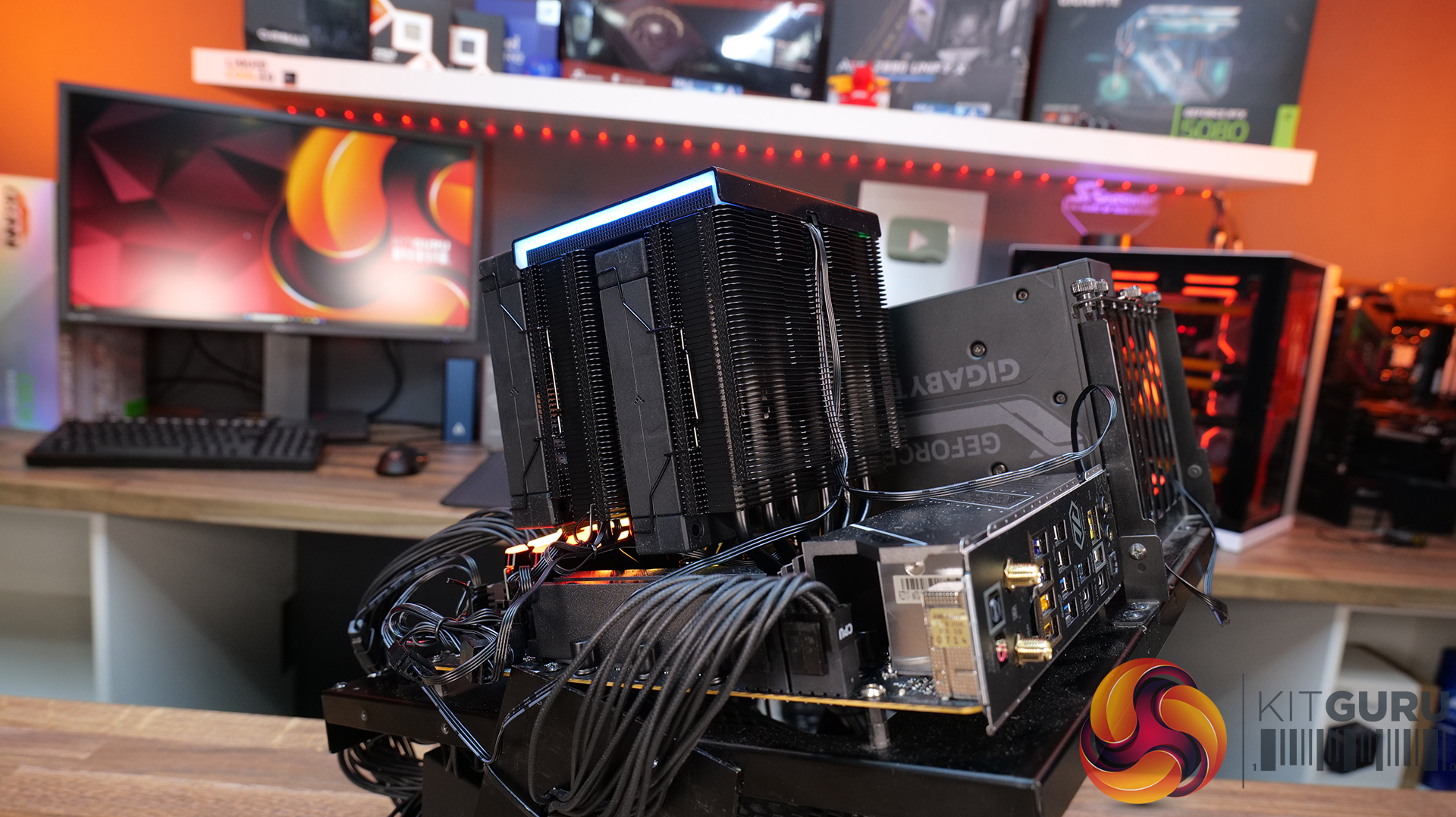

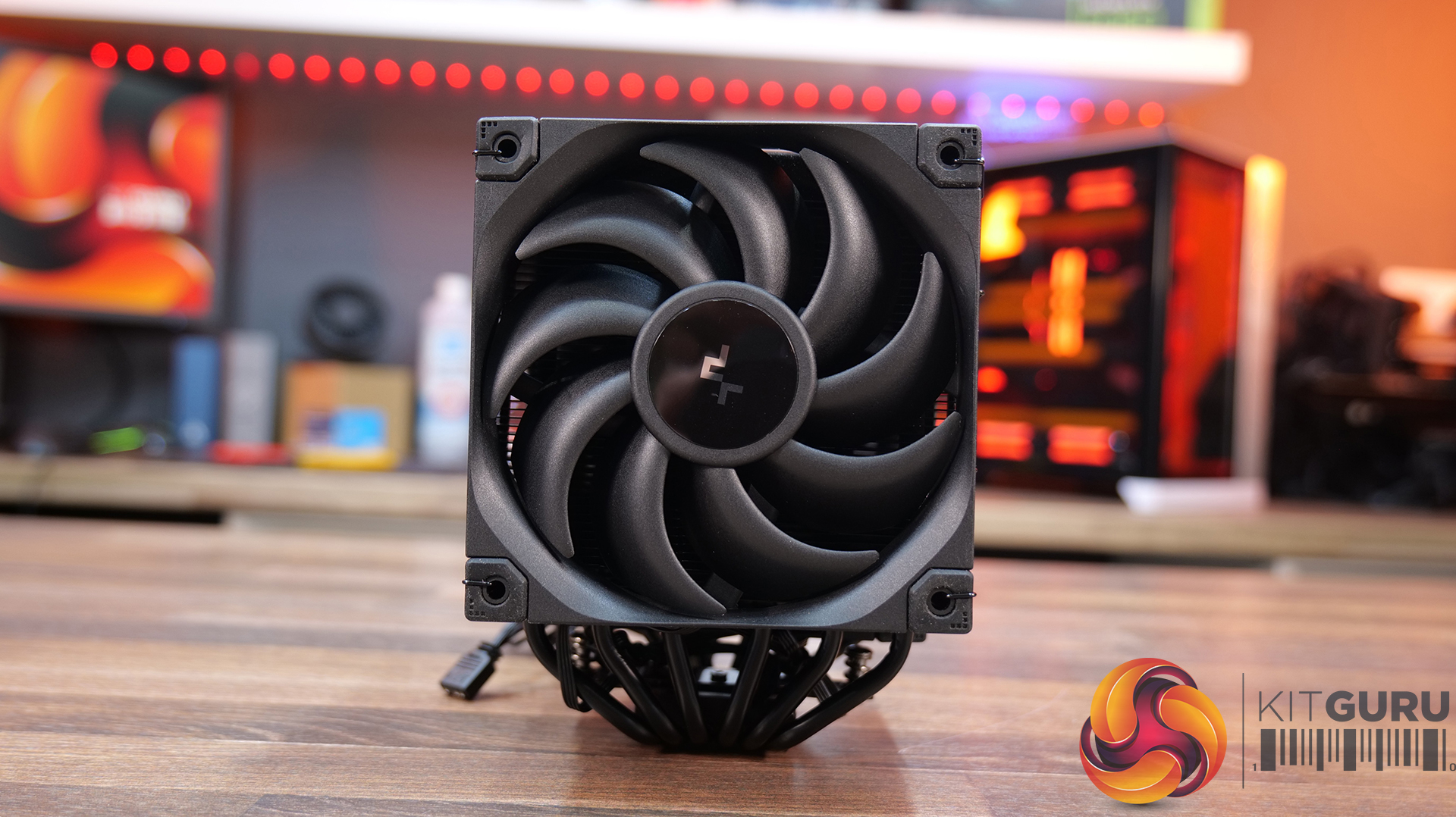

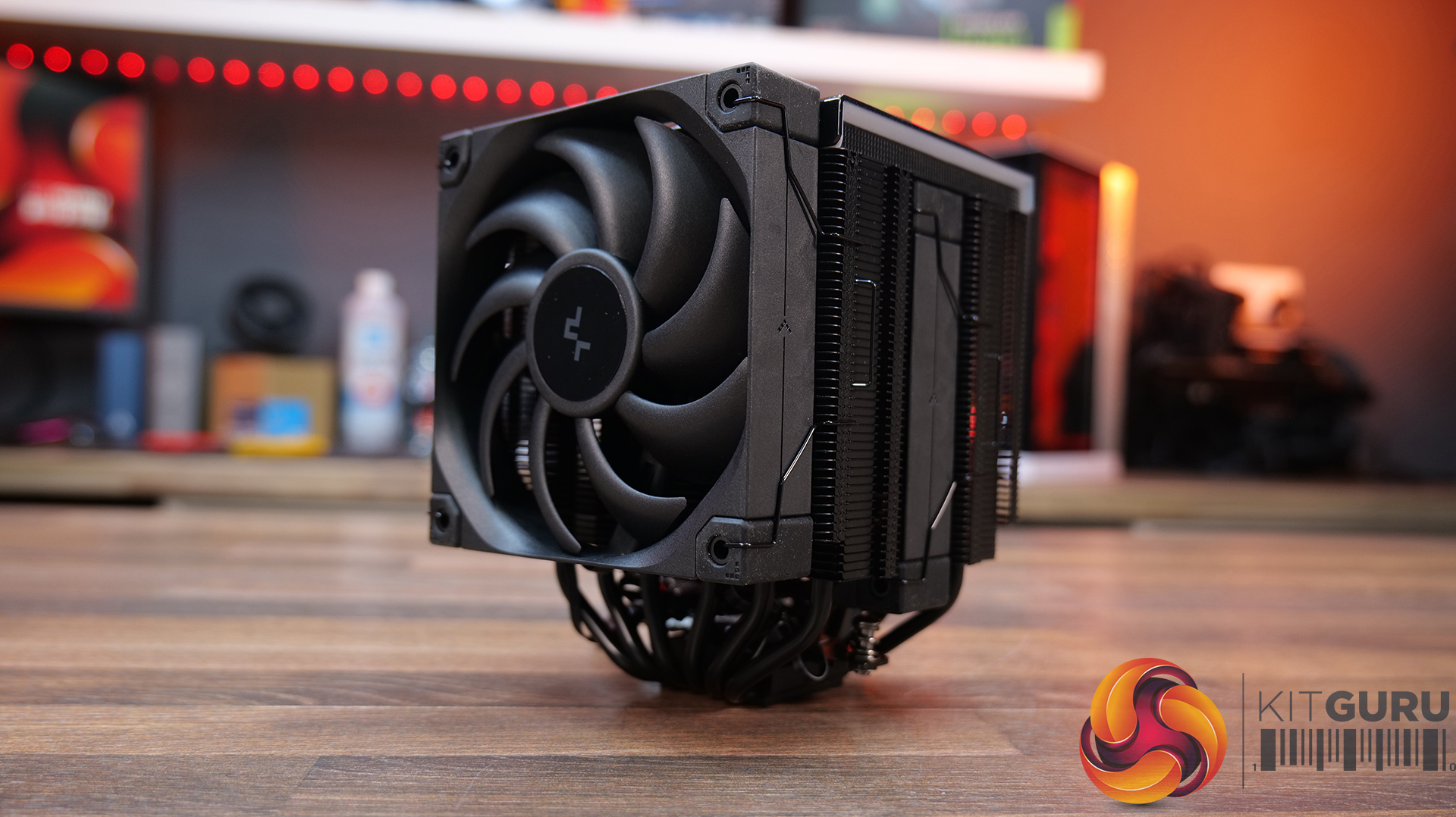

Deepcool AK620 Digital Pro: Currently available to purchase from Computer Orbit priced at £65.00 HERE.

  • The AK620 Digital Pro features several upgrades over the base models, including a new multi-data point screen, visual colour temperature warning and CTT 2.0 heatpipe technology for a step up in both aesthetics and thermal performance.

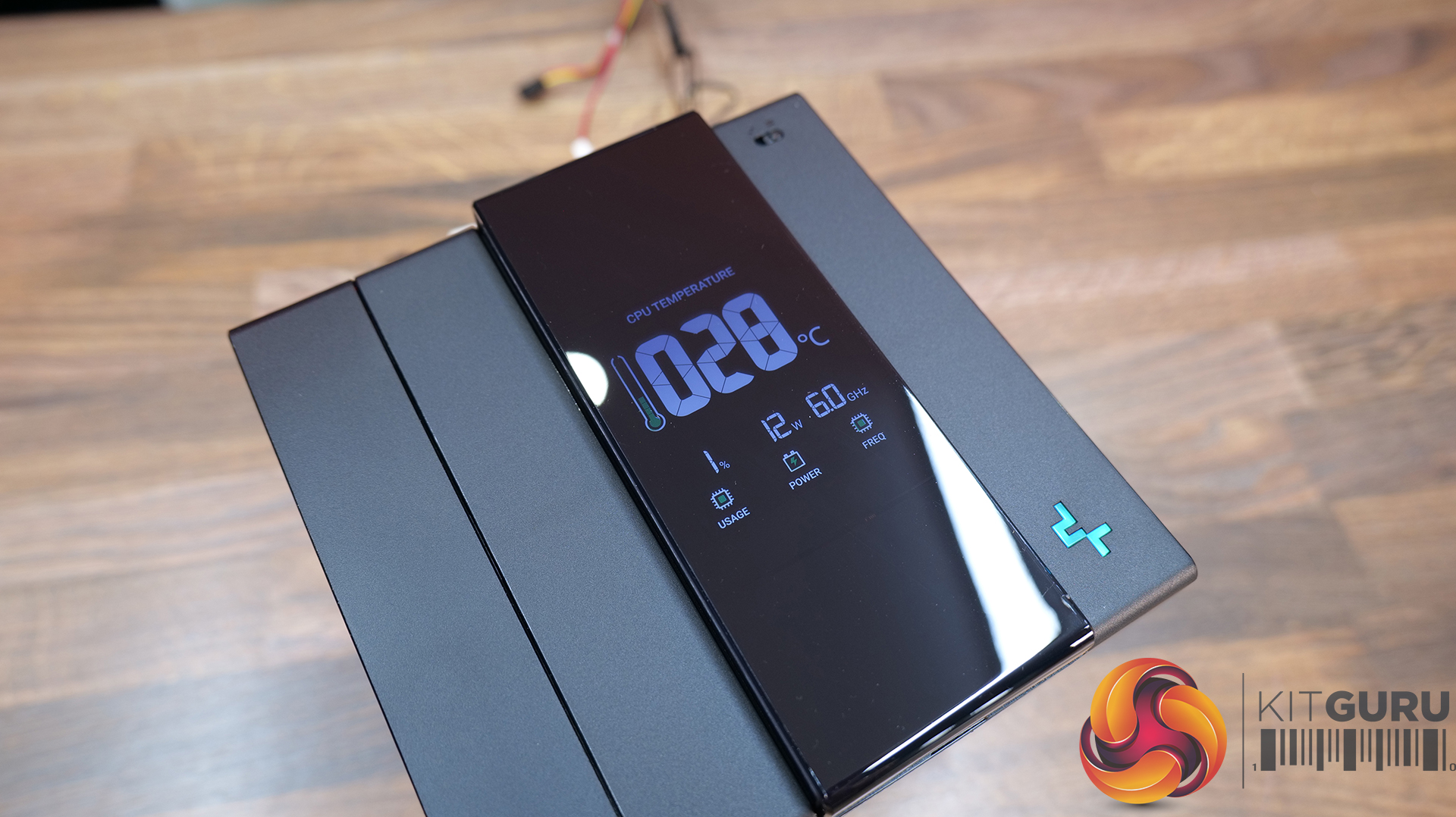

  • An LCD screen mounted on top of the heatsink is enhanced to show more than just CPU temperature, it also includes power consumption, utilisation, frequency and a visual colour-coded temperature alert system. It's controlled by Deepcool DeepCreative software and requires just a single USB 2.0 header connection.
  • AK620 Digital Pro is equipped with Deepcool's latest FT12 SE fans with reliable fluid dynamic bearing, PWM speed control and a blade profile optimised to balance airflow, static pressure and noise output.

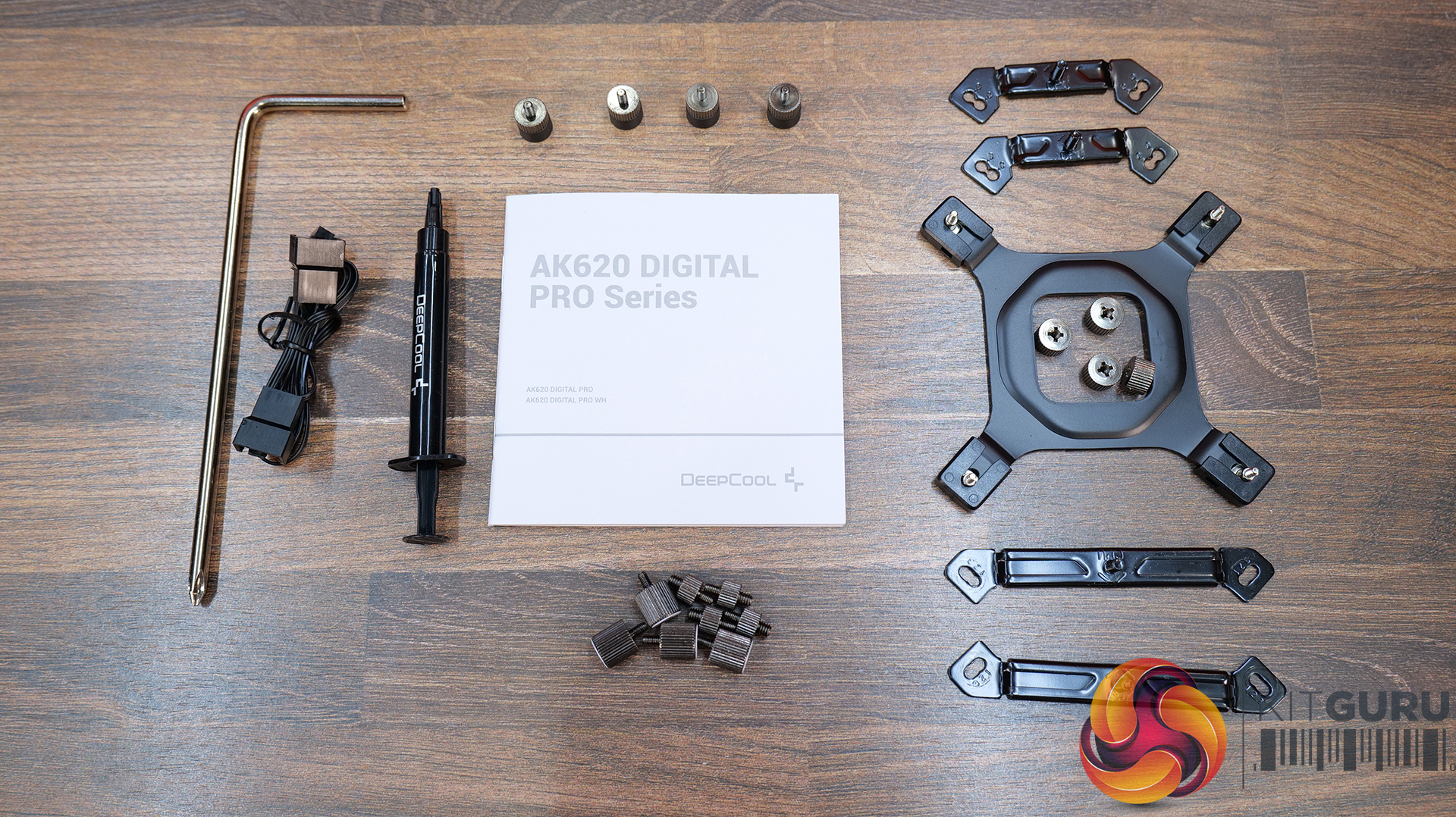

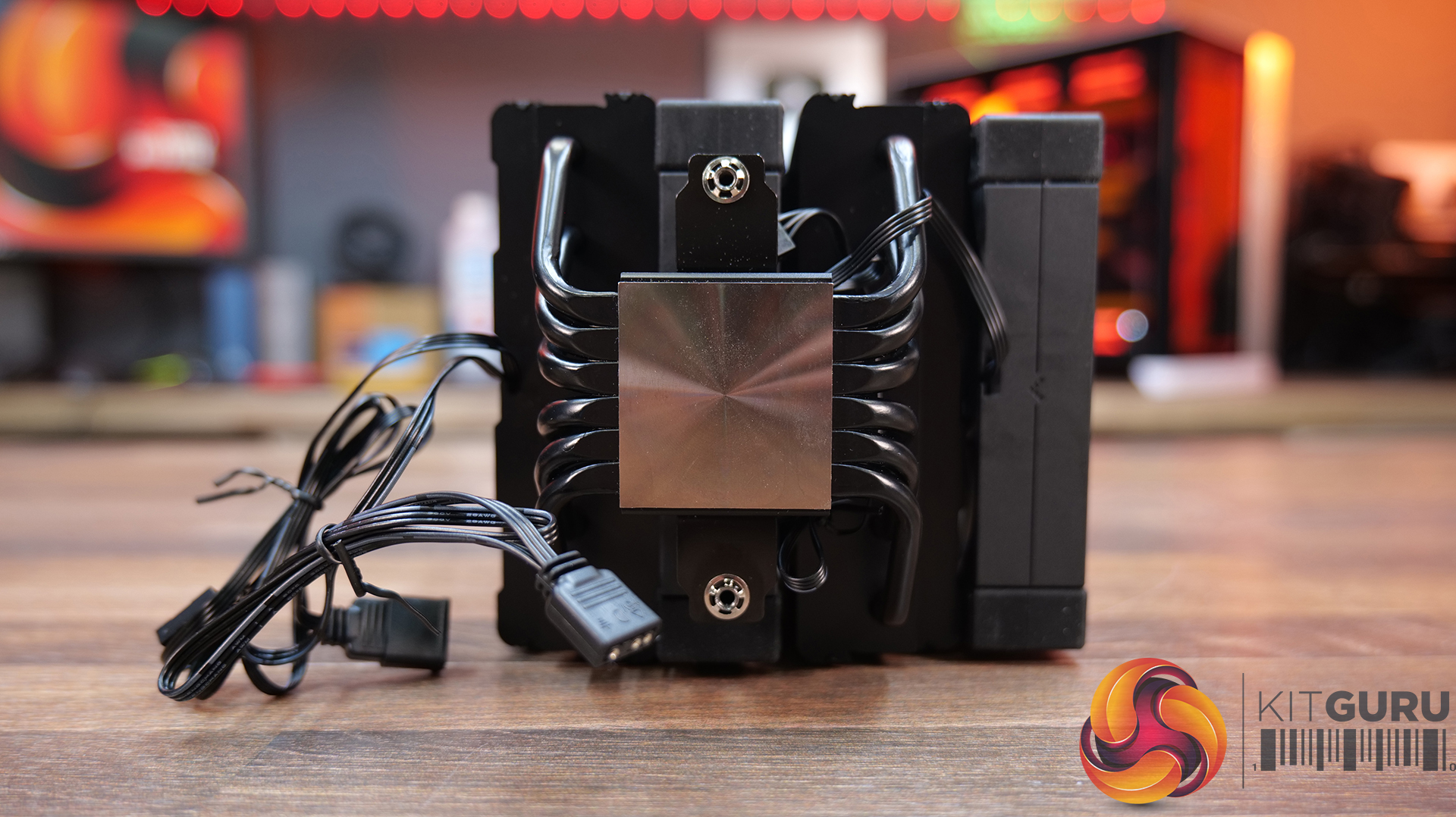

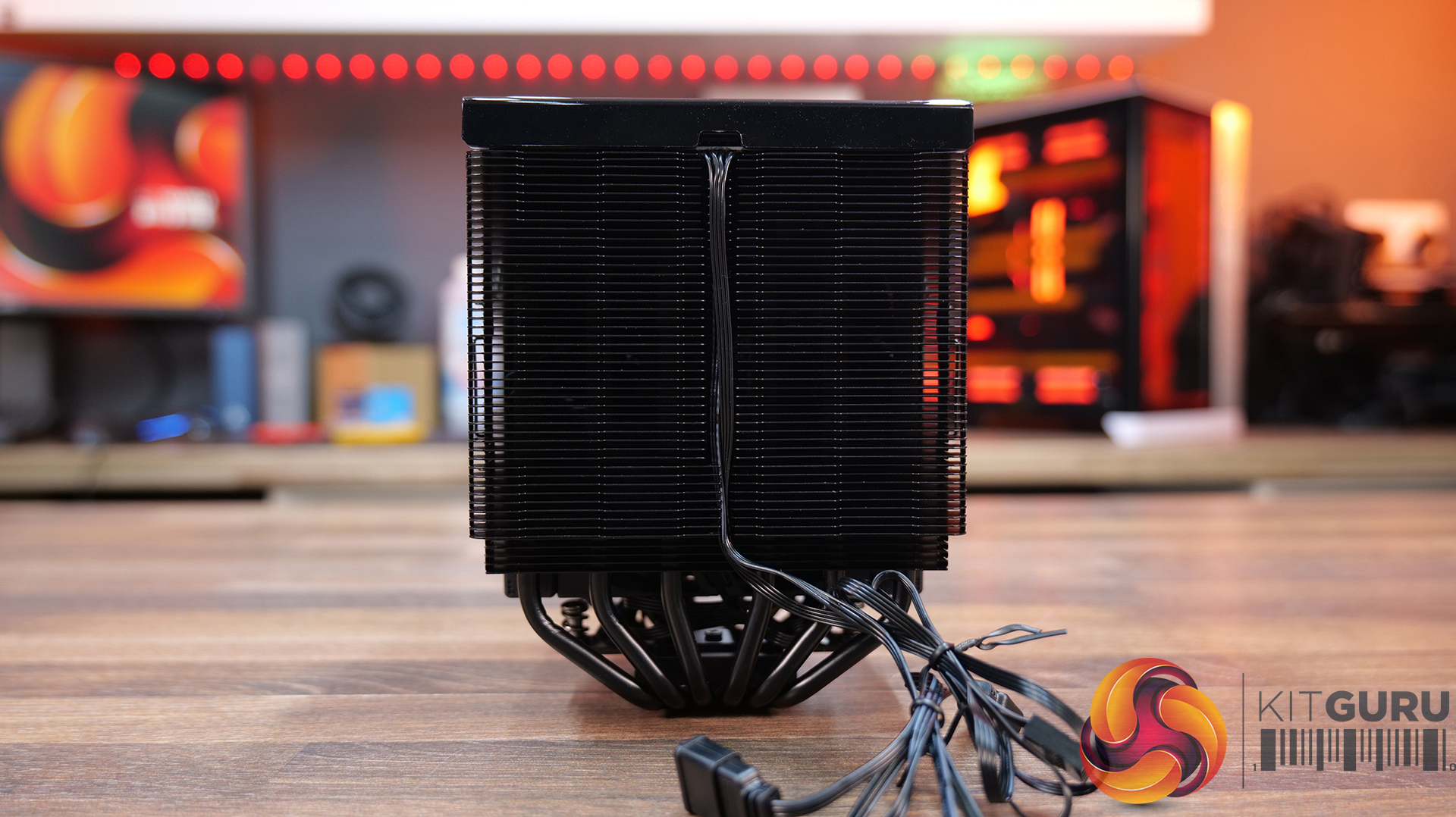

  • The AK620 Digital Pro also includes a hint of ARGB lighting with two subtle strips at the top panel edges, a simplified mounting system for even pressure on both Intel and AMD platforms and it's built with premium quality materials, advanced copper heat pipes and a dense matrix pattern dual tower heat sink.

Specifications

  • CPU Compatibility: Intel LGA1851/1700/1200/1151/1150/1155, AMD AM5/AM4
  • Product Dimensions: 129×138×163 mm(L×W×H)
  • Heatsink Dimensions: 127×110×154 mm(L×W×H)
  • Net Weight: 1491g
  • Heatpipe: Ø6 mm×6 pcs
  • Fan Dimensions: 120×120×25 mm(L×W×H)
  • Fan Speed: 500~1750 RPM±10%
  • Fan Airflow: 89 CFM
  • Fan Air Pressure: 91 mmAq
  • Fan Noise: ≤25 dB(A)
  • Fan Connector: 4-pin PWM
  • Bearing Type: Fluid Dynamic Bearing
  • Fan Rated Voltage: 12 VDC
  • Fan Rated Current: 25A
  • Fan Power Consumption: 3W
  • LED Type: Addressable RGB LED
  • LED Connector: 3-pin(+5V-D-G) and 9-pin USB 2.0
  • LED Rated Voltage: 5 VDC
  • LED Power Consumption: 55W
  • Warranty: 3 Years

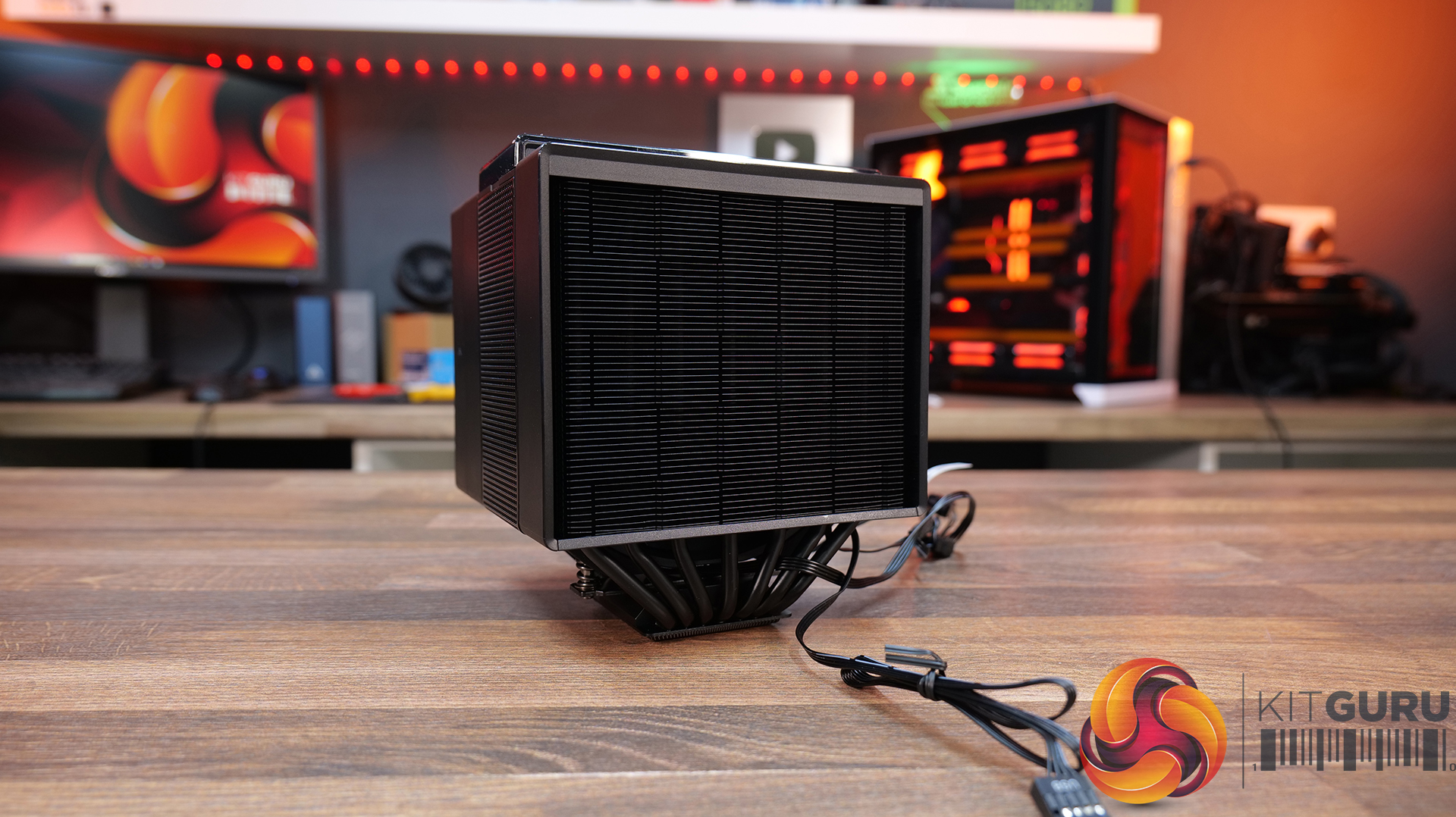

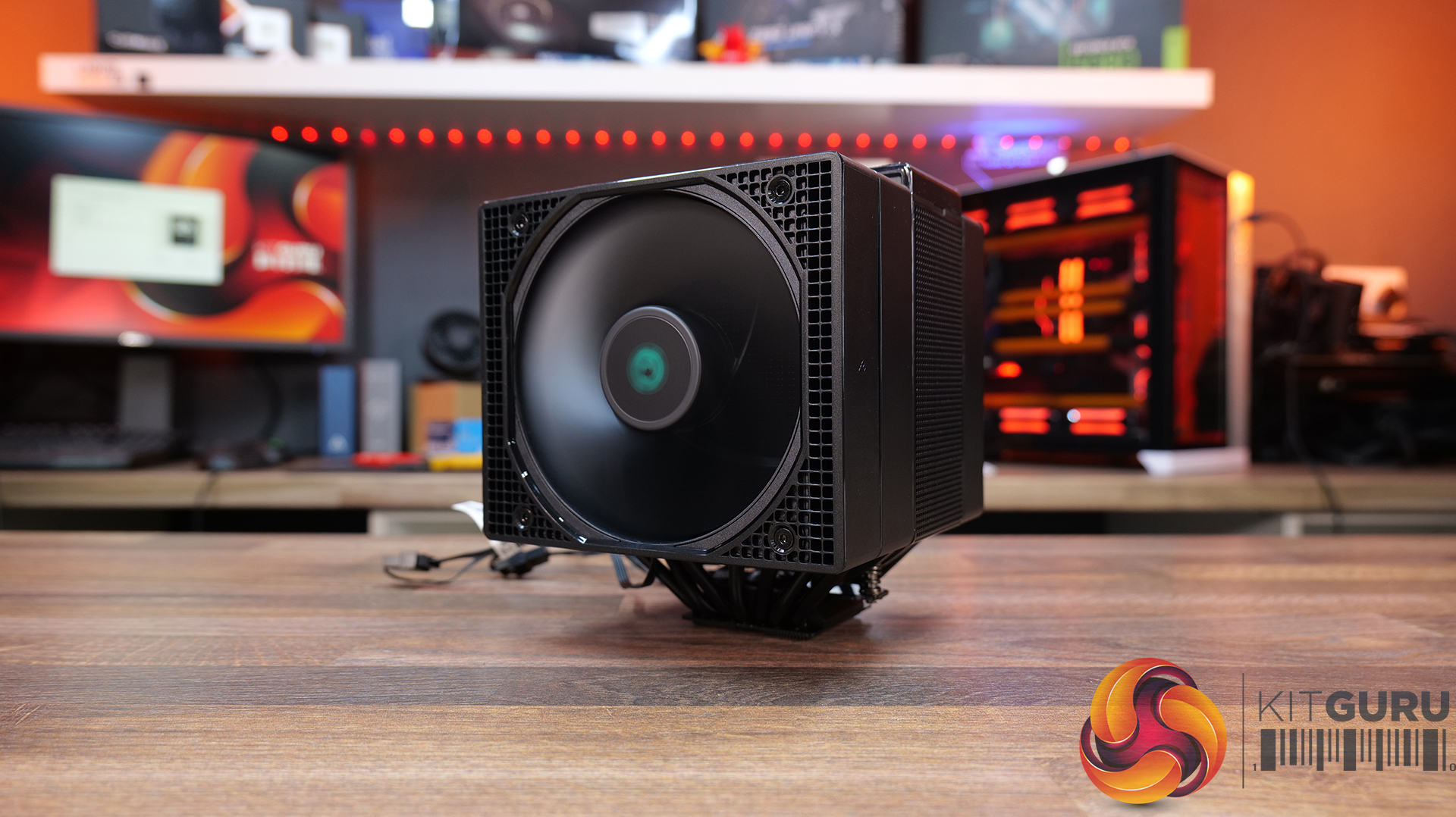

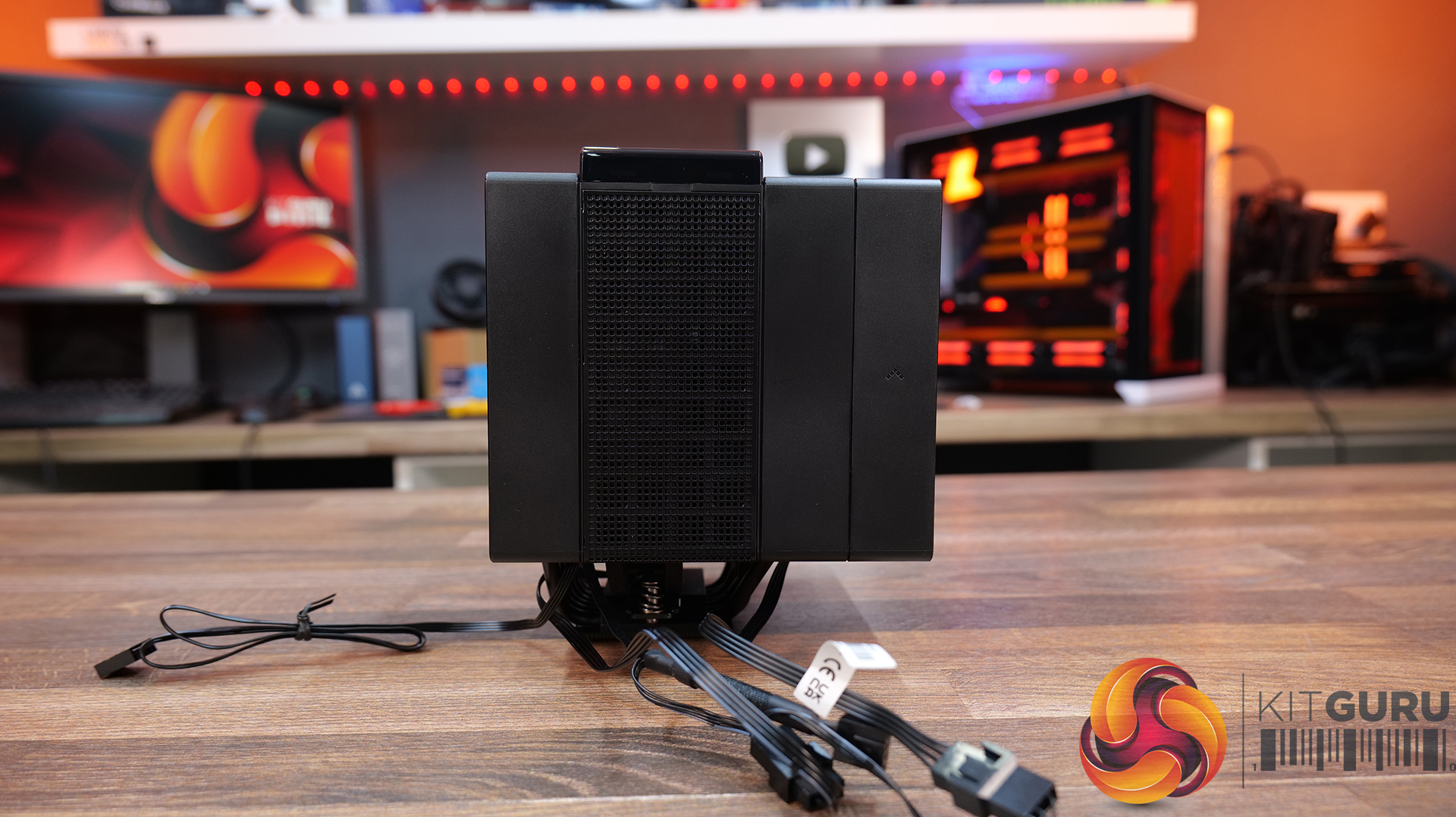

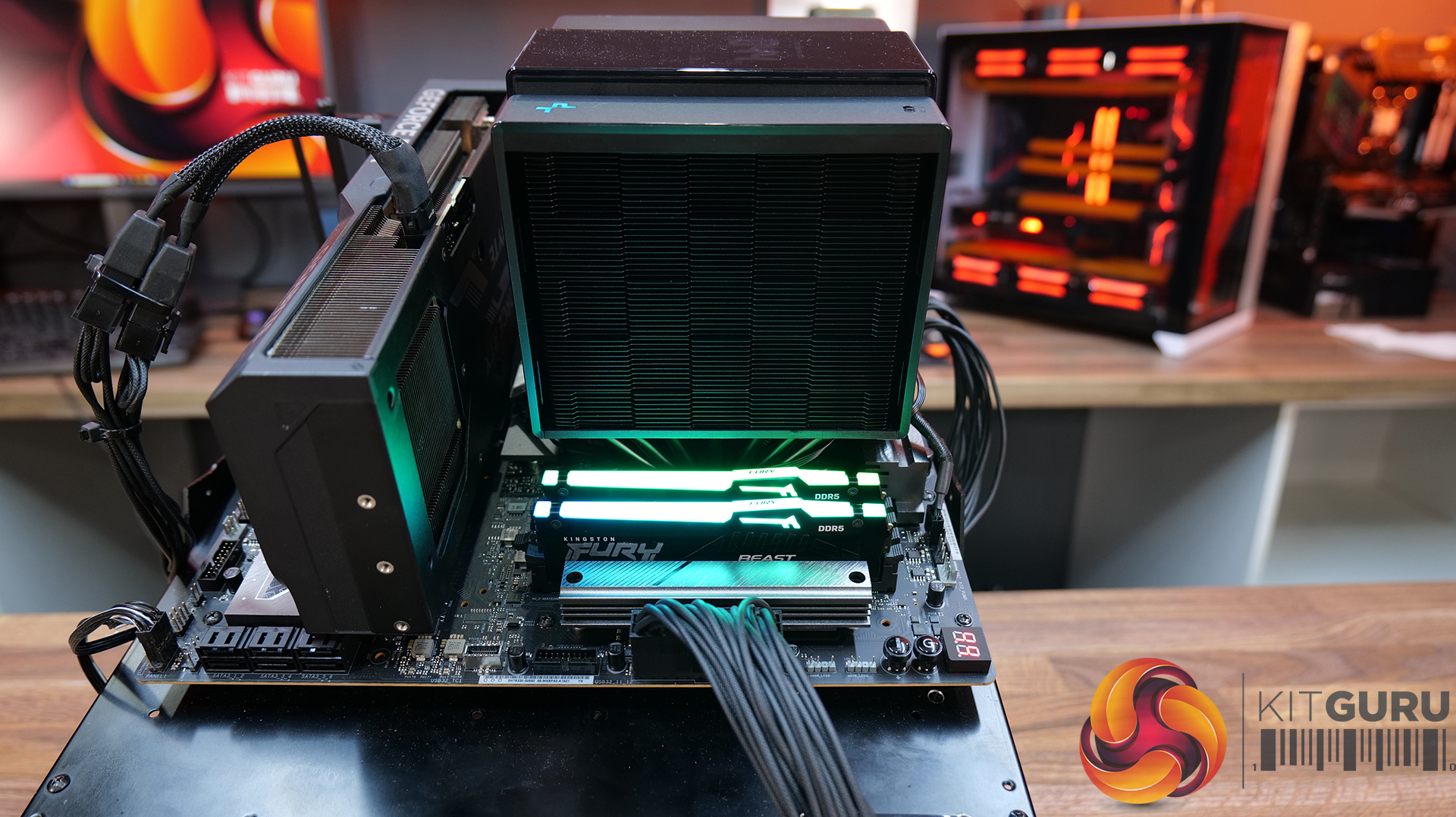

Deepcool Assassin IV VC Vision: Currently available to purchase from Scan priced at £124.99 HERE.

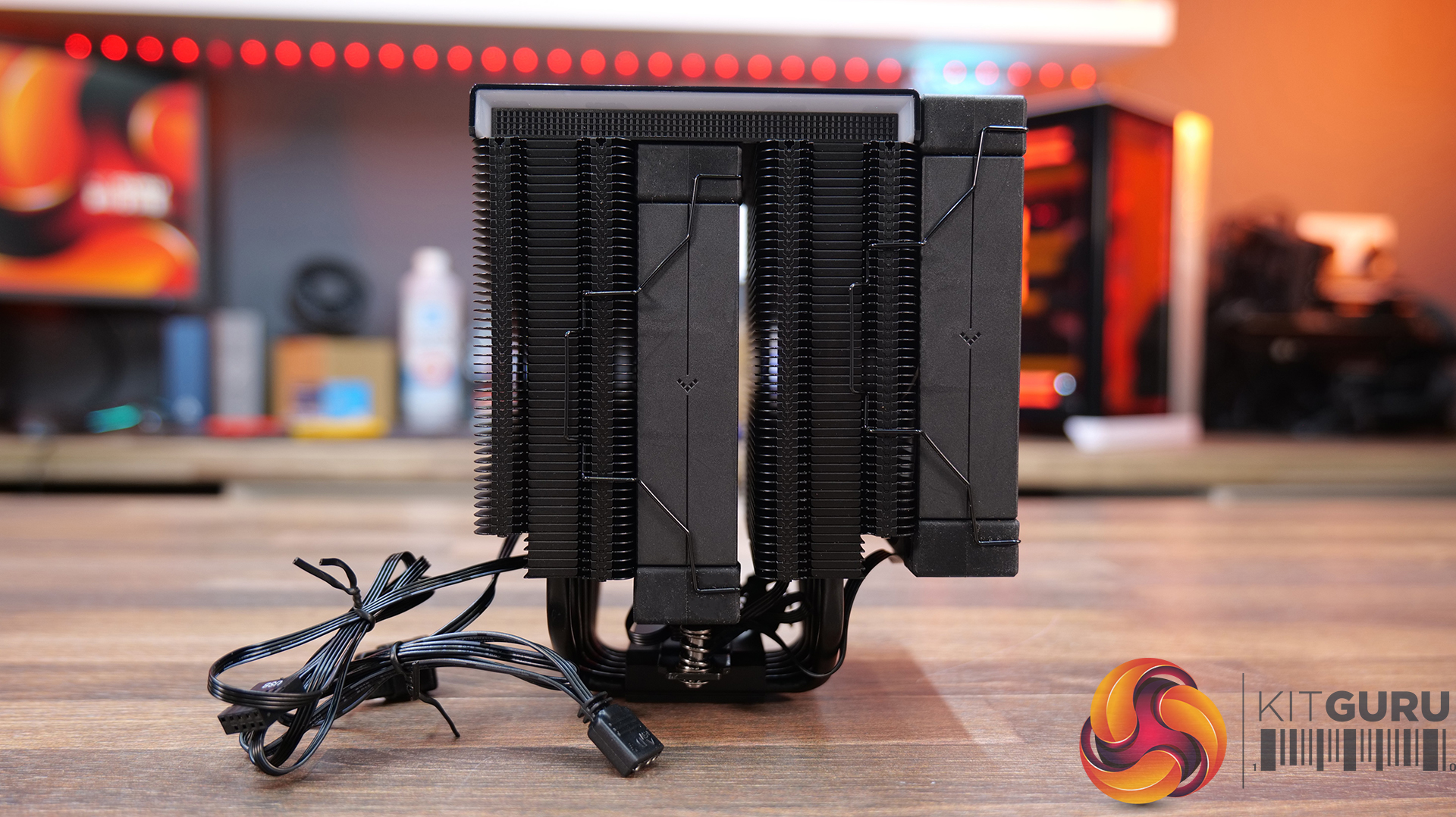

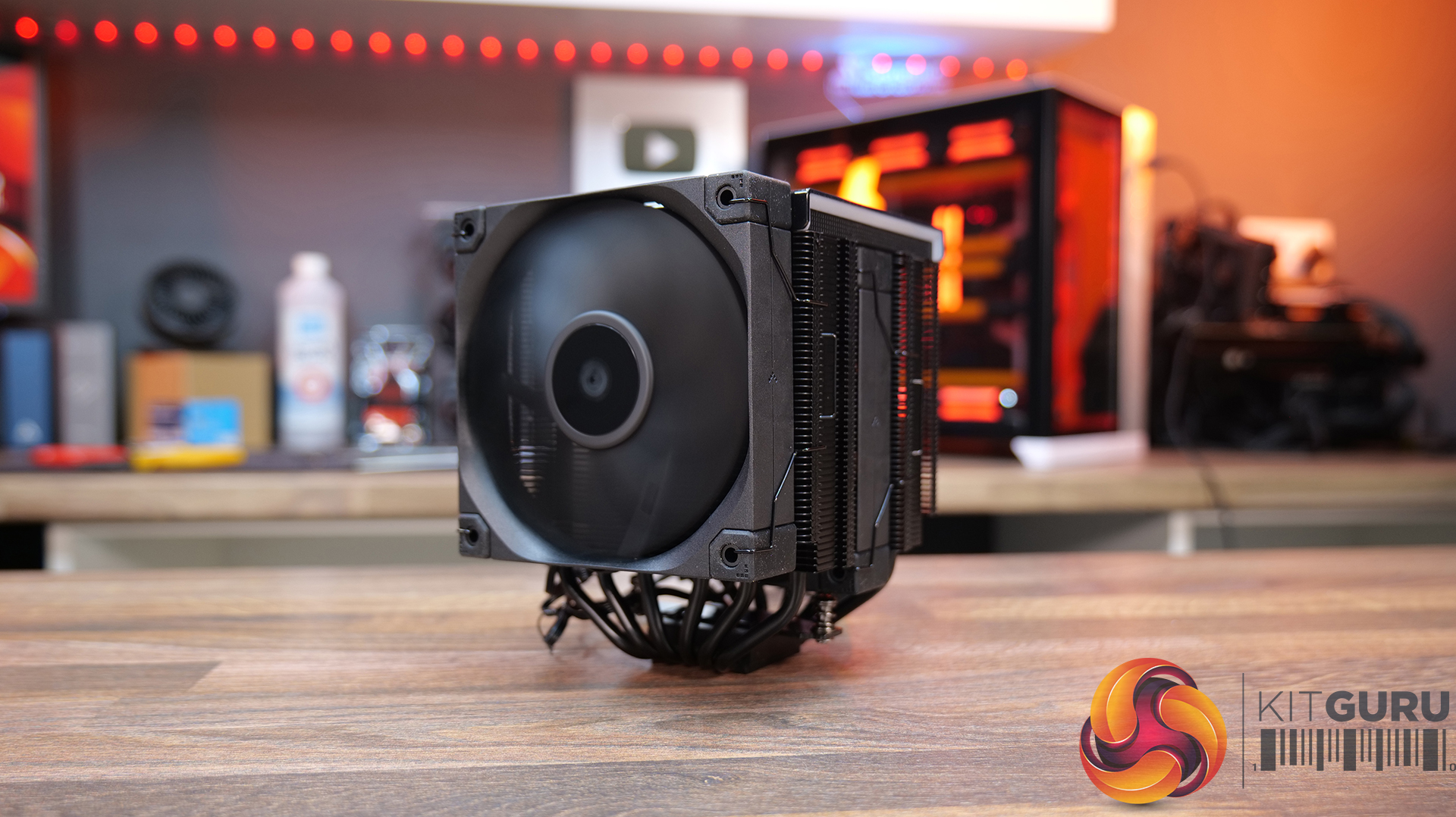

  • The Assassin IV is Deepcool's flagship air cooler, now upgraded with a vapor chamber pushing the max TDP to 300W with a quad-segmented digital display added to make it an aesthetic air cooling powerhouse.

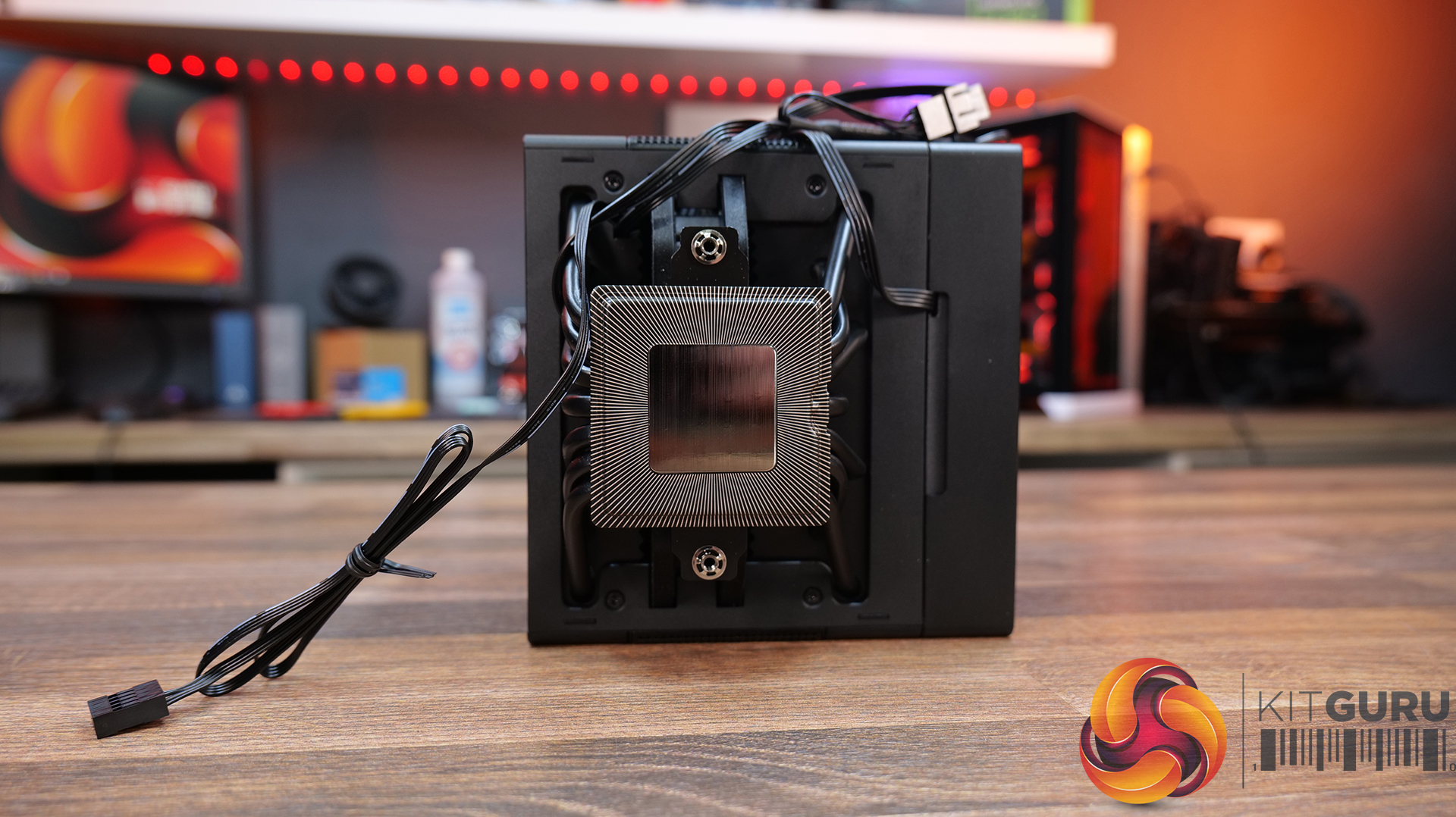

  • A vapor chamber at the base of the Assassin IV VC Vision is essentially a large flattened heatpipe with high thermal conductance. The initial cooling process starts at the vapor chamber where heat is extracted in the planar chamber, sent up the heat pipes and cooled further by the fin stacks.

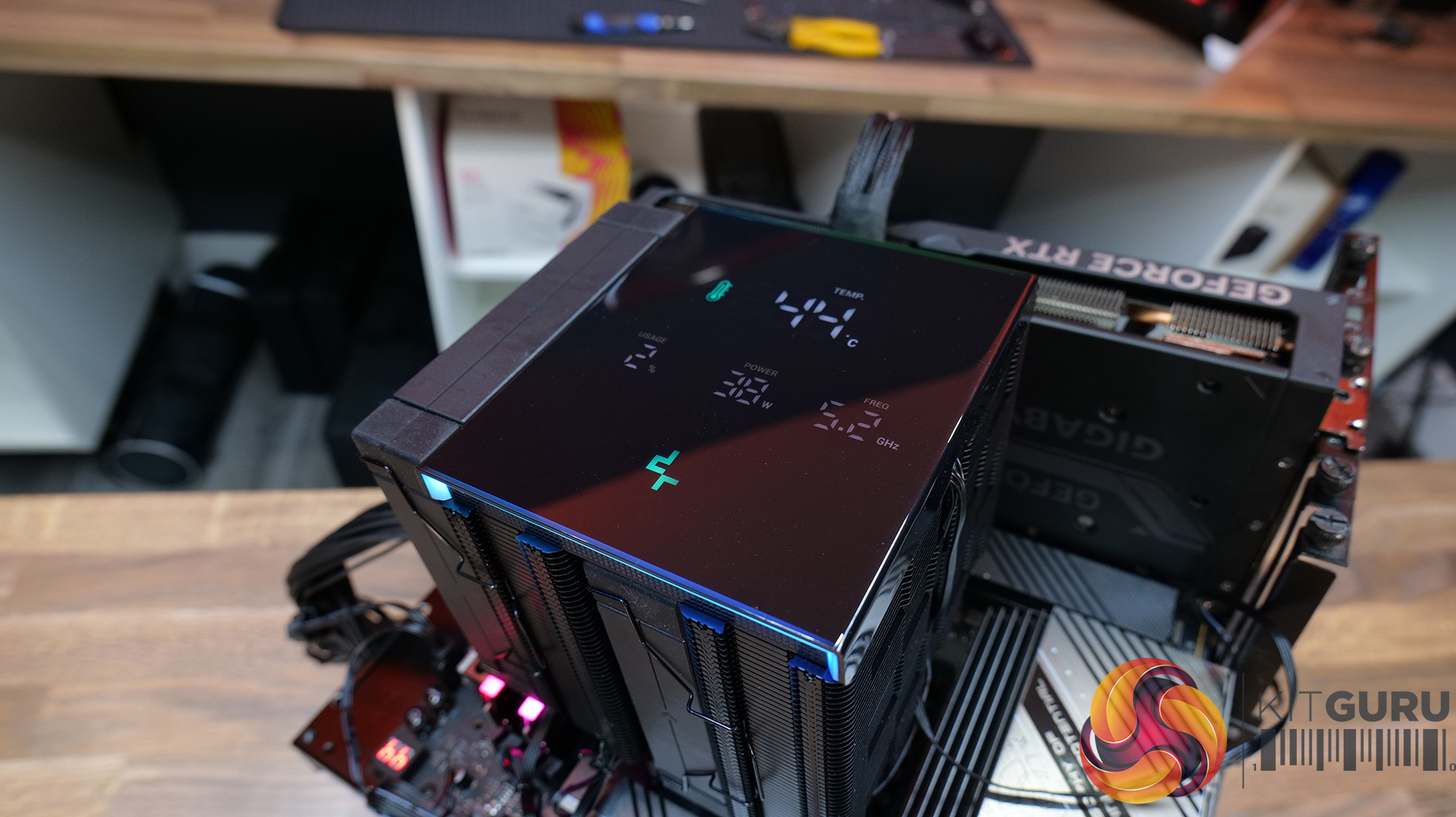

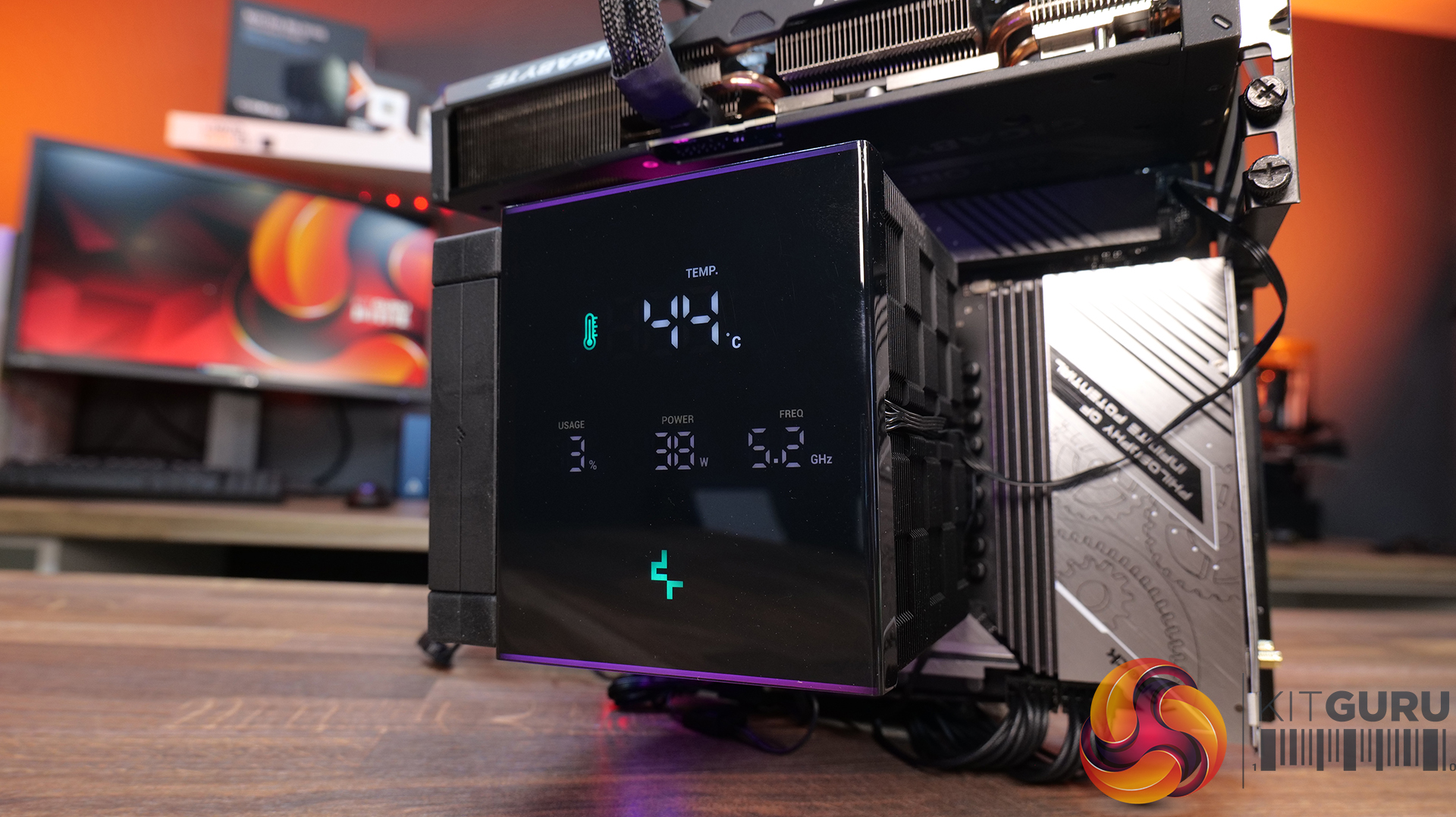

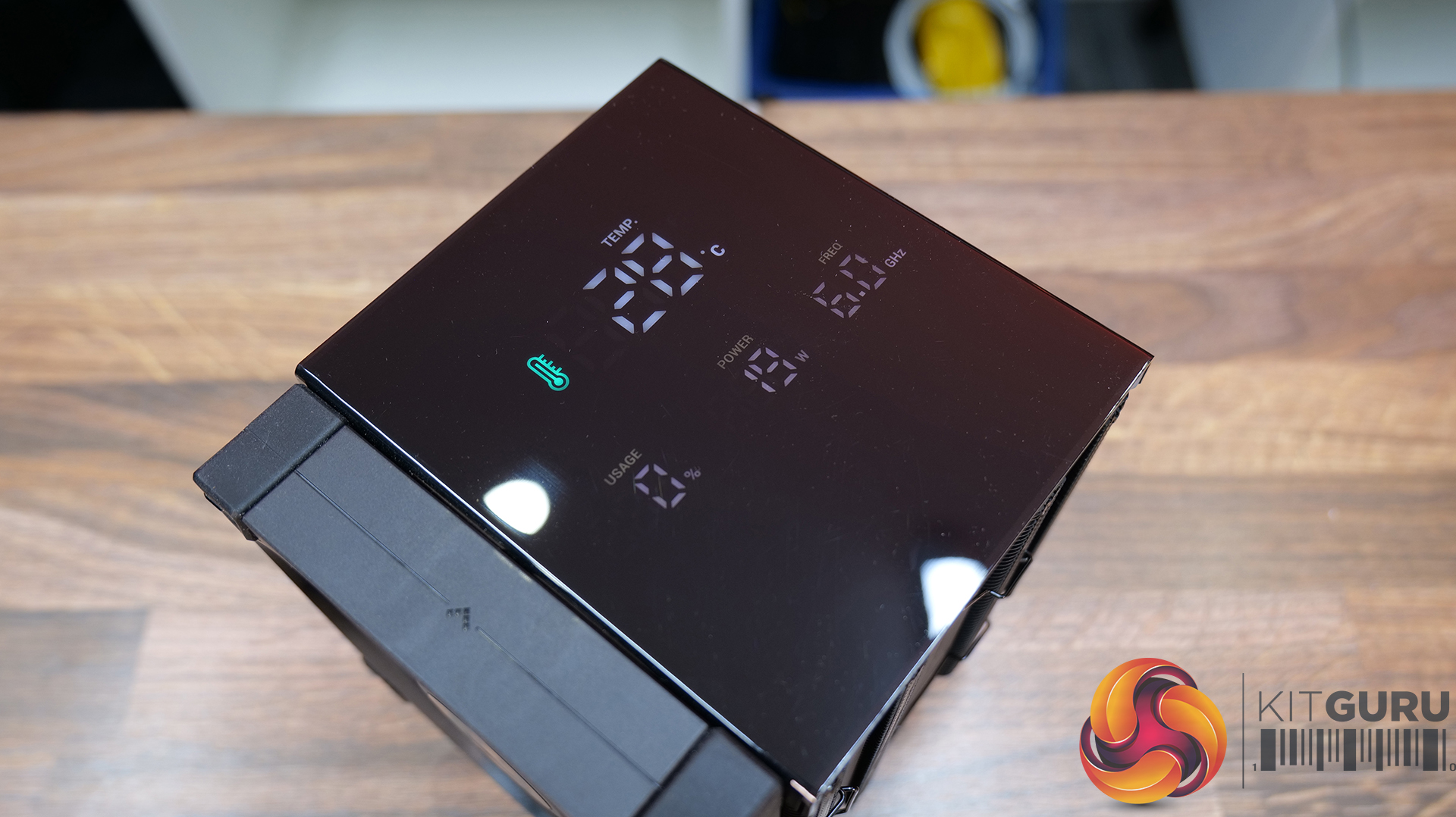

  • The quad-segmented display uses the Deepcool DeepCreative software to allow monitoring of CPU temperature, utilisation, power draw and frequency. The panel attaches magnetically to the top of the cooler for easy installation.

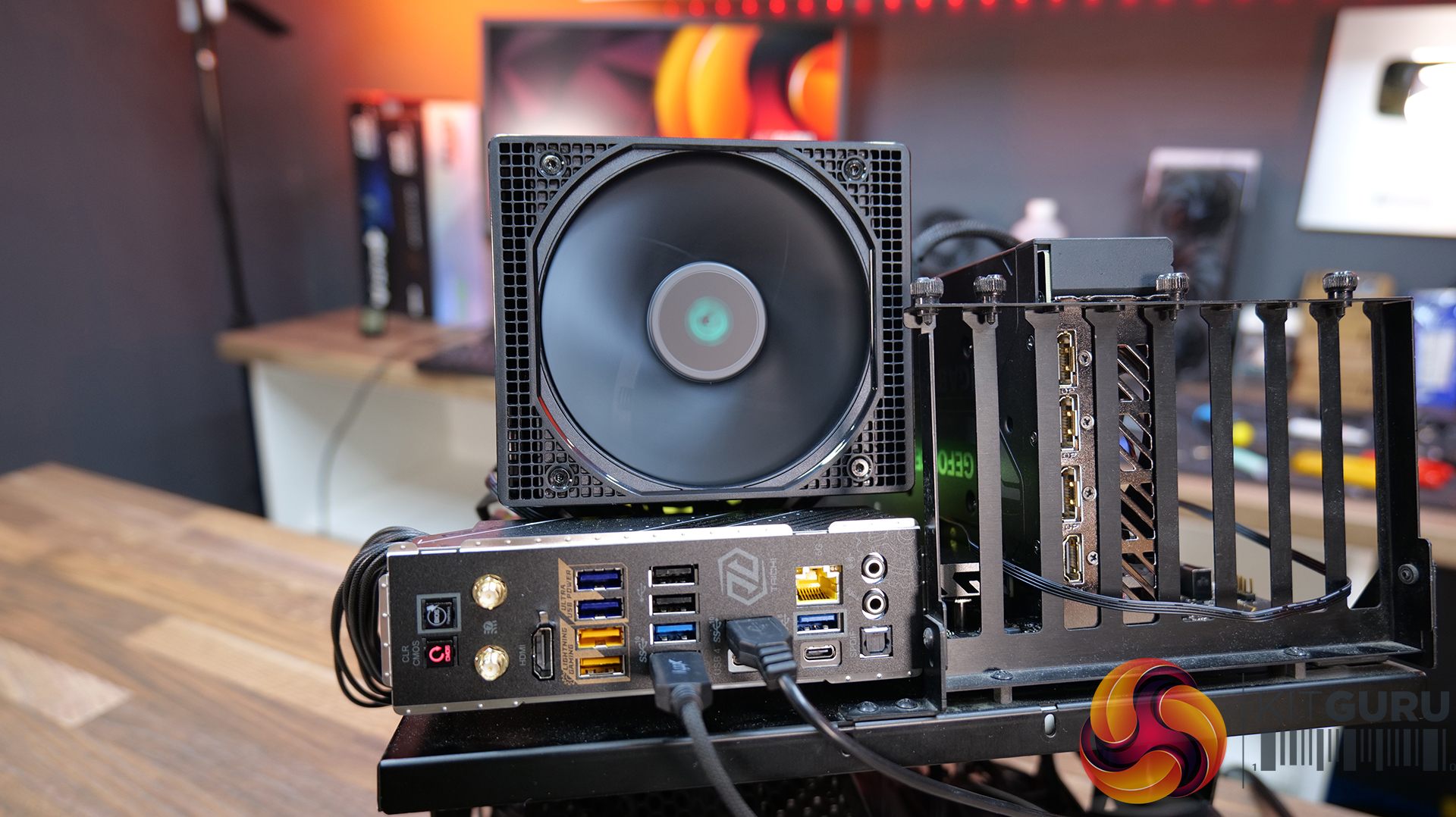

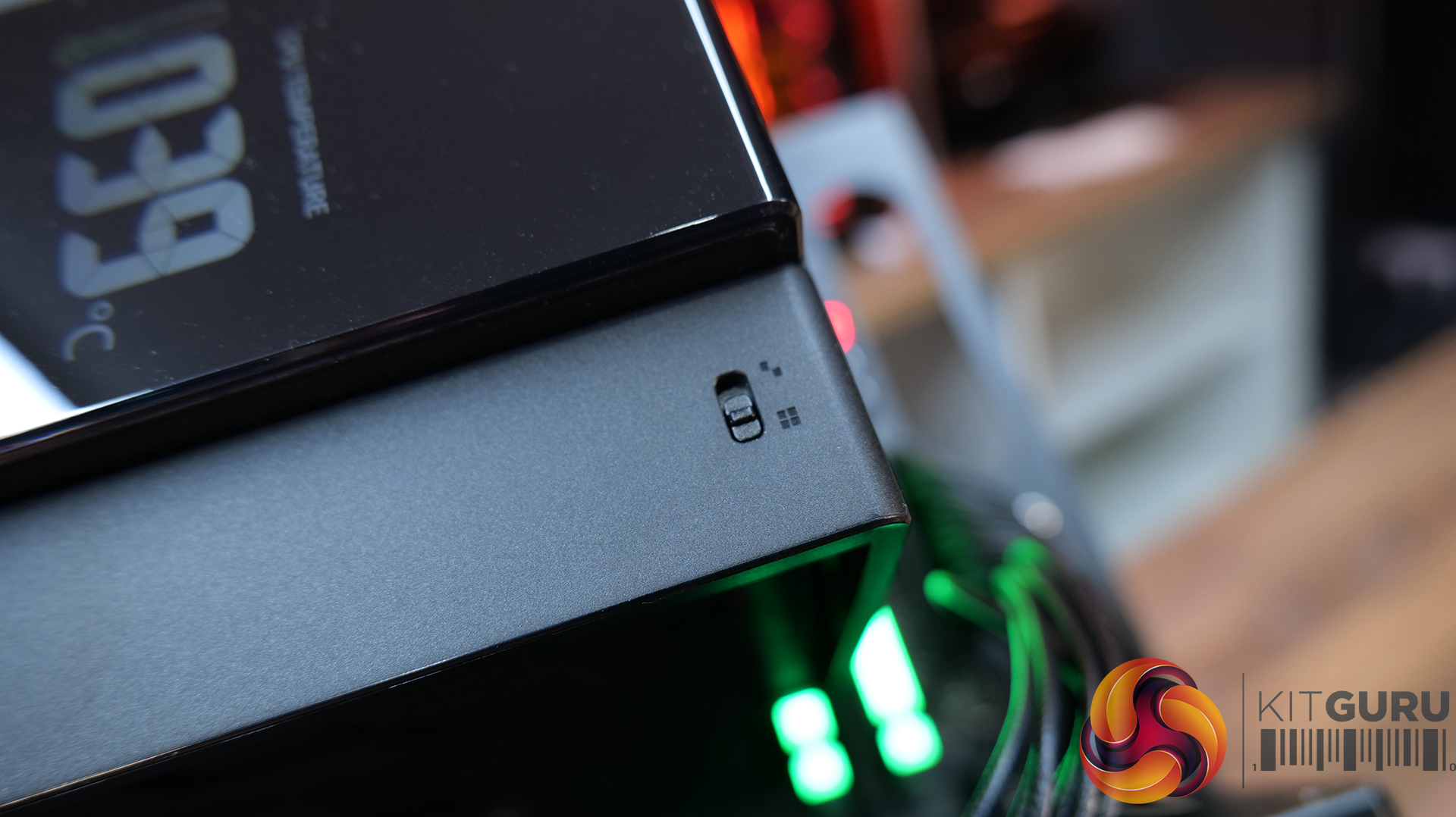

  • A simple switch located on top of the cooler allows the user to quickly swap between low-noise and high-performance fan speed profiles, while the cooler's front-to-back airflow and fan configuration allow for unobstructed RAM clearance.

Specifications

  • CPU Compatibility: Intel LGA1851/1700/1200/1151/1150/1155, AMD AM5/AM4
  • Product Dimensions: 147×144×172 mm(L×W×H)
  • Heatsink Dimensions: 140×110×160 mm(L×W×H)
  • Net Weight: 1780 g
  • Heatpipe: Ø6 mm×7 pcs
  • Fan Dimensions: 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
  • Fan Speed (Performance Mode): 500~1800 RPM±10% / 500~1700 RPM±10%
  • Fan Airflow (Performance Mode): 25 CFM / 58.06 CFM
  • Fan Air Pressure (Performance Mode): 76 mmAq / 2.1 mmAq
  • Overall Noise (Performance Mode): ≤29.3 dB(A)
  • Fan Speed (Quiet Mode): 500~1450 RPM±10% / 500~1350 RPM±10%
  • Fan Airflow (Quiet Mode): 55 CFM / 46.75 CFM
  • Fan Air Pressure (Quiet Mode): 46 mmAq / 1.35 mmAq
  • Overall Noise (Quiet Mode): ≤22.6 dB(A)
  • Fan Connector: 4-pin PWM
  • Bearing Type: Fluid Dynamic Bearing
  • Fan Rated Voltage: 12 VDC
  • Fan Rated Current: 2 A / 0.2 A
  • Fan Power Consumption: 4W / 2.4 W
  • Rated Voltage: 12 VDC
  • Power Consumption (Performance Mode): 8 W
  • Power Consumption(Quiet Mode): 6 W
  • Display Module Rated Voltage: 5 VDC
  • Display Module Rated Current: 08 A±10%
  • Display Module Power Consumption: 4 W
  • Display Area: 6×53.6 mm
  • Warranty: 6 Years
