Hyte X50 Case Review

This Hyte X50 case brings a number of interesting features to the table and then, right at the end, it slightly lets us down. The main thrust of the X50 is the emphasis on curves and superb metalwork, which we like a great deal. The downside is that the X50 cries out for an ARGB light show but is supplied without any fans, and the matching FA12 fans from Hyte are rather dull.

Timestamps

00:00 Start
01:03 First impressions / Pricing
02:28 Removing panels
04:53 A look inside
05:45 The rear
07:00 Fan thoughts
07:58 Installing hardware
10:12 Testing the case / Noise / Temps
11:16 Installing more fans – improvements?
12:21 FInal test configuration – more fans
12:54 Smoke Visualisation tests
13:41 Closing Thoughts

Main features

• Full-Coverage Micro-Mesh serves as a low-pressure low resistance air intake for optimal temps & noise levels
• Patent-pending Louvered Blade Ventilation reduces exhaust impedance while reinforcing chassis rigidity
• Cold-Floor Cooling that keeps your graphics card comfortably cool with up to 3x 120mm extra thick fans
• Structural PSU Canopy with ideal placement for hassle-free cable management
• Massive dual 360mm radiator support on the adjustable front (105mm thick) and side (70mm thick) of the case
• Fits the most powerful GPUs up to 430mm long with ease
• 10 total fan capacity in a compact mid tower profile
• Soft, comfortable, and round
• Tool-less steel front and side panels for quick access
• Spacious and clutter-free interior for all your components
• Adjustable front radiator bracket unlocks wide compatibility and aesthetic tuning for RGB fans
• Seamless colour-matched total coverage silicone grommets & expertly crafted cable routing channels throughout the case
• Hidden front I/O cable routing for uninterrupted visual flow
• Supports simultaneous mounting of 2x 2.5-inch an 1x 3.5-inch drives

Specification:

• Motherboard support: E-ATX up to 270mm, ATX, Micro-ATX, Mini-ITX.
• Power supply support: ATX, SFX-L, SFX.
• Expansion slots: 7.
• Included fans: None.
• Fan mounts: 3x 120mm/140mm front, 3x 120mm side, 3x 120mm floor, 1x 120mm rear.
• Radiator mounts: 360mm front, 360mm side, 120mm rear.
• 5.25-inch optical drive bays: None.
• Internal drive bays: 1x 3.5-inch, 2x 2.5-inch.
• Front I/O ports: 2x USB 3.2 Gen 1×1 Type-A, 1x USB 3.2 Gen 2×2 Type-C, audio.
• Dimensions: 485mm H x 510mm D x 255mm W.

Testing

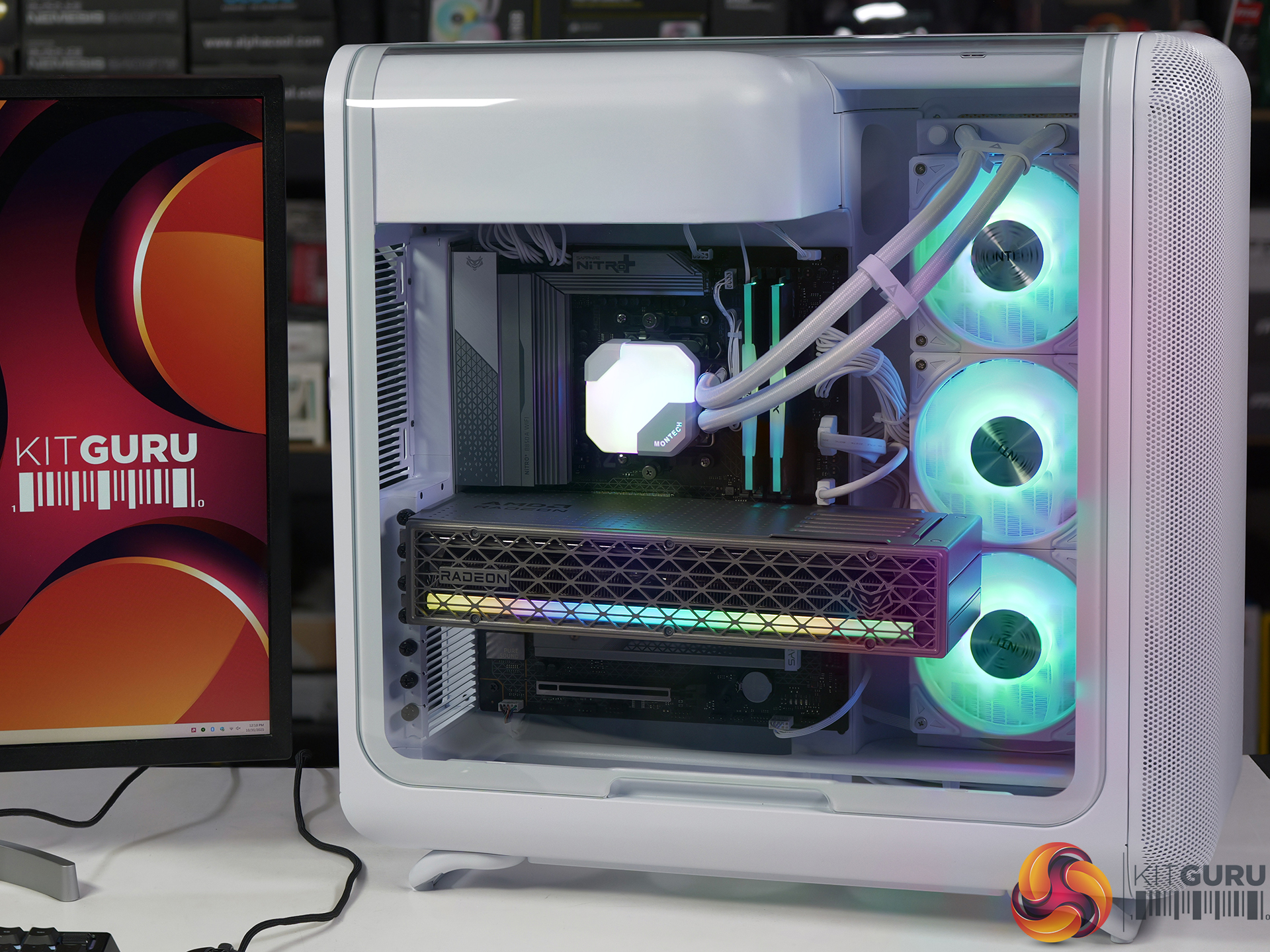

To put this case through its cooling paces we will be using a test system consisting of an AMD Ryzen 7 9800X3D, Sapphire RX 9070 and an SSD. This system allows us to produce a substantial amount of heat and effectively test the Hyte X50‘s cooling capabilities.

Test System:

• Processor: AMD Ryzen 7 9800X3D
• CPU Cooler: Montech HyperFlow ARGB 360
• Motherboard: Sapphire Nitro+ B850A WiFi 7
• Memory: 32GB Adata XPG Lancer RGB DDR5-6000
• Graphics card: Sapphire Nitro+ Radeon RX 9070 16GB
• Power supply: Montech Titan PLA 1000W
• SSD: Crucial T700 Pro Gen 5 M.2 NVMe
• OS: Windows 11

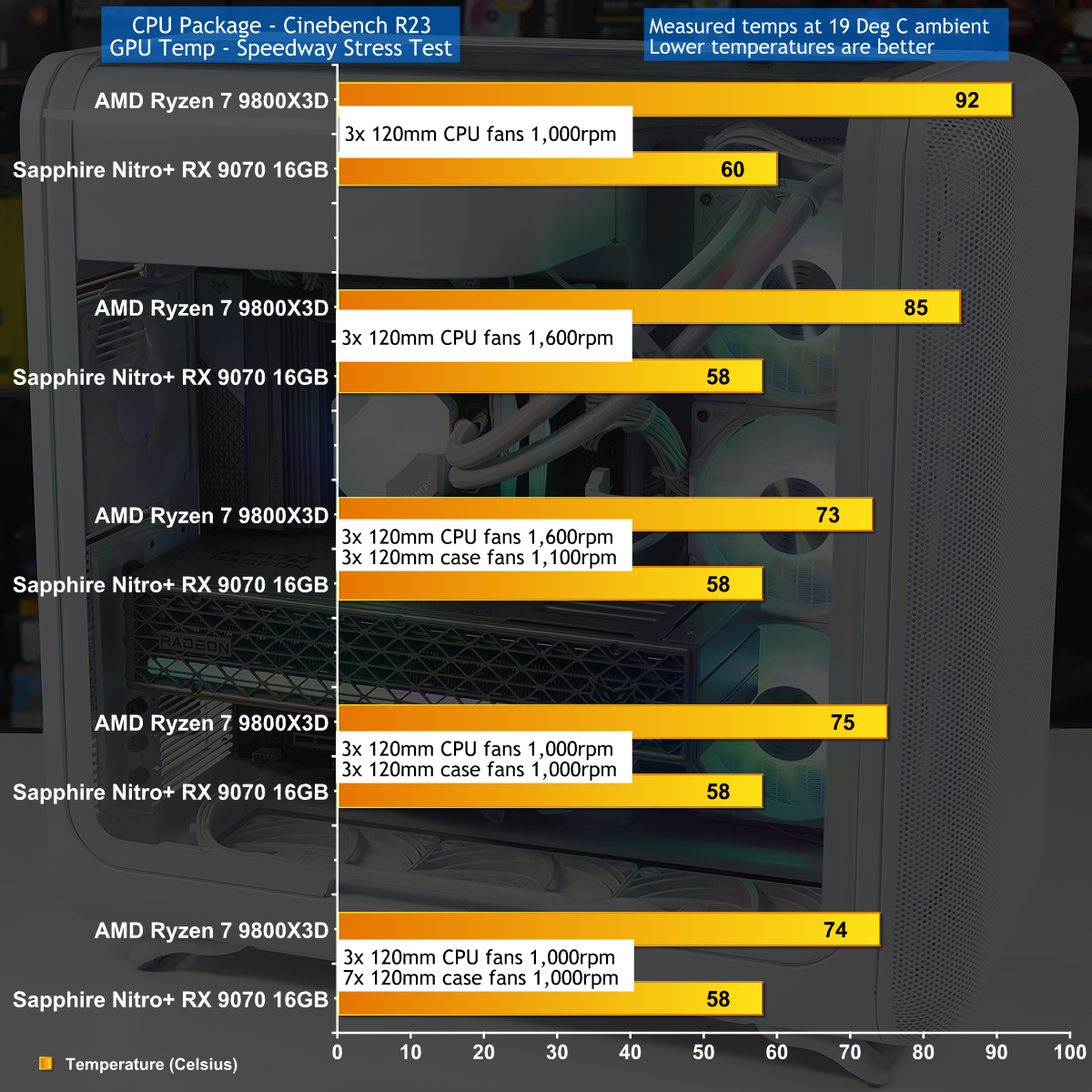

Cooling Performance

Cooling Performance Overview

We chose to install our AIO cooler in the side position, with the fans set to exhaust to the side, as this removes the heat from the CPU as quickly as possible. This leaves the main compartment dedicated to the graphics card and effectively mimics the behaviour of triple-chamber Corsair Air 5400. We found this setup requires the addition of three fans in the front of the case, however adding fans in the floor and rear of the case make very little difference to the test results. Overall we found the Hyte X50 performed well.

Closing Thoughts

Hyte has got the major parts of the X50 absolutely spot-on. We love the curvy looks and the high quality metal work and admire the overall concept hugely. The curious part is that X50 looks tailor-made for RGB lighting yet Hyte does not sell any RGB fans.

In a sense Hyte is the opposite to Corsair where you sometimes feel you are paying for a case so you can then much more for the hardware you put in the case. By contrast with Hyte it feels like you are being left hanging high and dry; here's the case now sort things out for yourself.

This seems like a wasted opportunity as Hyte must surely want to supply an X50 with suitable RGB fans in the floor, front and rear of the case that maximum the visual impact while reducing building time for the customer. The Hyte X50 comes close to being a great product but instead ends up merely being good.

You can buy the Hyte X50 for £149.99 from OCUK HERE.

Pros:

• Gorgeous curvy styling.
• High quality metal work.
• Excellent potential for really good cooling.

Cons:

• No fans included so budget for three with the X50 Air and seven with the X50.
• No support for rear connection motherboards.
• Cable management is rather basic.

KitGuru says: The Hyte X50 looks superb and comes close to being very, very good or even great.
